LG ARN G Series Quick start guide

OWNER’S &
INSTALLATION MANUAL
AIR
CONDITIONER
www.lg.com
Copyright © 2017 - 2020 LG Electronics Inc. All Rights Reserved.
Please read this installation manual completely before installing the
product. Installation work must be performed in accordance with the
national wiring standards by authorized personnel only. This equipment shall
be provided with a supply conductor complying with the national regulation.
Original instruction (R410A/R32)
[Representative] LG Electronics Inc. EU Representative : LG Electronics European Shared
Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands
[Manufacturer] LG Electronics Inc. Changwon 2nd factory 84, Wanam-ro,
Seongsan-gu, Changwon-si, Gyeongsangnam-do, KOREA
This manual is the simplified version of original manual.
You can obtain the original manual from www.lg.com.
MFL70280701
Rev.08_072120
ENGLISH ITALIANO ESPAÑOL

2IMPORTANT SAFETY INSTRUCTIONS
ENGLISH

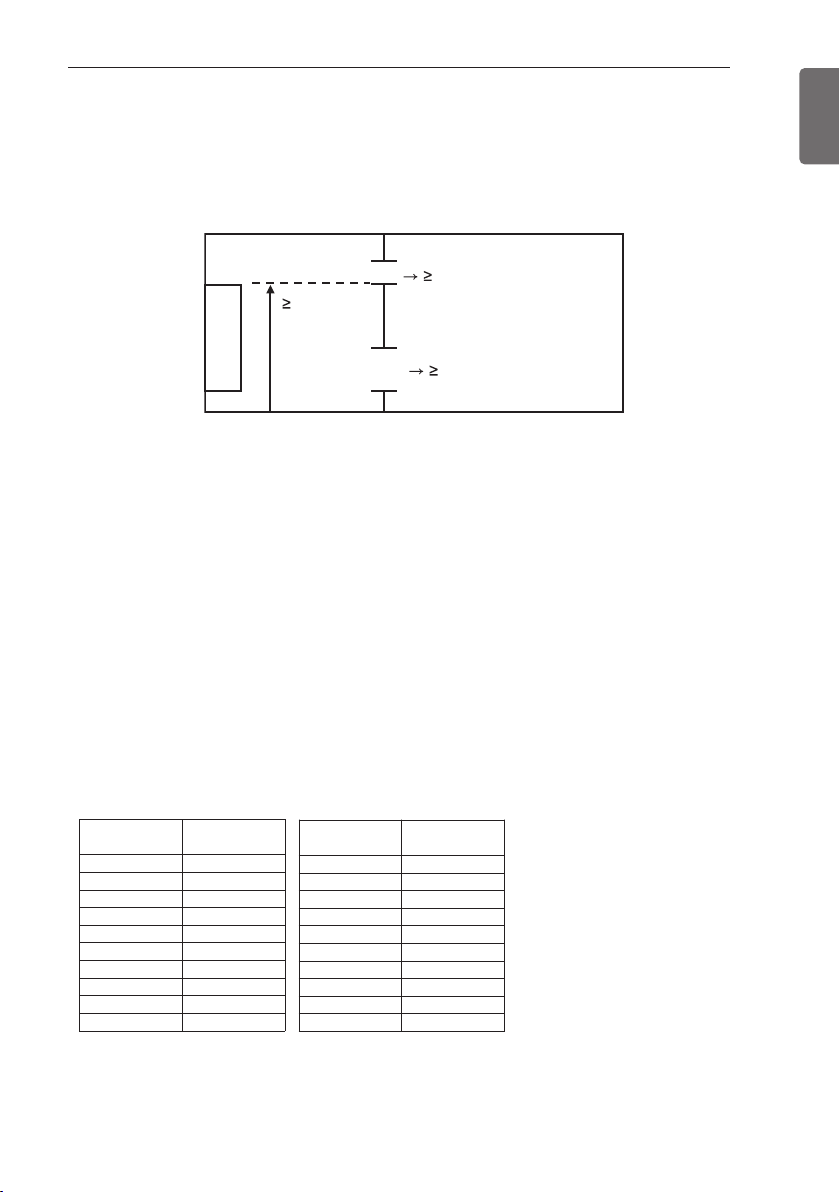

Total amount of replenished
refrigerant in refrigerant facility (kg)
Capacity of smallest room where
indoor unit is installed (m3)
Refrigerant
concentration
(kg/m3)
=
Limiting concentration: 0.44 kg/m3(R410A)
- Product Name : Air conditioner
- Model Name :
- Additional Information : serial number is
refer to the barcode on the product.
- Max Allowable water temperature
High side : 80 °C / Low side : 10 °C
(ARNH***Gxy# series)
- Allowable water pressure
~ 0.98 MPa (0.3~10 kg f/cm2)
(ARNH***Gxy# series)
Product information
Product Sales Name Model Factory Name
ARNa***Gxy# series
a = U(DC Inverter and H/P and C/O) ,
H(Hydro Kit)
x = Chassis Name
y = Combinations of functions
*** = Numeric; (Cooling capacity)
# = Numeric; (Series No)
Airborne Noise Emission
The A-weighted sound pressure emitted by
this product is below 70 dB.
The noise level can vary depending on the
site.
The figures quoted are emission level and are
not necessarily safe working levels.
Whilst there is a correlation between the
emission and exposure levels, this cannot be
used reliably to determine whether or not
further precautions are required.
Factor that influence the actual level of
exposure of the workforce include the
characteristics of the work room and the other
sources of noise, i.e. the number of
equipment and other adjacent processes and
the length of time for which an operator
exposed to the noise. Also, the permissible
exposure level can vary from country to
country.
This information, however, will enable the
user of the equipment to make a better
evaluation of the hazard and risk.
Limiting concentration
Limiting concentration is the limit of Freon gas
concentration where immediate measures
can be taken without hurting human body
when refrigerant leaks in the air. The limiting
concentration shall be described in the unit of
kg/m3(Freon gas weight per unit air volume)
for facilitating calculation.

SAFETY INSTRUCTIONS 3
ENGLISH
SAFETY INSTRUCTIONS
The following symbols are displayed on indoor and outdoor units.
WARNING
• Installation, repairs or breakdown made by unqualified
persons can result in hazards to you and others.
• The information contained in the manual is intended for use
by a qualified service technician familiar with safety
procedures and equipped with the proper tools and test
instruments.
• Failure to carefully read and follow all instructions in this
manual can result in equipment malfunction, property
damage, personal injury and/or death.
• Compliance with national gas regulations shall be observed.
!
Read the precautions in this manual
carefully before operating the unit.
This appliance is filled with
flammable refrigerant. (for R32)
This symbol indicates that the
Operation Manual should be read
carefully.
This symbol indicates that a service
personnel should be handling this
equipment with reference to the
Installation Manual.
WARNING
This indicates that the failure to follow the instructions can cause
serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can cause
the minor injury or damage to the product.
This symbol is displayed to indicate matters and operations
that can cause risk.
Read the part with this symbol carefully and follow the
instructions in order to avoid risk.
!
!
!
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect operation
of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.

4SAFETY INSTRUCTIONS
ENGLISH
Installation
• Have all electric work done by a licensed electrician according
to "Electric Facility Engineering Standard" and "Interior Wire
Regulations" and the instructions given in this manual and
always use a special circuit.
- If the power source capacity is inadequate or electric work is
performed improperly, electric shock or fire may result.
• Compliance with national gas regulations shall be observed.
• Ask the dealer or an authorized technician to install the air
conditioner.
- Improper installation by the user may result in water
leakage, electric shock, or fire.
• Always ground the product.
- There is risk of fire or electric shock.
• Ducts connected to an appliance shall not contain an ignition
source. (for R32)
• Always install a dedicated circuit and breaker.
- Improper wiring or installation may cause fire or electric
shock.
• For re-installation of the installed product, always contact a
dealer or an Authorized Service Center.
- There is risk of fire, electric shock, explosion, or injury.
• Do not install, remove, or re-install the unit by yourself
(customer).
- There is risk of fire, electric shock, explosion, or injury.
• Do not store or use flammable gas or combustibles near the
air conditioner.
- There is risk of fire or failure of product.
• Use the correctly rated breaker or fuse.
- There is risk of fire or electric shock.
• Prepare for strong wind or earthquake and install the unit at
the specified place.
- Improper installation may cause the unit to topple and result
in injury.
• Do not install the product on a non-parallel or defective
installation stand.
- It may cause injury, accident, or damage to the product.
• Use a vacuum pump or Inert(nitrogen) gas when doing
leakage test or air purge. Do not compress air or Oxygen and
do not use Flammable gases. Otherwise, it may cause fire or
explosion.

SAFETY INSTRUCTIONS 5
ENGLISH
- There is the risk of death, injury, fire or explosion.
• When installing and moving the air conditioner to another site,
do not charge it with a different refrigerant from the
refrigerant specified on the unit.
- If a different refrigerant or air is mixed with the original
refrigerant, the refrigerant cycle may malfunction and the
unit may be damaged.
• Do not reconstruct to change the settings of the protection
devices.
- If the pressure switch, thermal switch, or other protection
device is shorted and operated forcibly, or parts other than
those specified by LGE are used, fire or explosion may
result.
• Ventilate before operating air conditioner when gas leaked
out.
- It may cause explosion, fire, and burn.
• Securely install the cover of control box and the panel.
- If the cover and panel are not installed securely, dust or
water may enter the outdoor unit and fire or electric shock
may result.
• If the air conditioner is installed in a small room, measures
must be taken to prevent the refrigerant concentration from
exceeding the safety limit when the refrigerant leaks.
- Consult the dealer regarding the appropriate measures to
prevent the safety limit from being exceeded. Should the
refrigerant leak and cause the safety limit to be exceeded,
hazards due to lack of oxygen in the room could result.
• The appliance shall be stored in a well-ventilated area where
the room size corresponds to the room area as specified for
operation. (for R32)
• The appliance shall be stored in a room without continuously
operating ignition sources (for example: open flames, an
operating gas appliance or an operating electric heater.)
• Keep any required ventilation openings clear of obstruction.
• Mechanical connections shall be accessible for maintenance
purposes.
• To prevent the mixing of different types of refrigerants, be
sure to check the type of refrigerant used in the outdoor unit.
- The mixing of refrigerants could lead to malfunctioning.

SAFETY INSTRUCTIONS
6
ENGLISH
Operation
• Do not damage or use an unspecified power cord.
- There is risk of fire, electric shock, explosion, or injury.
• Use a dedicated outlet for this appliance.
- There is risk of fire or electrical shock.
• Be cautious that water could not enter the product.
- There is risk of fire, electric shock, or product damage.
• Do not touch the power switch with wet hands.
- There is risk of fire, electric shock, explosion, or injury.
• When the product is soaked (flooded or submerged), contact
an Authorized Service Center.
- There is risk of fire or electric shock.
• Be cautious not to touch the sharp edges when installing.
- It may cause injury.
• Take care to ensure that nobody could step on or fall onto the
unit.
- This could result in personal injury and product damage.
• Do not open the inlet grille of the product during operation.
(Do not touch the electrostatic filter, if the unit is so
equipped.)
- There is risk of physical injury, electric shock, or product
failure.
• Take care to ensure that power cable could not be pulled out
or damaged during operation.
- There is risk of fire or electric shock.
• When mechanical connectors are reused indoors, sealing
parts shall be renewed. (for R32)
• When flared joints are reused indoors, the flare part shall be
re-fabricated. (for R32)
• Periodic ( more than once/year ) cleaning of the dust or salt
particles stuck on the heat exchanger by using water.
• Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
• Do not pierce or burn refrigerant cycle part.
• Be aware that refrigerants may not contain an odour.

SAFETY INSTRUCTIONS 7
ENGLISH
CAUTION
Installation
• If anyone other than a licensed Professional installs, repairs,
or alters LG Electronics Air Conditioning Products, the
warranty is voided.
- All costs associated with repair are then the full
responsibility of the owner.
• Always check for gas (refrigerant) leakage after installation or
repair of product.
- Low refrigerant levels may cause failure of product.
• Do not install the product where the noise or hot air from the
outdoor unit could damage the neighborhoods.
- It may cause a problem for your neighbors.
• Keep level even when installing the product.
- To avoid vibration or water leakage.
• Do not install the unit where combustible gas may leak.
- If the gas leaks and accumulates around the unit, an
explosion may result.
• Use power cables of sufficient current carrying capacity and
rating.
- Cables that are too small may leak, generate heat, and cause
a fire.
• Do not use the product for special purposes, such as
preserving foods, works of art, etc. It is a consumer air
conditioner, not a precision refrigeration system.
- There is risk of damage or loss of property.
• Keep the unit away from children. The heat exchanger is very
sharp.
- It can cause the injury, such as cutting the finger. Also the
damaged fin may result in degradation of capacity.
• When installing the unit in a hospital, communication station,
or similar place, provide sufficient protection against noise.
- The inverter equipment, private power generator, high
-frequency medical equipment, or radio communication
equipment may cause the air conditioner to operate
erroneously, or fail to operate. On the other hand, the air
conditioner may affect such equipment by creating noise
that disturbs medical treatment or image broadcasting.
• Do not install the product where it is exposed to sea wind
(salt spray) directly.
!

8SAFETY INSTRUCTIONS
ENGLISH
- It may cause corrosion on the product. Corrosion, particularly
on the condenser and evaporator fins, could cause product
malfunction or inefficient operation.
• Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from
an industry accredited assessment authority, which
authorises their competence to handle refrigerants safely in
accordance with an industry recognised assessment
specification. (for R32)
• The appliance shall be stored so as to prevent mechanical
damage from occurring.
• Refrigerant tubing shall be protected or enclosed to avoid
damage.
• Flexible refrigerant connectors (such as connecting lines
between the indoor and outdoor unit) that may be displaced
during normal operations shall be protected against
mechanical damage.
• The installation of pipe-work shall be kept to a minimum.
• Pipe-work shall be protected from physical damage.
• A brazed, welded, or mechanical connection shall be made
before opening the valves to permit refrigerant to flow
between the refrigerating system parts.
• Dismantling the unit, treatment of the refrigerant oil and
eventual parts should be done in accordance with local and
national standards.
• Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
• Do not insert a drain hose in drain or soil pipe.
- Bad smells can occur and it results in a corrosion of a heat
exchanger or pipe.
• Refer to the product installation manual, when using the
supplementary heater.
Operation
• Do not use the air conditioner in special environments.
- Oil, steam, sulfuric smoke, etc. can significantly reduce the
performance of the air conditioner or damage its parts.
• Do not block the inlet or outlet.
- It may cause failure of appliance or accident.
• Make the connections securely so that the outside force of
the cable may not be applied to the terminals.

SAFETY INSTRUCTIONS 9
ENGLISH
- Inadequate connection and fastening may generate heat and
cause a fire.
• Be sure the installation area does not deteriorate with age.
- If the base collapses, the air conditioner could fall with it,
causing property damage, product failure, or personal injury.
• Install and insulate the drain hose to ensure that water is
drained away properly based on the installation manual.
- A bad connection may cause water leakage.
• Be very careful about product transportation.
- Only one person should not carry the product if it weighs
more than 20 kg.
- Some products use PP bands for packaging. Do not use any
PP bands for a means of transportation. It is dangerous.
- Do not touch the heat exchanger fins. Doing so may cut your
fingers.
- When transporting the outdoor unit, suspending it at the
specified positions on the unit base. Also support the
outdoor unit at four points so that it cannot slip sideways.
• Safely dispose of the packing materials.
- Packing materials, such as nails and other metal or wooden
parts, may cause stabs or other injuries.
- Tear apart and throw away plastic packaging bags so that
children may not play with them. If children play with a
plastic bag which was not torn apart, they face the risk of
suffocation.
• Turn on the power at least 6 hours before starting operation.
- Starting operation immediately after turning on the main
power switch can result in severe damage to internal parts.
Keep the power switch turned on during the operational
season.
•
Do not touch refrigerant pipe and water pipe or any internal
parts while the unit is operating or immediately after operation.
- It can cause a burn or frostbite.
• Do not operate the air conditioner with the panels or guards
removed.
- Rotating, hot, or high-voltage parts can cause injuries.
• Do not directly turn off the main power switch after stopping
operation.
- Wait at least 5 minutes before turning off the main power
switch. Otherwise it may result in water leakage or other

10 SAFETY INSTRUCTIONS
ENGLISH
problems.
• Auto-addressing should be done in condition of connecting
the power of all indoor and outdoor units. Auto-addressing
should also be done in case of changing the indoor unit PCB.
• Use a firm stool or ladder when cleaning or maintaining the air
conditioner.
- Be careful and avoid personal injury.
• Do not insert hands or other objects through the air inlet or
outlet while the air conditioner is plugged in.
- There are sharp and moving parts that could cause personal
injury.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Children be supervised to ensure that they do not play with
the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• Appliance shall be disconnected from its power source during
service and when replacing parts.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
• Children should be supervised to ensure that they do not play
with the appliance.
• Servicing shall only be performed as recommended by the
equipment manufacturer. Maintenance and repair requiring
the assistance of other skilled personnel shall be carried out
under the supervision of the person competent in the use of
flammable refrigerants. (for R32)
• Do not install the unit in potentially explosive atmospheres.

INSTALLATION MANUAL 11
ENGLISH
• Do not have only one person carry
product if it is more than 20 kg.
• PP bands are used to pack some
products. Do not use them as a mean for
transportation because they are
dangerous.
• Do not touch heat exchanger fins with
your bare hands. Otherwise you may get
a cut in your hands.
• Tear plastic packaging bag and scrap it so
that children cannot play with it.
Otherwise plastic packaging bag may
suffocate children to death.
• When carrying in Outdoor Unit, be sure
to support it at four points. Carrying in
and lifting with 3-point support may
make Outdoor Unit unstable, resulting in
a fall.
• Use 2 belts of at least 8 m long.
• Place extra cloth or boards in the
locations where the casing comes in
contact with the sling to prevent
damage.
• Hoist the unit making sure it is being
lifted at its center of gravity.
CAUTION
!
LIFTING METHOD
Use two or more people to lift and transport
the product.
INSTALLATION SPACE
- There should not be any heat source or steam
near the unit.
- There should not be any obstacles to the air
circulation.
- A place where air circulation in the room will be
good.
- A place where drainage can be easily obtained.
- A place where noise prevention is taken into
consideration.
- Do not install the unit near the door way.
- Ensure the spaces indicated by arrows from
the wall, ceiling, or other obstacles.
- The indoor unit must have the maintenance
space.
- For more information, refer to installation
manual.
In case that the unit is installed near the
sea, the installation parts may be corroded
by salt. The installation parts (and the unit)
should be taken appropriate anti-corrosion
measures.
CAUTION
!

12 INSTALLATION MANUAL
ENGLISH
Remote
control
Remote
control
Remote
control
Remote
control
Indoor
Unit
Outdoor Unit
Outdoor Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Outdoor Unit
Outdoor Unit
Remote
control
Remote
control
Indoor
Unit
Indoor
Unit
Remote
control
Remote
control
Indoor
Unit
Indoor
Unit
2-Core Shield Cable
Multi-Core Cable
-
Install the Outdoor Unit communication cable
away from the power source wiring so that it is
not affected by electric noise from the power
source. (Do not run it through the same conduit.)
- Be sure to provide designated grounding
work to Outdoor Unit.
CAUTION
!
Be sure to correct the outdoor unit to
earth. Do not connect ground wire to any
gas pipe, liquid pipe, lightening rod or
telephone earth line. If earth is incomplete,
it may cause an electric shock.
- Give some allowance to wiring for electrical
part box of Indoor and Outdoor Units,
because the box is sometimes removed at
the time of service work.
- Never connect the main power source to
terminal block of communication cable. If
connected, electrical parts will be burnt out.

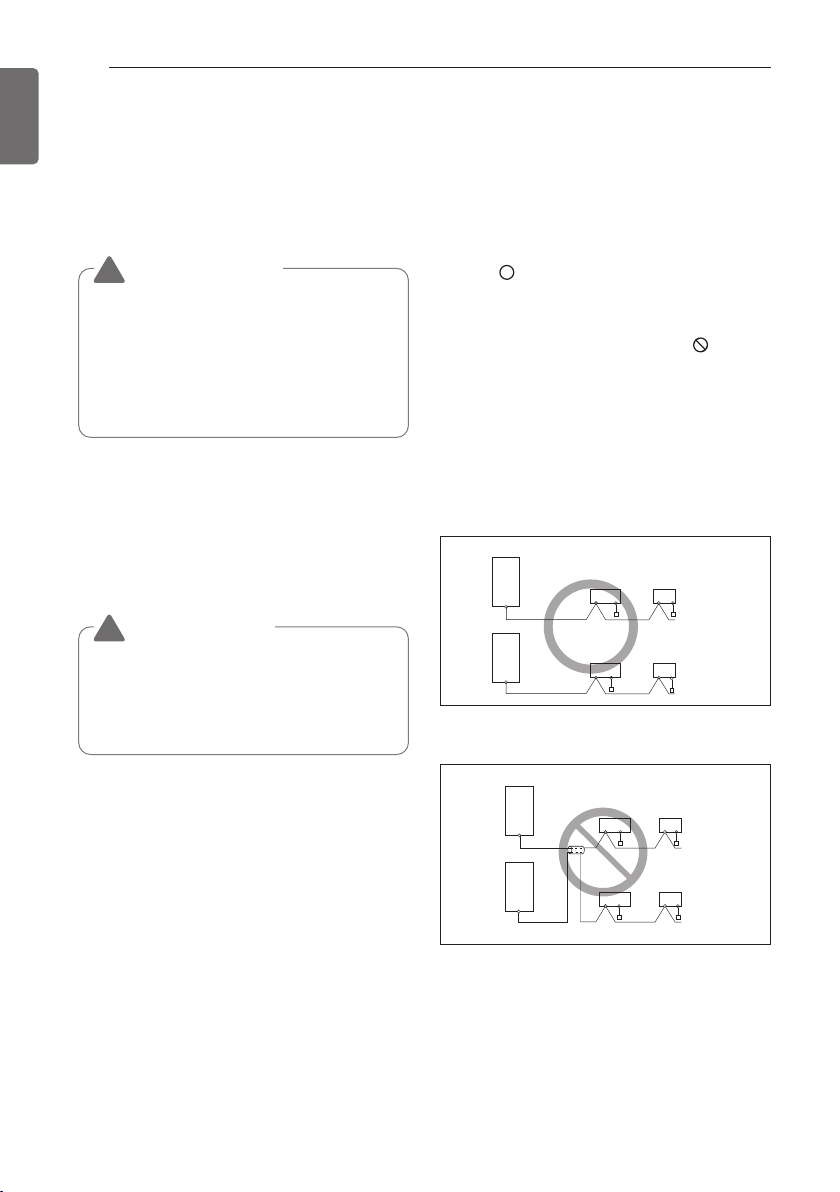

- Use 2-core shield cable for communication
cable.( mark in the figure below) If
communication cable of different systems
are wired with the same multiple core cable,
the resultant poor transmitting and receiving
will cause erroneous operations. ( mark in
the figure below)
- Only the communication cable specified
should be connected to the terminal block
for Outdoor Unit communication.
- Supply line of appliances shall not be lighter
than polychloroprene sheathed. (code
designation 60245 IEC 57)
WARNING
!
Be sure to have authorized electrical
engineers do the electric work using
special circuits in accordance with
regulations and installation manual.
If power supply circuit has a lack of
capacity or electric work deficiency, it may
cause an electric shock or fire.
- Follow ordinance of your governmental
organization for technical standard related to
electrical equipment, wiring regulations and
guidance of each electric power company.
ELECTRICAL WIRING

OWNERS MANUAL 13
ENGLISH
CAUTION
!
• Use the 2-core shield cables for
communication cables. Never use them
together with power cables.
• The conductive shielding layer of cable
should be grounded to the metal part of
both units.
• Never use multi-core cable.
• As this unit is equipped with an inverter,
to install a phase leading capacitor not
only will deteriorate power factor
improvement effect, but also may
cause capacitor abnormal heating.
Therefore, never install a phase leading
capacitor.
• Make sure that the power unbalance
ratio is not greater than 2 %.
If it is greater the units lifespan will be
reduced.
• The connecting cable connected to the
indoor and outdoor unit should be complied
with the following specifications (Rubber
insulation, type H05RN-F approved by HAR
or SAA).
• If the supply cord is damaged, it must be
replaced by a special cord or assembly available
from the manufacturer of its service agent.
CAUTION
!
20 mm
GN/YL
NORMAL
CROSS-SECTIONAL
AREA
Rated current of
appliance A.
Nominal
cross-sectional area
mm2
≤0.2
> 0.2 and ≤3
> 3 and ≤6
> 6 and ≤10
> 10 and ≤16
> 16 and ≤25
> 25 and ≤32
> 32 and ≤40
> 40 and ≤63
Tinsel cord
0.5
0.75
1.0 (0.75)
1.5 (1.0)
2.5
4
6
10
NOTE For supply cords supplied with
multi-phase appliances, the nominal
cross-sectional area of the conductors is
based on the maximum cross-sectional area
of the conductors per phase at the supply
cord connection to the appliance terminals.
ELECTRIC WIRING WORK
Terminal Block Indoor
1(L) 2(N) 3 4
A----BABAB
GND 12 V
DRY2DRY1 CEN
Terminal Block of outdoor unit
IDU(S)ODU Outdoor Unit
INDOOR
POWER INPUT
Terminal
Block Indoor
1(L) 2(N)
A----BABAB
GND 12 V
DRY2DRY1 CEN
Terminal Block of outdoor unit
IDU(S)ODU Outdoor Unit
Terminal
Block Indoor
34
INDOOR
POWER INPUT
The feature may be changed according to the type of model.
• Type 1
• Type 2
Electric Characteristics
- Recommended circuit breaker is ELCB
- MFA is used to select the circuit breaker and
ground fault circuit interrupter
- Refer to the PDB about detail electric
characteristics
ELCB : Earth Leakage Circuit Breaker
MFA : Maximum Fuse Amperes(A)
PDB : Product Data Book

14 INSTALLATION MANUAL
ENGLISH
Ceiling
Ceiling board
C ≥ 500
C ≥ 500
D ≥ 1 000
B ≥ 10
E ≥ 300
Floor
A
F
F
Top view
C ≥20
Front view
A = 600 A = 600
B =
1 000
Front
Inspection hole
(600X600)
Control box
D
E
F
Chassis L1 L2 L3 M1 M2 M3
D 660 860 1 060 858 1 208 1 208
E 155 155 155 201.4 201.4 291.4
Chassis BH BG BR B8
D 750 830 1 006 1 160
E 158 186 294 330
INSTALLATION PLACES
(unit: mm)
(unit: mm)
Maintenance and Service
Air Filters
The air filters behind the front panel / grill
should be checked and cleaned once in every
2 weeks or more often if necessary. To
remove the filters see the self explanatory
diagrams for each model type. Clean the
filters with a vacuum cleaner or warm soapy
water. If dirt is not easily removed, wash with
a solution of detergent in luke warm water.
Dry well in shade after washing and reinstall
the filters back in place.
CAUTION
!
Before performing any maintenance, turn
off the main power to the system.
Never use any of the followings:
• Water hotter than 40 °C.
Could cause deformation and/or
discoloration.
• Volatile substances.
Could damage the surfaces of the air
conditioner.
G
a
s
o
l
i
n
e
P
o
w
d
e
r
Model A
4 Way 1.6 ~ 10.0 kW 2 000 < A ≤ 3 600
10.0 ~ 14.5 kW 2 500 < A ≤4 200
2 Way 1 800 < A ≤3 300
1 Way 1 800 < A ≤3 300
* The feature can be changed according to
type of model.
Flat washer for M10
(accessory)
Flat washer for M10
(accessory)
Hanging bolt
(W3/8 or M10)
Nut
(W3/8 or M10)
Nut
(W3/8 or M10)
Spring washer
(M10)
F

INSTALLATION MANUAL 15
ENGLISH
654
80
A
B
A
B
C
C
Chassis A B C
QA A ≥300 B ≤250 C ≥300
VE - B ≥50 C ≥200
SJ/SK/SV/SF A ≥200 B ≥2 300 C ≥100
CEA/CFA A ≥175 -C ≥100
Type A B
CEU 788 1 080
CFU 1 066 1 358
(unit: mm)
(unit: mm)
• The feature may be changed according to
the type of model.
1 Set anchor
Old building New building
2 Plate washer
3 Spring washer
4 Nut
5 Suspension
bolts
• Local supply
①Set anchor
②Plate washer - M10
③Spring washer - M10
④Nut - W3/8 or M10
⑤Suspension bolt - W3/8 or M10
Minimum service space (unit : mm)
Unit : mm
Ceiling
At least 2 500
4 000 or less
1 000
or more
500 or
more
10 or more
500 or
more
300 or less
Floor
Floor
Floor
250
1 300
200 200
NOTE
Self drilling screw can be used as
alternatives of M8 ~ M11 anchor bolts.
But M8 ~ M11 anchor bolts are more
preferred.

16 INSTALLATION MANUAL
ENGLISH
- The appliance shall be installed, operated and stored in a room with a floor area larger than the
minimum area.
- Use the graph of table to determine the minimum area.
- m : Total refrigerant amount in the system
- Total refrigerant amount : factory refrigerant charge + additional refrigerant amount
- Amin : minimum area for installation
Minimum floor area (for R32)
0
100
200
300
400
500
600
Amin (m2)
m (kg)
0 1.224 2 3 4 5 6 7 8
Floor standing
Wall mounted
Ceiling mounted
Floor location
m (kg) Amin (m2)
< 1.224 -
1.224 12.9
1.4 16.82
1.6 21.97
1.8 27.80
2 34.32
2.2 41.53
2.4 49.42
2.6 58.00
2.8 67.27
3 77.22
3.2 87.86
3.4 99.19
3.6 111.20
3.8 123.90
4 137.29
4.2 151.36
4.4 166.12
Floor location
m (kg) Amin (m2)
4.6 181.56
4.8 197.70
5 214.51
5.2 232.02
5.4 250.21
5.6 269.09
5.8 288.65
6 308.90
6.2 329.84
6.4 351.46
6.6 373.77
6.8 396.76
7 420.45
7.2 444.81
7.4 469.87
7.6 495.61
7.8 522.04
Wall mounted
m (kg) Amin (m2)
< 1.224 -
1.224 1.43
1.4 1.87
1.6 2.44
1.8 3.09
2 3.81
2.2 4.61
2.4 5.49
2.6 6.44
2.8 7.47
3 8.58
3.2 9.76
3.4 11.02
3.6 12.36
3.8 13.77
4 15.25
4.2 16.82
4.4 18.46
Wall mounted
m (kg) Amin (m2)
4.6 20.17
4.8 21.97
5 23.83
5.2 25.78
5.4 27.80
5.6 29.90
5.8 32.07
6 34.32
6.2 36.65
6.4 39.05
6.6 41.53
6.8 44.08
7 46.72
7.2 49.42
7.4 52.21
7.6 55.07
7.8 58.00
Ceiling Mounted
m (kg) Amin (m2)
< 1.224 -
1.224 0.956
1.4 1.25
1.6 1.63
1.8 2.07
2 2.55
2.2 3.09
2.4 3.68
2.6 4.31
2.8 5.00
3 5.74
3.2 6.54
3.4 7.38
3.6 8.27
3.8 9.22
4 10.21
4.2 11.26
4.4 12.36
Ceiling Mounted
m (kg) Amin (m2)
4.6 13.50
4.8 14.70
5 15.96
5.2 17.26
5.4 18.61
5.6 20.01
5.8 21.47
6 22.98
6.2 24.53
6.4 26.14
6.6 27.80
6.8 29.51
7 31.27
7.2 33.09
7.4 34.95
7.6 36.86
7.8 38.83

INSTALLATION MANUAL 17
ENGLISH
if this product is installed in the a room smaller than minimum floor area, there shall be
continuously operated mechanical ventilation system or natural ventilation openings.
the floor area of “Room A + Room B” is considered as floor area instead of “room A” for
complying with minimum floor area “Amin”
• Openings are permanent openings which cannot be closed.
• Room A shall be larger than 0.68 m2
Bottom opening:
• The area of any openings above 300 mm from the floor shall not be considered in determining
compliance with Anvmin.
• At least 50 % of the required opening area Anvmin shall be below 200 mm from the floor.
• The bottom of the lowest openings shall not be higher than 100 mm from the floor.
• If the openings starts from the floor, the height must be higher than 20 mm.
Top opening:
• The total size of the top opening shall not be less than 50 % of minimum opening area for
Anvmin and shall be at least 1.5 m above the floor.
Natural ventilation
- Anvmin : the minimum opening for natural ventilation
1.5 m
Unit
[Room A] [Room B]
50 % of Anvmin
100 % of Anvmin
m
kg
Anvmin
cm2
1.224 51.2
1.4 73.5
1.6 98.8
1.8 124.1
2 149.4
2.2 174.7
2.4 200
2.6 225.3
2.8 250.6
3 275.9
m
kg
Anvmin
cm2
3.2 301.2
3.4 326.5
3.6 351.8
3.8 377.1
4 402.4
4.2 427.7
4.4 453
4.6 478.3
4.8 503.6
5 528.9

18
ENGLISH

• The information for Eco design is available on the following free access website.
https://www.lg.com/global/support/cedoc/cedoc
