LG ART COOL LA150HYV2 Installation and operation manual

3/4, 1, 1-1/4, 1-1/2, and 2 Tons
Models:
LA090HYV1
LA120HYV1
LA150HYV2
LA180HYV2
LA180HYV1
LA240HYV1
SINGLE ZONE WALL MOUNTED
ART COOL™PREMIER
ENGINEERING MANUAL

For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice.
© LG Electronics U.S.A., Inc.
PROPRIETARY DATA NOTICE
This document, as well as all reports, illustrations, data, information,
and other materials are the property of LG Electronics U.S.A., Inc., and are
disclosed by LG Electronics U.S.A., Inc. only in confidence.
This document is for design purposes only.
A summary list of safety precautions is on page 4.
For more technical materials such as submittals, catalogs, installation,
owner’s, and service manuals, visit www.lghvac.com.

Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp. 3
Introduction
About LG Electronics, Inc.
LG Electronics, Inc. is a global leader and technology innovator
in consumer electronics, mobile communications, and home
appliances. LG Electronics, Inc. comprises five business units—
Home Entertainment, Mobile Communications, Air Conditioning,
Business Solutions, and Home Appliance. LG is one of the world’s
leading producers of flat panel televisions, audio and video products,
mobile handsets, air conditioners, and washing machines. LG’s
commercial air conditioning business unit was established in 1968
and has built its lineup of residential and commercial products to
include VRF, Multi F, duct-free split systems, packaged terminal air
conditioners (PTACs), and room air conditioners. In 2011, the air
conditioning and energy solutions business unit grew to include LED
lighting and solar products. For more information, visit www.lg.com.
Duct-Free Split Systems
LG HVAC systems offer a range of solutions that are cost efficient,
quiet and attractive. Duct-Free Split systems are “split” into indoor
and outdoor units, and provide a smart alternative to both central
HVAC and window-mounted air conditioners. These inverter heat
pump systems are available in a variety of configurations to suit dif-
ferent cooling and heating situations. Installation by a qualified HVAC
contractor is safe and easy – little to no duct work or sheet metal is
required.
Inverter Systems
LG Single Zone Wall Mounted Art Cool™ Premier air-source systems
offer the opportunity to minimize ductwork in the same configuration.
The systems offer zoning without the need for zone damper systems.
LG Single Zone Wall Mounted Art Cool Premier systems’ advanced
controls provide exceptional building dehumidification and tempera-
ture control, and can rapidly adapt system operating parameters
to the ever changing building load. LG Single Zone Wall Mounted
Art Cool Premier systems are easy to design, install, and maintain.
The modular design allows occupants to control their environmental
condition, providing individualized control of the setpoint temperature
and allowing occupants to condition only the occupied zones.
Quality Commitment
LG is committed to the success of Duct-Free Split projects. We
provide industry leading technical support during installation and
commissioning. LG offers a variety of classes designed for installers
and servicers to ensure that every system installation is completed
successfully.
Classes are conducted at LG’s training centers and in field locations
at various times throughout the year and upon special request.

Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
4
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
TABLE OF CONTENTS
TABLE OF SYMBOLS
This symbol indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
This symbol indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
This symbol indicates situations that may result in equipment or property damage accidents only.
This symbol indicates an action should not be completed.
DANGER
CAUTION
Introduction ..................................................................................................................................................................................................5
Architectural Appeal.....................................................................................................................................................................................6
Product Data............................................................................................................................................................................................7-28
Product Features and Benefits....................................................................................................................................................................8
Unit Nomenclature ......................................................................................................................................................................................9
General Data .......................................................................................................................................................................................10-12
Electrical Data ..........................................................................................................................................................................................13
Functions, Controls, Options.....................................................................................................................................................................14
Outdoor Unit Dimensions .....................................................................................................................................................................15-16
Outdoor Unit Center of Gravity / Corner Weight.........................................................................................................................................17
Indoor Unit Dimensions........................................................................................................................................................................18-19
Acoustic Data ...........................................................................................................................................................................................20
Refrigerant Flow Diagrams...................................................................................................................................................................22-23
Indoor Unit Wiring Diagrams ................................................................................................................................................................24-25
Outdoor Unit Wiring Diagrams..............................................................................................................................................................26-27
Accessories ..............................................................................................................................................................................................28
Performance Data..................................................................................................................................................................................29-46
Cooling Capacity..................................................................................................................................................................................30-32
Heating Capacity .................................................................................................................................................................................33-35
Maximum Heating Capacity..................................................................................................................................................................36-38
Air Flow and Temperature Distributions Graphs....................................................................................................................................39-46
Application Guidelines..........................................................................................................................................................................47-53
Equipment Selection Procedure ................................................................................................................................................................48
Building Ventilation Design Guide ........................................................................................................................................................49-50
Placement Considerations ...................................................................................................................................................................51-53
Refrigerant Piping Design & Layout Best Practices ............................................................................................................................54-61
Refrigerant Piping Design .........................................................................................................................................................................55
Installation & Best Layout Practices .....................................................................................................................................................56-60
Electrical Connections ..............................................................................................................................................................................61
Technical Data .......................................................................................................................................................................................62-64
Mechanical Specifications.........................................................................................................................................................................63
Acronyms..................................................................................................................................................................................................64

INTRODUCTION
“Architectural Appeal” on page 6

Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
6|INTRODUCTION
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
Benefits of Single Zone
Wall Mounted Art Cool Premier System
• Available in 9,000, 12,000, 15,000, 18,000,
and 24,000 Btu/h
• Inverter technology
• All-season use - heat pump models for both
cooling and heating capabilities
• Operating range for outdoor units of 14°F to
118°F (DB) in cooling and -13°F to 65°F (WB)
in heating
• Operating range for indoor units of 53°F to
75°F (WB) in cooling and 60°F to 86°F (DB)
in heating
• Quiet operation inside and outside
• Duct-free split system
Convergence of Technological Innovation with Flexibility and Style
Single Zone Wall
Mounted Art Cool
Premier Systems
Choosing an LG Single Zone Wall Mount-
ed Art Cool Premier product provides a
system designer an edge to engineer
a system with individual control, and
design flexibility with advanced controls.
These single-zone systems are avail-
able in a nominal capacities of 3/4 to 2
tons. These are best suited for applica-
tions with zones that require heating or
cooling, such as residential, and small
business office buildings. Single Zone
Wall Mounted Art Cool Premier out-
door and indoor units are available in
208–230V/60Hz/1Ph.
Adaptable and Flexible
Single zone wall mounted split systems
allow cooling or heating for the entire
residence or just a single room without
the need for invasive ductwork. There is
minimal renovation needed.
Long refrigerant piping lengths allow
for extra design flexibility in indoor unit
installation.
These units may be used for a number of
residential or commercial environments
such as:
• Older homes
• New home construction
• Office buildings
• Restaurants
• Hospitals / Medical facilities
• Schools
• Nursing homes
• Retail establishments
• House of worship
Inverter Technology
Inverter variable-speed duct-free split
systems are measurably quieter and
consume less energy than conventional
air conditioners. The inverter compressor
ramps up or down to match the required
room capacity and maintain the comfort
level. When the selected temperature
is reached, the inverter compressor
operates at low speed to maintain that
comfort level, thereby using less energy.
ARCHITECTURAL APPEAL

PRODUCT DATA
“Product Features and Benefits” on page 8
“Unit Nomenclature” on page 9
“General Data” on page 10
“Electrical Data” on page 13
“Functions, Controls, Options” on page 14

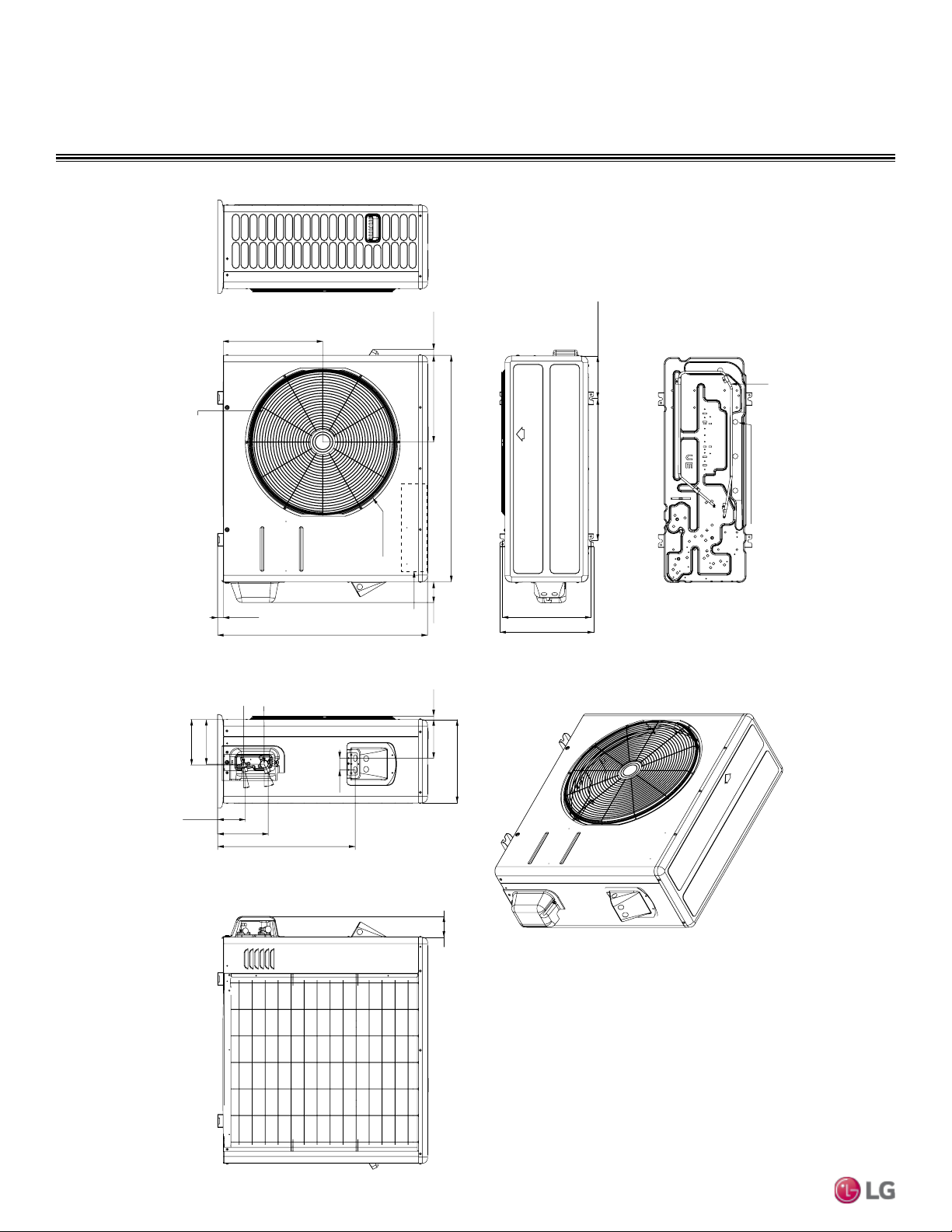

“Outdoor Unit Dimensions” on page 15
“Outdoor Unit Center of Gravity / Corner Weight” on page 17

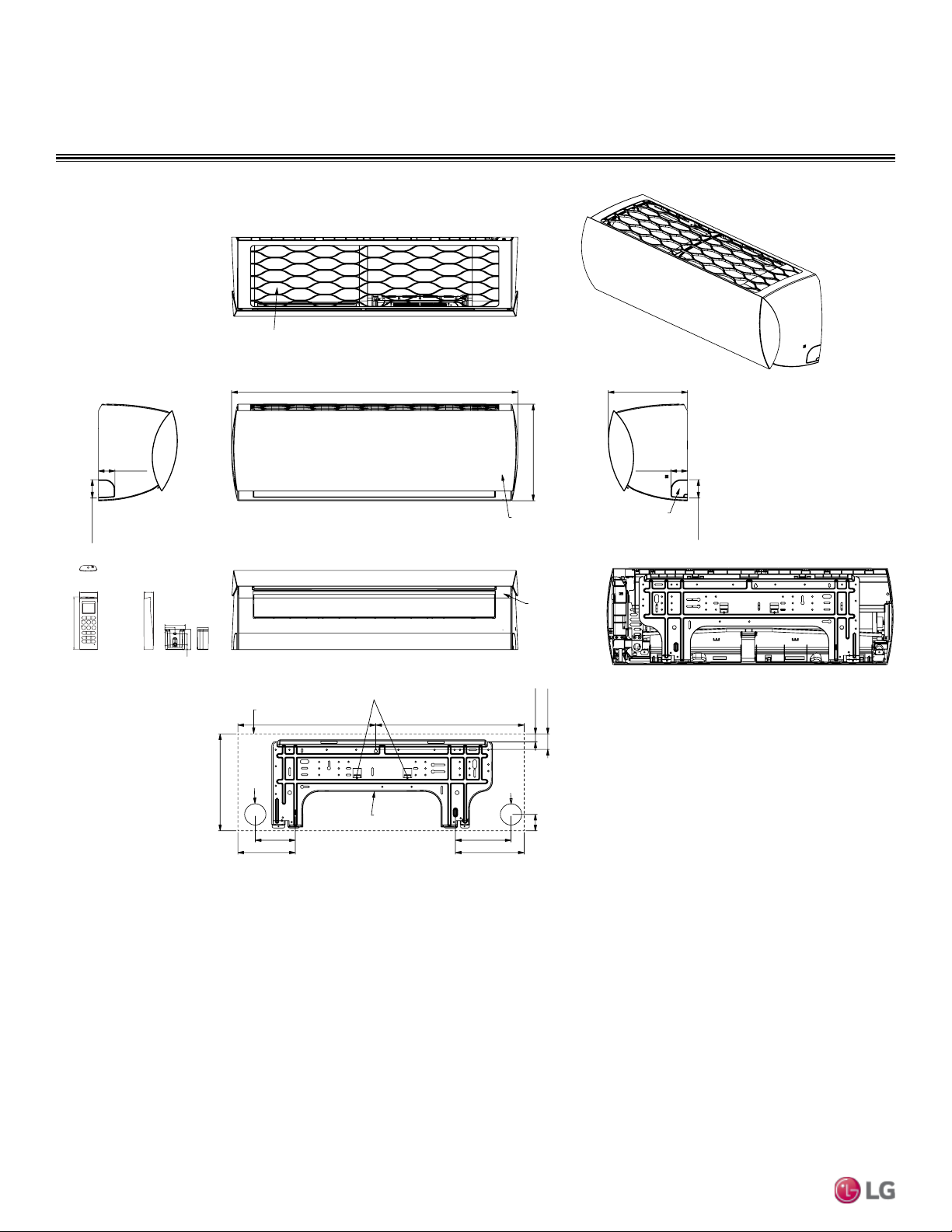

“Indoor Unit Dimensions” on page 18

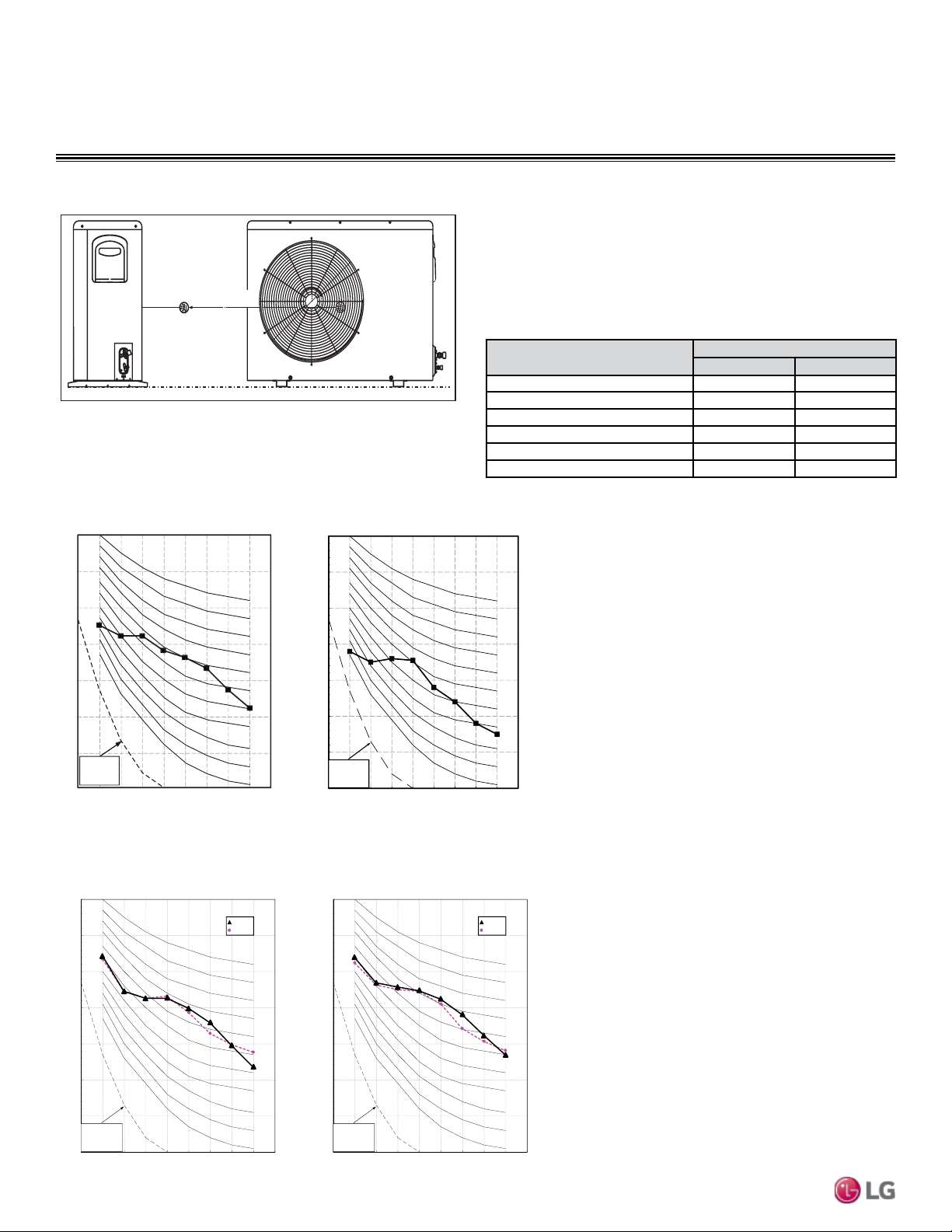

“Acoustic Data” on page 20
“Refrigerant Flow Diagrams” on page 22
“Indoor Unit Wiring Diagram” on page 24
“Outdoor Unit Wiring Diagram” on page 26
“Accessories” on page 28

8|PRODUCT DATA
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
PRODUCT FEATURES AND BENEFITS
Single Zone
Wall Mounted Art Cool
Premier
Single zone systems are equipped with
inverter components that offer superior
load matching and long piping installation.
The product works for optimizing power
consumption in residential and small office
buildings. Utilizing multiple indoor wall mount
units each with custom temperature controls
allow for precise temperature settings in
each zone of the building. Single zone sys-
tems allow flexibility in interior design and
complement any decor.
Low Sound Levels
When outdoor units run at full load, they
have a quiet operating sound level. To pro-
mote a quiet, comfortable environment, the
LG single zone system indoor units operate
at sound levels as low as 25 dB(A) (17 dB(A)
in sleep mode) and the outdoor units as low
as 45 dB(A) at full load. All rotating compo-
nents are soft-started by the controller using
digitally controlled inverters, which reduce
undesirable noise caused by fans and com-
pressors cycling on and off.
Comfort Control at Its
Best
Unlike traditional air conditioning control
systems, which use thermostatic controls to
maintain room temperatures, LG single zone
inverter controls continuously vary the indoor
unit fan speed and refrigerant flow.
LG single zone one-to-one systems continu-
ously measure the room temperatures and
adjust system operations accordingly to
maintain set temperature.
The outdoor unit responds by varying the
compressor speed and outdoor fan mo-
tors as needed to maintain system operat-
ing pressure. As a result, the single zone
systems deliver targeted space temperature
control.
Inverter Driven
The twin rotary compressors are optimized
to maximize compressor efficiency, which
reduces power consumption and monthly
utility bills. This latest inverter technology
allows single zone system outdoor units to
vary the compressor motor shaft speed to
deliver an appropriate amount of cooling to
the indoor unit. Precise refrigerant volume
delivery translates into long periods with coil
surface temperatures below dew point and
minimizes compressor and fan component
run time which may lead to lower utility us-
age.
Simplified Installation
Cooling and heating applications that use
single zone systems simplify and reduce the
mechanical and control system design time.
The designer no longer has to be concerned
with interconnecting chilled and condenser
water piping, air-distribution duct systems,
matching and selecting chillers, towers,
pumps, coils, fans, air handlers, or Variable
Air Volume (VAV) boxes.
Operating Range
Single zone systems have a nominal capac-
ity range of 3/4 to 2 tons (depending on
outdoor/indoor units).
Outdoor unit operating ranges for single
zone systems:
Cooling: 14°F DB to 118°F DB
Heating: -13°F WB to 65°F WB
(Installing an optional Low Ambient Wind
Baffle Kit will allow operation down to 0°F in
cooling mode for these single zone sys-
tems.)
Compact Size
Single zone outdoor units have the following
footprint:
LAU090HYV1, LAU120HYV1:
(WxHxD [in.]) 30-5/16 x 21-1/2 x 11-5/16.
LAU150HYV2, LAU180HYV2
(WxHxD [in]) 34-1/4 x 31-1/2 x 12-5/8.
LAU180HYV1, LAU240HYV1
(WxHxD [in]) 34-1/4 x 31-1/2 x 12-5/8.
Fin Design with Gold-
Fin™ Coating
All single zone outdoor units are provided
with large surface coils made of copper
tubes with louvered aluminum fins designed
to maximize unit operating efficiency over a
wide range of ambient conditions.
Standard from the factory, every single zone
outdoor unit coil fin surface is coated with
LG’s exclusive GoldFin™ anti-corrosive
coating designed to prevent natural surface
corrosion of the aluminum fins. This main-
tains heat transfer properties of the coil for
an extended time.
A hydrophilic coating is applied to the
outdoor unit coil fin surface over the GoldFin
coating. This coating enhances the develop-
ment of heavier water droplets gathering on
the fin surface. As a result, the droplets roll
off the fin surfaces, delaying the point when
frost forms on the coil surface during heat-
ing operation. This coating also makes it
possible to easily clean the outdoor unit coil
using a mild soap.
Other Features
• Inverter variable speed compressor
• Jet Cool / Jet Heat
• Dehumidifying mode
• 3M™Micro Protection Filter
• Auto Wind
• Auto restart
• Auto operation
• Self-cleaning indoor coil
• Condensate sensor connection
• Works with Smart AC
• Precision load matching
• Meets AHRI 210/240

PRODUCT DATA | 9
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
UNIT NOMENCLATURE
Single Zone Wall Mount Indoor and Outdoor Units
LA N150 HYV 2
Type
N = Indoor Wall Mount Unit
U = Outdoor Heat Pump Unit
Family
LA= Art Cool Premier
Generation or Revision
1 = First
2 = Second
Nominal Capacity
(Nominal cooling capacity in Btu/h)
090 = 9,000
120 = 12,000
150 = 15,000
180 = 18,000
240 = 24,000
Indoor/Outdoor Product
HYV = Art Cool Premier

10 |PRODUCT DATA
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
GENERAL DATA
Art Cool Premier Pairing Table
The following table shows the available outdoor and indoor units, along with the factory provided controller.
Table 1: Single Zone Wall Mounted Art Cool Premier Pairing Table
Outdoor Unit Model Indoor Unit Model Controller
LAU090HYV1
LAU120HYV1
LAN090HYV1
LAN120HYV1
AKB73835320
LAU150HYV2
LAU180HYV2
LAN150HYV2
LAN180HYV2
AKB74955602
LAU180HYV1
LAU240HYV1
LAN180HYV1
LAN240HYV1
AKB74955602

PRODUCT DATA | 11
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
GENERAL DATA
Table 2: Single Zone Wall Mounted Art Cool Premier System Specications.
System Model Number (IDU/ODU) LA090HYV1 (LAN090HYV1/
LAU090HYV1)
LA120HYV1
(LAN120HYV1/
LAU120HYV1)
LA150HYV2
(LAN150HYV2/
LAU150HYV2)
LA180HYV2
(LAN180HYV2/
LAU180HYV2)
Cooling Capacity (Min/Rated/Max) (Btu/h) 1,023 ~ 9,000 ~ 12,966 1,023 ~ 11,000 ~ 13,785 3,070 ~ 15,000 ~ 21,000 3,070 ~ 18,200 ~29,515
Cooling Power Input1(kW) 0.575 0.80 1.11 1.45
Heating Capacity (Min/Rated/Max) (Btu/h) 1,023 ~ 11,000 ~ 20,472 1,023 ~ 12,000 ~ 22,178 3,070 ~ 18,000 ~ 25,200 3,070 ~ 22,000 ~ 32,000
Heating Power Input1(kW) 0.71 0.75 1.38 1.79
COP 4.54 4.68 3.81 3.60
Maximum Heating Capacity (Btu/h)
Outdoor 17°F (WB)/Indoor 70°F (DB) 11,940 (109%) 14,650 (122%) 20,970 (117%) 25,640 (117%)
Outdoor 5°F (WB)/Indoor 70°F (DB) 11,220 (102%) 13,720 (114%) 18,490 (103%) 22,600 (103%)
Outdoor -13°F (WB)/Indoor 70°F (DB) 7,920 (72%) 9,520 (79%) 14,200 (79%) 17,360 (79%)
EER 15.65 13.75 13.48 12.50
SEER 27.5 25.5 24.00 22.00
HSPF 12.0 12.0 12.5 12.0
Power Supply (V/Hz/Ø) 208-230/60/1
Outdoor Unit Operating Range2
Cooling (°F DB) 14 to 118
Heating (°F WB) -13 to +65
Indoor Unit Operating Range
Cooling (°F WB) 53 to 75
Heating (°F DB) 60 to 86
Indoor Temperature Setting Range
Cooling (°F) 64 to 86
Heating (°F) 60 to 86
Unit Data
Refrigerant Type3R410A
Refrigerant Control EEV
IDU Sound Pressure4dB(A) (H/M/L/Sleep) 42/36/25/17 42/36/25/17 47/42/37/29 47/42/37/29
ODU Sound Pressure4dB(A) 45 45 57 57
Unit Weight (lbs)
IDU (Net/Shipping) 24/30 24/30 34/38 34/38
ODU (Net/Shipping) 77/82 77/82 122/131 122/131
Power/Communication Cable5 (No. x AWG) 4 x 18
Compressor
Compressor Type (Qty) Twin Rotary (1) Twin Rotary (1) Twin Rotary (1) Twin Rotary (1)
Fan
IDU Type (Qty) Cross Flow (1)
ODU Type (Qty) Propeller (1)
Motor/Drive Brushless Digitally Controlled/Direct
Airflow Rate
IDU Max/H/M/L (CFM) 547/494/417/283 547/494/417/283 742/565/423.7/318 777/565/424/318
ODU Max (CFM) 1,165 1,165 2,119 2,119
Piping
Liquid Line (in, OD) 1/4 1/4 3/8 3/8
Vapor Line (in, OD) 3/8 3/8 5/8 5/8
Condensation Line (OD, ID) 27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8
Additional Refrigerant Charge (oz/ft) 0.22 0.22 0.38 0.38
Pipe Length6(Minimum/Maximum)(ft) 6.6/65.6 6.6/65.6 9.8/98.4 9.8/98.4
Piping Length6(no add’l refrigerant, ft) 41.0 41.0 24.6 24.6
Max Elevation Difference (ft) 32.8 32.8 65.6 65.6
EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit
1Power Input is rated at high speed.
2Optional Low Ambient Wind Baffle Kit allows operation down to 0°F in cooling mode.
3Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A
refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.
4Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5All power wiring/communication cables are field supplied and are to be minimum 18 AWG, 4-conductor,
stranded, shielded or unshielded (if shielded, must be grounded to chassis at outdoor unit only) and
must comply with applicable local and national codes.
6Piping lengths are equivalent.
This unit comes with a dry helium charge.
This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level
difference outdoor and indoor units.
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet
bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

12 |PRODUCT DATA
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
GENERAL DATA
Table 3: Single Zone Wall Mounted Art Cool Premier System Specications, continued.
System Model Number (IDU/ODU) LA180HYV1
(LAN180HYV1/LAU180HYV1) LA240HYV1 (LAN240HYV1/LAU240HYV1)
Cooling Capacity (Min/Rated/Max) (Btu/h) 3,070 ~ 18,200 ~ 29,515 3,070 ~ 22,000 ~ 30,000
Cooling Power Input1(kW) 1.35 1.76
Heating Capacity (Min/Rated/Max) (Btu/h) 3,070 ~ 22,000 ~ 30,709 3,070 ~ 27,000 ~ 35,200
Heating Power Input1(kW) 1.69 2.19
COP 3.81 3.61
Maximum Heating Capacity (Btu/h)
Outdoor 17°F (WB)/Indoor 70°F (DB) 22,340 (102%) 27,410 (102%)
Outdoor 5°F (WB)/Indoor 70°F (DB) 19,300 (88%) 23,690 (88%)
Outdoor -13 °F (WB)/Indoor 70°F (DB) 14,060 (64%) 17,250 (64%)
EER 13.48 12.50
SEER 24 22
HSPF 12.5 12
Power Supply (V/Hz/Ø) 208-230/60/1
Outdoor Unit Operating Range2
Cooling (°F DB) 14 to 118
Heating (°F WB) -13 to 65
Indoor Unit Operating Range
Cooling (°F WB) 53 to 75
Heating (°F DB) 60 to 86
Indoor Temperature Setting Range
Cooling (°F) 64 to 86
Heating (°F) 60 to 86
Unit Data
Refrigerant Type3R410A
Refrigerant Control EEV
IDU Sound Pressure4dB(A) (H/M/L/Sleep) 47/42/37/29 47/42/37/29
ODU Sound Pressure4dB(A) 57 57
Unit Weight (lbs)
IDU (Net/Shipping) 34/38 34/38
ODU (Net/Shipping) 122/131 122/131
Power/Communication Cable5 (No. x AWG) 4 x 18
Compressor
Compressor Type (Qty) Twin Rotary (1) Twin Rotary (1)
Fan
IDU Type (Qty) Cross Flow (1)
ODU Type (Qty) Propeller (1)
Motor/Drive Brushless Digitally Controlled/Direct
Airflow Rate
IDU Max/H/M/L (CFM) 742/565/424/318 777/565/424/318
ODU Max (CFM) 2,119 2,119
Piping
Liquid Line (in, OD) 3/8 3/8
Vapor Line (in, OD) 5/8 5/8
Condensation Line (OD, ID) 27/32, 5/8 27/32, 5/8
Additional Refrigerant Charge (oz/ft) 0.38 0.38
Pipe Length6(Minimum/Maximum)(ft) 9.8/98.4 9.8/98.4
Piping Length6(no add’l refrigerant, ft) 24.6 24.6
Max Elevation Difference (ft) 65.6 65.6
EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit
1Power Input is rated at high speed.
2Optional Low Ambient Wind Baffle Kit allows operation down to 0°F in cooling mode.
3Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A
refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.
4Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.
5All power wiring/communication cables are field supplied and are to be minimum 18 AWG, 4-conductor,
stranded, shielded or unshielded (if shielded, must be grounded to chassis at outdoor unit only) and
must comply with applicable local and national codes.
6Piping lengths are equivalent.
This unit comes with a dry helium charge.
This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level
difference outdoor and indoor units.
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet
bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).

PRODUCT DATA | 13
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
Model Number Nominal Tons Compressor
Qty.
Compressor
(A)
Cool/Heat
Fan Qty. ODU Fan
(A) IDU Fan (A) MCA(A) MOP(A)
LA090HYV1 3/4 1 8.3/8.3 1 0.40 0.40 11.2 15
LA120HYV1 1 1 8.3/8.3 1 0.40 0.40 11.2 15
LA150HYV2 1-1/4 1 14.5/14.5 1 0.50 0.3 19.0 25
LA180HYV2 1-1/2 1 14.5/14.5 1 0.50 0.3 19.0 25
LA180HYV1 1-1/2 1 14.5/14.5 1 0.50 0.30 19.0 25
LA240HYV1 2 1 14.5/14.5 1 0.50 0.30 19.0 25
Table 4: Single Zone Wall Mounted Art Cool Premier System Electrical Data Table.
Voltage tolerance is ±10%.
Maximum allowable voltage unbalance is 2%.
MCA = Minimum Circuit Ampacity.
Maximum Overcurrent Protection (MOP) is calculated as follows: (Largest motor FLA x 2.25) + (Sum of
other motor FLA) rounded down to the nearest standard fuse size.
ELECTRICAL DATA

14 |PRODUCT DATA
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
FUNCTIONS, CONTROLS, OPTIONS
Table 5: Indoor Units—Functions, Controls and Options.
Indoor Unit Type Art Cool Premier
LA090HYV1 LA120HYV1 LA150HYV2 LA180HYV2 LA180HYV1 LA240HYV1
Airow
Air supply outlet 111111
Airflow direction (left/right) 5 Steps 5 Steps 5 Steps 5 Steps 5 Steps 5 Steps
Airflow direction (up/down) 6 Steps 6 Steps 6 Steps 6 Steps 6 Steps 6 Steps
Auto swing (left/right) √√√√√√
Auto swing (up/down) √√√√√√
Airflow steps (fan/cool/heat) 6 / 6 / 6 6 / 6 / 6 6 / 6 / 6 6 / 6 / 6 6 / 6 / 6 6 / 6 / 6
Auto swing √√√√√√
Auto wind √√√√√√
Jet-cool/heat √ / √ √ / √ √ / √ √ / √ √ / √ √ / √
One touch soft air √√√√√√
Air Purifying
Washable anti-fungal1√√√√√√
Deodorizing filter XXXXXX
Plasma2XXXXXX
Allergy free filter XXXXXX
3M Micro Protection filter2√√√√√√
Functions
Drain pump XXXXXX
E.S.P. control XXXXXX
Electric heater XXXXXX
High ceiling XXXXXX
Defrost √√√√√√
Low ambient √ √ √ √ √ √
Hot start √√√√√√
Self diagnostics √√√√√√
Outdoor Unit Drain Pan Heater √√√√√√
Soft dry (dehumidification) √√√√√√
Auto changeover √√√√√√
Auto clean (coil dry) √√√√√√
Auto restart √ √ √ √ √ √
Child lock (applicable with wired controller) oooooo
Forced operation √√√√√√
Sleep mode √√√√√√
Timer (24hr on/off) √√√√√√
Weekly timer (applicable with wired controller) oooooo
Two thermistor control (applicable with wired controller) oooooo
Controllers
Wireless Remote Controller √√√√√√
Simple Controller with Mode Selection oooooo
Simple Controller without Mode Selection oooooo
LG Programmable Thermostat oooooo
Dry contact oooooo
Central control (LGAP) XXXXXX
PI 485 X X o o o o
Special Function Kit
Zone control XXXXXX
CTIE XXXXXX
Electro thermostat XXXXXX
Wi-Fi Module (Option) oooooo
Water level sensor connection (for optional AG-9300-LG) oooooo
Wind baffle kit ZLABGP01A ZLABGP01A ZLABGP02A ZLABGP02A ZLABGP02A ZLABGP02A
1Primary washable filters.
2Secondary filters.
√ = Standard feature
o = Optional accessory (must be purchased separately)
X = Not available
• When Dry Contact Mode active, Wi-Fi Function can not be used.
• When changing from Wi-Fi mode to dry contact mode, normal operation resumes in approximately 3 minutes.

PRODUCT DATA | 15
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
LAU090HYV1, LAU120HYV1
OUTDOOR UNIT DIMENSIONS
Unit: Inch
4-3/16 22
13
13-15/16
1
10-1/2
5/8
21-1/2
4-15/16
6-7/16
5-1/8
1-1/4
12-1/16
9-5/16
30-5/16
10-15/16
Ø17-3/8
2-3/4
1/2
11-5/16
13/16
25°
25°
2-1/8
Air Discharge Grille
Liquid Piping Connection Port
Vapor Piping Connection Port
Control Box
Drain Hole 8-Ø13/16
Sump Heater

16 |PRODUCT DATA
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
LAU150HYV2, LAU180HYV2, LAU180HYV1, LAU240HYV1
OUTDOOR UNIT DIMENSIONS
Unit: Inch
13-7/16
14-3/16
6-1/2 21-1/2
2-3/4
Drain Hole 4-Ø13/16
Sheath Heater
12-5/8
34-1/4
13-1/8
15/16 5-7/8
9/16
3-3/16
21-1/2
20-7/8
31-1/2
7-11/16
4-1/4
6-13/16
7/8
15-1/8
1-13/16
25°
14°
6-15/16
Vapor Piping Connection Port
Control Box
Liquid Piping Connection Port
Air Discharge Grille

PRODUCT DATA | 17
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
OUTDOOR UNIT CENTER OF GRAVITY /
CORNER WEIGHT
Model Weight (lb.) Center of Gravity (inch) Leg (inch) Corner Weight (lb.)
Shipping Net a b c d e A B C D
LAU090HYV1, LAU120HYV1 81.8 76.9 19-31/32 9-11/32 5-21/32 22 12-31/32 10.0 11.7 27.7 27.6
LAU150HYV2, LAU180HYV2 130.1 121.3 21-3/32 13-25/32 6-23/32 21-1/2 13-13/32 20.6 18.3 38.8 43.6
LAU180HYV1, LAU240HYV1 130.1 121.3 21-3/32 13-25/32 6-23/32 21-1/2 13-13/32 20.6 18.3 38.8 43.6
Table 6: Center of Gravity and Corner Weight Dimensions.
d
e
a
b
c
AD
BC
Figure 1: Center of Gravity and Corner Weight Dimensions Diagram.

18 |PRODUCT DATA
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
INDOOR UNIT DIMENSIONS
LAN090HYV1, LAN120HYV1
Right rear piping
Left rear piping
Place a level on raised tab
Unit Outline
11-5/8
17 17-5/16
4-13/16
6-15/16
6-11/16
8-9/16
Unit: Inch
2-3/16
2
1-1/8
34-7/16
11-5/8
9-1/4
2
2-3/16
2
1-7/8
1
Ø2-9/16
Ø2-9/16
Knockout Hole
Air Inlet Grille
Front Panel
Display and
Signal Receiver
Installation Plate
1-1/16
2-7/16
1-7/16
1/4 x 1/8
1/8 x 1/4
5/8 1-5/16
2-7/16
6
1-1/4

PRODUCT DATA | 19
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
INDOOR UNIT DIMENSIONS
LAN150HYV2, LAN180HYV2, LAN180HYV1, LAN240HYV1
Left rear piping
Unit Outline
21-11/16 21-5/16
Unit : Inch
42-15/16 9-13/16
13
2-1/16
2-9/16
1-7/8
2-3/8
1-7/16
1-5/16
13
Ø2-9/16
3-15/16
7-3/16
Ø2-9/16
2-3/4
7-11/16
Air Inlet Grille
Front Panel
Display and
Signal Receiver
Knockout Hole
Installation Plate
2-3/8
Right rear piping
Place a level on raised tab
1-1/8 1-1/16
2-7/16
1-7/16
1/4 x 1/8
1/8 x 1/4
5/8 1-5/16
2-7/16
6
1-1/4

20 |PRODUCT DATA
Single Zone Wall Mounted Art Cool™Premier Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
Model Sound Pressure Levels (dB[A])
Cooling (Max) Heating (Max.)
LAU090HYV1 45 45
LAU120HYV1 45 45
LAU150HYV2 57 57
LAU180HYV2 57 57
LAU180HYV1 57 57
LAU240HYV1 57 57
Table 7: Outdoor Unit Acoustic Data
Figure 2: Outdoor Unit Sound Levels
3.28 ft
Center of
Outdoor Unit
Figure 3: Sound Pressure Levels for LAU090-120HYV1 Outdoor Units.
• Measurements are taken 3.28 ft away from the front of the unit.
• Sound pressure levels are measured in dB(A) with a tolerance of ±3.
• Sound pressure levels are tested in an anechoic chamber under
ISO Standard 3745.
• Sound level will vary depending on a range of factors including the
construction (acoustic absorption coefficient) of a particular room in
which the unit was installed.
OUTDOOR UNIT ACOUSTIC DATA
Octave Band Center Frequency (Hz)
Octave Band Sound ressure Level (0dB = 20μPa)
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Octave Band Sound Pressure Level (dB re 20µPa )
Octave Band Center Frequency (Hz)
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
LAU090HYV1 LAU120HYV1
Figure 4: Sound Pressure Levels for LAU150-180HYV2, LAU180-240HYV1 Outdoor Units.
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave Band Sound Pressure Level (0dB = 20μPa)
Octave Band Center Frequency (Hz)
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave Band Sound Pressure Level (0dB = 20μPa)
Octave Band Center Frequency (Hz)
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Front
Back
Front
Back
LAU150-180HYV2, LAU180-240HYV1
Cooling Heating
