SERVICE MANUAL
LG
CAUTION
website http://www.lgservice.com
e-mail http://www.lgeservice.com/techsup.html
• BEFORE SERVICING THE UNIT, READ THE SAFETY
PRECAUTIONS IN THIS MANUAL.
• ONLY FOR AUTHORIZED SERVICE PERSONNEL.

2Universal System Air Conditioner
TABLE OF CONTENTS
Safety Precautions ...................................................................................................3
I. Indoor Units
Introduction..............................................................................................................8
Ceiling Cassette 4-way..........................................................................................10
Ceiling & Floor .......................................................................................................37
Ceiling concealed Duct..........................................................................................54
II. Outdoor Units
Introduction............................................................................................................76
MPS Variable Single A(AUUH-C, R410A) .............................................................78
III. Troubleshooting Guide
Self-diagnosis Function .......................................................................................102
Electronic Parts Troubleshooting Guide ..............................................................103
IV. Electronic Control Device
Ceiling Cassette Type..........................................................................................110
Ceiling Duct Type.................................................................................................111
Ceiling & Floor .....................................................................................................113
V. Schematic Diagram
Ceiling Cassette Type..........................................................................................116
Ceiling Duct Type.................................................................................................117
Ceiling & Floor .....................................................................................................118
VI. Functional Description
Ceiling Cassette Type..........................................................................................120
Ceiling Duct Type.................................................................................................122
Ceiling & Floor .....................................................................................................125
Outdoor Units ......................................................................................................128
VII. Explode View and Replacement Parts List
Indoor Units .........................................................................................................140
Outdoor Units ......................................................................................................150
Panel Assembly, Front .........................................................................................173

I. Indoor Units
Introduction.......................................................................................................8
Ceiling Cassette 4-way...................................................................................10
Ceiling & Floor ................................................................................................37
Ceiling Concealed Duct..................................................................................54
Service Manual 7

• Models List
Type Refrigerant Chassis
name
18,000
(5.3)
24,000
(7.0)
30,000
(8.8)
36,000
(10.6)
TE
ATNH
186ELFC ---
TF -ATNH
246FLFC
ATNH
306FLFC -
TD
-- -
ATNH
366DLFC
Ceiling & Floor R410A
VB
VK
VL
AVNH
186BLAC
AVNH
246BLAC
AVNH
306BLAC
AVNH
366KLAC
AVNH
486LLAC
AVNH
606LLAC
-
BH
ABNH
186HLAC
ABNH
246HLAC --
-
BG -
12,000
(3.5)
ATNH
126ELFC
-
-
-- --
-- --
-
-
--
BR -----
ABNH
306GLAC
48,000
(14.1)
-
--
ATNH
486DLFC
ATNH
606DLFC
-
60,000
(17.6)
-
-
--
--
--
VE
AVNH
126ELAC --
-- --
ABNH
486RLAC
ABNH
606RLAC
ABNH
366GLAC
1Ø, 220-240V,
50Hz
Model name
Nominal capacity [Btu/h(kW)] Power
Supply
R410A
Ceiling
Cassette
4-Way
Ceiling
Concealed
Duct
Indoor unit
R410A
8Universal System Air Conditioner
Introduction
Introduction

• Model Number Nomenclature

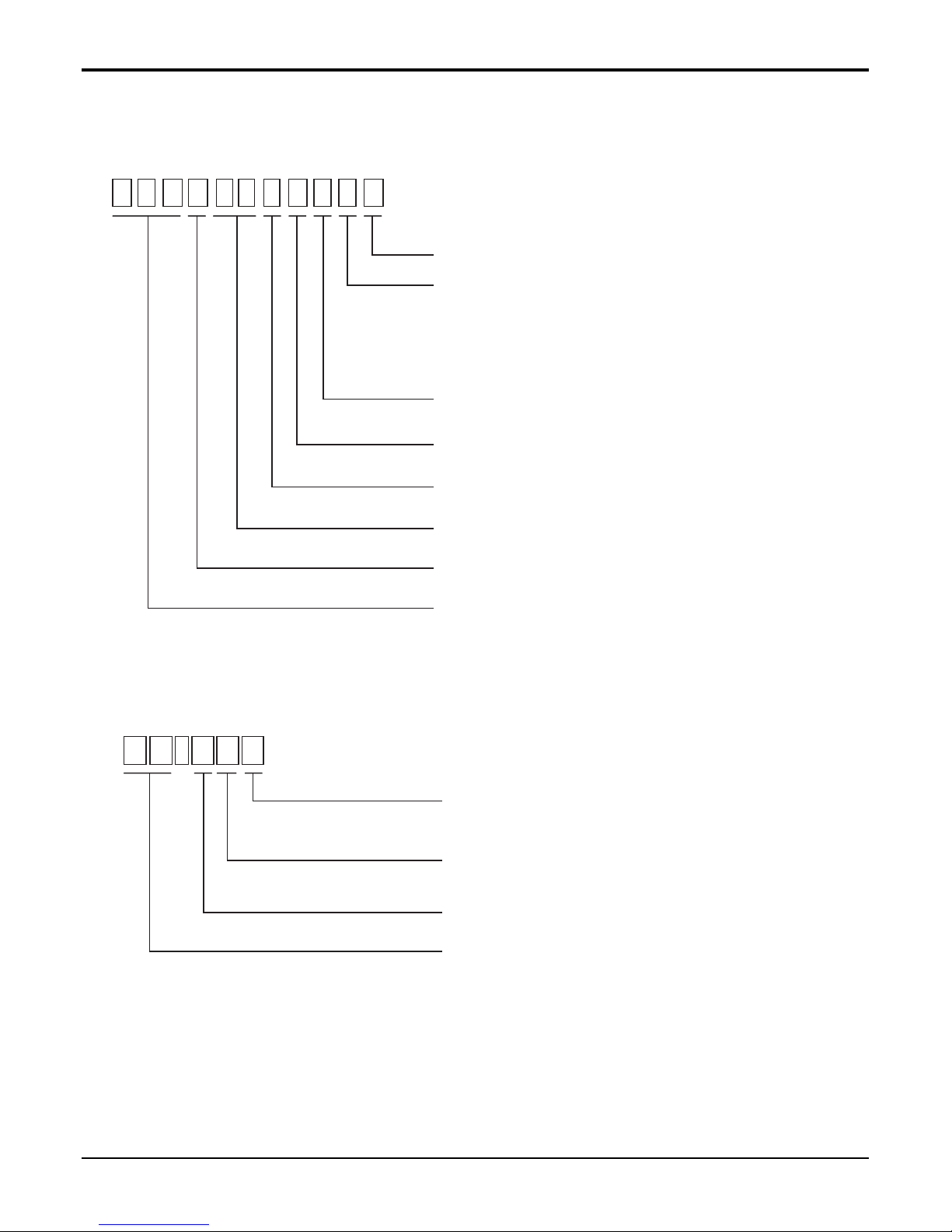

Indoor unit
Decoration panel(For Ceiling Cassette Models)
A T N H 1 8 6 E L FC
Serial Number
Functions
A : Basic B : Low Ambient
C : Plasma Filter E : Elevation Grille
F : Elevation Grille + Plasma Filter
H : Plasma Filter + Low Ambient
L : Nano Plasma M : Nano Plasma + Elevation Grille
Look
L : Basic
E : E Chassis F : F Chassis D : D Chassis
Chassis Name
Electrical Ratings
6:1Ø,220V~240V,50Hz 8:3Ø,380V~415V,50Hz
Nominal CoolingCapacity in Btu/h
Ex) 18 -> 18,000 Btu/h, 48 -> 48,000 Btu/h
Model Type
C : Cooling Only H : HeatPump
Indicates that this is a indoor unit for R410A
ATN : Ceiling cassette type indoor unit
ABN : Ceiling concealed duct type indoor unit
AVN : Convertible type indoor unit
P T - H EC
Functions
A : Basic C : Plasma Air Purifier
E : Elevation Grille F : Elevation Grille + Plasma Air Purifier
Indoor Unit Chassis
E : E Chassis F : F Chassis D : D Chassis
Model Type
C : Cooling Only H : Heat Pump
Decoration Panel of Ceiling Cassette Type Indoor Unit
Service Manual 9
Introduction

10 Universal System Air Conditioner
Ceiling Cassette 4-way
Contents
1. Features & Benefits ..............................................................................11
2. List of Functions....................................................................................15
3. Specifications........................................................................................16
4. Dimensional Drawings ..........................................................................18
5. Wiring Diagrams ...................................................................................22
6. Piping Diagrams....................................................................................24
7. Operating Instructions...........................................................................25
8. Installation.............................................................................................29
9. Accessories ..........................................................................................36
Ceiling Cassette 4-way
(R410A·Indoor Units)
ATNH-EL/FL/DL
Ceiling Cassette 4-way

(18k Btu/h model)
■Convenience
•Auto elevation grille(Accessory)
•Tele control(Accessory)
•LCD wired remote control
•Group control
•Central control(Accessory)
•Weekly progam
■Cleanness
•Plasma air purifying system
•Hygienic and easy to clean filter
■Easy Installation
•Compact design & easy installation
•High ceiling corresponding operation
•High head drain pump(700mm)
■Comfort & Reliability
•Low noise with 3-dimensional turbo fan
•2-Thermistor control(Main body & Remote control)
•Zero stanby power consumption
•Jet cool
•Swirl swing
•Space control

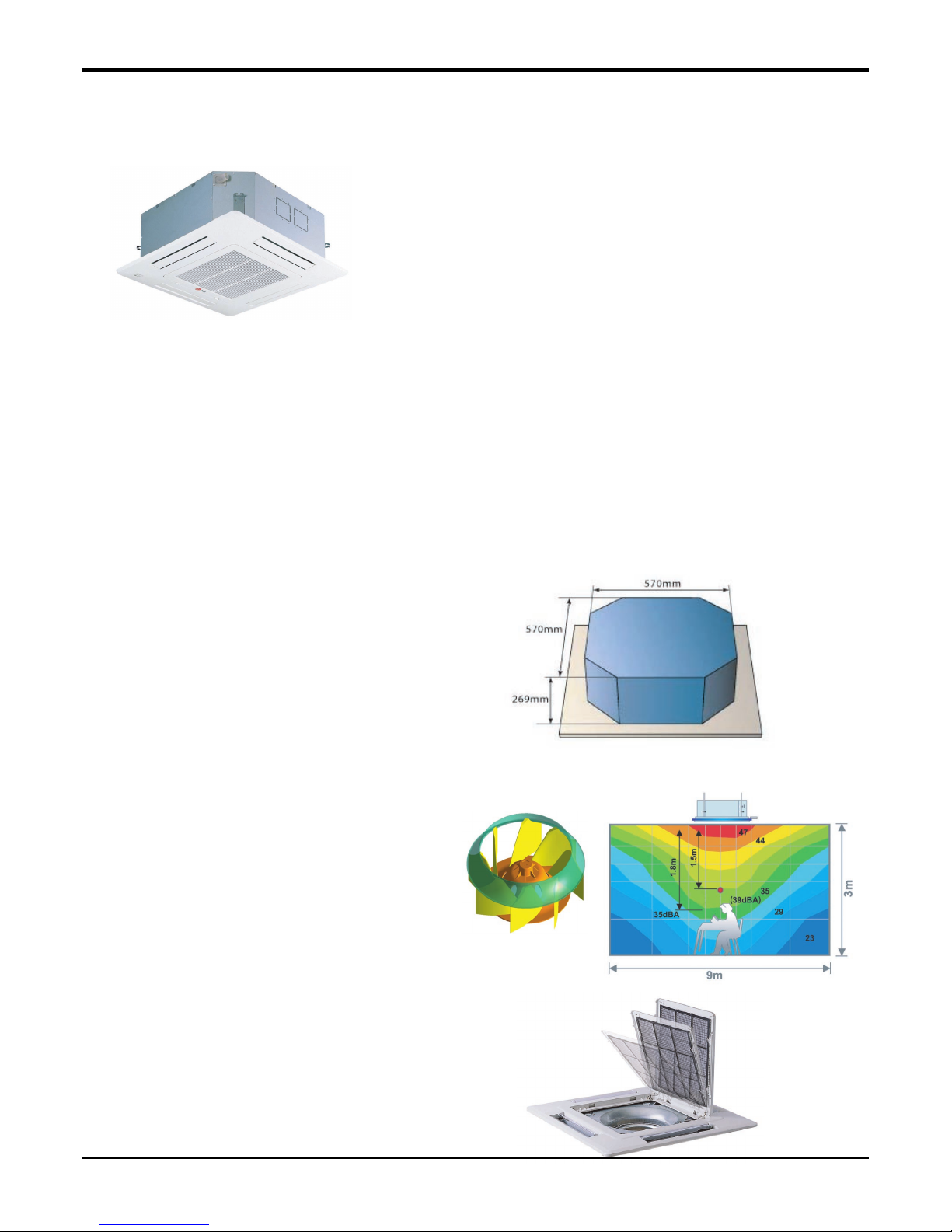

Compact Design and Easy Installation
Only about 269mm height in the ceiling is sufficient for
installation space.
A smaller size than a Textile(600X600) is very conve-
nient for installation.
Low Noise with 3-dimensional
turbo fan
The most advanced low-noise design.
The adoption of turbo-fan and round type heat
exchanger provides the quietest operation.
Hygienic and Easy-to-Clean Filter
Washable and anti bacteria filter is adopted.
It is easy to open grille and replace clean filter.
Service Manual 11
Ceiling Cassette 4-way
1. Features & Benefits

12 Universal System Air Conditioner
Ceiling Cassette 4-way
Ceiling Board
Drain Pan
Maximum 700mm
Drain Pump
Flexible drain hose
Pipe fixture
Slope 1/50~1/100
Hard Tube(ex.PVC)
+
+
+
+
Polluted Air Purified fresh Air
+4.8KV discharge
Ionizer Photo-Catalyst Coated Mesh
Dust particles
Odour
Dust electrode discharge
Odour molecule
Generating plasma

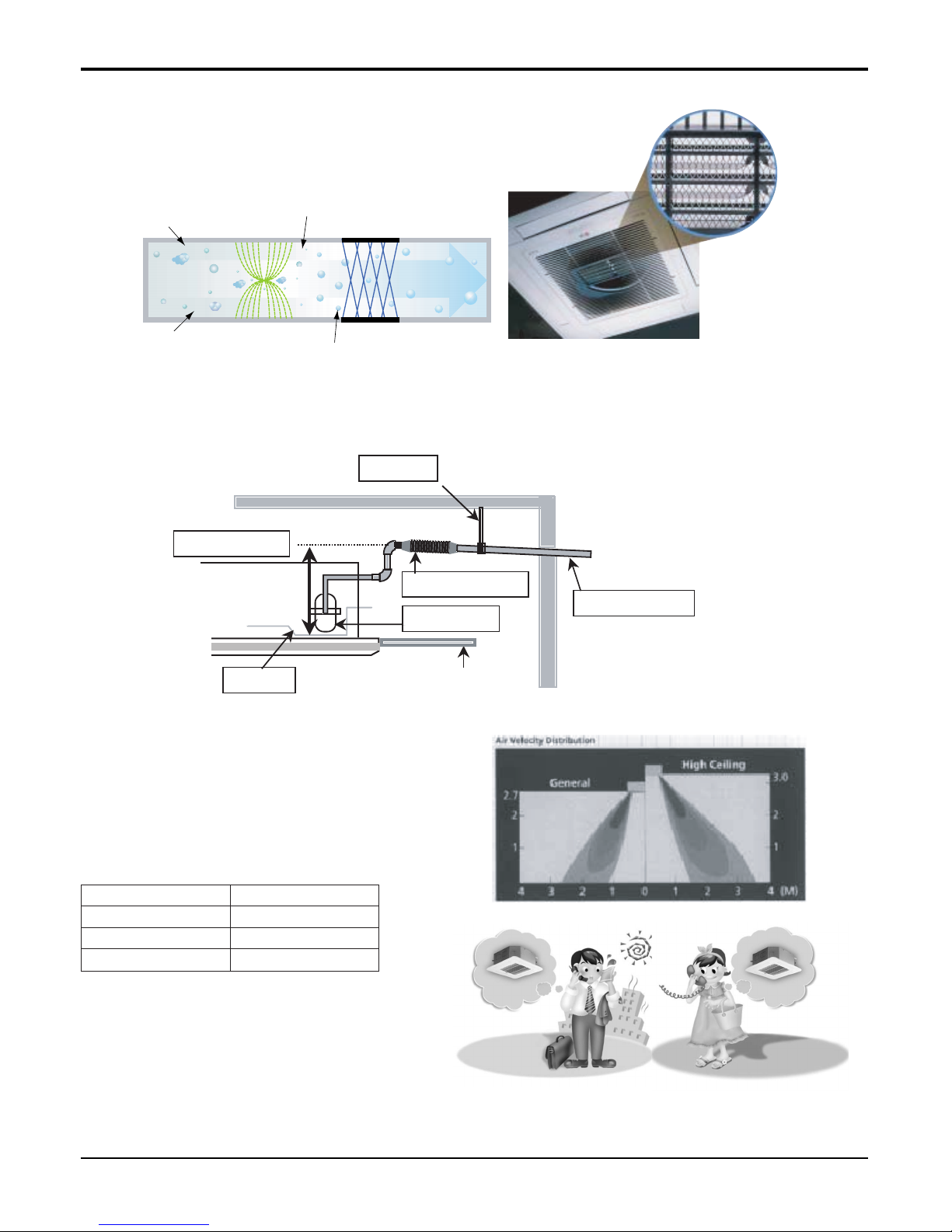

Plasma Air Purifying System
The PLASMA Air Purifying Function not only removes micro-
scopic contaminants and dust, but also removes house
mites, pollen, and pet fur helps to prevent allergic diseases
like asthma.
High Head Drain Pump(700mm)
Built-in Drain Pump drains out water automatically.
A standard drain-head height of up to 700 mm is possible, creating the ideal solution for perfect water drainage.
High-Ceiling Corresponding Operation
According to the height of the installation, it provides vari-
ability of indoor fan motor rpm. If the height of installation is
low then you can adjust low rpm of indoor fan motor. On
the other hand if the height of the installation is high you
can adjust high rpm of indoor fan motor. Selection of
speed can be done by slide switch at the back of the LCD
wired remote.
Tele Control (Accessory)
- It provides you ease of control. Air conditioner
can be switched on/off by the telephone. It
saves time & energy.
ON
ONON OFF
ON OFF OFFOFF
In Advance by Telephone
Before Coming Home...
In case of Going out
Without Turning off the
Air Conditioner...
Over than 3.3mHigh Ceiling
2.7~3.3mStandard
Ceiling HeightSwitch selection
Less than 2.7mLow Ceiling

Child Lock Function
-It prevents the children or others from tampering
with the control buttons. Unit can be controlled by
the wireless remote controller. This can be easily set
by pressing timer key & Min key simultaneously.
After child lock is set, pressing any key will display
CL on the LCD for 3 seconds and all the keys will be
ineffective.
Auto Elevation Grille(Accessory)
-Auto Elevation Grille is automatically down to height
of max. 3.1 m. So it enables to install the Indoor unit
at high ceiling space. And Auto Elevation Grille
makes you cleaning the filter easily.
CHILD LOCK
-Display
71
Vane 2
Swirl Swing(New)4- Open(Conventional)
Swirl Swing(New)4- Open(Conventional)
2.4% 4.8%100% Improved
Comparison of Air Flow Types
Comparison of Floor
Temp. Distribution(20°C)
Vane 1 Close OpenOpen
Open
Open
Open
Close CloseOpen
Vane 3 Close Open Close CloseOpen
OpenOpen Close CloseOpen
Vane 2
OpenOpen
Time
Close CloseOpen
Vane 4
Vane 1
Vane 3
Vane 2
Time
Vane 4
Vane 3
Vane 4
Vane 1
Swirl Swing
- It is the function for comfort cooling/heating operation.
- The diagonal two louvers are opened the
more larger than the other louvers.
After one minute, it is opposite.
Space Control
Vanes angle can be controlled by pair, considering its
installation environment.
- For example direct drafts can be annoying, leading
to discomfort and reduced productivity vane control
helps to eliminate this problem.
- Easily controlled by wired remote control.
- Air Flow can be controlled easily regarding any
space environment.
Service Manual 13
Ceiling Cassette 4-way

14 Universal System Air Conditioner
Ceiling Cassette 4-way

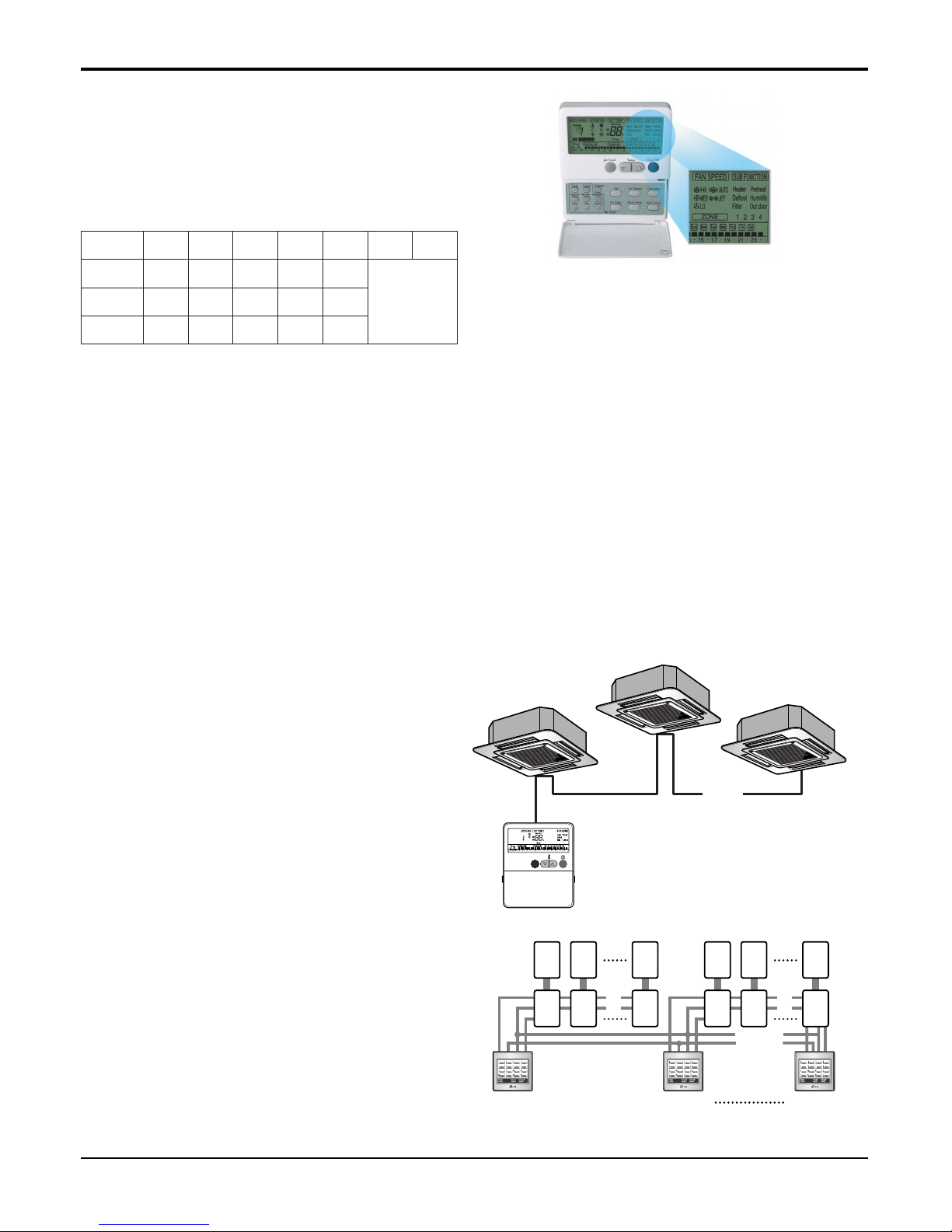

Weekly Program
- On/Off schedule of operation for a period of ONE
week.
No need to turn the unit On/OFF manually during
working days. On/Off time is scheduled in micom of
the wired remote control.
Auto Restart Operation
- Whenever there is electricity failure to the unit, and after resumption of the power, unit will start in the same
mode prior to the power failure. Memorized condition are on / off condition, operating mode (cooling/heating),
set temperature and fan speed.The unit will memorize the above conditions and start with same memorized
condition.
Two Thermistor Control
- There may be a significant difference between the temperature taken at the installed product and indoor tem-
perature. Two thermistor control provides option to control temperature by referring any of the two tempera-
tures. With the help of the slide switch at the back of the LCD wired remote controller, selection of the desired
thermistor for controlling the unit can be done. One thermistor is in the Indoor unit & the other one is in the
LCD wired remote.
Group Control
- It enables to control as much as 16 units with the
help of one wired remote controller. All the units will
follow same setting of temperature & other sub func-
tions.
Central Control(Accessory)
- It enables to control 16 x 8 = 128 units with the help
of 8 controllers. All units can be put on and off from
one Central Room.For Setting Temperature, Fan
Speed and other sub functions, access the respec-
tive LCD wired remote controller of each unit.
❈Sub PI485(with wire assembly) should be pur-
chased as optional.
Operation Time Table (Example)
Mon Tue Wed Thu Fri Sat Sun
OFF
Setting
Temp.
On
Off
25°C25°C25°C25°C25°C
09:00
12:00
08:00
17:00
09:00
12:00
08:00
12:00
09:00
12:00
10mm 10mm
12 16........
........
Main
PCB
Controller
# 1
Controller
# 2
Controller
# 8
M
1
Sub
1
M
2
Sub
2
M
16
Sub
16
M
17
Sub
17
M
18
Sub
18
M
128
Sub
128

Air Discharge Outlet 4 4 4
Airflow Direction control (left & right) - - -
Airflow Direction control (up & down) Auto Auto Auto
Airflow Steps(Fan / Cool /Heat) 3/4/3 3/4/3 3/4/3
Auto Changeover O O O
Auto Elevation Grille Accessory Accessory Accessory
Auto Operation O O O
Auto Restart Operation O O O
Auto Swing O O O
Central Control Accessory Accessory Accessory
CHAOS Wind (Auto wind) - - -
Child Lock Function O O O
Cooling & Fan Operation(Cooling Only) - - -
Cooling, heating & Fan Operation(Heat Pump) O O O
Defrost / Deicing O O O
Deodorizing Filter - - -
Drain Pump O O O
E.S.P. Control - - -
Electric Heater - - -
Environment Friendly Refrigerant O O O
Fire Alarm Function - - -
Forced Operation O O O
Group Control O O O
High Ceiling Operation O O O
Hot Start O O O
Jet Cool O O O
Plasma Air Purifier O O O
Prefilter(Washable / Anti-fungus) O O O
Self Diagnosis O O O
Sleep Mode O O O
Soft Dry Operation O O O
Swirl Swing O O O
Space Control O O O
Tele Control Accessory Accessory Accessory
Temperature Control O O O
Test Function O O O
Time Delay Safety function O O O
Timer (weekly) O O O
Two Thermistor Control O O O
Wired LCD Remote Control O O O
Wireless Remote Control Accessory Accessory Accessory
Zero Standby Power O O O
ATNH-EL ATNH-FL ATNH-DL
Ceiling Cassette-4way
Function
Notes :
O : Basic
Optional : Factory-Installed
Accessory : Field-Installed
- : Not available on this system
Service Manual 15
Ceiling Cassette 4-way
2. List of Functions

16 Universal System Air Conditioner
Ceiling Cassette 4-way
Nominal Cooling Capacity kcal/h(W)
Btu/h
Nominal Heating Capacity kcal/h(W)
Btu/h
Air Circulation H/M/L CMM(CFM)
Setting temperature range(cool/heat) °C
Fan motor Output W
Model
No. of Poles
Input W
Running Current A
Capacitor µF/Vac
Fan Type
No. Used / Diameter EA/inch(mm)
Noise Level H/M/L dB(A)
(Sound Press,1.5m)
Temperature controller
Coil Tube Size (OD) inch(mm)
Fins per inch
No. of Rows & Column
Dehumidification Rate l/h
Dimensions Indoor Unit inch(mm)
(W*H*D) Decoration Panel inch(mm)
Net Weight Indoor Unit kg(lbs)
Decoration Panel kg(lbs)
Piping Connection Liquid inch(mm)
Gas inch(mm)
Drain hose (ID Ø) inch(mm)
Packing Dimension Indoor Unit inch(mm)
(W*H*D) Decoration Panel inch(mm)
Stuffing Quantity Without S/Parts 20/40ft
Indoor Unit Type Ceiling Cassette 4-way
Model Indoor Unit ATNH126ELFC ATNH186ELFC ATNH246FLFC ATNH306FLFC
Decoration Panel PT-HEC(F) PT-HEC(F) PT-HFC(F) PT-HFC(F)
Notes:
1. Capacities are based on the following conditions:
Cooling: - Indoor Temperature 27°C(80.6°F) DB /19°C(66.2°F) WB
- Outdoor Temperature 35°C(95°F) DB /24°C(75.2°F) WB
- Interconnecting Piping Length 7.5m
- Level Difference of Zero.
Heating: - Indoor Temperature 20°C(68°F) DB / 15°C(59°F) WB
- Outdoor Temperature 7°C(44.6°F) DB / 6°C(42.8°F) WB
- Interconnecting Piping Length 7.5 m
- Level Difference of Zero.
2. Capacities are Net Capacities.
3. Due to our policy of innovation some specifications may be changed without notification.
For outdoor units Single Split
See chapter MPS Variable SINGLE-A(AUUH-B)
Application Split(Simultaneous operation) See chapter MPS Variable SINGLE-A(AUUH-B)
3024(3517) 4536(5275) 6048(7033) 7560(8793)
12000 18000 24000 30000
3326(3869) 4990(5803) 6653(7738) 8316(9672)
13200 19800 26400 33000
9.5/8/7(336/283/247) 13/12/11(459/424/388) 15/14/13(523/494/459) 19/17/15(671/600/530)
18~30 / 16~30 18~30 / 16~30 18~30 / 16~30 18~30 / 16~30
18.3 22.4 40.3 48.6
IC-9630LGAE IC-9630LGAC OBM-350292 OBM-4015P2
6666
75 90 121 146
0.35 0.43 0.53 0.67
2.5/440 2.5/440 4/440 4/440
Turbo Fan Turbo Fan Turbo Fan Turbo Fan
1/13.0(330) 1/13.0(330) 1/15.0(382) 1/15.0(382)
38 / 35 / 32 41/39/37 43/41/39 45/42/39
Thermistor Thermistor Thermistor Thermistor
0.275(7) 0.275(7) 0.275(7) 0.275(7)
19 19 21 21
2R,11C 2R11C 2R12C 2R12C
1.2 2.4 3 3.3
22.4*10.5*22.4(570*269*570) 22.4*10.5*22.4 (570*269*570) 29.3*11.5*29.4 (744*292*744) 29.3*11.5*29.3(744*292*744)
26.4*1.2*26.4(670*30*670) 26.4*1.2 *26.4(670*30*670) 33.5*1.2 *33.5(850*30*850) 33.5*1.2*33.5(850*30*850)
19(41.9) 19(41.9) 24(52.9) 24(52.9)
3(6.6) 3(6.6) 3(6.6) 3(6.6)
1/4 (6.35) 1/4 (6.35) 1/4 (6.35) 1/4 (6.35)
3/8 (9.52) 1/2 (12.7) 1/2 (12.7) 5/8 (15.88)
1.26(32) 1.26(32) 1.26(32) 1.26(32)
25.2*13.0*25.2(640*330*640) 25.2*13.0*25.2(640*330*640) 32.6*14.4*32.6(828*365*828) 32.6*14.4*32.6(828*365*828)
29.5*3.1*29.5(750*80*750) 29.5*3.1*29.5(750*80*750)
36.8*3.5*36.8(935*90*935) 36.8*3.5*36.8(935*90*935)
189/378 189/378 84/168 84/168
3. Specifications

Service Manual 17
Ceiling Cassette 4-way
Nominal Cooling Capacity kcal/h(W)
Btu/h
Nominal Heating Capacity kcal/h(W)
Btu/h
Air Circulation H/M/L CMM(CFM)
Setting temperature range(cool/heat) °C
Fan motor Output W
Model
No. of Poles
Input W
Running Current A
Capacitor µF/Vac
Fan Type
No. Used / Diameter EA/inch(mm)
Noise Level H/M/L dB(A)
(Sound Press,1.5m)
Temperature controller
Coil Tube Size (OD) inch(mm)
Fins per inch
No. of Rows & Column
Dehumidification Rate l/h
Dimensions Indoor Unit inch(mm)
(W*H*D) Decoration Panel inch(mm)
Net Weight Indoor Unit kg(lbs)
Decoration Panel kg(lbs)
Piping Connection Liquid inch(mm)
Gas inch(mm)
Drain hose (ID Ø) inch(mm)
Packing Dimension Indoor Unit inch(mm)
(W*H*D) Decoration Panel inch(mm)
Stuffing Quantity Without S/Parts 20/40ft
Indoor Unit Type Ceiling Cassette 4-way
Model Indoor Unit ATNH366DLFC ATNH486DLFC ATNH606DLFC
Decoration Panel PT-HDC(F) PT-HDC(F) PT-HDC(F)
9072(10549) 12095(14067) 14112(16412)
36000 48000 56000
9979(11607) 13305(15474) 15523(18053)
39600 52800 61600
25/23/21(883/812/742) 30/28/26(1059/988/918) 34/32/30(1200/1130/1059)
18~30 / 16~30 18~30/16~30 18~30/16~30
52.5 58.5 107
IC-1630LGPJ IC-1640LGPH IC-14640LGPM
666
175 195 237
0.76 1.5 1.8
4/440 6/400 6/400
Turbo Fan Turbo Fan Turbo Fan
1/18.1(460) 1/18.1(460) 1/18.1(460)
40/38/36 43/41/39 50/47/43
Thermistor Thermistor Thermistor
0.275(7) 0.275(7) 0.275(7)
21 21 21
2R12C 2R12C 2R12C
4.0 5.5 6.5
33.1*11.3*33.1(840*288*840) 33.1*11.3*33.1(840*288*840) 33.1*11.3*33.1(840*288*840)
37.4*1.2*37.4(950*30*950) 37.4*1.2*37.4(950*30*950) 37.4*1.2*37.4(950*30*950)
32(70.4) 32(70.4) 32(70.4)
5(11) 5(11) 5(11)
1/4 (6.35) 3/8(9.52) 3/8(9.52)
5/8 (15.88) 3/4(19.05) 3/4(19.05)
1.26(32) 1.26(32) 1.26(32)
36.4*13.8*36.4(925*350*925) 36.4*13.8*36.4(925*350*925) 36.4*13.8*36.4(925*350*925)
40.6*3.5*40.6(1,030*90*1,030) 40.6*3.5*40.6(1,030*90*1,030) 40.6*3.5*40.6(1,030*90*1,030)
72/144 72/144 72/144
Notes:
1. Capacities are based on the following conditions:
Cooling: - Indoor Temperature 27°C(80.6°F) DB /19°C(66.2°F) WB
- Outdoor Temperature 35°C(95°F) DB /24°C(75.2°F) WB
- Interconnecting Piping Length 7.5m
- Level Difference of Zero.
Heating: - Indoor Temperature 20°C(68°F) DB / 15°C(59°F) WB
- Outdoor Temperature 7°C(44.6°F) DB / 6°C(42.8°F) WB
- Interconnecting Piping Length 7.5 m
- Level Difference of Zero.
2. Capacities are Net Capacities.
3. Due to our policy of innovation some specifications may be changed without notification.
For outdoor units Single Split See chapter MPS Variable SINGLE-A(AUUH-B)
Application Split(Simultaneous operation) See chapter MPS Variable SINGLE-A(AUUH-B)

18 Universal System Air Conditioner
Ceiling Cassette 4-way
269
570
269
190.5
160
52
90 90
120.4 30 521
570
450
40
110 110
670
670
4
1
3
2
Unit:mm
570 Unit size
570 Unit size
450 (Hanging bolt)
7575
600 (Ceiling opening)
600 (Ceiling opening)
521(Hanging bolt) 39.5
39.5
670
670
5
6
30
ATNH-EL
(unit : mm)
Number Name Descripition
1 Liquid pipe connection ø6.35 flare
2 Gas pipe connection 12k: ø9.52, 18k: ø12.7 flare
3 Drain pipe connection
4 Power supply connection
5 Air discharge grille
6 Air suction grille

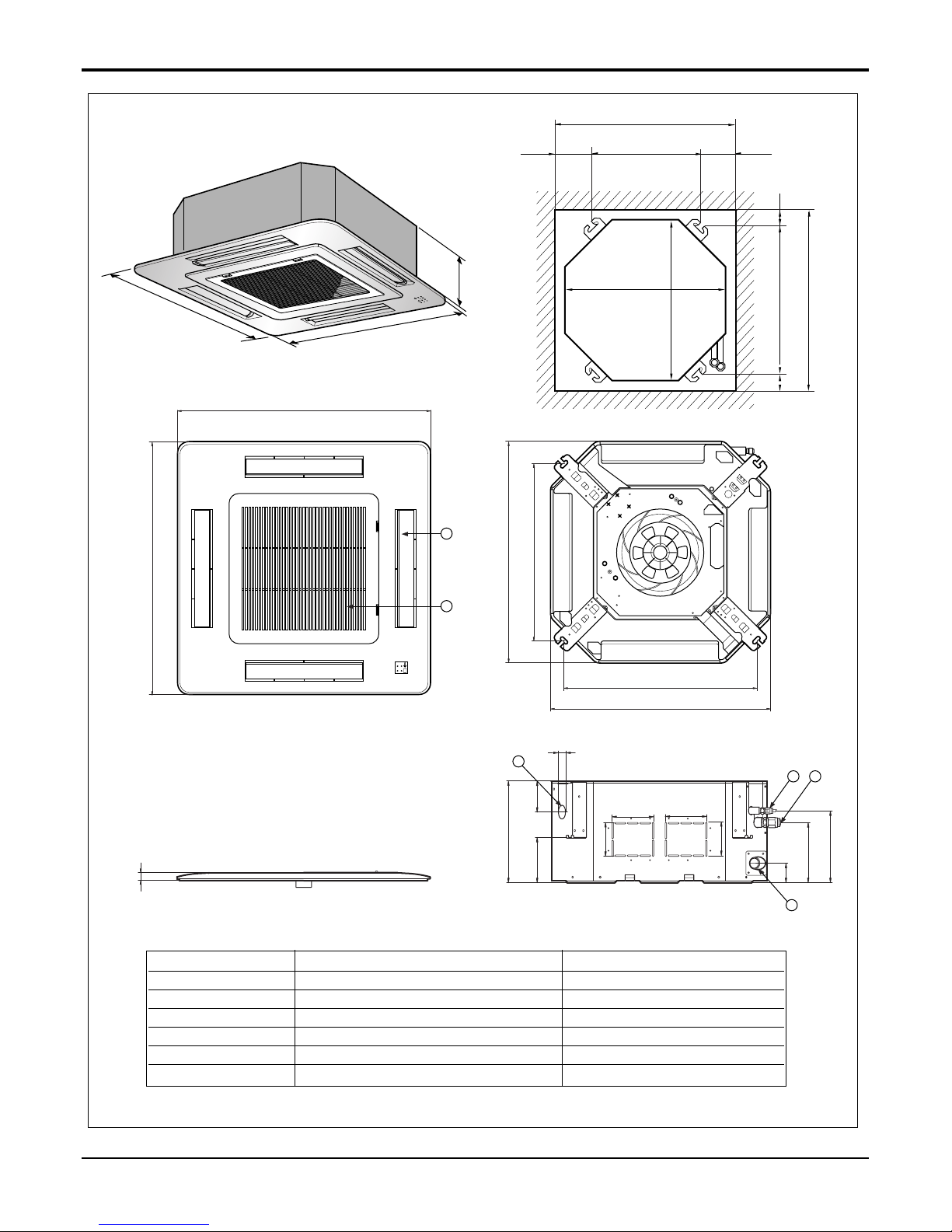

4. Dimensional Drawings

Service Manual 19
Ceiling Cassette 4-way
292
850
850
850
850
744 658
572
744
292
212
150
54
90 90
192 117
70
110 110
4
1
3
2
5
6
Unit:mm
744 Unit size
744 Unit size
658 (Hanging bolt)
6666
790 (Ceiling opening)
790 (Ceiling opening)
572(Hanging bolt) 109
109
30
ATNH-FL
(unit : mm)
Number Name Descripition
1 Liquid pipe connection ø6.35 flare
2 Gas pipe connection 24K: ø12.7, 30K: ø15.88 flare
3 Drain pipe connection
4 Power supply connection
5 Air discharge grille
6 Air suction grille

20 Universal System Air Conditioner
Ceiling Cassette 4-way
ATNH-DL
288
950
950
290
210.5
180
52
140
40
110
30
90 90
110
840
785
840
678
840 Unit size
840 Unit size
672 (Hanging bolt)
101.5101.5
875 (Ceiling opening)
875 (Ceiling opening)
785(Hanging bolt) 45
45
Unit:mm
4
1
2
3
950
950
5
6
30
Number Name Descripition
1 Liquid pipe connection 36k:ø6.35, 48/60k: ø9.52 flare
2 Gas pipe connection 36k:ø15.88, 48/60k: ø19.05flare
3 Drain pipe connection
4 Power supply connection
5 Air discharge grille
6 Air suction grille
(unit : mm)

Service Manual 21
Ceiling Cassette 4-way
PT-HEF/HFF/HDF
W
D
H
W mm 670 850 950
Hmm909090
D mm 670 850 950
(unit : mm)
Model PT-HEF PT-HFF PT-HDF
DIM
Unit

Ceiling Cassette 4-way
22 Universal System Air Conditioner
CONNECTOR NUMBER LOCATION
CN-POWER AC POWER SUPPLY
CN-MOTOR BLDC FAN MOTOR OUTPUT
CN-D/PUMP DRAIN PUMP OUTPUT
CN-DISP DISPLAY
CN-FLOAT FLOAT SWITCH INPUT
CN-PTC PTC HEATER INUT
CN-REMO REMOTE CONTROL
CN-GRILL GRILL CONTROL
CN-CC CENTRAL CONTROL
CN-PIPE2 DISCHARGE PIPE SENSOR
CN-ROOM ROOM SENSOR
CN-PIPE1 PIPE SENSOR
CN-HVB AIR CLEANER
CN-UD1 STEP MOTOR
CN-UD2 STEP MOTOR
CN-LR1 STEP MOTOR
CN-LR2 STEP MOTOR
5. Wiring Diagrams

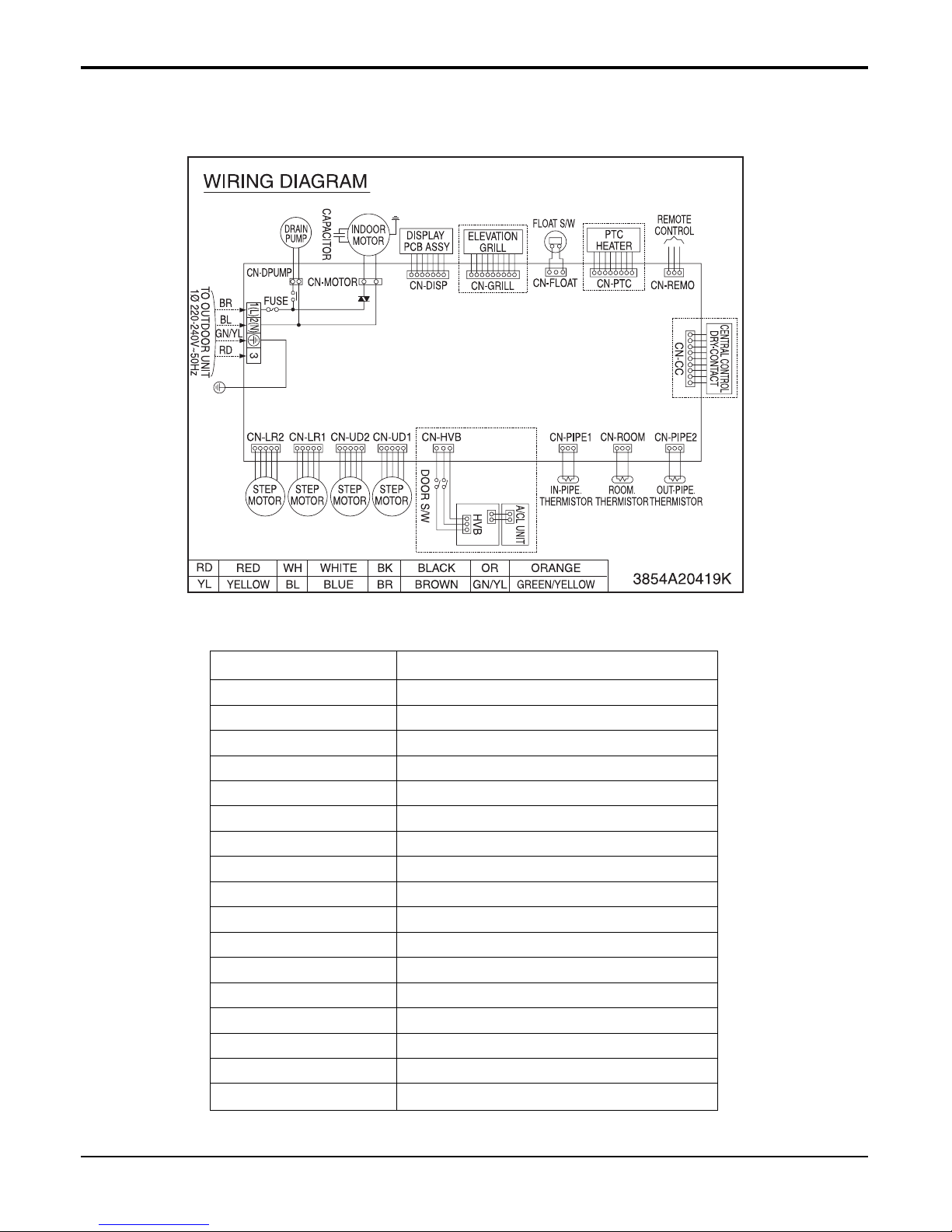

5.1 Wiring Diagrams(Product)

Service Manual 23
Ceiling Cassette 4-way

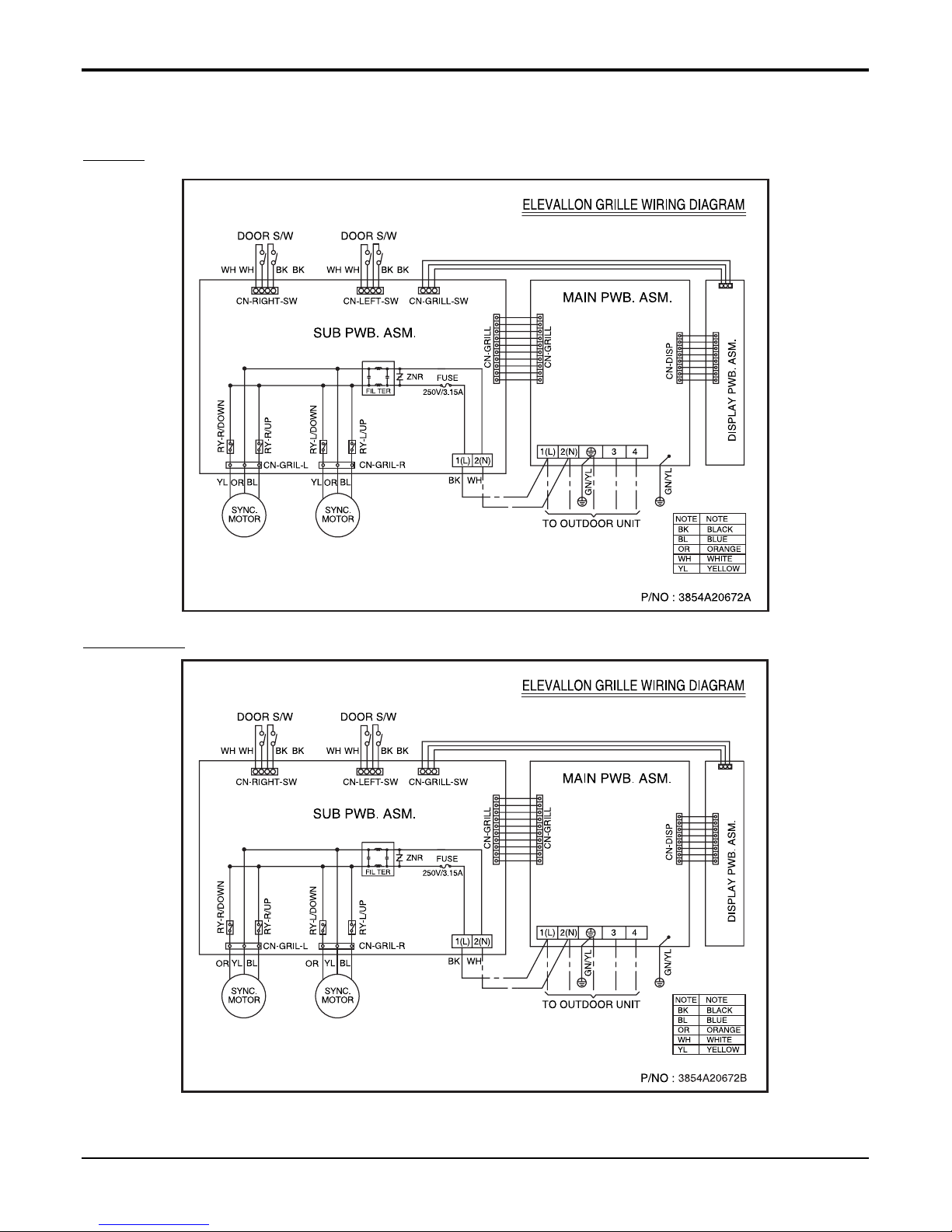

5.2 Wiring Diagrams(Elevation Grill)
PT-HEF
PT-HFF/HDF

24 Universal System Air Conditioner
Ceiling Cassette 4-way
Refrigerant pipe connection port diameter
Model
ATNH126ELFC
ATNH186ELFC
ATNH246FLFC
ATNH306FLFC
ATNH366DLFC
ATNH486DLFC
ATNH606DLFC
Gas
9.52(3/8)
12.7(1/2)
15.88(5/8)
19.05(3/4)
Liquid
6.35(1/4)
9.52(3/8)
[unit: mm(inch)]
Heat Exchanger
Turbo Fan
lndoor unit
:Heating
:Cooling
: Thermistor

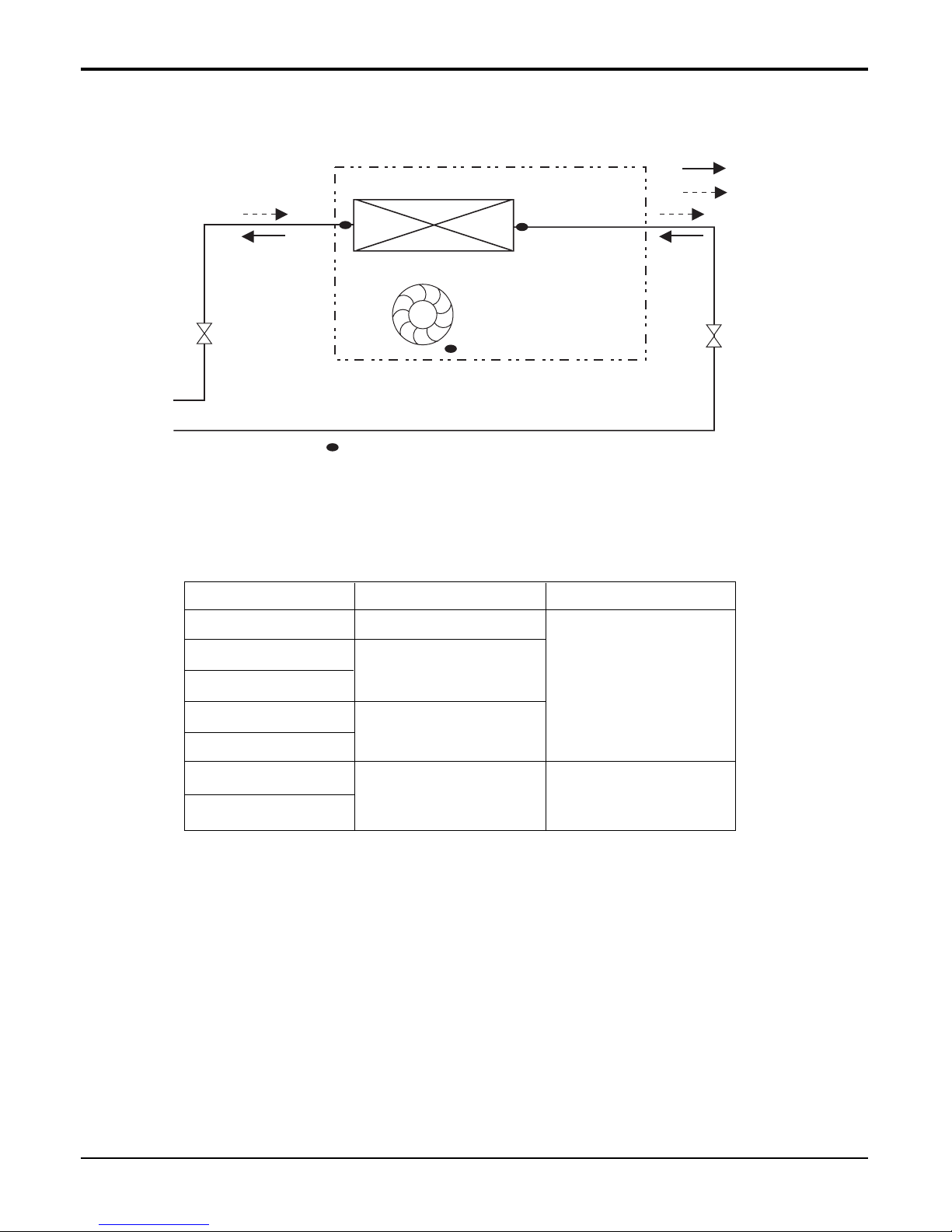

6. Piping Diagrams
