LG LB-F3660HL User manual

Ceiling Duct Type Air Conditioner
SVC MANUAL(Exploded View)
MODEL : LB-F3660HL
LB-F3660CL
CAUTION
Before Servicing the unit, read the safety precautions in General SVC manual.
Only for authorized service personnel.
Internal Use Only
http://biz.lgservice.com

Contents
Functions 3
Product Specifications (Cooling & Heating) 5
Dimensions 6
Refrigeration Cycle Diagram 7
Wiring Diagram 9
Operation Details 11
Installation of Indoor, Outdoor Unit 14
Test Running 25
3-way Valve 27
Cycle Troubleshooting Guide 32
Electronic Parts Troubleshooting Guide 33
Electronic Control Device 36
Schematic Diagram 37
Exploded View 38
- 2 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

Functions
Room temperature sensor. (Thermistor)
Maintains the room temperature in accordance with the Setting Temp.
Indoor fan is delayed for 5 seconds at the starting.
Restarting is inhibited for approx. 3 minutes.
High, Med, Low
Intermittent operation of fan at low speed.
Both the indoor and outdoor fan stops during defrosting.
Hot start after defrost ends.
The indoor fan stops until the evaporator piping temperature will be reached at 28°C
Indoor Unit
Operation ON/OFF by Remote controller
Sensing the Room Temperature
Room temperature control
Starting Current Control
Time Delay Safety Control
Indoor Fan Speed Control
Soft Dry Operation Mode
Deice (defrost) control (Heating)
Hot-start Control (Heating)
- 3 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

- 4 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

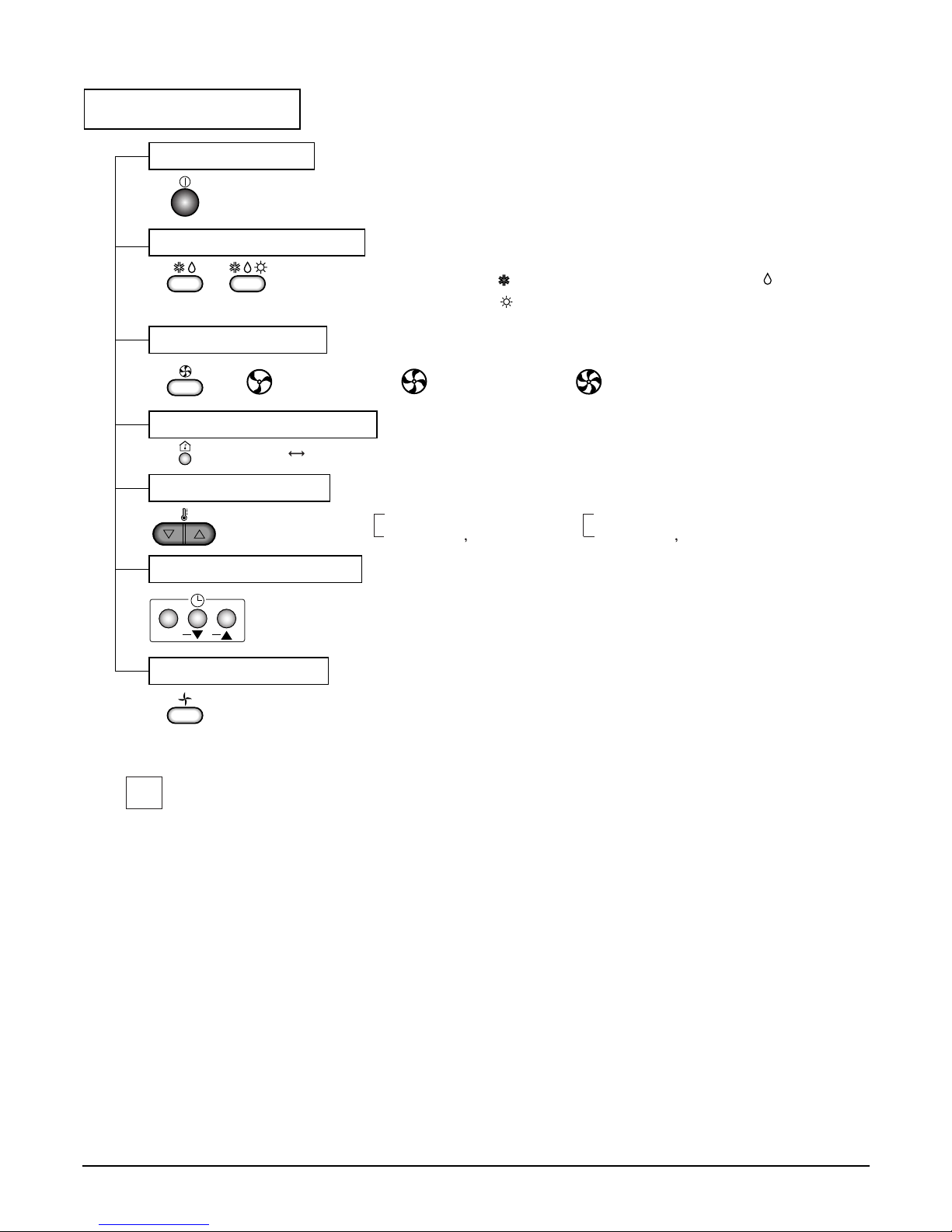

Remote Controller
Operation ON/OFF
Operation Mode Selection
Fan Speed Selection
Room Temperature Display
Temperature Setting
Setting the Time or Timer
(Cooling
model only) (Heating
model only)
(Low) (Med) (High)
Cooling Operation Mode ( )
Heating Operation Mode ( )
Soft Dry Operation Mode ( )
Fan Operation Mode
HIMEDLO
Set
: High:39°CLOW:11°C
: Fan Operates without cooling & heating
Although the air conditioner is turned off by a power failure, it is restarted
automatically after a power resupply.
Cooling Heating
Down to 18°C
Up to 30°C
Down to 16°C
Up to 30°C
✔

- 5 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Product Specifications (Cooling & Heating)
Item
Cooling Capacity Btu/h(kcal/h) 36,000(9,073) 36,000(9,073)
Heating Capacity Btu/h(kcal/h) 36,000(9,073) -
Moisture Removal l/h 5.0
Power Source Ø, V, Hz 1, 220-240, 50
Indoor 37
Outdoor 58
Input Cooling 4,600 4,700
Heating 4,150 -
Running Current Cooling 23 23
Heating 21.5 -
E.E.R. Btu/h-W 7.83 7.66
Indoor 1,180 x 298 x 600
Outdoor 790 x 965 x 320
Indoor 46 46
Outdoor 81 78
Refrigerant (R-22) g 3.4 3.4
Remocon Type L.C.D
Liquid 3/8" (9.52)
Gas 5/8" (15.88)
Drain Hose
Connecting Wire 0.75mm2
Main Power Cable 5.5mm2
Time Delay Safety Function
Soft Dry
Fan Speed (Indoor) 3 (Hi, Med, Low)
Timer 24Hrs
Self-Diagnosis
Air Circulation m3/min
Dimensions
(W H D)
Net. Weight
mm
kg
W
A
LB-F3660HL LB-F3660CL
Service Valve &
Connecting Tube
Model Name
Unit

- 6 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Dimensions
■Model:LB-F3660HL/CL
(1) Indoor Unit
790
965
320
1180 600
298
(2) Outdoor Unit

- 7 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

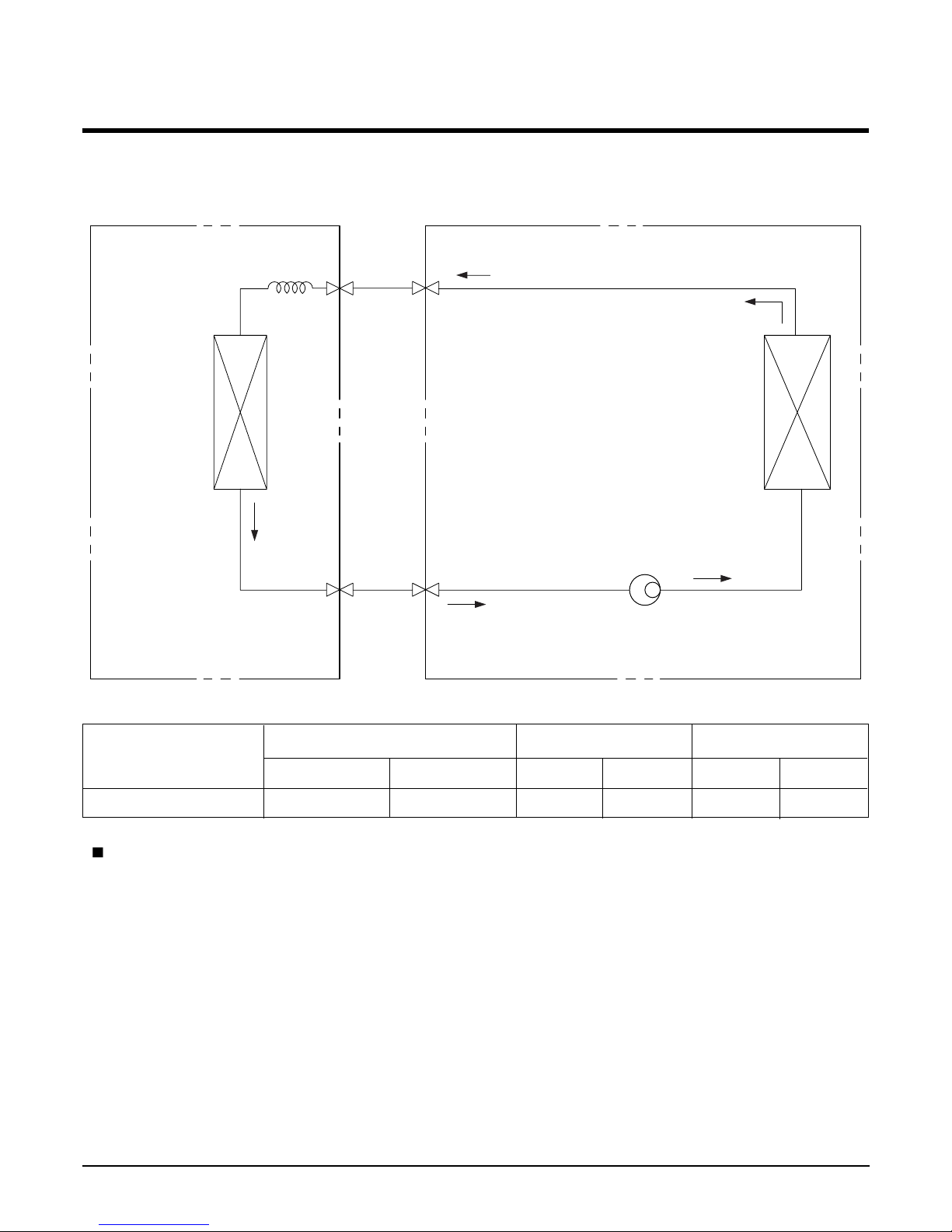

Refrigeration Cycle Diagram
■LB-F3660HL
(Rated performance for refrigerant line length of: 5m)
For installation over rated distance, 70g of refrigerant should be added for each meter.
ex) When installed at a distance of 15m, 700g of refrigerant should be added.
(15-5) x 70g = 700g

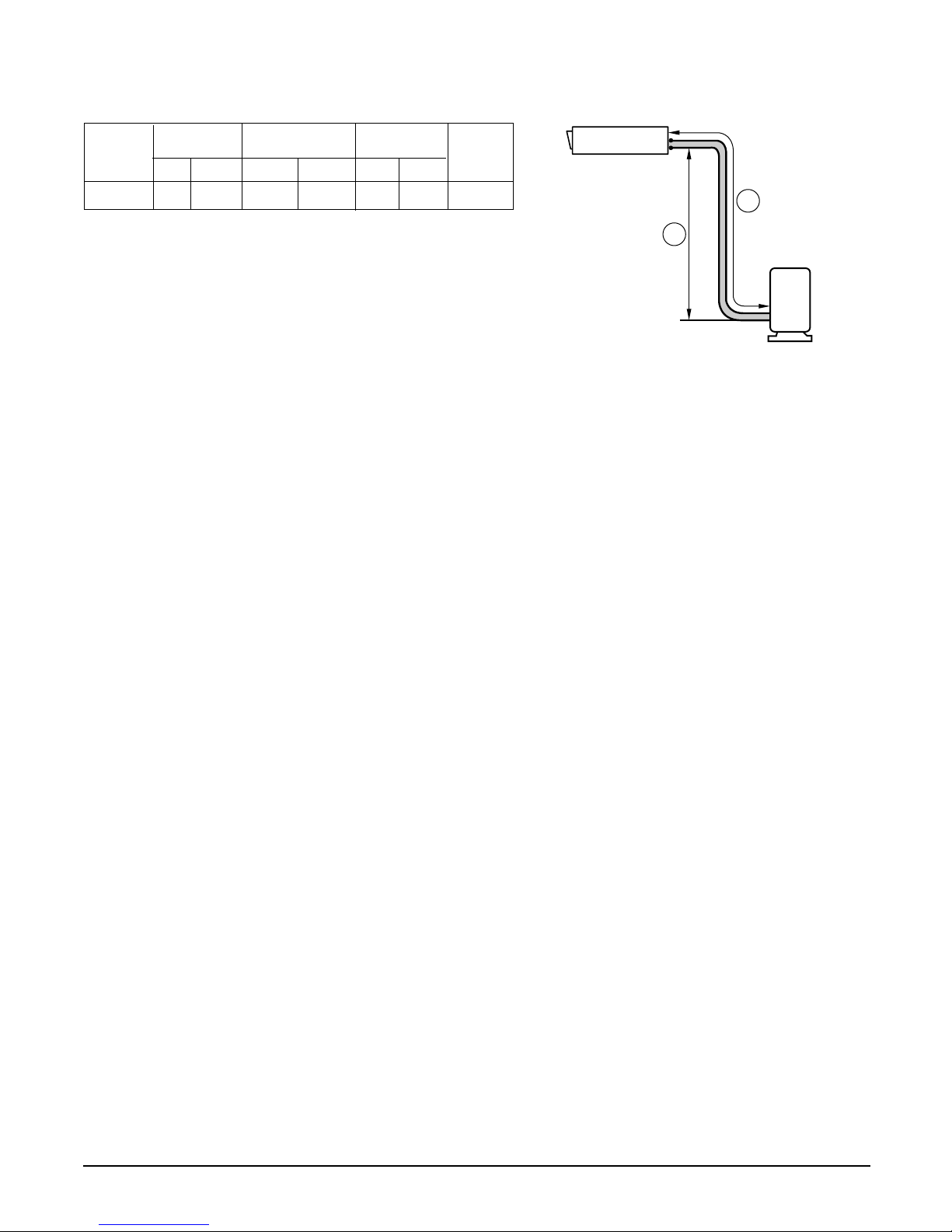

Pipe size(Diameter: ø) Piping length(m) Elevation(m)
MODEL
Gas Liquid Rated Max. Rated Max.
LB-F3660HL 5/8" 3/8" 5 25 5 15
INDOOR UNIT OUTDOOR UNIT
HEAT
EXCHANGER HEAT
EXCHANGER
COMPRESSOR
GAS SIDE
LIQUID SIDE
COOLING
HEATING
REVERSING
VALVE
CHECK VALVE
CAPILLARY TUBE
CAPILLARY TUBE
BY PATH CAPILLARY TUBE

- 8 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
■LB-F3660CL
(Rated performance for refrigerant line length of: 5m)
For installation over rated distance, 70g of refrigerant should be added for each meter.
ex) When installed at a distance of 15m, 700g of refrigerant should be added.
(15-5) x 70g = 700g
Pipe size(Diameter: ø) Piping length(m) Elevation(m)
MODEL
Gas Liquid Rated Max. Rated Max.
LB-F3660CL 5/8" 3/8" 5 25 5 15
INDOOR UNIT OUTDOOR UNIT
HEAT
EXCHANGER
(CONDENSER)
HEAT
EXCHANGER
(CONDENSER)
COMPRESSOR
GAS SIDE
LIQUID SIDE
CAPILLARY TUBE

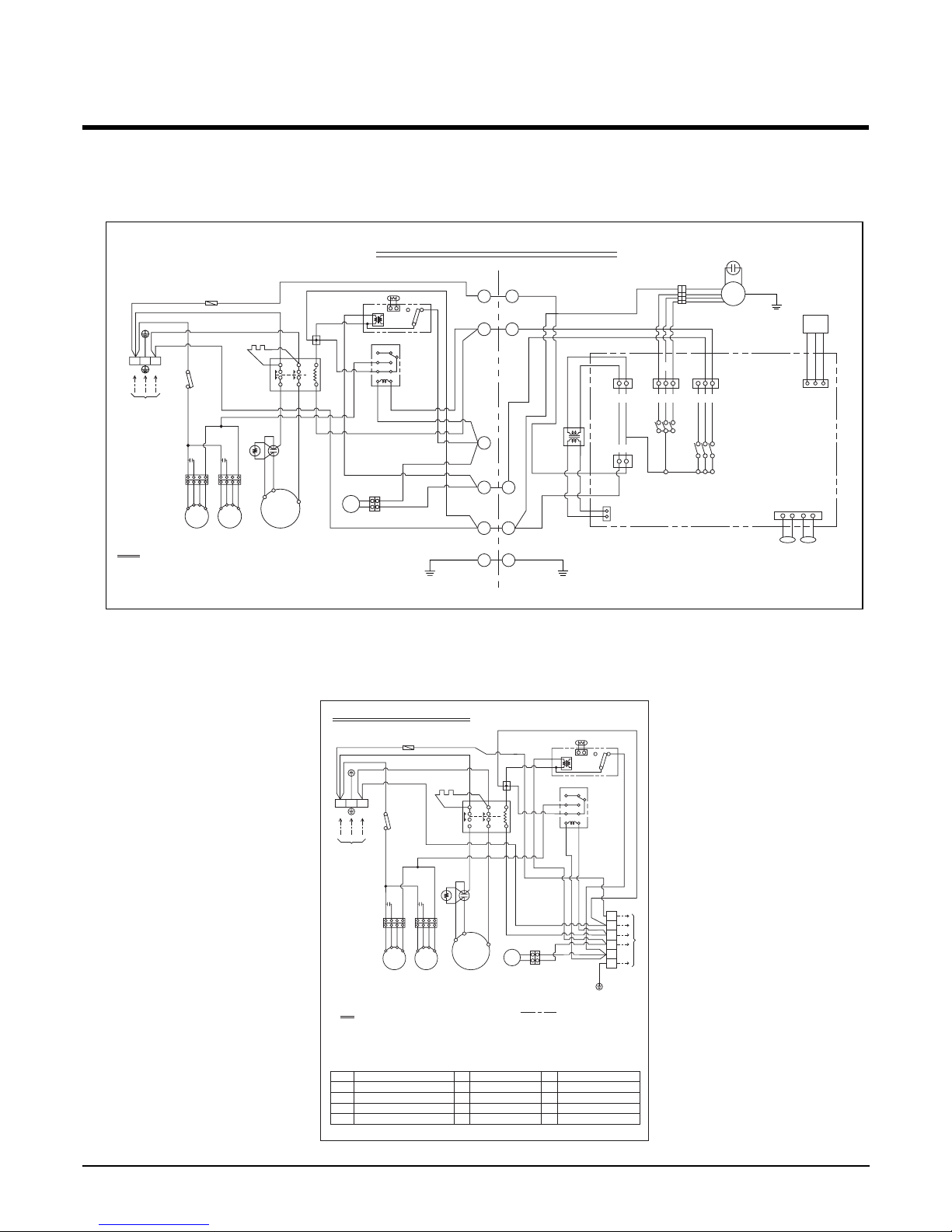

Wiring Diagram
■Model: LB-F3660HL
(1) Indoor Unit
(2) Outdoor Unit
- 9 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
2
6
4
COi
GN/YL
FMi
TRANS
WH
BL
BK
GN/YLGN/YL
RD
OR
CN-TRANS2
PWB ASM
CN-POWER
CN-TRANS1
Hi Med Low
CN-MOTOR
RY-FAN RY-4WAY RY-COMP
CN-OUT
1
3
6
DC-12V SIGNAL GND
CN-REMO
INDOOR ELECTRIC CIRCUIT
INDOOR UNITOUTDOOR UNIT
(RD) (YL) (BR)
P/NO : 3854A20025F
4
5
3
2
78
1TM
220-240V
1Ø, 50Hz
POWER SUPPLY
BK
63H2 52C
L1
T1
L2
T2
A2
A1
BK
WH
BK
52F1
12
34
56
TNS NO
C TH
NC
D.P
WH BK
BLBK
WH
T/B1
F1
BK
WH
WH
WH
BR
Co
OR YL
Co
OR
FMo1
49FMo
FMo2
49FMo
YL
YL
BKBK
BK
BL
WH
GN/YL
23
NL
20SV
BK
BK
BK
BK
BK
BK
WH
WH
BK
1
NOTE
BL : BLUE
BK : BLACK
BR : BROWN
OR : ORANGE GN/YL : GREEN/YELLOW
RD : RED
WH : WHITE
YL : YELLOW
Re
CN-TH
EVA
TH
ROOM
TH
CH1
BK WH RD
RC
S
CM
Cr
PTCR
78
1TM
220-240V
1Ø, 50Hz
POWER SUPPLY
BK
63H2 52C
Outdoor Unit Wiring Diagram
L1 L2
T1 T2
A2
A1
BK
WH
BK
52F1
12
34
56
TNS NO
C TH
NC
D.P
WH BK
WH
BK
WH
BL
RD
GN/YL
BLBK
YL
WH
T/B1
F1
BK
WH
WH
WH
Co
OR YL
Co
OR
FMo1
49FMo
NOTE
BL : BLUE
BK : BLACK
BR : BROWN
OR : ORANGE GN/YL : GREEN/YELLOW
63H2
C TH
20SV
52C
Tmo
HIGH PRESSURE SWITCH FOR HEATING
THERMISTOR FOR PIPE TEMP.
REVERSING COIL
MAGNECTIC CONTACTOR
TERMINAL BLOCK
TM
52F1
Cr
CM
Co
MAIN TERMINAL BLOCK
RELAY FOR FMo
RUN CAPACITOR FOR CM
COMPRESSOR
RUN CAPACITOR FOR FMo
FMo
F1
DP
CH1
OUTDOOR FAN MOTOR
FUSE (250V, 5A)
DEICER PCB
CRANK CASE HEATER FOR CM
P/NO : 3854A20025G
RD : RED
WH : WHITE
YL : YELLOW
FMo2
49FMo 20SV
YL
BKBK
BR
BK
BL
BK
WH
BK BK
BK BK
WIRING OF FIELD
(CONNECTING WIRE)
GN/YL Tmo
To the indoor unit
WH
GN/YL
23
LN
1
2
3
4
5
6
CH1
BK WH RD
RC
S
CM
Cr
PTCR

■Model: LB-F3660CL
(1) Indoor Unit
(2) Outdoor Unit
- 10 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
2
6
COi
GN/YL
FMi
TRANS
WH
BL
BK
GN/YLGN/YL
OR
CN-TRANS2
PWB ASM
CN-POWER
CN-TRANS1
Hi Med Low
CN-MOTOR
RY-FAN RY-4WAY RY-COMP
CN-OUT
CN-TH
EVA
TH
ROOM
TH
1
3
6
DC-12V SIGNAL GND
Re
CN-REMO
INDOOR ELECTRIC CIRCUIT
INDOOR UNITOUTDOOR UNIT
(RD) (YL) (BR)
P/NO : 3854A20025H
3
2
1TM
220-240V
1Ø, 50Hz
POWER SUPPLY
BK
52C
L1
T1
L2
T2
A2
A1
BK
WH
WH
WH
T/B
F1
BK
WH
WH
BK
WH RD
RC
S
BR
Co
OR YL
Co
OR
FMo1FMo2
CM
YL
BKBK
BK
BL
BK
WH
GN/YL
23
NL
WH
WH
1
NOTE
BL : BLUE
BK : BLACK
BR : BROWN
OR : ORANGE
RD : RED
WH : WHITE
GN/YL : GREEN/YELLOW
CH1
Cr
PTCR
Outdoor Unit Wiring Diagram
NOTE
BL : BLUE
BK : BLACK
BR : BROWN
OR : ORANGE
52C
TMo
Cr
CM
MAGNECTIC CONTACTOR
TERMINAL BLOCK
RUN CAPACITOR FOR CM
COMPRESSOR
TM
FMo
F1
MAIN TERMINAL BLOCK
OUTDOOR FAN MOTOR
FUSE(250V, 5A)
Co
CH1
RUN CAPACITOR FOR FMo
CRANK CASE HEATER FOR CM
P/NO : 3854A20025J
RD : RED
WH : WHITE
WIRING OF FIELD
(CONNECTING WIRE)
GN/YL : GREEN/YELLOW
1TM
220-240V
1Ø, 50Hz
POWER SUPPLY
BK
52C
L1 L2
T1 T2
A2
A1
BK
WH
WH
BK
WH
BL
GN/YL
T/B
F1
BK
WH
WH
Co
OR YL
Co
OR
FMo1FMo2
YL
BKBK
BR
BK
BL
BK
BK
WH
GN/YL
To the indoor unit
WH
GN/YL
23
LN
TMo
1
2
3
4
5
6
CH1
BK WH RD
RC
S
CM
Cr
PTCR

- 11 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Operation Details
(1) The function of main control
1. Time Delay safety Control
•3min The compressor is ceased for 3minutes to balance the pressure in the refrigeration cycle.
(Protection of compressor)
•30sec The 4-way valve is ceased for 30sec. to prevent the refrigerant-gas abnormal noise when the Heating
operation is OFF or switched to the other operation mode while compress is off.
While compressor is running, it takes 3~5 seconds to switch.
2. Soft-Dry Operation
•The indoor fan speed is automatically set to the low, so the shift of the indoor fan speed is impossible because of
already being set to the best speed for Dry Operation by Micom Control.
3. Cooling Mode Operation
•When selecting the Cooling( ) Mode Operation, the unit will operate according to the setting by the remote con-
troller and the operation diagram is as following
Intake Air temp.
COMP. ON
(SET TEMP.+0.5°C)
COMP. OFF
(SET TEMP. -0.5°C) More than More than
3 minutes 3 minutes
Selecting Selecting Selecting
fan speed fan speed fan speed
COMPRESSOR ON OFF ON OFF ON
INDOOR FAN Low Low

- 12 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

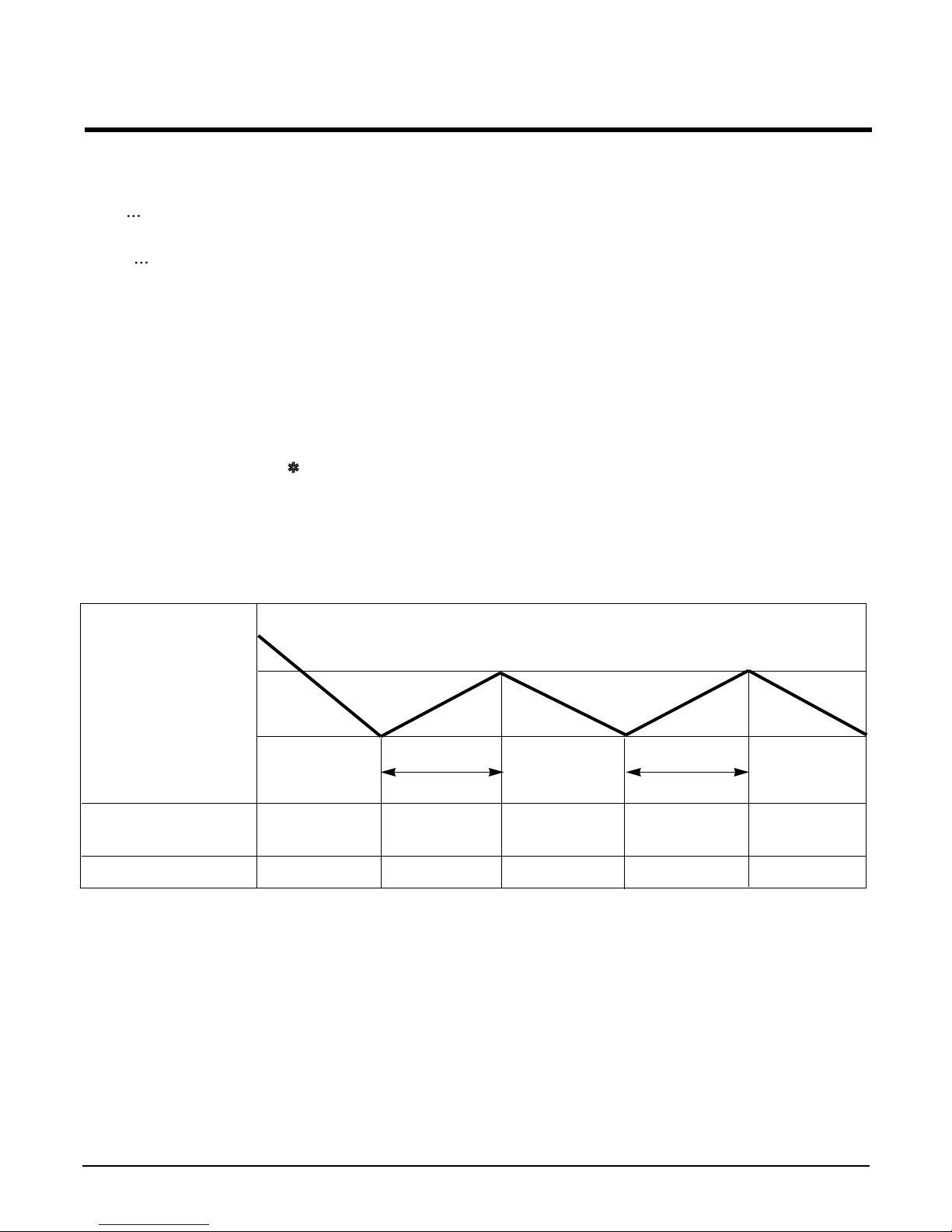

Intake Air temp.
Setting temp.+3°C
(Compressor OFF)
Setting temp.
(Compressor ON)
INDOOR FAN Low OFF Low Low OFF
COMPRESSOR ON OFF ON OFF
A point; While the indoor Heat-Exchanger temperature is higher than 40°C fan operates at low speed, when
it becomes lower than 40˚C fan stops.
B point; When the indoor Heat-Exchanger temperature is higher than 42°C, fan operates at seleted fan
speed, when it becomes lower than 39°C, the fan operates at low speed.
4. Heating Mode Operation (Except Cooling Model)
The unit will operate according to the setting by the remote controller and the operation diagram is shown as following.
Hot Start Low
Selecting
Fan Speed
minimum 3min
Selecting fan
speed
minimum
10sec.
1min
AA
minimum
10sec.
B
5. Hot-Start Control
The indoor fan stops until the evaporator piping temperature will be reached to 31°C.
The operation diagram is as following.
PIPING
TEMPERATURE 1min
COMPRESSOR
INDOOR FAN
ON
28°C
: Selected Fan : Low Fan : Fan Stop
31°C

6. Defrost Control
•Defrost operation is controlled by timer and sensing the outdoor piping temperature.
•The defrost starts only when the outdoor pipe temperature falls below -6°C after 45 minutes passed from starting
of heating operation.
•Defrost ends after 10 minutes passed from starting of defrost operation or when the outdoor pipe
temperature rises over 12°C even if before 10 minutes.
7. Auto Restarting Operation
•When the power is restored after a sudden power failure while in appliance operation, the mode before the
power failure is kept on the memory and the appliance should be on the automatically operates in the mode on
the memory.
•Operation Mode that is kept on the memory
- State of Operation ON/OFF
- Operation Mode/Setting Temp/Selected Airflow Speed
•If no input by the remote controller within 7 hr after the appliance operates by the Auto Restarting operation,
the appliance is forced to stop at the moment of 7-hr elapse.
8. Self-Diagnosis Function
•'CHECK' will flash in the remote controller display when a problem occurs. Then please contact your dealer.
•Correct the accident point as shown in the table below before restarting operation.
•During the normal operation 'CHECK' won't be displayed in the remote controller.
- 13 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
More than 45 minutes of
heating operation
Outdoor Pipe Temp.
Indoor Fan
Compressor
4-Way Valve
ON
ON
ON
ON
OFF
ON
OFF
HOT-
START
ON
ON OFF OFFON
12°C
(Defrost OFF)
-6°C
(Defrost ON)
Within
10 minutes
Defrost
Defrost
More than 45 minutes of
heating operation
Remote controller LCD Accident Point
F1 Indoor temperature thermistor error
F2 Indoor piping thermistor error
F3 Indoor/Outdoor unit communication error

- 14 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Installation of Indoor, Outdoor Unit

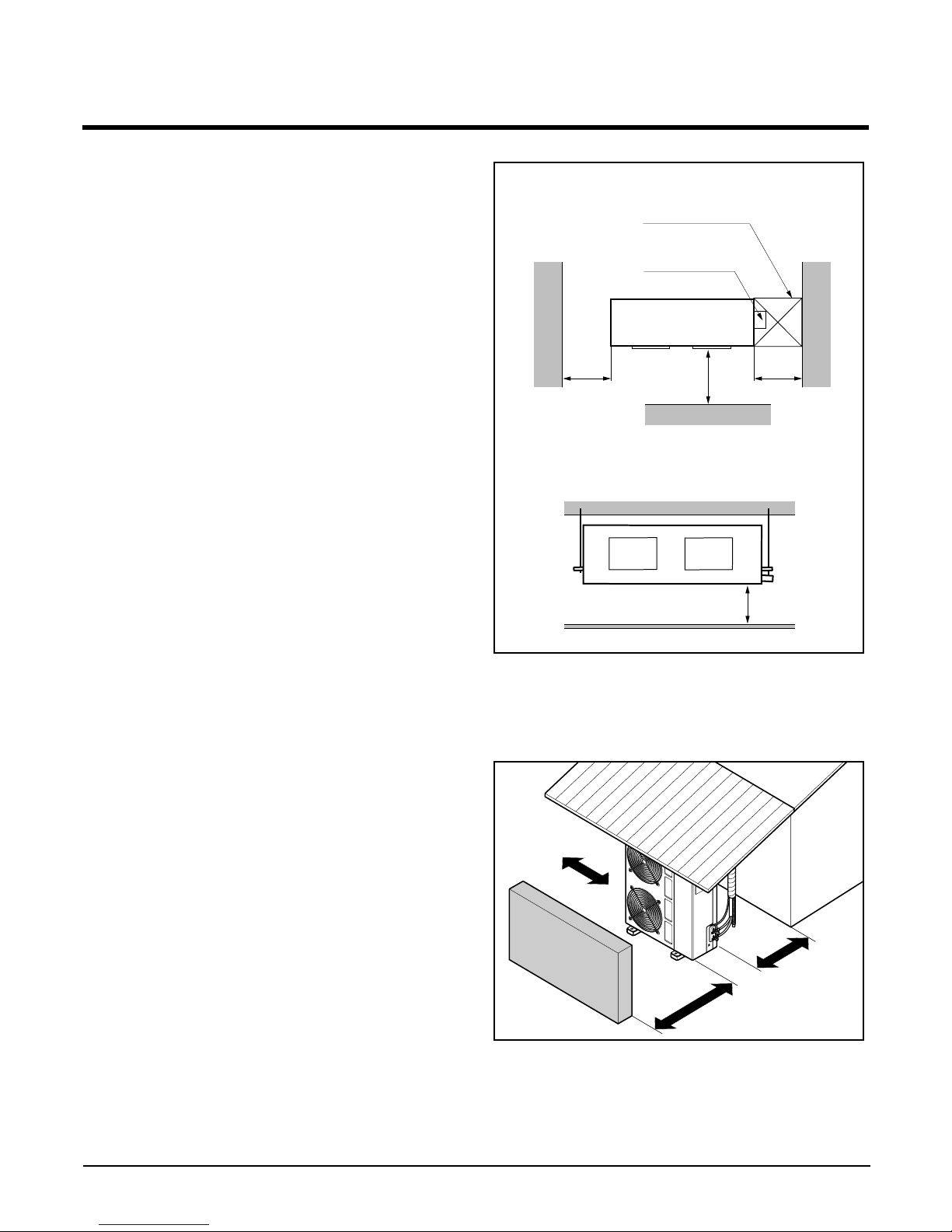

1. Selection of the best location
1) Indoor unit
Select location
Install the air conditioner in the location that satis-
fies the following conditions.
•The place shall easily bear a load exceeding four
times the indoor unit’s weight.
•The place shall be able to inspect the unit as the
figure.
•The place where the unit shall be leveled.
•The place shall allow easy water drainage.(Suit-
able dimension “H”is necessary to get a slope to
drain as figure.)
•The place shall easily connect with the outdoor
unit.
•The place where the unit is not affected by an
electrical noise.
•The place where air circulation in the room will be
good .
•There should not be any heat source or steam
near the unit.
2) Outdoor unit
•If an awning is built over the unit to prevent
direct sunlight or rain exposure, be careful that
heat radiation from the condenser is not restrict-
ed.
•There should not be any animals or plants which
could be affected by hot air discharged.
•Ensure the spaces indicated by arrows from the
wall, ceiling, fence or other obstacles.
More than
30cm
More than
30cm
More than
70cm
Fence or
obstacles
Sunroof
H
600600
Top view
(unit: mm)
Front view
Front
Inspection hole
(600X600)
Control box
1000

- 15 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Indoor unit
Outdoor unit
B
A
•If 36K Model is installed at a distance of 15m, 700g of refrigerant
should be added (15-5) x 70g = 700g.
•Capacity is based on standard length and maximun allowance
length is on the basis of reliability.
NOTE:
• Throughly study the following installation locations:
1. In such places as restaurants and kitchens, considerable amount of oil steam and flour adhere to the
fan, the fin of the heat exchanger, resulting in heat exchange reduction, spraying, dispersing of water
drops, etc.
In these cases, take the following actions:
• Make sure that the ventilation fan for smoke-collecting hood on a cooking table has sufficient capac-
ity so that it draws oily steam which should not flow into the suction of the air conditioner.
• Make enough distance from a cooking room to install the air conditioner in such a place where it
may not suck in oil steam.
2. Avoid installing air conditioner in such circumstances where cutting oil mist or iron powder is in sus-
pension in factories, etc.
3. Avoid places where inflammable gas is generated, flows in, is stored or vented.
4. Avoid places where sulfurous acid gas or corrosive gas is generated.
5. Avoid places near high frequency generators.
3) Piping length and the elevation
MODEL
36K BTU 5/8" 3/8" 5 25
Gas Liquid
515 70
Elevation B(m)
Length A(m) * Additional
refrigerant
(g/m)
Pipe Size
(Diameter: Ø)
Standard
Standard
Max. Max.

- 16 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
■Installation of Unit
Install the unit above the ceiling correctly.
•Apply a joint-canvas between the unit and duct to
absorb unnecessary vibration.
•Apply a filter Accessory at air return hole.
•Install the unit leaning to a drainage hole side as
a figure for easy water drainage.
•A place where the unit will be leveled and that
can support the weight of the unit.
•A place where the unit can withstand its vibration.
•A place where service can be easily performed.
Drainage hole
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4 (Local
supply)
X 4
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4 (Local
supply)
X 4
A
B
C
1-3mm D
(G)
H
I
EF
CASE 1
POSITION OF SUSPENSION BOLT
CASE 2
POSITION OF CONSOLE BOLT
A B C D E F (G) H I
36K BTU 1242 1180 492 54 600 30 87 830 186
(Unit:mm)
Dimension
Capacity
2. Ceiling dimensions and hanging bolt location

- 17 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

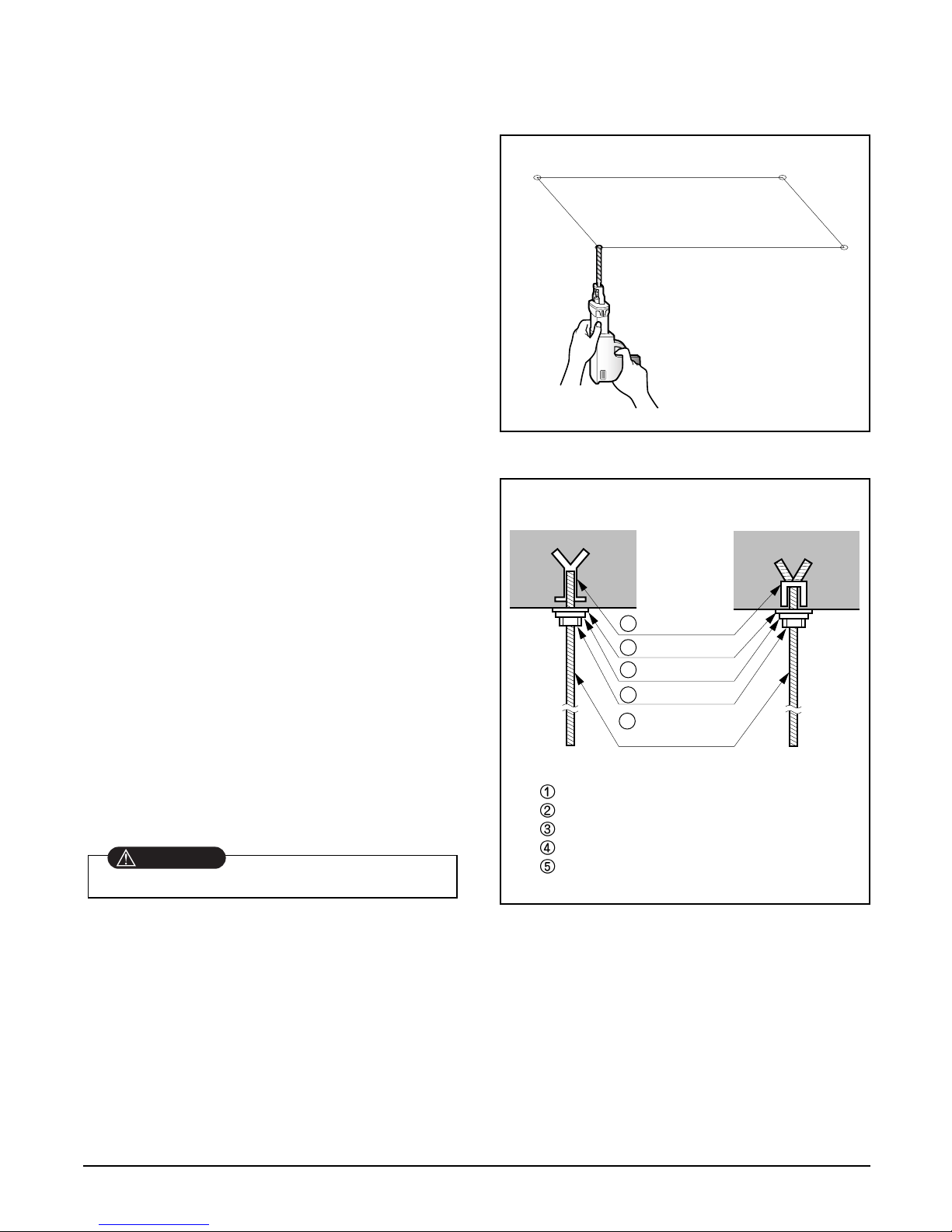

3. The Indoor Unit Installation
•Select and mark the position for fixing bolts.
•Drill the hole for set anchor on the face of ceiling.
•Insert the set anchor and washer onto the sus-
pension bolts for locking the suspension bolts on
the ceiling.
•Mount the suspension bolts to the set anchor
firmly.
•Secure the installation plates onto the suspen-
sion bolts (adjust level roughly) using nuts, wash-
ers and spring washers.
1 Set anchor
Old building New building
2 Plate washer
3 Spring washer
4 Nut
5 Suspension
bolts
Tighten the nut and bolt to prevent unit falling
CAUTION
•Local supply
Set anchor
Plate washer - M10
Spring washer - M10
Nut - W3/8 or M10
Suspension bolt - W3/8 or M10

- 18 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

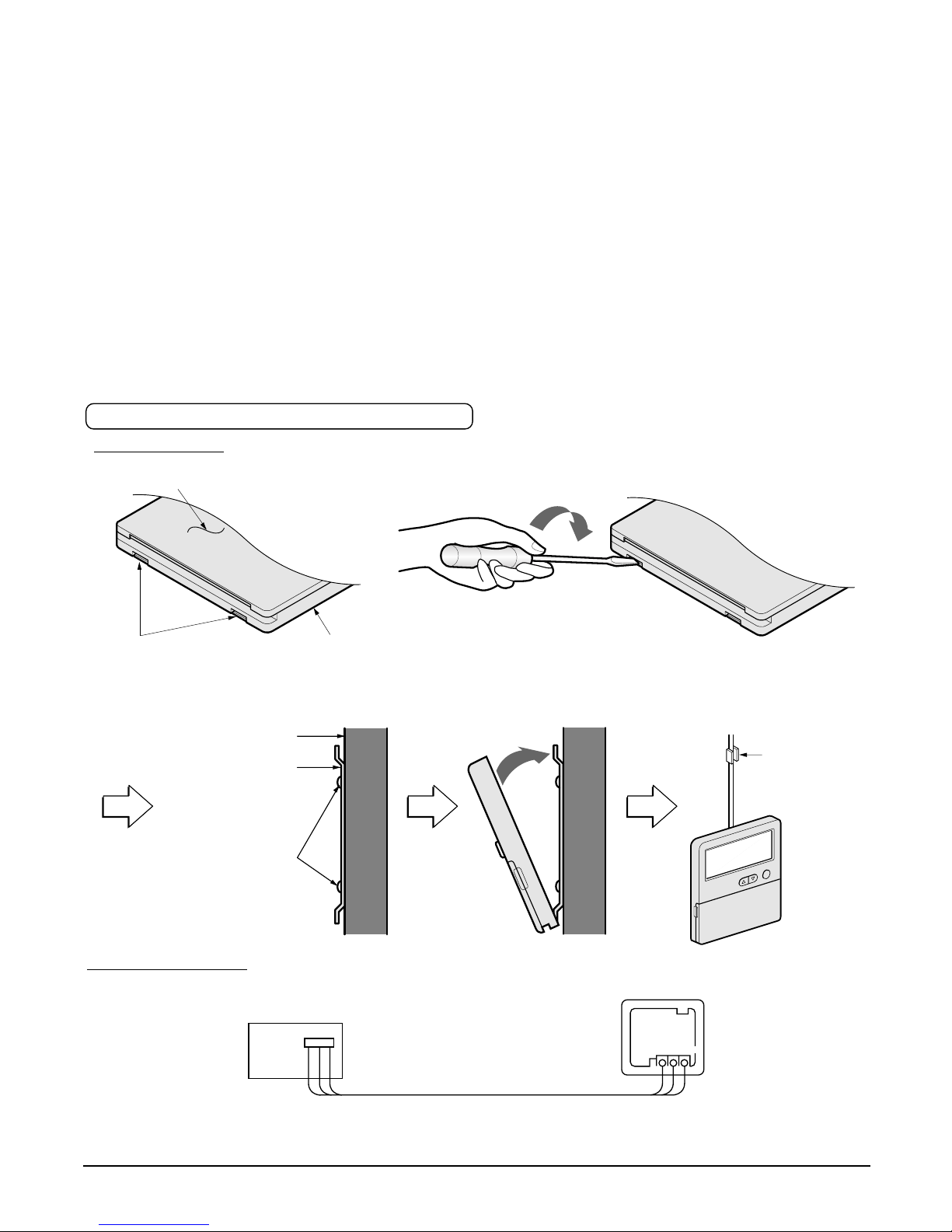

•Fix the under plate on the wall
•Separate the under plate from Remote control box.
•Fix the cord clamps on the wall by
Ø3 tapping screws (accessory).
•Fix the remote control cord.
Remote control
box body
Cord clamp
(accessory)
Lever carefully
the box open
using a screw
driver, etc.
Front case
The lower part
Face of wall
Under plate
Screw (accessory)
4. Remote Controller Installation
•Although the room temperature sensor is in the indoor unit, the remote control box should be
installed in such places away from direct sunlight and high humidity.
Installation of the remote control box
•Select places that are not splashed with water.
•Select control position after receiving customer approval.
•The room temperature sensor of the thermostat for temperature control is built in the indoor unit.
•This remote controller equipped with liquid crystal display. If this position is higher or lower, display is difficult
to see.(The standard height is 1.2 ~ 1.5m high)
Routing of the remote control cord
•Keep the remote control cord away from the refrigerant piping and the drain piping.
•To protect the remote control cord from electrical noise, place the cord at least 5cm away from other power
cables (audio equipment, television set, etc.)
•If the remote control cord is secured to a wall, provide a trap at the top of the cord to prevent water droplets
from running.
REMOTE CONTROL BOX INSTALLATION
DISASSEMBLING
ELECTRICAL WIRING
Wire and make sure that teminal
numbers are matched on unit side and
remote controller side.
The maximum length of the cord is 100m.
If the length of the cord exceeds 50m,
use a wire size greater than 0.5mm2.
Remote controller
Yellow, Red, Brown
(Main board)
CN REMO

- 19 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

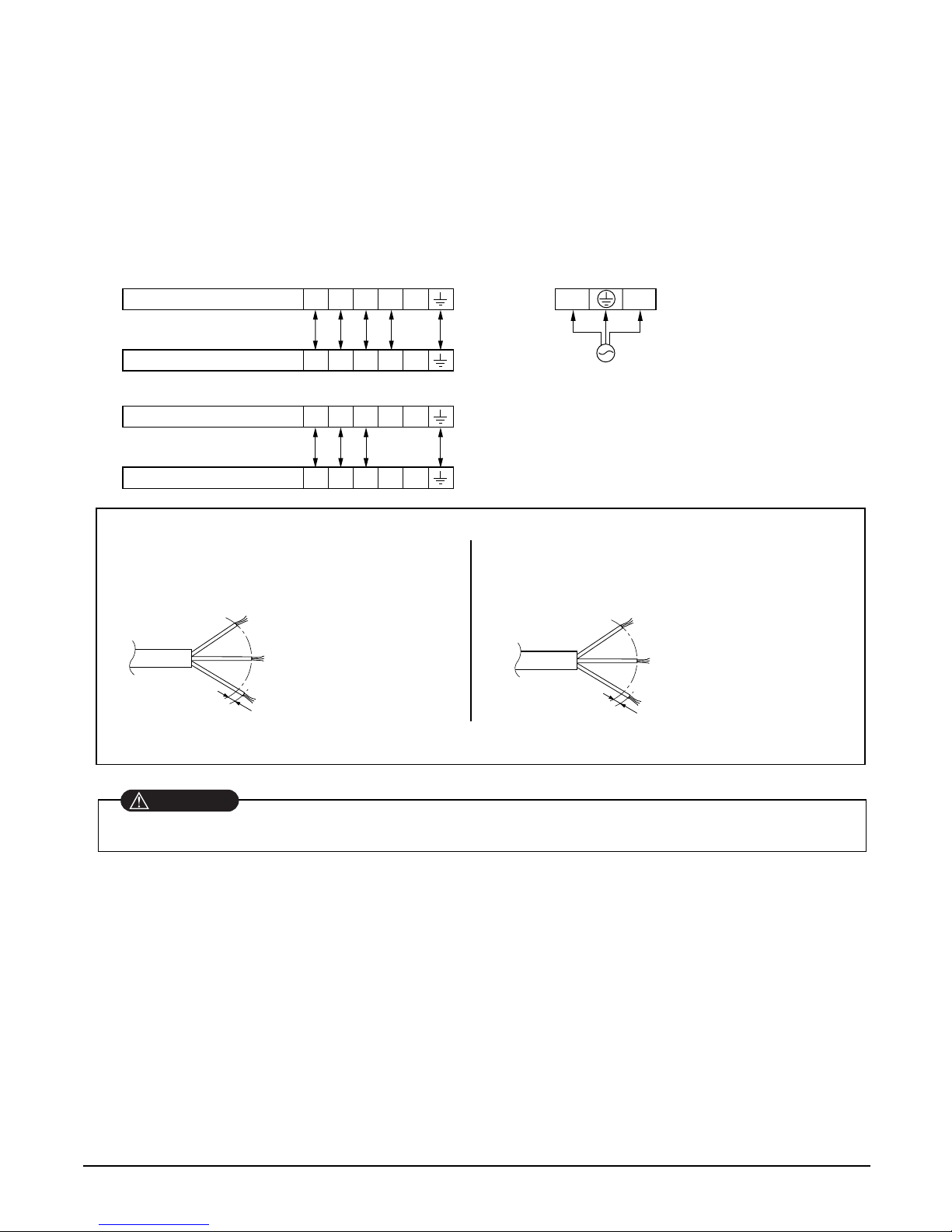

1) Connecting cables to the Indoor Unit
■Connect the wires to the terminals on the control board individually according to the outdoor unit connection.
•Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of indoor unit
respectively
■36K BTU
•Cooling and Heating Type
•Cooling only Type
2) Clamping of cables
1) Arrange 2 power cables on the control panel.
2) First, fasten the steel clamp with a screw to the inner boss of control panel.
3) For the cooling model, fix the other side of the clamp with a screw strongly.
For the heat pump model, put the 0.75mm2cable(thinner cable) on the clamp and tighten it with a plastic
clamp to the other boss of the control panel.
4) In Australia, the length of power supply cord measured from the entry of the power supply cord to the middle
of live pin on the power plug should be over 1.8m.
The power cord connected to the outdoor unit should be
complied with the following specifications (Rubber
insulation, type H05RN-F approved by HAR or SAA).
The connecting cable connected to the indoor and outdoor
unit should be complied with the following specifications
(Rubber insulation, type H05RN-F approved by HAR or SAA).
CAUTION
20mm
GN/YL
NORMAL
CROSS-SECTIONAL
AREA 5.5mm2
NORMAL
CROSS-SECTIONAL
AREA 0.75mm2
20mm
GN/YL
POWER INPUT
Terminals on the indoor unit
12 453
Terminals on the outdoor unit
12 453
Terminals on the indoor unit
12 453
Terminals on the outdoor unit
12 453
1(L) 2(N)
5. Connecting Cables between Indoor Unit and Outdoor Unit
If the supply cord is damaged, it must be replaced by a special cord or assembly availible from the
manufacturer of its service agent.
Make sure that the screws of the terminal are free from looseness.
WARNING

- 20 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Outdoor
Indoor
Control terminal board
Control box
Control box cover
(On which the Electric
Wiring Connection is put)
Main terminal board
Control terminal board
Cover control
AAview
Remote
control cord
Connection
cord between
the indoor unit
and the
outdoor unit
Cord clamper
1
1
Main
power source Switch box
Circuit Breaker
ELECTRICAL WIRING
INDOOR UNIT
•Remove the control box cover for electrical con-
nection between the indoor and outdoor
unit.(Remove two screws ➀.)
•Use the cord clamper to fix the cord.
Perform the electrical wiring work according to the electrical
wiring connection.
•All wiring must comply with local requirements.
•Select a power source that is capable of supply-
ing the current required by the air conditioner.
•Use a recognized circuit breaker 35A between the
power source and the unit. A disconnection
device to adequately disconnect all supply lines
must be fitted.
WIRING CONNECTION
OUTDOOR UNIT
•Remove the control cover for wiring connection.
•Use the cord clamper to fix the cord.
•Earthing work
Connect the cable of diameter 1.6mm2or more to
the earthing terminal provided in the control box
and do earthing.
Please check !!
