LG MULTI V WATER II ARWN80LA2 Operation manual

0CVT0-03A (Replaces:0CVT0-02A)
R410A 50/60Hz

LG Airconditioners Product Data
• Introduction
• General Information
• Outside Units
•
Installation of Outside Units
• Special Guide
(R410A)

Introduction
Introduction
1. Preface
R410A Model
is the most favored choice when there is a need for precise air conditioning of relatively big pro-
jects extending from Multi-Room structure to big commercial places. We have a big line up, that offers wider
flexibility of model selection.
Equipped with inverter technology and long piping installation, the product matches well if one talk about opti-
mum power consumption in high rise buildings. Add on capacity feature makes it easy to upgrade the existing
capacity at any time.
With the growing concern about environment preservation, comes with R410A refrigerant which is
environment friendly and thus our system is a high technology and environment friendly product.
Unique refrigerant flow and electronic circuit control gives this system an unique capability to work in
extreme/abnormal working conditions making our customer feel great about their decision of selecting
LG as their first choice.
This publication provides a detailed and in depth information about the design and installation of .
We hope that with this information you would become an expert of your system.
Air-Conditioning Company

Introduction
2. Step by Step System Selection Process
(1) Calculate or obtain the maximum heat load for the area(s) to be air conditioned
Decide the indoor unit specifications
Decide the outside unit specifications
Capacity coefficient factor
Decide the air velocity and temperature distributions
Decide the cooling tower specifications
Decide the boiler specifications
Decide the water pump specifications
(2)
(3)
(4) Selection of the control system
Control wiring method
Description of devices
Selection of refrigerant pipe joints and headers
Selection of water pipe joints and headers
(5) Electrical wiring
Electric characteristics
Field wiring
• Air conditionerss should not be installed in areas where corroslve gases, such as acid or
alkaline gas, are produced.

General information
General Information
1. Model Names
2. External Appearance
3. Combination of Outside Units
4. Nomenclature
5. Outside Units information

1. Model Names
General information 1
1
Power Supply 8HP 10HP 16HP 18HP
3Ø, 380-415V, 50Hz ARWN80LA2 ARWN100LA2 ARWN160LA2 ARWN180LA2
3Ø, 380V, 60Hz
Power Supply 20HP 24HP 26HP 28HP
3Ø, 380-415V, 50Hz ARWN200LA2 ARWN240LA2 ARWN260LA2 ARWN280LA2
3Ø, 380V, 60Hz
Power Supply 30HP 40HP 50HP 60HP
3Ø, 380-415V, 50Hz ARWN300LA2 ARWN400LA2 ARWN500LA2 ARWN600LA2
3Ø, 380V, 60Hz

General information
2
2
2. External Appearance
ARWN80LA2
ARWN100LA2
ARWN160LA2
ARWN180LA2
ARWN200LA2
ARWN240LA2
ARWN260LA2
ARWN280LA2
ARWN300LA2
ARWN400LA2
ARWN500LA2
ARWN600LA2

3. Combination of Outside Units
General information 3
3
System
Capacity
(HP)
8 1 1 - - - -
10 1 - - - 1 -
16 1 - 1 - - -
18 1 - - 1 - -
20 1 - - - - 1
24 2 1 1 - - -
26 2 1 - 1 - -
28 2 1 - - - 1
30 2 - - - 1 1
40 2 - - - - 2
50 3 - - - 1 2
60 3 - - - - 3
Number of Units Module(HP)
816181020

General information
4
4

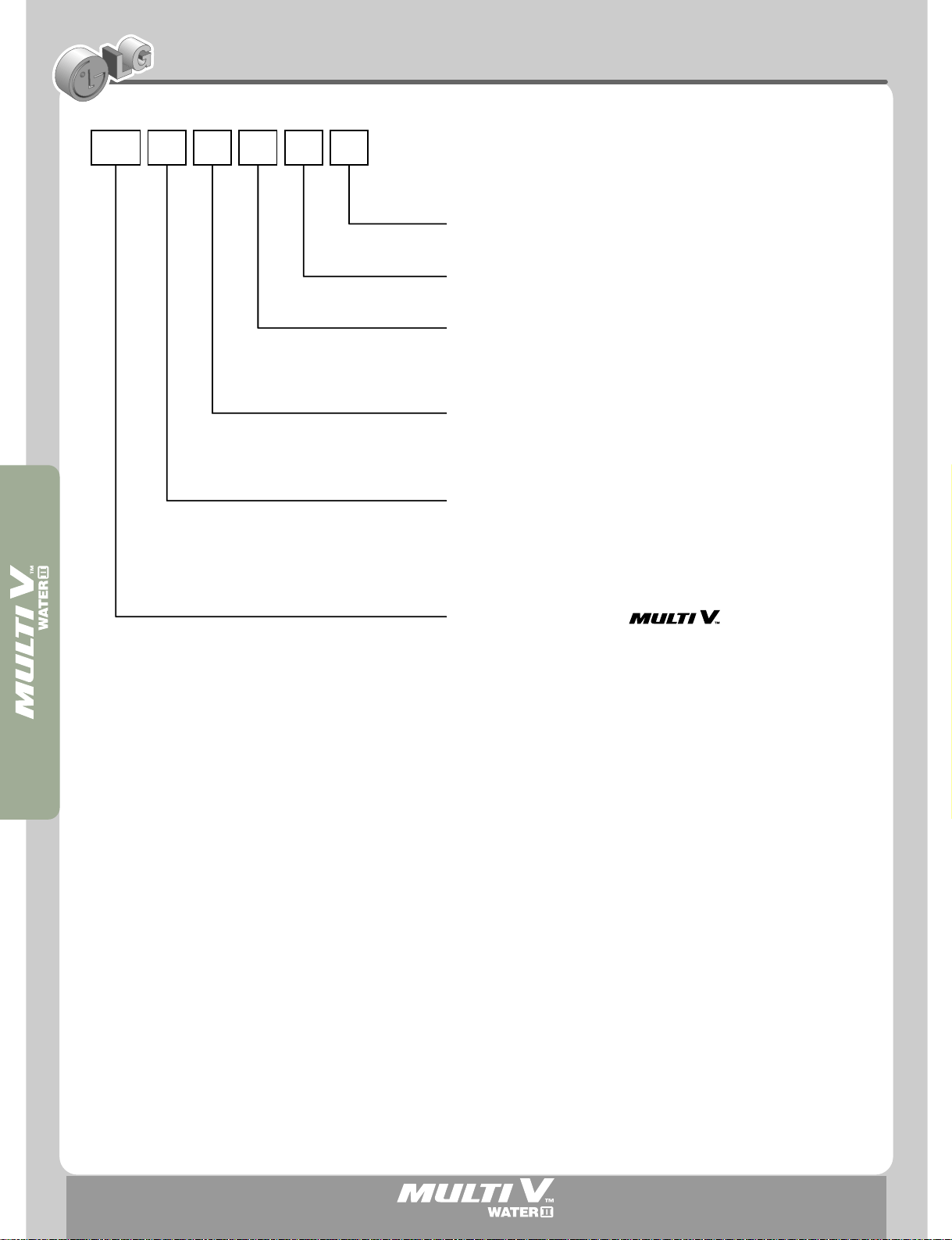

4. Nomenclature
Serial Number
A: Basic Function
Electrical Ratings
L: 3Ø, 380 - 415V, 50Hz / 3Ø, 380V, 60Hz
Total Cooling Capacity in Horse Power(HP) unit
EX) 8HP➞'80', 10HP➞'100'
Indicates that this is Water System
Outside Unit using the R410A
Combination of Inverter Type and
Cooling Only or Heat Pump
N: Inverter and H/P
ARW N L100 A 2

General information 5
5
5. Outside Units Information
Power Supply: Outside Unit (3Ø, 380 - 415V, 50Hz / 3Ø, 380V, 60Hz)
System Capacity HP
Model Name
Product Refrigerant Charge kg
CF(Correction Factor) kg
Maximum Connectable No. of Indoor Units
Net Weight kg
lb
Dimensions(WxHxD) mm
inch
Refrigerant Liquid mm(inch)
Connecting Pipes Gas mm(inch)
Water Inlet mm
Connecting Pipes Outlet mm
Drain Outlet mm
81016
ARWN80LA2 ARWN100LA2 ARWN160LA2
7.3 7.3 8.8
---
13 16 26
170 170 238
374.8 374.8 524.7
772 x 1,120 x 547 772 x 1,120 x 547 772 x 1,120 x 547
30.4 x 44.1 x 21.5 30.4 x 44.1 x 21.5 30.4 x 44.1 x 21.5
9.52(3/8) 9.52(3/8) 12.7(1/2)
19.05(3/4) 22.2(7/8) 28.58(1 1/8)
PT32A PT32A PT40A
PT32A PT32A PT40A
20 20 20
•Ratio of the running Indoor Units to the Outside: Within 10 ~ 100%
•A combination operation over 100% cause to reduce each indoor unit capacity.
■Combination Ration(50~200%)
Notes:
* We can guarantee the operation only within 130% Combination.
If you want to connect more than 130% combination, please contact us and discuss the require-
ment like below.
1) If the operation of indoor unit is more than 130%, low airflow operation is recommended in all
the indoor units.
2) If the operation of indoor unit is more than 130%, additional refrigerant is needed according to
the headquarter guidance.
3)Over 130%, capacity is same as capacity of 130%, Same remark is valid for power input.
CAUTION
Outside Number Connection Capacity
Single outside units 200%
Double outside units 160%
Triple outside units 130%
System Capacity HP
Model Name
Product Refrigerant Charge kg
CF(Correction Factor) kg
Maximum Connectable No. of Indoor Units
Net Weight kg
lb
Dimensions(WxHxD) mm
inch
Refrigerant Liquid mm(inch)
Connecting Pipes Gas mm(inch)
Water Inlet mm
Connecting Pipes Outlet mm
Drain Outlet mm
18 20 24
ARWN180LA2 ARWN200LA2 ARWN240LA2
8.8 8.8 8.8+7.3
---
29 32 39
238 238 238+170
524.7 524.7 524.7+374.8
772 x 1,120 x 547 772 x 1,120 x 547 (772 x 1,120 x 547) x 2
30.4 x 44.1 x 21.5 30.4 x 44.1 x 21.5 (30.4 x 44.1 x 21.5) x 2
12.7(1/2) 12.7(1/2) 15.88(5/8)
28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8)
PT40A PT40A PT40A + PT32A
PT40A PT40A PT40A + PT32A
20 20 20

General information
6
6
System Capacity HP
Model Name
Product Refrigerant Charge kg
CF(Correction Factor) kg
Maximum Connectable No. of Indoor Units
Net Weight kg
lb
Dimensions(WxHxD) mm
inch
Refrigerant Liquid mm(inch)
Connecting Pipes Gas mm(inch)
Water Inlet mm
Connecting Pipes Outlet mm
Drain Outlet mm
26 28 30
ARWN260LA2 ARWN280LA2 ARWN300LA2
8.8+7.3 8.8+7.3 8.8+7.3
---
42 45 49
238+170 238+170 238+170
524.7+374.8 524.7+374.8 524.7+374.8
( 772 x 1,120 x 547) x 2 (772 x 1,120 x 547) x 2 (772 x 1,120 x 547) x 2
(30.4 x 44.1 x 21.5) x 2 (30.4 x 44.1 x 21.5) x 2 (30.4 x 44.1 x 21.5) x 2
15.88(5/8) 15.88(5/8) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
PT40A + PT32A PT40A + PT32A PT40A, PT32A
PT40A + PT32A PT40A + PT32A PT40A, PT32A
20 20 20
System Capacity HP
Model Name
Product Refrigerant Charge kg
CF(Correction Factor) kg
Maximum Connectable No. of Indoor Units
Net Weight kg
lb
Dimensions(WxHxD) mm
inch
Refrigerant Liquid mm(inch)
Connecting Pipes Gas mm(inch)
Water Inlet mm
Connecting Pipes Outlet mm
Drain Outlet mm
40 50 60
ARWN400LA2 ARWN500LA2 ARWN600LA2
8.8+8.8 8.8+8.8+7.3 8.8+8.8+8.8
---
64 64 64
238+238 238+238+170 238+238+238
524.7+524.7 524.7+524.7+374.8 524.7+524.7+524.7
(772 x 1,120 x 547) x 2 (772 x 1,120 x 547) x 3 (772 x 1,120 x 547) x 3
(30.4 x 44.1 x 21.5) x 2 (30.4 x 44.1 x 21.5) x 3 (30.4 x 44.1 x 21.5) x 3
19.05(3/4) 19.05(3/4) 19.05(3/4)
41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8)
(PT40A)x2 (PT40A)x2, PT32 (PT40A)x3
(PT4A0)x2 (PT40A)x2, PT32 (PT40A)x3
20 20 20

Outside Units
1. Specifications
2. Dimensions
3. Piping Diagrams
4. Wiring Diagrams
5. Field Wiring
6. Electric Characteristics
7. Capacity Tables
8. Operation Limits
9. Sound Levels
10. Accessories
Outside Units

Outside Units
1
1
1. Specifications
Heat Pump(50Hz/60Hz)
Notes:
1. Capacities and Inputs are based on the following conditions
Cooling : Indoor temp. 27°C [80.6°F]DB/19°C[66.2°F]WB
Water inlet temp. 30°C[86°F]
Heating : Indoor temp. 20°C[68°F]DB
Water Inlet temp. 20°C[68°F]
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without notification
System Capacity HP
Model Name Combination Unit
Independent Unit
kW
Cooling kcal/h
Capacity Btu/h
kW
Heating kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color Type
Combination
Piston Displacement cm3/rev
Compressor Number of revolution rev/min
Motor Output kW
Starting Method
Oil Type
Oil Charge Amount cc
Type
Heat Exchanger
Maximum Pressure Resistance kgf/cm2
Head Loss kPa
Rated Water Flow LPM
Refrigerant Liquid mm(inch)
Connecting Pipes Gas mm(inch)
Water Inlet
mm
Connecting Pipes Outlet
mm
Drain Outlet mm
Dimensions(WxHxD)
mm
inch
Net Weight kg
lbs
Transmission Cable(CVV-SB) mm2
Refrigerant Name
Control Device
Power Supply Ø/V/Hz
81016
ARWN80LA2 ARWN100LA2 ARWN160LA2
ARWN80LA2 ARWN100LA2 ARWN160LA2
22.4 28.0 44.8
19,300 24,100 38,500
76,400 95,900 152,900
25.2 31.5 50.4
21,700 27,100 43,300
86,000 107,500 172,000
4.5 5.6 8.9
4.7 5.8 9.3
Warm Gray Warm Gray Warm Gray
Hermetic Scroll Hermetic Scroll Hermetic Scroll
(Inverter) x 1 (Inverter)x1
(Inverter) x 1 + (Constant) x 1
52.0 52.0 81.0+52.0
Inverter 3,600 at 60Hz Inverter 3,600 at 60Hz
Inverter 3,600 at 60Hz +
Constant 2,891 at 50Hz, 3,469 at 60Hz
5.4 5.4 5.4 + 5.3
Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
2,325±10 2,325±10
(2,325±10)+(2,325±70)
Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
45 45 45
26.5 26.5 43
80 96 155
9.52(3/8) 9.52(3/8) 12.7(1/2)
19.05(3/4) 22.2(7/8) 28.58(1 1/8)
PT32 PT 32 PT40A
PT32 PT 32 PT40A
20 20 20
772x1,120x547 772x1,120x547 772x1,120x547
30.4x44.1x21.5 30.4x44.1x21.5 30.4x44.1x21.5
170 170 238
374.8 374.8 524.7
1.0 ~1.5 x 2C 1.0 ~1.5 x 2C 1.0 ~1.5 x 2C
R410A R410A R410A
EEV(Electronic Expansion Valve) EEV(Electronic Expansion Valve) EEV(Electronic Expansion Valve)
3/380 - 415/50 3/380 - 415/50 3/380 - 415/50
3/380/60 3/380/60 3/380/60
1.1 Heat Pump(50Hz/60Hz)

Outside Units 2
2
Heat Pump(50Hz/60Hz)
System Capacity HP
Combination Unit
Model Name Independent Unit
kW
Cooling kcal/h
Capacity Btu/h
kW
Heating kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color Type
Combination
Piston Displacement cm3/rev
Compressor Number of revolution rev/min
Motor Output kW
Starting Method
Oil Type
Oil Charge Amount cc
Type
Heat Exchanger
Maximum Pressure Resistance kgf/cm2
Head Loss kPa
Rated Water Flow LPM
Refrigerant Liquid mm(inch)
Connecting Pipes Gas mm(inch)
Water Inlet
mm
Connecting Pipes Outlet
mm
Drain Outlet mm
Dimensions(WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable(CVV-SB) mm2
Refrigerant Name
Control Device
Power Supply Ø/V/Hz
18 20 24
ARWN180LA2 ARWN200LA2 ARWN240LA2
ARWN180LA2 ARWN200LA2 ARWN160LA2
ARWN80LA2
50.4 56.0 67.2
43,300 48,200 57,800
172,000 191,100 229,300
56.7 63.0 75.6
48,800 54,200 65,000
193,500 225,000 258,000
10.1 11.2 13.4
10.5 11.7 14.0
Warm Gray Warm Gray Warm Gray
Hermetic Scroll Hermetic Scroll Hermetic Scroll
( Inverter)x1 + (Constant)x1 (Inverter)x1, (Constant)x1 (Inverter)x2 + (Constant)x1
81.0+52.0 81.0+52.0 (81.0+52.0)+(52.0)
Inverter 3,600 at 60Hz + Constant 2,891 Inverter 3,600 at 60Hz +Constant 2,891 (Inverter 3,600 at 60Hz)x2 +
at 50Hz, 3,469 at 60Hz at 50Hz, 3,469 at 60Hz Constant 2,891 at 50Hz, 3,469 at 60Hz
5.4 + 5.3 5.4+5.3 (5.4)x2 + (5.3)x1
Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
(2,325±10)+(2,325±70) (2,325±10)x2+(2,325±70) (2,325±10)+(2,325±70)
Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
45 45 45
43 43.0 43+26.5
175 192 155+80
12.7(1/2) 12.7(1/2) 15.88(5/8)
28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8)
PT40A PT 40
PT40A + PT32A
PT40A PT 40
PT40A + PT32A
20 20 20
772x1,120x547 772x1,120x547 (772x1,120x547)x2
30.4x44.1x21.5 30.4x44.1x21.5 (30.4x44.1x21.5)x2
238 238 238 + 170
524.7 524.7 524.7 + 374.8
1.0 ~1.5 x 2C 1.0 ~1.5 x 2C 1.0 ~1.5 x 2C
R410A R410A R410A
EEV(Electronic Expansion Valve) EEV(Electronic Expansion Valve) EEV(Electronic Expansion Valve)
3/380-415/50 3/380 - 415/50 3/380-415/50
3/380/60 3/380/60 3/380/60
Notes:
1. Capacities and Inputs are based on the following conditions
Cooling : Indoor temp. 27°C [80.6°F]DB/19°C[66.2°F]WB
Water inlet temp. 30°C[86°F]
Heating : Indoor temp. 20°C[68°F]DB
Water Inlet temp. 20°C[68°F]
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without notification

Outside Units
3
3
Heat Pump(50Hz/60Hz)
System Capacity HP
Combination Unit
Model Name Independent Unit
kW
Cooling kcal/h
Capacity Btu/h
kW
Heating kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color Type
Combination
Piston Displacement cm3/rev
Compressor Number of revolution rev/min
Motor Output kW
Starting Method
Oil Type
Oil Charge Amount cc
Type
Heat Exchanger
Maximum Pressure Resistance kgf/cm2
Head Loss kPa
Rated Water Flow LPM
Refrigerant Liquid mm(inch)
Connecting Pipes Gas mm(inch)
Water Inlet
mm
Connecting Pipes Outlet
mm
Drain Outlet mm
Dimensions(WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable(CVV-SB) mm2
Refrigerant Name
Control Device
Power Supply Ø/V/Hz
26 28 30
ARWN260LA2 ARWN280LA2 ARWN300LA2
ARWN160LA2 ARWN180LA2 ARWN200LA2
ARWN100LA2 ARWN100LA2 ARWN100LA2
72.8 78.4 84.0
62,600 67,400 72,200
248,800 267,900 286,600
81.9 88.2 94.5
70,400 75,900 81,300
279,500 301,000 322,500
14.6 15.7 16.8
15.2 16.4 17.5
Warm Gray Warm Gray Warm Gray
Hermetic Scroll Hermetic Scroll Hermetic Scroll
(Inverter)x2 + (Constant)x1 (Inverter)x2 + (Constant)x1 (Inverter)x2, (Constant)x1
(81.0+52.0)+(52.0) (81.0+52.0)+(52.0) (81.0+52.0)+52.0
(Inverter 3,600 at 60Hz)x2 + Constant 2,891 (Inverter 3,600 at 60Hz)x2 + (Inverter 3,600 at 60Hz)x2
at 50Hz, 3,469 at 60Hz Constant 2,891 at 50Hz, 3,469 at 60Hz + (Constant 2,891 at 50Hz, 3,469 at 60Hz)
(5.4)x2 + (5.3)x1 (5.4)x2 + (5.3)x1 (5.4)x2+(5.3)x1
Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
(2,325±10)x2 + (2,325±70) (2,325±10)x2 + (2,325±70) (2,325±10)x2+(2,325±70)
Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
45 45 45
43+26.5 43+26.5 43.0+26.5
155+96 175+96 192+96
15.88(5/8) 15.88(5/8) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
PT40A + PT32A PT40A + PT32A PT40 + PT32
PT40A + PT32A PT40A + PT32A PT40 + PT32
20 20 20
(772x1,120x547)x2 (772x1,120x547)x2 (772x1,120x547)x2
(30.4x44.1x21.5)x2 (30.4x44.1x21.5)x2 (30.4x44.1x21.5)x2
238 + 170 238 + 170 238+170
524.7 + 374.8 524.7 + 374.8 524.7+374.8
1.0 ~1.5 x 2C 1.0 ~1.5 x 2C 1.0 ~1.5 x 2C
R410A R410A R410A
EEV(Electronic Expansion Valve) EEV(Electronic Expansion Valve) EEV(Electronic Expansion Valve)
3/380-415/50 3/380-415/50 3/380 - 415/50
3/380/60 3/380/60 3/380/60
Notes:
1. Capacities and Inputs are based on the following conditions
Cooling : Indoor temp. 27°C [80.6°F]DB/19°C[66.2°F]WB
Water inlet temp. 30°C[86°F]
Heating : Indoor temp. 20°C[68°F]DB
Water Inlet temp. 20°C[68°F]
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without notification

Outside Units 4
4
Heat Pump(50Hz/60Hz)
System Capacity HP
Combination Unit
Model Name Independent Unit
kW
Cooling kcal/h
Capacity Btu/h
kW
Heating kcal/h
Btu/h
Input Cooling kW
Heating kW
Casing Color Type
Combination
Piston Displacement cm3/rev
Compressor Number of revolution rev/min
Motor Output kW
Starting Method
Oil Type
Oil Charge Amount cc
Type
Heat Exchanger
Maximum Pressure Resistance kgf/cm2
Head Loss kPa
Rated Water Flow LPM
Refrigerant Liquid mm(inch)
Connecting Pipes Gas mm(inch)
Water Inlet
mm
Connecting Pipes Outlet
mm
Drain Outlet mm
Dimensions(WxHxD) mm
inch
Net Weight kg
lbs
Transmission Cable(CVV-SB) mm2
Refrigerant Name
Control Device
Power Supply Ø/V/Hz
40 50 60
ARWN400LA2 ARWN500LA2 ARWN600LA2
ARWN200LA2 ARWN200LA2 ARWN200LA2
ARWN200LA2 ARWN200LA2 ARWN200LA2
ARWN100LA2 ARWN200LA2
112.0 140.0 168.0
96,300 120,400 144,400
382,200 477,700 573,400
126.0 157.5 189.0
108,400 135,500 162,600
429,900 537,500 645,000
22.4 28.0 33.6
23.4 29.2 35.1
Warm Gray Warm Gray Warm Gray
Hermetic Scroll Hermetic Scroll Hermetic Scroll
(Inverter)x2, (Constant)x2 (Inverter)x3, (Constant)x2 (Inverter)x3, (Constant)x3
(81.0+52.0)x 2 (81.0+52.0)x2+52.0 (81.0+52.0)x3
(Inverter 3,600 at 60Hz)x2 (Inverter 3,600 at 60Hz)x3 (Inverter 3,600 at 60Hz)x3
+ (Constant 2,891 at 50Hz, 3,469 at 60Hz)x2 + (Constant 2,891 at 50Hz, 3,469 at 60Hz)x2 + (Constant 2,891 at 50Hz, 3,469 at 60Hz)x3
(5.4)x2+(5.3)x2 (5.4)x3+(5.3)x2 (5.4)x3+(5.3)x3
Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
(2,325±10)x2+(2,325±70)x2 (2,325±10)x3+(2,325±70) x2 (2,325±10)x3+(2,325±70)x3
Stainless Steel Plate Stainless Steel Plate Stainless Steel Plate
45 45 45
43.0+43.0 43.0+43.0+26.5 43.0+43.0+43.0
192+192 192+192+96 192+192+192
19.05(3/4) 19.05(3/4) 19.05(3/4)
41.3(1 5/8) 41.3(1 5/8) 41.3(1 5/8)
PT40+PT40 PT40 + PT40 + PT32 PT40+PT40+PT40
PT40+PT40 PT40 + PT40 + PT32 PT40+PT40+PT40
20 20 20
(772x1,120x547)x2 (772x1,120x547)x3 (772x1,120x547)x3
(30.4x44.1x21.5)x2 (30.4x44.1x21.5)x3 (30.4x44.1x21.5)x3
238+238 238+238+170 238+238+238
524.7+524.7 524.7+524.7+374.8 524.7+524.7+524.7
1.0 ~1.5 x 2C 1.0 ~1.5 x 2C 1.0 ~1.5 x 2C
R410A R410A R410A
EEV(Electronic Expansion Valve) EEV(Electronic Expansion Valve) EEV(Electronic Expansion Valve)
3/380 - 415/50 3/380 - 415/50 3/380 - 415/50
3/380/60 3/380/60 3/380/60
Notes:
1. Capacities and Inputs are based on the following conditions
Cooling : Indoor temp. 27°C [80.6°F]DB/19°C[66.2°F]WB
Water inlet temp. 30°C[86°F]
Heating : Indoor temp. 20°C[68°F]DB
Water Inlet temp. 20°C[68°F]
* Interconnecting Piping Length 7.5m
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without notification

Outside Units
5
5
2. Dimensions
Outside Unit
ARWN80LA2
ARWN100LA2 ARWN160LA2 ARWN180LA2 ARWN200LA2
58
50 658
D
W
386
77 63 92 70
15
L7
569
L1
32
L2
L3
L4
L5
L6
H
15
50
W
H D
L1 L2 L3 L4 L5 L6 L7
mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch)
772(30.4)
1120(44.1)
547(21.5)
1027(40.4) 1057(41.6)
597(23.5) 445(17.5) 325(12.8) 235(9.52) 599(23.6)
Water Inlet
Water Outlet
Liquid Pipe
Gas Pipe
High/Low Pressure Common
76, Seongsan-dong, Changwon City, Gyeongnam,
[Unit : mm]
641-713, Korea CHASSIS CODE: UWB

Outside Units 6
6
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
Outside Unit
ARWN240LA2 ARWN260LA2 ARWN280LA2 ARWN300LA2 ARWN400LA2
58
50 658
D
WL8
386
77 63 92 70
L7
32
L2
L3
L4
L5
L6
L1
H
15
15
50
W
H D
L1 L2 L3 L4 L5 L6 L7 L8
mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch)
772(30.4)
1120(44.1)
547(21.5)
1027(40.4) 1057(41.6)
597(23.5) 445(17.5) 325(12.8) 235(9.52) 599(23.6) 100(3.94)
Water Inlet
Water Outlet
Liquid Pipe
Gas Pipe
High/Low Pressure Common
CHASSIS CODE: UWB+UWB
569
[Unit : mm]

Outside Units
7
7
Outside Unit
ARWN500LA2 ARWN600LA2
58
50 658
D
WW W
L8L8
386
77 63 92 70
L7
32
L2
L3
L4
L5
L6
L1
H
15
15
50
W
H D
L1 L2 L3 L4 L5 L6 L7 L8
mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch) mm(inch)
772(30.4)
1120(44.1)
547(21.5)
1027(40.4) 1057(41.6)
597(23.5) 445(17.5) 325(12.8) 235(9.52) 599(23.6) 100(3.94)
Water Inlet
Water Outlet
Liquid Pipe
Gas Pipe
High/Low Pressure Common
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea CHASSIS CODE: UWB+UWB+UWB
569
[Unit : mm]

Outside Units 8
8
3. Piping Diagrams
ARWN80LA2, ARWN100LA2
Hot Gas Bypass
Liquid
Injection
Receiver
HIgh
Low
Water
Outlet
Pipe
Water
Inlet
Pipe
Liquid
Pipe Gas Pipe High/Low
Pressure
Common
Pipe
(Ø19.05mm)
Plate
Heat
Exchanger
Outdoor
Air
s
s
Accum
INV
Comp
O/S
SC HEX
Oil return
s
S
Pressure sensor
Pressure switch
Check valve
EEV
Thermistor
Solenoid valve
Service valve
Strainer
INV : Inverter
Comp. : Compressor
EEV : Electronic Expansion Valve
O/S : Oil Separator
Accum. : Accumulator
SC HEX: Subcooling Circuit
Heat Exchanger
