LG TLVHM3IU-N User manual

TLVHM3IU-N
(Online Connectivity Unit)
LG Electronics Inc.
10, March, 2020
FCC ID : BEJTLVHM3IU-N
IC : 2703H-TLVHM3IUN

LGE Confidential
What is the OCU(Online Connectivity Unit)
The OCU stands for Online Connectivity Unit
It’s a telematics device that LGE is developing for the Volkswagen vehicles.
It is a small box installed deep inside passenger cars, and in charge of wireless communications in
GSM, WCDMA, and LTE network
It provides voice and data call functions and various online services requested by VW
GNSS Antenna C
onnector
Power, CAN, Audio and
other data connector
GSM/WCDMA/LTE
Antenna Connector
WCDMA/LTE DRx
Antenna Connector

LGE Confidential

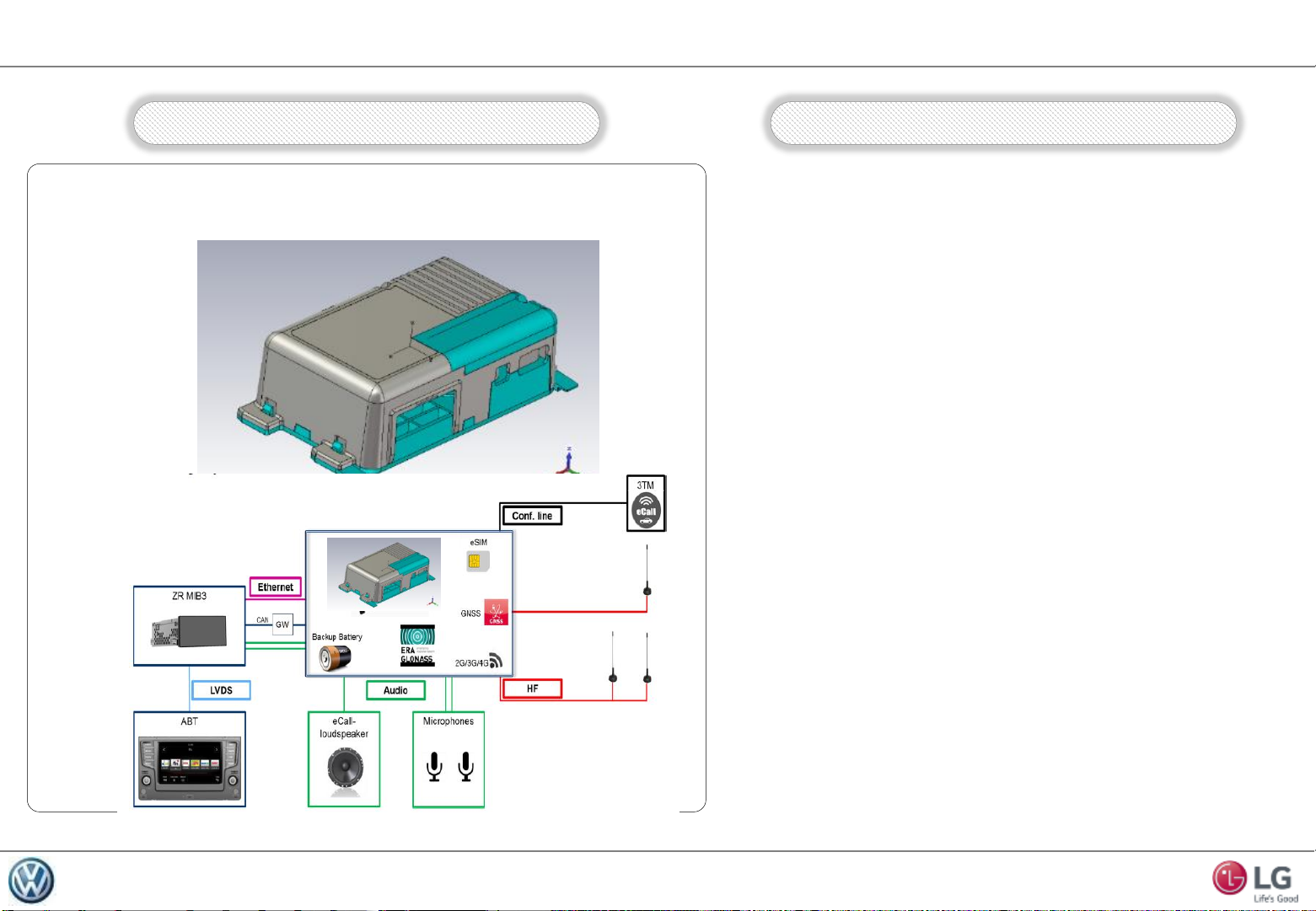

Product Image/ Function
Telematics product supporting Emergency Call/LTE service
Product Image
•Emergency Call
•Mobile Online Services
•Positioning/Dead Reckoning
-GPS/GNSS/Beidou/Galileo
Function

LGE Confidential
Specification
Supporting Bands
GSM 850/1900
UMTS B2/B4/B5/*B6
LTE FDD B2/B4/B5/B12/B13/B17/B29
*Not a North America(Canada,US,Mexico) suppoerted band.
Modem Chip
Qualcomm MDM9240
GNSS
GPS/
Glonass/Beidou
Bluetooth
No
WiFi
No
Size
130mm x 70.14mm x 37.5mm
Weight
300g
Power
DC
12V , 2A
Specification Dimension

LGE Confidential
The OCU3 Features
•Call Services
- Emergency Call
- Automatic Collision Notification Call
- Information Call
- Road Side Assistance Call
•Remote Function Services
- Honking And Flashing
- Speed Alert
- Vehicle Disabling
- Battery Charge Management
- Departure Time Programming
- Door Lock / Unlock
- Pre-Trip Climatisation
- Trip Statistics
- Vehicle Status
•Geo-Fencing
•POI Address Import
•Vehicle Health Report
•Vehicle Tracking
Major ServicesConcept
GNSS
Safety & Security Services Oriented
Telematics Terminal
Emergency Call Automatic Collision
Notification Call
Road Side
Assistance Call Vehicle Tracking
OCU Equipped Vehicles

LGE Confidential

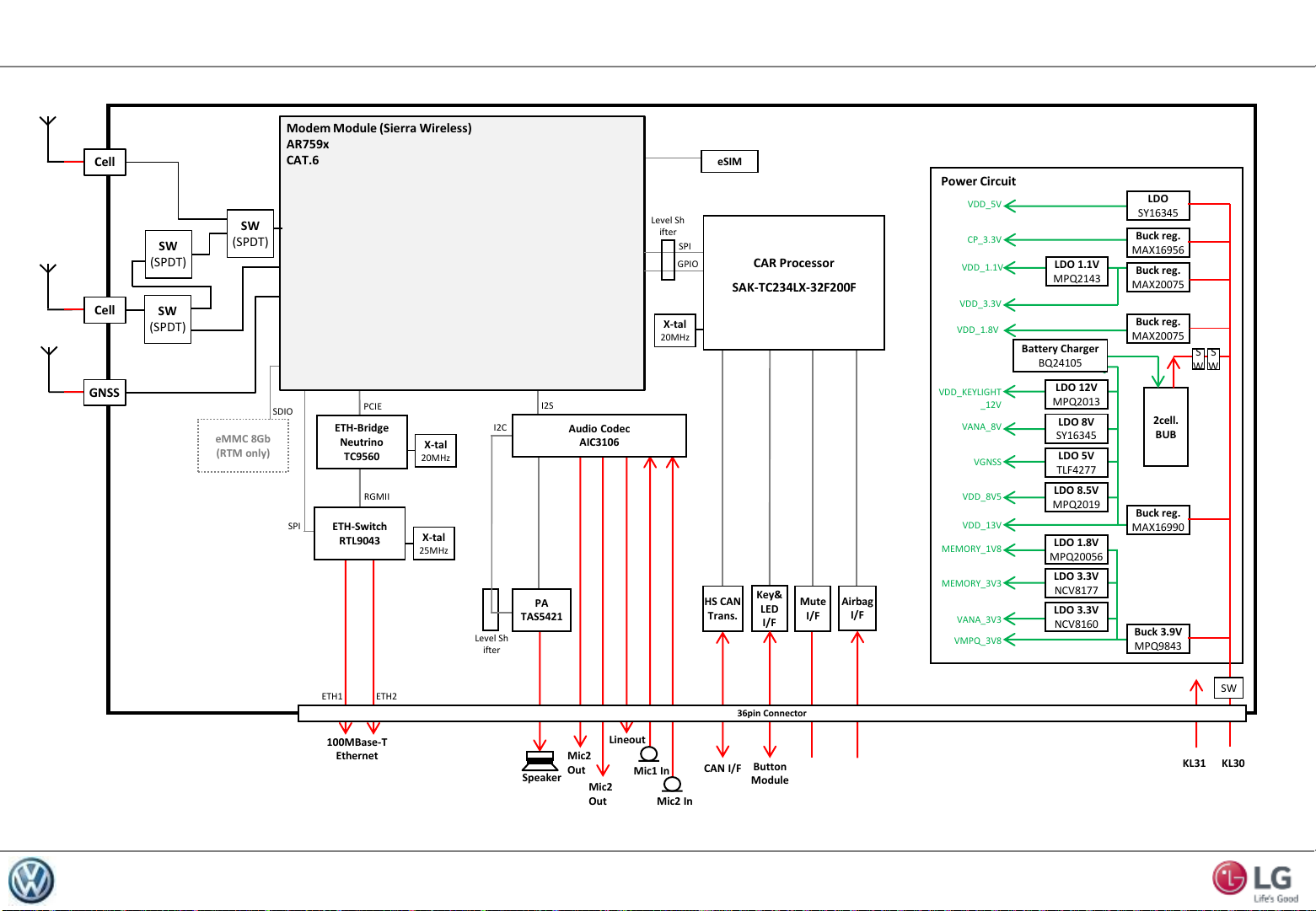

OCU3 High Hardware block diagram
CAR Processor
SAK-TC234LX-32F200F
HS CAN
Trans.
Mute
I/F
SPI
Airbag
I/F
Level Sh
ifter
GPIO
2cell.
BUB
KL30
Key&
LED
I/F
Button
Module
eSIM
I2C
GNSS
Cell
SW
(SPDT)
ETH-Bridge
Neutrino
TC9560
ETH-Switch
RTL9043
100MBase-T
Ethernet
I2S
Speaker Mic1 In
Mic2 In
Mic2
Out
Mic2
Out
Lineout
Modem Module (Sierra Wireless)
AR759x
CAT.6
RGMII
ETH1 ETH2
PCIE
SPI
X-tal
20MHz
X-tal
25MHz
SDIO
eMMC 8Gb
(RTM only)
Audio Codec
AIC3106
Level Sh
ifter
X-tal
20MHz
CAN I/F
PA
TAS5421
Buck 3.9V
MPQ9843
LDO 3.3V
NCV8160
LDO 3.3V
NCV8177
LDO 1.8V
MPQ20056
LDO 8.5V
MPQ2019 Buck reg.
MAX16990
LDO 5V
TLF4277
LDO 8V
SY16345
LDO 12V
MPQ2013
Buck reg.
MAX20075
LDO 1.1V
MPQ2143
Buck reg.
MAX16956
LDO
SY16345
VMPQ_3V8
VANA_3V3
MEMORY_3V3
MEMORY_1V8
VDD_13V
VDD_8V5
VGNSS
VANA_8V
VDD_KEYLIGHT
_12V
VDD_1.8V
VDD_3.3V
VDD_1.1V
CP_3.3V
VDD_5V
Battery Charger
BQ24105
KL31
36pin Connector
Power Circuit
Cell SW
(SPDT)
SW
(SPDT)
S
W
SW
S
W
Buck reg.
MAX20075
Confidential

LGE Confidential
Major Services
Notice
FCC
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and
operated with minimum distance 20cm between the radiating element of this device and the user.

LGE Confidential
Major Services
Notice
IC
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1)l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Under Industry Canada regulations,
this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p) is not more than that necessary for successful communication.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant
un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont
le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Conformément à la
réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou
inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des
autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne
dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
This device should be installed and operated with minimum distance 20cm between the radiating element of this device and the user.
Cet appareil doit être installé et utilisé avec une distance minimale de 20 cm entre l'élément rayonnant de cet appareil et l'utilisateur.

LGE Confidential
The maximum antenna gain including cable loss must not exceed the table below;
Band Frequency
Range[MHz]
Maximum antenna gain
(including cable loss)[dBi]
Main antenna
including cable -
B2 1850 ~ 1910 -3.87 -
B4 1710 ~ 1755 -3.74 -
B5 824 ~ 849 -3.07 -
B13 777 ~ 787 -3.14 -
B12(17) 699 ~ 716 -3.53 -
(Impedance: 50Ω)
