LG Chocolate User manual

Important Safety Precautions
1
Important Safety Precautions
Read these simple guidelines. Breaking the rules may be dangerous or illegal.
Further detailed information is given in this user guide.
WARNING! Violation of the instructions may cause serious injury or death.
1. Never use an unapproved battery since this could damage the
phone and/or battery and could cause the battery to explode.
2. Never place your phone in a microwave oven as it will cause the
battery to explode.
3. Never store your phone in temperatures less than -4°F or greater
than 122°F.
4. Do not dispose of your battery by fire or with hazardous or
flammable materials.
5. When riding in a car, do not leave your phone or set up the hands-
free kit near to the air bag. If wireless equipment is improperly
installed and the air bag is deployed, you may be seriously injured.
6. Do not use a hand-held phone while driving.
7. Do not use the phone in areas where its use is prohibited. (For
example: aircraft, hospital)

Important Safety Precautions
2
Important Safety Precautions
1. Do not expose the battery charger or adapter to direct sunlight or
use it in places with high humidity, such as a bathroom.
2. Do not use harsh chemicals (such as alcohol, benzene, thinners,
etc.) or detergents to clean your phone. This could cause a fire.
3. Do not drop, strike, or shake your phone severely. It may harm the
internal circuit boards of the phone.
4. Do not use your phone in high explosive areas as the phone may
generate sparks.
5. Do not damage the power cord by bending, twisting, pulling, or
heating. Do not use the plug if it is loose as it may cause a fire or
electric shock.
6. Do not place any heavy items on the power cord. Do not allow the
power cord to be crimped as it may cause electric shock or fire.
7. Do not handle the phone with wet hands while it is being charged. It
may cause an electric shock or seriously damage your phone.
8. Do not disassemble the phone.

3
Important Safety Precautions
1. Do not place or answer calls while charging the phone as it may
short-circuit the phone and/or cause electric shock or fire.
2. Do not hold or let the antenna come in contact with your body
during a call.
3. Make sure that no sharp-edged items such as animal’s teeth or
nails, come into contact with the battery. This could cause a fire.
4. Store the battery out of reach of children.
5. Be careful that children do not swallow any parts. This could cause
asphyxiation or suffocation resulting in serious injury or death.
6. Unplug the power cord and charger during lightning storms to avoid
electric shock or fire.
7. Only use the batteries and chargers provided by LG. The warranty
will not be applied to products provided by other suppliers.
8. Only authorized personnel should service the phone and its
accessories. Faulty installation or service may result in accidents
and consequently invalidate the warranty.
9. An emergency call can be made only within a service area. For an
emergency call, make sure that you are within a service area and
that the phone is turned on.

Table of Contents
Table of Contents
4
Important Safety
Precautions 1
Table of Contents 4
Welcome 8
Important Information 8
FCC Part 15 Class B
Compliance 9
Industry Canada
Compliance 9
Technical Details 9
Technical Details 9
FCC RF Exposure
Information 11
Bodily Contact During
Operation 11
Vehicle-Mounted External
Antenna 12
Caution 12

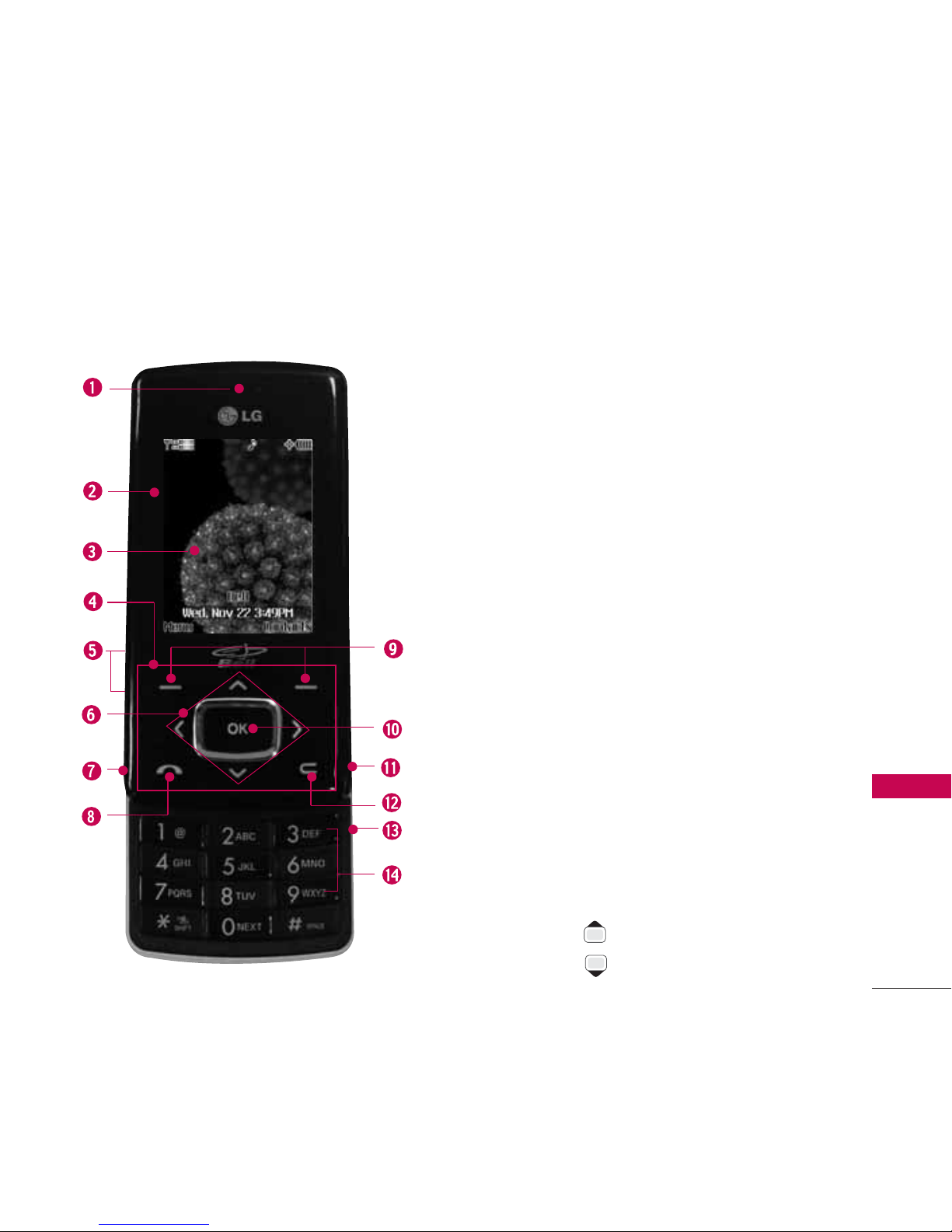

Phone Overview 13
Menus Overview 15
Getting Started with
Your Phone 17
The Battery 17
Installing the Battery 17
Removing the Battery 17
Charging the Battery 18
Battery Charge Level 18
Turning the Phone On and
Off 18
Turning the Phone On 18
Turning the Phone Off 19
Signal Strength 19
Screen Icons 19
Using the Touch Sensitive
Keys 20
Making Calls 21
Correcting Dialing Mistakes 21
Redialing Calls 21
Receiving Calls 21
Quick Access to
Convenient Features22
Silent Mode 22
Lock Mode 22
Mute Function 22
Volume Quick Adjustment 22
Call Waiting 22
Caller ID 23
Speed Dialing 23
Some of contents in this user guide may be different from your phone depending on
the software of the phone or your service provider. Features and specifications might be
subject to change without prior notice.

5
Table of Contents
Using Phone Menus24
Web 24
Call History 25
1. Missed Calls 26
2. Incoming Calls 26
3. Outgoing Calls 26
4. Recent Calls 26
5. Delete History 26
Media Player 27
1. Channel Listing 27
2. Media Player 28
Bluetooth 29
1. Add Device 30
2. Trusted Devices 30
3. Exchange Folder 31
4. Supported Services 31
5. Settings 32
5.1 On/Off 32
5.2 Visibility 33
5.3 Exchange Folders 33
5.4 Bluetooth Info 33
Missed Alerts 34
Music 35
Downloads 36
Games 36
Ringers 36
Screen Savers 37
Applications 37
Messaging 38
1. Send Message 39
2. Text Messages 40
2.1 Inbox 40
2.2 Sent 41
2.3 Outbox 41
2.4 Draft 42
2.5 Edit Folder 42
2.6 Send Message 43
3. Pic/Video Msg 43
4. WebAlerts 43
5. Voicemail 43
6. Settings 44
6.1 Notification 44
6.2 Message Reminder 44
6.3 Callback Number 44
6.4 Auto-Delete 45
6.5 Signature 45
6.6 Quick Messages 45
6.7 Edit Voicemail # 46
6.8 WebAlerts 46
Tools 47
1. Alarm Clock 47
2. Calculator 48
2.1 Calculator 48
2.2 Ez Tip Calculator 48
3. Scheduler 49
4. Voice Memo 50
5. Notepad 50
6. World Clock 51
7. Media Storage 51
Pic/Video 52
1. Camera 52

Table of Contents
Table of Contents
6
2. Camcorder 54
3. Pic/Video Msg 55
4. My Pics/Videos 55
5. PictBridge Print 56
6. Account Info 56
Contacts 57
1. Find/Add Entry 57
2. Groups 58
3. Speed Dials 58
4. Voice Dials 59
5. My Name Card 59
6. Services 59
Settings 60
1. Display 60
1.1 Greeting 60
1.2 Incoming Calls 60
1.3 Screen Saver 61
1.4 Clock & Calendar 61
1.5 Slide Show 61
1.6 Skins 62
1.7 Menu Styles 62
1.8 Font Size 62
1.9 Backlight 62
1.0 Power Save Mode 63
2. Sounds 64
2.1 Ringers 64
2.2 Key Tones 64
2.3 Volume 64
2.4 Alerts 64
3. Roaming 65
3.1 Set Mode 65
3.2 Call Guard 65
3.3 Data Roam Guard 66
4. Location 66
5. Messaging 66
6. Bluetooth 66
7. Security 67
7.1 Lock Phone 67
7.2 Pic/Video Msg 67
7.3 Change Lock Code 68
7.4 Special Numbers 68
7.5 Delete Contacts 69
7.6 Limit Calls 69
7.7 Selective Call Block 69
7.8 Reset Phone 70
8. Setup/Others 70
8.1 Auto Keyguard 70
8.2 Shortcuts 70
8.3 Answer Call 71
8.4 Auto-Answer 71
8.5 Dialing Match 71
8.6 Text Entry 72
8.7 Language 72
8.8 TTY Mode 73
8.9 Airplane Mode 74
9. Phone Info 74
9.1 My Phone Number 74
9.2 Version 74
9.3 Icon Glossary 74
9.4 Advanced 75
Safety 76

7
Table of Contents
TIA (Telecommunications
Industry Association)
Safety Information 76
Exposure to Radio Frequency
Signal 76
Antenna Care 76
Phone Operation 76
Tips on Efficient Operation 76
Driving 77
Electronic Devices 77
Pacemakers 77
Persons with Pacemakers: 77
Hearing Aids 77
Other Medical Devices 78
Health Care Facilities 78
Vehicles 78
Posted Facilities 78
Aircraft 78
Blasting Areas 78
Potentially Explosive
Atmosphere 78
For Vehicles Equipped with an
Air Bag 79
Charger and Adapter
Safety 79
Battery Information and
Care 79
Safety Information 80
Explosion, Shock, and Fire
Hazards 80
General Warnings and
Cautions 81
Warning! Important safety
information 82
FDA Consumer Update 84
Consumer Information on
SAR 91
Accessories 93
Warranty
Information 94
Index 96

8
Welcome
Welcome
Thank you for choosing the advanced and compact LG 800 cellular phone, designed
to operate with the latest digital mobile communication technology, Code Division
Multiple Access (CDMA). Along with the many advanced features of the CDMA
system, such as greatly enhanced voice clarity, this phone offers:
●
Touch Sensitive Keys & Touch Key Lock.
●
Large, easy-to-read, 11-line backlit LCD with status icons.
●
Paging, messaging, voicemail and caller ID.
●
24 button keypad.
●
Menu-driven interface with prompts for easy operation and configuration.
●
Any key answer, auto answer, auto retry, one-touch and speed dialing with 99
memory locations.
●
Bilingual (English and French) capabilities.
●
Sleek and Compact Slider Design with Internal antenna (Internal antenna
described as antenna throughout this user guide).
●
Bluetooth
®
wireless technology.
●
Media Player.
●
Built-in Music Player.
●
PictBridge Print capability.
Important Information
This user’s guide provides important information on the use and operation of your
phone. Please read all the information carefully prior to using the phone for the best
performance and to prevent any damage to or misuse of the phone. Any unapproved
changes or modifications will void your warranty.

FCC Part 15 Class B
Compliance
This device and its accessories comply
with part 15 of FCC rules. Operation is
subject to the following two conditions:
(1) This device and its accessories may
not cause harmful interference, and (2)
this device and its accessories must
accept any interference received,
including interference that causes
undesired operation.
Industry Canada
Compliance
This phone complies with Industry
Canada RSS 133. This phone complies
with the Class B limits for radio noise
emissions as set out in the interference
causing standard entitled "Digital
Apparatus"
(ICES-003) of Industry Canada.
Technical Details
The LG 800 is an all digital phone that
operates on both Code Division
Multiple Access (CDMA) frequencies:
cellular services at 800 Mhz and
Personal Communication Services
(PCS) at 1.9 Ghz.
CDMA technology uses a feature
called DSSS (Direct Sequence Spread
Spectrum) that enables the phone to
keep communication from being
crossed and to use one frequency
channel by multiple users in the same
specific area. This results in a 10-fold
capacity increase when compared with
analog mode. In addition, features such
as soft/ softer handoff, hard handoff,
and dynamic RF power control
technologies combine to reduce call
interruptions.
The Cellular and PCS CDMA networks
consist of MSO (Mobile Switching
Office), BSC (Base Station Controller),
BTS (Base station Transmission
System), and MS (Mobile Station).
Technical Details
9
Technical Details

* TSB -74: Protocol between an IS-95A system and ANSI J-STD-008
1xRTT system receives twice as many subscribers in the wireless section as IS-95.
Its battery life is twice as long as IS-95. High-speed data transmission is also
possible.
The following table lists some major CDMA standards.
Technical Details
10
Technical Details
CDMA Standard
Basic Air
Interface
TIA/EIA-95A
TSB-74
ANSI J-STD-008
TIA/EIA-IS2000
CDMA Dual-Mode Air Interface
14.4kbps radio link protocol and inter-band operations
IS-95 adapted for PCS frequency band CDMA2000 1xRTT
Air Interface
MAS-BS
PCSC-RS
Intersystem operations
Non-signaling data comm.
CDMA2000 High Rate Packet Data Air Interface
1xEVDO Inter-Operability Specification for CDMA2000 Access
Network Interfaces
Recommended Minimum Performance Standards for
CDMA2000 High Rate Packet Data Access Terminal
Test Application Specification(TAS) for High Rate Packet Data Air
Interface
TIA/EIA/IS-634
TIA/EIA/IS/651
TIA/EIA/IS-41-C
TIA/EIA/IS-124
TIA/EIA/IS-856
TIA/EIA/IS-878
TIA/EIA/IS-866
TIA/EIA/IS-890
TIA/EIA/IS-96-B
TIA/EIA/IS-637
TIA/EIA/IS-657
IS-801
TIA/EIA/IS-707-A
Speech CODEC
Short message service
Packet Data
Position Determination Service High Speed Packet Data
Network
Service
1x EVDO
Related
interface
Designator Description

11
Technical Details
FCC RF Exposure
Information
WARNING! Read this information
before operating the phone.
In August 1996, the Federal
Communications Commission (FCC) of
the United States, with its action in
Report and Order FCC 96-326, adopted
an updated safety standard for human
exposure to Radio Frequency (RF)
electromagnetic energy emitted by FCC
regulated transmitters. Those
guidelines are consistent with the
safety standard previously set by both
U.S. and international standards
bodies.
The design of this phone complies with
the FCC guidelines and these
international standards.
Bodily Contact During
Operation
This device was tested for typical use
with the back of the phone kept 0.6
inches (1.5 cm) from the body. To
comply with FCC RF exposure
requirements, a minimum separation
distance of 0.6 inches (1.5 cm) must be
maintained between the user’s body
and the back of the phone, including
the antenna, whether extended or
retracted. Third-party belt-clips,
holsters and similar accessories
containing metallic components should
not be used. Avoid the use of
accessories that cannot maintain 0.6
inches (1.5 cm) distance between the
user’s body and the back of the phone
and have not been tested for
compliance with FCC RF exposure
limits.

12
Technical Details
Technical Details
Vehicle-Mounted External
Antenna
(Optional, if available.)
A minimum separation distance of 8
inches (20 cm) must be maintained
between the user/ bystander and the
vehicle-mounted external antenna to
satisfy FCC RF exposure requirements.
For more information about RF
exposure, visit the FCC website at
www.fcc.gov.
Caution
Use only the supplied and approved
antenna. Use of unauthorized antennas
or modifications could impair call
quality, damage the phone, void your
warranty and/or result in violation of
FCC and IC regulations.
Do not use the phone with a damaged
antenna. If a damaged antenna comes
into contact with the skin a minor burn
may result. Contact your local dealer
for a replacement antenna.

Phone Overview
13
Phone Overview
1. Earpiece Lets you hear the caller and
automated prompts.
2. Slide Slide up to answer an incoming
call and close to end the call.
3. LCD Screen Displays messages and
indicator icons.
4. Touch Keypad
5. Volume Control
Allows you to adjust
the ringer volume in standby mode
(with the slide up) or adjust the voice
volume during a call. The volume key
can also be used to scroll up or down
to navigate through the different
menu options. To mute the ringer
during an incoming call, press the
volume key up or down.
6. Navigation Key Scrolls through the
phone’s menu options and acts as a
shortcut key from standby mode. You
may also customize the navigation
shortcuts in the Settings menu.
■
Touch to access Messaging.
■
Touch to access Downloads.

Phone Overview
14
Phone Overview
■
Touch to access Media Player.
■
Touch to access your Music.
7. Camera Key Press and hold to
automatically launch the camera.
A single press to the exterior camera
key (left side key) will launch the
pic/video mode.
8. Send Key Allows you to place or
receive calls, answer Call Waiting, or
activate Voice Control.
9. Soft Keys Let you select softkey
actions or menu items corresponding
to the bottom left and right lines on
the display screen.
10. O K Key Use to select different
options in the phone's menus.
11. END Key Ends a call. Press and hold
this key for two seconds to turn your
phone on or off. While in the main
menu, it returns the phone to standby
mode and cancels your input.
12. Clear Key Deletes characters from
the display in text entry mode. When
in a menu, press the key to return to
the previous menu.
13. Accessory/Charger/Headset Jack
Allows you to connect optional
accessories, such as a USB cable.
Connects the phone to the battery
charger. Allows you to plug in an
optional headset for convenient,
hands-free conversations.
14. Alphanumeric Keypad Use to enter
numbers and characters and select
menu items.

Menus Overview
15
Menus Overview
1. Web
2. Call History
1. Missed Calls
2. Incoming Calls
3. Outgoing Calls
4. Recent Calls
5. Delete History
1. Missed Calls
2. Incoming Calls
3. Outgoing Calls
4. Recent Calls
5. All Calls
3. Media Player
1 . Channel Listing
2. Media Player
4. Bluetooth
1. Add Device
2. Trusted Devices
3. Exchange Folder
4. Supported
Services
5. Settings
5. Missed Alerts
6. Music
7. Downloads
Games
Ringers
Screen Savers
Applications
<Options>
8. Messaging
1. Send Message
2. Text Messages
1. Inbox
2. Sent
3. Outbox
4. Draft
5. Edit Folder
6. Send Message
3. Pic/Video Msg
4. WebAlerts
5. Voicemail
1. Call Voicemail
2. Voicemail
Details
3. Clear Icon
6. Settings
9. Tools
1. Alarm Clock
2. Calculator
3. Scheduler
4. Voice Memo
5. Notepad
6. World Clock
7. Media Storage
*. Pic/Video
1. Camera
2. Camcorder
3. Pic/Video Msg
4. My Pics/Videos
5. PictBridge Print
6. Account Info
Menu Access
To use phone menus, touch Menu using Navigation Key to highlight and select.
Press the number key that corresponds to the submenu.

16
Menus Overview
0. Contacts
1. Find/Add Entry
2. Groups
3. Speed Dials
4. Voice Dials
5. My Name Card
6. Services
# . Settings
1. Display
1. Greeting
2. Incoming Calls
3. Screen Saver
4. Clock &
Calendar
5. Slide Show
6. Skins
7. Menu Styles
8. Font Size
9. Backlight
0. Power Save
Mode
2. Sounds
1. Ringers
2. Key Tones
3. Volume
4. Alerts
3. Roaming
1. Set Mode
2. Call Guard
3. Data Roam
Guard
4. Location
5. Messaging
1. Notification
2. Message
Reminder
3. Callback
Number
4. Auto-Delete
5. Signature
6. Quick
Messages
7. Edit Voicemail #
8. WebAlerts
6. Bluetooth
1. On/Off
2. Visibility
3. Exchange
Folders
4. Bluetooth Info
7. Security
1. Lock Phone
2. Pic/Video Msg
3. Change Lock
Code
4. Special
Numbers
5. Delete
Contacts
6. Limit Calls
7. Selective Call
Block
8. Reset Phone
8. Setup/Others
1. Auto Keyguard
2. Shortcuts
3. Answer Call
4. Auto-Answer
5. Dialing Match
6. Text Entry
7. Language
8. TTY Mode
9. Airplane Mode
9. Phone Info
1. My Phone
Number
2. Version
3. Icon Glossary
4. Advanced
Menus Overview

Getting Started with Your Phone
17
Getting Started with Your Phone
The Battery
The phone comes with a rechargeable
battery. Keep the battery charged while
not in use in order to maximize talk and
standby time. The battery charge level
is shown at the top of the LCD screen.
Installing the Battery
To install the battery, insert the battery
into the opening on the back of the
phone.
Removing the Battery
Remove the battery by pressing the
upper area of it. To remove the battery,
slide the battery latch to the left and
release the battery.
Note
It is important to fully charge the battery
before initial use of the phone.
Note
Do not handle a damaged or leaking
Lithium Polymer battery as you can be
burned.

Charging the Battery
To use the charger provided with your
phone:
WARNING! Use only the charger
provided with the phone. Using any
charger other than the one included
with the LG 800 may damage your
phone or battery.
1. Open the cap of the charger port on
the right side of your phone.
2. Plug the end of the adapter into the
phone’s charger port and the other
end into an electrical outlet.
3. The charge time varies depending
upon the battery level.
Battery Charge Level
The battery charge level is shown at
the top right of the LCD screen. When
the battery charge level becomes low,
the low battery sensor alerts you in
three ways: sounding an audible tone,
blinking the battery icon, and displaying
a warning. If the battery charge level
becomes exceedingly low, the phone
automatically switches off and any
function in progress is not saved.
Turning the Phone On and Off
Turning the Phone On
1. Install a charged battery or connect
the phone to an external power
source such as a vehicle power
charger or hands-free car kit.
2. Press for a few seconds until the
LCD screen lights up.
Getting Started with Your Phone
18
Getting Started with Your Phone

Turning the Phone Off
1. Press and hold until the display
turns off.
Signal Strength
Call quality depends on the signal
strength in your area. The signal strength
is indicated on the screen as the number
of bars next to the signal strength icon:
The more bars, the better the signal
strength. If the signal quality is poor,
move to an open area. If you are in a
building, the reception may be better
near a window.
Screen Icons
When the phone is powered on, the top
line of the LCD screen displays icons
indicating the status of the phone.
To see the icons, go to Menu-> Settings->
Phone Info-> Icon Glossary.
Note
Like any other radio device, avoid any
unnecessary contact with the antenna
while your phone is on.
19
Getting Started with Your Phone

20
Getting Started with Your Phone
Getting Started with Your Phone
Using the Touch Sensitive Keys
The LG 800 unique touchpad looks great and is fun to use. Get the most out of your
Chocolate touch keys by following these tips.
●
A light touch with clean and dry fingers work best for the heat sensitive
touchpad. Press directly in the center of the key to activate the key. Using
gloves or a phone case with a protective plastic covering may make the keypad
more difficult to use.
●
Protect your phone from severe impact because touchpad sensors may
become damaged from harsh use.
●
When your LG 800 screen and touchpad lights are off, it is deactivated. Simply
press Camera Key on the side of your Chocolate twice to activate the screen
and touch keypad.
●
During a call, the touchpad is automatically deactivated to prevent accidental
key presses. To access phone content while in a call press Camera Key twice
to reactivate the keys.
●
Keep metal and other conductive material away from the surface of the
touchpad because contact may cause electronic interference.
