LG DM515 User manual

User Guide
LG-DM515
LG-DM515
SUPER LARGE GRAPHIC LCD
MMBB0088801(1.1)
515 cover-1 5/22/03 2:54 PM Page 1
All manuals and user guides at all-guides.com
all-guides.com

LG-DM515 Cellular Phone
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 1
All manuals and user guides at all-guides.com

LG-DM515
3
Contents
LG-DM515
2
WARNING! To reduce the possibility of electric
shock, do not expose your phone to high humidity
areas, such as a bathroom, swimming area, etc.
Caution: Use only LG-approved batteries and
desktop chargers to avoid the damage to the
phone. Using other batteries or chargers voids
your warranty and may cause the explosion.
Caution: Do not use batteries and desktop
chargers for purposes other than the intended use.
Never store your phone in temperatures less than
-20°C or greater than 50°C, such as outside during
a snowstorm or in your car on a hot day. Exposure
to excessive cold or heat may result in phone
malfunction, damage and/or failure.
Use caution when using your phone near other
electronic devices. RF emissions from your mobile
phone may affect nearby inadequately shielded
electronic equipment. Consult manufacturers of
any personal medical devices such as pacemakers
and hearing aides to determine if they are
susceptible to interference from your mobile
phone. Turn off your phone in a medical facility or
at a gas station.
IMPORTANT! Please read the TIA safety information in
chapter 6 before using your phone.
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Important Information . . . . . . . . . . . . . . . . . . . . . .7
Check Accessories . . . . . . . . . . . . . . . . . . . . . . . .7
Bodily Contact During Operation . . . . . . . . . . . . .8
Vehicle-Mounted External Antenna . . . . . . . . . . .9
FCC Part 15 Class B Compliance . . . . . . . . . . .9
Battery Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Battery Disposal . . . . . . . . . . . . . . . . . . . . . . . . .10
Adapter (Charger) Safety . . . . . . . . . . . . . . . . . .10
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

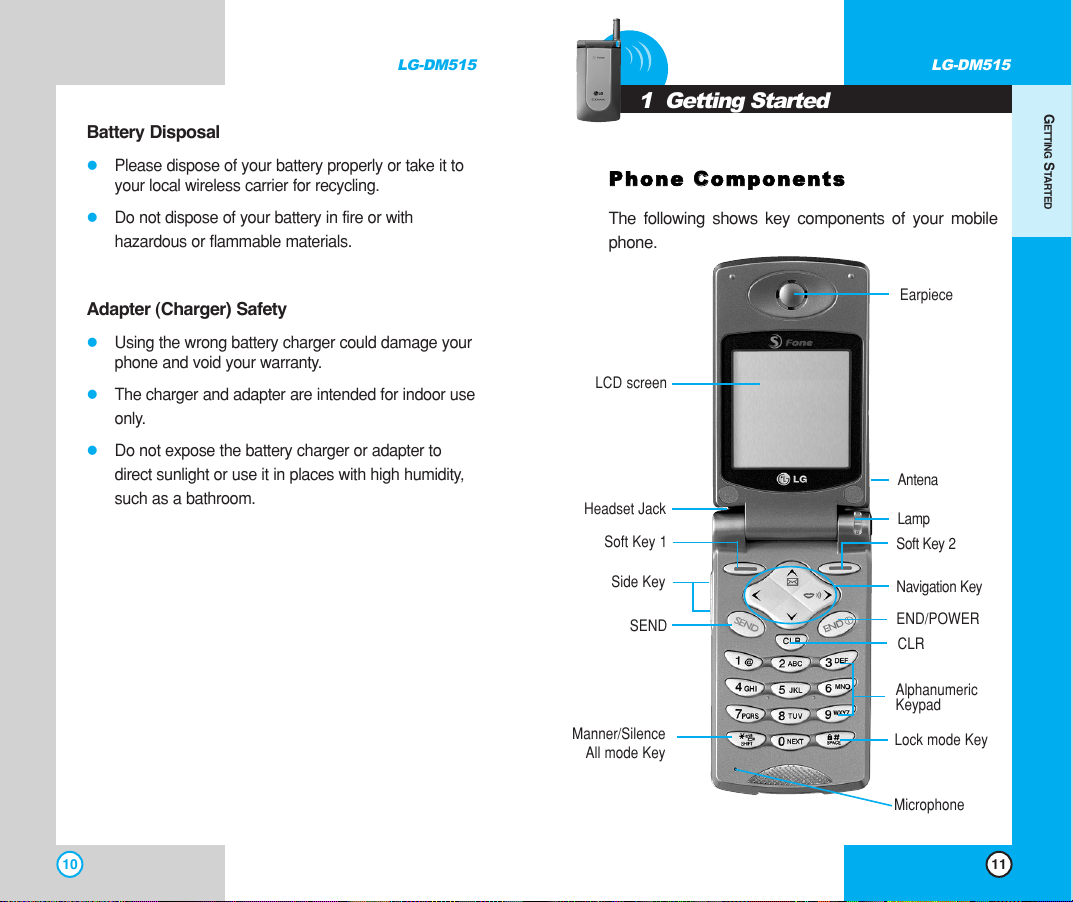

Phone Components . . . . . . . . . . . . . . . . . . . . . .11
Phone Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . .14
Installing the Battery . . . . . . . . . . . . . . . . . . . . . .14
Removing the Battery . . . . . . . . . . . . . . . . . . . . .14
Battery Charge Level . . . . . . . . . . . . . . . . . . . . .15
Using the Desktop Charger . . . . . . . . . . . . . . . . . . . .15
Battery Information and Care . . . . . . . . . . . . . . . . . . .16
Screen Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

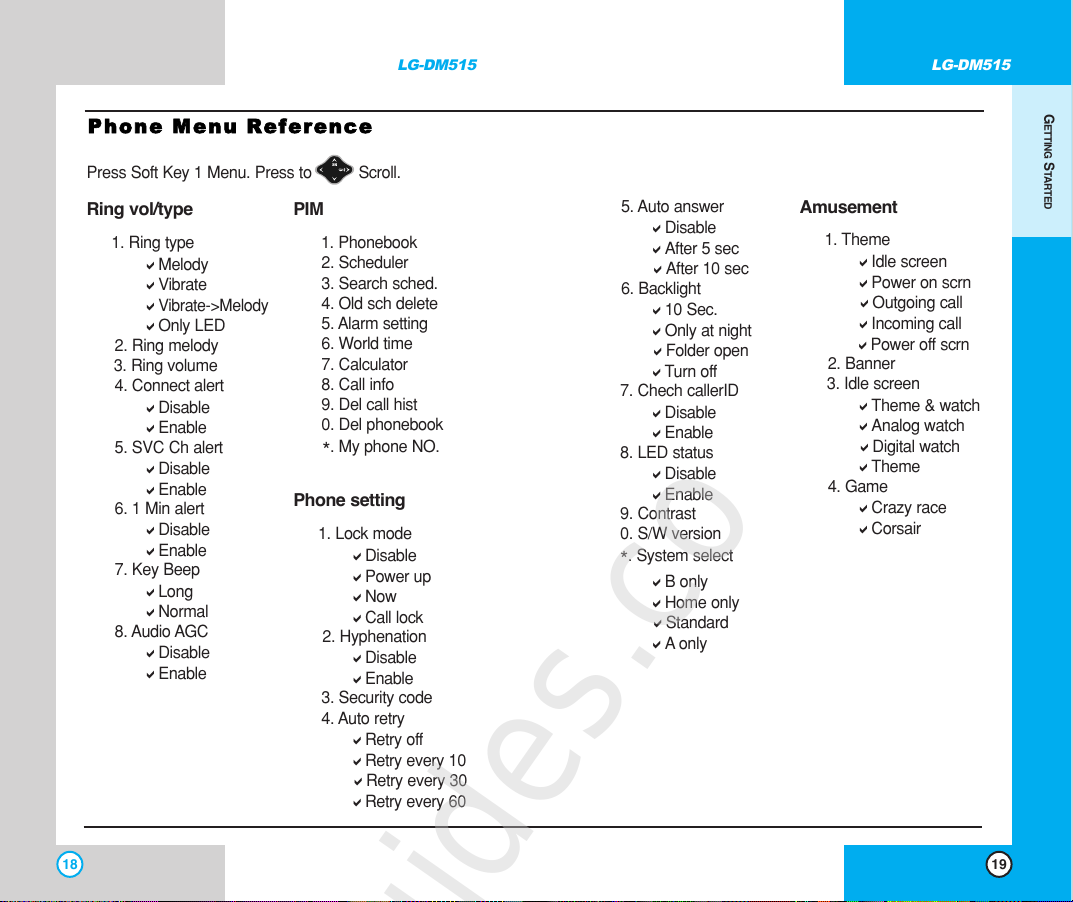

Phone Menu Reference . . . . . . . . . . . . . . . . . . . . . . .18

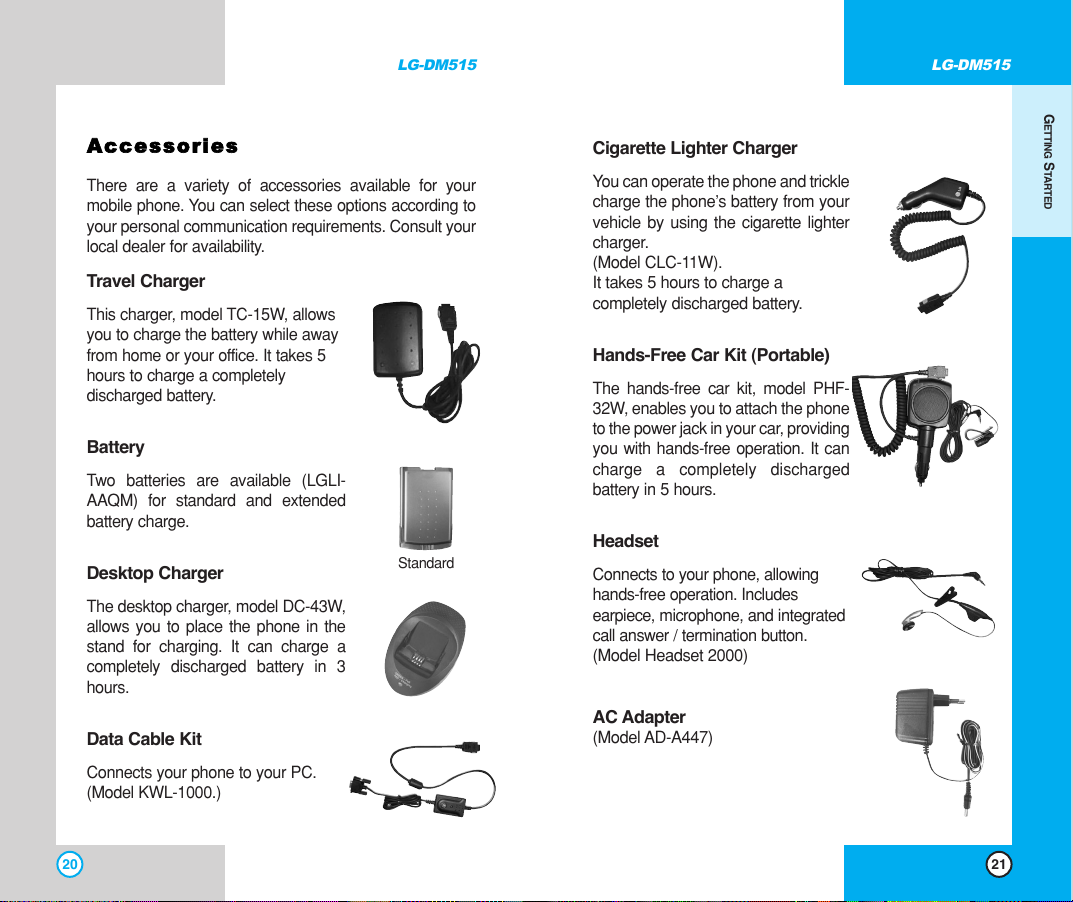

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Travel Charger . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Desktop Charger . . . . . . . . . . . . . . . . . . . . . . . . .20
Data Cable Kit . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cigarette Lighter Charger . . . . . . . . . . . . . . . . . .21
Hands-Free Car Kit (Portable) . . . . . . . . . . . . . .21
Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

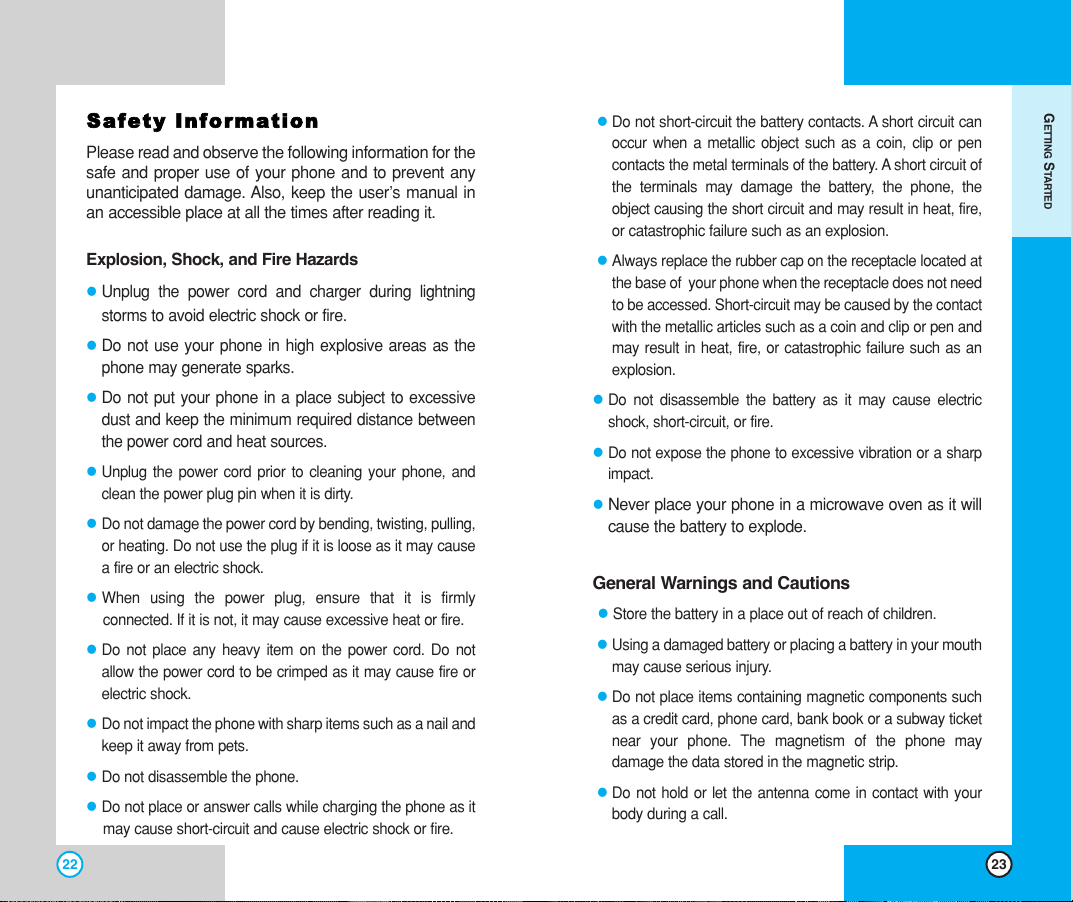

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Explosion, Shock, and Fire Hazards . . . . . . . . .22
General Warnings and Cautions . . . . . . . . . . . .23
Basic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Turning the Phone On and Off . . . . . . . . . . . . . . . . .25
Turning the Phone On . . . . . . . . . . . . . . . . . . . .25
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 2
All manuals and user guides at all-guides.com

LG-DM515
4

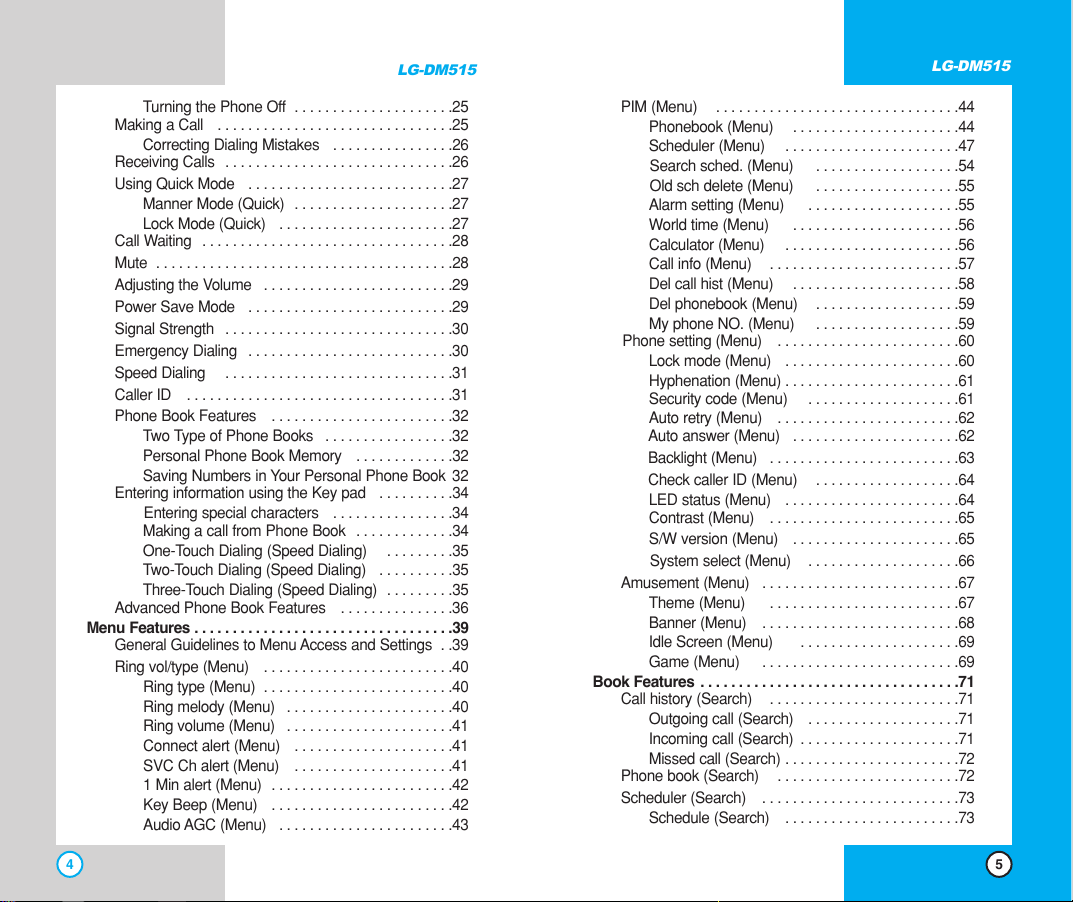

Turning the Phone Off . . . . . . . . . . . . . . . . . . . . .25
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Correcting Dialing Mistakes . . . . . . . . . . . . . . . .26
Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Using Quick Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Manner Mode (Quick) . . . . . . . . . . . . . . . . . . . . .27
Lock Mode (Quick) . . . . . . . . . . . . . . . . . . . . . . .27
Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . .29
Power Save Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Emergency Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Phone Book Features . . . . . . . . . . . . . . . . . . . . . . . .32
Two Type of Phone Books . . . . . . . . . . . . . . . . .32
Personal Phone Book Memory . . . . . . . . . . . . .32
Saving Numbers in Your Personal Phone Book 32
Entering information using the Key pad . . . . . . . . . .34
Entering special characters . . . . . . . . . . . . . . . .34
Making a call from Phone Book . . . . . . . . . . . . .34
One-Touch Dialing (Speed Dialing) . . . . . . . . .35
Two-Touch Dialing (Speed Dialing) . . . . . . . . . .35
Three-Touch Dialing (Speed Dialing) . . . . . . . . .35
Advanced Phone Book Features . . . . . . . . . . . . . . .36
Menu Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
General Guidelines to Menu Access and Settings . .39
Ring vol/type (Menu) . . . . . . . . . . . . . . . . . . . . . . . . .40
Ring type (Menu) . . . . . . . . . . . . . . . . . . . . . . . . .40
Ring melody (Menu) . . . . . . . . . . . . . . . . . . . . . .40
Ring volume (Menu) . . . . . . . . . . . . . . . . . . . . . .41
Connect alert (Menu) . . . . . . . . . . . . . . . . . . . . .41
SVC Ch alert (Menu) . . . . . . . . . . . . . . . . . . . . .41
1 Min alert (Menu) . . . . . . . . . . . . . . . . . . . . . . . .42
Key Beep (Menu) . . . . . . . . . . . . . . . . . . . . . . . .42
Audio AGC (Menu) . . . . . . . . . . . . . . . . . . . . . . .43
LG-DM515
5
PIM (Menu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Phonebook (Menu) . . . . . . . . . . . . . . . . . . . . . .44
Scheduler (Menu) . . . . . . . . . . . . . . . . . . . . . . .47
Search sched. (Menu) . . . . . . . . . . . . . . . . . . .54
Old sch delete (Menu) . . . . . . . . . . . . . . . . . . .55
Alarm setting (Menu) . . . . . . . . . . . . . . . . . . . .55
World time (Menu) . . . . . . . . . . . . . . . . . . . . . .56
Calculator (Menu) . . . . . . . . . . . . . . . . . . . . . . .56
Call info (Menu) . . . . . . . . . . . . . . . . . . . . . . . . .57
Del call hist (Menu) . . . . . . . . . . . . . . . . . . . . . .58
Del phonebook (Menu) . . . . . . . . . . . . . . . . . . .59
My phone NO. (Menu) . . . . . . . . . . . . . . . . . . .59
Phone setting (Menu) . . . . . . . . . . . . . . . . . . . . . . . .60
Lock mode (Menu) . . . . . . . . . . . . . . . . . . . . . . .60
Hyphenation (Menu) . . . . . . . . . . . . . . . . . . . . . . .61
Security code (Menu) . . . . . . . . . . . . . . . . . . . .61
Auto retry (Menu) . . . . . . . . . . . . . . . . . . . . . . . .62
Auto answer (Menu) . . . . . . . . . . . . . . . . . . . . . .62
Backlight (Menu) . . . . . . . . . . . . . . . . . . . . . . . . .63
Check caller ID (Menu) . . . . . . . . . . . . . . . . . . .64
LED status (Menu) . . . . . . . . . . . . . . . . . . . . . . .64
Contrast (Menu) . . . . . . . . . . . . . . . . . . . . . . . . .65
S/W version (Menu) . . . . . . . . . . . . . . . . . . . . . .65
System select (Menu) . . . . . . . . . . . . . . . . . . . .66
Amusement (Menu) . . . . . . . . . . . . . . . . . . . . . . . . . .67
Theme (Menu) . . . . . . . . . . . . . . . . . . . . . . . . .67
Banner (Menu) . . . . . . . . . . . . . . . . . . . . . . . . . .68
Idle Screen (Menu) . . . . . . . . . . . . . . . . . . . . .69
Game (Menu) . . . . . . . . . . . . . . . . . . . . . . . . . .69
Book Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Call history (Search) . . . . . . . . . . . . . . . . . . . . . . . . .71
Outgoing call (Search) . . . . . . . . . . . . . . . . . . . .71
Incoming call (Search) . . . . . . . . . . . . . . . . . . . . .71
Missed call (Search) . . . . . . . . . . . . . . . . . . . . . . .72
Phone book (Search) . . . . . . . . . . . . . . . . . . . . . . . .72
Scheduler (Search) . . . . . . . . . . . . . . . . . . . . . . . . . .73
Schedule (Search) . . . . . . . . . . . . . . . . . . . . . . .73
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 4
All manuals and user guides at all-guides.com

7

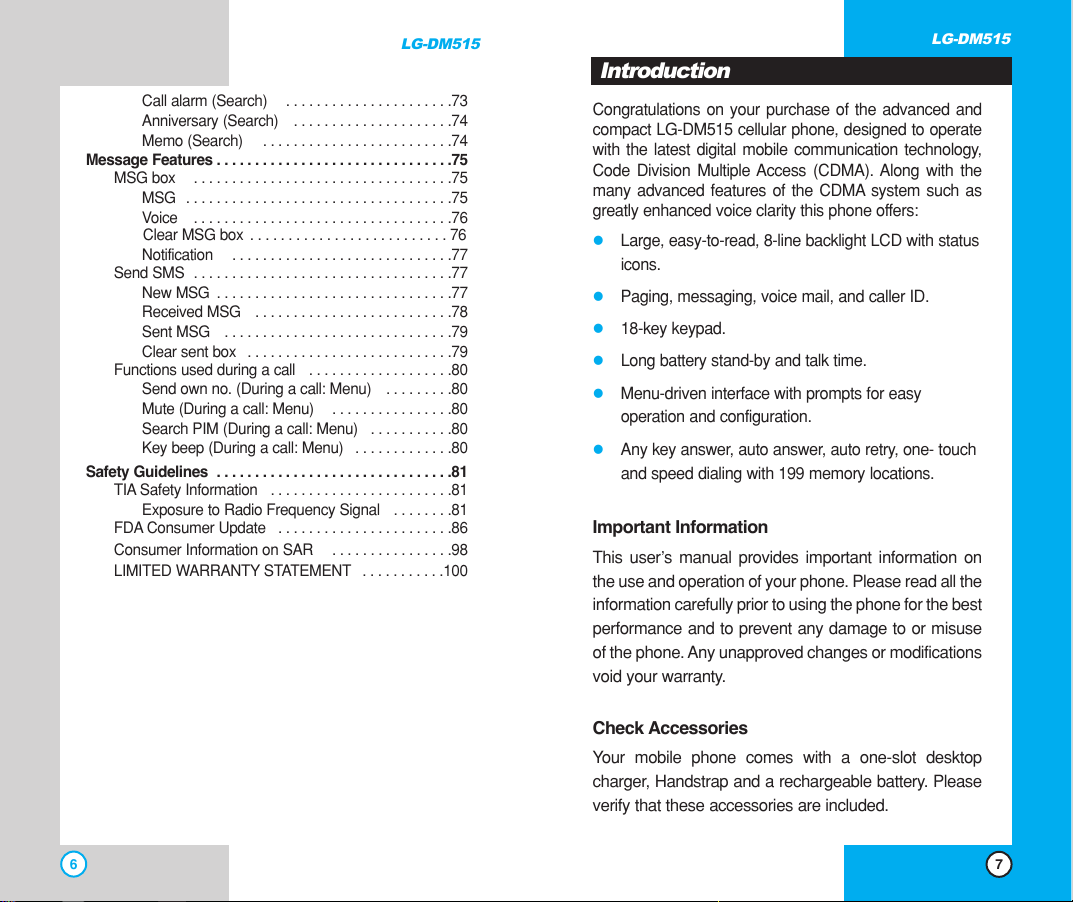

Congratulations on your purchase of the advanced and
compact LG-DM515 cellular phone, designed to operate
with the latest digital mobile communication technology,
Code Division Multiple Access (CDMA). Along with the
many advanced features of the CDMA system such as
greatly enhanced voice clarity this phone offers:
Large, easy-to-read, 8-line backlight LCD with status
icons.
Paging, messaging, voice mail, and caller ID.
18-key keypad.
Long battery stand-by and talk time.
Menu-driven interface with prompts for easy
operation and configuration.
Any key answer, auto answer, auto retry, one- touch
and speed dialing with 199 memory locations.
Important Information
This user’s manual provides important information on
the use and operation of your phone. Please read all the
information carefully prior to using the phone for the best
performance and to prevent any damage to or misuse
of the phone. Any unapproved changes or modifications
void your warranty.
Check Accessories
Your mobile phone comes with a one-slot desktop
charger, Handstrap and a rechargeable battery. Please
verify that these accessories are included.
Introduction
LG-DM515
6
Call alarm (Search) . . . . . . . . . . . . . . . . . . . . . .73
Anniversary (Search) . . . . . . . . . . . . . . . . . . . . .74
Memo (Search) . . . . . . . . . . . . . . . . . . . . . . . . .74
Message Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
MSG box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
MSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Clear MSG box ..........................76
Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Send SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
New MSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Received MSG . . . . . . . . . . . . . . . . . . . . . . . . . .78
Sent MSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Clear sent box . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Functions used during a call . . . . . . . . . . . . . . . . . . .80
Send own no. (During a call: Menu) . . . . . . . . .80
Mute (During a call: Menu) . . . . . . . . . . . . . . . .80
Search PIM (During a call: Menu) . . . . . . . . . . .80
Key beep (During a call: Menu) . . . . . . . . . . . . .80
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
TIA Safety Information . . . . . . . . . . . . . . . . . . . . . . . .81
Exposure to Radio Frequency Signal . . . . . . . .81
FDA Consumer Update . . . . . . . . . . . . . . . . . . . . . . .86
Consumer Information on SAR . . . . . . . . . . . . . . . .98
LIMITED WARRANTY STATEMENT . . . . . . . . . . .100
LG-DM515
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 6
All manuals and user guides at all-guides.com

LG-DM515
9
LG-DM515
8
F CC RF Exposure Information
WARNING! Read this information before
operating the phone.
In August 1996, the Federal Communications (FCC) of
the United States, with its action in Report and Order FCC
96-326, adopted an updated safety standard for human
exposure to radio frequency (RF) electromagnetic energy
emitted by FCC regulated transmitters. Those guidelines
are consistent with the safety standard previously set by
both U.S. and international standards bodies.
The design of this phone complies with the FCC
guidelines and these international standards.
CAUTION
Use only the supplied and approved antenna. Use of
unauthorized antennas or modifications could impair
call quality, damage the phone, void your warranty
and/or result in violation of FCC regulations.
Do not use the phone with a damaged antenna. If the
damaged antenna comes into contact with the skin a
minor burn may result. Contact your local dealer for a
replacement of antenna.
Bodily Contact During Operation
This device was tested for typical usage with the back of
the phone kept 3/4 in (2 cm) from the body. To comply
with FCC RF exposure requirements, a minimum
separation distance of 3/4 inches (2 cm) must be
maintained between the user’s body and the back of the
phone, including the antenna whether extended or
retracted. Third-party belt-clips, holsters, and similar
accessories containing metallic components should not
be used. Avoid the use of accessories that cannot
maintain 3/4 in (2 cm) distance between the user’s body
and the back of the phone and have not been tested for
compliance with FCC RF exposure limits.
Vehicle-Mounted External Antenna
(Optional, if available.)
Aminimum distance of 8 in (20 cm) must be maintained
between the user / bystander and the vehicle-mounted
external antenna to satisfy FCC RF exposure
requirements. For more information about RF exposure,
visit the FCC website at www.fcc.gov.
FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of
FCC rules. Operation is subject to the following two
conditions: (1) This device and its accessories may not
cause harmful interference, and (2) this device and its
accessories must accept any interference received,
including interference that cause undesired operation.
Battery Safety
Do not disassemble.
Do not short-circuit.
Do not expose to high temperatures :60 °C (140 °F)
Do not incinerate.
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 8
All manuals and user guides at all-guides.com
all-guides.com

G
ETTING
S
TARTED
Phone CComponents
The following shows key components of your mobile
phone.
LG-DM515LG-DM515
10 11
1 Getting Started
Battery Disposal
Please dispose of your battery properly or take it to
your local wireless carrier for recycling.
Do not dispose of your battery in fire or with
hazardous or flammable materials.
Adapter (Charger) Safety
Using the wrong battery charger could damage your
phone and void your warranty.
The charger and adapter are intended for indoor use
only.
Do not expose the battery charger or adapter to
direct sunlight or use it in places with high humidity,
such as a bathroom.
Soft Key 2
Lamp
Navigation Key
END/POWER
CLR
Alphanumeric
Keypad
Lock mode Key
Earpiece
Headset Jack
SEND
Side Key
Manner/Silence
All mode Key
Microphone
Antena
LCD screen
Soft Key 1
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 10
All manuals and user guides at all-guides.com

LG-DM515
12
Phone OOverview
1. Earpiece
2. Flip Design Flip open the case to answer an
incoming call and close to end the call.
3. Message Key Use to retrieve or send voice and text
messages.
4. SEND Use to place or answer calls.
5. Side Keys Use to adjust the key beep volume in
standby mode and the earpiece volume during a
call.
6. Headset Jack
7. Manner Mode/Silence All Mode Key Use to set
the Manner Mode by pressing and holding the
key for about 3 seconds while in standby mode.
Note: The manner mode you select remains in effect
even when you turn the phone off and back on.
8. LCD Screen Displays messages and indicator
icons.
9. Soft Keys
Soft Key 1
Use to display the function setting menu.
Soft Key 2
Use to select an action within a menu.
10. Antena
11. Lamp The red light illuminates when you turn the
power on and when you have an incoming call or
message.
SHIFT
LG-DM515
13
12. Navigation Key Use for quick access to phone
functions:
When search a character/voice message and
scroll through menu items Up.
Allows you to set or cancel the silent answer
function.
Used to connect Internet service and scroll
through menu items Left.
When voice message is saved by voice dial
function.
13. END/POWER Use to turn the power on/off and to
end a call. Using this key, you can return to the main
menu display screen.
14. Clear Key Press to delete a single space or
character. Press and hold to delete entire words.
Press this key once in a menu to go back one level.
15. Alphanumeric Keypad Use to enter numbers and
characters and choose menu items.
16. Lock Mode Key Use in standby mode to set the
lock function by pressing and holding the key
for about 3 seconds.
17. Microphone
SPACE
G
ETTING
S
TARTED
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 12
All manuals and user guides at all-guides.com

LG-DM515
15
Battery Charge Level
The battery charge level is shown at the top right of the
LCD screen.
When the battery charge level becomes low, the low
battery sensor alerts you in three ways: sounding an
audible tone, blinking the battery icon, and displaying
LOW BATTERY WARNING! If the battery charge level
becomes exceedingly low, the phone automatically
switches off and any function in progress is not saved.
Using tthe DDesktop CCharger
The desktop charger has a slot for recharging batteries
that accommodates the phone and battery for charging.
Warning! Use only the desktop charger provided
with the phone. Using an unauthorized charger
may damage your phone or battery.
1. Plug the charger into a wall outlet. The phone must
be charged from a 120 VAC power source.
2. Insert the phone with an installed battery or the
battery by itself into the slot of the charger.The red
light indicates the battery is charging and the green
light indicates the battery is fully charged.
The charge time varies depending upon the battery
level and the maximum charge time for a fully
discharged battery is 3 hours.
LG-DM515
14
Using tthe BBattery Pack
Note: It is important to charge the battery fully before
the initial use of the phone.
The phone comes with a rechargeable battery. Keep the
battery charged while not in use in order to maximize talk
and standby time when using the phone.
Installing the Battery
To install the battery, insert the bottom of the battery into
the opening on the back of the phone. Then push the
battery down until the latch clicks.
Removing the Battery
Turn the power off. Lift the release latch to detach the
battery.
Note: If you remove the battery while the power is on,
stored numbers and messages could be lost.
release
latch
slot
G
ETTING
S
TARTED
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 14
All manuals and user guides at all-guides.com

LG-DM515
17
LG-DM515
16
G
ETTING
S
TARTED
Descriptions
Displays the strength of the signal received by the
phone and current signal strength is indicated by
the number of bars displayed on the screen.
Digital indicator
Digital service is available.
Roaming The phone is outside of the home
service area.
Amps indicator
Text message
Indicates that a text message arrives.
Text and voice message
Indicates that a text message or voice mail has
been received.
In Manner Mode
When Ringer Volume is set as “ ”(off),
is display in Standby Mode.
Set up Alarm Mode.
Charge level: Indicates battery charge level.
In use. A call is in progress.
* No icon indicates the phone is in standby mode.
No service. The phone is not receiving a system
signal.
Icons
Screen IIcons
D
Voice Message
WARNING! The desktop charger and the travel
charger cannot be charged at the same time
because the battery may be altered or damaged.
Battery IInformation aand CCare
1. Never use an unauthorized battery since this could
damage the phone and / or battery and could cause
the battery to explode.
2. You do not need to wait until the battery is empty
before recharging the battery.
3. Use only LG chargers specific to your phone model
since they are designed to maximize battery life.
4. Do not disassemble or short-circuit the battery.
5. Keep the battery’s metal contacts clean.
6. Replace the battery when it no longer provides
acceptable performance. The battery can be
recharged several hundred times before
replacement.
7. Recharge the battery after long periods of non-use
to maximize battery life.
8. Do not expose the battery charger to direct sunlight
or use it in areas of high humidity such as a
bathroom.
9. Do not leave the battery in hot or cold places as it
may deteriorate battery performance.
10. Battery life varies due to factors such as location,
usage patterns, etc.
11. Using features such as backlight settings, searching
for service, the MiniBrowser, data connectivity, and
synchronization affects the battery life and talk /
standby times.
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 16
All manuals and user guides at all-guides.com

LG-DM515
18
LG-DM515
19
G
ETTING
S
TARTED
5. Auto answer
Disable
After 5 sec
After 10 sec
6. Backlight
10 Sec.
Only at night
Folder open
Turn off
7. Chech callerID
Disable
Enable
8. LED status
Disable
Enable
9. Contrast
0. S/W version
*. System select
B only
Home only
Standard
Aonly
Amusement
1. Theme
Idle screen
Power on scrn
Outgoing call
Incoming call
Power off scrn
2. Banner
3. Idle screen
Theme & watch
Analog watch
Digital watch
Theme
4. Game
Crazy race
Corsair
Ring vol/type
1. Ring type
Melody
Vibrate

Vibrate->Melody
Only LED
2. Ring melody
3. Ring volume
4. Connect alert
Disable
Enable
5. SVC Ch alert
Disable
Enable
6. 1 Min alert
Disable
Enable
7. Key Beep
Long
Normal
8. Audio AGC
Disable
Enable
PIM
1. Phonebook
2. Scheduler
3. Search sched.
4. Old sch delete
5. Alarm setting
6. World time
7. Calculator
8. Call info
9. Del call hist
0. Del phonebook
*. My phone NO.
Phone setting
1. Lock mode
Disable
Power up
Now
Call lock
2. Hyphenation
Disable
Enable
3. Security code
4. Auto retry
Retry off
Retry every 10
Retry every 30
Retry every 60
Press Soft Key 1 Menu. Press to Scroll.
Phone MMenu Reference
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 18
All manuals and user guides at all-guides.com
all-guides.com

LG-DM515
20
Accessories
There are a variety of accessories available for your
mobile phone. You can select these options according to
your personal communication requirements. Consult your
local dealer for availability.
Travel Charger
This charger, model TC-15W, allows
you to charge the battery while away
from home or your office. It takes 5
hours to charge a completely
discharged battery.
Battery
Two batteries are available (LGLI-
AAQM) for standard and extended
battery charge.
Desktop Charger
The desktop charger, model DC-43W,
allows you to place the phone in the
stand for charging. It can charge a
completely discharged battery in 3
hours.
Data Cable Kit
Connects your phone to your PC.
(Model KWL-1000.)
Standard
LG-DM515
21
Cigarette Lighter Charger
You can operate the phone and trickle
charge the phone’s battery from your
vehicle by using the cigarette lighter
charger.
(Model CLC-11W).
It takes 5 hours to charge a
completely discharged battery.
Hands-Free Car Kit (Portable)
The hands-free car kit, model PHF-
32W, enables you to attach the phone
to the power jack in your car, providing
you with hands-free operation. It can
charge a completely discharged
battery in 5 hours.
Headset
Connects to your phone, allowing
hands-free operation. Includes
earpiece, microphone, and integrated
call answer / termination button.
(Model Headset 2000)
AC Adapter
(Model AD-A447)
G
ETTING
S
TARTED
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 20
All manuals and user guides at all-guides.com

2322
LG-DM515
Do not short-circuit the battery contacts. A short circuit can
occur when a metallic object such as a coin, clip or pen
contacts the metal terminals of the battery. A short circuit of
the terminals may damage the battery, the phone, the
object causing the short circuit and may result in heat, fire,
or catastrophic failure such as an explosion.
Always replace the rubber cap on the receptacle located at
the base of your phone when the receptacle does not need
to be accessed. Short-circuit may be caused by the contact
with the metallic articles such as a coin and clip or pen and
may result in heat, fire, or catastrophic failure such as an
explosion.
Do not disassemble the battery as it may cause electric
shock, short-circuit, or fire.
Do not expose the phone to excessive vibration or a sharp
impact.

Never place your phone in a microwave oven as it will
cause the battery to explode.
General Warnings and Cautions
Store the battery in a place out of reach of children.
Using a damaged battery or placing a battery in your mouth
may cause serious injury.
Do not place items containing magnetic components such
as a credit card, phone card, bank book or a subway ticket
near your phone. The magnetism of the phone may
damage the data stored in the magnetic strip.
Do not hold or let the antenna come in contact with your
body during a call.
LG-DM515
Safety Information
Please read and observe the following information for the
safe and proper use of your phone and to prevent any
unanticipated damage. Also, keep the user’s manual in
an accessible place at all the times after reading it.
Explosion, Shock, and Fire Hazards
Unplug the power cord and charger during lightning
storms to avoid electric shock or fire.
Do not use your phone in high explosive areas as the
phone may generate sparks.
Do not put your phone in a place subject to excessive
dust and keep the minimum required distance between
the power cord and heat sources.
Unplug the power cord prior to cleaning your phone, and
clean the power plug pin when it is dirty.
Do not damage the power cord by bending, twisting, pulling,
or heating. Do not use the plug if it is loose as it may cause
a fire or an electric shock.
When using the power plug, ensure that it is firmly
connected. If it is not, it may cause excessive heat or fire.
Do not place any heavy item on the power cord. Do not
allow the power cord to be crimped as it may cause fire or
electric shock.
Do not impact the phone with sharp items such as a nail and
keep it away from pets.
Do not disassemble the phone.
Do not place or answer calls while charging the phone as it
may cause short-circuit and cause electric shock or fire.
G
ETTING
S
TARTED
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 22
All manuals and user guides at all-guides.com

LG-DM515
25
2 Basic Functions
Turning tthe PPhone OOnaand OOff
Turning the Phone On
1. Install a charged battery pack or connect the phone
to an external power source such as a cigarette
lighter adapter or car kit.
2. Press for a few seconds until the red light in
the middle of the phone flashes.
NOTE : Like any other radio device, avoid any
unnecessary contact with the antenna while your
phone is on.
Turning the Phone Off
1. Press and hold until the display turns off.
Making aaCCall
When you make a call, follow these simple steps:
1. Make sure the phone is turned on.
If not, press .
2. Enter the phone number with area code, if needed.
If the phone is locked, enter the lock code.
3. Press .
4. Press to disconnect a call.
SEND
B
ASIC
F
UNCTIONS
24
LG-DM515
Talking on your phone for a long period of time may reduce
the call quality due to heat generated during use.
If you plan to not use the phone for a long period time, store
it in a safe area with the power cord unplugged.
Only use the batteries, antennas, and chargers provided
by LG. The warranty will not be applied to products
provided by other suppliers.
Using the phone in proximity to receiving equipment (i.e.,
TV or radio) may cause interference in this phone.
Only authorized personnel should service the phone and
its accessories. Faulty installation or service may result
in accidents and consequently invalidate the warranty.
Use only the antenna provided or approved by LG.
Unauthorized antennas, modifications or attachments
may affect the quality of phone call, damage the phone
or result in a violation of FCC regulations.
Do not use the cellular phone if the antenna is damaged.
If the damaged antenna gets in contact with the skin, it
may cause a slight burn. Please contact LG Authorized
Service Center to replace the damaged antenna.
Do not use the cellular phone in areas where its use is
prohibited. (For example: aircrafts).
Do not expose the cellular phone to high temperatures or
high humidity.
Do not immerse your cellular phone in water. If this
happens, turn it off immediately and remove the battery.
If the phone does not work, take it to an LG Authorized
Service Center.
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 24
All manuals and user guides at all-guides.com

LG-DM515
27
LG-DM515
26
Using QQuick MMode
Manner Mode (Quick)
Use the Manner Mode in public places.
1. Hold down the for 3 seconds and Manner Mode
will disappear.
 When Manner Mode is set, Manner Mode( ) icon
is displayed on the LCD screen.
 When Manner Mode is set, the key tone does not
sound.
NOTE: To release the Manner Mode, press
again for a little longer.
Lock Mode (Quick)
Used to prevent others from using your phone.
1. In the standby mode, set the lock function by
pressing the (for 3 seconds).
 In case Lock Mode is set, “Phone is lock now!” icon is
displayed on the LCD screen.
NOTE: To release the Lock Function.
Press Soft Key 2 Unlock , then enter lock code (4
digits).
SPACE
SHIFT
SHIFT
B
ASIC
F
UNCTIONS
Correcting DDialing MMistakes
If you make a mistake while dialing a number, press
once to erase the last digit entered or hold down
for at least two seconds to delete all digits.
Receiving CCalls
1. When the phone rings, open the folder or in case the
folder is open, press any Key (except ) to
answer.
2. Press to disconnect the call.
In call waiting mode, the active call is on hold as you
answer another incoming call.
The service is provided by your service provider.
When the call waiting function is activated, your
phone will beep to let you know when you have an
incoming call. Your phone may also display the
incoming caller’s identification.
SEND
SEND
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 26
All manuals and user guides at all-guides.com

LG-DM515
29
LG-DM515
28
Adjusting tthe VVolume
The volume key on the top of leftside of the phone can
be used to adjust earpiece, ringer, key beep volumes
and message volume (SMS message volume). The
upper key is used to increase and the lower key is used
to decrease the volume.
You may adjust the earpiece volume while you are in
a call.
The ringer volume can also be adjusted through
Menu feature.
If you adjust the ringer volume to minimum, the LCD
screen displays only icon “ ” and you will not hear the
ringer sound.
The key beep volume is adjusted through Menu feature.
Power SSave Mo de
When the phone is in an area without service for 15
minutes, it stops searching for service and enters into
the Power Save Mode. When your phone activates this
feature, “Power Saving” is displayed on the display
screen. The phone automatically checks for service
periodically or you can check manually by pressing any
key.
B
ASIC
F
UNCTIONS
Call WWaiting
If your cellular service offers call waiting, while a call is in
progress you may hear two beeps indicating another
incoming call. When call waiting is enabled, you may put
the active call on hold while you answer the other
incoming call. Check with your cellular service provider for
information about this function.
1. Press to receive a waiting call.
2. Press again to switch between calls.
Mute
T his function prevents your voice from being transmitted,
but you can still hear what the other party is talking.
1. While in a call, press Soft Key 1 Menu and select
“Mute Mode” by pressing Up/Down Navigator Key
and Soft Key 2 Select.
2. To release Mute, select “Mute” again.
SEND
SEND
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 28
All manuals and user guides at all-guides.com
all-guides.com

LG-DM515
31
LG-DM515
30
Speed DDialing
Speed dialing is a convenient feature, allowing you to
make phone calls quickly and easily. Your phone recalls
the phone number from your personal directory,
displays it briefly, and then dials it.
1. Enter memory location number (001 to 200).
2. Press . The phone will recall the telephone
number from memory, display it, and then dial it
.
Caller IID
Caller ID lets you know who is calling by displaying the
number of the person calling when your phone rings. If
the caller’s name and number are already stored in your
phone book, the corresponding name appears with the
number.
Check with your service provider to ensure they offer
this feature.
SEND
B
ASIC
F
UNCTIONS
Signal SStrength
Call quality depends on the signal strength in your area.
The signal strength is indicated on the screen as the
number of bars next to the signal strength icon: The
more bars, the better the signal strength. If the signal
quality is poor, move to an open area. If you are in a
building, the reception may be better near a window. For
maximum reception make sure that the antenna is fully
extended.
Emergency DDialing
As long as your phone is registered on the system, you
can place calls to emergency number 911 - even if your
phone is locked or restricted.
1. Press , then .
0r
1. Press and hold for more than two seconds.
NOTE: When Lock or Restrict is applied, press Soft
Key 1 Urgent and search through the phone numbers
with and select the one. Then press Soft Key 2
Select.
SEND
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 30
All manuals and user guides at all-guides.com

LG-DM515
33
5. Move the cursor using .
6. The phone will prompt you for the memory location
where the number will be saved. Press Soft Key 1
Auto Loc to automatically store the number in the
next available memory location. You also have the
option to enter a specific three-digit memory location
number(upto 200 entries).
7. Move the cursor using .
8. The phone will ask whether you want to keep this
number secret or not. Setting memory location to
“Secret” hides the phone number. Select “ ” or “
” using the Left/Right Navigator Key.
9. Move the cursor using .
10. Select the type using Left/Right Navigator Key. You
can select one out of Home No./Office No./Mobile
No./Pager No. E-mail address/Memo/Melody/VR
using .
11. Move the cursor using .
12. Select your group using Left/Right Navigator Key. You
can select one out of Family, Friend, Colleague,
Schoolmate and Senior as the Group Name using
. In addition, you can edit the Group Name by
pressing Soft Key 1 Edit Gr.
13. Press Soft Key 2 Save to save the phone number.
LG-DM515
32
Phone BBook Features
Two Types of Phone Books
You can store up to 200 entries in the Phone Book
giving you easy access to your most frequently dialed
phone numbers. There are two types of phone books:
Personal Phone Book Memory and Recent Call History
List.
Personal Phone Book Memory
The phone has 200 personal phone book memory
locations where you can store up to 4 numbers with 32
digit capacity on each phone number.
Saving Numbers in Your Personal Phone Book
Memory locations 1 through 9 should be used for one-
touch dialing for your most frequently used phone
numbers.
1. Input the phone number that you want to save (up to
32 digits).
2. Press Soft Key 1 Save.
3. Select your desired Type of Tel using the Left and
Right Navigator Key, then press Soft Key 2 OK. (Type
: Home No., Office No., Mobile No., Pager No.)
4. Enter a name (up to 14 characters) and then press
Down Navigator Key. If you do not want to enter a
name.
B
ASIC
F
UNCTIONS
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 32
All manuals and user guides at all-guides.com

LG-DM515
35
LG-DM515
34
1. One-Touch Dialing (Speed Dialing): One-touch
dialing is a convenient feature which enables you to
dial frequently used numbers in your personal phone
book by pressing a key (for memory location 1
through 9).
1) For location 1 to 9, you can use one-touch dialing by
pressing and holding down the key corresponding
to the memory location.
0r
2) Press digit, then press .
2. Two-Touch Dialing (Speed Dialing): This dialing
feature enables you to dial numbers in your phone
book through two keys (for locations 10 to 99).
1) Press the first and hold the key of the second digit.
0r
2) Press the first digit and second digit, then press
.
3. Three-Touch Dialing (Speed Dialing): This dialing
feature enables you to dial numbers in your phone
book through three keys(for location 100 to 200).
1) Press the first and second digit.
2) Press and hold the key of the third digit.
SEND
SEND
Entering iinformation uusing tthe KKey
pad
Entering mode allows you to enter characters using the
multi-tap method. The multi-tap method is designed
around the keypad and it has several letters associated
with each key.
When you enter the correct number in position on the
screen, wait for two seconds for the cursor to
automatically advance to the next space or manually you
can move to the left or right by pressing.
For example, to type “LG”, you would use the following
multi-tap sequence on the keypad.
Press Soft Key 1 t9 -> SPELL.
Press three times to enter the letter L
Press .
Press one time to enter the letter G
Entering special characters
Entering special characters special character mode
using the Soft Key 1 and then use the Up/Down
Navigator Key to select the character. Once you have
the desired special character, you can wait momentarily
to enter the next character or change mode.
Making a call from Phone Book
You can place a call from any memory location either by
speed dialing or by pressing while looking up the memory
location .
SEND
SHIFT
B
ASIC
F
UNCTIONS
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 34
All manuals and user guides at all-guides.com

LG-DM515
37
LG-DM515
36
4) Enter additional number(s) (e.g. pin number or credit
card number).
5) Press Soft Key 1 Save and select your phone type
using Left/Ringer Navigator Key.
6) Press Soft Key 2 OK.
7) Enter name, then Press Soft Key 2 Save.
Advanced PPhone BBook FFeatures
1. You can edit existing phone numbers and add the
appropriate prefix. If you dial the numbers that you
want to add to the front.
The numbers you press are added to the beginning of
the phone number.
In addition, there are two different pauses that you can
use when storing a number.
 Hard Pause [P]
: Pause the phone to stop dialing until you press Soft
Key 1 Save to advance to the next number.
 Time Pause [T]
: Pause the phone to wait two seconds before sending
the next string of digits.
 Hyphen [-]
: On this feature, the phone will not pause between the
numbers.
2. Storing a Number with Pauses.
1) Enter the phone number.
2) Press Up Navigator Key.
3) Select one out of the following:
 Press 1 [HardPause(P)]
 Press 2 [TimePause(T)]
 Press 3 [Hyphen(-)], On hyphen, the phone will not
pause a number.
B
ASIC
F
UNCTIONS
DM515(Vieteman).qxd 5/7/03 3:11 PM Page 36
All manuals and user guides at all-guides.com
