LG G7100 User manual

P/N : MMBB0098410
ISSUE 1.0
PRINTED IN KOREA
USER’S MANUAL
MODEL: G7100
G•P•R•S•P•H•O•N•E
GPRS Phone
USER’S MANUAL
MODEL: G7100
Please rea this manual carefully
before operating your mobile phone.
Retain it for future reference.

ENGLISH
GPRS Phone
USER’S MANUAL
MODEL: G7100
Please read this manual carefully
before operating your mobile phone.
Retain it for future reference.

3
For Your Safet
All radio transmitters carry risks of interference with electronics in
close proximity.
Mobile Phones must be switched off at all times in an
aircraft.
Do not use your phone near petrol stations, fuel depots,
chemical plants or blasting operations.
witch off the phone in any area where required by
special regulations. For example, do not use your phone
in hospitals or it may affect sensitive medical equipment.
Minor interference may affect TVs, radios, PCs, etc.
Do not hold the phone in your hand while driving.
Do not dismantle the phone or battery.
Keep the phone in a safe place out of children’s reach.
It includes small parts which if detached may cause a
choking hazard.
Do not touch the charger or phone with wet hands.

For Your Safet
4
Please note:
Batteries should be disposed of in accordance with
relevant legislation.
Only use ORIGINAL accessories to avoid damage to
your phone.
Emergency call may not be available under all cellular
networks. Therefore, you should never depend solely on
the phone for emergency calls.

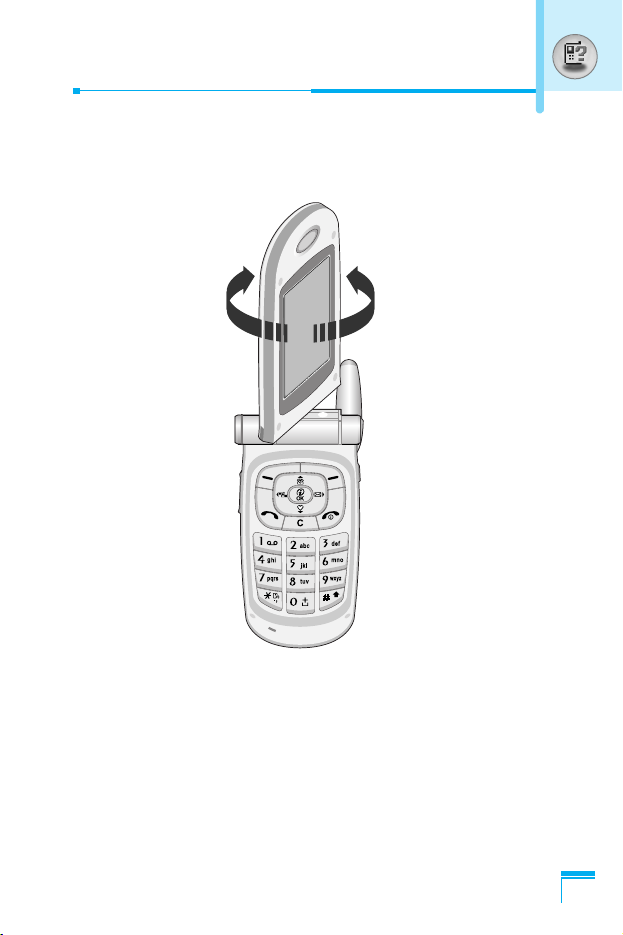

LCD indicator can be damaged if you turn a flip
excessively. For details, please see P.12.
Important Information
This user’s guide contains important information on the use and
operation of this phone. Please read all the information carefully
for optimal performance and to prevent any damage to or misuse
of the phone. Any changes or modifications not expressly
approved in this user’s guide could void your warranty for this
equipment.
For your safety, use ONLY specified ORIGINAL
batteries and chargers.

SAFETY
It should be noted that compliance with the radiation safety standard
does not of itself confer immunity from legal obligations and
requirements imposed by national health or safety authorities.
IDA may at its discretion, withdraw the type approval, which it
grants, if IDA is satisfied, that the continued uses of the equipment
will likely cause safety or health hazards to users.
IDA requires that the safety provisions contained in Appendix 1 is
prominently reflected in the user instructions supplied with G M
mobile equipment.
AMENDMENT AND DECISION
IDA may change the specification without prior notice in order to
keep pace with the continuous improvement in standard
development.
In cases of doubt with regard to the interpretation of type approval
specification, the method of carrying out the tests and the validity of
the statements made by the manufacturers of the equipment, the
decision of IDA shall be final.
SUMMARY OF USER AND THIRD PARTY SAFETY
REQUIREMENTS
G M MoU doc. :
TP.03 provides advisory and cautionary instructions to users of
G M mobile equipment regarding their own and third party safety.
IDA requires the following instructions or its equivalent to be
included in all user handbooks for G M mobile equipment.
5

Electrical Safet
Where provision is made for the connection of any class of mobile
equipment to power supply units or battery chargers using voltages
in excess of 50Vac or 75Vdc, user handbooks for mobile equipment
shall specify the power supply unit(s) or battery charger(s) approved
for use with the mobile station and shall include the following
statement :
“This apparatus is intended for use when supplied with power from
(identification of battery charger(s) and/ or power supply unit(s).
Other usage will invalidate any approval given to this apparatus and
may be dangerous”.
Aircraft Safet
User handbooks for transportable and handportable equipment shall
include the following :
witch off your cellular telephone when in an aircraft.
The use of cellular telephones in an aircraft may be dangerous to
the operation of the aircraft, disrupt the cellular network and is
illegal.
Failure to observe this instruction may lead to suspension or denial
of cellular telephone services to the offender, or legal action or both.
6
For Your Safet

Explosive Atmospheres
User handbooks for all classes of mobile equipment shall include
the following:
• Users are advised not to use the equipment when at a refuelling
point.
• Users are reminded of the need to observe restrictions on the
use of radio equipment in fuel depots, chemical plants or where
blasting operations are in progress.
Road Safet
Mobile equipment may not use an ‘Alert’ device to cause a vehicle
horn to sound or lights to flash on receipt of a call on public roads.
• No installation instructions may show how to make such a
connection and the use of terms such as ‘horn relay’ are not
accepted. Reference may be made to a port enabling other
apparatus to be controlled.
• User handbooks offering an ‘Alert’ facility are required to contain
the following text :
“The use of the Alert device to operate a vehicle’s lights or horn
on public roads is not permitted”.
It is advised that hand-held microphone or telephone handset
should not be used by the driver while the vehicle is moving, except
in an emergency.
peak only into a fixed, neck slung or clippedon microphone when it
would not distract your attention from the road.
7

Non-Ionising Radiation
User handbooks for mobile equipment shall draw attention to the
following, in the case of Class 1 transmitted output power (1W) for
G M 1800 or Class 2 transmitted output power (8W) for G M 900
equipment:
As with other mobile radio transmitting equipment, users are
advised that for satisfactory operation of the equipment and for the
safety of personnel, it is recommended that no part of the human
body be allowed to come too close to the antenna during operation
of the equipment.
Installation instructions for vehicle mounted equipment shall include,
for Class 1 transmitted output power (1W) for G M 1800 and Class
2 transmitted output power (8W) for G M 900 equipment:
• The radio equipment shall be connected to the antenna via a
non-radiating cable (e.g. coaxial cables).
• The antenna shall be mounted in a position such that no part of
the human body will normally rest too close to any part of the
antenna unless there is an intervening metallic screen, for
example, the metallic roof.
8
For Your Safet

Radio wave exposure and Specific Absorption
Rate (SAR) information
This mobile phone model has been designed to comply with
applicable safety requirement for exposure to radio waves. These
requirements are based on scientific guidelines that include safety
margins designed to assure this safety of all persons, regardless of
age and health.
• The radio wave exposure guidelines employ a unit of
measurement known as the pecific Absorption Rate, or AR.
Tests for AR are conducted using standardized methods with
the phone transmitting at its highest certified power level in all
used frequency bands.
• While there may be differences between the AR levels of
various phone models, they are all designed to meet the relevant
guidelines for exposure to radio waves.
• AR data information for residents in countries/regions that have
adopted the AR limit recommended by the international
Commission on Non-Ionizing Radiation Protection (ICNIRP),
which is 2W/kg averaged over ten (10) gram of tissue (for
example European Union, Japan, Brazil and New Zealand):
• The highest AR value for this model phone for use at the ear is
0.3230 W/kg (10g).
• AR data information for residents in countries/regions that have
adopted the AR limit recommended by the Institute of Electrical
and Electronics Engineers (IEEE), which is 1.6 W/kg averaged
over one (1) gram of tissue (for example U A, Canada, Australia
and Taiwan).
9

10
Overview
Part of the Phone .................................................................... 14
• Main body of the Phone ........................................................ 14
• Outside of the Phone ............................................................ 16
Ke Description ....................................................................... 17
• ide of the Key ..................................................................... 18
• Letter Keys ............................................................................ 19
Displa Information
Displa Information ................................................................ 20
• On- creen Icons ................................................................... 20
Getting Started
Installation ............................................................................... 21
• Inserting the IM Card .......................................................... 21
• Removing the IM Card ........................................................ 21
• Installing the Battery ............................................................. 22
• Charging the Battery ............................................................. 22
• Disconnecting the charger .................................................... 23
Making and Answering Calls ................................................. 24
• Making a call ......................................................................... 24
• International Calls ................................................................. 24
• Making a call using the Phonebook ...................................... 24
Additional Functions
In call Menu ............................................................................. 25
• 1 During a call ...................................................................... 25
• 2 Multiparty or Conference Calls .......................................... 27
Contents

11
Access Codes ......................................................................... 30
• PIN code (4 to 8 digits) ......................................................... 30
• PIN2 code (4 to 8 digits) ....................................................... 30
• PUK code (4 to 8 digits) ........................................................ 30
• PUK2 code (4 to 8 digits) ...................................................... 30
• ecurity code (4 to 8 digits) .................................................. 30
Accessing the Menu
Menu Tree ................................................................................ 31
Messages [Menu 1] ................................................................. 33
• Write short message [Menu 1-1] ........................................... 33
• Write multimedia message [Menu 1-2] ................................. 36
• Inbox [Menu 1-3] ................................................................... 40
• Outbox [Menu 1-4] ................................................................ 41
• Voice mail [Menu 1-5] ........................................................... 43
• Info service [Menu 1-6] ......................................................... 43
• Templates [Menu 1-7] ........................................................... 45
• ettings [Menu 1-8] ............................................................... 46
Call register [Menu 2] ............................................................. 48
• Missed calls [Menu 2-1] ........................................................ 48
• Received calls [Menu 2-2] ..................................................... 48
• Dialled calls [Menu 2-3] ......................................................... 48
• Delete recent calls [Menu 2-4] ...............................................48
• Call charges [Menu 2-5] ........................................................ 48
• GPR information [Menu 2-6] ............................................... 51

Contents
12
Profiles [Menu 3] ..................................................................... 52
• Vibrate only [Menu 3-1] ......................................................... 52
• Quiet [Menu 3-2] ................................................................... 52
• General [Menu 3-3] ............................................................... 52
• Loud [Menu 3-4] .................................................................... 52
• Headset [Menu 3-5] .............................................................. 52
• Car [Menu 3-6] ...................................................................... 52
Camera [Menu 4] ..................................................................... 55
• Take picture [Menu 4-1] ........................................................ 55
• Take in modes [Menu 4-2] .................................................... 56
• Take continuously [Menu 4-3] ............................................... 56
• My album [Menu 4-4] ............................................................ 57
• ettings [Menu 4-5] ............................................................... 57
Settings [Menu 5] .................................................................... 58
• Alarm clock [Menu 5-1]] ........................................................ 58
• Date & Time [Menu 5-2] ........................................................ 58
• Phone settings [Menu 5-3] .................................................... 59
• Call settings [Menu 5-4] ........................................................ 60
• ecurity settings [Menu 5-5] ................................................. 65
• Network settings [Menu 5-6] ................................................. 67
• Reset settings [Menu 5-7] ..................................................... 68
Organiser [Menu 6] ................................................................. 69
• cheduler [Menu 6-1] ............................................................ 69
• Phonebook [Menu 6-2] ......................................................... 71
Fun & Tools [Menu 7] ............................................................. 78
• Games [Menu 7-1] ................................................................ 78
• Calculator [Menu 7-2] ............................................................ 78
• My folder [Menu 7-3] ............................................................. 79

13
• Melody composer [Menu 7-4] ............................................... 80
• Unit converter [Menu 7-5] ..................................................... 80
• World time [Menu 7-6] ........................................................... 80
• Voice recorder [Menu 7-7] .................................................... 81
• Activate IrDA [Menu 7-8] ....................................................... 81
Internet [Menu 8] ..................................................................... 82
• Home [Menu 8-1] .................................................................. 82
• Bookmarks [Menu 8-2] .......................................................... 82
• Push messages [Menu 8-3] .................................................. 82
• Profiles [Menu 8-4] ................................................................ 83
• Go to URL [Menu 8-5] ........................................................... 86
• Cache settings [Menu 8-6] .................................................... 86
• ecurity certification [Menu 8-7] ............................................ 86
• Reset profiles [Menu 8-8] ...................................................... 86
• Browser version [Menu 8-9] .................................................. 86
On browsing menu ................................................................. 87
Java [Menu 9] .......................................................................... 88
• Applications [Menu 9-1] ........................................................ 88
• Download [Menu 9-2] ............................................................ 88
• Memory status [Menu 9-3] .................................................... 88
Favorites [Menu 10] ................................................................ 89
Accessories ............................................................................. 90
Care and Maintenance ............................................................ 92
Technical Data ......................................................................... 94

Main bod of the Phone
Earpiece
Displa Screen
Soft Left Ke
Confirm Ke
Send Ke
Vibration Ke
Star Ke
Microphone
Soft Right Ke
End/Power Ke
Clear/Cancel Ke
Numeric Ke s
Hash Ke
Message ke
Navigation Ke s
Overview
14
Part of the Phone

Overview
15
You can rotate LCD clockwise an angle of 90 degrees and counter-
clockwise an angle of 180 degrees. However, if you turn it by force,
it can cause serious damage.

Overview
16
Part of the Phone
Outside of the Phone
Batter
SIM Card Socket
Batter Terminals
Batter Lock
Handstrap Hole
Cable Connector/
Batter Charging Connector/
Hands-Free Car kit Connector

Overview
17
Ke Description
The following shows key components of the phone.
Ke pad Description
Ke Description
Soft Left Ke / Soft Right Ke
< > Each of these keys performs the function indicated
by the text on the display immediately above it.
Vibration ke
You can activate the vibration directly by holding down
this key.
Message ke
You can go to Message menu (Inbox, Memory status,
cheduler or Alarm) directly.
Navigation Ke s
Used to scroll through name, phone numbers, menus
or setting options. When you press down key, you can
view Favorites menu list.
WAP Hot ke (=Confirm ke )
If you press this key for a while, you can connect to
WAP directly.
Send Ke
S
Y ou can dial a phone number and answer a call. If
you press this key without entering a number, your
phone shows the most recently dialled, received and
missed numbers.
Numeric Ke s
0These keys are used mainly to dial in standby mode
and enter numbers or characters in editing mode.
When you press these keys for a long time.
9• Used to call your voicemail box by 1.
• Used to call for international call by 0.
• Used to call peed dials by from 2to 9.
END/PWR Ke
EUsed to end or reject a call. This key is also used as
Power Key by pressing this key for a few seconds.

Overview
18
Ke Description
Ke Description
Up/Down Side Ke
On closing a flip, when you press this key sequently,
time, date, my display, and greeting note is
displayed respectively. If you press this key once,
time is displayed. It will show up depending on
setting “ how time”.
Camera ke
This key is used to take a picture and save it.
Ke Description
C
You can delete the characters, go back the menu.
In addition, you can view voice memo list when you
press this key shortly in a standby mode. If you
press a key for a long time, you can record the
voice.
*If you press this key for a long time, you can activate
voice recognition.
Side of the Ke

Overview
19
Letter Ke s
Each key can be used for several symbols. There are shown below.
Ke Description
1. , / ? ! - : ' " 1
2A B C 2 Ä À Á Â Ã Å Æ Ç a b c ä à á â ã å ç
3D E F 3 Ë È É Ê d e f ë è é ê
4G H I 4 Ï Ì Í Î ˝g h i ï ì í î ©
5J K L 5 j k l
6M N O 6 Ñ Ö Ø Ò Ó Ô Õ Œ m n o ñ ö ø ò ó ô õ œ
7P Q R S 7 ß ™p q r s ß ∫
8T U V 8 Ü Ù Ú Û t u v ü ù ú û
9W X Y Z 9 w x z
0[space] 0
