LG GB160 User manual

1
GB160
Service Manual
LG Electronics

2
Table Of Contents
1. INTRODUCTION…………………...3
1.1 Purpose…………………………………3
1.2 Regulatory Information………………..3
2. PERFORMANCE…………………..5
2.1 H/W Features…………………………..5
2.2 S/W Features…………………………..6
3. TECHNICAL BRIEF………………19
3.1 Digital Main Processor( MT6223 )……….19
3.2 Power Amplifier Module( SKY77518 )…....27
3.3 Transceiver Module( AD6548 )…………..28
3.4 Memory Module ( TV00570002CDGB) ……..31
3.5 FM Radio Module (Si4708)………….34
3.6 Antenna Switch Module ( B9308 )……...36
3.7 LCD Interface………………………....37
3.8 SIM Card Interface…..……………….39
3.9 KEYPAD Interface……………….…...40
3.10 Battery Charging Block Interface….41
3.11 Audio Interface……………….….…..42
3.12 Vibrator Interface….………………...43
3.13. Key LED Interface………………….44
4. TROUBLE SHOOTING………….45
4.1 Power On Trouble……………………45
4.2 SIM Card Trouble…………………….48
4.3 Vibrator Trouble………………………50
4.4 Keypad Trouble………………………52
4.5 RTC Trouble………………………….54
4.6 Key Backlight Trouble……………….56
4.7 LCM Backlight Trouble……………...58
4.8 LCM Trouble……………….………...60
4.9 Microphone Trouble…………………62
4.10 Receiver Trouble…………………...64
4.11 Speaker Trouble……………….67
4.12 Headphone Trouble…………...70
4.13 Charging Trouble……………...73
4.14 FM Radio Trouble……………..75
4.15 RF Trouble……………………..77
5. DOWNLOAD………………....89
5.1 Download setup…………………89
5.2 Download Process……………...90
6. BLOCK DIAGRAM…………...98
7. CIRCUIT DIAGRMA………….99
8. BGA IC PIN Check…………104
9. PCB LAYOUT………………..106
10.ENGINEERING MODE…….107
11. CALIBRATION……………..111
11.1 Test Equipment Setup……….111
11.2 Calibration Steps……………..112
12. STAND ALONE TEST…….151
12.1 Test Configuration……………151
12.2 META tool Install process…...152
12.3 Rx Test………………………...156
12.4 Tx Test…………………………158
13. EXPLODED VIEW&
REPLACEMENT PART LIST....160
13.1 Exploded View………………..160
13.2 Replacement Part…………….162

3
1. INTRODUCTION
1.1Purpose
This manual provides information necessary to repair, description and download the features
of this model.
1.2 Regulatory Information
A. Security
Toll fraud, the unauthorized use of telecommunications system by an unauthorized part(for
example ,persons other than your company’s employees, agents, subcontractors, or person
working on your company’s behalf) can result in substantial additional charges for your
telecommunications services.
System users are responsible for the security of own system. There are may be risks of toll
fraud associated with your telecommunications system. System users are responsible for
programming and configuring the equipment to prevent unauthorized use .The manufacturer
dose not warrant that this product is immune from the above case but will prevent unauthorized
use of common-carrier telecommunications service of facilities accessed through or connected
to it.
The manufacturer will not be responsible for any charges that result from such unauthorized
use.
B. Incidence of Harm
If a telephone company determines that the equipment provided to customer is faulty and
possibly causing harm or interruption in service to the telephone network, it should disconnect
telephone service until repair can be done. A telephone company may temporarily disconnect
service as long as repair is not done.
C. Changes in Service
A local telephone company may make changes in its communications facilities or procedure. If
these changes could reasonably be expected to affect the use of the this phone or compatibility
with the network, the telephone company is required to give advanced written notice to the user,
allowing the user to take appropriate steps to maintain telephone service.
D. Maintenance Limitations
Maintenance limitations on this model must be performed only by the manufacturer or its
authorized agent . The user may not make any changes and/or repairs expect as specifically
noted in this manual.
Therefore, note that authorized alternations or repair may affect the regulatory status of the
system and may void any remaining warranty.

4
E. Notice of Radiated Emissions
This model complies with rules regarding radiation and radio frequency emission as defined
by local regulatory agencies. In accordance with these agencies, you may be required to provide
information such as the following to the end user.
F. Pictures
The pictures in this manual are for illustrative purposes only; your actual hardware may look
slightly different.
G. Interference and Attenuation
Phone may interfere with sensitive laboratory equipment, medical equipment, etc.
Interference from unsuppressed engines or electric motors may cause problems.
H. Electrostatic Sensitive Devices
ATTENTION
Boards, which contain Electrostatic Sensitive Devices(ESD),are indicated by the
sign .
Following information is ESD handing:
. Service personnel should ground themselves by using a wrist strap when exchange system
boards.
.When repairs are made to a system board , they should spread the floor with anti-static mat
which is
also grounded .
.Use a suitable, grounded soldering iron .
. Keep sensitive parts in these protective packages until these are used.
.When returning system boards or parts like EEPROM to the factory, use the protective
packages as
described.

5
2. PERFORMANCE
2.1 H/W Features
Solution MT6223D Media Tek
Form Factor Bar type
Dimension (mm) 103x46x12.5 mm
RF Band Dual Band 900/1800 or Dual Band
850/1900 Internal Antenna
Data GPRS Class 10
Main Display 1.5” TFT 262K color, 128x128 Pixels
Serial Interface
Battery 950 mA h Same as
LG6/7/Sapphire-F
Audio player Yes MP3/64
polyphonic Midi
FM Receiver Yes , US/Europe band Option
(87.5~108MHz)
Loud Speaker Yes
Memory Size 128Mb NOR Flash +32Mb PSRAM
User Memory Yes 2M Bytes
Scheduled FM recording Yes
FM as alarm Yes
WAP Yes V2.0
MMS Yes
OTA Yes
In flight mode
Yes

6
2.2 S/W Features
2.2.1 General Features
Function Target Specification Parameter Support
RSSI (6 Level, 0~5) Y
Battery Indicator (4 Level, 0~3) Y
Icons Indicator Y
Basic Display
Others reference to "Phone
Personalization Setting"
Y
Speech Codec FR/EFR/HR/AMR-NB Y
Number of Keys: 21Key (include 12
alphanumeric/number keys
(0-9,#,*), 4 function keys, 4 way
navigation keys)
Y
Clear key N
Keypad
International Access (+)(long 0) Y
User Selectable and Customizable
Profiles (3profiles: General, Meeting,
Outdoor, Vibrate only, Headset, Silent)
Y
Auto-
detect and activated profiles (1
profile: Headset)
N
Key Tone
Key Tone Volume (6 Level - 0 ~ 5
, 0 for
Mute)
Y
Key tone setting (4 sets: Silent,
DTMF,
Piano, English human voice,
Spanish human voice(Tigo), Russian
human voice(CIS))
Y
Ring Tone
Ring Tone Volume (6 Level - 0 ~ 5, 0
for Mute)
Y
Built-in Ring Tone Pattern: 10 Y
Customizable Ring Tone Link: 5 Y
Intelligent Call Alert
Digits To Sound Synthesizing Y
Alert Type
User Profile
(Audio Settings)
Follow common UI
5Types - Ring, Vibration Only,
Vibration and Ring, Ring after vibration,
Silent, Light Only, Beep Once
Y

7
Function Target Specification Parameter Support
Power On Tone
Built-in Ring Tone Pattern: 2 (include
Silent)
Y
Power Off Tone
Built-in Ring Tone Pattern: 2 (include
Silent)
Y
Message Tone
Built-in Ring Tone Pattern: 6 (include
Silent)
Y
Warning Tone
Built-in Ring Tone Pattern:
1 (Only On/Off operation)
Y
Error Tone
Built-in Ring Tone Pattern:
1 (Only On/Off operation)
Y
Camp On Tone
Built-in Ring Tone Pattern:
1 (Only On/Off operation)
Y
Connect Tone
Built-in Ring Tone Pattern:
1 (Only On/Off operation)
Y
Status LED N
Charger-in Status LED N
Answer Mode Y
Any Key Answer Y
Auto (Only available for headset mode
while headset plugged in)
Y
Calendar - Month view only Y
Scheduler -
6 fields (Date, Start time,
End time, Note, Alarm, Repeat,
expiration date)
Y
Personal
Information
Management
To do list - 4 fields (Due date, note,
Priority, Status)
Y
AlarmTools and Utilities
Follow common UI
5sets of Alarm Y

8
Function Target Specification Parameter Support
7major fields for each set:
On/Off, Time, Repeat type, Audio
option,
Tone, Snooze, Alert type
Y
World Clock
Cities list: Tigo(58),CIS(69) cities Y
Daylight saving time support: activated
by user selection(only for world
clock)
Y
Home city set Y
Calculator
Addition, Subtraction, Multiplication,
Division
Y
Unit Converter
Weight, Length Y
Currency Converter
Health N
BMI, Menstrual N
Greeting Text Y
Shortcuts Y
Flight Mode Y
Time and Date Setting Y
Wallpaper Y
Screen Saver N
Power On Animation Y
Power Off Animation Y
LCD Backlight Y
PLMN/Service Indicator (Display of
PLMN Name/Service Provider Name
from SIM)
Y
Date Time Display Y
Own Number Display Y
Phone
Personalization
Setting
Restore Factory Default Setting Y
Security Phone Lock Y
Engine
T9 Y
Input Method
Support Language

9
Function Target Specification Parameter Support
Depends on customer and market
requirement.
Total supported languages will be
limited to memory condition.
Y
Predictive word input Y
2 embedded game YGame
Settings:
BGM, Sound Effect, Vibration
TBD
2.2.2 Networking Features
Function Target Specification Parameter Support
GPRS GPRS Multi slot Class 10 Y
Data Service BS 24 - 26 (2400-9600 bit/s),
asynchronous, non-transparent, UDI.
CSD rate up to 9.6K bit/s
Y
Last Dialed Number : 50 Y
Last Received Number : 50 Y
Last Missed Number : 50 Y
Call History
Scratch Pad Memory(Save an input
number in call) : 1
Y
Last Call Time Y
Total Dialed Call Time Y
Total Received Call Time Y
Last Call Cost Y
Total Cost Y
Max Cost Y
Call Cost
Price Per Unit Y
Last Sent (unit in Byte) Y
Last Received (unit in Byte) Y
All Sent (unit in Byte) Y
GPRS Counter
All Received (unit in Byte) Y
Call Swap Y
Call Retrieve Y
Automatic Redial Y
Call Management
Speed Dialing Y

10
Function Target Specification Parameter Support
Last Number Redial Y
Call Hold Y
Call Waiting Y
Calling Line Identity Presentation Y
Calling Line Identity Restriction Y
Connected Identification Restriction Y
Call Divert All voice Calls Y
Call Divert if unreachable Y
Call Divert if no answer Y
Call Divert if busy Y
Call Divert all data calls Y
Cancel all divert Y
Call Barring All Outgoing Calls Y
Call Barring All Outgoing International
Calls
Call Barring All outgoing International
except home
Y
Call Barring All incoming Calls Y
Call Barring All incoming Calls when
roaming
Y
Multi-party Call (up to 7 calls, 5 in
conference, 1 on held, 1 waiting)
Y
Call
Related Suppleme
ntary Services
Line switching (Line1, Line2)
Call reminder (Off, Single, Periodic)
Closed User Group
Y
Quick Search (Notice: Quick search
function only works in Phonebook,
SMS and MMS. In other application,
this phone supports regular search.)
Y
Alpha Store and Recall Y
Access Phone Book in call Y
Copy & Move Y
Fixed Dial Number Y
Service Dial Number Y
Speed Dial Number Y
Phone Book
SOS Number Y

11
Function Target Specification Parameter Support
Entry : 500 names (10 fields – Name
,
Mobile, Home, Email address, Office
number, Fax number, Associate
Picture, Associate Sound, Caller
group, memo)
Y
Caller Group-7caller group-
Friends,
Family, College, VIP, Group1,
Group2, No Group (4 fields –
Name, Ring, Picture,
Member list)
Y
Own Numbers: User can change the
own numbers of handset. (Sets of
own numbers depends on SIM)
Y
vCard: (Edit, Send and Receive. 7
fields – Name, Mobile, Home,
Company Name, Email Address,
Office Number, Fax Number)
V
ersion 2.1 Y
Note: This phone doesn’t support
phone number search.
Y
SMS Y
Standard SMS Y
SMS Reply Path Y
SMS Delivery Report
Valid period (1 hour/6 hours/12
hours/1 day/3 days/1
week/Maximum)
Message Type (Text, Fax, Page,
Email) Message Indication Type
refer to GSM 03.40
Y
Basic text-only SMS as described in
3GPP TS 23.040 R5
Y
Notice: This phone doesn’t support
video ring tone via SMS
Y
SMS Character Sets Support
GSM7 Y
UCS-2 Y
Message
EMS

12
Function Target Specification Parameter Support
EMS Standard as described in 3GPP
TS 23.040 R5 excluding WVG
Y
EMS Text Format
Text Style : Normal, Bold, Italic,
Underlined, Strikethrough
Y
Text Alignment : Left, Right, Center Y
Text Size : Normal, Large, Small Y
EMS Image Support
1-bit small image 16x16 pixels black
and white
Y
1-bit large image 32x32 pixels black
and white
Y
1-bit variable image in single SMS
packet
Y
Extended black and white 1-
bit image
up to 255x255 pixels
Y
Extended 6-bit image up to 255x255
Y
Pre-defined animation Y
User-defined small animation 8x8
pixel 4-frame black and white
Y
User-defined large animation 16x16
pixel 4-frame black and white
Y
Pre-defined sound Y
User-defined i-Melody up to 128
bytes
Y
LZSS compression algorithm Y
Re-use extended object Y
Object Distribution Y
User Prompt Indicator Y
Hyperlink format element Y
Extended Object Distribution Y
EMS Character Sets Support Y
GSM7 Y
UCS-2 Y
EMS Miscellaneous Y

13
Function Target Specification Parameter Support
SMS Concatenation ( 8 Segments for
MT/MO)
Y
SMS Compression Y
MMS Y
MMS Standard as described in 3GPP
TS 23.140 V4.8.0
Y
Extract media from Message Y
Insert Media into message Y
OTA provisioning partially support
(Network Profile setting
Y
Auto download mode Y
Manual download mode Y
Operator can pre-configure the
delivery mode
Y
MMS notification with icon or Pop-up
message display)
Y
MMS Message Format Y
MMS SMIL (A subset of SMIL
descried in the MMS Conformance
Document 1.2)
Y
MMS Character Sets Support Y
US-ASCII Y
Unicode Y
ISO-8859-1 Y
UTF-16 Y
UTF-8 Y
MMS Images Support Y
WBMP Wireless bitmap Y
GIF87 Y
GIF89a Y
JPEG (sw decode) Y
MMS Sound Formats Support Y
WAV Y
AMR Y
MIDI Y
MP3 Y

14
Function Target Specification Parameter Support
MMS Miscellaneous Y
Multipart binary MIME Y
Storage Y
Separated Inbox folder for SMS and
MMS
Y
Separated Outbox folder for SMS and
MMS
Y
Total 300 SMS in the storage of
phone plus SIM including Inbox,
outbox, sent and draft
Y
Total max 100 (up to 300KB)MMS in
the phone storage including Inbox,
draft and Outbox
Notice: Total MMS count need
depends on user memory space.
Y
Common Operation Y
Write Message Y
Read Message Y
Edit Message
(For MMS, Edit only conformance
messages, unknown media not
supported, unknown SMIL not
supported)
Y
Reply Message Y
Send Message Y
Delete Message Y
Forward Message Y
Use Sender's Number Y
Message Templates Y
Extract media from Message
(MMS/EMS)
Y
Store Media (MMS/EMS) Y
Delete Media (MMS/EMS) Y
Read Cell Broadcast Y
Cell Broadcast
Mode: Receive On/Off
Y
Cell Broadcast
Cell Broadcast Message Language Y

15
Function Target Specification Parameter Support
Channel Setting Y
Automatic Network Selection Y
Manual Network Selection Y
Network Service Status Y
Preferred Network (User definition)
Y
Network
GPRS connection mode selection:
Always, When Needed
Y
Common Operation Y
SIM Application Toolkit (Release 98
Class 2 certified)
Y
Prepaid SIM operation Y
Security Y
PIN Y
SIM
Personalization (Service provider
lock, Network lock)
Y
DTMF Signaling YDTMF
DTMF Enable & Disable Y
2.2.3 Multimedia Features
Function Target Specification Parameter Support
Camera N
Thumbnail supported Y
Browse Style:
List, Matrix
Y
View Y
Forward:
To Wallpaper, Phonebook, Screen Saver,
Power On Display, Power Off Display,
MMS, Bluetooth
Y
Rename Y
Delete Y
Delete All Y
Image Viewer
Sort:
By Name, Type, Date, Time, Size, None,
Y

16
Function Target Specification Parameter Support
Storage Selection:
Get list from Phone, Memory card
(Only available when external memory card
supported)
N
Image Format Support
JPEG Baseline (SW decode) Y
GIF87a Y
GIF89a Y
WBMP Y
BMP Y
Play Y
Pause Y
Resume Y
Stop Y
Next Y
Previous Y
Storage Selection:
Get list from Phone, Memory card
(Only available when external memory card
supported)
N
Auto-Generate Playlist Y
Skin: 2 skins Y
Repeat Mode:
Off, One Song, All Songs
Y
Shuffle Play Y
Background Play Y
Equalizer Setting: 8 sets
Normal, Bass, Dance, Classical, Treble,
Party, Pop, Rock
Y
Volume Control:
20 level (0 ~ 19, 0 for Mute)
Y
Music Player
(follow common UI)
Playlist Edit:
Add, Remove, Remove All
Y
Sound Format Support Y

17
Function Target Specification Parameter Support
MP3 Y
AMR Y
MIDI Y
WAV Y
Video Player N
Video Recorder N
Storage Selection:
Phone, Memory card
(Only available when external memory card
supported)
N
Encode Format:
AMR, WAV
Y
Record Y
Pause Y
Resume Recording Y
Sound Recorder
Stop Y
Edit Y
Play Y
Save Y
Instrument Selection: 10 types
Piano, Guitar, Violin, Saxophone, Steel
Drums, Flute, Harmonica, Trumpet, Music
Box, Xylophone
Y
Play Speed:
Fast, Normal, Slow
Y
Melody Compose
(Not available)
[Notice] Melody composer only support one instrument in
one m
elody file, so the last chosen instrument will be used
to play this melody file
Y
Frequencies: 87.5 ~ 108.0
Skin: 2 skins
Y
User definable Preset Channel List Y
Channel Auto Search Y
Background Play Y
FM Radio
Record Y

18
Function Target Specification Parameter Support
Record Format:
AMR(0.7K/s) Limit:2850sec (Based on
user memory)
Y
Record Storage:
Phone memory, SD card (Option, follow
common UI)
(Only available when external memory card
supported)
Only Memory Card
Only in phone
memory,
not selectable
N
Preset Channel List generated by auto
search
Y
JAVA N
2.2.4 Connectivity Features
Function Target Specification Parameter Support
WAP 2.0 Spec. Y
WAP Push OTA/Message Y
WAP Provisioning Service Y
CSD/GPRS data connection Y
Bookmark Y
Wireless Telephony Application (WTA)
support:
Only Public WTA support, supported
functions listing below -
* Make a telephone call
* Send a string of DTMF tones over
an established voice connection
* Add an entry to the telephone book
of the device
Y
WAP
Supports WML, WCSS, XHTML mp Y
Mass Storage Device NUSB
Virtual COM (PCSync) N

19
3.TECHNICAL BRIEF
3.1 Digital Main Processor

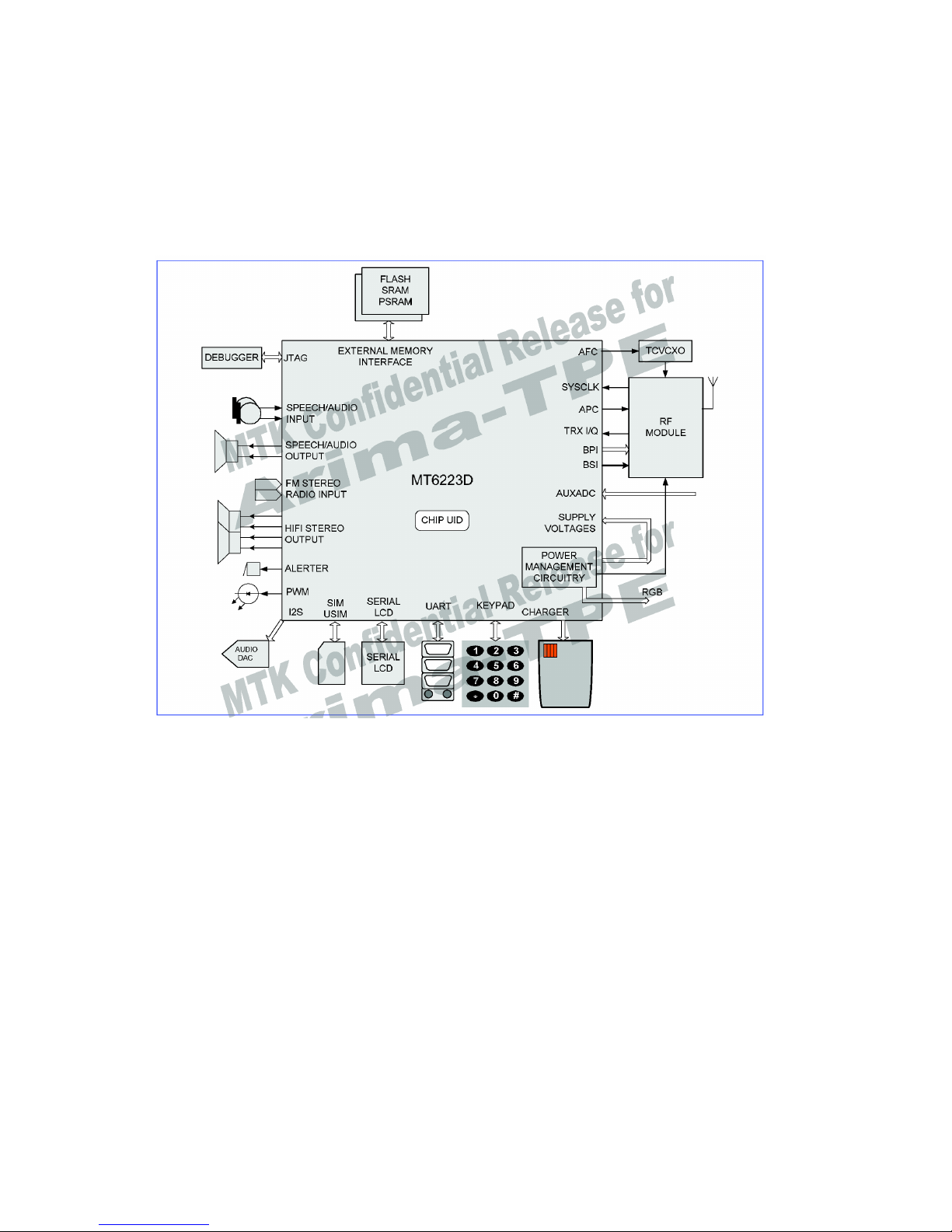

Figure.3-1-1 MT6223 FUNCTIONAL BLOCK DIAGRAM

20
3.1.1 System Overview
MT6223D is an entry level chipset solution with class 12 GPRS/GSM modem. It integrates not
only analog baseband but also power management blocks into one chip and can greatly reduce the
component count and make smaller PCB size. Besides, MT6223D is capable of SAIC (Single
Antenna Interference Cancellation) and AMR speech.
Based on 32 bit ARM7EJ-STM RISC processor, MT6223D provides an unprecedented
platform for high quality Modem performance.
Platform
MT6223D runs the ARM7EJ-STM RISC processor at up to 52Mhz, thus providing best trade-off
between system performance and power consumption.
For large amount of data transfer, high performance DMA (Direct Memory Access) with
hardware flow control is implemented, which greatly enhances the data movement speed while
reducing MCU processing load.
Targeted as a modem-centric platform for mobile applications, MT6223D also provides hardware
security digital rights management for copyright protection. For further safeguarding, and to protect
manufacturer’s development investment, hardware flash content protection is also provided to
prevent unauthorized porting of software load.
Memory
MT6223D supports up to 2 external state-of-the-art devices through its 16-bit host interface.
Devices such as burst/page mode Flash, page mode SRAM, and Pseudo SRAM are supported. To
minimize power consumption and ensure low noise, this interface is designed for flexible I/O
voltage and allows lowering of supply voltage down to 1.8V. The driving strength is configurable for
signal integrity adjustment. The data bus also employs retention technology to prevent the bus
from floating during turn over.
Multi-media
MT6223D utilize high resolution audio DAC, digital audio, and audio synthesis technology to
provide superior audio features., e.g. MP3 ring tone.
Connectivity, and Storage
MT6223D supports UART as well as Bluetooth interface. Also, necessary peripheral blocks are
embedded for a voice centric phone: Keypad Scanner with the capability to detect multiple key
presses, SIM Controller, Alerter, Real Time Clock, PWM, Serial LCD Controller, and General
Purpose Programmable I/Os.
Audio
Using a highly integrated mixed-signal Audio Front-End, architecture of MT6223D allows for
easy audio interfacing with direct connection to the audio transducers. The audio interface
integrates D/A and A/D Converters for Voice band, as well as high resolution Stereo D/A
Converters for Audio band. In addition, MT6223D also provides Stereo Input and
Analog Mux. MT6223D also supports AMR codec to adaptively optimize speech and audio quality.
