OWNER’S MANUAL
MONITOR SIGNAGE
72WX70MF
Please read this manual carefully before operating the your set and
retain it for future reference.
MONITOR SIGNAGE MODELS
ENG
ENGLISH

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.

2
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3LICENSES
4ASSEMBLING AND
PREPARING
4 Accessories
5 Parts and Buttons
6 Portrait Layout
6 Pemnut Not to be Used
7REMOTE CONTROL
9USING THE MONITOR
9 Connecting to a PC
10 - RGB Connection
10 - DVI-D Connection
11 - HDMI Connection
11 - Display Port Connection
12 Adjusting the Screen
12 - Selecting an Image Mode
12 - Customizing Image Options
13 - Customizing PC Display Options
13 Adjusting the Sound
13 - Selecting an Sound Mode
14 - Customizing Sound Options
14 Using Additional Options
14 - Adjusting Aspect Ratio
16 - Using the Input List
17 ENTERTAINMENT
17 - Connecting to a Wired Network
18 - Network Status
19 - Connecting USB Storage Devices
20 - Browsing Files
21 - Viewing Movies
25 - Viewing Photos
28 - Listening to Music
30 - Viewing the Contents List
31 - DivX® VOD Guide
32 - Using PIP/PBP
34 CUSTOMIZING SETTINGS
34 Accessing Main Menus
35 - PICTURE Settings
38 - AUDIO Settings
39 - TIME Settings
40 - OPTION Settings
45 - NETWORK Settings
46 MAKING CONNECTIONS
47 Connecting to a HD receiver, DVD,
Camcorder, Camera, Gaming Device or
VCR player
47 - HDMI Connection
47 - Component Connection
48 - AV (CVBS) Connection
48 Connecting to a USB
49 Connecting to the LAN
49 - LAN Connection
50 Daisy Chain Monitors
51 TROUBLESHOOTING
54 SPECIFICATIONS
57 IR CODES
58 CONTROLLING THE MULTIPLE
PRODUCT
58 Connecting the Cable
58 RS-232C Configurations
58 Communication Parameter
59 Command Reference List
61 Transmission / Receiving Protocol

ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified device must be registered in order to play purchased DivX Video-
on-Demand (VOD) movies. To obtain your registration code, locate the
DivX VOD section in your device setup menu. Go to vod.divx.com for more
information on how to complete your registration.
DivX Certified to play DivX video up to HD 1080p, including premium
content.
DivX , DivX Certified and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
yThe warranty will not cover any damages caused by using the product in an excessively dusty
environment.
NOTE

4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Accessories
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
yDo not use any pirated items to ensure the safety and product life span.
yAny damages or injuries by using pirated items are not covered by the warranty.
CAUTION
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
NOTE
Remote Control and Batteries Power Cord
* The power cord may not be provided
depending on the region you purchased
the product.
CD (Owner's Manual,
SuperSign Elite-w,
SuperSign Elite-c Program/
SuperSign Manual) / Cards
D-sub 15-Pin Signal Cable
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF

. , !

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

1/a/A

- * #
WXYZ
CLEAR
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
OK
S.MENU
ID
BACK TILE
ON OFF
EXIT
IR Expansion PCB

5
ENG
ENGLISH
ASSEMBLING AND PREPARING
yYou can set the Power indicator to on or off by selecting OPTION in the main menu.
Screen Marks Description
IR Receiver This is where the unit receives signals from the remote control.
Power Indicator This Indicator lights up red when the display operates normally(on mode). If the display
In sleep mode (In Power Saving mode), this indicator color changes to amber.
Illuminance sensor Adjusts the screen brightness by measuring the amount of light.
NOTE

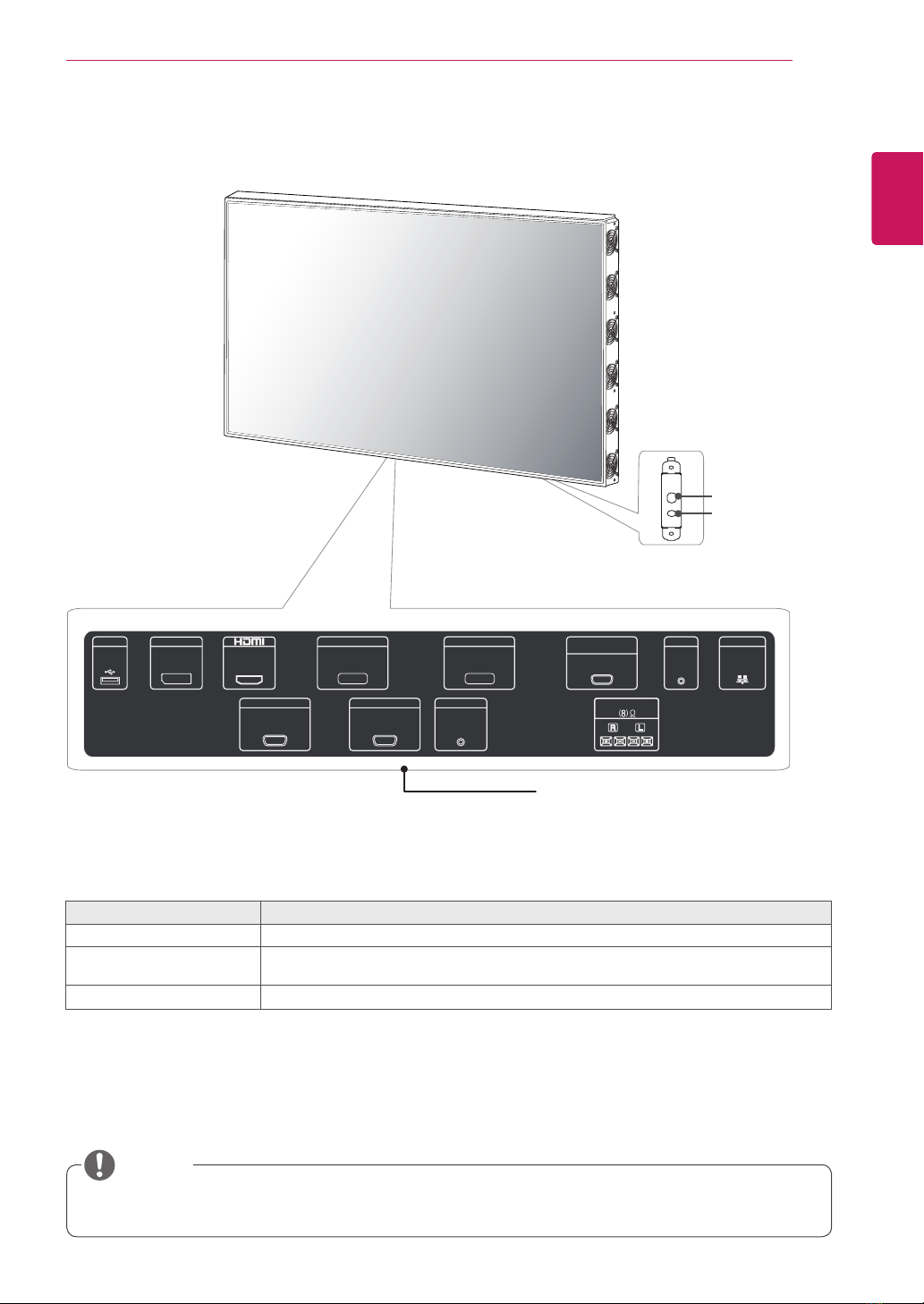

Parts and Buttons
Connection Panel
LAN
AUDIO IN
DVI IN
DVI OUT
SPEAKER
DP IN
USB IN
EXT IR IN
RGB/AV
/COMPONENT IN
RS-232C IN RS-232C OUT
Illuminance sensor/
IR Receiver
Power Indicator
Connection panel

6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Portrait Layout
When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).
Pemnut
Back of the Product
Pemnut Not to be Used
If you use pemnut arbitrarily, the product may be damaged.

7
ENG
ENGLISH
REMOTE CONTROL

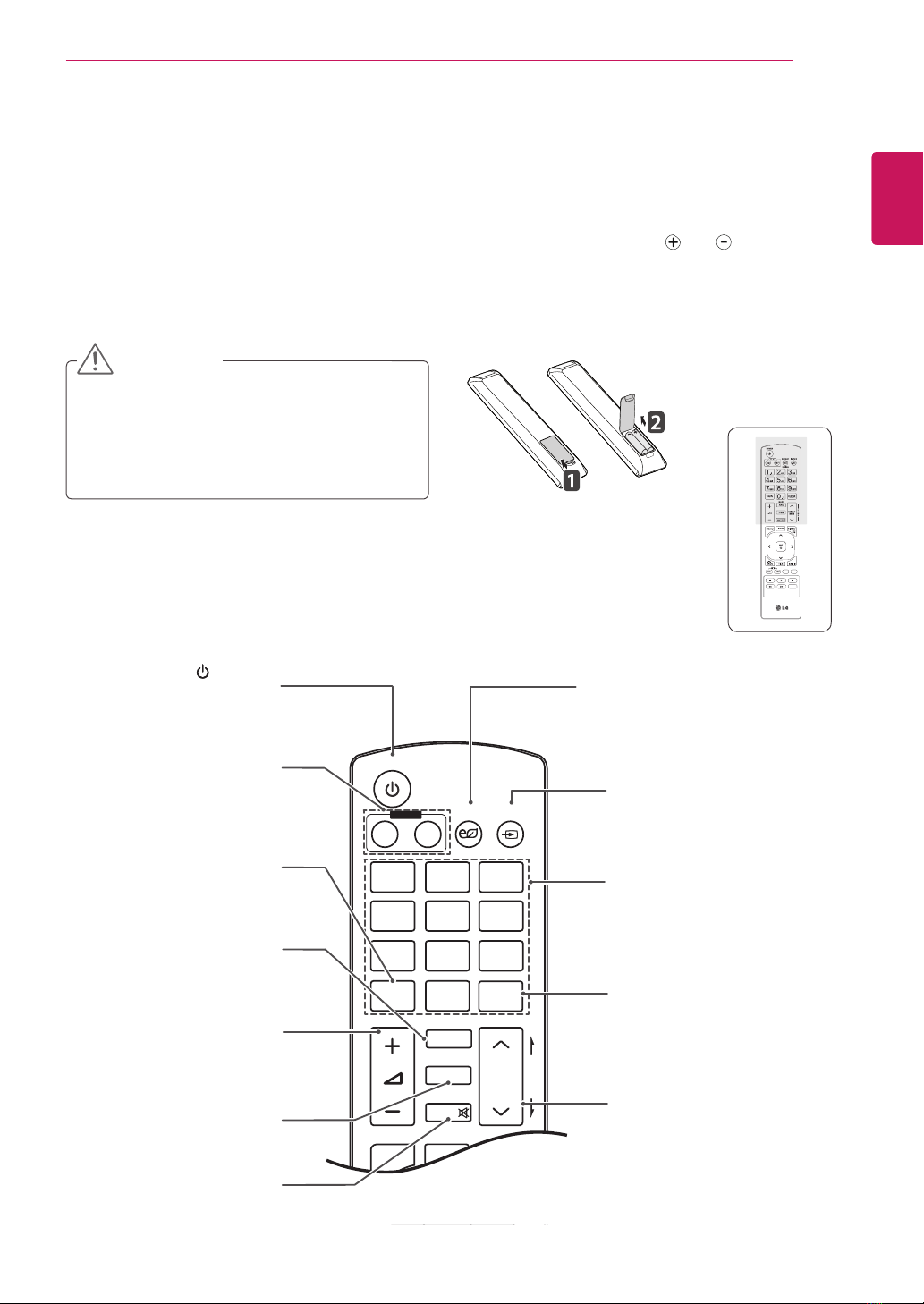

REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the Monitor correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
yDo not mix old and new batteries, as this
may damage the remote control.
yMake sure to point the remote control at the
remote control sensor on the Monitor.
CAUTION
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF

. , !

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

1/a/A

- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
POWER
(POWER)
Turns the Monitor on or off.
MONITOR ON / OFF
Turn off the monitor and then
turn it back on.
1/a/A Button
This button selection is not
applicable.
ENERGY SAVING
Adjusts the brightness of
the screen to reduce energy
consumption.
INPUT
Selects the input mode.
Number and Alphabet Buttons
Enters numbers.
The alphabet selection is not
applicable.
CLEAR
This button selection is not
applicable.
PSM
Selects the Picture Status
Mode.
MUTE
Mutes all sounds.
Volume Up / Down
Adjusts the volume level.
BRIGHTNESS Key
Adjust the brightness by
pressing the Up and Down
buttons on the remote control.
In USB mode, the OSD menu
has the Page function to move
to the next file list.
ARC
Selects the Aspect Ratio Mode.
MARK
Selects a specific file in the USB
mode.

8
ENG
ENGLISH
REMOTE CONTROL
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF

. , !

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

1/a/A

- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK TILE
ON OFF
EXIT
POWER

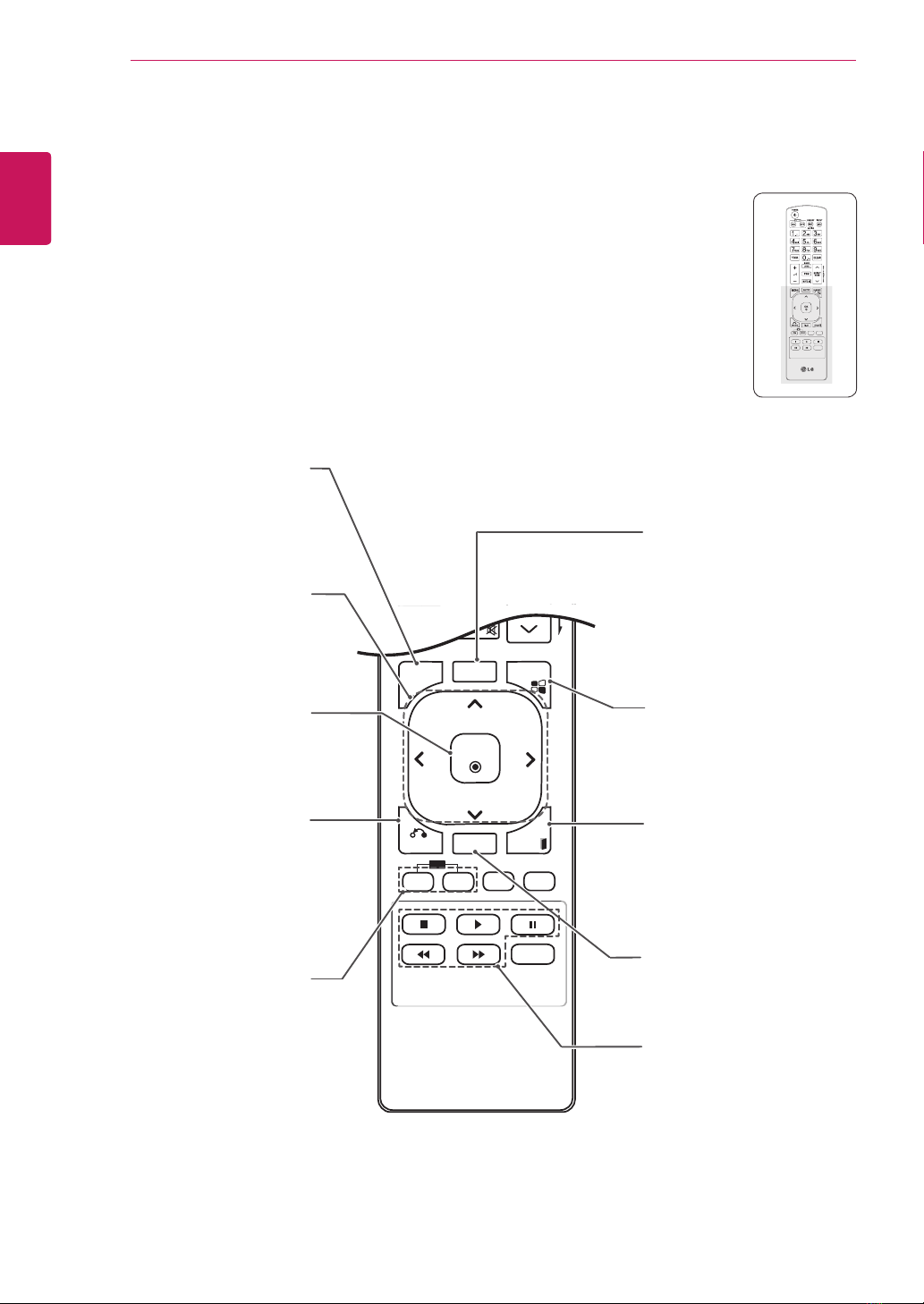

S.MENU
(SuperSign Menu Key)
This button selection is not
applicable.
EXIT
Clears all on-screen displays
and returns to Monitor
viewing from any menu.
TILE
Selects the TILE Mode.
MENU
Accesses the main menus
or saves your input and exit
menus.
Navigation Buttons
Scrolls through menus or
options.
OK
Selects menus or options and
confirms your input.
BACK
Allows the user to move back
one step.
USB Menu Control Buttons
Controls media playback.
ID ON/OFF
When more than one monitor
is present in the same room,
this allows you to control them
individually.
AUTO
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)

9
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
Your Monitor supports the Plug & Play* feature.
* Plug & Play: This is the function that allows a PC
to use the monitor without installing a driver.
NOTE
yIt is recommended to use the Monitor with
the HDMI connection for the best image
quality.
yUse a shielded signal interface cable, such
as D-sub 15-pin signal cable and DVI cable,
with a ferrite core to maintain standard
compliance for the product.
yIf you turn the monitor on when the set
becomes cold, the screen may flicker. This
is normal.
ySome red, green, or blue spots may appear
on the screen. This is normal.
yConnect the signal
input cable and tighten
it by turning the screws
clockwise.
yDo not press the
screen with your finger for a long time as
this may result in temporary distortion on the
screen.
yAvoid displaying a fixed image on the screen
for a long period of time to prevent image
burn. Use a screensaver if possible.
CAUTION
