INSTALLATION MANUAL
LED LCD TV
Please read this manual carefully before operating
your set and retain it for future reference.
LT64**
LT65**
LS64**

CONTENTS
1
INSTALLATION MENU
Introduction ............................................................. 9
LGHotelModeSetup................................................. 10~14
TVLink-Loader......................................................... 15
USBCloningProcedure................................................ 16
-Introduction ...................................................... 16
SendToUSB ........................................................ 17
ReceiveFromUSB.................................................... 17
PasswordChange....................................................... 18
SetIDSetup ........................................................... 18
ConfigurationSetup .................................................. 19~20
ExternalSpeaker....................................................... 21
SpeakerOutputSetup................................................. 22
Pro:Centric............................................................. 23
PowerSaving .......................................................... 24
CECSetup........................................................... 25
ClockSetup............................................................ 26
DOWNLOAD EXTRA CONTENTS ............................. 27~28
DOWNLOAD A SPLASH IMAGE............................... 29~30
LOCATION AND FUNCTION OF CONTROLS .................. 2~4
EZMANAGER
Introduction ............................................................. 5
Pro:CentricAuto ......................................................... 5
Pro:CentricManual....................................................... 6
USBCloning............................................................ 7
NonPro:Centric......................................................... 8

2

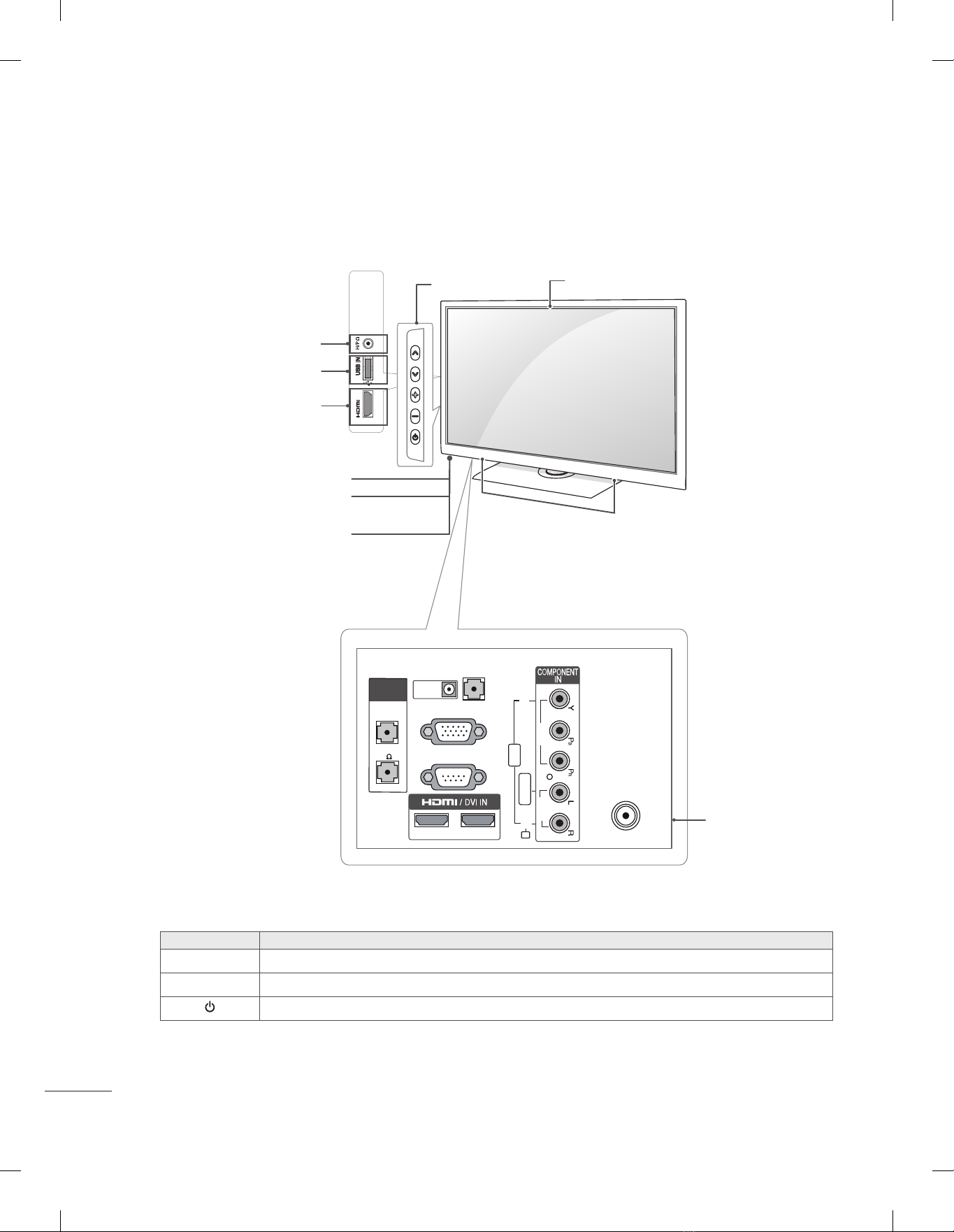

LOCATION AND FUNCTION OF CONTROLS
Button Description
∨∧
Scrolls through the saved channels.
- +
Adjusts the volume level.
Turns the power on or off.
(Only 26LT64**, 26LT65**)
yImage shown may differ from your TV.
Power Indicator
( Can be adjusted using
the Power Indicator in the OPTION -menu.)
HDMI IN
USB input
Remote control
Clock LED
Headphone Socket
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
2 1
USB IN
IN 3
R
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
RS-232C IN
(CONTROL & SERVICE)
ANTENNA /
IN
RGB IN (PC)
12
VOLUME
CONTROL
STEREO
(8 )
SPEAKER
OUT
VIDEO AUDIO
VIDEO
AV IN
L/MONO AUDIO
R
AUDIO IN
(RGB/DVI)
RS-232C IN
(CONTROL & SERVICE)
ANTENNA / CABLE
IN
RGB IN (PC)
12
VOLUME
CONTROL
STEREO
(8 )
SPEAKER
OUT
VIDEO AUDIO
VIDEO
AV IN
L/MONO AUDIO
R
DC IN
Screen
Connection panel
Speakers
buttons
(Only LT64**)

3
Button Description
∨∧
Scrolls through the saved channels.
- +
Adjusts the volume level.
Turns the power on or off.
(Only 32/37/42/47LT64**, 32/37/42/47LT65**)
yImage shown may differ from your TV.
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
2 1
USB IN
IN 3
R
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
12
VOLUME
CONTROL
STEREO
(8 )
SPEAKER
OUT
VIDEO AUDIO
VIDEO
AV IN
L/MONO AUDIO
R
ANTENNA / CABLE
IN
Power Indicator
( Can be adjusted using
the Power Indicator in the OPTION -menu.)
HDMI IN
USB input
Remote control
Clock LED
Headphone Socket
Screen
Connection panel
Speakers
buttons
(Only LT64**)

4
(Only 55LS64**)
yImage shown may differ from your TV.
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
2 1
USB IN
R
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
RGB IN (PC)
12
VOLUME
CONTROL
STEREO
(8 )
SPEAKER
OUT
VIDEO AUDIO
VIDEO
AV IN
L/MONO AUDIO
R
OK SETTINGS INPUT
Power Indicator
( Can be adjusted using
the Power Indicator in the OPTION -menu.)
HDMI IN
USB input
Remote control
Headphone Socket
Screen
Connection panel
Speakers Touch buttons
Touch button Description
∨∧
Scrolls through the saved programmes.
- +
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menu, or saves your input and exits the menus.
INPUT Changes the input source.
/ ITurns the power on or off.

5
EZMANAGER
Pro:Centric Auto
yImage shown may differ from your TV.
Please select the Mode.
Pro:Centric Auto
Pro:Centric Manual
USB Clonning
Non Pro:Centric
Pro:Centric Auto
WELCOME
Use the button to select the Pro:Centric Auto.
Use the OK button and then button to select Pro:Centric Auto.
1
2
Introduction
This set-up menu will be invoked when it is turned on first time or user selects Factory Reset of main
menu.
If TV fails to set up and turn it off, TV will show failure message and run installation again on next
power-cycle.
Auto Installation
Processing Pro:Centric Configuration.
Step 2 may take up to 30 min(s).
Please wait...
10%
Step 1 searching for the network type : RF
Step 2 searching for the server setting : In progress
Step 3 searching for the platform type :
Step 4 downloading HCAP files :
Step 5 downloading EZI files :
Step 6 saving the Configuration :
Do not unplug power and signal cables.

6
Pro:Centric Manual
Please select the Mode.
Pro:Centric Auto
Pro:Centric Manual
USB Clonning
Non Pro:Centric
Pro:Centric Manual
WELCOME
Use the button to select the Pro:Centric Manual.
Use the OK button and then button to select Pro:Centric Manual.
1
2
yImage shown may differ from your TV.
- Data range : GEM , FLASH
- Default : GEM
(1 ) Pro:Centric Mode
Use the button to select Country.
Use the OK button to select Country.
(2) Country (Depending on model)
1
2
A. RF Type
- Data range : DTV, Cable DTV
- Default : DTV
B. Channel Number (or RF Freq.)
- Default : ------
- Set the physical number or frequency for data channel.
C. Symbol rate : 1~ 7400(Default : ------)
D. Modulation : 16/32/64/128/256QAM
* Symbol rate and Modualtion are 'Enable' when RF Type is 'CABLE DTV'.
* If current selected channel is data channel, this menu will show “data channel” status.
(3) Data Channel
Conguration
Pro:Centric Mode
Country
Data Channel
RF Type
Frequency (KHz)
Symbol rate (kS/s)
Modulation
Signal Strength
0%
16QAM
-------
DTV
----------
UK
◄
GEM
►
BACK
NEXT

7
USB Cloning
yImage shown may differ from your TV.
Please select the Mode.
Pro:Centric Auto
Pro:Centric Manual
USB Clonning
Non Pro:Centric
USB Clonning
WELCOME
* For more details, see p.15 'USB Cloning Procedure'.
TV is cloning image from the USB.
xx4-LOW00001.TLL
xx4-LOW00005.TLL
xx4-LOW99999.TLL
Choose a file to be written to
the target TV
Use the button to select the USB Cloning.
Use the OK button and then button to select USB Cloning.
1
2
3
4

8
Non Pro: Centric
yImage shown may differ from your TV.
Please select the Mode.
Pro:Centric Auto
Pro:Centric Manual
USB Clonning
Non Pro:Centric
Non Pro:Centric
WELCOME
Use the button to select the Non Pro:Centric.
Use the OK button and then button to select Non Pro:Centric.
1
2
Non-Pro:centric will help you to select a language, a country and customize the basic settings.
