LG DU-37LZ55 User manual

LCD TV
OWNER'S MANUAL
MODELS: DU-37LZ55
Internet Home Page •http://www.lge.com
http://www.lg.ca
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer
when you require service.
P/NO • 38289UO490B (0509-REVO0)
Printed in Korea

Warning
f
CAUTION
WARNING"
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac-
tical.
REGULATORY INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation.
Unauthorized modification could void the user's authority to operate this product.
U.S.A. only
COMPLIANCE:
The responsible party for this product's compliance is:
LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
Phone: 1-201-816-2000
http://www.lgusa.com
J
2

f
Safety Instructions
ons
IMPORTANT SAFETY INSTRUCTIONS
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or
sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appara-
tus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The
important safety instructions shall be entitled "Important Safety Instructions". The following safety instructions shall be includ-
ed where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding
statements after the end of the following safety instruction list. At the manufacturer's option, a picture or drawing that illus-
trates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-
fiers)that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
PORTABLE CART WARNING
J
3

SafetyInstructions
ons
f
13.
14.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION concerning the Power Cord :
16.
17.
Most appliances recommend they be placed upon a dedicated circuit; that
is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of
this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
Outdoor Use Marking :
WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.
Wet Location Marking :
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
J
4

Contents
Warning/Caution ................................ 2
Safety Instructions ............................. 3-4
Introduction
Controls ............................... 6
Connection Options ...................... 7
Remote Control Key Functions ........... 8-9
Installation
Accessories ............................. 10
Installation Instructions .................. 10-11
How to join the product assembly to the wall to protect
the set tumbling .......................... 10
External Equipment Connections .......... 12-17
Antenna or Cable Connection ........... 12-13
VCR Setup ........................... 13
External A/V Source Setup ................ 14
DVD Setup ............................ 14
HDSTB Setup ......................... 15
PC Setup ............................. 16
Monitor Out Setup ...................... 17
Digital Audio Output ..................... 17
HDMI ............................... 18-20
Operation
Turning the TV On ........................ 21
On-screen Menus Language Selection ......... 21
Setup Menu Options
EZ Scan (Channel Search) ................ 22
Manual Scan .......................... 22
Channel Edit ........................... 23
DTV Signal Strength ..................... 23
Channel Label Setup .................... 24
Input Source ........................... 24
Input Label ............................ 24
Video Menu Options
EZ Picture ............................ 25
Manual Picture Control (Custom Option) ...... 25
Color Temperature Control ................ 25
Video Reset ........................... 25
Audio Menu Options
Audio Language ........................ 26
EZ SoundRite /EZ Sound ................. 26
Manual Sound Control (Custom Option) ...... 26
Front Surround ......................... 27
TV Speakers On/Off Setup ................ 27
BBE ................................. 28
Stereo/SAP Broadcasts Setup .............. 28
Time Menu Options
Auto Clock Setup ....................... 29
Manual Clock Setup ..................... 29
On/Off Timer Setup ..................... 29
Sleep Timer /Auto Off .................... 30
Option Menu Features
Aspect Ratio Control ..................... 31
Cinema 3:2 Mode Setup .................. 31
Caption ............................... 32
Caption /Text .......................... 32
Caption Option ........................ 33
Lock Menu Options
Parental Lock Setup ..................... 35
EPG (Electronic Program Guide) ............. 36
Brief Info................................ 37
Mute .................................. 38
Freeze ................................. 38
Screen Setup for PC mode ....................... 39
External Control Device Setup ................ 40~45
IR Codes ................................ 46~47
Programming the Remote ...................... 48
Programming Codes ....................... 49~50
Troubleshooting Checklist ...................... 51
Maintenance ................................. 52
Product Specifications ......................... 53
Setup and Operation Checklist
Setup and Operation Checklist
(See pages 12-20 for available connection and operational setup options.)
1. Unpack TV and all accessories. 5. Turn video source equipment on.
2. Connect all external video and audio equipment.
see pages 12-17. 6. Select viewing source for TV.
See pages 24.
3 Install batteries in remote control.
See page 8.
4. Turn TV on.
See page 21.
7. Fine-tune source image and sound to your personal prefer-
ence or as required by source.
See pages 25- 28.
8. Additional features set up
See Contents above.
After reading this manual, keep it handy for future reference.

Introduction
- This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Front Panel Controls
Buttons
Buttons
Button
Button
Button
_.J

Introduction
M M M M M M M M M M M M M M M M M M M M M M M M M M M M M
Back Connection Panel
S-VIDEO Input _
A connection available to provide bet- /
ter picture quality than the video input. /
/
VIDEO Input |
Connects the video signal from a |
video device. /
AUDIO Input |
Use to connect to hear stereo sound |
from an external device. /
J
Digital Audio Output
Connect digital audio from various
types of equipment.
Note: In standby mode, these
ports will not work.
Audio/Video Input Monitor
Connect audio/video Output
output from an Connect a
external device to second TV or
these jacks. Monitor.
S-Video Input DVD/DTV Input
Connect S-Video out (Component 1-2)
from an S-VIDEO Connect a component
device to the S- video/audio device to
VIDEO input, these jacks.
I
I
Power Cord Socket
This TV operates on
an AC power. The
voltage is indicated
on the Specifications
page. Never attempt
to operate the TV on
DC power.
HDMI/DVI
(VIDEO)INPUT
connect a
DVl(Video) sig-
nal to HDMI/DVI,
RS-232C INPUT Ant Input RGB/DVI AUDIO Remote
(CONTROL!SER Connect over-the- INPUT Control Port
VICE) PORT air signals to this In RGB input or DVI Connect your
wired remote
Connect to the jack. input, this port sup-
RS-232C port on CABLE Input plies Analog audio, control here.
a PC. Connect cable sig- RGB INPUT
nals to this jack. Connect the monitor output
connector from a PC to the
appropriate input port.
Owner's Manual 7

Introduction

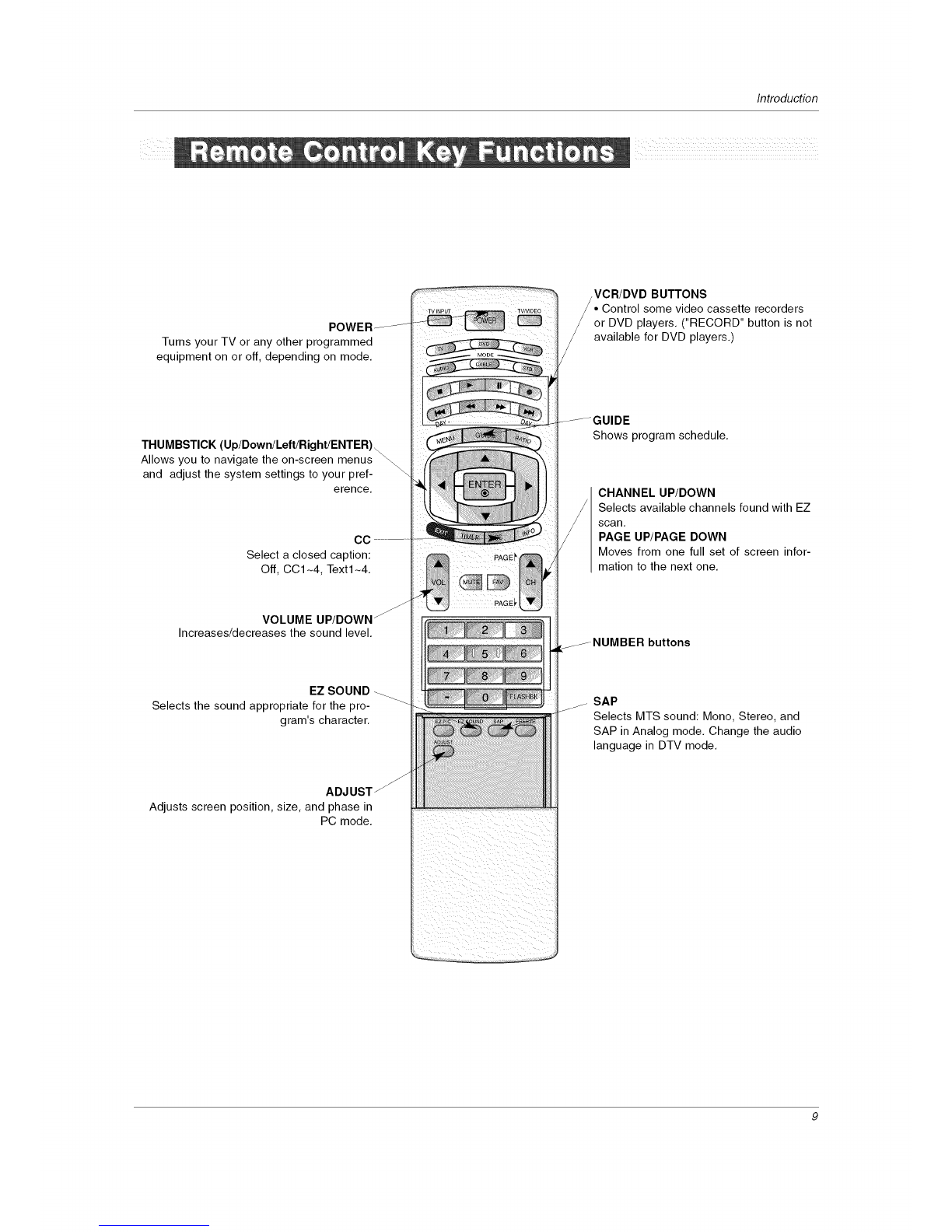

- When using the remote control, aim it at the remote control sensor on the TV.
TV INPUT _
• Rotates the input mode between Antenna
and Cable.
MODE ............
Selects the remote operating mode: TV,
DVD, VCR, AUDIO, CABLE or STB. Select
a mode other than TV, for the remote to
operate an external device.
MENU _
Brings up the main menu to the screen.
EXIT _
Clears all on-screen displays and returns to
TV viewing from any menu.
TIMER
Lets you select the amount of time before
your TV turns itself off automatically.
MUTE
Switches the sound on or off.(Refer to p.38)
EZ PIC
Selects a factory preset picture mode
depending on the viewing environment.
_------ TV/VIDEO
External input modes rotate in regular
sequence: Antenna, Cable, Video, Front
Video, Component 1-2, RGB-DTV (or
RGB-PC) and HDMI/DVI input sources.
(Video, Front Video, Component 1-2 input
sources are linked automatically, only if
these are connected )
RATIO
Changes the aspect ratio.
_INFOWhen you watch the TV, information dis-
plays on top of the screen. Not available
in Component 1-2, RGB and HDMI/DVI
mode. (Refer to p.37)
Scrolls the Favorite channels.
_FLASHBK
Tunes to the recent channels.
" REEZE
Freezes the currently-viewed picture.
Main picture is frozen.
Installing Batteries
• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).
• Install two 1.5V AA batteries. Don't mix old or used batteries with new ones. Close
cove r.

Introduction
POWER ...........
Turns your TV or any other programmed
equipment on or off, depending on mode.
THUMBSTICK (Up/Down/Left/Right!ENTER) \
Allows you to navigate the on-screen menus _
and adjust the system settings to your pref- \
erence.
Select a closed caption:
Off, CC1-4, Text1-4.
VOLUME UP/DOWN _
Increases/decreases the sound level,
EZ SOUND _.
Selects the sound appropriate for the pro-
gram's character,
ADJUST /
Adjusts screen position, size, and phase in
PC mode.
PAGEi
VCR/DVD BUTTONS
• Control some video cassette recorders
or DVD players. ("RECORD" button is not
available for DVD players.)
Shows program schedule,
CHANNEL UP/DOWN
Selects available channels found with EZ
scan,
PAGE UP/PAGE DOWN
Moves from one full set of screen infor-
mation to the next one.
..... NUMBER buttons
SAP
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.

Introduction
I
I0 n
Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.
W
/
/ /
/' /
Owner's Manual Batteries Power Cord 75_ Round Cable
Remote Control 4-Wall brackets 2-bolts Tie Band
Arrange the wires
with the tie band.
D-sub 15 pin Cable
_!iii:iii i
i),_iii ,i ii i
iii}_NJiiiiiii!iiiii!!iiiiii_iiii_J_"'_'iiiiiiiiiiili
Set it up close to the wall so the product doesn't fall over when it is pushed backwards.
The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the product doesn't fall over when
it is pulled in the forward direction. It will prevent the product from falling forward and hurting people. It will also prevent the product
from damage caused by fall. Please make sure that children don't climb on or hang from the product.
1. Use the bracket and the bolt to fix the product to the wall as shown in the picture.
2. Secure the bracket with the bolt (not provided as parts of the product, must purchase separately) on the wall.
3. Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product. It is safer to tie the rope so
it becomes horizontal between the wall and the product.
Notes
• When moving the product to another place undo the ropes first.
• Use a product holder or a cabinet that is big and strong enough for the size and weight of the product.
• To use the product safely make sure that the height of the bracket that is mounted on the wall is same as that of the product.
10

Installation
iii_i
• The TV can be installed in various ways such as on a wall, or on a desktop etc.
• The TV is designed to be mounted horizontally.
GROUNDING
Ensure that you connect the earth ground wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
Power J
Shert-circuit J
Breaker J
Connect the cables as necessary.
After connecting the cables neatly,
arrange the cables to the Cable
Holder.
To connect an additional equipment,
see the External equipment
Connections section.
Pull the cables through the hole
on the set and bundle the cables
using the supplied tie band.
For proper ventilation, allow a clearance of 4" on each
side and 2" from the wall. Detailed installation instruc-
tions are available from your dealer, see the optional
Wall Mounting Bracket Installation.
For proper ventilation, allow a clearance of 4" on each
side and the top, 2.36" on the bottom, and 2" from the
wall. Detailed installation instructions are included in
the optional Desktop Stand Installation.
11

Installation
1. Analog and Digital TV signals provided on antenna
WallAntenna Socket or Outdoor Antenna without a Cable Box Connections
For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
WailAntenna
Socket
Bronze Wire
VHF Antenna Turn clockwise to tighten.
UHF Antenna
Outdoor
Antenna
Dwellings/Houses
(Connect to wall jack for outdoor antenna)
Bronze Wire
Be careful not to bend the bronze wire when
connecting the antenna.
J
Y
2. Analog and Digital TV signals provided on cable
f
Bronze Wire
Cable TV Wall
Jack RF Coaxial Wire (75 ohm) I
Bronze Wire
12

Installation
3. Analog and Digital TV signals provided on cable and antenna
fAntenna Bronze Wire
RF Coaxial Wire (75 ohm)
CableTV Wall Turn clockwise totighten.
Jack RF Coaxial Wire (75 ohm)
...............
Bronze Wire
fOHF
88
• To improve the picture quality in a poor signal area,
please purchase a signal amplifier and install properly.
• If the antenna needs to be split for two TV's, install a "2-
Way Signal Splitter" in the connections.
If the antenna is not installed properly, contact your deal-
er for assistance.
- To avoid picture noise (interference), leave an adequate distance between the VCR and TV
Connection Option 1
Set VCR output switch to channel 3 or 4 and
then tune the TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner's
manual.)
3. Select the input source with using the
TV/VlDEO button on the remote control. Note
that this TV finds the connected input sources
automatically for Video, Front Video and
Component 1-2. It is presumed that RGB and
HDMI/DVl sources are connected.
,_ Do not connect to both Video and
S-Video at the same time.
VCR Rear
13

Installation
How to connect
Connect the audio and video cables from the external equip-
ment's output jacks to the TV input jacks, as shown in the
figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).
How to use
1. Select the input source with using the TV/VIDEO button on
the remote control. Note that this TV finds the connected
input sources automatically for Video, Front Video and
Component 1-2. It is presumed that RGB and HDMI/DVI
sources are connected.
2. Operate the corresponding external equipment. Camcorder
Video Game
Device
DVD
How to connect
1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT jacks on the TV and connect the DVD
audio outputs to the AUDIO INPUT jacks on the TV, as shown in the figure.
2. If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs
to the AUDIO INPUT jacks on the TV, as shown in the figure.
Note: If your DVD player does not have component video output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the TV/VlDEO button on the remote control to select Component 1 or Component 2. (If connected to S-VIDEO, select
the Video or Front Video external input source.)
3. Refer to the DVD player's manual for operating instructions.
• Component Input ports
To get better picture quality, connect a DVD player to the compo-
nent input ports as shown below.
Component ports y
on the TV
Video output ports
on DVD player
14

Installation
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital
signals from a digital set-top box or other digital external device, refer to the figure as shown below.
- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).
or
Digital Set-top Box
How to connect
Use the TV's COMPONENT (Y, PB, PR) INPUT, RGB or HDMI/DVI jack
for video connections, depending on your set-top box connector. Then,
make the corresponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the owner's manual for the
digital set-top box.)
2. Use TV/VlDEO on the remote control to select Component 1,
Component 2, RGB-DTV, or HDMI/DVI source.
Signal Component 1/2 RGB-DTV, HDMI!DVl
480i Yes No
480p Yes Yes
720p Yes Yes
1080i Yes Yes
15

Installation
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic
card accordingly.
<Whenconnectingwith a HDMIto DVI cable>
How to connect
1. Connect the PC to HDMI/DVl port of this TV with an HDMI-to-DVI cable(not sup-
plied with this product).
2. If the PC(or the sound card of the PC) has an analog audio output connector,
connect the PC's audio output to RGB/DVl AUDIO INPUT port located on the
upper side of RGB INPUT port.
HowTo Use
1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60Hz.
2. Select HDMI/DVl input source in input source option of SETUP menu.(Refer to
R24)
TV/VlDEO button is also available for this purpose.
3. Check the image on your TV. There may be noise associated with the resolu-
tion, vertical pattern, contrast or brightness in PC mode. If noise is present,
change the PC output to another resolution, change the refresh rate to another
rate or adjust the brightness and contrast on the VIDEO menu until the picture is
clear. If the refresh rate of the PC graphic card can not be changed, change the
PC graphic card or consult the manufacturer of the PC graphic card.
!
AU_DIO R
<When connecting with a D-sub 15 pin cable>
How to connect
1. Connect the PC to RGB INPUT port of this TV with a RGB cable(not supplied
with this product).
2. If the PC(or the sound card of the PC) has an analog audio output connector,
connect the PC's audio output to RGB/DVl AUDIO INPUT port located on the
upper side of RGB INPUT port.
How To Use
1.To get the best picture quality, adjust the PC graphics card to 1024x768, 60 Hz.
2. Select RGB-PC input source in input source option of SETUP menu.(Refer to
R24)
Once you select RGB-PC in main input option of SETUP menu, TV/VIDEO but-
ton is also available for this purpose.
3. Check the image on your TV. There may be noise associated with the resolu-
tion, vertical pattern, contrast or brightness in PC mode. If noise is present,
change the PC output to another resolution, change the refresh rate to another
rate or adjust the brightness and contrast on the VIDEO menu until the picture is
clear. If the refresh rate of the PC graphic card can not be changed, change the
PC graphic card or consult the manufacturer of the PC graphic card.
Monitor Display Specifications (RGB-PC
Resolution
640x350
640x480
720x400
Horizontal
Frequency(KHz)
31.468
31.469
37.861
37.500
31.469
Vertical
Frequency(Hz)
70.09
59.94
72.80
75.00
70,08
Resolution
800x600
1024x768
Horizontal
Frequency(KHz)
35.156
37.879
48.077
46,875
48,363
56,476
60,023
Vertical
Frequency(Hz)
56.25
60.31
72.18
75.00
60,00
70,06
75,02
16

Installation
Monitor Display Specifications (HDMI/DVI Mode)
Horizontal Vertical
Resolution Resolution Frequency(KHz) Frequency(Hz)
48.363 60.00
640x480 1024x768 56.476 70.06
60.023 75.02
800x600
Horizontal
Frequency(KHz)
31.469
37.861
37.500
35.156
37.879
48.077
46.875
Vertical
Frequency(Hz)
59.94
72.80
75.00
56.25
60.31
72.18
75.00
The TV has a special signal output capability which allows you to
hook up a second TV or monitor.
Connect the second TV or monitor to the TV's MONITOR OUTPUT.
See the Operating Manual of the second TV or monitor for further
details regarding that device's input settings.
Notes:
•Component, RGB-PC/RGB-DTV, HDMI/DVI, DTV input sources
cannot be used for Monitor out.
• When connecting with external audio equipments, such as amplif-
ers or speakers, please turn the TV speakers off.(Refer to p.27)
• We recommend to use the video and audio output jacks for VCR
recording.
Send the TV's audio to external audio equipment (stereo system) via
the Digital Audio Output (Optical) port.
How to connect
1. Connect one end of an optical cable to the TV Digital Audio
(Optical) Output port.
2. Connect the other end of the optical cable to the digital audio (opti-
cal) input on the audio equipment.
See the external audio equipment instruction manual for operation.
Note: When connecting with external audio equipments, such as
amplifers or speakers, please turn the TV speakers off.(Refer to
p.27)
Caution: Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
17

Installation
HIGH DI HNI]ION MUIXlMEDIA IN]ERF ACE
- HDMI TM, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing."
- This TV can receive the High-Definition Multimedia Interface(HDMI) or the Digital Visual Interface(DVI).
- This TV supports HDCP(High-bandwidth Digital Contents Protection) Protocol for 720x480p, 1280x720p, and 1920x1080i resolu-
tion.
- When you connect this TV with a source device(DVD player, Set Top Box or PC) supporting Auto HDMI/DVI function, the output
resolution of the source device will be automatically set to 1280x720p.
- If the source device does not support Auto HDMI/DVI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the DVD Player or Set Top Box's output resolution to 1280x720p, and the PC graphics card's
output resolution to 1024x768, 60Hz.
- If the source device has an HDMI output, no other audio connection is necessary because HDMI-to-HDMI connection includes
both video and audio.
- If the source device has a DVI output and no HDMI output, a separated audio connection is necessary.
<When the source device(DVD player or Set Top Box) supports HDMI>
How To Connect
1. Connect the source device to HDMI/DVI port of this TV with an HDMI cable(not supplied with this product).
2. No separated audio connection is necessary.
How To Use
- If the source device supports Auto HDMI function, the output resolution of the source device will be automatically set to 1280x720p.
- If the source device does not support Auto HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
- Select HDMI/DVI input source in input source option of SETUP menu.(Refer to R24)
TV/VlDEO button is also available for this purpose.
<When the source device(DVD player or Set Top Box) supports DVI>
How To Connect
1. Connect the source device to HDMI/DVI port of this TV with a HDMI-to-DVI cable(not supplied with this product).
2. A separated audio connection is necessary.
3. If the source device has an analog audio output connector, connect the PC's audio output to RGB/DVI AUDIO INPUT port locat-
ed on the upper side of RGB INPUT port.
How To Use
- If the source device supports Auto DVI function, the output resolution of the source device will be automatically set to 1280x720p.
- If the source device does not support Auto DVI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
- Select HDMI/DVI input source in input source option of SETUP menu.(Refer to R24)
TV/VlDEO button is also available for this purpose.
18

Installation
Cable sample
F
HDMI Cable
(not supplied with the product)
HDMI to DVl Cable
(not supplied with the product)
Fiber Optic Digital Audio Cable
(not supplied with the product)
Analog Audio Cable(RCA type)
(not supplied with the product)
Analog Audio Cable(Stereo to RCA type)
(not supplied with the product)
19

Installation
How to use
1. Connect the HDMI/DVl Source Devices(DVD Player or Set Top Box or PC) and the TV SET.
2. Turn on the display by pressing the POWER button on the TV SET and HDMI/DVl Source Devices remote control.
3. Select HDMI/DVl Input source in input source option of SETUP menu.(Refer to R24)
4. Check the image on your TV SET. There may be noise associated with the resolution, vertical pattern, contrast or brightness in
HDMI/DVl Source Devices. If noise is present, change the HDMI/DVl Source Devices to another resolution, change the refresh
rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphics card can
not changed, change the PC graphics card or consult the manufacturer of the PC graphics card.
Notes:
-Depending on the graphics card, DOS mode may not work if you use a HDMI to DVI Cable.
-When Source Devices connected HDMI/DVI Input, output PC Resolution(VGA, SVGA, XGA), Position, Size may not fit to
Screen. As shown the lower picture, press the ADJUST button to adjust the screen Position of TV SET and contact an PC
graphics card service center,
-When Source Devices connected HDMI/DVl Input output TV SET Resolution(480p, 720p, 1080i), TV SET Display fit EIA/CEA-
861-B Specification to Screen. If not, refer to the Manual of HDMI/DVI Source Devices or contact your service center.
-In case HDMI/DVI Source Devices is not connected Cable orpoor cable connection, "NO SIGNAL" OSD display in HDMI/DVI
Input. And In case of, Video Resolution not supported TV SET output in HDMI/DW Source Devices, "INVALID FORMAT" OSD
display. Refer to the Manual of HDMI/DVI Source Devices or contact your service center.
PC mode
In This Mode, the Supported TV SET Resolution Specification
- 1920x 1080 I @ 59.94Hz /60Hz, 16:9
- 1280 x 720 P @ 59.94Hz /60Hz, 16:9(preferred format)
- 720 x 480 P @ 59.94Hz /60Hz, 16:9
- 720 x 480 P @ 59.94Hz /60Hz, 4:3
In This Mode, the Supported PC Resolution Specification
640 x 480 @ 60Hz
640 x 480 @ 72Hz
640 x 480 @ 75Hz
800 x 600 @ 56Hz
800 x 600 @ 60Hz
800 x 600 @ 72Hz
800 x 600 @ 75Hz
1024 x 768 @ 60Hz(preferredformat)
1024 x 768 @ 70Hz
1024 x 768 @ 75Hz
2O
Table of contents
Other LG LCD TV manuals
