OWNER’S MANUAL
LED LCD TV
Please read this manual carefully before operating your set and retain it
for future reference.
LT64**

ENG
ENGLISH
2TABLE OF CONTENTS
21 MAINTENANCE
21 Cleaning your TV
21 - Screen, frame, cabinet and stand
21 - Power cord
21 TROUBLESHOOTING
22 CAUTION FOR USING
EZSIGN 2.0
23 SPECIFICATIONS
26 IR CODES
27 EXTERNAL CONTROL
DEVICE SETUP
27 RS-232C Setup
27 Type of connector;
D-Sub 9-Pin Male
27 RS-232C Configurations
28 Communication Parameters
28 Command reference list
29 Transmission / Receiving Protocol
TABLE OF CONTENTS
3 LICENSES
3 OPEN SOURCE SOFTWARE
NOTICE
4 INSTALLATION PROCEDURE
4 ASSEMBLING AND
PREPARING
4 Unpacking
6 Optional Extras (Only
26/32/37/42/47LT640E)
7 Parts and buttons
8 Lifting and moving the TV
9 Setting up the TV
9 - Attaching the stand
11 - Mounting on a table
12 - Mounting on a wall
14 - Tidying cables
15 MAKING CONNECTIONS
15 Adapter connection
15 Antenna connection
16 HDMI connection
16 DVI to HDMI connection
17 Component connection
17 RGB-PC connection
18 Composit connection
18 Audio connection
18 - Digital optical audio connection
19 Speaker output SETUP
19 Volume control port
19 Headphone connection
19 USB connection
20 REMOTE CONTROL
WARNING
yIf you ignore the warning message, you may
be seriously injured or there is a possibility
of accident or death.
CAUTION
yIf you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
yThe note helps you understand and use
the product safely. Please read the note
carefully before using the product.

3
LICENSES / OPEN SOURCE SOFTWARE NOTICE
ENGENGLISH
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC
.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit
divx.com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered
in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its
subsidiaries and are used under license.”
Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
[email protected]. This offer is valid for three (3) years from the date on which you purchased the product.

4INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
ENG
ENGLISH
NOTE
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you are
using.
yNew features may be added to this TV in the future.
yThe TV can be placed in standby mode in order to reduce the power consumption. And the TV should
be turned off if it will not be watched for some time, as this will reduce energy consumption.
yThe energy consumed during use can be significantly reduced if the level of brightness of the picture
is reduced, and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and item.
CAUTION
yDo not use any unapproved items to ensure the safety and product life span.
yAny damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.
ySome models have a thin film attached on to the screen and this must not be removed.
NOTE
yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to upgrade
of product functions.
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
B
AA
B
*A 10 mm
*B 18 mm

5
ASSEMBLING AND PREPARING
ENGENGLISH
Remote control,
Batteries (AAA)
(See p.20)
Owner’s manual
Cable holder
(Depending on model)
(See p.14)
Power cord
Stand Screws
8 EA, M4 x 12
(Only 26LT64** )
(See p.9)
Stand Screws
8 EA, M4 x 14
(Only 32/37/42/47LT64**)
(See p.10)
Desk-mount Screw
1 EA, M4 x 20
(Only 32/37/42/47LT64**)
(See p.11)
DC Adapter
(Only 26LT64**)
(See p.15)
Power Cord holder
(Only 32/37/42/47LT64**)
(See p.14)
Protection cover
(Only 32/37/42/47LT64**)
(See p.13)
Stand body / Stand base
(Only 26LT64**)
(See p.9)
Stand body / Stand base
(Only 32/37/42/47LT64**)
(See p.10)
or Isolator
(Depending on model)
(See p. 6)
EzSign 2.0 Editor CD
(Depending on model)
FREEZE
RATIO
L/R SELECT
ENTER
BACK EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AVMODE
INPUT

6ASSEMBLING AND PREPARING
ENG
ENGLISH
NOTE
yAntenna Isolator Installation Guide
- Use this to install TV in a place where there is a voltage difference between TV Set and GND of
antenna signal.
»If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact
might be heated and excessive heat might cause an accident.
- You can improve the safety when watching TV by efficiently removing power voltage from TV
antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall,
mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
- Before starting, be sure that the TV antenna is connected.
ANTENNA/
CABLE IN
Cable / Antenna
Wall
Isolator
1. Connect to TV.
2. Connect to Set-Top box.
or
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains
connection or through other equipment with a connection to protective earthing - and to a cable
distribution system using coaxial cable, may in some circumstances create a re hazard. Connection
to a cable distribution system has therefore to be provided through a device providing electrical
isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
Optional Extras (Only 26/32/37/42/47LT640E)
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
AN-WF100
Wireless LAN for Broadband/
DLNA Adaptor

7
ASSEMBLING AND PREPARING
ENGENGLISH
Parts and buttons
Button Description
∨∧
Scrolls through the saved programmes.
- +
Adjusts the volume level.
Turns the power on or off.
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
2 1
AUDIO IN
(RGB/DVI)
RS-232C IN
(CONTROL & SERVICE)
ANTENNA /
IN
RGB IN (PC)
12
VOLUME
CONTROL
STEREO
(8 )
SPEAKER
OUT
VIDEO AUDIO
VIDEO
AV IN
L/MONO AUDIO
R
DC IN
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
12
VOLUME
CONTROL
STEREO
(8 )
SPEAKER
OUT
ANTENNA /
IN
VIDEO AUDIO
VIDEO
AV IN
L/MONO AUDIO
R
USB IN
IN 3
R
Speakers
Power Indicator
(Can be adjusted using
the Power Indicator in the
OPTION -menu.)
Remote control sensor
Clock LED
Screen

8ASSEMBLING AND PREPARING
ENG
ENGLISH

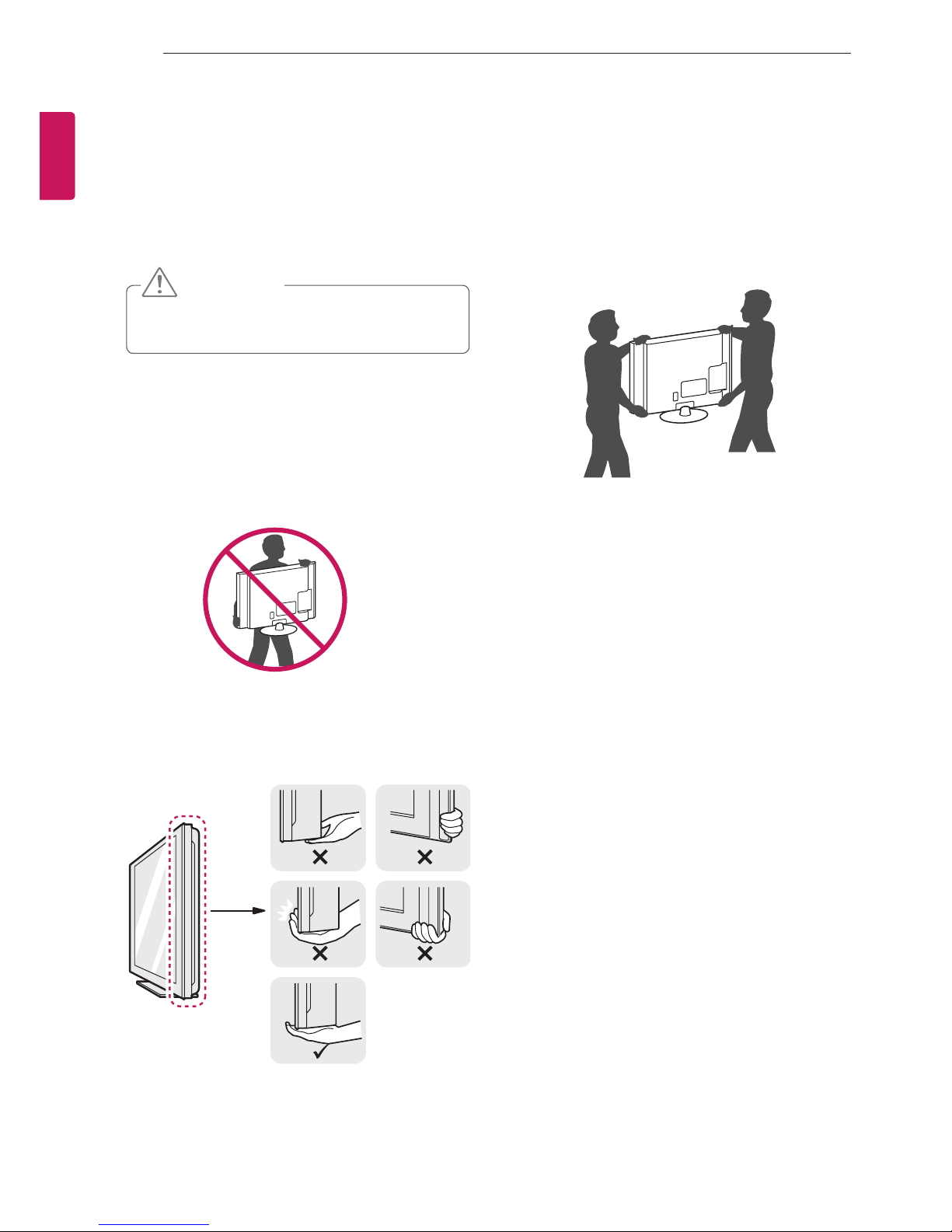

yIt is recommended to move the TV in the box
or packing material that the TV originally came
in.
yBefore moving or lifting the TV, disconnect the
power cord and all cables.
yWhen holding the TV, the screen should face
away from you to avoid damage.
yHold the top and bottom of the TV frame rmly.
Make sure not to hold the transparent part,
speaker, or speaker grill area.
yWhen transporting a large TV, there should be
at least 2 people.
yWhen transporting the TV by hand, hold the TV
as shown in the following illustration.
yWhen transporting the TV, do not expose the
TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the
left or right.
CAUTION
yAvoid touching the screen at all times, as this
may result in damage to the screen.
Lifting and moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged
and for safe transportation regardless of its type
and size.

9
ASSEMBLING AND PREPARING
ENGENGLISH
Setting up the TV
Put your TV on a pedestal stand and mount the TV on a table or wall.
Attaching the stand
(Only 26LT64**)
Front
Stand Body
Stand Base
M4X20
Top View
1
M4 x 12
4 EA
2
3
M4 x 12
4 EA

10 ASSEMBLING AND PREPARING
ENG
ENGLISH
(Only 32/37/42/47LT64**)
Front
1
Stand Body
Stand Base
3
2
M4 x 14
4 EA
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or at surface to protect the
screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. If they are
not fastened securely enough, the TV may
tilt forward after being installed.
Do not use too much force and over tighten
the screws; otherwise screw may be
damaged and not tighten correctly.
NOTE
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
4 EA
M4 x 14
M4X20
Top View

11
ASSEMBLING AND PREPARING
ENGENGLISH
Mounting on a table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (minimum) space from the
wall for proper ventilation.
2 Connect the power cord to a wall outlet.
Securing the TV to a table
(Only 32/37/42/47LT64**)
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
Mount the TV on a table, and then insert and
tighten the supplied screw on the rear of the stand.
Adjusting the angle of the TV to suit view
Swivel 90 degrees to the left or right and adjust the
angle of the TV to suit your view.
10 cm
10 cm
10 cm
10 cm
CAUTION
yDo not place the TV near or on sources
of heat, as this may result in re or other
damage.
WARNING
yTo prevent TV from falling over, the TV
should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause injury.
9090
CAUTION
yWhen adjusting the angle of the product,
watch out for your ngers.
»Personal injury may occur if hands or
fingers are pinched. If the product is tilted
too much, it may fall, causing damage or
injury.
Attaching the TV to a table
Image shown may differ from your TV.
The TV must be attached to desk so it cannot be
pulled in a forward/backward direction, potentially
causing injury or damaging the product.
(Only 32/37/42/47LT64**)
Screws: M4 x L (*L: Table depth + 8-10 mm)
ex) Table depth: 15mm, Screw: M4 x 20
(not provided as parts of the product)
4-Screws
Stand
Table

12 ASSEMBLING AND PREPARING
ENG
ENGLISH
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV brackets
and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and the
eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope.
Make sure to keep the rope horizontal with the
at surface.
CAUTION
yMake sure that children do not climb on or
hang on the TV.
NOTE
yUse a platform or cabinet that is strong and
large enough to support the TV securely.
yBrackets, bolts and ropes are not provided.
You can obtain additional accessories from
your local dealer.
Mounting on a wall
Attach an optional wall mount bracket at the rear of
the TV carefully and install the wall mount bracket
on a solid wall perpendicular to the oor. When you
attach the TV to other building materials, please
contact qualied personnel.
LG recommends that wall mounting be performed
by a qualied professional installer.
10 cm
10 cm
10 cm
10 cm
10 cm

13
ASSEMBLING AND PREPARING
ENGENGLISH

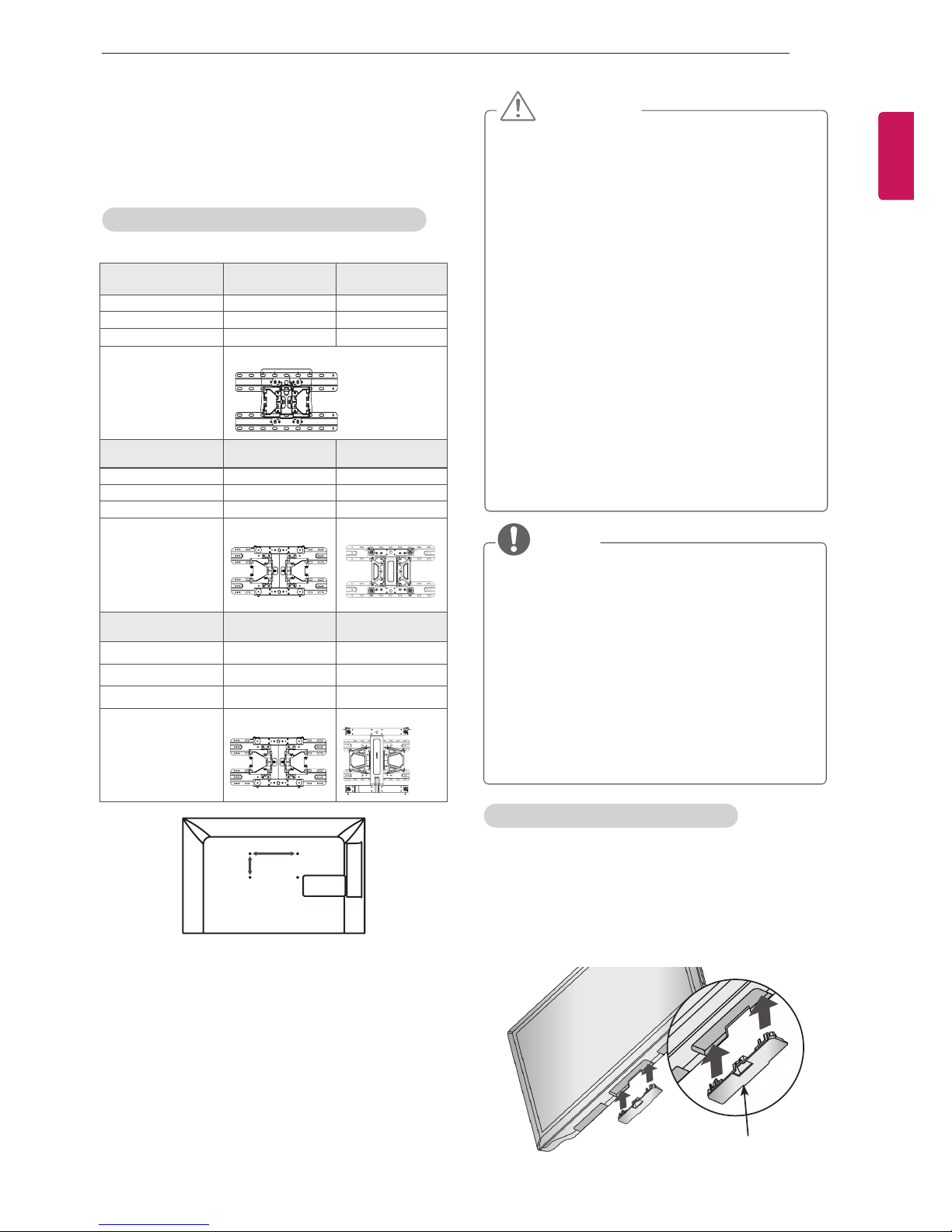

Not using the DESK-TYPE STAND
(Only 32/37/42/47LT64**)
Image shown may differ from your TV.
When installing the wall-mounted unit, use the
protection cover.
Insert the Protection cover into the TV until
clicking sound.
Protection Cover
CAUTION
yDisconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
yIf you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount bracket
and contact the local dealer or qualified
personnel.
yDo not over tighten the screws as this may
cause damage to the TV and void your
warranty.
yUse the screws and wall mount bracket
that meet the VESA standard. Any
damages or injuries by misuse or using an
improper accessory are not covered by the
manufacturer's warranty.
yOn the 47 inch models, use M6 x L45
screws.
NOTE
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit includes an installation
manual and necessary parts.
yThe wall mount bracket is not provided. You
can obtain additional accessories from your
local dealer.
yThe length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
yFor more information, refer to the manual
supplied with the wall mount.
A
B
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described in
the following table.
Separate purchase (Wall Mounting Bracket)
Model 26LT64** 32LT64**
VESA 100 x 100 200 x 100
Standard screw M4 M4
Number of screws 4 4
Wall mount
bracket
LSW100B(G)
Model 37/42LT64** 37/42LT64**
VESA 200 x 200 200 x 200
Standard screw M6 M6
Number of screws 4 4
Wall mount
bracket
LSW200BX(G) LSW220BX(G)
Model 47LT64** 47LT64**
VESA 400 x 400 400 x 400
Standard screw M6 M6
Number of screws 4 4
Wall mount
bracket
LSW400BX(G) LSW420BX(G)

14 ASSEMBLING AND PREPARING
ENG
ENGLISH
Tidying cables
(Only 32/37/42/47LT64**)
CAUTION
yDo not move the TV by holding the Cable
Holder and Power Cord Holder, as the Cable
holders may break, and injuries and damage
to the TV may occur.
(Only 26LT64**)
1 Gather and bind the cables with the cable
holder.
Cable Holder
1 Install the Power Cord Holder and Power Cord.
It will help prevent the power cable from being
removed by accident.
2 Gather and bind the cables with the cable
holder.
Cable Holder
Power Cord Holder

15
MAKING CONNECTIONS
ENGENGLISH
MAKING
CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the 32LT64** models.
Connect various external devices to the TV
and switch input modes to select an external
device. For more information on external device’s
connection, refer to the manual provided with each
device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB storage
devices, PC, gaming devices, and other external
devices.
NOTE
yThe external device connection may differ
from the model.
yConnect external devices to the TV
regardless of the order of the TV port.
yIf you record a TV program on a DVD
recorder or VCR, make sure to connect the
TV signal input cable to the TV through a
DVD recorder or VCR. For more information
on recording, refer to the manual provided
with the connected device.
yRefer to the external equipment’s manual for
operating instructions.
yIf you connect a gaming device to the TV,
use the cable supplied with the gaming
device.
yIn PC mode, there may be noise associated
with the resolution, vertical pattern, contrast
or brightness. If noise is present, change
the PC output to another resolution, change
the refresh rate to another rate or adjust the
brightness and contrast on the PICTURE
menu until the picture is clear.
yIn PC mode, some resolution settings may
not work properly depending on the graphics
card.
Adapter connection
DC IN
DC Adapter
1 Connect the antenna cable to the antenna
input port on the TV.
2 Connect the DC adapter plug to the power
input jack on the TV.
3 Connect the power cord to the DC adapter rst,
then plug the power cord into the wall power
outlet.
(Only 26LT64**)
Antenna connection
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image
quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not
supplied.
ANTENNA
IN
A
NTENNA / CABLE
IN
ANTENNA /
IN
CABLE

16 MAKING CONNECTIONS
ENG
ENGLISH
HDMI connection
Transmits the digital video and audio signals from
your PC to the TV. Connect the PC and the TV
with the HDMI cable as shown. Choose any HDMI
input port to connect. It does not matter which port
you use.
NOTE
yIt is recommended to use the TV with the
HDMI connection for the best image quality.
yUse the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
yHigh Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
ySupported HDMI Audio format : Dolby
Digital, PCM (Up to 192 KHz, 32k/44.1k/48k
/88k/96k/176k/192k, DTS Not supported.)
DVI to HDMI connection
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
yDepending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in use.
HDMI
1
2
3
3
(*Not Provided)
DVD/ Blu-Ray /
HD Cable Box / HD STB
/ PC
AUDIO OUT
DVI OUT
O
P
T
I
C
A
L
D
I
G
I
T
A
TT
L
A
U
D
I
O
O
U
T
A
U
D
I
O
I
N
(
R
G
B
/
D
V
I
)
R
S
-
2
3
2
C
I
N
(
C
O
N
T
R
O
L
&
S
E
R
VR
R
I
C
E
)
A
NTENN
A
I
N
R
G
B
I
N
(
P
C
)
1
VO
L
U
ME
CO
NTR
O
L
STEREO(8 )
)
S
PEAKE
R
OU
T
2
DVI OUT
AUDIO OUT
(
R
G
B
/
D
V
I
)
A
U
D
I
O
I
N
1
2
1
2
3
3
DVD/ Blu-Ray / HD Cable Box / PC
(*Not Provided)

17
MAKING CONNECTIONS
ENGENGLISH
Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with the component cable as
shown.
DVD / Blu-Ray / HD Cable Box
GREEN
VIDEO
VIDEO AUDIO
AUDIO
V
IDE
O
R
A
V IN
A
V I
N
V
IDE
O
L
/
M
O
N
O
AU
DI
O
R
GREEN
BLUE
WHITE RED
RED
RED
WHITE
RED
BLUE
RGB-PC connection
Transmits the video signal from PC to the TV. To
transmit an audio signal, connect an audio cable.
RGB OUT(PC)
AUDIO OUT
AUDIO IN
(RGB/DVI)
RGB IN (PC)
PC
(*Not Provided)
NOTE
yIf cables are not installed correctly, it could
cause this image to display in black and white
or with distorted colours.

18 MAKING CONNECTIONS
ENG
ENGLISH
Composit connection
Transmits the analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown.
Audio connection
You may use an optional external audio system
instead of the built-in speaker.
NOTE
yIf you use an optional external audio device
instead of the built-in speaker, set the TV
speaker feature to off.
Digital optical audio connection
Transmits the digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
O
P
T
I
C
A
L
D
I
G
I
T
A
T
T
L
AUDI
O
O
U
T
OPTICAL AUDIO IN
Digital Audio System
(*Not Provided)
NOTE
yDo not look into the optical output port.
Looking at the laser beam may damage your
vision.
yAudio with ACP (Audio Copy Protection)
function may block digital audio output.
R
AV IN
VIDEO
AUDIO
R
L/MONO
V
IDE
O
AU
DI
O
R
AUDIO L/MONO VIDEO
R
R
AUDIO L/MONO VIDEO
YELLOW
WHITE
RED
RED
WHITE
YELLOW
VCR / DVD / Blu-Ray / HD Cable Box

19
MAKING CONNECTIONS
ENGENGLISH
Headphone connection
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone.
(*Not Provided)
NOTE
yAUDIO menu items are disabled when
connecting a headphone.
yWhen changing AV MODE with a headphone
connected, the change is applied to video
but not to audio.
yOptical Digital Audio Out is not available
when connecting a headphone.
yHeadphone impedance: 16 Ω
yMax audio output of headphone: 9 mW to 15
mW
yHeadphone jack size: 0.35 cm
USB connection
Connect a USB storage device such as s USB
ash memory, external hard drive or a USB
memory card reader to the TV and access the My
media menu to use various multimedia les.
Speaker output SETUP
Connect the external speaker to the Speaker
output(STEREO) jack on the TV.
VOLUME
CONTROL
STEREO
SPEAKER
OUT
(8 )
Control port for
Speaker out
UP
DOWN
R -
R+
L -
L+
yEach Up/ Down pin is pulled to 3.3V with CPU
GPIO.
yCPU detects sort - to - gnd for volume control.
NOTE
yExternal speaker must be used four
plug(BTL: Bridge Tied Load, Stereo) as
shown in the drawings and external speaker
fully inserted with external Speaker Jack.
yOtherwise it will cause defact.
Volume control port
Cable
Spec.
VOLUME
CONTROL
STEREO
SPEAKER
OUT
(8 )
GND / Up / Down
USB IN
USB
(*Not Provided)

20 REMOTE CONTROL
ENG
ENGLISH
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
the and ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
REMOTE CONTROL
CAUTION
yDo not mix old and new batteries, as this may damage the remote control.
yIn Analogue TV and some countries, some remote control buttons may not work.
Make sure to point the remote control toward the remote control sensor on the TV.
OK
EXIT
GUIDE PORTAL
Home BACK
INFO
PORTAL
P
A
G
E
P
1 2 3
4 5
0
6
7 8 9
LIST
Q.VIEW
AV MODE INPUT
TV/
RAD
ENERGY
SAVING
RATIO
MUTE
Q.MENU ALARM
OK
GUIDE
Home
INFO
EXIT
PORTAL
FAV
1
POWER
Turns the TV on or off.
ꕊENERGY SAVING
Adjusts the brightness of the screen to
reduce energy consumption.
AV MODE
Selects an AV mode.
INPUT
Changes the input source.
TV/RAD
Selects Radio, TV and DTV programme.
GUIDE
Shows programme guide . (Only LT640H)
Shows Contents List in EzSign mode.
(Only LT640E)
PORTAL
Displays and removes hotel interactive
menu. (Only LT640H)
Displays the EzSign content on a TV
Screen. (Only LT640E)
INFO
Views the information of the current
programme and screen. (Only LT640H)
Shows or hides the information on TV
remote control buttons in EzSign mode.
(Only LT640E)
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
OK
Selects menus or options and confirms
your input.
Home
Selects a menu.
Clears all on-screen displays and returns
to TV viewing from any menu.
BACK
Returns to the previous level.
EXIT
Clears on-screen displays and return to
TV viewing.
Number buttons
Enters numbers.
LIST
Accesses the saved programme list.
Q.VIEW
Returns to the previously viewed programme.
Adjusts the volume level.
FAV
Accesses your favourite programme list.
RATIO
Resizes an image.
MUTE
Mutes all sounds.
ꕍ
P
ꕌ
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
Colour buttons
These access special functions in some
menus.
( : Red, : Green, : Yellow, : Blue)
1
TELETEXT BUTTONS
These buttons are used for teletext.
SUBTITLE
Recalls your preferred subtitle in digital mode .
Control buttons (ꕗ, ꕖ, ꕘ, ꕚ, ꕙ)
Controls the MY MEDIA menus, or
the SIMPLINK compatible devices
(USB,SIMPLINK).
Not functional when EzSign contents is on.
SIMPLINK
Accesses the AV devices connected with the
HDMI cable through HDMI-CEC.
Opens the SIMPLINK menu.
Q. MENU
Accesses the quick menus.
ALARM
Sets the alarm function.
