LG LU660H-S Series User manual

INSTALLATION MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
LU660H-S*
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.

ENG
ENGLISH
2
TABLE OF CONTENTS
3 LOCATION AND FUNCTION OF
CONTROLS
3 Parts and Button
3 - Basic functions
3 - Adjusting the Menu
4 EZMANAGER
4 Introduction
4 Ez-Manager Wizard
5 - Automatically for Setup
9 - Manually for Setup
12 - USB LG Smart Install Utility
13 INSTALLATION MENU
13 Introduction
14 PUBLIC DISPLAY SETTINGS
14 Public Display Settings Operation
15 Power On Status
15 Volume (0 ≤ Min ≤ Start ≤ Max ≤ 100)
15 - Start Volume
15 - Maximum Volume
15 - Minimum Volume
16 Key Management
16 - IR Operation
16 - Local Key Operation
16 Limited Mode
16 - Setup Menu
16 - Channel Change
17 - Menu Display
17 - OSD Display
17 - System Provider Mode
17 DTV Channel Update
18 Power On Default
18 - Input
18 - Channel
18 - A/V Setting
18 - Aspect Ratio
18 Aux Source Setting
18 Power Management
18 Factory Reset
19 NETWORK
19 MAC Address
19 Network Setting
20 LG Connect
20 IP Stream Control
20 Wake On LAN
21 PRO:CENTRIC
21 Mode
21 Update Event
22 Media Type
22 Room Number Setting
23 GENERAL
23 Configuration Setup
24 External Speaker
24 Set ID Setup
25 Power Saving
25 HCEC Setup
26 Clock Setup
26 Password Change
27 Preloaded App
27 Lock Mode
27 MEDIA SHARE
27 SmartShare
27 Screen Share
28 Media Renderer
28 DIAL
28 TV Name
28 SoftAP
29 TV MANAGER
29 USB Download Menu
35 Diagnostics
36 KEY CODES
37 EXTERNAL CONTROL DEVICE
SETUP
37 RS-232C Setup
37 USB to Serial converter with USB Cable
37 RS-232C with RS-232C Cable
38 Set ID
39 Communication Parameters
39 Command reference list
40 TRANSMISSION / RECEIVING
PROTOCOL

ENGLISH
3
LOCATION AND FUNCTION OF CONTROLS
Parts and Button
Basic functions
Power On (Press)
Power Off 1(Press and Hold)
Menu control (Press 2)
Menu selection (Press and Hold 3)
1 All running apps will close.
2 You can access and adjust the menu by
pressing the button when TV is on.
3 You can use the function when you access
menu control.

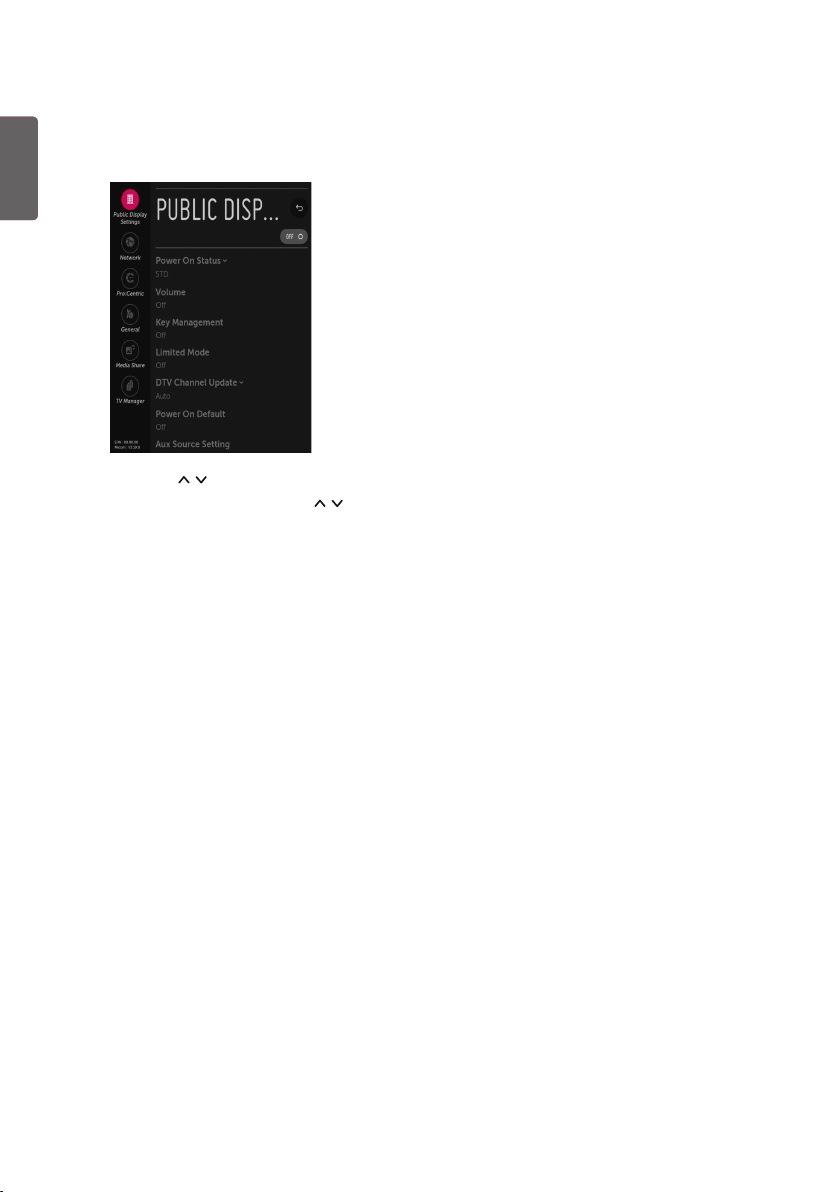

Adjusting the Menu
When the TV is turned on, press the button
one time. You can adjust the Menu items
using the button.
Turns the power off.
Changes the input source.
Scrolls through the saved channels.
Adjusts the volume level.

ENG
ENGLISH
4
EZMANAGER
* Image shown may differ from your TV.
Introduction
The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions. The
default Domain ‘procentric.local’and IP Server Address are needed to be registered in DNS TV will
contact the IP Server using the default Domain‘procentric.local’ via IP on server search page. If TV
doesn’t contact the Server, TV will search the pre-defined channel earlier than all channels.
Ez-Manager Wizard
•If you are using Pro:Centric, this setup wizard till help you easily set up the TV. Select NEXT to
continue.
•Otherwise, if you will not be installing a Pro:Centric Server, select Xto quit.

ENGLISH
5
Automatically for Setup

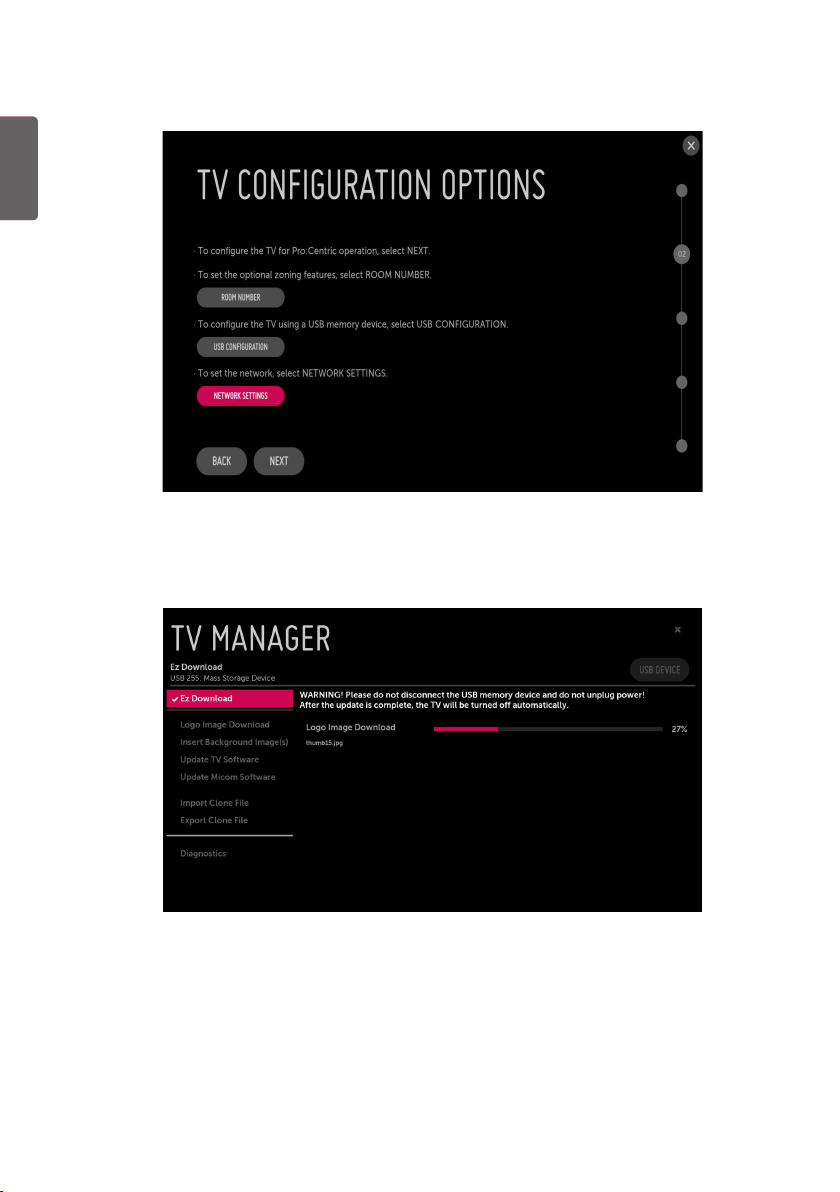

1 From the TV Configuration Options screen, you can choose how to proceed with the
configuration of this TV. Whether you will configure the TV for Pro:Centric operation via the
wizard or use a USB memory device to configure the TV, you may first wish to set the Room
Number on the TV.
•If you intend to set Room Number as part of the TV configuration, use the Room Number
option to assign the Room # for this TV before you continue with additional configuration.
•In the Label field, use the Left/Right arrow keys to specify a North, South, East, or West
designation for this TV.
•In the Room Number field, you can use the number keys on the Installer Remote to direct enter
a room number or use the virtual keyboard on the TV screen.
•To continue, move and select NEXT.

ENG
ENGLISH
6
•If you intend to set network, use the Network Settings option. You can connect easily to wired/
wireless network by this option. (page. 19)

ENGLISH
7

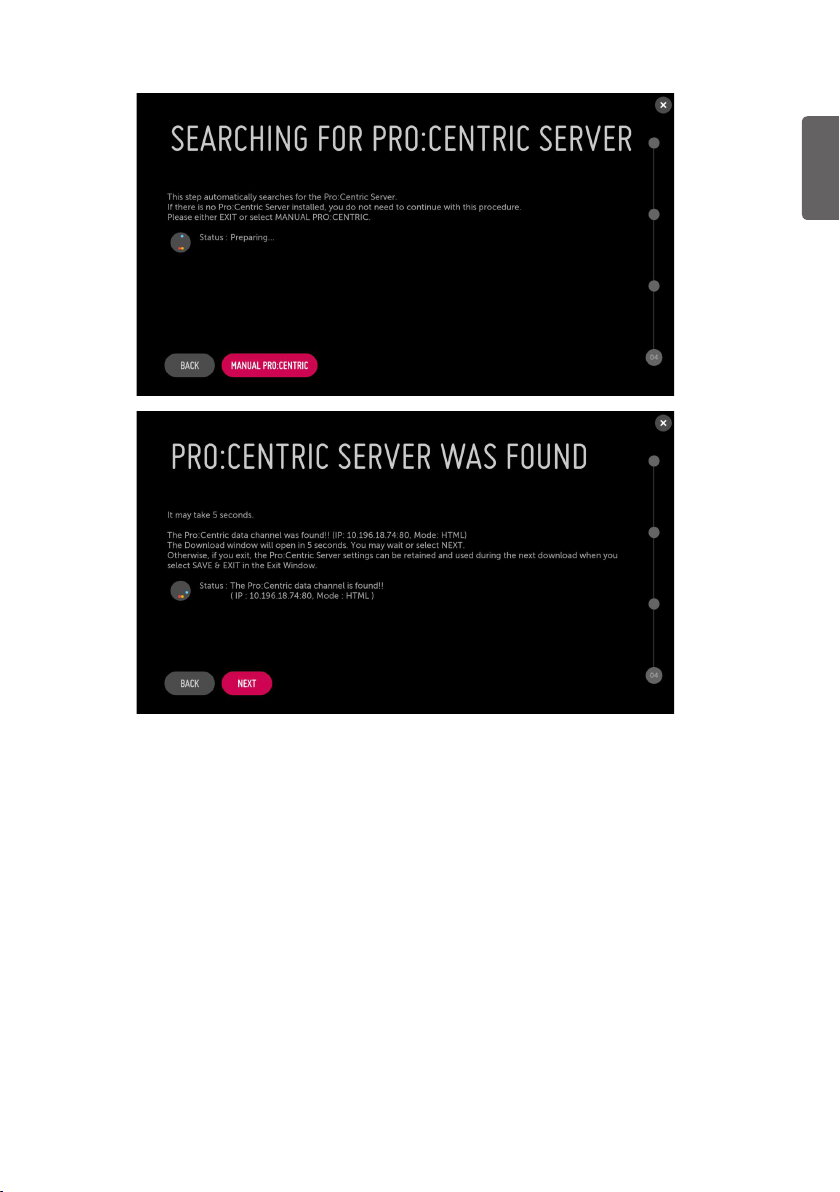

2 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data
channel, select the NEXT.

ENG
ENGLISH
8
3 Downloading the Pro:Centric application files takes few minutes.

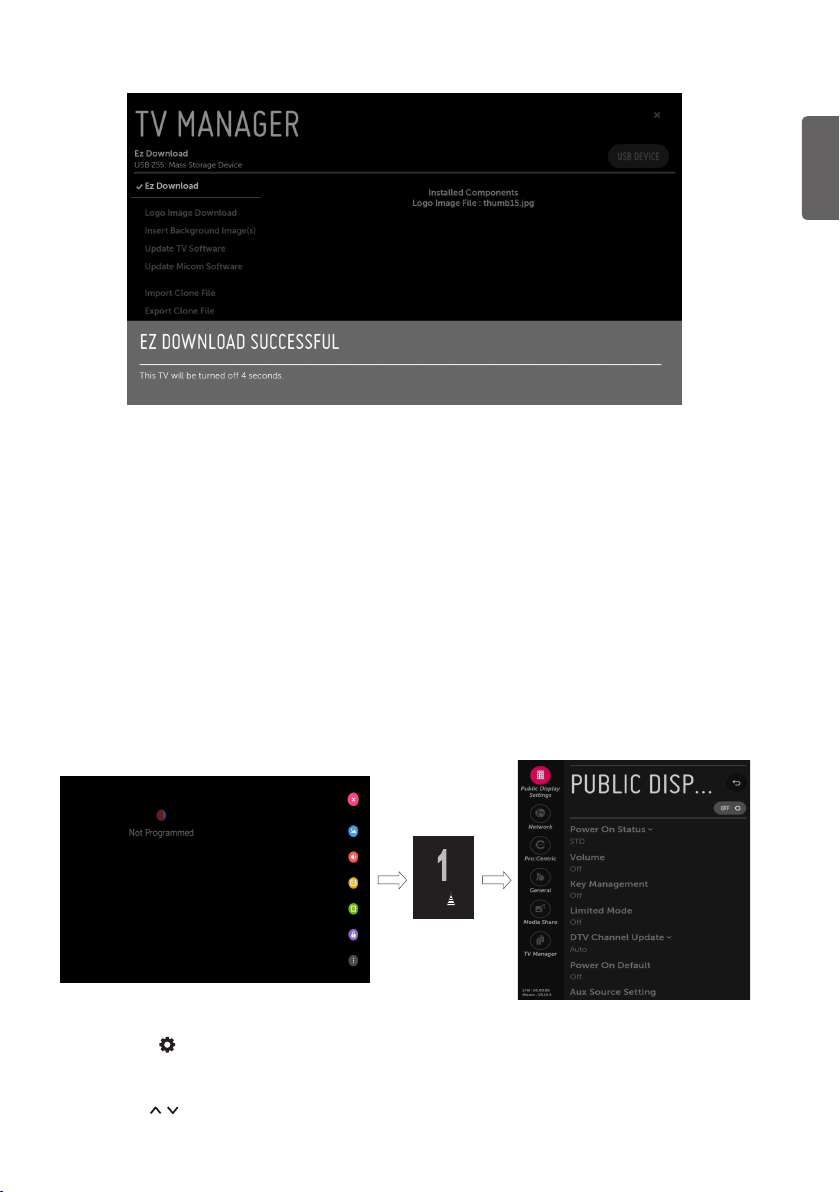

4 After the installation is completed, the following screen will be displayed.

ENGLISH
9
Manually for Setup

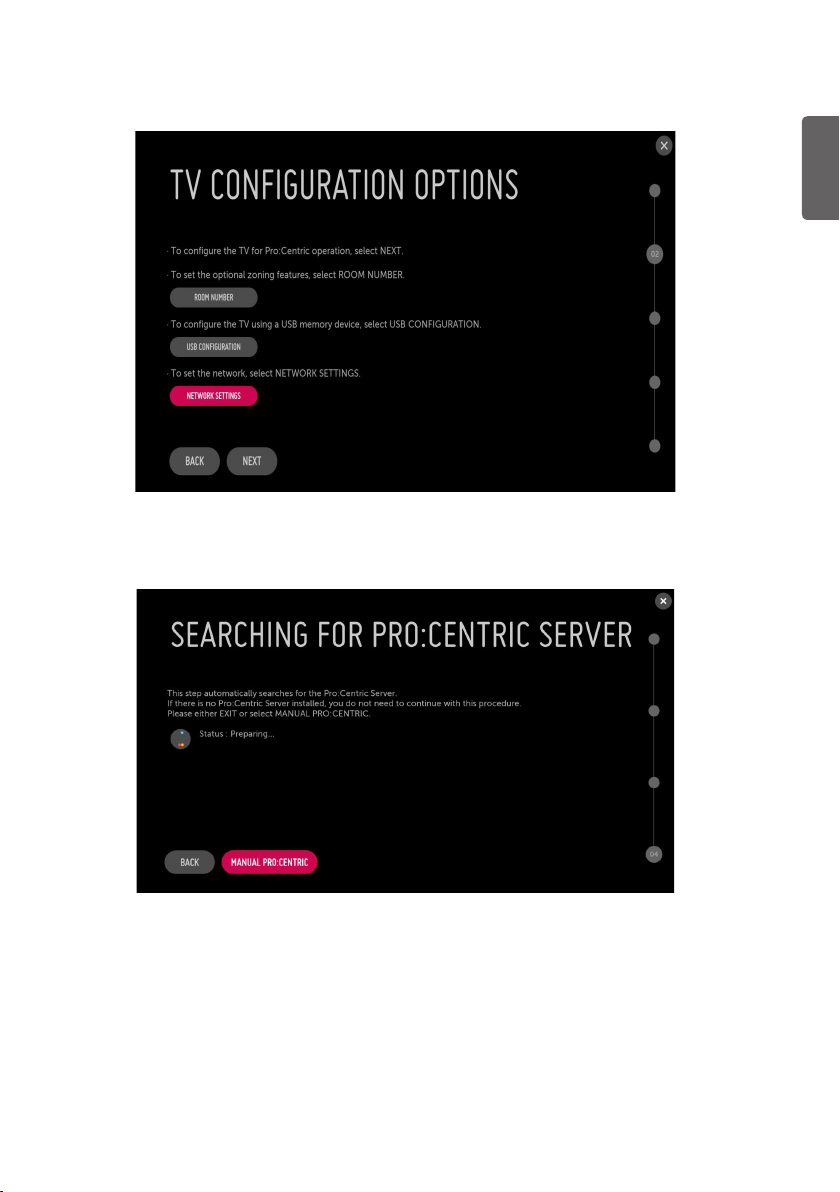

1 Select a Label and/or enter the Room Number using the numeric keypad on the remotes or
using the virtual keyboard on the TV screen. To continue, move and select NEXT.
2 Please select the MANUAL PRO:CENTRIC.

ENG
ENGLISH
10
3 Configure the appropriate Pro:Centric settings in the TV.
