LG Minibeam Pro PF1500 User manual

Printed in KoreaP/NO : MFL68723402 (1501-REV00)
DLP PROJECTOR
SERVICE MANUAL
CHASSIS : FM52A
MODEL : PF1500 PF1500-NA
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SPECIFICATION ...................................................................................... 4
ADJUSTMENT INSTRUCTION ............................................................... 5
TROUBLE SHOOTING GUIDE............................................................... 14

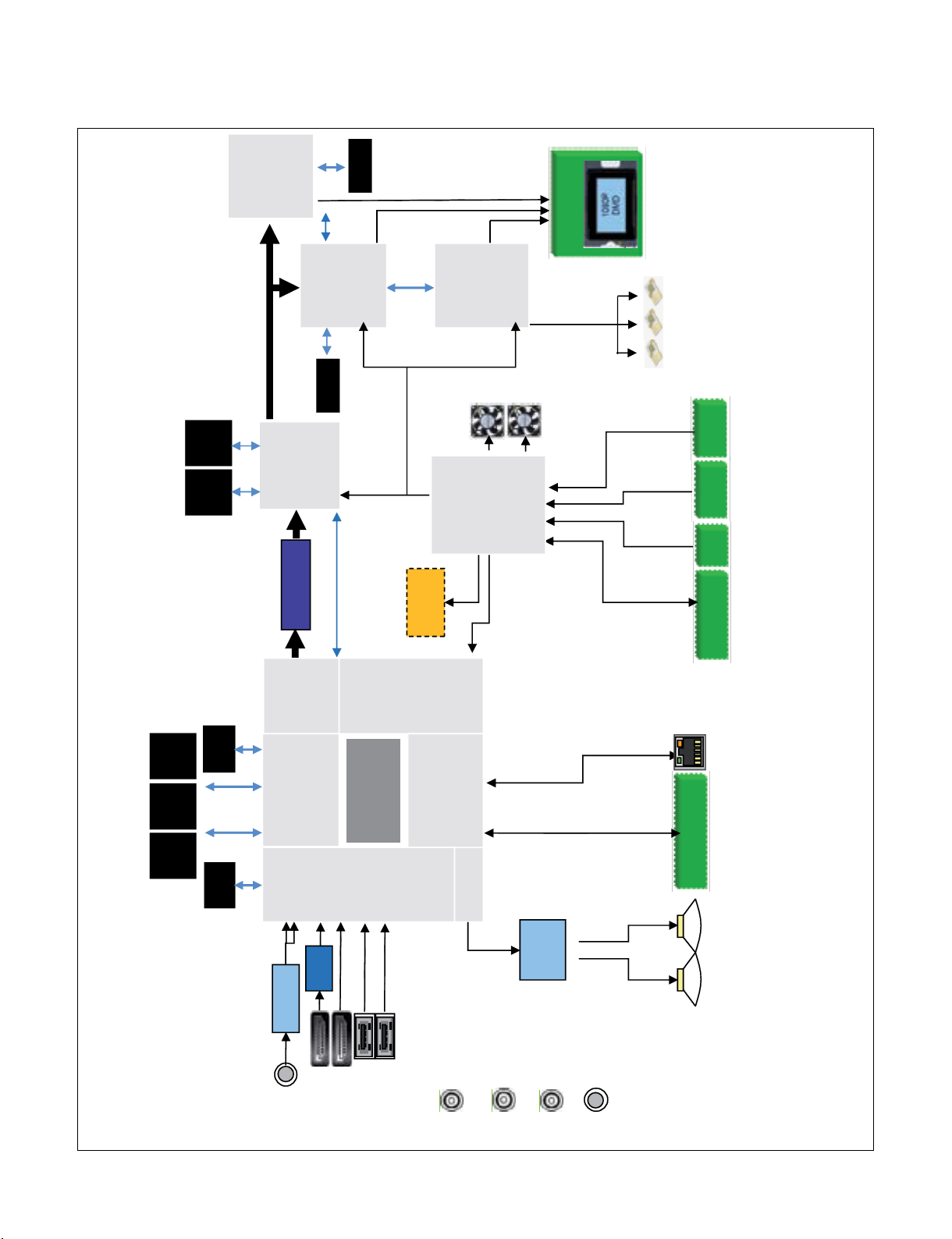

BLOCK DIAGRAM ................................................................................. 16
EXPLODED VIEW .................................................................................. 17
SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

- 3 -
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
SAFETY PRECAUTIONS

- 4 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This spec sheet is applied all of the DLP Projector with FM52A chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
(1) Temperature: 25 °C ± 5 °C, CST: 40 °C ± 2 °C
(2) Relative Humidity: 65 % ± 10 %
(3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
(4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with
BOM.
(5) The receiver must be operated for about 5 minutes prior to the adjustment.
3. Test method
(1) Performance: LGE TV test method followed
(2) Demanded other specification
Safety : KCC, IEC, CE specification (EN55022 Class B), CCC.
EMC : KCC, IEC, CE specification (EN60950-1), CCC.
4. Model General Specification
No Item Specication Remark
Min Max Unit
1 Video input applicable system 1) ATSC 3.579545 / 60 Hz
1) NTSC M
2) PAL-B,D,G,H,I
3) PAL M
4) PAL N
5) PAL 60
6) SECAM
3.579545 / 60 Hz
4.433618 / 50 Hz
3.575611 / 60 Hz
3.582056 / 50 Hz
4.433618 / 60Hz
2 Power DC 19 V @ 5.79A (110W) Set only
3 Input Voltage AC 100 ~ 240(± 10 %)V, 50/ 60Hz
4 Market Global
US PF1500-NA
5 Picture size FULLHD (1920 x 1080)
6 Aspect ratio 16:9 Panel Resolution
7Operating Temperature 0 40 deg
8 Operating Humidity 80 %
9Storage Temperature -20 60 deg
10 Storage Humidity 85 %

- 5 -
ADJUSTMENT INSTRUCTION
1. Application Object
This instruction is for the application to the DLP Projector
(Chassis: FM52A).
2. Notes
(1) The power source insulation of this DLP Projector is not
charging type and you may not use the transformer for
insulation. It is advised to use an insulation transform
between the power supply cable and power input of the set
to protect the test equipment.
(2) The adjustment must be performed under the correct
sequence. But, it can be changed within the error
boundary of performance, considering the mass
productivity.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity.
(4) For the adjustment, the receptor's input voltage shall be
maintained at 220 V, 60 Hz.
(5) The set must be on for 5 minutes prior to any adjustment.
After receiving possible 100 % White Pattern, it is ready for
adjustment. If it is inevitable, it can be regardless of the
signal.
3. Composition of Adjustment Mode
(1) Adjustment mode can be entered by pressing ADJ key of
the adjustment remote controller, and may exit by pressing
EXIT key after the adjustment.
(2) Preparation for adjustment.
1) Connect power to the Set, and make it Power On state.
2) Heat Run for at least 5 min. before the adjustment.
(3) Adjustment specification
1) Composition of adjustment mode
A. Turn on the power of the set with Power on key.
B. When the set is turned on, press the Power only key
to enter the power-only mode.
C. Select Default mode for input source.
D. Adjustment mode can be entered by pressing ADJ
key of the adjustment remote controller, and may exit
by pressing EXIT key after the adjustment.
E. Preparation for adjustment.
F. Connect power to the Set, and make it Power On
state.
G. Heat Run for at least 3 min. before the adjustment.
4. Folding Mirror Adjustment
4.1. Lighting System Adjustment Procedure
(1) Remove the cover from the engine.
(2) Make sure the optical engine is properly mounted correctly
in accordance with the reference position of the jig.
(3) After adjusting the screen size, using 40 inches as a
reference size, project a full white screen and then adjust
the focus.
(4) Left/right adjustment
1) Rotate screw (A) towards point A and check the point
where the light on the right starts to fade away.
2) Rotate screw (A) towards point B and check the point
where the light on the left starts to fade away.
3) Rotate screw (A) towards point C so that the left and
right light margins are equal with consideration for both
the points where the light on the left and right starts to
fade away.
(5) Up/Down adjustment
1) Rotate screw (B) towards point A and check the point
where the light at the top starts to fade away.
GG
(B)Up/Down Adj. (A)Left/Right Adj.

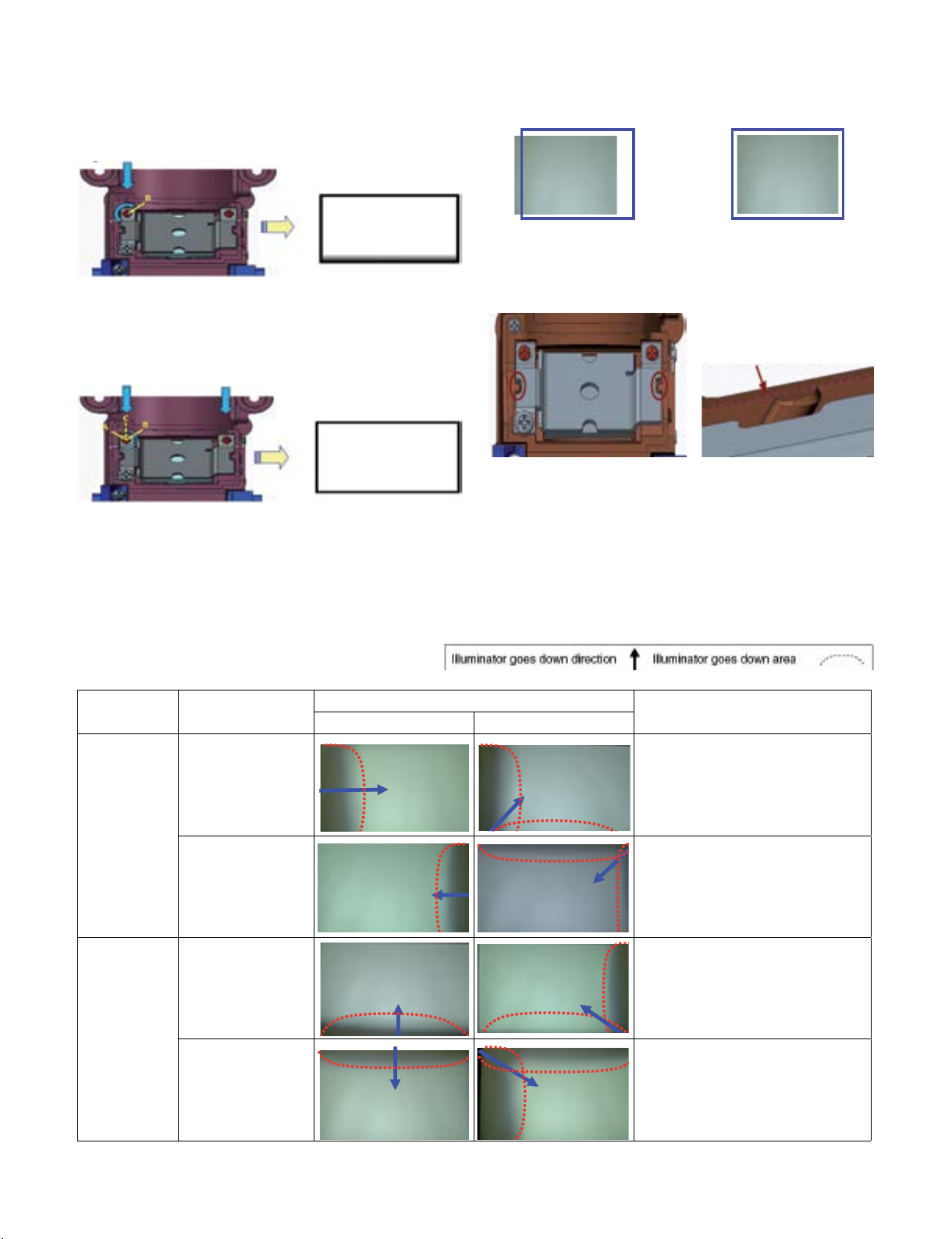

(Fig. 4-1) Full Black Lighting System Adjustment
(Fig. 4-1-1) Left/Right Adjustment
(Fig. 4-1-2) Left/Right Adjustment
(Fig. 4-1-3) Left/Right Adjustment
(Fig. 4-1-4) Up/Down Adjustment

- 6 -
2) Rotate screw (B) towards point B and check the point
where the light at the bottom starts to fade away.
3) Rotate screw (B) towards point C so that the top and
bottom light margins are equal with consideration for
both the points where the light at the top and bottom
starts to fade away.
(6) Apply 0.1 g of colorless UV glue to each application area.
(See the application areas in Fig. 4-1-8)
* Be sure to flatten out the glue, so it does not protrude
beyond the side rib.
(7) Project a full black screen and look for any light leakage.
(Fig. 4-1-5) Up/Down Adjustment
(Fig. 4-1-6) Up/Down Adjustment
Step1 Step2
(Fig. 4-1-7) Full White Lighting System Adjustment
(Fig. 4-1-8) UV Glue Application Areas and Height
Adjustment
Part
Screw Rotation Screen Status Adjustment Description
Initial Status After Adjustment
Left/Right
Adjustment
Screw A
Clockwise
(Tightening
direction)
First the light on the left fades away,
then the light at the bottom also
begins to fade away slowly.
Counterclockwise
(Loosening
direction)
First the light on the right fades away,
then the light at the top also begins to
fade away slowly.
Left/Right
Adjustment
Screw B
Clockwise
(Tightening
direction)
As the light at the bottom fades away,
the light on the right begins to fade
away slowly.
Counterclockwise
(Loosening
direction)
As the light at the top fades away, the
light on the left begins to fade away
slowly.


4.2. Illuminator Phenomenon Adjustment
G

- 7 -
4.3. Final Adjustment of Lighting System
Check again whether the left light margin is at the edge of the
screen and if there are any dark areas on the right edge of the
screen.
Check for foreign objects, the focus line width (measuring
items : see the figures below) and the focus stopper position,
and then fix the lighting adjustment lens.
Use a UV hardening device for about 25 seconds to harden
the area where UV glue was applied. (See Fig. 4-3-1.)
Apply 0.1 g of Super X glue to adjustment screws (A) and (B),
and then let them dry completely before the final adjustment.
Make sure that the applied glue does not protrude above the
side rib, and if necessary, apply the glue to the bottoms of the
adjustment screws as well.
4.4. Lighting System Margin Inspection
Method and Spec.
- Apply for the sample that the decision for good/fail is difficult
during visual inspection of lighting margin.
(1) Prepare CL-200 with measurement surface of width
20mm, length 5mm as in (Fig. 4-4-1)
(2) Bring up Full White pattern and check whether Light Cyan
shows.
(3) Measure the brightness at the boundary of the screen.
(Refer to Fig. 4-4-3)
(4) Measure brightness at 10mm in the inner direction from
screen boundary. (Refer to Fig. 4-4-4)
(5) Lighting Margin Spec shall be smaller than 105% of (4)
brightness/(3)brightness.
4.5. Focus test method and subject
- Test pattern : White Cross-Hatch Pattern
- Tools : Focus width measurement ruler
4.5.1. Focus adjustment method
(1) Set the projection distance of Engine as 1837 mm (60 Inch
screen).
(2) Pop up the Resolution Pattern among the Test Patterns of
Set, and x the Focus on the part where the White
Cross-Hatch Pattern is classied on each part of screen.
(3) Popup the White Cross-Hatch Pattern and measure the
width of each Point.
(4) Focus judging standard : 5.5 mm or less (Measure line
width excluding light Flare : Refer to Fig. 4-5-1-1)
(Fig. 4-4-1) CL-200 for lighting margin inspection (right side)
(Fig. 4-4-2) CL-200 for lighting margin inspection (right side)
(Fig. 4-4-3) Measure brightness of screen boundary
(Fig. 4-4-4) Measure brightness at 10mm inside the screen
$$SSOLFDWLRQ+HLJKW/LPLW
%$SSOLFDWLRQ+HLJKW/LPLW
(Fig. 4-3-1) UV Glue Application Areas and Height
Red Line ( light Flare), Blue Line (Thick Flare)
(Fig. 4-5-1-1) Standard for deciding line width

- 8 -
4.5.2. Focus Stopper Location Verication
(1) Test pattern : White cross-hatch
(2) Mount the lighting assembly to the module inspection jig,
then adjust the focus knob with the resolution measure-
ment pattern (see Fig. 4-5-2-1) and check screen size
conformity. (Wide)
(3) Place the white board 905 mm away from the projection
lens so that the screen size becomes 30 inches wide and
then visually check the focus. (Verify whether the 30"
screen is focused.)
(4) For 120" screen size conformity, adjust the screen in the
same way as 60" and check if “notching marker” is within
the limit line.
- 120" focus OK: "notching marker" is within the limit line.
- 120" focus NG: "notching marker" is outside the limit line.
4.6. Check for DMD Light Leakage
(1) Go to DMD Check Pattern – Internal Gray Pattern – Full
Gray 30 Pattern and visually check for any light leakage
and then nish checking. (See Fig. 4-6-1)
- DMD valid screen external light leakage conguration:
[The value of (brightness of light leakage / brightness of
the center)] X 100 should be less than 50(%).
- DMD internal screen light leakage conguration: The full
gray 30 pattern should not be seen.
* Measure the red border with the measurement part of the
CL-200, which is 20 mm (W) x 5 mm (L).
(2) Allow some image inclination on the left side of the screen.
5. Caution for DMD(Digital Micro-mirror Device)
5.1. Caution for DMD ESD
(1) Connector the grounding to prevent a damage of ESD
(Electrostatic Discharge) when handing the DMD.
(2) Wear a wrist strap to connect the ESD grounding in esh
necessarily.
(3) Connect the ESD ground to workstation and an electric
conductor.
(4) Save the DMD after getting rid of a static electricity. Keep
it at an exclusive case when moving it When grounding,
open the case.
(5) Put on gloves for preventing static electricity.
(6) All work is done at static free location. Attach the tape or
remove a dust on the DMD front or DMD back pin
5.2. Caution for DMD Clean
(1) Follow the procedure and caution to prevent the screen
from being scratched.
(2) When DMD glass stains with dust, polish the front and
back DMD glass with soft cloth. Then, do it again after
rotating 180 degree the DMD. If necessary, keep under
observation.
(3) Don't clean the DMD with the high pressure. The static
electricity and pressure will damage the DMD.
* Attachment )TI Reference :
DMD Handling Specication, DMD Cleaning
zG
sGs
yGaG G
jGGGyGiG
GGktkG
sGs
(Fig. 4-6-1) Verication of DMD light source
(Fig. 4-5-1-2) Resolution Pattern
(Fig. 4-5-2-1) Bushing verication location

- 9 -
6. MAC Address/Widevine/ESN/EDID/
HDCP1.4 and HDCP2.0 download
6.1. Used Device
- Play le: keydownload.exe
- Interface Board 1EA, RS232C cable
- Key Write: Com1,2,3,4 and 115200(baud rate)
- Barcode : Com 1,2,3,4 and 9600(baud rate)
6.2. Adjustment setting
- Connect the PC and the Interface Board with the RS232C
cable, and use the USB cable to connect to the set.
(Fig. 6-3-1)
6.3. Adjustment Method
(1) Run keydownload.exe from PC
(2) Select the item to download
(3) Check if the mode is set to “Online Only”
(4) Select the test process as follows
- DETECT -> MAC_WRITE -> Widevine Key write
(5) Press START to start
(6) Adjustment result is shown as Ready, Test, OK or NG.
6.4. Download
6.5. Checking TOOL OPTION
6.5.1. Adjustment Conguration
(1) Press the INSTART key to check TOOL OPTION and
Country Group.
TOOL OPTION 1 : 33476,
TOOL OPTION 2 : 11281,
TOOL OPTION 3 : 9
TOOL OPTION 4 : 64326,
TOOL OPTION 5 : 4115,
TOOL OPTION 6 : 7497
TOOL OPTION 7 : 43147
(2) Press the ADJ key to adjust Country Group.
- PF1500-NA : 02,US

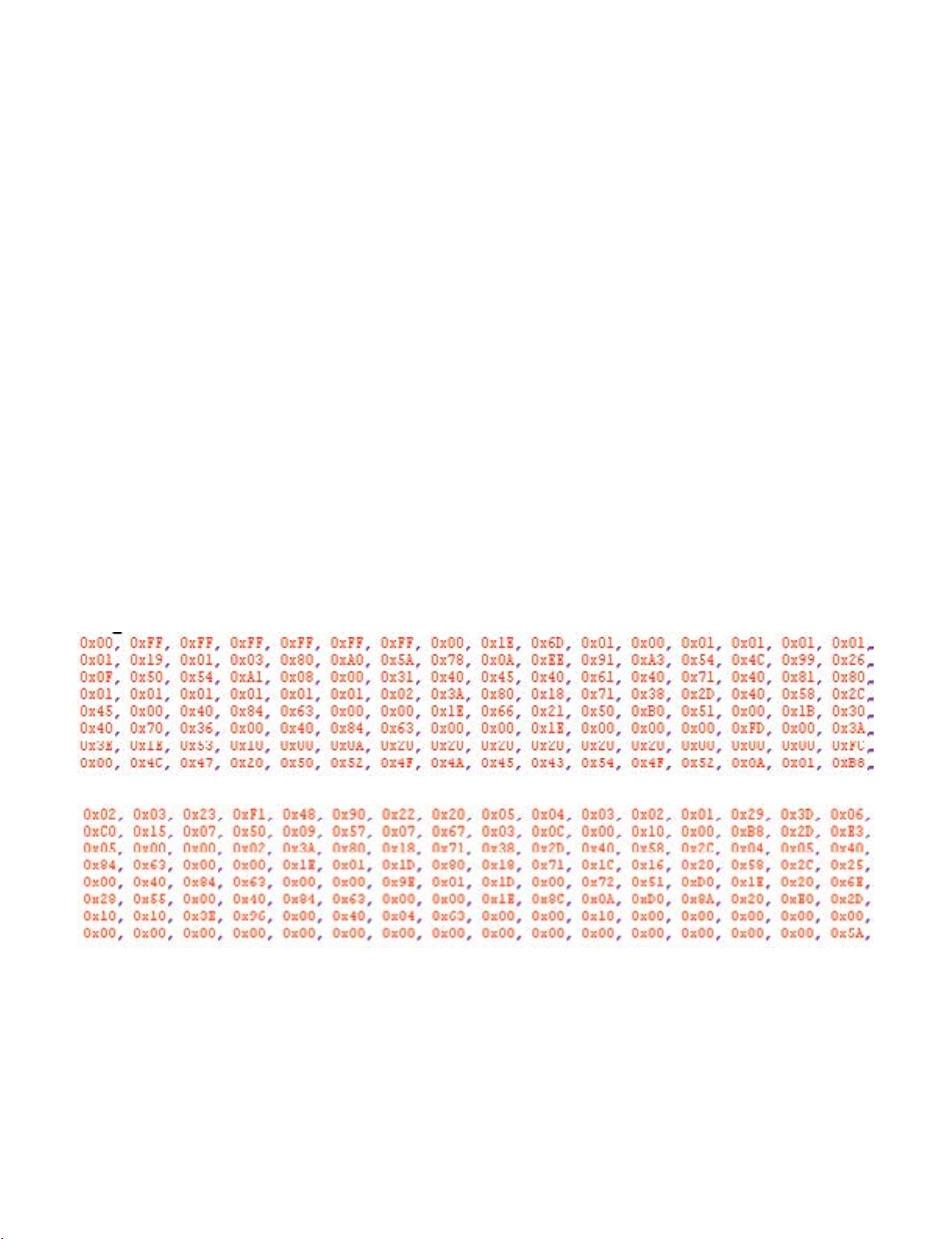

6.6. EDID Download
Be sure to download EDID while the HDMI jack is removed.
(1) Enter to adjustment mode with selecting "ADJ" on remote.
(2) Select "13. EDID D/L".
(3) Select "START", download EDID
7. Wi-Fi country index
(1) Press "ADJ" on the remote control to enter adjustment
mode.
(2) 7. Press the right arrow key to select an option in Country
Group.
(3) Set Wi Country Group and Wi Country by using the
arrow keys according to the Wi country index for each
sufx.
(Fig. 6-4-1)
MAC / Widevine key/ESN Key/HDCP1.4 and HDCP2.0 download
(Fig. 6-3-1)
Sufx Main
B/D assy
Sufx Wi Country
Group
Wi
Country
Country
EBT63457601 AUS US ETC US

- 10 -
8. LAN port Inspection(PING TEST)
8.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
- IP number : 12.12.2.2
8.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN CABLE
<Adjustment for Assembly Line>
9. Total Assembly Adjustment
9.1. Enter Power Only mode
(1) After assembling the SET, DC on the SET at the start of
post process. (use keypad or remote controller)
(2) Press ‘P-ONLY’ key of the adjustment remote controller to
enter ‘Power Only’ mode. (Full White screen is displayed)
(3) To enter the next adjustment, enter ‘EXIT’ of the remote
controller to exit Full white screen, and proceed to the
adjustment.
10. Compensate Auto Keystone
10.1. Used Device
- Adjustment remote controller
- Projector remote controller
10.2. Adjustment Preparations and Device
Conguration
(1) Adjustment Preparations
1) Input source: Default (no need to specify an input
source)
2) The set must be adjusted on a plate, glass or table with
a atness degree between more than -1 and less than
+1.
3) Incline upward the set to project an image over the top
line of the screen. After the keystone changes, adjust
the image to the adjusting position. (Fig. 10-2-1)
(2) Adjustment Method
1) Make sure the set is placed on an adjusting position.
2) Check the keystone value using the projector remote
control.
A. Enter the Menu button.-> Move through the
options.-> Check the Keystone value.
3) Enter the menu to compensate the keystone using the
adjustment remote controller.
A. ADJ -> 24. Auto Keystone ADJ -> Enter the right
arrow key
(Fig. 10-2-1) Preparations before Auto Keystone Compensation
(Fig. 10-2-2) Auto Keystone Menu

- 11 -
4) Compensate keystone distortion by pressing the left/
right arrow keys according to the keystone value you
have checked in 2).
- If the value you have checked in 2) is positive (+),
press the left arrow key.
- If it is negative (-), press the right arrow key as many
times as the value. (ex. If the value was -3, then press
the right arrow key 3 times to make it +3.)
11. MAC Address/Widevine/ESN /EDID/
HDCP1.4 and HDCP2.0 Verication
11.1. Used Device
- Adjustment Remote Controller
11.2. MAC Address/Widevine/ESN /EDID/
HDCP1.4 and HDCP2.0 V erication
Method
(1) Press "IN-START" on the adjustment remote control.
(enter "0413" for the password).
(2) 1. Adjust Check →. 5. EDID: Check if HDMI1/2 is set to
“0K”. (Fig. 11-2-1)
(3) 1. Adjust Check →. “4. Adjust ADC (OTP): Check if "OK" is
set for Component.
(4) 1. Adjust Check: Check the downloaded MAC Address,
Widevine, ESN, and HDCP on the left side of the screen.
(5) To exit the "IN-START" screen, press "IN-START" again or
"EXIT" on the adjustment remote control.
12. Checking the WI-FI & MAGIC
SEARCH Adjustments
12.1. Used Device
- Adjustment remote control (1 EA),
- Golden remote control (1 EA)
12.2. How to Check WI-FI &
MAGIC SEARCH
(1) Select “P-ONLY” on the adjustment remote control.
(2) Connect the 3V adaptor to the Golden remote control to
keep it always turned on.
(3) Wi-Fi searches and pairings with MAGIC REMOTE
CONTROL are performed automatically.
(4) Select “IN-START” on the adjustment remote control. (Enter
"0413" as the password).
(5) Among the In-Start items, check if “OK/OK” is set for Wi-Fi/
Magic Search.
(6) To exit the "IN-START" screen, press "IN-START" again or
"EXIT" on the adjustment remote control.
(Fig. 11-2-1) Adjustment Menu when IN-Start is selected
(Fig. 12-2-1) Adjustment Menu when IN-Start is selected
(Fig. 10-2-3) Example Before Auto Keystone Compensation
(Fig. 10-2-4) Example Before Auto Keystone Compensation

- 12 -
13. HDMI 1.4 ARC Inspection
13.1. Used Device
- MSHG-600,
- optic decoder,
- adjustment remote control
13.2. HDMI ARC Inspection
(1) Select “P-ONLY” on the adjustment remote control.
(2) Insert the HDMI cable connected to the MSHG-600 device
to the HDMI (ARC) port.
(3) Check if the speaker operates normally.
(4) After four to ve seconds, check if the projector speaker
turns off and the sound can be heard through the con-
nected ARC device.
* Ports 1 and 2 of the MSHG-600 device support ARC. The
ports 3, 4, and 5 do not support ARC.
* The supported ARC ports are marked as "HDMI (ARC)".
14. Brightness Inspection
- Measure the subjects below and it should satisfy the spec of
product specication.
(1) Brightness(Annsi-Lumen)
(2) Whiteness color coordinate
(KAGA measures R,G,B color coordinate)
(3) Color Uniformity
(4) Brightness Uniformity
14.1. Preparation for Adjustment and
Device Composition
14.1.1. Adjustment Preparation
(1) Input source: Default (No need to designate Source)
(2) The order of operating the adjustment remote controller
buttons
- IN-STAR -> 18. DDP OPTIC CHECK -> Select Full
White.
14.1.2. Brightness Measurement Screen Setting
14.1.3. Projector Brightness Measurement
JIG Software Organization
(1) Model Selection : PF1500
(2) Selecting screen size : W: 886, H: 498
1) Press the direction key of the adjustment remote
controller to change the screen of the projector to White
Pattern.
- After 2~3 seconds, White Color Coordinate Data is
transmitted from CL200.
- In the result display window in the right center of the
screen, color coordinate and brightness value are
recorded.
2) Press ‘Finish’ button of the screen.
(3) White brightness inspection: brightness is Min Spec 600
ANSI lm or more.
15. TV Performance test
(1) Channel scan
1) Connect the signal to RF Jack.
2) Select “TV” by pressing “Input” on the remote control.
3) Select Menu-Channel-Auto Channel to check the chan-
nels by running auto scan.
- Make sure to run AUTO SCAN on the rst production
set (Lot)
(2) Analog TV test
1) Connect the signal to RF Jack.
2) Select “TV” by pressing “Input” on the remote control.
3) Press “CH+/CH-“ on the remote control to switch the
channel to CH2, CH4(HECTO2), and then check the
screen condition.
(3) Digital TV test
1) Connect the signal to RF Jack.
2) Select CH31-3(HECTO2) and check the DTV reception
condition.
Screen
Projection Distance(D) : 1230 mm
Projection Off Set : 100%
Screen
Projection Distance(D) : 1230 mm
(Fig. 14-1-2-1)
Brightness Measurement Screen Setting Composition
(Fig. 14-1-3-1)

- 13 -
16. Final Inspection
- Carry out according to the contents of the nal inspection in
the Working Guide. (Auto Keystone Test and Sound Vibra-
tion Test)
(1) Check the Keystone value using the projector remote
control.
1) The set must be inspected on a plate, glass or table with
a atness degree between more than-1 and less than
+1.
2) Incline upward the set to project an image over the top
line of the screen. After the keystone changes, adjust
the image to the inspecting position.
3) Enter the Menu button.-> Move through the options.->
Check the Keystone value.
4) It is O.K, if the keystone value is -2 or higher and +2 or
lower.
(2) Use the Sweep Sound Source in the USB device provided
to perform additional Sound Vibration Tests
1) Sound Vibration Test should be conducted on a com-
pletely at surface.
2) Set the volume of the set to 45 to perform the test.
3) Insert the USB device. Go to Input -> USB input ->
Select Sweep Sound Source to perform the test.
4) Check the Sound Vibration through a qualitative method
and determine if it is okay or not.
[Reference]
1. EDID Data
- HDMI 1 : BLOCK 0
- HDMI 1 : BLOCK 1

- 14 -

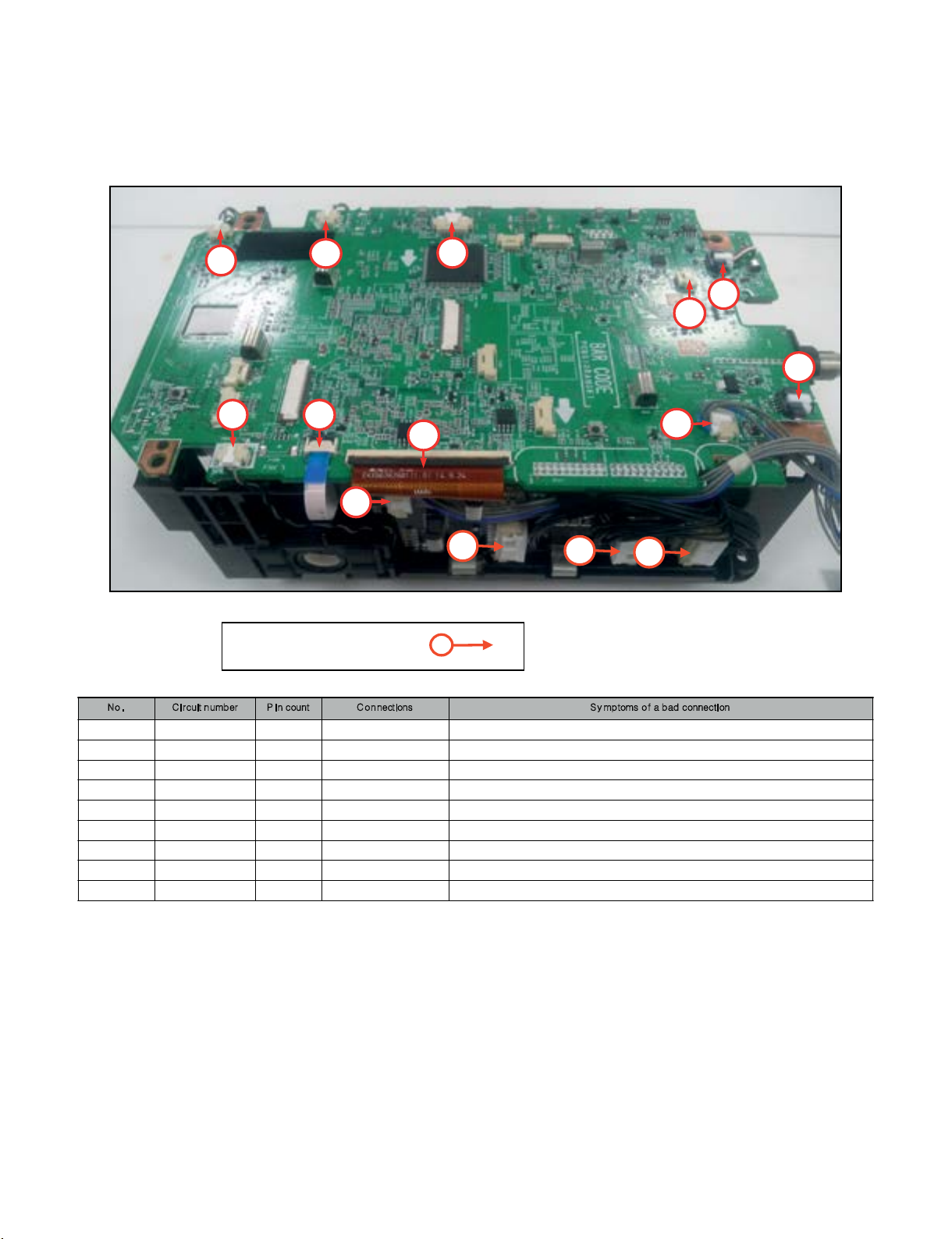

TROUBLE SHOOTING GUIDE
2
1
3C 3B 3A
4
5B
5A
6B
6A
7
8
9A
9B
i
1. Poor Connection
- Main, LED Board Ass’y
ͿΠ  ʹ ΚΣΔΦΚΥΟΦΞΓΖΣ ΁ ΚΟΔΠΦΟΥ ʹ ΠΟΟΖΔΥΚΠΟΤ ΄ Ϊ ΞΡΥΠΞΤΠΗΒΓΒΕΔΠΟΟΖΔΥΚΠΟ
΁  ͵ʹͻΒΔΜͿΠΚΞΒ ΘΖΟΠΟΖΗΦΟΔΥΚΠΟΒΝΠΗͽͶ͵
΁ ͵ʹͻΒΔΜ ͿΠΚΞΒ ΘΖΟΠΟΖΗΦΟΔΥΚΠΟΒΝΠΗΞΒΚΟ΄Πʹ
Ͳͳʹ ΁΁΁  ͽͶ͵͸΃ͳ ͵ΚΤΡΝΒΪΥΦΣΟΤΠΗΗΚΞΞΖ ΕΚΒΥΖΝΪΒΗΥΖΣΡΠΨΖΣΠΟΠΣΟΠΚΞΒΘΖΟΠΟΖΗΦΟΔΥΚΠΟΒΝΠΗͽͶ͵
΁  ͼΖΪΡΒΕ ͻΠΪΤΥΚ ΔΜͼΖΪΤΚΤΟ ΠΥΗΦΟΔΥΚΠΟΒΝ
Ͳͳ΁΁ ΄ΡΖΒΜΖΣ ͿΠ Τ ΠΦΟΕΗΣΠΞΥΙΖΝΖΗΥΣΚΘΙΥΤΡΖΒΜΖΣ
Ͳͳ ΁΁ ΅ΖΞΡΖΣΒΥΦΣΖ΄ΖΟΤΠΣ΄ΖΥΥΦΣΟΤΠΗΗΒΦΥΠΞΒ ΥΚΔΒΝΝΪΒΗΥΖΣΗΖΨΤΖΔΠΟΕΤ
΁  ͵;͵ͳΠΒΣΕͿΠΚΞΒΘΖΟΠΟΖΗΦΟΔΥΚΠΟΒΝΠΗ͵΁΁Ͳ΄ͺʹ
΁ ΈΚͷΚͳ΅ͳΠΒΣΕΈΚͷΚͳΝΦΖΥΠΠΥ ΙͷΦΟΔΥΚΠΟΚΤΟΠΥΨΠΣΜΚΟΘ
Ͳͳ΁΁ ͷͲͿͷΒΟΕΠΖΤΟ׏ΥΨΠΣΜΒΟΕΤ ΖΥΥ ΦΣΟΤΠΗΗΒΦΥΠΞΒΥΚΔΒΝΝΪ

- 15 -
TROUBLE SHOOTING GUIDE
zl{G{
zl{GwGv

u
OrGslk
uGP
zl{GGG
Gf
jGwGG
͵ΚΤΔΠΟΟΖΔΥΥΙΖ;ͲͺͿͽͶ͵
ΡΠΨΖΣΔΒΓΝΖΒΟΕΞΖΒΤΦΣΖ
ΥΙΖ΁΄ΆΧΠΝΥΒΘΖ
jGmGv
jGmhuGGjG
jGmhuG
jGGt 
jGslkGZWwGj
jGktkGj
ktkGhGi’
GGj
jGtGhG
jGtG
jGslkGG



u
u
u
u
u
OrGslk
P
ˈmhuGl ”ˈo  G{Gl”

jGslk 
jGwz|G
jGktkGG 
jGktkGG
jGktkGG
jGtG
jGslkG
jGtG jGslkGG
LED on but No imageLED not turning on
If turned off automativally,
Symptoms can be checked at power
off status of Instart
yGGtGhGG
pG
OVG¡GGP

- 16 -
BLOCK DIAGRAM
uj[U\
snlYXYYOhYP
kkyZ Y\]ti
kkyZ \XYti
ttj [ni
u}yht Y\]ri
s}kzG{ vGG{{s
lttjkWa^
lttjj{s
I2C
kkykxX]aYZ
kkyhhWaXZ
kkyj{s
{|uly {kzzTo\\Xm
HDMI/MHL
ANTENA
CVBS+PC AUDIO
oktpX }pj}izYGVG}pzpm
}ppm
hGhtw
u{w^\X\
Z~ Z~
pYzv|{h
SPEAKERS
sGGGGG y
NTC
TEMP(2EA)
s}kzv|{ {oj]Zs}kXWY[
WIFI / Bluetooth
RJ45
lwo
|ziY
COMBO MODULE
zvjylzl{
zp
wv~ly
isvjr
DMD B/D
oktpY
kkyZ \XYti
kz|iyni
Headphone out
COMP
h}Xj}izp
uGG jvtwXGGGG
jpkh{hWT^GG
t{\Z]`{zpuWT^
Joystick IR
USB (DVR)
SPDIF Audio out
I-Chips
(IP00C786)
|ziX
DDP3439
kkyY ][tiG
I2C
SPI
PAD3005
DDP3439
yniGslk
kkyY ][tiG
NTC
|ziY
SPI
zGm 
_t
zGm 
_t
R5F100G
py
hpuWT\
zvjylzl{ |hy{ w~t
mhuZ
wv~lyvuVvmm
wyvqvu
rl
HDMI/ARC
USB
tosGy
SPISPI

- 17 -
300
100
310
570
600
530
120 700
900 540
800
400
510
910
550
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

THERMAL
THERMAL
USB DOWN STREAM
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
EMMC_DATA[5]
EMMC_DATA[3]
EMMC_DATA[2]
EMMC_DATA[7]
EMMC_DATA[4]
EMMC_DATA[6]
C328
0.1uF
COMP1_DET
I2C_SCL5
OPCTRL_11_SCL
MODEL_OPT_7
AV1_CVBS_DET
OSCL0
I2C_SDA2
+3.3V_NORMAL
OPCTRL_0_SDA
EMMC_RST
USB_CTL1
MODEL_OPT_3
MODEL_OPT_6
LED_PWM0
HP_DET
MODEL_OPT_0
OTP_WRITE
#SIL_RESET
MODEL_OPT_2
MODEL_OPT_9
I2C_SCL4
I2C_SCL3
C398
0.1uF
16V
OPT
I2C_SDA5
LED_PWM0
C399
0.1uF
16V
OPT
OPCTRL_0_SDA
/S2_RESET
OPCTRL_10_SDA
M_RFModule_RESET
WIFI_DM
OPCTRL_1_SCL
OPCTRL_1_SCL
+3.3V_NORMAL
/S2_RESET AVDD_33SB
MODEL_OPT_1
IC105
LGE2122[A2_M13]
GPIO0
B30
GPIO1
A31
GPIO2
B31
GPIO3
A32
GPIO4
C30
GPIO5
A33
GPIO6
B32
GPIO7
C31
GPIO8
E30
GPIO9
F29
GPIO10
F27
GPIO11
F28
GPIO12
C32
GPIO13
F30
GPIO14
F32
GPIO15
D30
GPIO16
D32
GPIO17
F31
GPIO18
F33
GPIO19
E31
GPIO20
E32
GPIO21
D31
GPIO22
D33
GPIO23
E29
GPIO24
C33
GPIO25
B33
GPIO26
A30
GPIO27
E28
GPIO28
C29
GPIO29
J28
GPIO30
H29
GPIO31
J26
GPIO32
G30
GPIO33
G27
GPIO34
E27
GPIO35
D29
GPIO36
D28
GPIO37
H28
GPIO38
J27
GPIO39
G29
GPIO40
G31
GPIO41
G28
GPIO42
B28
GPIO43
K28
GPIO44
E25
GPIO45
D21
GPIO46
G23
GPIO47
C28
GPIO48
F24
GPIO49
AB8
GPIO50
AA7
GPIO51
AD6
GPIO52
AC8
GPIO53
AC7
GPIO54
AB6
GPIO55
AC6
ADIN0_SRV
AJ23
ADIN1_SRV
AH23
ADIN2_SRV
AE28
ADIN3_SRV
AD28
ADIN4_SRV
AF22
ADIN5_SRV
AK21
ADIN6_SRV
AG24
ADIN7_SRV
AM18
DEMOD_RST P30
DEMOD_TSCLK N32
DEMOD_TSDATA0 R27
DEMOD_TSDATA1 T26
DEMOD_TSDATA2 T27
DEMOD_TSDATA3 P26
DEMOD_TSDATA4 R28
DEMOD_TSDATA5 U27
DEMOD_TSDATA6 U26
DEMOD_TSDATA7 R26
DEMOD_TSSYNC R29
DEMOD_TSVAL P27
CI_INT L25
CI_TSCLK N33
CI_TSDATA0 K26
CI_TSSYNC N30
CI_TSVAL N31
PVR_TSCLK M31
PVR_TSVAL M27
PVR_TSSYNC L27
PVR_TSDATA0 M29
PVR_TSDATA1 M30
SPI_CLK1 L30
SPI_CLK L33
SPI_DATA L32
SPI_CLE K27
OPWM2 AL8
OPWM1 AM8
OPWM0 AM9
SD_D0 D27
SD_D1 C27
SD_D2 D26
SD_D3 C26
SD_CMD A28
SD_CLK E24
LED_PWM1 AF15
LED_PWM0 AG15
OPCTRL11 AL16
OPCTRL10 AM16
OPCTRL9 AE17
OPCTRL8 AG19
OPCTRL7 AH17
OPCTRL6 AE19
OPCTRL5 AH19
OPCTRL4 AK16
OPCTRL3 AG17
OPCTRL2 AJ17
OPCTRL1 AF19
OPCTRL0 AJ19
OSDA0
MODEL_OPT_6
STB_SDA
I2C_SDA4
OSCL2
/TU_RESET1
OPCTRL7
OPCTRL3
OPCTRL_10_SDA
WIFI_DP
OSCL1
MODEL_OPT_0
/USB_OCD1
OPCTRL_11_SCL
I2C_SDA6
I2C_SDA3
OPCTRL3
C302
0.1uF
OSDA2
MODEL_OPT_1
LED_PWM1
MODEL_OPT_3
STB_SCL
VDD3V3
AMP_RESET_N
I2C_SCL2
MODEL_OPT_10
I2C_SDA1
OSDA1
I2C_SCL6
+3.3V_NORMAL
MODEL_OPT_5
I2C_SCL1
MODEL_OPT_7
MODEL_OPT_5
OPCTRL7
MODEL_OPT_8
LED_PWM1
D5001
5.5V D5003 5.5V
D5000
5.5V D5002 5.5V
IC105
LGE2122[A2_M13]
USB_DP_P0
H32
USB_DM_P0
H33
USB_DP_P1
J32
USB_DM_P1
J31
USB_DP_P2
K32
USB_DM_P2
K31
USB_DP_P3
AN10
USB_DM_P3
AM10
AVDD33_USB_P0P1P2
K33
AVDD33_USB_P3
AN8
AVSS33_USB_P1
M25
AVSS33_USB_P3
AE11
TXVP_0 AL13
TXVN_0 AM13
RXVP_1 AL12
RXVN_1 AM12
PHYLED1 AF13
PHYLED0 AJ13
REXT AN12
AVDD33_ETH AN14
AVSS33_ELDO AE13
AVSS33_LD AC16
AVSS33_COM AC15
VDD3V3
C4113
10uF
10V
C117
0.1uF
16V
C112
4.7uF
10V
EMMC_DATA[1]
C110
0.1uF
C4111
0.1uF
16V
EMMC_DATA[0]
M_RFModule_RESET
OSCL1
D100
100V
1N4148W
IC105
LGE2122[A2_M13]
JTCK
AK10
JTDI
AK11
JTDO
AL9
JTMS
AJ11
JTRST
AJ12
OSDA0
AH11
OSCL0
AH10
OSDA1
AF11
OSCL1
AG11
XTALI
AN29
XTALO
AM29
AVDD33_XTAL_STB
AN30
AVSS33_XTAL_STB
AL29
AVDD33_VGA_STB
AN17
AVSS33_AVSS33_VGA_STB
AL17
AVDD33_PLL
AL26
AVSS33_PLLGP
AC21
AVSS33_CPUPLL
H21
AVDD10_LDO
AM17
AVDD10_ELDO
AN16
U0TX AH15
U0RX AH14
U1TX AH13
U1RX AG13
POWE D24
POOE B25
POCE1 D25
POCE0 A25
PDD7 C22
PDD6 B22
PDD5 A22
PDD4 C23
PDD3 A23
PDD2 B23
PDD1 D23
PDD0 C24
PARB C25
PACLE A26
PAALE B26
EMMC_CLK C21
OPWRSB AL15
ORESET AK20
OIRI AF17
FSRC_WR C20
STB_SCL AL14
STB_SDA AK15
POR_BND AE14
SOC_RX
WOL/WIFI_POWER_ON
OTP_WRITE
Q100
PMV48XP
G
D S
AVDD_33SB
WIFI_DP
VDD3V3
+3.5V_ST_WAKE
X100
27MHz
4GND_2 1
X-TAL_1
2
GND_1 3X-TAL_2
OSDA0
WIFI_DM
+3.3V_NORMAL
OSCL0
WOL/ETH_POWER_ON
AVDD_33SB
C107
4.7uF
10V
SOC_TX
SOC_RESET
STB_SDA
OSDA1
C4112
10uF
10V
D1408
RCLAMP0502BA
OPT
AVDD_33SB
C109
0.1uF
STB_SCL
WOL/ETH_POWER_ON
+3.3V_NORMAL
L4111
BLM18PG121SN1D
EMMC_CMD
C111
0.1uF
EMMC_DATA[2-7]
EMMC_CLK
EPHY_TDP
EPHY_RDN
EPHY_TDN
EPHY_RDP
JK1405
BS-RB10038
1
2
3
4
5
6
7
8
9
10
11
12
13
EPHY_RDP
EPHY_RDN
EPHY_TDN
EPHY_TDP
C114
5pF
50V C115
5pF
50V
C4500
0.1uF
16V
MODEL_OPT_53D_L/R
USB_DM1
USB_DP1
C4501
10uF
10V
ZD506
5V
ZD507
5V
P4102
12507WR-08L
1
2
3
4
5
6
7
8
9
ZD4112
ADLC 5S 02 015
OPT
IC100-*1
M24256-BRMN6TP
NVRAM_ST
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
+3.3V_NORMAL
I2C_SDA5
I2C_SCL5
IC100
AT24C256C-SSHL-T
NVRAM_ATMEL
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
+3.3V_NORMAL
C5000
0.1uF
16V
C5001
0.01uF
50V
D4302
RCLAMP0502BA
C4322
10uF
10V
+5V_USB_1
USB_DP1
USB_DP2
USB_DM2
/USB_OCD2
+5V_USB_2
USB_CTL1
+5V_USB_1
USB_CTL2
+5V_NORMAL
/USB_OCD1
C4502
10uF
10V
D4303
RCLAMP0502BA
C4323
10uF
10V
+5V_USB_2
/USB_OCD2
R153-*2
1.2K
TU_S/Q_T
R152-*2
1.2K
TU_S/Q_T
R147
2.7K
R106 4.7K
OPT
R176 22 OPT
R122 4.7K
R162
1K
R156
1K
R185
10K
R146 4.7K
OPT
R163
1K
R140 4.7K
OPT
R115 33
R169 10K
NON_EU
R148 4.7K
R121
1.2K R151
2.7K
R145 4.7K
OPT
R131 4.7K
R170 10K
R130 4.7K
R143 4.7K
R154
1K
OPT
R178 22 OPT
R108 4.7K
R129 4.7K
OPT
R157
1K
OPT
R139 4.7K
R111 33
R150
2.7K
R123 4.7K
OPT
R155
1K
R128 4.7K
OPT
R179 OPT
22
R182 33
R104 4.7K
R153-*1
1.5K
TU_Q_KR
R113 33
R161
1K
OPT
R118 33
R114 33
R137 4.7K
OPT
R105 4.7K
OPT
R133
2.7K R141 2.7K
R31524K
R132
2.7K R153
2.7K
NON_TU_Q_KR
R152
2.7K
NON_TU_Q_KR
R136 4.7K
R142
2.7K
R382
0
R103 4.7K
R383
0
R120 33
R117 33
R110 33
R119 33
R144 4.7K
R160
1K
OPT
R112 33
R149 4.7K
OPT
R107 4.7K
OPT
R124
1.2K
R109 33
R152-*1
1.5K
TU_Q_KR
R138
2.7K
R116 33
R4130
22
OPT
R4136 22
R187
4.7K
OPT
R158
22 R189
10K
OPT
R194 10K
R196
240
R195 10K
R188
4.7K
R190
10K
R180 4.7K
R186
22
R193 4.7K
R378
0
OPT R379
0
OPT
R1710
OPT
R172 0
R173 0
R4500
10K
OPT
R4501
10K
R159 33
OPT
R164
0
R167 10K
R101
4.7K
R135 33
R102
4.7K
OPT
R134 33
R100
4.7K
OPT
R308 2.2
R309 2.2
R4502
10K
R316 2.2
R317 2.2
IC4500
DIODES TAIWAN INC
USB_OCP_DIODES
3
EN1
2
IN
4
EN2
1
GND
5FLG2
6OUT2
7OUT1
8FLG1
9
[EP]GND
IC4500-*1
TPS2066CDGNR
USB_OCP_TI
3
EN1
2
IN
4
EN2
1
GND
5FLT2
6OUT2
7OUT1
8FLT1
9
[EP]GND
MTK_MISO
MTK_MOSI
MTK_CS
MTK_CLK
R191 22
R192 22
R197 22
R198 22
R183 22 OPT
R184 22 OPT
+3.3V_N_SUB
+3.3V_N_SUB
JK3300
SPG12-DU-0300
1 3 42 5 6 7 8
9
TXB4P
TXA4N
C350
0.1uF
TXACLKN
TXBCLKP
MODEL_OPT_2
VDD3V3
TXB1P
MODEL_OPT_8
TXACLKP
TXB2P
TXA2P
MODEL_OPT_10
+1.2V_MTK_AVDD
R343
24K
1% TXB3N
TXA0P
USB_CTL2
TXA1N
TXB3P
TXB0N
TXB4N
MODEL_OPT_9
TXA1P
TXB1N
TXBCLKN
TXA4P
C354
0.1uF
C347
0.1uF
TXB2N
TXB0P
R337 0
OPT
TXA2N
TXA3N
IC105
LGE2122[A2_M13]
TCON0
AA8
TCON1
AA9
TCON2
W6
TCON3
U6
TCON4
U7
TCON5
V8
TCON6
V6
TCON7
AB7
TCON8
W9
TCON9
U8
TCON10
U9
TCON11
V9
TCON12
V7
AVDD12_LVDS_1
AN1
AVDD12_LVDS_2
AN2
AVDD12_LVDS_3
AN3
AVDD33_LVDS
AN4
AVSS12_LVDS_1
AM4
AVSS12_LVDS_2
AM3
AVSS12_LVDS_3
AF5
AVSS33_LVDS_1
AE5
AVSS33_LVDS_2
AC5
AVSS33_LVDS_3
V5
REXT_VPLL
T1
BE0P Y1
BE0N Y2
BE1P W3
BE1N W4
BE2P V3
BE2N V4
BECKP V1
BECKN V2
BE3P U3
BE3N U4
BE4P T3
BE4N T4
BO0P AD1
BO0N AD2
BO1P AC3
BO1N AC4
BO2P AB3
BO2N AB4
BOCKP AB1
BOCKN AB2
BO3P AA3
BO3N AA4
BO4P Y3
BO4N Y4
AE0P AH1
AE0N AH2
AE1P AG3
AE1N AG4
AE2P AF3
AE2N AF4
AECKP AF1
AECKN AF2
AE3P AE3
AE3N AE4
AE4P AD3
AE4N AD4
AO0P AM1
AO0N AM2
AO1P AL3
AO1N AL4
AO2P AK3
AO2N AK4
AOCKP AK1
AOCKN AK2
AO3P AJ3
AO3N AJ4
AO4P AH3
AO4N AH4
TXA0N
TXA3P
C786_INT R199 22
USB_DM2
USB_DP2
USB_DM1
5V Tolerance
I2C_1 : AMP, HDCP KEY
I2C_2 : AUTO KEYSTONE, MHL(Sil1292)
I2C_3 : MICOM
I2C_4 : DPP3439
I2C_5 : NVRAM
I2C_6 : TUNER_MOPLL(T/C,ATV)
Port was changed !!!!
Wake On Lan
MODEL_OPT_4
I2C
MODEL_OPT_4
GPIO45(EMMC_RST) is dedicated to reset
EMMC for improving A1’s leakage current
Support Not Support
STRAPPING LED_PWM0 LED_PWM1 OPCTRL3 OPCTRL7
ICE mode + 27M + serial boot 1 0 0 0
ICE mode + 27M + ROM to Nand boot 1 0 0 1
ICE mode + 27M + ROM to 60bit ECC Nand boot 1 0 1 0
ICE mode + 27M + ROM to eMMC boot from 1 0 1 1
EMMC pins (share pins w/s NAND)
ICE mode + 27M + ROM to eMMC 1 1 0 0
Boot from SDIO pins
Model Option
ETHERNET
MAX 0.4A
Wake On Lan
X-TAL
3D_L/R
PF1500-JE
10MAIN_1
2014.05.19
1
WIFI COMBO
LCD:OPC_EN
Write Protection
- Low : Normal Operation
- High : Write Protection
NVRAM
FHD
Module
DDR_0.78G
MODEL_OPT_9
DDR_0.768G
MODEL_OPT_5
High
LOW
DDR
V12
MODEL_OPT_4
EPI
MODEL_OPT_5
NON_DDR_0.78G
High
Support
MODEL_OPT_1
DDR_1.5G
High
Not Support
HIGH
MODEL_OPT_10
MODEL_OPT_2
V13
Support
MODEL_OPT_9 Low
Non_TW
MODEL_OPT_7
TW
CP BOX
FRC(120Hz)
DDR
Disable
Panel
Enable
DDR_1.25G
AJJA
Low
MODEL_OPT_0
Not Support
Country_TW
MODEL_OPT_3 Non_AJJA
Country_AJJA
MODEL_OPT_8
DDR_1.5G
DDR_1.25G
T2 Tuner
Low
HD
No FRC(60Hz)
MODEL_OPT_6
S Tuner
FRC
USB1/USB2
OCP USB1/2
USB SWITCH
Delete

THERMAL
THERMAL
Fiber Optic
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
AUD_LRCH
AUD_LRCK
AUD_MASTER_CLK
D1-_HDMI4_MHL
C342
100pF
50V
1.2V_MHL
R368100
C61011uF 10V
DC_19V
TP304
L3303
BLM18PG121SN1D
TP3300
R6104
43K1%
C307
0.1uF
D2-_HDMI4_JACK
C387
22pF
OPT
IC105
LGE2122[A2_M13]
AIN1_R_AADC AL32
AIN1_L_AADC AN32
AIN2_R_AADC AM33
AIN2_L_AADC AM31
AIN3_R_AADC AM32
AIN3_L_AADC AK33
AIN4_R_AADC AL33
AIN4_L_AADC AN33
AVDD33_AADC AJ32
AVSS33_AADC AC24
VMID_AADC AN31
MPXP AH25
AR0_ADAC
AK30
AL0_ADAC
AJ29
AR1_ADAC
AJ31
AL1_ADAC
AK29
AR2_ADAC
AJ30
AL2_ADAC
AH28
AVDD33_ADAC
AJ33
AVSS33_ADAC
AC23
ALIN
AG9
ASPDIF0
AG10
ASPDIF1
V27
AOBCK
AK9
AOLRCK
AJ9
AOMCLK
AF10
AOSDATA4
AH9
AOSDATA3
AK8
AOSDATA2
AJ8
AOSDATA1
AH8
AOSDATA0
AJ10
R3357
10K
C310
33pF
C355
0.047uF
5V_MHL
C351
0.1uF
L303
BLM18PG121SN1D
C3312
10uF
10V
R339
2.2K
OPT
C3751500pF
R36351
VDD3V3
R36451
DDC_SCL_MHL
C3710.01uF
C6102
1uF
10V
Q3301
MMBT3904(NXP)
E
B
C
R352 1.2K
C3314
0.1uF
16V OPT
5V_MHL
5VBUS
R3387
120K
IF_P
R307 1K
5V_MHL
C396
33pF
OPT
D3301
MMBD6100
A2
C
A1
R340 100
OPT
VA3303 ADLC 5S 02 015
D2+_HDMI4_JACK
R3490 OPT
C3730.01uF
R6106
43K
1%
DDC_SDA_MHL
R3380
1.8K
5V_MHL
EDID_WP
DDC_SDA_MHL
R3363 10K
C3321
0.1uF
16V
Q3310
MMBT3904(NXP)
E
B
C
R36251
R3359
100K
R35010
R346
1K
VDD3V3
R3374
10K
IC105
LGE2122[A2_M13]
ADCINP_DEMOD
AM27
ADCINN_DEMOD
AN27
AVDD33_DEMOD
AN26
AVDD12_DEMOD
AN28
AVSS33_DEMOD
AL28
AVSS12_DEMOD
AL27
IF_AGC
L26
RF_AGC
M28
LOUTN
AJ27
LOUTP
AK27
OSCL2
N27
OSDA2
N26
CVBS3P
AK26
CVBS2P
AM25
CVBS1P
AH26
CVBS0P
AK25
CVBS_COM
AJ26
AVDD33_CVBS
AM26
AVSS33_CVBS_1
AB20
AVSS33_CVBS_2
AB22
HSYNC AK18
VSYNC AL18
RP AL20
GP AM20
BP AL19
COM AN20
SOG AK19
VGA_SDA AG22
VGA_SCL AH22
COM1 AL21
PB1P AK22
PR1P AL22
Y1P AM21
SOY1 AN21
COM0 AM23
PB0P AL23
PR0P AL24
Y0P AN23
SOY0 AK23
VDACX_OUT AH24
VDACY_OUT AJ24
AVDD33_VIDEO AN25
AVDD12_RGB AN18
AVSS33_VDAC_BG AC19
AVSS12_RGB AK17
AVSS33_VDAC AE20
HDMI_DET
TP300
Q3302
MMBT3906(NXP)
E
B
C
R3355 4.7K
OPT
C337 1uF
10V
R3332
10K
DDC_SDA_MHL
C360 0.047uF
R369 1.2K
C304
0.1uF
C6105
1uF
10V
R351 1.2K
R3370
1K
C345 10uF
16V
IC3301
TPS2051BDBVR
3
OC
2
GND
4EN
1
OUT 5IN
5V_MHL
R335 51
D0-_HDMI4_MHL
IC6100
TPA6138A2
3OUTR
2-INR
4GND_1
1+INR
6VSS
5MUTE
7CN 8
CP
9
VDD
10
GND_2
11
UVP
12
OUTL
13
-INL
14
+INL
C61031uF 10V
C394
27pF
50V
OPT
R3309 100
L3301
BLM18PG121SN1D
R370 1.2K
C3720.01uF
D1+_HDMI4_MHL
D3302 RCLAMP0524PA
1
8
2
7
3
6
4 5
9 10
IC3304
SIL1292CNUC
3RSVDL2
2VDD12_1
4RESET
1RSVDL1
6INT
5PWR5V_DET
7DSDA
8DSCL
9CBUS/HPD
10 VDD5_IN
11
RSVDNC
12
VREG33_OUT
13
PS_CTRL
14
HDMI_DET
15
GPIO1/CI2CA
16
GPIO0
17
CSDA
18
CSCL
19
CEC_A
20
VDD12_2
21
HPD_IN 22
TX2+ 23
TX2- 24
TX1+ 25
TX1- 26
TX0+ 27
TX0- 28
TXC+ 29
TXC- 30
AVDD12
31 VDD33_1 32 RXC- 33 RXC+ 34 RX0- 35 RX0+ 36 RX1- 37 RX1+ 38 RX2- 39 RX2+ 40 VDD33_2
41
[EP]GND
VA3302 ADLC 5S 02 015
D1-_HDMI4_JACK
C359 0.047uF
OPT
C3311
0.1uF
16V
C3316
0.1uF
16V
D0+_HDMI4_JACK
L302
BLM18PG121SN1D
C389
22pF
OPT
AV1_CVBS_SOC
+1.2V_MTK_AVDD
HDMI_HPD_4_MHL
R345
30K
CK-_HDMI4_JACK
R341 100
IC105
LGE2122[A2_M13]
HDMI_CEC
V26
HDMI_0_SCL
AC27
HDMI_1_SCL
AB27
HDMI_2_SCL
AA26
HDMI_3_SCL
W27
HDMI_0_SDA
AC26
HDMI_1_SDA
AB26
HDMI_2_SDA
Y26
HDMI_3_SDA
W26
HDMI_0_PWR5V
AE29
HDMI_1_PWR5V
Y27
HDMI_2_PWR5V
AA28
HDMI_3_PWR5V
V28
HDMI_0_HPD
AD29
HDMI_1_HPD
AA27
HDMI_2_HPD
AA29
HDMI_3_HPD
V29
AVDD12_HDMI_0_RX
AA33
AVDD12_HDMI_1_RX
AA32
AVDD12_HDMI_2_RX
P33
AVDD12_HDMI_3_RX
P32
AVDD33_HDMI
AH33
AVSS33_HDMI_RX_1
AE27
AVSS33_HDMI_RX_2
T25
AVSS33_HDMI_RX_3
W25
AVSS33_HDMI_RX_4
AD27
HDMI_0_RX_0 AG30
HDMI_0_RX_0B AG31
HDMI_0_RX_1 AF30
HDMI_0_RX_1B AF31
HDMI_0_RX_2 AE32
HDMI_0_RX_2B AE33
HDMI_0_RX_C AG32
HDMI_0_RX_CB AG33
HDMI_1_RX_0 AD30
HDMI_1_RX_0B AD31
HDMI_1_RX_1 AC32
HDMI_1_RX_1B AC33
HDMI_1_RX_2 AC30
HDMI_1_RX_2B AC31
HDMI_1_RX_C AE30
HDMI_1_RX_CB AE31
HDMI_2_RX_0 Y30
HDMI_2_RX_0B Y31
HDMI_2_RX_1 W32
HDMI_2_RX_1B W33
HDMI_2_RX_2 W30
HDMI_2_RX_2B W31
HDMI_2_RX_C AA30
HDMI_2_RX_CB AA31
HDMI_3_RX_0 U30
HDMI_3_RX_0B U31
HDMI_3_RX_1 T32
HDMI_3_RX_1B T33
HDMI_3_RX_2 T30
HDMI_3_RX_2B T31
HDMI_3_RX_C V30
HDMI_3_RX_CB V31
R344
30K
C3315
0.1uF
16V
R3358
4.7K
OPT
TP301
R328
470K
C384
10pF
50V
Q3313
MMBT3904(NXP)
HDMI_EXT_EDID
E
B
C
C3318
0.1uF
16V
+3.5V_ST
C386
27pF
50V
OPT
C378
10pF
50V
R3371
820
C358
0.1uF
SIL_HPD/CBUS
CK-_HDMI4_MHL
R3351
4.7K
OPT
D0+_HDMI4_MHL
R3373
1K
R36151
TP303
C3313
0.1uF
16V
+5V_NORMAL
R3389
5.1
SIDE_HP_MUTE
TP376
R331
1K
R3388
5.1
CK+_HDMI4_JACK
D0-_HDMI4_JACK
5VBUS
5V_MHL
DDC_SDA_MHL
5VBUS
C392
27pF
50V
OPT
R332 10K
R3308 100
C385
27pF
50V
OPT
R3384
1K
OPT
#SIL_RESET
1.2V_MHL
R334 51
C377
1200pF
C361 1uF
R371100
D2-_HDMI4_MHL
D3312
30V
BAT54_SUZHO
L6100
120-ohm
BLM18PG121SN1D
R3375
10K
R342 10K
R3362
10K
R3386
180K
R3348
10K
C341
0.047uF
C382
0.1uF
C61001uF 10V
R3345 4.7K
OPT
C362
0.1uF
VA3300 ADLC 5S 02 015
OPT
R381 0
1/16W
C393
22pF
OPT
C365
10uF
10V
+3.5V_ST
Q3309
PMV48XP
G
D S
DC_19V
R367100
D3313
30V
BAT54_SUZHO
C383
1200pF
C388
27pF
50V
OPT
VDD3V3
C336 1uF
10V
C303
0.1uF
C305
1uF
10V
+1.2V_MTK_AVDD
C364
0.1uF
C3322
0.1uF
16V
OPT
C363
1uF
10V
TP306
C3320
0.1uF
16V
5V_MHL
IF_N
C395
1200pF
R3338
10K
HDMI_EXT_EDID
R329
470K
VDD3V3
TP382
TP302
L304
D3304
BAT54_SUZHO
30V
C339
560pF
50V
D2+_HDMI4_MHL
TP305
C306
0.1uF
VA3301 ADLC 5S 02 015
OPT
MHL_DET
1.2V_MHL
OSDA2
AVDD3V3_AADC
C343
100pF
50V
R380
1K
Q3311
MMBT3904(NXP)
E
B
C
+1.2V_MTK_AVDD
D3303 RCLAMP0524PA
1
8
2
7
3
6
4 5
9 10
D1+_HDMI4_JACK
TP383
Q3314
PMBFJ177
G
D
S
C3740.01uF C391
27pF
50V
OPT
C379
10pF
50V
C312
33pF
R366100
Q3304
2N7002K
OPT
S
D
G
R3381
22K
R3356
10K
C3520.01uF
CK+_HDMI4_MHL
C338
560pF
50V
C346 10uF
16V
C390
1200pF
R3379
22K
DDC_SCL_MHL
R3307
1.8K
COMP1/AV1/DVI_R_IN
COMP1/AV1/DVI_L_IN
COMP1_Y
COMP1_Pr
COMP1_Pb
R338 100
OPT
R347 0OPT
R348 0OPT
R3400 0
R3401 0
R3402 0
R3403 0
R3404 0
R3405 0
L3200
BLM18PG121SN1D
I2C_SCL2 I2C_SDA2
C380
10pF
50V
AV1_CVBS
C402
27pF
50V
OPT
R3361
4.7K
HDMI_EXT_EDID
R3366
22
HDMI_EXT_EDID
IC3302
M24C02-RMN6T
HDMI_EXT_EDID
3E2
2E1
4VSS
1E0
5
SDA
6
SCL
7
WC
8
VCC
R3367
22
HDMI_EXT_EDID
R3364
4.7K
HDMI_EXT_EDID
R3300
0
EDID_WP_B
R3346
22 R3347 22
C6109
180pF C6104
180pFR6101
10K R6100 10K
R6102
33K R6103
33K
R6105
4.7K
R6107
0
3216
HP_AMP_T_GND
R6108
0
3216
HP_AMP_B_GND
R356
82
1%
C401
270pF
50V
R375 100
L6504
L6505
L6506
R353
82
1%
R354
82
1%
R355
82
1%
ZD3300
5V
OPT
D3300
30V
R3376 100
R310
180 ARC
C308
1uF
10V
+5V_NORMAL
R313
100K
R312
1.2K
OPT
R311
82
C332
0.22uF
16V
C331
0.22uF
16V
C6108
10pF
50V
C6106
10pF
50V
C6107
0.1uF
16V ZD508
5V
ZD509
5V
ZD510
5V
ZD517
5V
ZD518
5V
R2454
0
1/16W
5%
OPT
+3.3V_NORMAL
C2453
0.1uF
16V
VDD3V3_HDMI
Q2408
NTR4501NT1G
G
D S
R2453
10K
+5V_NORMAL
VDD3V3_HDMI
R3800
75
1%
OPT
SPDIF_OUT R3610
33
R3611
2.7K
OPT
C3602
0.1uF
16V
+3.3V_N_SUB +3.3V_N_SUB
+3.3V_N_SUB
VA1405 20V
R3700
10K
VA1404 20V
JK3700
PEJ038-3B6
3 DETECT
4 L
5 GND
1 R
ZD302
5.5V
C3800
0.1uF
16V
R3810
10K
R3806
10K
OPT
ZD303
ADUC 5S 02 0R5L
D3800
5.6V
D3802
5.6V
R1500
0
ZD306
5.5V
D3801
5.6V
R1499
0
ZD304
5.5V
D3803
5.6V JK3801
PEJ038-4Y6
3M3_DETECT
4M4
5M5_GND
1M1
6M6
JK3800
PEJ038-4G6
3M3_DETECT
4M4
5M5_GND
1M1
6M6
R6506 100
I2C_SDA6
C6505
47pF
50V
OPT
C6503
47pF
50V
OPT
R6512
33
L6500
BLM18PG121SN1D
C6502
0.1uF
16V
IF_AGC
R6511
33 I2C_SCL6
+3.3V_N_SUB
+3.3V_N_SUB
+3.3V_N_SUB
+3.3V_N_SUB
+3.3V_N_SUB
+3.3V_N_SUB
+3.3V_N_SUB
/TU_RESET1
C6520
0.1uF
16V
+1.8V_TU
C6501
100pF
50V
OPT
C6550
0.1uF
16V
OPT
R6508
100
C6554
100pF
50V
TU6401
TDSS-H551F(B)
5+B1[3.3V]
11 DIF[N]
2RESET
10 DIF[P]
4SDA
1NC_1
9IF_AGC
8NC_3
3SCL
7+B2[1.8V]
6NC_2
12
SHIELD
A1 A1 B1
B1
+3.3V_TUNER
R3702
0
1/8W
HP_JACK_T_GND
R3701
0
1/8W
HP_JACK_B_GND
5V_HDMI_1_SOC
R3393 0
R3302 100
DDC_SDA_MHL
R3323
4.7K
HDMI_EXT_EDID
D3310
MMBD6100
HDMI_EXT_EDID
A2
C
A1
R3397 0
Q3300
MMBT3904(NXP)
E
B
C
IC3300
M24C02-RMN6T
HDMI_EXT_EDID
3E2
2E1
4VSS
1E0
5
SDA
6
SCL
7
WC
8
VCC
D3319
RCLAMP0524PA
1
8
2
7
3
6
4
5
9
10
R3320
22
HDMI_EXT_EDID
R3325
4.7K
HDMI_EXT_EDID
VA3310
ADLC 5S 02 015
R3394 0
R3306
4.7K
HDMI_INTERNAL_EDID
5V_HDMI_1_SOC
R3304
1K
R3319
22
HDMI_EXT_EDID
CEC_REMOTE
R3378
4.7K
HDMI_INTERNAL_EDID
R3396 0
R3321
4.7K
HDMI_EXT_EDID
D3314
MMBD6100
A2
C
A1
C3302
0.1uF
16V
R3377
4.7K
HDMI_INTERNAL_EDID
+5V_NORMAL
HDMI_ARC
R3395 0
R3390 0
R3305
1K
DDC_SDA_1_SOC
R3340
4.7K
OPT
VA3309 ADLC 5S 02 015
OPT
R3391 0
D3318
RCLAMP0524PA
1
8
2
7
3
6
4
5
9
10
VA3308 ADLC 5S 02 015
OPT
R3303 100
VA3311
ADLC 5S 02 015
HDMI_HPD_1_SOC
EDID_WP_B
+5V_NORMAL
R3301
100K
R3392 0
JK4501
51U019S-3441N-6RLGM5-HF
EAG63371601
14 NC
13
CE_REMOTE
5D1_GND
20
BODY_SHIELD
12
CK-
11
CK_GND
2D2_GND
19
HP_DET
18
5V
10 CK+
4D1+
1D2+
17
GND
9D0-
8D0_GND
3D2-
16
DDC_DATA
7D0+
6D1-
15
DDC_CLK
JK4500
51U019S-3441N-6RLGM5-HF
14 RESERVED
13 CEC
5TMDS_DATA1_SHIELD
20
BODY_SHIELD
12 TMDS_CLK-
11 TMDS_CLK_SHIELD
2TMDS_DATA2_SHIELD
19 HOT_PLUG_DETECT
18 VDD[+5V]
10 TMDS_CLK+
4TMDS_DATA1+
1TMDS_DATA2+
17 DDC/CEC_GND
9TMDS_DATA0-
8TMDS_DATA0_SHIELD
3TMDS_DATA2-
16 SDA
7TMDS_DATA0+
6TMDS_DATA1-
15 SCL
CEC_REMOTE
DDC_SDA_1_SOC
5V_HDMI_1_SOC R306 1K
D1+_HDMI1_SOC
CK-_HDMI1_SOC
CK+_HDMI1_SOC
D0+_HDMI1_SOC
D2-_HDMI1_SOC
D0-_HDMI1_SOC
D2+_HDMI1_SOC
D1-_HDMI1_SOC
D0-_HDMI4_MHL
CK+_HDMI4_JACK
DDC_SCL_MHL
CK+_HDMI4_MHL
D1-_HDMI4_MHL
D1+_HDMI4_JACK
CK-_HDMI4_MHL
OSCL2
D0-_HDMI4_JACK
D1+_HDMI4_MHL
#MHL_OCP
D0+_HDMI4_JACK
D2+_HDMI4_MHL
D2-_HDMI4_MHL
DDC_SCL_MHL
HDMI_DET
D2+_HDMI4_JACK
CK-_HDMI4_JACK
HDMI_HPD_4_MHL
D1-_HDMI4_JACK
MHL_DET
D0+_HDMI4_MHL
D2-_HDMI4_JACK
IF_AGC
#MHL_OCP
SIL_HPD/CBUS
AVDD3V3_AADC
AV1_CVBS_SOC
EDID_WP_B
HDMI_ARC
ARC
SPDIF_OUT
HP_DET
COMP1_Y
COMP1/AV1/DVI_R_IN
COMP1/AV1/DVI_L_IN
COMP1_Pb
COMP1_DET
AV1_CVBS_DET
AV1_CVBS
COMP1_Pr
IF_P
IF_N
D0-_HDMI1_SOC
D1+_HDMI1_SOC
D1-_HDMI1_SOC
D2-_HDMI1_SOC
CK+_HDMI1_SOC
D0+_HDMI1_SOC
CK-_HDMI1_SOC
DDC_SCL_1_SOC
D2+_HDMI1_SOC
DDC_SCL_1_SOC
HDMI_HPD_1_SOC
0.1uF
C5413
16V
P5401
12507WR-03L
1
2
3
4
ZD511
5V
0.1uF
C5439
50V
R5414
3.3
1/10W
L5400
UBW2012-121F
0.1uF
C5418
50V
L5401
BLM18PG121SN1D
C5412
1uF
10V
C5432
390pF
50V
C5425
22000pF
50V
P5400
12507WR-03L
1
2
3
4
R5401
10K
R5418
4.7K
C5433
1uF
10V
C5404
1000pF
50V
C5406
33pF
50V
R5415
4.7K
C5416
22000pF
50V
0.1uF
C5438
50V
0.1uF
C5436
50V
C5434
0.47uF
50V
L5405
LPH6045T-100M
Audio_Coil_ABCO
10uH
C5414
10uF
10V
L5403-*1
NRS6045T100MMGK
Audio_Coil_TAIYO
10.0uH
C5431
390pF
50V
R5402
100
0.1uF
C5419
50V
Q5400
MMBT3904(NXP)
E
B
C
R5417
4.7K
R5403
100
L5403
LPH6045T-100M
Audio_Coil_ABCO
10uH
C5426
22000pF
50V
C5411
1uF
10V
L5404
LPH6045T-100M
Audio_Coil_ABCO
10uH
L5402
LPH6045T-100M
Audio_Coil_ABCO
10uH
0.1uF
C5400
50V
L5402-*1
NRS6045T100MMGK
Audio_Coil_TAIYO
10.0uH
R5419 100
OPT
0.1uF
C5421
50V
C5423
10uF
25V
C5408
33pF
50V
R5400
10K
L5404-*1
NRS6045T100MMGK
Audio_Coil_TAIYO
10.0uH
R5405
100
R5411
3.3
1/10W
0.1uF
C5401
50V
C5422
10uF
25V
I2S_MAIN_OUT
C5429
390pF
50V
C5430
390pF
50V
R5412
3.3
1/10W
C5417
22000pF
50V
IC5400
NTP7515
3NC_2
2VDD_PLL
4GND
1NC_1
6DVDD
5NC_3
7SDATA
8WCK
9NC_4
10 SDA
11
SCL
12
FAULT
13
MONITOR_0
14
MONITOR_1
15
MONITOR_2
16
BST2B
17
PGND2B
18
OUT2B
19
PVDD2B
20
PVDD2A
21
OUT2A 22
PGND2A 23
BST2A 24
VDR2 25
AGND 26
NC_5 27
VDR1 28
BST1B 29
PGND1B 30
OUT1B
31 PVDD1B 32 PVDD1A 33 OUT1A 34 PGND1A 35 BST1A 36 RESET 37 AD 38 CLK_I 39 GND_IO 40 VDD_IO
41
[EP]GND
C5435
0.47uF
50V
0.1uF
C5437
50V
L5405-*1
NRS6045T100MMGK
Audio_Coil_TAIYO
10.0uH
0.1uF
C5420
50V
C5427
1uF
10V
R5416
4.7K
R5413
3.3
1/10W
I2C_SDA1
I2C_SCL1
AMP_MUTE
POWER_DET +3.3V_N_SUB
DC_19V
+19V_AMP
+19V_AMP
+3.3V_N_SUB
AMP_RESET_N
TP5400
I2S_MAIN_OUT
C5440
0.1uF
16V
OPT
C5415
1000pF
50V
OPT
JK3602
2F11TC1-EM52-4F
C
GND
B
VCC
A
VIN
4
SHIELD
5V_MHL SOURCE
Close to MT5369
AUDIO AMP
Tuner signal
HDMI
Close to Main Chip
1.0Vpp
1608 sizs For EMI
Close to JACK
Close to Tuner
MHL/HDMI
Don’t use as GPIO
Place at JACK SIDE
Close to AVDD33_ADAC & AVDD33_AADC
EARPHONE AMP
To MHL/HDMI JACK
Near the SOC
For PCB Pattern
Close to Tuner
Close to SIL1292
Close to MT5369
(CD_SENCE)
Current Limit
1.0Vpp
1608 sizs For EMI
Separate ground
PF1500-JE
10MAIN_2
2014.05.19
2
ARC
HDMI LEAKAGE Workaround in MTK A2(A0)
(Default= with HDMI_LEAKAGE)
SPDIF OUT
Headphone OUT Jack
Apply "AV_COMP_ESD" when your model’s ESD Test is failed
AV/COMPONENT
AV IN
COMPONENT IN
AV/COMPONENT signal
1. should be guarded by ground
close to Tuner
close to Tuner
Ground Width >= 24mils
should be guarded by ground,Match GND VIA
2. No via on both of them
3. Signal Width >= 12mils
Signal to Signal Width = 12mils
TUNER
Connected
by ground signal
ARC/HDMI
0x54
SPEAKER_R
SPEAKER_L

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
ARDQ[11]
BRA[6]
ARDQ[12]
BRDQ[12]
BRDQ[4]
ARA[9]
ARDQ[24]
BRA[9]
ARA[1]
ARA[11]
BRA[14]
BRA[15]
ARDQ[7]
ARA[3]
BRDQ[15]
BRDQ[11]
BRDQ[7]
ARDQ[0]
ARDQ[1]
BRA[0]
ARDQ[26]
BRA[10]
ARA[2]
ARA[5]
BRDQ[5]
ARDQ[18]
ARDQ[13]
ARDQ[9]
ARDQ[29]
ARDQ[3]
BRA[3]
ARDQ[15]
ARA[4]
BRA[1]
BRA[2]
ARDQ[2]
ARDQ[16]
ARA[13]
ARDQ[23]
ARA[7]
BRA[11]
BRDQ[8]
BRA[8]
BRDQ[13]
ARDQ[6]
BRDQ[1]
ARDQ[31]
ARDQ[14]
BRA[12]
BRDQ[2]
ARDQ[4]
BRA[4]
ARA[10]
ARA[14]
ARDQ[17]
ARA[0]
BRDQ[6]
ARA[12]
ARDQ[8]
BRA[5]
BRA[13]
BRDQ[9]
ARDQ[30]
ARDQ[20]
ARA[6]
ARDQ[22]
BRA[7]
ARA[8]
BRDQ[3]
ARDQ[5]
BRDQ[10]
BRDQ[14]
ARDQ[25]
ARDQ[21]
ARDQ[19]
BRDQ[0]
ARDQ[10]
ARDQ[27]
ARDQ[28]
BRA[13]
BRDQ[6]
ARA[10]
BRDQ[7]
ARDQ[15]
ARDQ[12]
ARDQ[7]
ARDQ[9]
ARA[7] ARA[7]
ARDQ[1]
ARA[12]
BRDQ[12]
ARA[14]
ARA[3]
ARA[5]
ARDQ[20]
ARDQ[3]
BRDQ[8]
BRA[7]
ARDQ[0]
BRA[4]
ARA[6]
ARA[4]
ARDQ[6]
BRDQ[9]
ARA[3]
ARDQ[19]
BRDQ[3]
ARDQ[13]
BRA[9]
ARDQ[31]
ARA[4]
ARDQ[2]
ARA[1]
ARA[13]
ARDQ[8]
ARDQ[17]
ARA[11]
ARDQ[10]
BRA[12]
ARA[9]
ARDQ[29]
BRA[1]
BRA[5]
BRDQ[10]
BRDQ[13]
ARA[0]
ARDQ[4]
BRDQ[5]
BRDQ[1]
ARDQ[24]
BRDQ[11]
ARA[14]
ARA[11]
ARDQ[27]
ARA[6]
BRA[11]
BRDQ[4]
ARA[5]
BRA[2]
ARA[2]
BRA[0]
ARDQ[14]
ARDQ[21]
ARDQ[25]
ARA[1]
ARDQ[11]
ARDQ[26]
BRDQ[14]
BRA[3]
ARA[13]
BRA[10]
ARA[12]
ARDQ[18]
ARA[2]
ARA[10]
BRDQ[0]
ARDQ[28]
ARDQ[22]
ARA[0]
BRDQ[2]
ARDQ[30]
ARA[8]
BRDQ[15]
ARA[9]
BRA[8]
ARA[8]
ARDQ[16]
ARDQ[23]
BRA[6]
ARDQ[5]
+1.5V_DDR
/ARRAS
C718
0.1uF
C755
0.1uF
BRBA2
BRBA0
ARCKE
/BRCLK0
/ARCAS
+1.5V_DDR
BRA[0-15]
/ARCS
ARBA0
C744
0.1uF
BRDQS0
ARBA2
ARDQS0
1uF
C703
C740
0.1uF
16V
OPT
/BRDQS1
ARCLK1
C754
0.1uF
/ARCLK1
BRCLK0
C700
0.1uF
/BRDQS0
C729
0.1uF
R731
1K
1%
C701
10uF
10V
C719
0.1uF
RVREF_C
1uF
C702
IC105
LGE2122[A2_M13]
VCCK_1
L11
VCCK_2
N12
VCCK_3
P12
VCCK_4
AG5
VCCK_5
AH5
VCCK_6
AJ5
VCCK_7
AK5
VCCK_8
AL5
VCCK_9
AM5
VCCK_10
AN5
VCCK_11
AK6
VCCK_12
AL6
VCCK_13
AM6
VCCK_14
AN6
VCCK_15
M11
VCCK_16
N11
VCCK_17
P11
VCCK_18
R11
VCCK_19
M12
VCCK_20
R12
VCCK_21
L13
VCCK_22
L14
VCCK_23
L15
VCCK_24
L17
VCCK_25
L18
VCCK_26
L19
VCCK_27
T11
VCCK_28
U11
VCCK_29
V11
VCCK_30
W11
VCCK_31
Y11
VCCK_32
AA11
VCCK_33
AB11
VCCK_34
AC11
VCCK_35
R23
VCCK_36
L12
VCCK_37
W12
VCCK_38
V23
VCCK_39
Y12
VCCK_40
AF6
VCCK_41
AG6
VCCK_42
AH6
VCCK_43
AJ6
VCCK_44
AE7
VCCK_45
AF7
VCCK_46
AG7
VCCK_47
AD8
VCCK_48
AE8
VCCK_49
AF8
VCCK_50
AE9
VCCK_51
AC10
VCCK_52
AD10
VCCK_53
AD11
VCCK_54
AE10
VCCK_55
AF9
VCCK_56
AG8
VCCK_57
AH7
VCCK_58
AJ7
VCCK_59
AK7
VCCK_60
AL7
VCCK_61
AM7
VCCK_62
AN7
VCCK_63
L16
VCCK_64
V12
VCCK_65
U12
VCCK_66
T12
VCCK_67
AD13
VCCK_68
AD17
VCCK_69
AD14
VCCK_70
AB12
VCCK_71
AA12
VCCK_72
AC12
VCC3IO_C
T9
VCC3IO_B_1
Y10
VCC3IO_B_2
AA10
VCC3IO_A_1
D22
VCC3IO_A_2
E22
DVSS_1
AC18
DVSS_2
AB21
DVSS_3
AB14
DVSS_4
N13
DVSS_5
P13
DVSS_6
R13
DVSS_7
T13
DVSS_8
U13
DVSS_9
V13
DVSS_10
W13
DVSS_11
Y13
DVSS_12
P18
DVSS_13
N14
DVSS_14
P14
DVSS_15
R14
DVSS_16
T14
DVSS_17
U14
DVSS_18
V14
DVSS_19
W14
DVSS_20
Y14
DVSS_21
R18
DVSS_22
N15
DVSS_23
P15
DVSS_24 R15
DVSS_25 T15
DVSS_26 U15
DVSS_27 V15
DVSS_28 W15
DVSS_29 Y15
DVSS_30 AA15
DVSS_31 AB15
DVSS_32 T18
DVSS_33 R16
DVSS_34 T16
DVSS_35 U16
DVSS_36 V16
DVSS_37 W16
DVSS_38 Y16
DVSS_39 AA16
DVSS_40 AB16
DVSS_41 R17
DVSS_42 T17
DVSS_43 U17
DVSS_44 V17
DVSS_45 Y17
DVSS_46 N16
DVSS_47 V18
DVSS_48 Y18
DVSS_49 P16
DVSS_50 V19
DVSS_51 Y19
DVSS_52 W17
DVSS_53 AA17
DVSS_54 AB17
DVSS_55 N19
DVSS_56 AC14
DVSS_57 C13
DVSS_58 K24
DVSS_59 K25
DVSS_60 L24
DVSS_61 M17
DVSS_62 M18
DVSS_63 M19
DVSS_64 P17
DVSS_65 P19
DVSS_66 N18
DVSS_67 U20
DVSS_68 V20
DVSS_69 W20
DVSS_70 Y20
DVSS_71 AA20
DVSS_72 R19
DVSS_73 T19
DVSS_74 M20
DVSS_75 N20
DVSS_76 U21
DVSS_77 V21
DVSS_78 W21
DVSS_79 Y21
DVSS_80 AA21
DVSS_81 P20
DVSS_82 R20
DVSS_83 T20
DVSS_84 U22
DVSS_85 V22
DVSS_86 W22
DVSS_87 Y22
DVSS_88 AA22
DVSS_89 N21
DVSS_90 P21
DVSS_91 R21
DVSS_92 T21
DVSS_93 M22
DVSS_94 N22
DVSS_95 P22
DVSS_96 R22
DVSS_97 T22
DVSS_98 M21
DVSS_99 AC17
DVSS_100 AA19
DVSS_101 M13
DVSS_102 M14
DVSS_103 M15
DVSS_104 AA13
DVSS_105 AB13
DVSS_106 AA14
DVSS_107 AB19
DVSS_108 D6
DVSS_109 W19
DVSS_110 U19
DVSS_111 N17
DVSS_112 L3
DVSS_113 AB18
DVSS_114 AA18
DVSS_115 W18
DVSS_116 U18
DVSS_117 D16
DVSS_118 AC13
DVSS_119 M16
DVSS_120 AC20
DVSS_121 AC22
DVSS_122 AD20
DVSS_123 Y23
DVSS_124 AA23
DVSS_125 AB23
DVSS_126 V24
DVSS_127 W23
BRODT
/BRRAS
C739
0.1uF
OPT
+1.2V_MTK_CORE
C731
0.1uF
+1.5V_DDR
BRDQM0
TP700
IC105
LGE2122[A2_M13]
DDRV_1
R1
DDRV_2
R2
DDRV_3
R3
DDRV_4
R4
DDRV_5
R5
DDRV_6
K3
DDRV_7
R6
DDRV_8
L8
DDRV_9
M8
DDRV_10
D17
DDRV_11
A19
MEMTP
J22
MEMTN
K22
RVREF_A
D18
ARCKE
G8
ARCLK1
B5
ARCLK1
A5
ARCLK0
B14
ARCLK0
A14
ARODT
F13
ARRAS
E13
ARCAS
G13
ARCS
G15
ARWE
H18
ARRESET
G16
ARBA0
D15
ARBA1
F9
ARBA2
G18
ARCSX
F15
ARA14
D11
ARA13
F16
ARA12
D8
ARA11
E11
ARA10
G9
ARA9
E16
ARA8
F11
ARA
G17
ARA6
F10
ARA5
E17
ARA4
E10
ARA3
E15
ARA2
F17
ARA1
G10
ARA0
F18
ARDQM0 D12
ARDQS0 D14
ARDQS0 C14
ARDQ0 B17
ARDQ1 D10
ARDQ2 C17
ARDQ3 C10
ARDQ4 C18
ARDQ5 B9
ARDQ6 E18
ARDQ7 D9
ARDQM1 C15
ARDQS1 A13
ARDQS1 B13
ARDQ8 B11
ARDQ9 B16
ARDQ10 A11
ARDQ11 A17
ARDQ12 C12
ARDQ13 A16
ARDQ14 C11
ARDQ15 C16
ARDQM2 A3
ARDQS2 D5
ARDQS2 C5
ARDQ16 E7
ARDQ17 B2
ARDQ18 C8
ARDQ19 B1
ARDQ20 A9
ARDQ21 C1
ARDQ22 C9
ARDQ23 C3
ARDQM3 C6
ARDQS3 A4
ARDQS3 B4
ARDQ24 A1
ARDQ25 B7
ARDQ26 C4
ARDQ27 C7
ARDQ28 B3
ARDQ29 A7
ARDQ30 A2
ARDQ31 D7
AVDD33_MEMPLL A20
AVSS33_MEMPLL H9
C746
0.1uF
C708
10uF
10V
/ARDQS3
C745
0.1uF
C750
0.1uF C727
0.1uF
C723
0.1uF
/ARDQS2
ARDQ[0-7]
C730
0.1uF
RVREF_C
R730
1K
1%
/BRWE
R726
1K
1%
+1.5V_DDR
BRDQM1
IC105
LGE2122[A2_M13]
RVREF_C
C2
BRCLK0
J2
BRCLK0
J1
BRCKE
L6
BRODT
E3
BRRAS
L4
BRCAS
D3
BRCS
D4
BRBA0
J4
BRBA1
M6
BRBA2
E4
BRWE
K4
BRA15
J3
BRA14
P4
BRA13
G5
BRA12
P6
BRA11
P5
BRA10
L5
BRA9
F4
BRA8
P3
BRA7
H4
BRA6
P2
BRA5
K6
BRA4
M5
BRA3
K5
BRA2
G6
BRA1
N5
BRA0
E5
DDRV_12
B19
DDRV_13
C19
DDRV_14
D19
DDRV_15
E19
DDRV_16
F19
DDRV_17
G19
DDRV_18
F5
DDRV_19
H5
DDRV_20
N8
DDRV_21
P8
DDRV_22
D13
DDRV_23
E8
DDRV_24
G11
DDRV_25
D20
DDRV_26
E20
DDRV_27
F20
DDRV_28
G20
DDRV_29
R7
DDRV_30
R8
DDRV_31
T5
DDRV_32
T6
DDRV_33
T7
DDRV_34
T8
BRDQM0 L1
BRDQS0 H2
BRDQS0 H1
BRDQ0 E2
BRDQ1 N3
BRDQ2 E1
BRDQ3 N1
BRDQ4 D1
BRDQ5 P1
BRDQ6 D2
BRDQ7 N2
BRDQM1 H3
BRDQS1 K1
BRDQS1 K2
BRDQ8 N4
BRDQ9 F2
BRDQ10 M3
BRDQ11 F1
BRDQ12 L2
BRDQ13 F3
BRDQ14 M4
BRDQ15 G3
BRRESET G4
1uF
C705
C751
0.1uF
/ARWE
C753
0.1uF
C707
10uF
10V
/ARDQS1
+1.5V_DDR
C738
0.1uF
OPT
ARDQS3
C704
10uF
10V
ARA[0-14]
BRDQS1
ARDQM2
C725
0.1uF
ARCLK0
ARDQM0
ARDQM3
C722
0.1uF
ARDQ[24-31]
ARDQM1
ARDQS1
C747
0.1uF
R727
1K
1%
RVREF_A
ARDQS2
ARBA1
ARDQ[8-15]
BRDQ[8-15]
/ARCLK0
VDD3V3
BRDQ[0-7]
C741
0.1uF
C743
0.1uF
C724
10uF
+1.5V_DDR
TP701
ARDQ[16-23]
+1.5V_DDR
+1.5V_DDR
BRREST
C742
0.1uF
ARODT
C737
0.1uF
OPT
/BRCAS
C732
10uF
OPT
C720
0.1uF
RVREF_A
+1.5V_DDR
/ARCSX
/BRCS
C721
10uF
+1.5V_DDR
C717
0.1uF 1uF
C706
/ARDQS0
BRCKE
C728
0.1uF
C726
0.1uF
BRBA1
ARREST
VDD3V3
A_RVREF2
ARDQ[24-31]
H5TQ2G63DFR-PBC
IC702-*2
DDR_256MB_HYNIX_NC4.0
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
NC_6 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
ARDQS0
ARDQM3
/BRWE
A_RVREF3
C715
0.1uF
ARDQM1
R710 240
1%
+1.5V_DDR
A_RVREF1
ARREST
A_RVREF2
/BRDQS1
ARODT
R705
1K
1%
H5TQ2G63FFR-PBC
IC702-*3
DDR_256MB_HYNIX_NC4.5
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
NC_6 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
C713
0.1uF
/ARDQS0
B_RVREF5
R714
100
5%
C734
0.1uF
ARDQM2
C735
0.1uF
ARBA2
ARDQS1
ARCKE
A_RVREF1
C736
0.1uF
ARBA1
ARODT
+1.5V_DDR
A_RVREF4
/BRRAS
/ARRAS
R706
1K
1%
BRDQ[8-15]
ARBA0
BRA[15]
A_RVREF4
ARREST
/BRCLK0
/ARDQS3
R719
1K
1%
R707
1K
1%
/ARCLK1
/ARCAS
ARBA0
/ARCAS
C733
0.1uF
R709
1K
1%
R721
1K
1%
R702
1K
1%
R712
100
5%
BRDQS1
C716
0.1uF
BRDQM1
/BRCAS
ARDQ[0-7]
R708
1K
1%
/ARWE
C711
0.1uF
BRDQM0
ARDQS3
R718
1K
1%
ARDQS2
B_RVREF6
BRCLK0
/ARCS
ARCLK0
B_RVREF5
R716
240
1%
BRA[0-14]
ARDQM0
/ARWE
+1.5V_DDR
+1.5V_DDR
C712
0.1uF
/BRCS
+1.5V_DDR
/ARCSX
/ARDQS1
BRA[14]
B_RVREF6
BRREST
ARBA1
/ARCLK0
ARBA2
A_RVREF3
K4B2G1646E-BCK0
IC702-*1
DDR_256MB_SS
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
NC_6 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
ARDQ[16-23]
+1.5V_DDR
K4B4G1646B-HCK0
IC701
DDR_512MB_SS
A0 N3
A1 P7
A2 P3
A3 N2
A4 P8
A5 P2
A6 R8
A7 R2
A8 T8
A9 R3
A10/AP L7
A11 R7
A12/BC N7
A13 T3
A15 M7
BA0 M2
BA1 N8
BA2 M3
CK J7
CK K7
CKE K9
CS L2
ODT K1
RAS J3
CAS K3
WE L3
RESET T2
DQSL F3
DQSL G3
DQSU C7
DQSU B7
DML E7
DMU D3
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
DQU0 D7
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
VREFCA
M8
VREFDQ
H1
ZQ
L8
VDD_1
B2
VDD_2
D9
VDD_3
G7
VDD_4
K2
VDD_5
K8
VDD_6
N1
VDD_7
N9
VDD_8
R1
VDD_9
R9
VDDQ_1
A1
VDDQ_2
A8
VDDQ_3
C1
VDDQ_4
C9
VDDQ_5
D2
VDDQ_6
E9
VDDQ_7
F1
VDDQ_8
H2
VDDQ_9
H9
NC_1
J1
NC_2
J9
NC_3
L1
NC_4
L9
A14 T7
VSS_1
A9
VSS_2
B3
VSS_3
E1
VSS_4
G8
VSS_5
J2
VSS_6
J8
VSS_7
M1
VSS_8
M9
VSS_9
P1
VSS_10
P9
VSS_11
T1
VSS_12
T9
VSSQ_1
B1
VSSQ_2
B9
VSSQ_3
D1
VSSQ_4
D8
VSSQ_5
E2
VSSQ_6
E8
VSSQ_7
F9
VSSQ_8
G1
VSSQ_9
G9
/ARDQS2
C714
0.1uF
ARA[0-14]
BRDQ[0-7]
ARCKE
/BRDQS0
K4B4G1646B-HCK0
IC703
DDR_512MB_SS
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
R704
1K
1%
BRCKE
R711 240
1%
H5TQ4G63AFR-PBC
IC703-*1
DDR_512MB_Hynix
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
R703
1K
1%
BRBA2
BRODT
/ARRAS
H5TQ4G63AFR-PBC
IC701-*1
DDR_512MB_Hynix
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
A15
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQL0
E3
DQL1
F7
DQL2
F2
DQL3
F8
DQL4
H3
DQL5
H8
DQL6
G2
DQL7
H7
DQU0
D7
DQU1
C3
DQU2
C8
DQU3
C2
DQU4
A7
DQU5
A2
DQU6
B8
DQU7
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14
T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
BRBA1
R713
100
5%
MT41K128M16JT-125:K
IC701-*3
DDR_256MB_MICRON
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQ0
E3
DQ1
F7
DQ2
F2
DQ3
F8
DQ4
H3
DQ5
H8
DQ6
G2
DQ7
H7
DQ8
D7
DQ9
C3
DQ10
C8
DQ11
C2
DQ12
A7
DQ13
A2
DQ14
B8
DQ15
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
NC_6 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
+1.5V_DDR
BRBA0
MT41K128M16JT-125:K
IC703-*3
DDR_256MB_MICRON
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQ0
E3
DQ1
F7
DQ2
F2
DQ3
F8
DQ4
H3
DQ5
H8
DQ6
G2
DQ7
H7
DQ8
D7
DQ9
C3
DQ10
C8
DQ11
C2
DQ12
A7
DQ13
A2
DQ14
B8
DQ15
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
NC_6 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
C709
0.1uF
ARA[0-14]
R720
1K
1%
C710
0.1uF
+1.5V_DDR
MT41K256M16HA-125:E
IC701-*2
DDR_512MB_MICRON
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQ0
E3
DQ1
F7
DQ2
F2
DQ3
F8
DQ4
H3
DQ5
H8
DQ6
G2
DQ7
H7
DQ8
D7
DQ9
C3
DQ10
C8
DQ11
C2
DQ12
A7
DQ13
A2
DQ14
B8
DQ15
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
BRDQS0
ARDQ[8-15]
MT41K256M16HA-125:E
IC703-*2
DDR_512MB_MICRON
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC
N7
A13
T3
NC_5
M7
BA0
M2
BA1
N8
BA2
M3
CK
J7
CK
K7
CKE
K9
CS
L2
ODT
K1
RAS
J3
CAS
K3
WE
L3
RESET
T2
DQSL
F3
DQSL
G3
DQSU
C7
DQSU
B7
DML
E7
DMU
D3
DQ0
E3
DQ1
F7
DQ2
F2
DQ3
F8
DQ4
H3
DQ5
H8
DQ6
G2
DQ7
H7
DQ8
D7
DQ9
C3
DQ10
C8
DQ11
C2
DQ12
A7
DQ13
A2
DQ14
B8
DQ15
A3
VREFCA M8
VREFDQ H1
ZQ L8
VDD_1 B2
VDD_2 D9
VDD_3 G7
VDD_4 K2
VDD_5 K8
VDD_6 N1
VDD_7 N9
VDD_8 R1
VDD_9 R9
VDDQ_1 A1
VDDQ_2 A8
VDDQ_3 C1
VDDQ_4 C9
VDDQ_5 D2
VDDQ_6 E9
VDDQ_7 F1
VDDQ_8 H2
VDDQ_9 H9
NC_1 J1
NC_2 J9
NC_3 L1
NC_4 L9
A14 T7
VSS_1 A9
VSS_2 B3
VSS_3 E1
VSS_4 G8
VSS_5 J2
VSS_6 J8
VSS_7 M1
VSS_8 M9
VSS_9 P1
VSS_10 P9
VSS_11 T1
VSS_12 T9
VSSQ_1 B1
VSSQ_2 B9
VSSQ_3 D1
VSSQ_4 D8
VSSQ_5 E2
VSSQ_6 E8
VSSQ_7 F9
VSSQ_8 G1
VSSQ_9 G9
+1.5V_DDR
MT41K128M16JT-125:K
IC702
DDR_256MB_MICRON
A0 N3
A1 P7
A2 P3
A3 N2
A4 P8
A5 P2
A6 R8
A7 R2
A8 T8
A9 R3
A10/AP L7
A11 R7
A12/BC N7
A13 T3
NC_5 M7
BA0 M2
BA1 N8
BA2 M3
CK J7
CK K7
CKE K9
CS L2
ODT K1
RAS J3
CAS K3
WE L3
RESET T2
DQSL F3
DQSL G3
DQSU C7
DQSU B7
DML E7
DMU D3
DQ0 E3
DQ1 F7
DQ2 F2
DQ3 F8
DQ4 H3
DQ5 H8
DQ6 G2
DQ7 H7
DQ8 D7
DQ9 C3
DQ10 C8
DQ11 C2
DQ12 A7
DQ13 A2
DQ14 B8
DQ15 A3
VREFCA
M8
VREFDQ
H1
ZQ
L8
VDD_1
B2
VDD_2
D9
VDD_3
G7
VDD_4
K2
VDD_5
K8
VDD_6
N1
VDD_7
N9
VDD_8
R1
VDD_9
R9
VDDQ_1
A1
VDDQ_2
A8
VDDQ_3
C1
VDDQ_4
C9
VDDQ_5
D2
VDDQ_6
E9
VDDQ_7
F1
VDDQ_8
H2
VDDQ_9
H9
NC_1
J1
NC_2
J9
NC_3
L1
NC_4
L9
NC_6
T7
VSS_1
A9
VSS_2
B3
VSS_3
E1
VSS_4
G8
VSS_5
J2
VSS_6
J8
VSS_7
M1
VSS_8
M9
VSS_9
P1
VSS_10
P9
VSS_11
T1
VSS_12
T9
VSSQ_1
B1
VSSQ_2
B9
VSSQ_3
D1
VSSQ_4
D8
VSSQ_5
E2
VSSQ_6
E8
VSSQ_7
F9
VSSQ_8
G1
VSSQ_9
G9
ARCLK1
DECAP FOR SOC Rework (BOTTOM) DECAP FOR SOC (HIDDEN - UCC)
5600mA
MAIN POWER
DDR MAIN
PF1500-JE
10MAIN_DDR
2014.05.19
3
SOC SIZE 1st P/N 2nd P/N
H13 4GB X 4 HYNIX EAN62571101 SS EAN62429101
M13 4GB X 2 HYNIX EAN62571101 MICRON EAN62668001
2GB X 1 HYNIX EAN61829204 MICRON EAN62668101
