LG SL4Y Specification sheet

www.lg.com
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
ENGLISH DEUTSCH FRANÇAIS NEDERLANDS ITALIANO ESPAÑOL ΕΛΛΗΝΙΚΑ PORTUGUÊS MAGYAR
ČESKY SLOVENČINA POLSKI ROMÂNĂ LATVIEŠU HRVATSKI SRPSKI БЪЛГАРСКИ
МАКЕДОНСКИ
SLOVENŠČINA SHQIP BOSANSKI SVENSKA DANSK NORSK SUOMI
SIMPLE MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating your set and
retain it for future reference.
To view the instructions of advanced features, visit
http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
MODEL
SL4Y
1904_Rev02
MFL71439710
SL4Y.DEUSLLK_SIM_ENG_MFL71439710 (Optical ).indd 1 2019-03-29  8:40:57

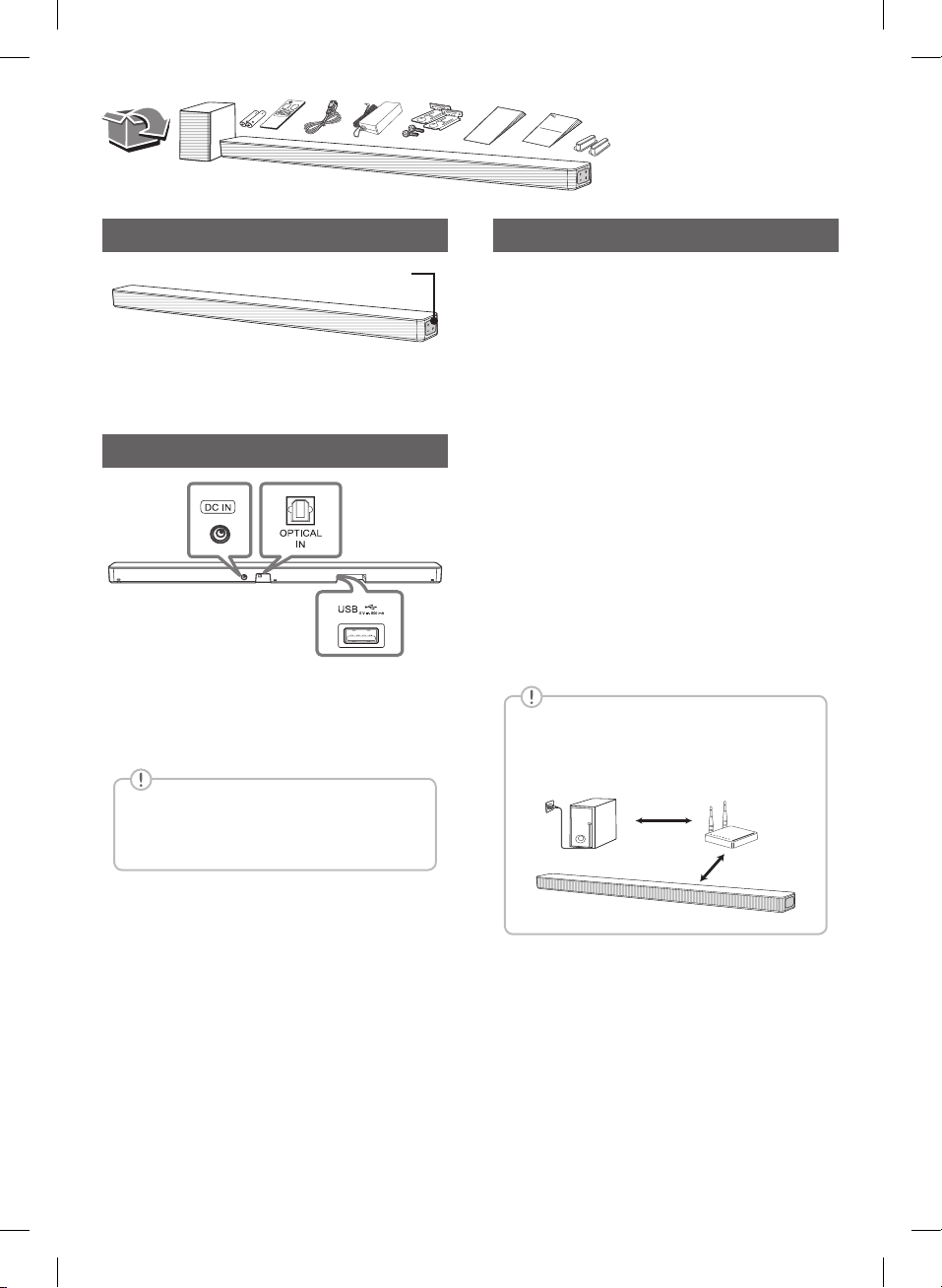

Front Panel
The buttons are located on the side.
1(Standby) ··········Switches the unit ON or OFF.
F(Function) ························Selects function.
p/o(Volume)····················Adjusts volume.
Rear Panel
DC IN····················· Connect to the AC adapter.
OPTICAL IN ············Connect to an optical device.
USB Port ····················Connect to a USB device.
If the optical cable is not connected in the
correct direction, it may cause damage of
optical jack.
Subwoofer Connection
Place the wireless subwoofer near the sound bar and
follow steps below.
a Connect the power cord of the sound bar and the
wireless subwoofer to the outlet.
b Turn on the sound bar.
• The sound bar and wireless subwoofer will be
automatically connected. The subwoofer’s
yellow - green LED turns on.
Manual Subwoofer Connection
If the subwoofer does not make sound, try to
connect manually.
a Press PAIRING on the rear of the wireless
subwoofer.
• The yellow - green LED on the front of the
wireless subwoofer blinks quickly.
(If the yellow - green LED does not blink, press
and hold the PAIRING.)
b Turn on the sound bar.
• Pairing is completed. The yellow - green LED on
the front of the wireless subwoofer turns on.
Keep the sound bar and the subwoofer
away from the device (ex. wireless router,
microwave oven, etc.) over 1 m to prevent
wireless interference.
!
1 m
SL4Y.DEUSLLK_SIM_ENG_MFL71439710 (Optical ).indd 2 2019-03-29  8:40:59

TV Connection
a Connect the sound bar to the TV using Optical
cable.
b Set up [External Speaker (Optical)] on your TV
setting menu.
TV
Additional Device Connection
a Connect to the external device like as follow.
TV
(Set-top Box,
Player etc.)
b Set the input source by pressing Frepeatedly.
Remote control
Replacement of Battery
C/V:Skip/Search
N:Play/Pause
-Bluetooth connection lock (BT LOCK): Select
the Bluetooth function by pressing Frepeatedly.
Long press Nand press it again to limit
Bluetooth connection to only BT and LG TV.
SOUND EFFECT: Selects a sound effect mode.
- TV remote: Long press SOUND EFFECT and
press it again to use TV remote control.
FOLDER W/S:Searches a folder.
J:Displaystheinformationofale,aninputsource
or connected Bluetooth device name.
- Auto Power ON/OFF: Long press Jand press
it again.
:Adjusts sound level of each speaker.
- Surround sound: Long press and press it
again.
REPEAT: Listens to your files repeatedly or randomly.
SL4Y.DEUSLLK_SIM_ENG_MFL71439710 (Optical ).indd 3 2019-03-29  8:41:00

Additional Information
Specication
Power
consumption
Refer to the main label.
Networked standby : 0.5 W
(If all network ports are
activated.)
AC adapter
• Model : DA-38A25
• Manufacturer : Asian Power
Devices Inc.
• Input : 100 - 240 V ~
50 - 60 Hz
• Output : 25 V 01.52 A
Dimensions
(W x H x D)
Approx.
890.0 mm X 57.0 mm X
85.0 mm With foot
Bus Power
Supply
(USB)
5 V 0500 mA
Amplier
(Total RMS
Output
power)
300 W RMS
Designandspecicationsaresubjecttochange
without notice.
How to disconnect the wireless network
connection or the wireless device
Set up the AUTO POWER ON/OFF function to off
and turn off the unit.
Rear Speakers Ready
Ready for surround sound with Rear
Speakers Kit sold separately. (SPK8-S)
Declaration of Conformity
Hereby, LG Electronics declares that the radio
equipment type Wireless Sound Bar is in compliance
with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following
internet address:
http://www.lg.com/global/support/cedoc/cedoc#
For consideration of the user, this device should be
installed and operated with a minimum distance of
20 cm between the device and the body.
Frequency range Output power (Max.)
2402 to 2480 MHz 10 dBm
5730 to 5821 MHz 13 dBm
