LG SN7Y Specification sheet

SIMPLE MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating your set and retain it for
future reference.
To view the instructions of advanced features, visit http://www.lg.com and
then download Owner’s Manual. Some of the content in this manual may
differ from your unit.
MODEL
SN7Y
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.2003_Rev01
MFL71672221
ENGLISH
Additional Information
Specication
Power
consumption Refer to the main label.
AC adapter
• Model : DA-50F25
• Manufacturer : Asian Power
Devices Inc.
• Input : 100 - 240 V ~
50 - 60 Hz 1.5 A Max.
• Output : 25 V 02 A
Dimensions
(W x H x D)
Approx.
890.0 mm x 65.0 mm x
119.0 mm With foot
Bus Power
Supply (USB) 5 V 0500 mA
Amplier
(Total RMS
Output power)
380 W RMS
Designandspecicationsaresubjecttochange
without notice.
Rear Speakers Ready
Ready for surround sound with Rear
Speakers Kit sold separately. (SPK8-S)
OPEN SOURCE SOFTWARE NOTICE
INFORMATION
To obtain the source code under GPL, LGPL, MPL, and
other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to
you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of
media, shipping, and handling) upon email request to
opensourc[email protected].
This offer is valid for a period of three years after our
last shipment of this product. This offer is valid to
anyone in receipt of this information.
POWER: This unit operates on a mains supply of
100 - 240 V ~ 50 - 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved
main plug. When replacing the fuse, always use a fuse
of the same rating and approved to BS 1362. Never
use this plug with the fuse cover omitted. To obtain a
replacement fuse cover contact your dealer. If the type of
plug supplied is not suitable for the mains sockets in your
home, then the plug should be removed and a suitable
typetted.Pleaserefertothewiringinstructionsbelow:
Warning: A mains plug removed from the mains lead
of this unit must be destroyed. A mains plug with bared
wires is hazardous if inserted in a mains socket. Do not
connect either wire to the earth pin, marked with the
letter E or with the earth symbol 6or coloured green
orgreenandyellow.Ifanyotherplugistted,usesame
rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours
of the wires in the mains lead of this unit may not
correspond with the coloured marking identifying the
terminals in your plug, proceed as follows: The wire which
is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black. The
wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured
red.
SN7Y.DSGPLLK_SIM (Sheet)_ENG_MFL71672221.indd 1-2 2020-05-25  3:16:58

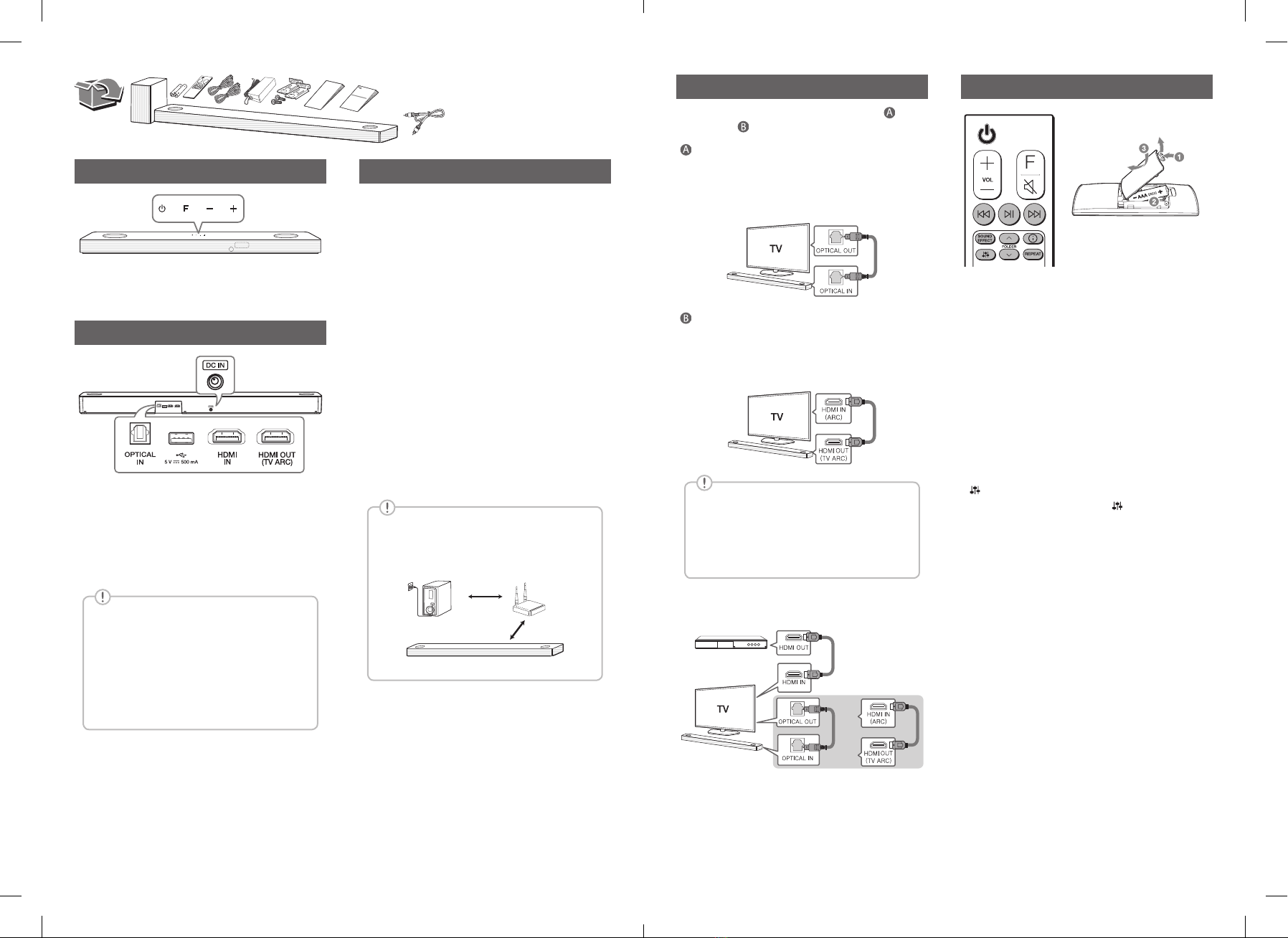

Front Panel
1(Standby) ··········Switches the unit ON or OFF.
F(Function) ························Selects function.
p/o(Volume)····················Adjustsvolume.
Rear Panel
DC IN····················· Connect to the AC adapter.
OPTICAL IN ············Connect to an optical device.
USB Port ····················Connect to a USB device.
HDMI IN ··········Connect to device with HDMI OUT.
HDMI OUT (TV ARC)··············· Connect to a TV.
• It is recommended that you purchase
a USB gender separately for the
convenience of USB insertion and
extraction. (Recommended USB gender
type : USB 2.0 extension cable)
• Make sure to properly align and connect
the optical cable; improper alignment may
causedamagetothejack.
Subwoofer Connection
Place the wireless subwoofer near the sound bar and
follow steps below.
a Connect the power cord of the sound bar and the
wireless subwoofer to the outlet.
b Turn on the sound bar.
• The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Manual Subwoofer Connection
If the subwoofer does not make sound, try to
connect manually.
a Press PAIRING on the rear of the wireless
subwoofer.
• The green LED on the rear of the wireless
subwoofer blinks quickly.
(If the green LED does not blink, press and
hold the PAIRING.)
b Turn on the sound bar.
• Pairing is completed. The green LED on the
rear of the wireless subwoofer turns on.
Keep the sound bar and the subwoofer
away from the device (ex. wireless router,
microwave oven, etc.) over 1 m to prevent
wireless interference.
!
1 m
TV Connection
Connect the sound bar and TV using Optical ( ) or
HDMI ARC ( ).
Optical Connection
a Connect the sound bar to the TV using Optical
cable.
b Set up [External Speaker (Optical)] on your TV
setting menu.
HDMI (ARC) Connection
a Connect the sound bar to the TV using HDMI
cable.
b Set up [External Speaker (HDMI ARC)] on your
TV setting menu.
• HDMI connection is unavailable if your TV
does not support HDMI ARC.
• If this unit is connected by OPTICAL and
ARC at the same time, the ARC signal
has a higher priority.
Additional Device Connection
a Connect to the external device like as follow.
(Set-top Box,
Player etc.)
OR
b Set the input source by pressing Frepeatedly.
Remote control
Replacement of Battery
C/V:Skip/Search
N:Play/Pause
-Bluetooth connection lock (BT LOCK): Select
the Bluetooth function by pressing Frepeatedly.
Long press Nand press it again to limit
Bluetooth connection to only BT and LG TV.
SOUND EFFECT: Selects a sound effect mode.
-TV remote: Long press SOUND EFFECT and
press it again to use TV remote control.
FOLDER W/S: Searches a folder.
J:Displaystheinformationofale,aninputsource
or connected Bluetooth device name.
-Auto Power ON/OFF: Long press Jand press
it again.
: Adjustssoundlevelofeachspeaker.
-Surround sound: Long press and press it
again.
REPEAT:Listenstoyourlesrepeatedlyorrandomly.
