SERVICE MANUAL

CAUTION

BEFORE SERVICING THE UNIT, READ THE “SAFETY PRECAUTIONS”

IN THIS MANUAL.

MODEL: SN8YG (SN8YG, SPN8-W)

P/NO : AFN30014509 FEBRUARY, 2020

MODEL: SN8YG

(SN8YG, SPN8-W)

Only for training and service purposes.

Wi-Fi Sound Bar

“Any reproduction, duplication, distribution (including by way of email, facsimile or other

electronic means), publication, modification, copying or transmission of this Service Manual is

STRICTLY PROHIBITED unless you have obtained the prior written consent of the LG Electronics

entity from which you received this Service Manual. The material covered by this prohibition includes,

without limitation, any text, graphics or logos in this Service Manual.”

1-1

Only for training and service purposes.

CONTENTS

SECTION 1 ........ GENERAL

SECTION 2 ........ CABINET & MAIN CHASSIS

SECTION 3 ........ ELECTRICAL

SECTION 4 ........ WIRELESS SUBWOOFER PART

SECTION 5 ........ WIRELESS RECEIVER PART (OPTION)

1-2

Only for training and service purposes.

SECTION 1

SUMMARY

CONTENTS

PRODUCT SAFETY SERVICING GUIDELINES FOR AUDIO PRODUCTS.................................................... 1-3

SERVICING PRECAUTIONS ............................................................................................................................ 1-4

• GENERAL SERVICING PRECAUTIONS

• INSULATION CHECKING PRODEDURE

• ELECTROSTATICALLY SENSITIVE (ES) DEVICES

NAME OF EACH COMPONENT ....................................................................................................................... 1-5

WIRELESS SUBWOOFER CONNECTION....................................................................................................... 1-7

REAR SPEAKERS CONNECTION (SOLD SEPARATELY) ............................................................................ 1-8

WOOFER & REAR PAIRING METHOD............................................................................................................ 1-9

HIDDEN KEY MODE ....................................................................................................................................... 1-10

SOFTWARE UPDATE GUIDE......................................................................................................................... 1-11

SPECIFICATIONS ........................................................................................................................................... 1-17

1-3

Only for training and service purposes.

PRODUCT SAFETY SERVICING GUIDELINES

FOR AUDIO PRODUCTS

IMPORTANT SAFETY NOTICE

This manual was prepared for use only by properly trained audio-video service

technicians.

When servicing this product, under no circumstances should the original design be

modified or altered without permission from LG Corporation. All components should

be replaced only with types identical to those in the original circuit and their physical

location, wiring and lead dress must conform to original layout upon completion of

repairs.

Special components are also used to prevent x-radiation, shock and fire hazard.

These components are indicated by the letter “x” included in their component des-

ignators and are required to maintain safe performance. No deviations are allowed

without prior approval by LG Corporation.

Circuit diagrams may occasionally differ from the actual circuit used. This way, imple-

mentation of the latest safety and performance improvement changes into the set is

not delayed until the new service literature is printed.

CAUTION : Do not attempt to modify this product in any way. Never perform cus-

tomized installations without manufacturer’s approval. Unauthorized modifications

will not only void the warranty, but may lead to property damage or user injury.

Service work should be performed only after you are thoroughly familiar with these

safety checks and servicing guidelines.

GRAPHIC SYMBOLS

The exclamation point within an equilateral triangle is intended to alert

the service personnel to important safety information in the service

literature.

The lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the service personnel to the presence of

noninsulated “dangerous voltage” that may be of sufficient magnitude

to constitute a risk of electric shock.

The pictorial representation of a fuse and its rating within an equilat-

eral triangle is intended to convey to the service personnel the follow-

ing fuse replacement caution notice:

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK

OF FIRE, REPLACE ALL FUSES WITH THE SAME TYPE AND

RATING AS MARKED NEAR EACH FUSE.

SERVICE INFORMATION

While servicing, use an isolation transformer for protection from AC line shock. After

the original service problem has been corrected, make a check of the following:

FIRE AND SHOCK HAZARD

1. Be sure that all components are positioned to avoid a possibility of adjacent com-

ponent shorts. This is especially important on items trans-ported to and from the

repair shop.

2. Verify that all protective devices such as insulators, barriers, covers, shields, strain

reliefs, power supply cords, and other hardware have been reinstalled per the

original design. Be sure that the safety purpose of the polarized line plug has not

been defeated.

3. Soldering must be inspected to discover possible cold solder joints, solder

splashes, or sharp solder points. Be certain to remove all loose foreign particles.

4. Check for physical evidence of damage or deterioration to parts and components,

for frayed leads or damaged insulation (including the AC cord), and replace if

necessary.

5. No lead or component should touch a high current device or a resistor rated at 1

watt or more. Lead tension around protruding metal surfaces must be avoided.

6. After reassembly of the set, always perform an AC leakage test on all exposed

metallic parts of the cabinet (the channel selector knobs, antenna terminals,

handle and screws) to be sure that set is safe to operate without danger of electri-

cal shock. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS

TEST. Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the

following manner: Connect a 1500 ohm, 10 watt resistor, paralleled by a .15 mfd

150V AC type capacitor between a known good earth ground water pipe, con-

duit, etc.) and the exposed metallic parts, one at a time. Measure the AC voltage

across the combination of 1500 ohm resistor and .15 mfd capacitor. Reverse the

AC plug by using a non-polarized adaptor and repeat AC voltage measurements

for each exposed metallic part. Voltage measured must not exceed 0.75 volts

RMS. This corresponds to 0.5 milliamp AC. Any value exceeding this limit consti-

tutes a potential shock hazard and must be corrected immediately.

TIPS ON PROPER INSTALLATION

1. Never install any receiver in a closed-in recess, cubbyhole, or closely fitting shelf

space over, or close to, a heat duct, or in the path of heated air flow.

2. Avoid conditions of high humidity such as: outdoor patio installations where dew

is a factor, near steam radiators where steam leakage is a factor, etc.

3. Avoid placement where draperies may obstruct venting. The customer should

also avoid the use of decorative scarves or other coverings that might obstruct

ventilation.

4. Wall- and shelf-mounted installations using a commercial mounting kit must follow

the factory-approved mounting instructions. A product mounted to a shelf or plat-

form must retain its original feet (or the equivalent thickness in spacers) to provide

adequate air flow across the bottom. Bolts or screws used for fasteners must not

touch any parts or wiring. Perform leakage tests on customized installations.

5. Caution customers against mounting a product on a sloping shelf or in a tilted

position, unless the receiver is properly secured.

6. A product on a roll-about cart should be stable in its mounting to the cart.

Caution the customer on the hazards of trying to roll a cart with small casters

across thresholds or deep pile carpets.

7. Caution customers against using extension cords. Explain that a forest of exten-

sions, sprouting from a single outlet, can lead to disastrous consequences to

home and family.

1-4

Only for training and service purposes.

SERVICING PRECAUTIONS

CAUTION: Before servicing the

Audio products

covered by this

service data and its supplements and addends, read and fol-

low the SAFETY PRECAUTIONS.

NOTE: if unforeseen circumstances create conflict between

the following servicing precautions and any of the safety

precautions in this publication, always follow the safety pre-

cautions.

Remember Safety First :

General Servicing Precautions

1. Always unplug the

Audio products

AC power cord from the

AC power source before:

(1) Removing or reinstalling any component, circuit board,

module, or any other assembly.

(2) Disconnecting or reconnecting any internal electrical

plug or other electrical connection.

(3) Connecting a test substitute in parallel with an electro-

lytic capacitor.

Caution: A wrong part substitution or incorrect polarity

installation of electrolytic capacitors may result in an

explosion hazard.

2. Do not spray chemicals on or near this

Audio products

or any

of its assemblies.

3. Unless specified otherwise in this service data, clean elec-

trical contacts by applying an appropriate contact cleaning

solution to the contacts with a pipe cleaner, cotton-tipped

swab, or comparable soft applicator.

Unless specified otherwise in this service data, lubrication

of contacts is not required.

4. Do not defeat any plug/socket B+ voltage interlocks with

which instruments covered by this service manual might be

equipped.

5. Do not apply AC power to this

Audio products

and / or any

of its electrical assemblies unless all solid state device heat

sinks are correctly installed.

6. Always connect the test instrument ground lead to an

appropriate ground before connecting the test instrument

positive lead. Always remove the test instrument ground

lead last.

Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet and turn

the power on. Connect an insulation resistance meter (500V)

to the blades of the attachment plug. The insulation resis-

tance between each blade of the attachment plug and acces-

sible conductive parts (Note 1) should be more than 1Mohm.

Note 1: Accessible Conductive Parts include Metal panels,

Input terminals, Earphone jacks,etc.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged

easily by static electricity. Such components commonly are

called Electrostatically Sensitive (ES) Devices. Examples

of typical ES devices are integrated circuits and some field

effect transistors and semiconductor chip components.

The following techniques should be used to help reduce the

incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor compo-

nent or semiconductor-equipped assembly, drain off any

electrostatic charge on your body by touching a known

earth ground. Alternatively, obtain and wear a commer-

cially available discharging wrist strap device, which should

be removed for potential shock reasons prior to applying

power to the unit under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such

as aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder

ES devices.

4. Use only an anti-static solder removal device. Some solder

removal devices not classified as “anti-static” can generate

electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

an electrical charge sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective

package until immediately before you are ready to install

it. (Most replacement ES devices are packaged with leads

electrically shorted together by conductive foam, aluminum

foil, or comparable conductive material).

7. Immediately before removing the protective material from

the leads of a replacement ES device, touch the protective

material to the chassis or circuit assembly into which the

device will be installed.

Caution: Be sure no power is applied to the chassis or cir-

cuit, and observe all other safety precautions.

8.Minimize bodily motions when handling unpackaged

replacement ES devices. (Normally harmless motion such

as the brushing together of your clothes fabric or the lifting

of your foot from a carpeted floor can generate static elec-

tricity sufficient to damage an ES device.)

1-5

Only for training and service purposes.

NAME OF EACH COMPONENT

Front panel

(Standby)

- Switches the unit ON or OFF.

F(Function)

- Select the function and input source by pressing Frepeatedly.

Input source / Function Display

Wi-Fi Wi-Fi

Bluetooth BT

Optical, ARC, LG Sound Sync (Wired) LG TV

HDMI IN HDMI

USB USB

Note: You can use Bluetooth function after making Wi-Fi network connection by using Google Home app.

+/−(Volume)

- Adjusts volume level.

- Starts playback. / Pauses playback.

(Mic mute)

- Disables the detect voice recognition by pressing . All the Google Assistant LED turns amber and

“The mic is muted.” is heard.

To cancel it, press again. Google Assistant LED turns off and “The mic is back on.” is heard.

- Enables Google Assistant to receive your voice commands .

To cancel it, press again.

Microphone

Remote sensor

1-6

Only for training and service purposes.

Rear panel

DC IN

- Connect to the AC adapter.

HDMI OUT (TV ARC)

- Connect the HDMI OUT (TV ARC) jack on the back of the unit to ARC jack on the TV.

HDMI IN

- Connect HDMI IN jack on the back of the unit to HDMI OUT jack on the external device.

You can enjoy the sound and picture from HDMI connection on an external device.

OPTICAL IN

- Connect the OPTICAL IN jack on the back of the unit to OPTICAL OUT jack on the TV.

USB Port

- Connect USB memory device to the USB port on the back of the unit.

Google Assistant LED

- Changes LED status according to Google Assistant performance.

LED Status Description

All four LEDs are on. Ready to listen to your voice

command.

All four LEDs blink. Responds to your voice command.

Microphone is off and the solid

amber LED will be on. Voice recognition is disable

Display Window

- Display window will be darkened automatically if there is no key input for 15 seconds.

When you press any button, the display window will brighten.

1-7

Only for training and service purposes.

WIRELESS SUBWOOFER CONNECTION

LED indicator of wireless subwoofer

LED Color Status

Green

(Blink)

The connection is trying.

Green The connection is completed.

Red

The wireless subwoofer

is in standby mode

or the connection is failed.

Off

(No display)

The power cord of wireless

subwoofer is disconnected.

Setting up the wireless subwoofer

for the ﬁrst time

1. Connect the power cord of the sound bar and the

wireless subwoofer to the outlet.

2. Turn on the sound bar. The sound bar and the

wireless subwoofer will be automatically connected.

- Pairing is completed. The green LED on the rear

of the wireless subwoofer turns on.

Manually pairing wireless subwoofer

When your connection is not completed, you can

check red LED on the wireless subwoofer and the

wireless subwoofer does not make sound. To solve

the problem, follow the steps below.

Press Pairing on the rear of the wireless subwoofer.

- The green LED on the rear of the wireless

subwoofer blinks quickly. (If the green LED does

not blink, press and hold the Pairing)

2. Turn on the sound bar.

3. Pairing is completed.

- Pairing is completed. The green LED on the rear

of the wireless subwoofer turns on.

Note

•It takes a few seconds (and may take longer) for the

main unit and the subwoofer to communicate with

each other and make sounds.

•The closer the main unit and the subwoofer, the

better sound quality. It is recommended to install the

main unit and the subwoofer as close as possible

and avoid the cases below.

- There is a obstacle between the main unit and the

subwoofer.

- There is a device using same frequency with this

wireless connection such as a medical equipment,

a microwave or a wireless LAN device.

- Keep the sound bar and the subwoofer away from

the device (ex. wireless router, microwave oven,

etc.) over 1m (3.3 ft) to prevent wireless

interference.

Pairing

XGGG

OZUZGP

1-8

Only for training and service purposes.

Connecting the rear speakers

1. Connect the black stripe wire to the terminal

marked - (minus) and the other end to the terminal

marked + (plus).

2. Connect the wireless receiver and the rear

speakers (right, left) with the speaker cables.

Color Position

Grey Rear right

Blue Rear left

Note

You need to purchase the wireless rear speakers kit

(SPK8-S) to enjoy surround sound.

Caution

•Use the speaker supplied with this unit only. Using

any other speaker may cause malfunction.

•Be sure to match the speaker cable to the

appropriate terminal on the components: + to + and

– to –. If the cables are reversed, the sound will be

distorted and will lack bass.

LED indicator of wireless receiver

LED Color Status

Yellow - green

(Blink) The connection is trying.

Yellow - green

The connection is completed.

Red

The wireless receiver is in

standby mode or the connection

is failed.

Off

(No display)

The power cord of wireless

receiver is disconnected

Setting up the wireless receiver for the

ﬁrst time

1. Connect the power cord to the wireless receiver

to the outlet.

2. Turn on the main unit : The sound bar and

wireless receiver will be automatically connected.

- Yellow - green LED on the wireless receiver

turns on.

Manually pairing wireless receiver

When your connection is not completed, you can

see the red LED on the wireless receiver and rear

speakers do not made sound. To solve the problem,

follow the below steps.

1. Press PAIRING button on the rear of the wireless

receiver.

- The yellow - green LED on the wireless receiver

blinks quickly.

2. Turn on the main unit

- Paring is completed. The yellow - green LED on

the wireless receiver turns on.

REAR SPEAKERS CONNECTION (SOLD SEPARATELY)

1-9

Only for training and service purposes.

How to pair Subwoofer and Rear kit

1) Down volume minimum to use Remocon or MAIN set key (Press ‘-’ key).

2) Press ‘Mute’ key (about 2~3 seconds) on Remocon and then will display “WL RESET” on LCD.

3) Press paring key on the Subwoofer and Rear kit.

4) When woofer and rear kit attempt to connect wireless, the Green color LED blink faster than standby status.

5) When woofer and rear kit connect wireless completely, the LED will maintain Green color.

WOOFER & REAR PAIRING METHOD

< Remocon > < Rear kit front >

Mute Key

Paring Key

Standby LED

< Subwoofer > < Rear kit back >

1-10

Only for training and service purposes.

1. Factory Reset

Press MIC Mute key 5 seconds, VFD display RESET. System rebooting.

2. Check Version

• Soundbar Volume ‘−’ key + Remocon PLAY key for 3 seconds.

• Each Program Version is displayed when press Remocon F.Skip key.

M : MICOM PQ : PEQ B : Main APK No Alphabet : Main Android

TX : Woofer TX RX : Woofer RX D : DSP H : HDMI

RR : Rear RX RT : Rear TX T : Touch L : Sub MICOM

< MICOM > < DSP > < PEQ >

3. Option Change

Soundbar Volume ‘−’ key and Remocon for 3 seconds.

• B.skip and F.Skip can change Option Number.

• Play/Pause key can change Option Value.

• Remocon ‘Info’ key can save a modiﬁed Option and Reboot.

4. Woofer (Rear Speaker) Reset

Soundbar Volume ‘−’ key and Remocon MUTE for 3sec

• Volume must be Min ( 0 ) before input those keys.

• Woofer (Rear Speaker) must Power Off before input those keys.

• Woofer and Rear Speaker can be reset by pressing reset button on each unit.

HIDDEN KEY MODE

1-11

Only for training and service purposes.

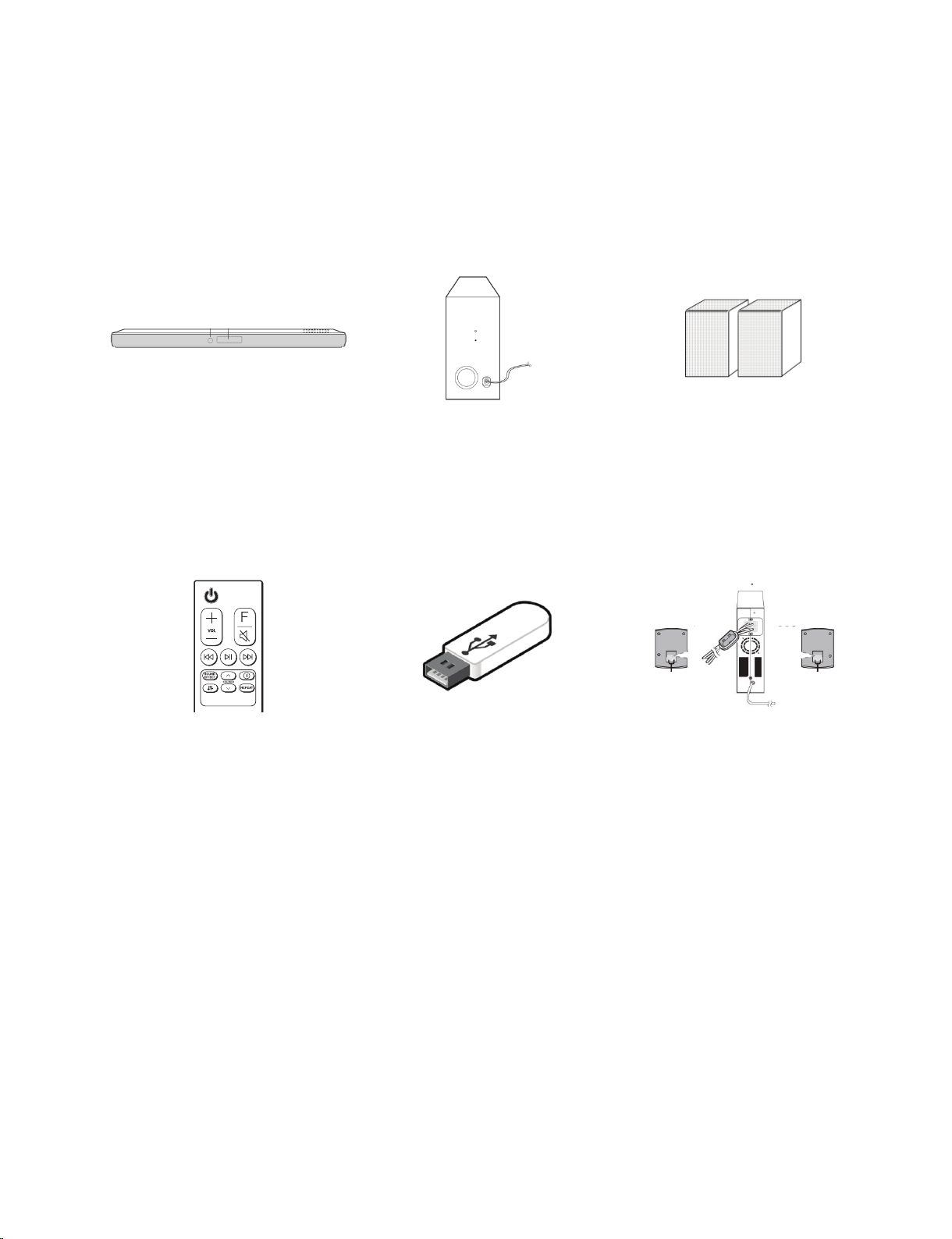

1. Preparation

1) SN11 Series Units : Main Unit, Wireless Subwoofer Unit, Rear L/R Speaker Unit

[※SN10/ SN9/ SN8 : Rear-kit (optional)]

2) RCU.

3) USB Memory.

Caution

•Take care not to power off during update.

•Do format USB memory before update (FAT32 ﬁle system).

SOFTWARE UPDATE GUIDE

Necessary

<RCU>

Necessary

If wireless subwoofer rx module

of primary unit is updated

for USB update

<Rear-kit Speaker Unit>

Optional as model sufﬁx

If wireless rear rx module is

updated

1-12

Only for training and service purposes.

2. Using USB

Step 1. Prepare SN11/ SN10/ SN9/ SN8 update binaries.

Update module Preﬁx & Extension Filename Sample

MAIN MAIN_SNx_GVA_WSB_2001062.bin

MAIN_SNx_C4A_WSB_2001062.bin

MAIN_SN11_GVA_WSB_2001062.bin

MAIN_SN11_C4A_WSB_2001062.bin

Micom MICOM_SNx_WSB_*.HEX MICOM_SNx_WSB_2001063_BB06_rev2428_PP2.HEX

Wireless

Subwoofer Tx (All) WOOFERTX_SNx_*.BIN WOOFERTX_SNx_200005_191028_Checksum_6D43.bin

Wireless

Subwoofer Rx(All) WOOFERRX_SNx_*.BIN WOOFERRX_SNx_201005_191112_Checksum_4BB9.bin

Wireless Rear Tx REARTX_SNx_*.BIN REARTX_SNx_204003_191126_Checksum_269F.bin

Wireless Rear Rx REARRX_SNx_*.BIN REARRX_SNx_Ver185001_171128_checksum_DFDF.bin

Wireless L Tx (SN11) REARLTX_SN11_*.BIN REARLTX_SN11_WSB_204106_191213_Checksum_DD95.bin

Wireless R Tx (SN11) REARRTX_SN11_*.BIN REARRTX_SN11_WSB_204206_191213_Checksum_D26E.bin

Wireless L Rx (SN11) REARLRX_SN11_*.BIN REARLRX_SN11_WRK_205110_200102_Checksum_75A2.bin

Wireless R Rx (SN11) REARRRX_SN11_*.BIN REARRRX_SN11_WRK_205210_200102_Checksum_69B2.bin

MEQ MEQ_SNx_WSB_*.BIN MEQ_SN11_WSB_19122763_095858.BIN

PEQ PEQ_SNx_WSB_*.BIN PEQ_SN11_WSB_1911150_6326.bin

TOUCH TOUCH_SNx_*.BIN TOUCH_SN11_191211_0xF621.dld

Step 2. Copy all updated SN8 binaries to USB memory.

[※ex) F:\MAIN_SN8_GVA_WSB_2001062.bin]

Step 3. Power on SN11’s main unit.

Step 4. If there is an updated wireless subwoofer rx binary in update list,

you need to pair between main unit and subwoofer unit before start update.

Step 5. If there is an updated wireless rear rx binary in update list,

you need to pair between main unit and rear speaker unit before start update.

Step 6. Press Function key to change function to USB.

Verify whether USB function is or not by VFD.

Step 7.Attach USB which has update binaries to the USB slot back of SN11’s main unit.

(VFD Model)

USB

5 V 500 mA

1-13

Only for training and service purposes.

Using USB

Step 8. Display “Read” and “REMOVE”.

Un-plug USB memory stick.

Update will start automatically.

Check VFD what module is in progress one by one.

※The numbers in VFD display of wireless modules will increase in progress as progress percent from 00 to 100.

Step 9. SN11’s main unit will be off automatically after update ﬁnish.

Step 10. Power on SN11’s main unit again.

Step 11. Check the current versions to verify whether the update was successfully completed or not.

1) Press “Version Check” hidden key

• Version Check Hidden Key : Press Set “Vol-” + RCU “Play/Pause” for 3secs.

Update module VFD display

MAIN

MICOM

SUB-MICOM

Wireless Subwoofer Tx

Wireless Subwoofer Rx

Wireless Rear Tx

Wireless Rear Rx

Wireless L Tx

Wireless R Tx

Wireless L Rx

Wireless R Rx

MEQ

PEQ

Option

D-UPDATE

T-UPDATE

M-UPDATE

WT 00

WR 00

RT 00

RR 00

BR 00

AT 00

MEQ-UPDATE

AR 00

PEQ-UPDATE

BT 00

T-UPDATE

1-14

Only for training and service purposes.

Using USB

2) SN11’s shows the version of all modules in the order shown below.

3) Compare the version VFD shows and you updated.

Module VFD display sample

MICOM

PEQ

MAIN

GVA

MEQ

Wireless Subwoofer Tx

Wireless Subwoofer Rx

Rear L Tx

Rear L Rx

Touch

Sub-Micom

Rear R Tx

Rear R Rx

Option

M1912247

PQ1812030-6326

B1901140

1.40.168834

MQ161221

TX190007

RX191008

AT2041050

AR2041050

BT2041050

T1910111

BR2041050

L1912160

00 75 05 93 ...

<SN11’s VFD Display in Version Display>

1-15

Only for training and service purposes.

3. Using APP

Before Network update, soundbar has to be connected with ‘LG WiﬁSoundbar’ Application.

Step 1. Select setting gui.

Step 2. Select software version display.

1-16

Only for training and service purposes.

Using APP

Step 3. System compare current version

with the latest version at server.

Step 4. If there is new version on server, press Update.

Step 6. Updating Step 7. After update ﬁnish, application

show the result.

Step 5. Update ﬁle downloading.

1-17

Only for training and service purposes.

SPECIFICATIONS

• GENERAL

Power consumption Refer to the main label on the unit.

AC adapter Model: DA-50F25

Manufacturer : Asian Power Devices Inc.

Input: 100 - 240 V ~ 50 - 60 Hz

Output: 25 V 2 A

Dimensions (W x H x D) Approx. 1060.0 mm x 57.0 mm x 119.0 mm (with foot)

(41.7 inch x 2.2 inch x 4.7 inch)

Operating temperature 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity 5 % to 90 %

Bus Power Supply (USB) 5 V 500 mA

Available Digital Input Audio Sampling Frequency

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Available Digital Input Audio format Dolby Atmos, Dolby Audio, DTS:X, DTS-HD, PCM

• INPUT/OUTPUT

OPTICAL IN 3 V (p-p), Optical jack x 1

HDMI IN 19 Pin (Type A, HDMI™ connector) x 1

HDMI OUT 19 Pin (Type A, HDMI™ connector) x 1

1080p, 1080i, 720p, 576p, 480p

2160p@24/25/30 Hz 4:4:4

2160p@60/50 Hz 4:2:0

K Sources dependent on HDCP 2.2 are supported at 4K resolutions.

• AMPLIFIER (RMS Output)

Total 440 W RMS

Front 50 W RMS x 2 (4 Ωat 1 kHz, THD 10 %)

Center 40 W RMS (4 Ωat 1 kHz, THD 10 %)

Top 40 W RMS x 2 (4 Ωat 1 kHz, THD 10 %)

Subwoofer 220 W RMS (3 Ωat 80 Hz, THD 10 %)

• WIRELESS SUBWOOFER

Power requirements Refer to the main label on the subwoofer.

Power consumption Refer to the main label on the subwoofer.

Type 1 Way 1 Speaker

Impedance 3 Ω

Rated Input Power 220 W RMS

Max. Input Power 440 W RMS

Dimensions (W x H x D) Approx. 221.0 mm x 390.0 mm x 312.8 mm

(8.7 inch x 15.4 inch x 12.3 inch)

• SYSTEM

Wireless LAN (Internal antenna) 802.11a/b/g/n Wi-Fi networks

SPK8-S (SPK8-S, S78S1-S), Sold Separately

• WIRELESS RECEIVER

Power requirements Refer to the main label on the wireless receiver.

Power consumption Refer to the main label on the wireless receiver.

Rear 70 W RMS x 2 (3 Ωat 1 kHz, THD 10 %)

Dimensions (W x H x D) Approx. 60.0 mm x 220.0 mm x 175.0 mm

(2.4 inch x 8.7 inch x 6.9 inch)

• REAR SPEAKERS (Each)

Type 1 Way 1 Speaker

Impedance 3 Ω

Rated Input Power 70 W RMS

Max. Input Power 140 W RMS

Dimensions (W x H x D) Approx. 100.0 mm x 140.0 mm x 100.0 mm

(3.9 inch x 5.5 inch x 3.9 inch)

• Designs and specifications are subject to change without prior notice.

1-18

Only for training and service purposes.

2-1

Only for training and service purposes.

SECTION 2

CABINET & MAIN CHASSIS

CONTENTS

DISASSEMBLY INSTRUCTIONS ..................................................................................................................... 2-2

1. HOW TO DISASSEMBLE THE MAIN UNIT ............................................................................................. 2-2

2. HOW TO DISASSEMBLE THE SUBWOOFER........................................................................................ 2-6

EXPLODED VIEWS ........................................................................................................................................... 2-9

1. MAIN UNIT (SN8) SECTION .................................................................................................................... 2-9

2. WIRELESS SUBWOOFER (SPN8-W) SECTION .................................................................................. 2-13

3. PACKING ACCESSORY SECTION ....................................................................................................... 2-17
