LG LST-200 User manual

CDMA Fixed Wireless Terminal
Owner’s Manual
Model: LST-200 & 2200

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
3
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES S/W VERSION
1999/01 ISSUE 1 Initial release
Please read this manual before you use this product. This manual is based on the production
version of LST-200/2200 FWT. Software changes may have occurred after this printing.
LGIC reserves the right to make changes in technical and product specifications without
prior notice.

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
4
Table of Contents
1. Before You Start ...................................................................................................6
Safety Information............................................................................................................................6
Optimal Phone Performance............................................................................................................6
Care and Service..............................................................................................................................7
2. Introduction...........................................................................................................8
Front View of the Terminal................................................................................................................9
3 LEDs Indicators...........................................................................................................................10
Installation ...................................................................................................................................... 11
STEP I. Check Components................................................................................................... 11
STEP II. Place the Terminal.................................................................................................... 11
STEP III. Connect Components ............................................................................................. 11
STEP IV.Check LED indicators ............................................................................................. 11
STEP V.Wall Mounting Bracket........................................................................................... 11
3. Basic Operation..................................................................................................13
Power On .......................................................................................................................................13
Placing a call..................................................................................................................................13
Receiving a call..............................................................................................................................13
Ending a call...................................................................................................................................13
Dial Tone after Remote Disconnect................................................................................................13
Dial Delay.......................................................................................................................................13
Emergency Call..............................................................................................................................14
4. System Features ................................................................................................15
Hookflash .......................................................................................................................................15
Dial Time ........................................................................................................................................15
ROH (Receiver Off Hook)...............................................................................................................15
Special Cellular Services................................................................................................................15
Applications....................................................................................................................................16
5. Programming......................................................................................................17
Speed Dial......................................................................................................................................17
Storing the Speed Dial Number ................................................................................................17
Enable or Disable Speed Dial...................................................................................................17
Operation...................................................................................................................................18
Emergency Call..............................................................................................................................18
Entering the emergency phone number....................................................................................18
Enable or Disable emergency call.............................................................................................18
Hot Line..........................................................................................................................................18
Programming the Hot Line number...........................................................................................18
Enable the Hot Line Feature.....................................................................................................18
Disable the Hot Line Feature ....................................................................................................19
Programming the Hot Line Time...............................................................................................19
Alarm..............................................................................................................................................19

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
5
Entering Alarm Time (12-hour Mode)........................................................................................19
Entering Alarm Time (24-hour Mode)........................................................................................19
Disable Alarm Feature ..............................................................................................................19
Volume Level..................................................................................................................................20
Changing the Volume Level......................................................................................................20
Outgoing Call Lock.........................................................................................................................20
Enable or Disable Outgoing Call Lock......................................................................................20
Changing Outgoing LOCK Code...............................................................................................20
G3 FAX Receive Mode...................................................................................................................21
Enable or Disable G3 FAX Receive mode................................................................................21
6. Troubleshooting..................................................................................................22
7. General Information............................................................................................23
< LST-200 > ...................................................................................................................................23
< LST-2200 > .................................................................................................................................24

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
6
1
1. . B Be ef fo or re e Y Yo ou u S St ta ar rt t
Safety Information Warning
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture. Do not use this product near swimming pools or other bodies of water.
IMPORTANT
Before installing or operating this product, read this information..
Optimal Phone Performance
lDo not operate your product when holding the antenna, or when someone is within four
inches (ten centimeters) of the antenna. Holding the antenna affects call quality and
may cause the telephone to operate at a higher power level than needed.
lFor the best call quality, keep the antenna free from obstructions and point the antenna
straight up.
lDo not use the unit with a damaged antenna. Have your antenna replaced by a
qualified technician immediately. Use only a manufacturer-approved antenna. Non-
approved antennas, modifications, or attachments could impair call quality, damage the
phone.
lRF energy may affect improperly installed or inadequately shielded personal medical
devices such as pace markers, hospital monitor.Consult the manufacturer of any
personal medical devices to determine if they are adequately shielded from external RF
energy. Turn your terminal OFF in health care facilities when any regulations posted in
the areas instruct you to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF energy.
lIf this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the radio or television and the telephone.
-Connect the equipment into an outlet on a circuit different from that to which the
terminal is connected.
-Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help.
lUse only the battery, antenna and AC power supply provided by LGIC. Using any other
type will invalidate the warranty.
lOnly authorized personnel should service the phone and its accessories. Faulty
installation or service any be dangerous and may invalidate the warranty.
lDo not use the unit in designated “no cellular phone use”area.
lAvoid exposure to high temperature or humidity.

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
7
lAvoid wetting the unit with any liquids. If the unit gets wet, turn the power off
immediately and remove the backup battery and AC power supply. If the unit is
inoperable, then return to the service agent for service.
lAvoid shock or impact.
lWe recommend you to charge the backup battery before initial use. Backup battery
may be discharged during delivery.
Care and Service
lUnplug the Telephone from the wall outlet and remove antenna (or disconnect antenna
cable) before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
lIf the unit fails for any reason, do not attempt to disassemble;contact the telephone
service provider for assistance.
lIf any of the following conditions exist: Unplug the unit at the wall plug, remove battery,
and call the service provider.
-The power supply cord is damaged or frayed.
-Liquid has been spilled into the unit.
-The unit has been exposed to rain or water.
-The unit has been dropped or damaged.
-The unit does not work normally by following the operating instructions.

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
8
2
2. . I In nt tr ro od du uc ct ti io on n
Congratulations on your purchase of the LG Fixed Wireless Terminal that has been designed
to operate on the latest digital mobile communications technology, Code Division Multiple
Access (CDMA). This CDMA digital technology has greatly enhanced voice clarity and can
provide various advanced features. The terminal enables the normal operation and direct
connection of standard telephone equipment into the cellular network.
The standard unit provides:
lDial tone;
lTouch tone (DTMF) or Pulse Dialing;
lSupport Caller ID Telephone;
lVoice-Mail Notification ring-alerts you to new voice-mail messages;
lROH (Receiver off-hook) tone; which is the sound you hear when a telephone handset is
left off-hook for an extended period of time with no activity;
lRing voltage used to ring the telephone connected to the unit, with a Ringer Equivalence
Number of 4;
lA phone jack to plug in the telephone equipment (RJ-11 Port);
lA phone jack to plug in the FAX equipment (RJ-11 Port);
lDB9 Data Port for service and repair
lAC Power supply with barrel plug connector;
lThree lights (LEDs) to indicate the status of the unit;
lDiapole Antenna;
Other features as determined by your service provider.
Note: Telephones with multiple terminating impedance should be set for 600ohms.

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
9

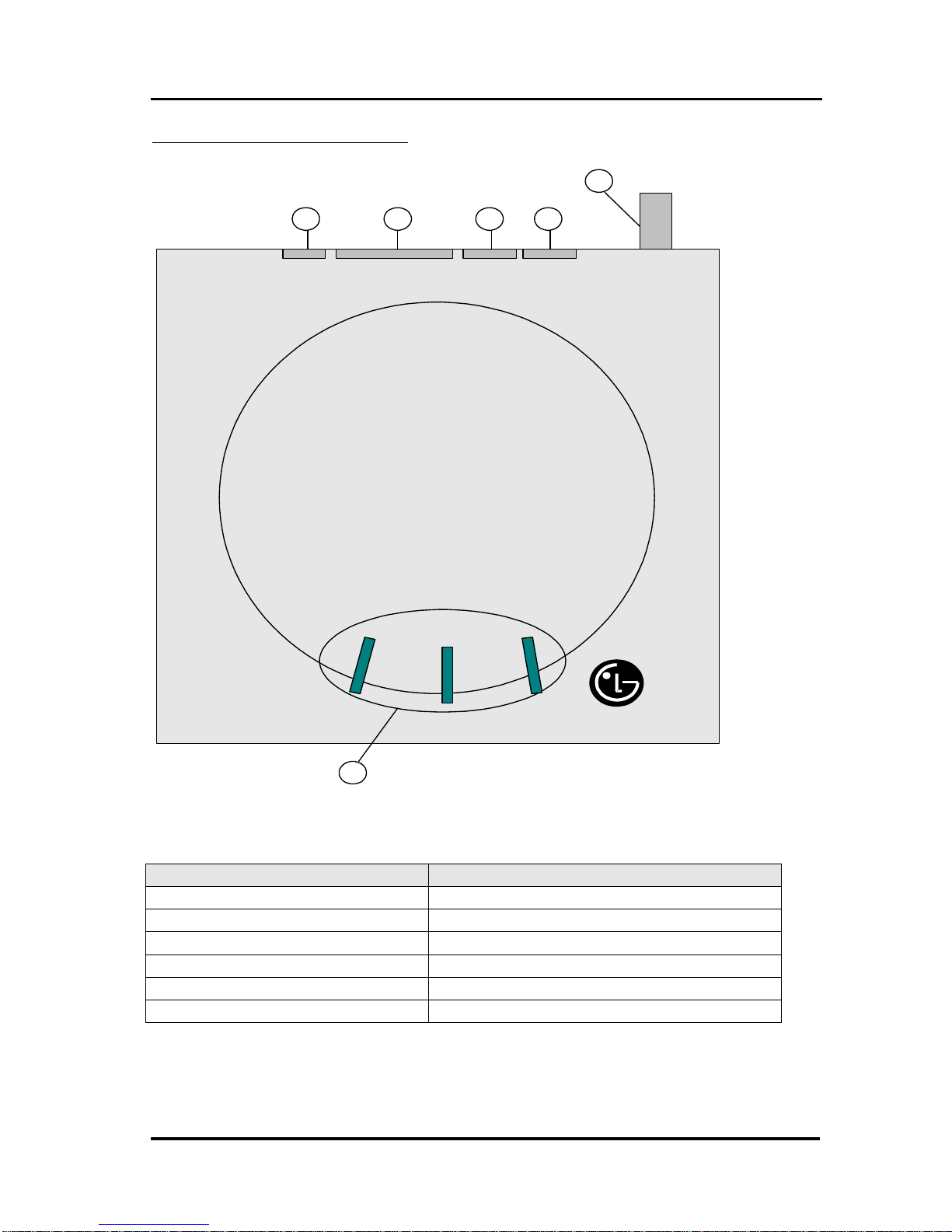

Front View of the Terminal
1
POWER
MODE
SIGNAL
TNC
Antenna
Connector
FAX PHONE
RS-232CDC12V
LG
2
6
543
< Figure 1 >
ITEM DESCRIPTION
¨ç LEDs Indicate the status of the unit
¨è DC-12V AC Power Adapter
¨é RS-232C DB 9 Connector Connecting Port for Data Service to PC
¨ê FAX (RJ-11 Jack) Connecting Port for G3 FAX Machine
¨ë Phone (RJ-11 Jack) Connecting Port for Single Line Telephone
¨ì TNC Antenna Connector

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
10
3 LEDs Indicators
POWER
MODE
SIGNAL
LED COLOR Operating Condition
GREEN-solid DC Power is applied
YELLOW-solid Battery Power is appliedPOWER LED RED-solid Low Battery
GREEN-solid Good Signal
YELLOW-solid Poor Signal
SIGNAL LED RED-solid No Service Area
GREEN –blink
(0.5sec On / 0.5sec Off) Voice Message is received
GREEN –blink
(1 sec On / 1 sec Off) Data Service is working
MODE LED
RED-blink G3 Fax option is connected

LGIC CDMA Fixed Wireless Terminal
LST-200/2200
11
Installation
STEP I. Check Components
lEach standard unit comes with the Fixed Wireless Terminal, an AC power supply with
power cords, an antenna, a Battery and User Manual.
lPlease make sure that these components are present and check for evidence of shipping
before you begin the unit installation. If components are missing or damage is found,
contact your authorized LGIC distributor immediately.
STEP II. Place the Terminal
lPlace the terminal on the stable flat secure surface area (desk, table, etc.). Avoid direct
exposure to the sun lights and damp area.
lRead the SAFETY INFORMATION located at the first part of this document before you
place the terminal.
STEP III. Connect Components
lConnect the antenna to the TNC connector located at the topside of the terminal. (See
Figure 1 to locate the TNC connector.) If you placed the terminal on the flat surface, bend
the antenna up right.
lConnect your phone cord to the RJ-11C port located at the left side of the terminal.
lConnect the AC power supply cable to the DC input port located at the right side of the
terminal.
lIf you use Data Service or PC FAX Service, connect your RS-232C cable cord to the DB9
port located at the right side of the terminal.
lIf you use G3 FAX machine, connect your line cord of G3 FAX to the RJ-11 port located
at the right side of the phone port.

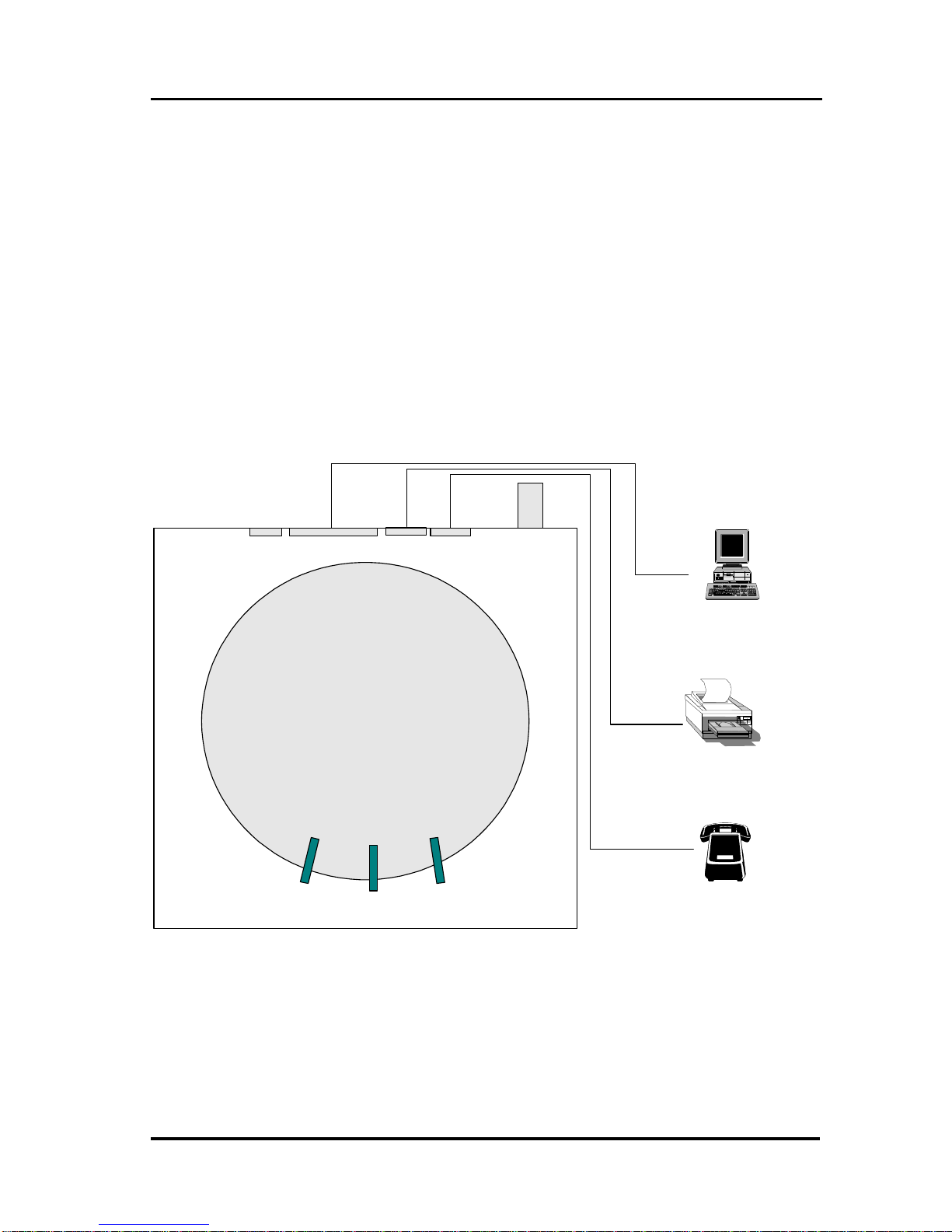

“Refer to Connection Diagram with external equipment in Figure 2 “
STEP IV.Check LED indicators
lWhen you followed the installation instruction STEP I to STEP III, please check the LEDs
for normal operation.
STEP V.Wall Mounting Bracket
lThe terminal comes with a bracket for wall installation. Before installing it, determine
the location which provides the strongest signal and a near by electrical outlet.
1. Hold the bracket against the wall;
2. Mark the two openings and select round or panhead type screw;
3. Drill out the holes with drill bit smaller in diameter than the screws
4. Secure two screws into the wall, leaving about 1/8inch gap between the screw heads
