LG VF-4803HT User manual

Model
Language
Page
Size(W*H)
Designer
Designer Confirm
Color(cover/body)
Description
Date
No. Date
Chage Record
Change content ECO No.
1change "IMPORTANT SAFTY INSTRUCTIONS" ACTT904439 09.07.09 ZXL CUIYT
2
3
4
5
6
7
8
9
Weight 100g
2009.07.03
VF-4803HT
32
MFL56999659
2/1
150 x 220(mm)
Zhang Xianli
Owner's manual
Material
Part No.
English+Persia

1
New Type Cyclone Vacuum Cleaner
This information contains important instructions for the safe use and maintenance of the vacuum cleaner.
Especially, please read all of the information on page 4,5 for your safety.
Please keep this manual in an easily accessible place and refer to it anytime.
OWNER'S MANUAL
VF-4803HT
MFL37414302
P/No.: MFL56999659

2
MFL37414302

3
..........................................................................................
...........................................................................................
..........................................................
..........................................................................
..........................................
.........
...................................................
.....................................................................
...............................................................
.............................................
........................................................
....................................
............................................
MFL37414302
Table of contents
Important safety instructions ..............................................................................4~5
How to use.................................................................................................................6
Assembling vacuum cleaner....................................................................................................................6
Operating vacuum cleaner.......................................................................................................................8
Using carpet and floor nozzle..................................................................................................................9
Using All Floor Nozzle and mini turbine nozzle .....................................................................................10
Using accessory nozzles.......................................................................................................................11
Emptying dust tank................................................................................................................................12
Cleaning dust tank.................................................................................................................................13
Cleaning air filter and motor safety filter................................................................................................14
Cleaning exhaust filter...........................................................................................................................15
What to do if your vacuum cleaner does not work..............................................16
What to do when suction performance decreases..............................................16

1
2
Telescopic pipe
(Optional)
Spring latch
Hose Handle
6
MFL37414302
How to use Assembling vacuum cleaner
Carpet and floor nozzle (depend on model)
Push the nozzle into the telescopic pipe.
Telescopic pipe
•Push telescopic pipe firmly into hose handle.
•Grasp the spring latch to expand.
•Pull out the pipe to desired length.
(Depend on model)
(Depend on model)

3
Attachment Point
Click!
Flexible Hose
Fitting pipe
Button
7
MFL37414302

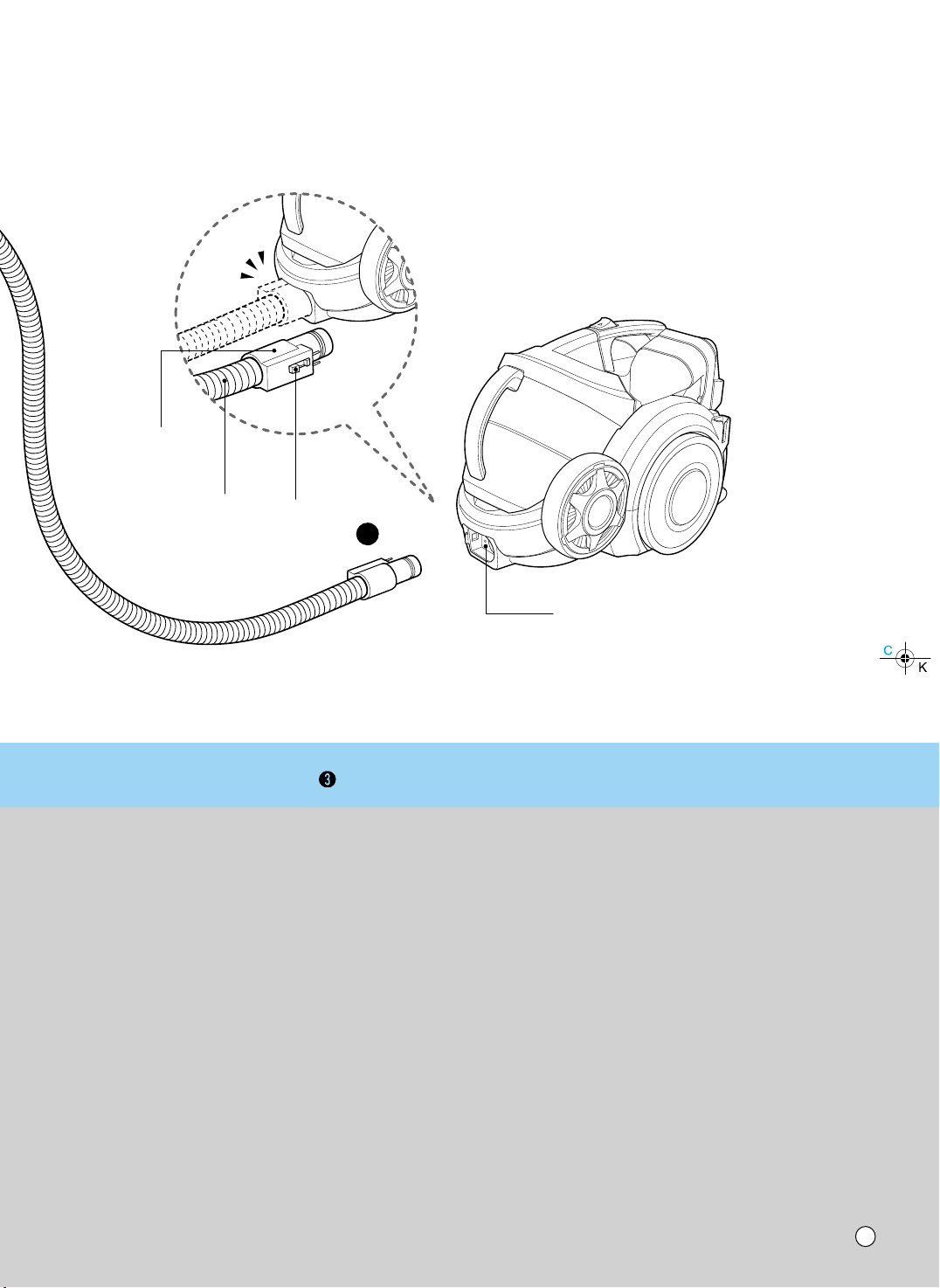

Connecting the hose to the vacuum cleaner
Push the fitting pipe on the flexible hose
into the attachment point on the vacuum cleaner.
To remove the flexible hose from the vacuum
cleaner, press the button situated on the fitting pipe,
then pull the fitting pipe out of the vacuum cleaner.

2 3 4
MAX
MIN
OFF
FLOOR
POWER
CONTROL
CARPET
SOFA
CURTAIN
1
Cord reel
button
Plug
Indicator
Control
knob
8
MFL37414302
How to use Operating vacuum cleaner
How to operate
•Pull out the power cord
to the desired length
and plug into the
socket.
•Place the control knob
of the hose handle to
the required position.
•To turn off, slide control
knob to OFF position.
•Press the cord reel
button to rewind the
power cord after use.
Indicator and alarm sound
•The indicator light of the hose
handle is on and alarm will
sound when dust tank is full.
After about 2 minutes,
vacuum cleaner will turn itself
off and alarm will sound.
Empty the dust tank and
reuse the vacuum cleaner
Park mode
•To store during
vacuuming, for
example to move a
small piece of
furniture or a rug,
use park mode to
support the flexible
hose and nozzle.
- Slide the hook on
the nozzle into the
slot on the side of
vacuum cleaner.
Storage
•When you have
switched off and
unplugged the
vacuum cleaner,
press the cord
reel button to
automatically
rewind the cord.
•You can store
your vacuum
cleaner in a
vertical position by
sliding the hook
on the nozzle into
the slot on the
underside of the
vacuum cleaner.
NOTICE
When indicator light flashes and alarm sounds :
1. Dust tank is full
slide handle knob to OFF position and empty dust tank
2. Power is on without dust tank
slide handle knob to OFF position and reattach dust tank
3. Rotating plate in the dust tank is restricted because of obstruction
slide handle knob to OFF position and remove obstruction

1
Pedal
FloorFloorFloor
CarpetCarpetCarpet
•Cleaning carpet and floor nozzle
9
MFL37414302
Carpet and floor nozzle (depend on model)
•The 2 position nozzle
This is equipped with a pedal which allows you to
alter its position according to the type of floor to
be cleaned.
•Carpet or rug position
press the pedal ( ) to lower brush.
•Hard floor position (tiles, parquets floor)
Both pedal position are suitable.
•Open the cover by pulling the hook.
•Separate the nozzle into two parts
•Clean the hole of the nozzle.
How to use Using carpet and floor nozzle

2 3
FloorFloorFloor
CarpetCarpetCarpet
Pedal
Press
10
MFL37414302
How to use Using All Floor Nozzle and mini turbine nozzle
•Cleaning All Floor nozzle
•Open the cover by
pulling the hook.
•Clean the hole and
brush of the nozzle.
Mini turbine nozzle (optional)
•Mini turbine is used for stairs and other hard to
reach places.
•To clean the mini turbine nozzle, remove the
nozzle cover :
Remove 2 screws on the bottom and take mini
turbine nozzle cover off as shown.
•Frequently clean and remove hair, string, and lint
build-up in the brush area. Failure to do so could
damage to mini turbine nozzle.
All Floor Nozzle (depend on model)
•The 2 position nozzle
This is equipped with a pedal which allows you to alter
its position according to the type of floor to be cleaned.
•Carpet or rug position
Press the pedal ( ), then brush will rotate
•Hard floor position
Press the pedal ( ), then brush will stop rotating

4 5 6
Crevice toolDusting brushUpholstery nozzle
•BOX •
Upholstery nozzle mode
Push the
button
Dusting brush mode
Pull the
cover
11
MFL37414302
How to use Using accessory nozzles
OFF
FLOOR
POWER
CONTROL
CARPET
SOFA
CURTAIN
NOTICE
Use accessory in the sofa mode
•Accessory nozzles included in the
"PE BAG" with owner's manual.
Upholstery nozzle
Upholstery nozzle is for
vacuuming upholstery,
mattresses etc.
Dusting brush
Dusting brush is for vacuuming
picture frames, furniture frames,
books and other irregular
surfaces.
Crevice tool
Crevice tool is for vacuuming in
those normally hard-to-reach
places such as reaching cobwebs
or between the cushions of a sofa.

Plate opening lever
Pull out
Tank handle
Tank separation lever
Dust tank cap
Indicator
Tank handle Carrier handle
12
MFL37414302

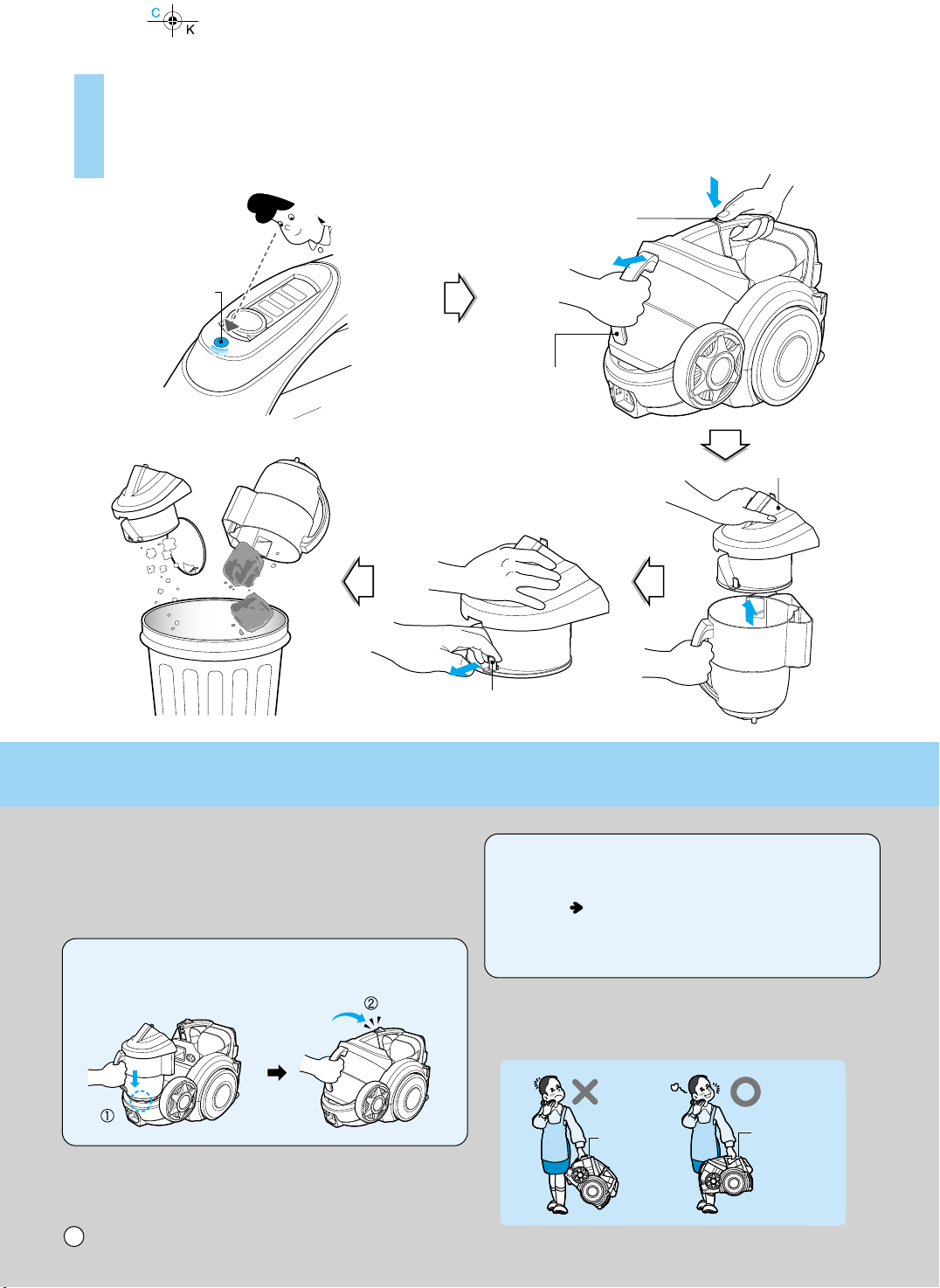

The dust tank needs emptying when indicator light is on.
•Turn off the vacuum cleaner and unplug it.
•Grasp the handle of the tank and then press the tank
separation lever.
•Pull out the dust tank.
•Empty the tank and then assemble the dust tank as below
NOTICE
•If suction power decreases after empting dust tank, clean
dust tank next page
•Since dust tank is full, indicator continues to flash for
2~3 minutes and suction power will decrease for a
while, then vacuum cleaner will turn itself off.
Moving the vacuum cleaner
•
Don't grasp the tank handle when you are moving the vacuum cleaner.
The vacuum cleaner's body may fall when separating tank and body.
You should grasp the carrier handle when you are moving the vacuum cleaner.
Assembling dust tank
First, place the bottom of dust tank on the vacuum cleaner
and tilt.
How to use Emptying dust tank

Pull out
Tank handle
Tank separation lever
Plate opening lePlate opening levererPlate opening lever
Dust tank cap
13
MFL37414302
How to use Cleaning dust tank
NOTICE
If suction power decreases after cleaning dust tank,
clean air filter and motor safety filter. Next page
•Press tank separation lever and pull out dust tank.
•Raise dust tank cap
•Dry fully in shade so that moisture is entirely removed.

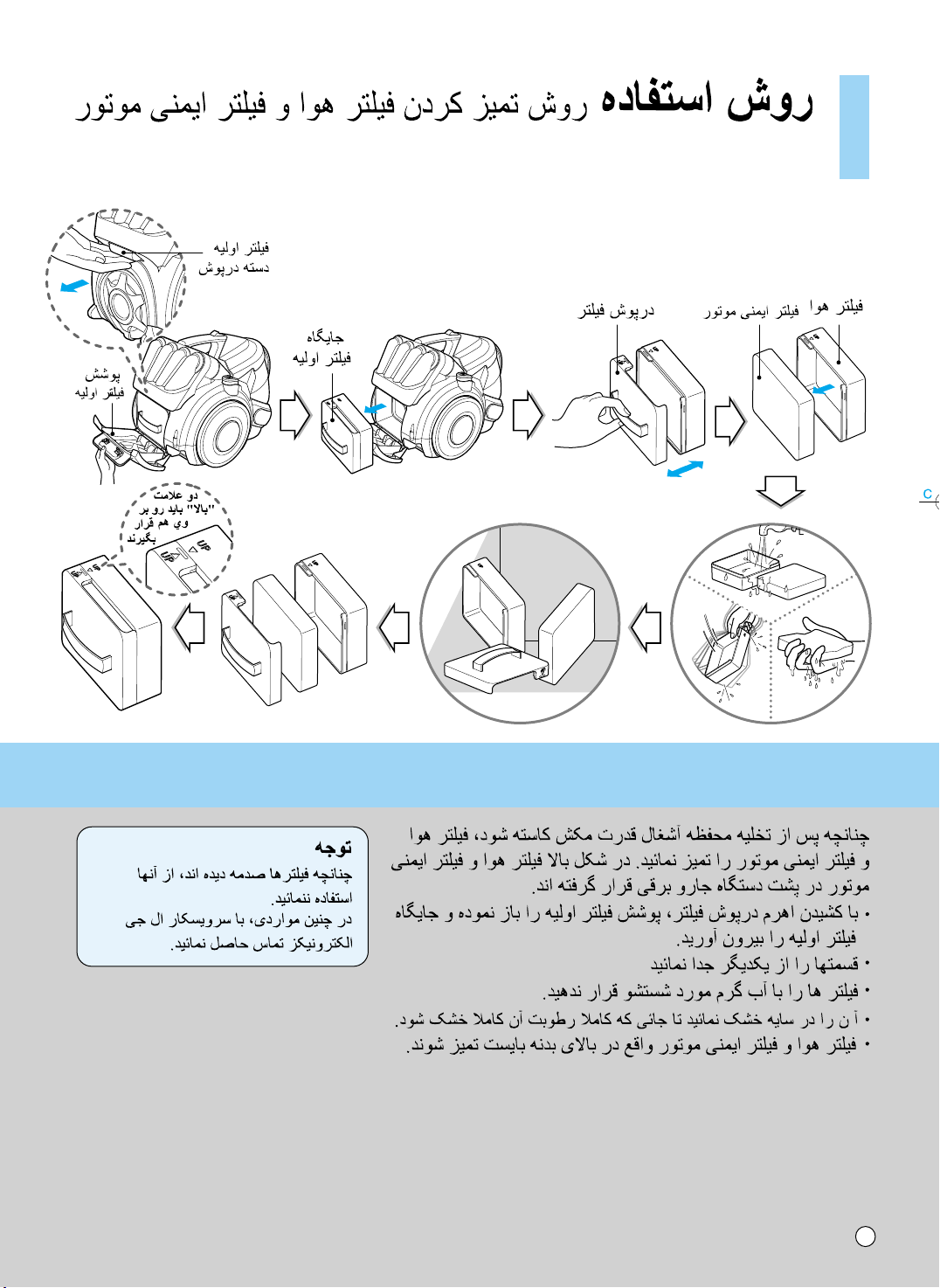

Air filter
Filter cap
Pre-filter
cover
Pre-filter
assembly
Motor safety filter
Two "UP"
marks must
meet
Pre-filter
cover lever
14
MFL37414302
How to use Cleaning air filter and motor safety filter
NOTICE
If filters are damaged, do not use them.
In this cases, contact LG Electronics Service Agent.
If suction power is decreased after cleaning dust tank, clean air
filter and motor safety filter. Air filter and motor safety filter are
located at the back of vacuum cleaner in the above figure.
•Open the pre filter cover by pulling the pre filter cover lever
and take out pre filter assembly
•Separate the parts
•Wash air filter and motor safety filter with water
•Do not wash filters with hot water.
•Dry fully in shade so that moisture is entirely removed.
•Air filter and motor safety filter should be cleaned in the above
case.

MFL37414302

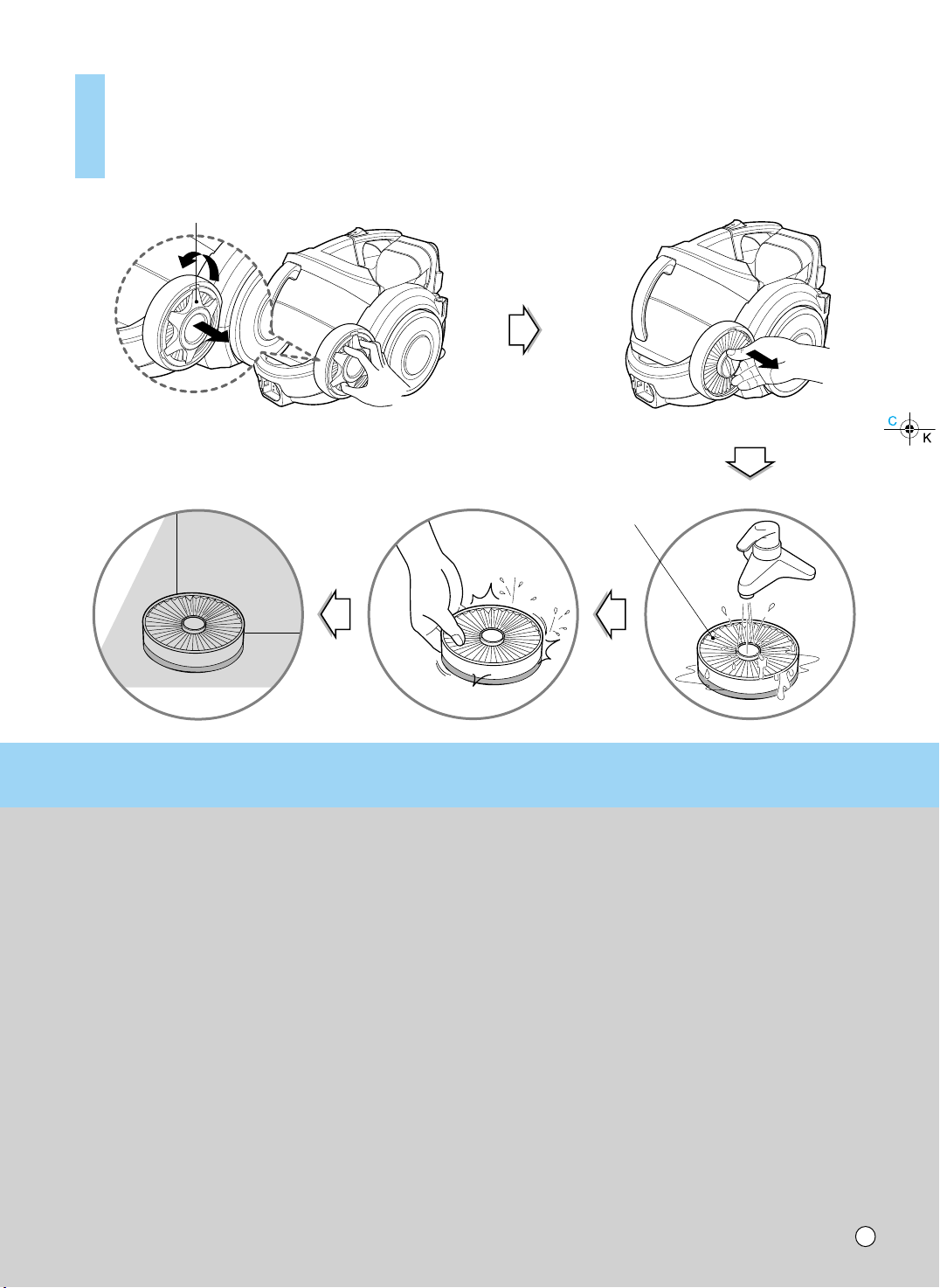

Exhaust filter cover
White side up
•The exhaust filter is a washable and reusable HEPA filter.
•To clean the exhaust filter, remove the exhaust filter cover on the body by rotating it
counterclockwise.
•Separate the exhaust filter.
•Wash the filter cleanly in flowing water.
•Remove moisture.
•When filter is washed, make sure not to wash green side of filter
•Dry fully in shade so that moisture is entirely removed.
•The exhaust filter should be cleaned at least once a year.
Exhaust filter cover assembling
•Fit exhaust filter cover lugs to the grooves of vacuum cleaner body
•Join it to the body by rotating it clockwise.
How to use Cleaning exhaust filter
15

MFL37414302
What to do if your vacuum cleaner does not work
What to do when suction performance decreases
Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working.
•Turn off the vacuum cleaner and unplug it.
•Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
•Check that the dust tank is not full. Empty if necessary.
•Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
•Check that the air filter is not clogged. Clean the air filter if necessary.
