LGMedSupply PRO Series ELITE DU3037 User manual

CAUTION: Federal Law restricts this device to sale by or on the
order of a physician or licensed practitioner
Model # DU3037
LG “PRO SERIES ELITE”
PORTABLE ULTRASOUND
INSTRUCTION MANUAL
Live Pain Free, Live Good Today!

This manual is valid for the DU3037 LG “PRO SERIES ELITE”
Portable Ultrasound Unit
This user manual is published by LGMedSupply.com.
LGMedSupply.com does not guarantee its contents and reserves the right to
improve and amend it at any time without prior notice. Amendments will
however be published in a new edition of this manual.
All Rights Reserved.
DU3037h Rev. V3© 2021 LGMedSupply.com.
It is important that you read all the warning and precautions included in this manual
because they are intended to keep you safe, prevent injury and avoid a situation that
could result in damage to the device.
CAUTION: United States Federal Law restricts this device to sale by
or on the order of a physician or licensed practitioner by the law of
the State in which he/she practices, according to 21 CFR 801.109.

1. FORWARD
2. INTENDED USE
3. EXPLANATION OF ULTRASONIC STIMULATOR EFFECT
4. CONTRAINDICATIONS
5. PRECAUTIONS
6. CAUTIONS
7. PARTS OF THE DEVICE
8. SPECIAL FEATURES
9. STEPS TO CONNECT THE ADAPTOR
10. INSTRUCTIONS FOR USE
11. LOAD DETECTION SYSTEM CAUTION
11. MAINTENANCE
12. STORAGE CONDITIONS
13. TROUBLESHOOTING
14. UNIT SPECIFICATIONS
15. PRESCRIPTION STATEMENT
16. GLOSSARY OF SYMBOLS
17. IMPORTANT INFORMATION REGARDING EMC
18. LIMITED WARRANTY
4
4
4
5
5
6
7
7
8
9
11
11
12
12
13
14
14
15
20
TABLE OF CONTENTS

44
The LG “Pro Series Elite” is a portable ultrasound device that generates deep
ultrasonic waves within body tissues for the treatment of selected medical
conditions such as pain relief, muscle spasms, and joint contractures, but not
recommended for the treatment of malignancies. This is an FDA regulated
product available by prescription only. Keep out of reach of children.
INTENDED USE
The LG “Pro Series Elite” is an ultrasonic therapeutic device that generates
pulsed high frequency sound waves (1MHz) that are transferred to a specic
body area via a sound head probe. The pulsed sound waves travel deep into
the tissue to generate vasodilation, which helps increase blood ow to the
treated area.
Therapeutic ultrasound is found to help relieve pain and reduce muscle
spasms and is one of the most frequently used therapies by physicians and
physical therapists. Most patients will feel nothing at all during treatment,
while some patients may feel slight warmth.
EXPLANATION OF ULTRASONIC STIMULATOR EFFECT
This manual contains general information on the operation, precautionary
practices, and maintenance information of the DU3037 LG “ Pro Series Elite”.
In order to maximize the use, eciency, and life of the device, please read the
manual thoroughly and become familiar with it before operating the device.
In particular, pay attention to:
1. Keep yourself informed of the contraindications.
2. The device may not be used in close proximity (i.e. less than 2 meters) to
shortwave equipment.
3. The device may not be used in so-called “wet rooms” (hydrotherapy
rooms).
The manufacturer cannot be held responsible for the results of using this
apparatus for any purposes other than those described in these operating
instructions.
FORWARD

5
1. Do not use over or near bone growth centers until bone growth is
complete.
2. Do not use over a healing fracture.
3. Do not use over the eyes.
4. Do not use on patients with implanted neurostimulation systems because
tissue damage can occur at the location of the implanted electrodes
resulting in severe injury or death. This can also damage the system
components.
5. Do not use to treat malignancies, nor in the region where malignant
tumors are present.
6. Do not use on patients with demand type cardiac pacemakers.
7. Do not use on someone who is pregnant.
8. Do not use over ischemic tissues in patients with vascular disease where
the blood supply would be unable to follow the increase in metabolic
demand and may result in tissue necrosis (tissue death).
9. Do not use over the carotid sinus nerves or arteries, laryngeal or
pharyngeal muscles.
CONTRAINDICATIONS
1. Do not use on patients with hemorrhagic diatheses (excessive bleeding
disorders).
2. Do not use over an area of the spinal cord following a laminectomy, i.e.,
when major covering tissues have been removed.
3. Do not use over areas that are under anesthesia.
4. Avoid bony prominences.
5. When using ultrasound, keep the sound head moving while maintaining
contact with the skin.
6. If treatment becomes uncomfortable, stop treatment and contact your
physician.
7. Do not immerse the portable ultrasound in water or other solvent.
8. Do not use over metallic implants, especially prostheses with a
cement-matrix.
9. Only use the UL certied AC adapter that is included in the product case.
PRECAUTIONS

6
1. Always use this device under the directions of a physician.
2. Patients with the following diseases, symptoms or conditions should
not use the device:
● During pregnancy or menstrual cycle.
● Acute disease, heart disease, tubercle disease, facial neuralgia (sharp
facial pain), pernicious tumor, hemophilia, high fever, abnormal blood
pressure, or under any unhealthy conditions.
● On patients with sensitive physical conditions, ringworm, dermatitis,
and any infectious disease.
●
infants/small children, mentally disabled individuals, individuals under
● Product should not be applied on the following areas: any wounds, the
mouth, facial neuralgia (sharp painful) spots, surgical areas, sunburned
skin, sensitive skin and over skin implants made of metal, plastic or
silicone materials.
● Do not use with other electronic equipment, such as ECG machine etc.,
even if this device conforms to the EMC requirements.
3. DO NOT use on the thoracic region if you have a pacemaker.
4. DO NOT use on areas where malignant tumors are present.
5. DO NOT use on the areas of blood inhibited tissue, because there is not
enough blood supplied to the area to meet the metabolic demand, and
this could result in tissue necrosis (tissue death).
6. DO NOT use the device on persons with bleeding issues/disorders.
7. DO NOT use on areas under anesthesia.
WARNING
●The device complies completely with all parts of 21 CFR 1050.10
under the performance standard for sonic, infrasonic and ultrasonic
radiation‐emitting products.
●Use of controls or adjustments to performance of procedures other
ultrasonic energy.
CAUTIONS

7
1. All the ultrasound parts are assembled and tested under strict process
controls.
2. To ensure quality, the device has been designed with a single chip
microprocessor.
3. Precious alloy round‐headed probe creates a smooth surface on the skin.
4. The device has an attractive exterior and was ergonomically designed so
that it ts to the human hand and is easy to hold and convenient to use.
5. Single-button control, microcomputer makes the device easy to use.
6. Designed with three output intensities and three treatment time
selections to meet a wide range of therapy requirements.
7. The device has a head warming feature that pre-heats the sound head
applicator for increased patient comfort.
SPECIAL FEATURES
PARTS OF THE DEVICE

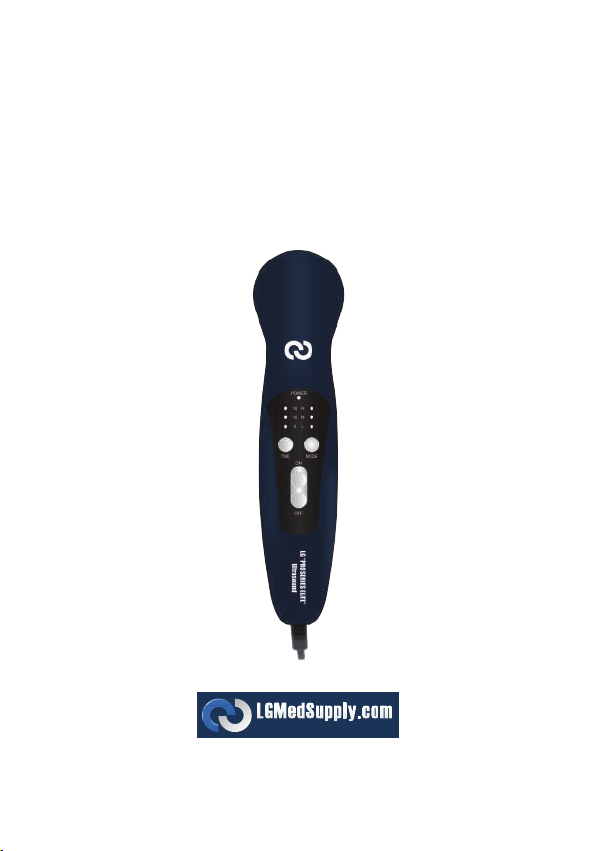

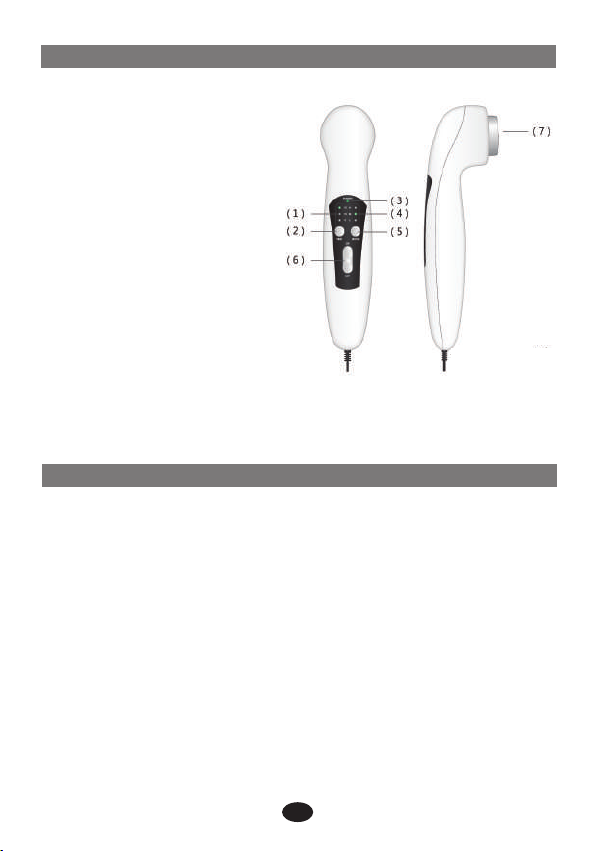

(1) TIME INDICATOR LIGHT
(2) TIME BUTTON
(3) POWER INDICATOR LIGHT
(4) INTENSITY INDICATOR LIGHT
(5) MODE BUTTON
(6) POWER SWITCH
(7) ULTRASOUND HEAD

8

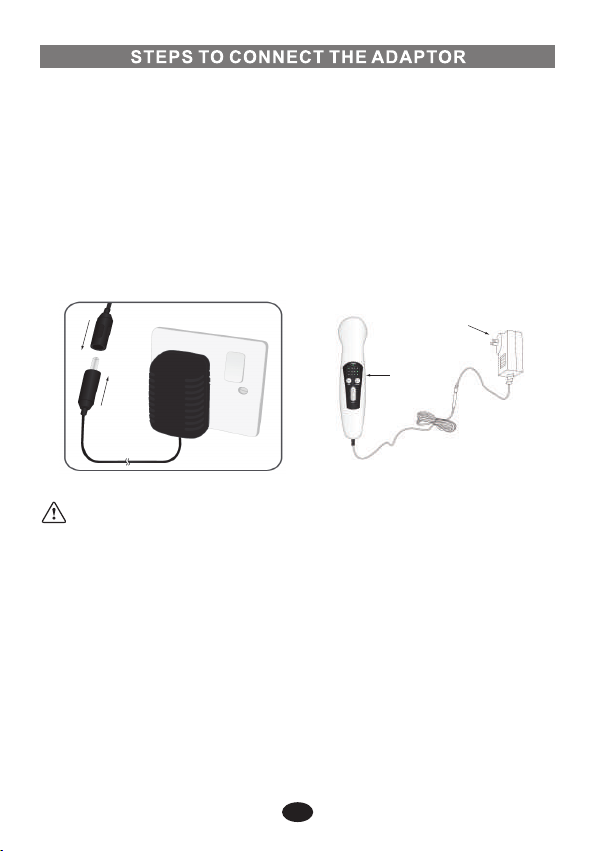

LG “Pro Series Elite” requires the following steps for proper setup:
1. Ultrasound transmission gel is required when treating a patient with the
LG “Pro Series Elite” portable ultrasound device.
2. The AC/DC adapter is required to power the device. No battery is used.
3. Join the male connector of the AC/DC adapter to the female connector of
the ultrasound unit. Be sure you have a secure t. Then plug the AC/DC
adapter into a wall outlet to power the unit. The DU3037 ULG “Pro Series
Elite” is now ready for treatment.
4. Follow the “INSTRUCTIONS FOR USE” section of this manual.
WARNING
The device can only be used safely with the original adapter it came
with. DO NOT re-assemble or change the specication of the adapter.
Doing so may cause damage to the unit and/or personal injury. Be
sure to follow the specific assembly instructions stated above.
This device is not intended to be used in a clinical setting. This device
was developed to be used at home with guidance and a prescription
from a physician for no more than 2-3 times a day at 15 minute
intervals, otherwise warranty will be voided.
Wall Outlet
Ultrasound
Unit
AC/DC
Adapter
Secure
Connectors

9
Please read this instruction manual carefully before using the US Pro 2000™
2nd Edition Portable Ultrasound Unit.

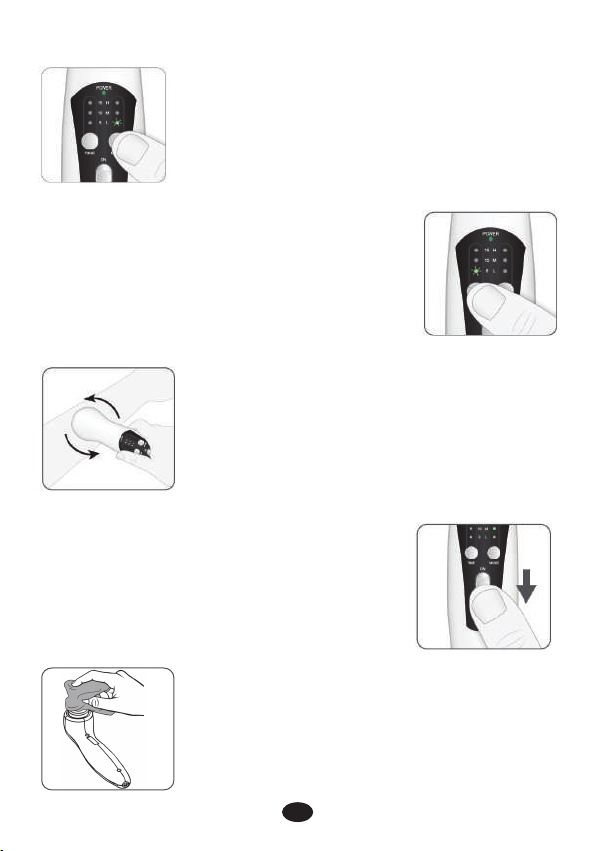

INSTRUCTIONS FOR USE
2. Apply transmission gel:
Wash the area to be treated so that it is free of oil and
dirt. Apply a generous layer of ultrasound transmission
gel on the treatment area. The gel acts as a coupling
substance and ensures eectiveness. The area treated
should be two times the diameter of the sound head.

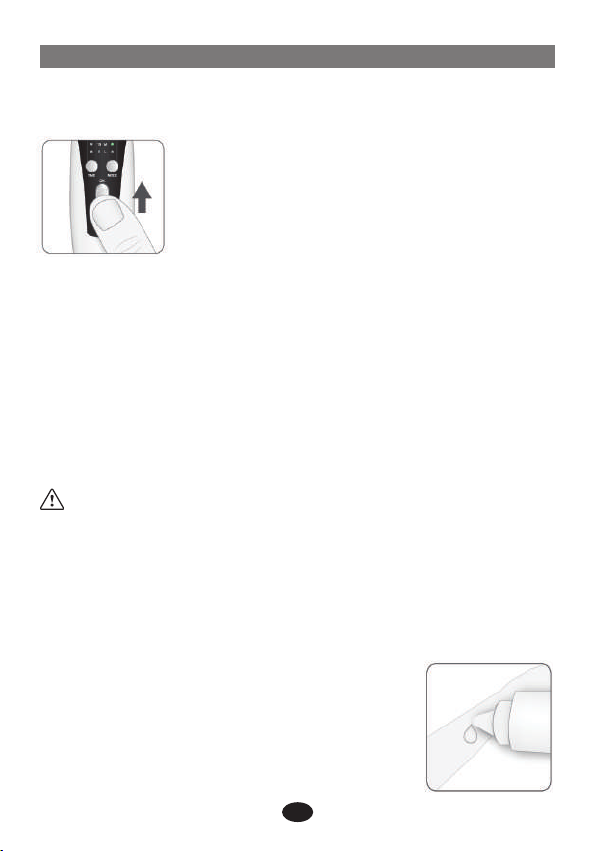

1. Turning on the device and head warming feature:
Turn the device on by sliding the power switch upwards
(towards “ON”). The power indicator light will illuminate.
The device will automatically enter the preheat mode.
The six indicator lights will ash alternately during this
period.
When the preset temperature is reached or the maximum preheat time has
ended (3 minutes), all of the indicators lights will flash five times. Once
complete, the device enters standby mode. This head warming feature takes
approximately three minutes from a cold/room temperature start to nish.
If the warming feature is not needed, press both the “MODE” button and the
“TIME” button simultaneously. The device will go back to standby mode.
When the device is in standby mode, the modulation duty cycle is defaulted
at 5% and the (L) indicator light will be illuminated.
WARNING: During the head warming period, the following items
should be noted:
●The device will automatically exit the head warming feature if any
load is detected in the preheating process. Therefore, do not apply
the ultrasound head to the patient during the warming period.
● To restart the warming feature, you will have to power o the device
and turn it back on again.

10
6. Turn o the device:
After completing the treatment session, the device will
automatically shut o and all indicator lights will be
o. Power o the device physically by sliding the
power switch downwards (towards “OFF”). Unplug the
unit from its power source.
5. Place sound head on treatment area and begin
treatment:
Move the sound head in a slow, at, circular motion
over the skin surface of the treatment area. Apply the
sound head evenly (in time) over the treatment area
(see page 11 for Load Detection System Caution).
7. Clean the device after every use:
With device turned o, clean the ultrasound head /
probe with a wet towel or soft tissue. Do not immerse
the device in water. Always store device in its
protective case at room temperature in a dry location.
3. Set ultrasound intensity:
Press the “MODE” button to select the modulation duty
cycle. The mode button has three levels, Low (L) - 5%,
Medium (M) - 50% and High (H) - 100%, each level
corresponds to a LED light indicator.
4. Set treatment time:
Press the "TIME" button to cycle through the treatment
time (5, 10 and 15 minutes), as shown by the “TIME”
indicators. When the time is chosen, the system will
start working. During working time, the user can press
the "TIME" button to adjust the treatment time.

11
1. The device has a load detection system for safety. When the treatment
head does not have good contact with the skin, the device will stop
treatment automatically, and the time indicator light will flash one time. The
device will not continue the treatment program until good contact is made.
2. The device has a temperature protection function. When the temperature
of the treating head exceeds 107°F (42°C), the treatment will automatically
stop and the time indicator light will flash two times. The device will not
continue the treatment program until the temperature is below 104°F (40°C).
LOAD DETECTION SYSTEM CAUTION:

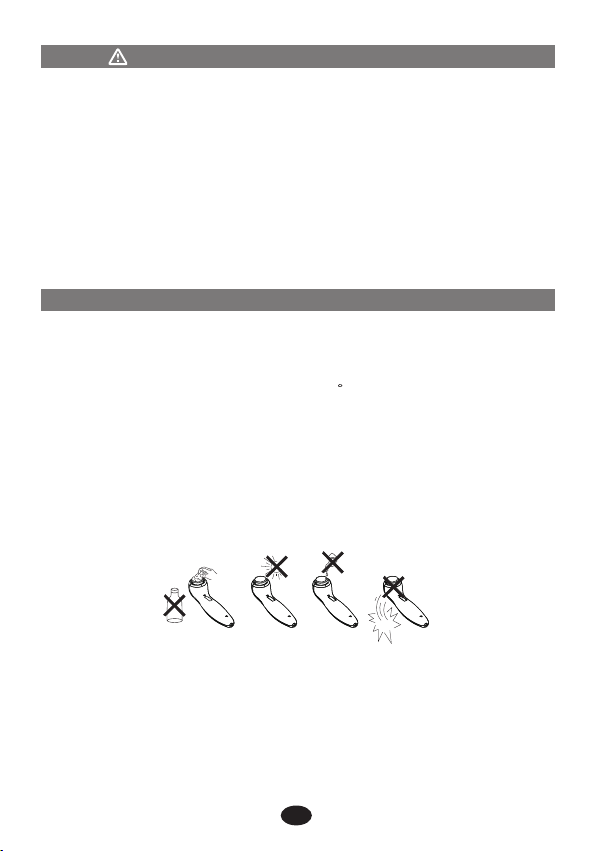

MAINTENANCE
Switch o the device and disconnect it from the power supply. The device can
be cleaned with a damp cloth. Use lukewarm water and a non-abrasive liquid
household cleaner (no abrasive, no alcohol content solution). If a more sterile
cleaning is needed, use a cloth moistened with an antimicrobial cleaner.
CAUTION: Do not submerse the device in liquids. Should the unit accidentally
become submersed, contact the dealer or Authorized Service center
immediately. Do not attempt to use the device that has been submersed in
any liquid substrate until inspected and tested by a Service Technician
certied by an Authorized Service Center.
Cleaning of the applicator
The applicator should be regularly inspected for damage, e.g. hairline cracks,
which could allow the penetration of liquids. Clean the contact surface
immediately after each treatment. Make sure that no ultrasound gel remains
on the applicator. We further recommend cleaning the head, cable and
adapter daily, using a soft cloth damped with lukewarm water. The applicator
can be disinfected using a cloth moistened with an antimicrobial cleaner.

12
The device is manufactured through complete quality assurance system. If
your device does not seem to be operating correctly, refer to the chart
below to determine what may be wrong. Should none of these measures
correct the problem, the device should be serviced.
Problem Possible Cause Solution
POWER LED
fails to
light up
POWER LED is
performing
normally,
but no output
function occurs.
TROUBLESHOOTING
The plug of the adaptor is
not inserted into the
socket properly.
The DC plug of the
adaptor is not inserted
into the DC receptacle on
the device correctly.
Did not press the ON/OFF
button.
Insert the plug of the
adaptor into the socket
again.
Connect the adaptor
with the device again
correctly.
Press the ON/OFF
button again.
Output intensity button
setting is incorrect.
Please make sure and
set it again.
When not in use, store the device with the adapter in a dry room and protect
it against extreme moisture, heat and direct sunlight. Never place any heavy
objects on the storage case.
● STORAGE CONDITIONS: 14°F ~ 122°F; 20% - 93% RH
STORAGE CONDITIONS

13
UNIT SPECIFICATIONS
MODULATION
DUTY FACTOR
5%
50%
100%
WAVE CHARACTER
Low
Medium
High
OUTPUT POWER
0.32W ±20%
3.20W ±20%
6.40W ±20%
PROGRAM
L
M
H
Specications
Ultrasound
Probe
Ultrasound Modulation Frequency:
Max. Output Power:
Output Power:
Pulse Repetition Rate:
Modulation Duty Cycle:
Eective Radiating Area:
Waveform:
BNR (Max):
Max. Eective Intensity:
Eective Intensity:
Working Time:
Preheat Temperature:
Preheat Time:
Dimension:
Weight:
Material of Applicator:
Beam Type:
Degree of Protection against Water:
Input:
Output:
Time:
Mode:
Time Indication Lights:
Duty Cycle Indication Lights:
Item Description
1.0MHz±10%
6.4W±20% (Modulation duty cycle at100%)
L: 0.32W±20% M：3.20W±20% H：6.40W±20%
100Hz±10%
L (5%), M (50%), H (100%)
4.0cm²± 20%
Pulsed
5.0
1.6Wcm²±20% (Modulation duty scycle at 100%)
L: 0.08W/cm²±20% M: 0.80Wcm²± H:1.60Wcm²±20%
Adjustable at 5 minutes, 10 minutes, 15 minutes
Max. 35±5 degree centigrade (NOTE: Actual preheat temperature
will be influenced by the environmental temperature and preheat time.)
Max. 3 minutes
202 mm (L) x 49 mm (W) x 70 mm (H)
193g (without adapter)
Aluminum Alloy
Collimated
IPX7 (Only for Treatment Head)
Voltage: AC 100--240V Frequency: 50Hz/60Hz
Output voltage: DC 15V, Max. Currency: 1.2A
Choose working time: 5m — 10m —15m —0m (stop)
Choose modulation duty cycle: 5% —50% — 100%
5, 10, 15 minutes
Low (L), Medium (M), High (H)
Power
Adapter
Indication
Lights
Buttons
Program
Lists
Operating Conditions: 5°C ~ 40°C; 30% ~ 75%RH; 800~1060hPa

14
IPX7
SN
LOT

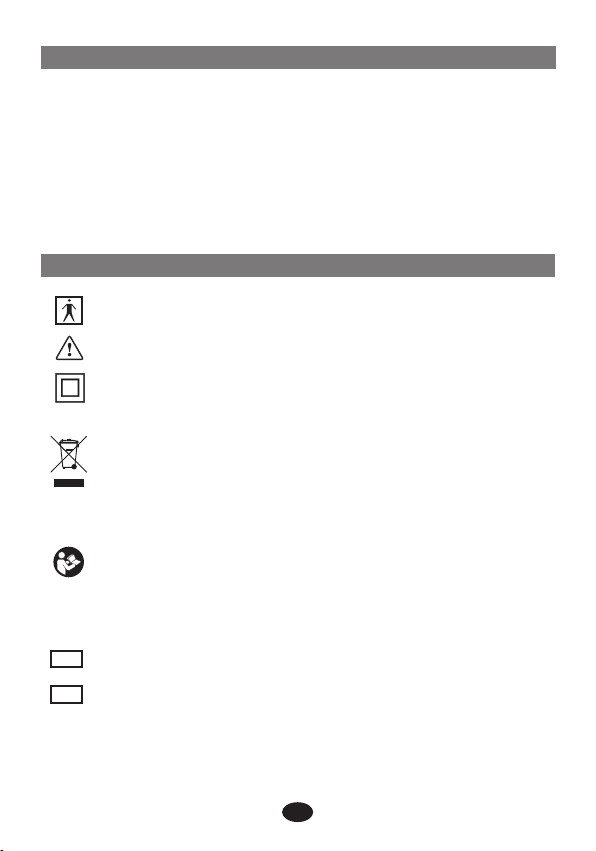

GLOSSARY OF SYMBOLS
CAUTION: United States Federal Law restricts this device to sale by or on the
order of a physician or licensed practitioner by the law of the State in which
he/she practices, according to 21 CFR 801.109.
PRESCRIPTION STATEMENT
Type BF Applied Part
Caution
Type of protection against electric shock: Class II Equipment
Electrical devices are recyclable material and should not be
disposed of with household waste after their useful life. Help us to
protect the environment and save resources by taking this device
to the appropriate collection points. Please contact the
organization which is responsible for waste disposal in area if you
have any questions.
Refer to instruction manual
Only for treatment head: Protected against the eects of
temporary immersion in water.
Serial number
Batch code

15
IMPORTANT INFORMATION REGARDING ELECTROMAGNETIC
COMPATIBILITY (EMC)
With the increased number of electronic devices such as PC’s and mobile
(cellular) telephones, medical devices in use may be susceptible to
electromagnetic interference from other devices. Electromagnetic
interference may result in incorrect operation of the medical device and
create a potentially unsafe situation.
Medical devices should also not interfere with other devices. In order to
regulate the requirements for EMC (Electro Magnetic Compatibility) with the
aim to prevent unsafe product situations, the IEC60601-1-2 standard has
been implemented. This standard denes the levels of immunity to
electromagnetic interferences as well as maximum levels of electromagnetic
emissions for medical devices.
Medical devices manufactured by LG Med Supply conform to this
IEC60601-1-2:2007 standard for both immunity and emissions. Refer to EMC
table guidance supplied in this manual regarding the EMC environment in
which the device should be used.
Special precautions need to be observed:
• The use of accessories and cables other than those specied by
LG Med Supply may result in increased emission or decreased immunity
of the device.
• Care must be taken when operating this device adjacent to or stacked
with other equipment. Potential electromagnetic or other interference
could occur to this or other equipment. Try to minimize this interference
by not using other equipment in conjunction with it.
• The performance of the device was determined to be essential
performance. This device has been thoroughly tested according to tested
and inspected to assure proper performance and operation.
ELECTROMAGNETIC COMPATIBILITY (EMC)

16
Guidance and manufacturer’s declaration - electromagnetic emissions
Emissions test Compliance Electromagnetic environment - guidance
The DU3037 device uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any
interference in nearby electronic equipment.
The DU3037 device is suitable for use in all
establishments including domestic and those
directly connected to the public low-voltage
power supply network that supplies buildings
used for domestic purposes.
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic
emissions
lEC 61000-3-2
Voltage
lEC 61000-3-3
Group 1
Class B
Class A
Applicable
the user of the DU3037 should assure that it is used in such an environment.
TABLE 1

17
Guidance and manufacturer’s declaration - electromagnetic immunity
Immunity test IEC 60601
test level
Compliance
level
Electromagnetic
environment - guidance
Floors should be wood,
concrete or ceramic tile. If oors
are covered with synthetic
material, the relative humidity
should be at least 30%.
Electrostatic
discharge (ESD)
lEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
The DU3037 device is intended for use in the electromagnetic environment specied below. The
customer or the user of the DU3037 should assure that it is used in such environment.
Mains power quality should be
that of a typical commercial or
hospital environment.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for
power
supply lines
±2 kV for
power
supply lines
Mains power quality should be
that of a typical commercial or
hospital environment.
Surge
IEC 61000-4-5
±1 kV line (s)
to line (s)
±1 kV line (s)
to line (s)
Mains power quality should be
that of a typical commerical or
hospital environment. If the
user of the device requires
continued operation during
power mains interruptions, it
is needed that hte device be
powered from an
uninterruptible power supply.
Voltage dips,
short
interruptions
and
voltage
variations
on power
supply
input lines
IEC 61000-4-11
<5% UT(>95%
dip in UT) for
0.5 cycle
40% UT(60%
dip in UT) for
5 cycles
70% UT(30%
dip in UT) for
25 cycles
<5% UT(>95%
dip in UT) for
5 seconds
<5% UT(>95%
dip in UT) for
0.5 cycle
40% UT(60%
dip in UT) for
5 cycles
70% UT(30%
dip in UT) for
25 cycles
<5% UT(>95%
dip in UT) for
5 seconds
TABLE 2

18
Conducted RF
lEC 61000-4-6
Radiated RF
lEC 61000-4-3
3 V/m
80 MHz to
2.5 GHz
3 V/m
3 Vrms
150kHz to 80 MHz
Portable and mobile RF communications
equipment should be used no closer to any part
of the DU3037 device, including cables, than the
recommended seperation distance calculated
from the equation applicable to the frequency of
the transmitter.
Recommended seperation distance:
d=1.2√P
d=1.2√P , 80MHz to 800MHz
d=2.3√P , 800MHz to 2.5GHz
where P is the maximum output power rating of
the transmitter in watts (W) according to the
transmitter manufacturer and dis the
recommended separation
distance in meters (m).
Field strengths from xed RF transmitters, as
determined by an electromagnetic site surveya,
should be less than the compliance level in each
frequency rangeb.
Interference may occur in
the vicinity of equipment marked
with the following symbol:
NOTE I: At 80 MHz ends 800 MHz the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is aected by
absorption and reection from structures, objects and people.
a Field strengths from xed transmitters, such as base stations for radio (cellular/cordless) telephones
and land mobile radios, amateur radio, AM and FM radio broadcast andTV broadcast cannot be
predicted theoretically with accuracy. To assess the electromagnetic environment due to xed RF
transmitters, an electromagnetic site survey should be considered. If the measured eld strength in
the location in which the device is used exceeds the applicable RF compliance level above, should be
observed to verify normal operation. If abnormal performance is observed, additional measures may
be necessary, such as reorienting or relocating the device.
b Over the frequency range 150 kHz to 80 MHz, eld strengths should be less than [3i]V/m.
Immunity test IEC 60601
test level
Compliance
level
Electromagnetic
environment - guidance
Guidance and manufacturer’s declaration - electromagnetic emissions
The DU3037 device is intended for use in the electromagnetic environment specied below. The customer or
the user of the Du3037 should assure that it is used in such an environment.
3 Vrms
TABLE 3

19
Recommended separation distances between portable and mobile RF communications equipment and the
device
Rated maximum output
power of transmitter W
0.01
0.1
1
10
100
0.12
0.37
1.17
3.69
11.67
0.12
0.37
1.17
3.69
11.67
0.23
0.74
2.33
7.38
23.33
Separation distance according to frequency of
transmitter m
150 kHz to
80 MHz
d=1.2√P
80 MHz to
800 MHz
d=1.2√P
800 MHz to
2,5 GHz
d=2.3√P
For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in meters (m) can be estimated using the
equation applicable to the frequency of the transmitter, where P is the maximum
output power rating of the transmitter in watts (W) according to the transmitter
manufacturer.
NOTE I At 80 MHz and 800 MHz. the separation distance for the higher frequency
range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is aected by absorption and reection from structures, objects and
people.
The device is intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining
a minimum distance between portable and mobile RF communications equipment (transmitters) and as
recommended below, according to the maximum output power of the communications equipment.
TABLE 4

We warranty each new DU3037 LG “ Pro Series Elite” (excluding gel, wires and
adapter) for one year from defects in materials and workmanship from the
original date of purchase. This warranty applies only to the original
purchaser. The original invoice or receipt must accompany all returns.
This warranty does not cover abuse, accident, or damage resulting from
failure to follow operating instructions. The warranty is voided if the unit has
any alterations or has been disassembled. We shall not be liable for any direct
or indirect consequential damages resulting from the use of this unit.
Some states do not allow limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal
rights, and you may also have other rights that vary from state to state.
Product: LG “ Pro Series Elite”
Model: DU3037
Serial Number:
Date of Purchase:
Distributor:
LIMITED WARRANTY
Manufactured for: LGMedSupply
Cherry Hill, NJ 08003
www.lgmedsupply.com
Labeled by: Compass Health Brands Corp.
Live Pain Free, Live Good Today!
