LGMG AS1932 Use and care manual

LGMG North America Inc.
Operation and Safety Manual
AS1932/AS2646/AS3246
Mobile Elevating Work Platform
(Indoor/Outdoor Use)
ANSI
！
WARNING
Before operation and maintenance, the
drivers and service personnel shall
always read and thoroughly understand
all information in this manual. Failure to
do so may result in, fatal accidents or
personal injury.
This manual must be kept with this
machine at all times.

This page left blank intentionally

LGMG North America Inc. Operation and Safety Manual
I
Foreword
Thank you for choosing to use this Mobile Elevating Work Platform from LGMG North America. The information
specified in this manual is intended for the safe and proper operation of this machine for its’ intended purpose.
For maximum performance and utilization of this machine, thoroughly read and understand all the information in
this manual before starting, operating, or performing maintenance on this machine.
Due to continuous product improvements, LGMG North America reserves the right to make specification changes
without any prior notifications. For any updated information, contact LGMG North America.
Ensure all preventive maintenance to the machine is performed according to the interval specified in the
maintenance schedule.
Keep this manual with this machine for reference at all times. When the ownership of this machine is transferred,
this manual shall be transferred with this machine. This manual must be replaced immediately if it is lost,
damaged, or becomes illegible.
This manual is copyrighted material. The reproduction or copy of this manual is not allowed without the written
approval of LGMG North America.
The information, technical specifications and drawings in this manual are the latest available when this manual is
issued. Due to continuous improvement, LGMG North America reserves the right to change the technical
specifications and machine design without notice. If any specifications and information in the manual are not
consistent with your machine, please contact the service department of LGMG North America.
△
!WARNING
Only personnel who have been properly trained and qualified to operate or maintain this
machine can operate, repair and maintain this machine.
Improper operation, maintenance, and repair are dangerous and can cause personal injury and
death.
Before any operation or maintenance, the operator shall thoroughly read this manual. Do not
operate, perform any maintenance or make any repairs on this machine before reading and
understanding this manual.
The user shall load the platform strictly according to the load rating of the platform. Do not
overload the platform or make any modifications to the platform without permission from LGMG
North America.
The operation regulations and preventions in this manual are only applicable for the specified
use of this machine.

LGMG North America Inc. Operation and Safety Manual
II
Safety Precautions
The operator of this machine shall understand and follow the existing safety regulations of state and local
governments. If these are unavailable, the safety instructions in this manual shall be followed.
To help prevent accidents, read and understand all warnings and precautions in this manual before
operation or performing maintenance.
The safety measures are specified in Chapter 1 Safety.
It is impossible to foresee every possible hazard and the safety instructions in this manual may not cover all
safety prevention measures. Always ensure the safety of all personnel and protect the machine against any
damage. If unable to confirm the safety of some operations, contact LGMG North America.
The operation & maintenance prevention measures listed in this manual are only applicable to the specified
uses of this machine. LGMG North America assumes no responsibility if this machine is used beyond the
range of this manual. The user and the operator shall be responsible for the safety of such operations.
Do not perform any operation forbidden in this manual in any situation.
The following signal words are applicable for identifying the level of safety information in this manual.
△
! Danger:
An imminent situation, that if not avoided, will result in severe injuries or death. This is also
applicable to situations that will cause serious machine damage, if not avoided.
△
! Warning:
A potentially dangerous situation, that if not avoided, may result in severe injuries or death. This is
also applicable to situations that may cause serious machine damage, if not avoided.
△
! Notice:
A situation, that if not avoided, may result in minor or intermediate injury. This is also applicable to
situations that may cause machine damage or shorten machine service life.

LGMG North America Inc. Operation and Safety Manual
III
Contents
Chapter 1 Safety.................................................................................................1
1.1 Description ................................................................................................................................. 2
1.2 Maintenance of Safety Signs and Decals ................................................................................... 2
1.4 Battery Safety............................................................................................................................. 7
1.5 Lock After Each Use................................................................................................................... 8
Chapter 2 Machine Nomenclature ......................................................................9
Chapter 3 Controls............................................................................................11
3.1 Ground Controls....................................................................................................................... 11
3.1.1 Key Switch......................................................................................................................................... 11
3.1.2 Emergency Stop Switch................................................................................................................... 11
3.1.3 Platform Lift Switch........................................................................................................................... 11

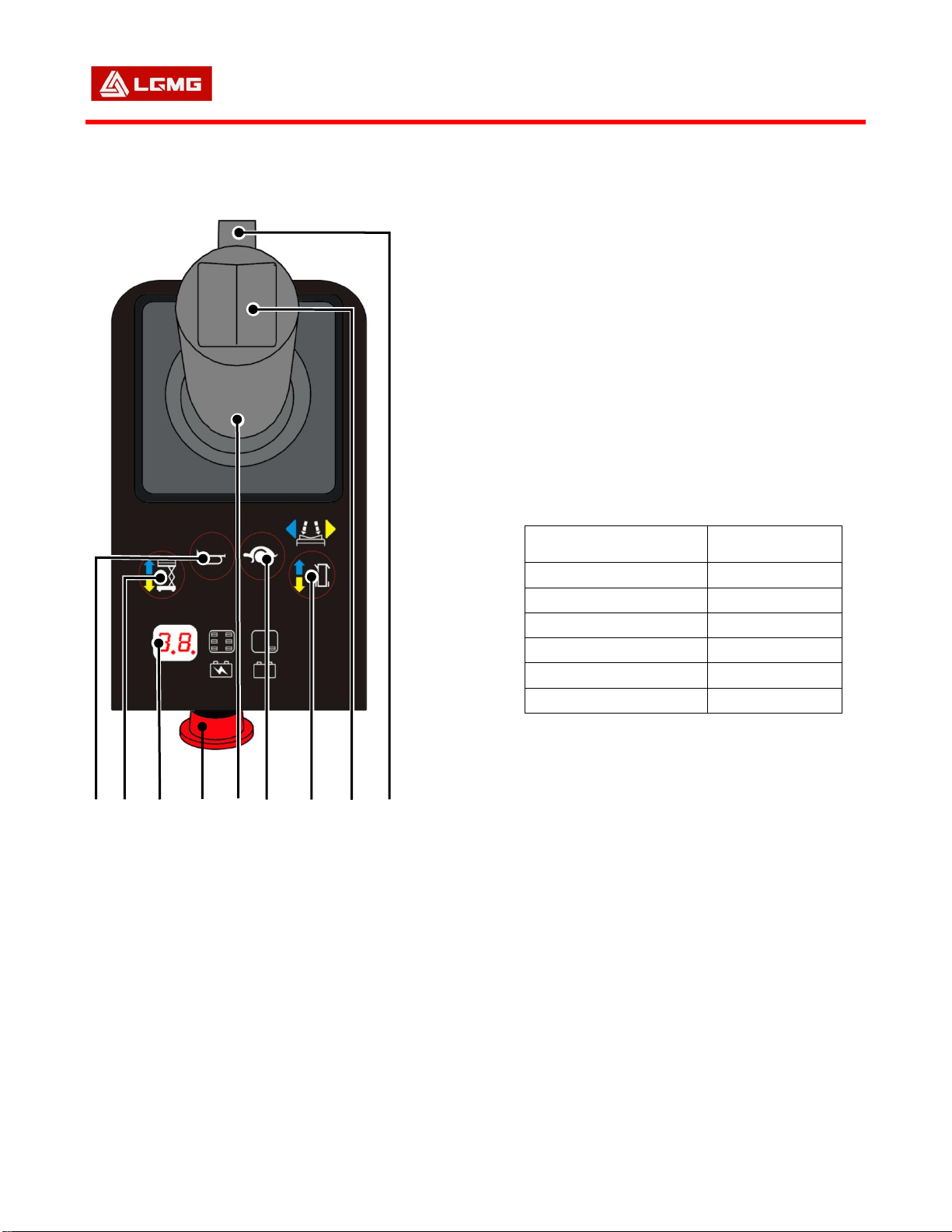

3.2 Platform Controls...................................................................................................................... 12
3.2.1 Horn Button........................................................................................................................................ 12
3.2.2 Lift Switch........................................................................................................................................... 12
3.2.3 Display................................................................................................................................................ 12
3.2.4 Emergency Stop Switch................................................................................................................... 12
3.2.5 Drive/Lift Control Lever .................................................................................................................... 13
3.2.6 Drive Speed Button........................................................................................................................... 13
3.2.7 Drive Function Button....................................................................................................................... 13
3.2.8 Steer Switch....................................................................................................................................... 13
3.2.9 Enabling Switch................................................................................................................................. 13

LGMG North America Inc. Operation and Safety Manual
IV
Chapter 4 Pre-Operation Inspection .................................................................15
4.1 Basic Principles........................................................................................................................ 15
4.2 Pre-Operation Inspection.......................................................................................................... 15
Chapter 5 Workstation Inspection.....................................................................17
5.1 General Information.................................................................................................................. 17
5.2 Workstation Inspection ............................................................................................................. 17
Chapter 6 Function Test....................................................................................19
6.1 General Information.................................................................................................................. 19
6.2 Function Test............................................................................................................................ 19
6.3 Tests from the Ground Controls................................................................................................ 19
6.4 Test the Emergency Stop Switch.............................................................................................. 20
6.5 Test of Lifting/Lowering Function.............................................................................................. 20
6.6 Emergency Lowering Function Test ......................................................................................... 20
6.7 Platform Controller Test......................................................................................................... 20
6.8 Horn Test ................................................................................................................................. 20
6.9 Lift Function and Function Enable Switch Test ......................................................................... 21
6.10 Steering Test.......................................................................................................................... 21
6.11 Driving and Braking Function Test.......................................................................................... 22
6.12 Driving Function Test.............................................................................................................. 22
6.13 Operation of Tilt Sensor Test.................................................................................................. 22
6.14 Pothole Guard Test ................................................................................................................ 23
Chapter 7 Operating Instructions......................................................................25
7.1 General Information.................................................................................................................. 25
7.2 Emergency Stop....................................................................................................................... 25
7.3 Emergency Lowering................................................................................................................ 25
7.4 Operation from the Ground Controls......................................................................................... 25

LGMG North America Inc. Operation and Safety Manual
V
7.5 Platform Positioning.................................................................................................................. 26
7.6 Operation from the Platform Controls................................................................................... 26
7.7 Platform Positioning.................................................................................................................. 26
7.8 Steering.................................................................................................................................... 26
7.9 Drive......................................................................................................................................... 26
7.10 Drive Speed Option................................................................................................................ 27
7.11 Driving the Machine from the Ground..................................................................................... 27
7.12 Using the Safety Prop............................................................................................................. 28
7.13 How to Stow the Guardrail...................................................................................................... 28
7.14 How to Erect the Guardrail ..................................................................................................... 29
7.15 Extending and Retracting the Extending Platform Deck.......................................................... 29
7.16 Error Codes............................................................................................................................ 30
Chapter 8 Transport and Lifting Instructions .....................................................35
8.1 Releasing the Brake................................................................................................................. 35
8.2 Transport Safety....................................................................................................................... 36
8.3 Loading the Machine with a Forklift .......................................................................................... 37
8.4 Lifting Precautions.................................................................................................................... 38
8.5 Parking and Storage................................................................................................................. 38
Chapter 9 Decals and Warning Labels..............................................................39
Chapter 10 Specifications.................................................................................43
Chapter 11 Maintenance Schedule...................................................................47

LGMG North America Inc. Operation and Safety Manual
VI
This page left blank intentionally

LGMG North America Inc. Operation and Safety Manual
1
Chapter 1 Safety
△
!Danger
Death or severe injuries can be caused if the
instructions and safety regulations in this
manual are not followed.
△
!Warning
Operation of the machine is forbidden, unless:
The safe operation rules of the machine are
understood and practiced.
Dangerous conditions are avoided. All safety
regulations shall be acknowledged and
understood before the next step.
The pre-operation inspection is always
completed before operation of the machine.
The function test is always made before
operation of the machine.
The workstation is inspected and tested.
The machine is used for its design purposes
The manufacturer’s instruction and safety
regulations-the safe operation manuals and
machine labels, shall be read, comprehended
and followed.
The safety regulations for user and the site
regulations shall be read, comprehended and
followed.
All applicable laws and regulations of the
government are read, understood and
followed.
The appropriate training on safe operation of
machine has been completed.
△
!Notice
Classification of hazards
The meanings of symbols, color codes and
characters of LGMG North America’s products
are as follows:
Security warning symbol: are used for
warning of potential personal injuries.
Observe all safety instructions below these
signs, to avoid situations causing potential
personal injury and death.
Red: Signifies dangerous situations. If not
avoided, will result in personal death or
severe injury.
Orange: Signifies dangerous situations. If not
avoided, may result in personal death or
severe injury.

LGMG North America Inc. Operation and Safety Manual
2
Yellow: Signifies dangerous situations. If not
avoided, it may result in minor or intermediate
personal injury.
Blue: Signifies dangerous situations. If not
avoided, property loss or damage can occur.
1.1 Description
This machine is a mobile elevating work platform,
consisting of a work platform on a scissor
mechanism. It is electrically powered and drive
power is provided by hydraulic motors.
1.2 Maintenance of Safety
Signs and Decals
Replace any missed or damaged safety signs or
decals. If necessary, use mild soap and water to
clean safety signs. Do not use solvent-based
cleaners because they may damage the safety
sign material.
1.3 Workstation Safety
△
!Electrocution Danger
This machine is not electrically insulated and
does not provide protection from touching or
getting close to electrical power lines. Please
keep a safe distance from power lines and power
equipment according to the applicable laws and
regulations. Refer to the following table for safe
approach distances for power lines.
Table 1 Minimum Safe Approach Distance
Voltage
Required
Clearance
0 to 50KV
10ft (3.05m)
50KV to 200KV
15ft (4.6m)
200KV to 350KV
20ft (6.10m)
350KV to 500KV
25ft (7.62m)
500KV to 750KV
35ft (10.67m)
750KV to 1000KV
45ft (13.72m)
⚫Always take into account the influence of
strong or gusty winds on the platform and
also on the swinging of the electrical power
lines.

LGMG North America Inc. Operation and Safety Manual
3
⚫Stay away from the machine if it contacts a
live electric wire. Do not touch or operate the
machine from the ground or the platform
before cutting off the power supply.
⚫Do not operate the machine in inclement
weather.
⚫Do not use the machine as a ground for
welding. This could damage electrical
components on the machine.
⚫Do not touch the battery charger when
charging the batteries.
△

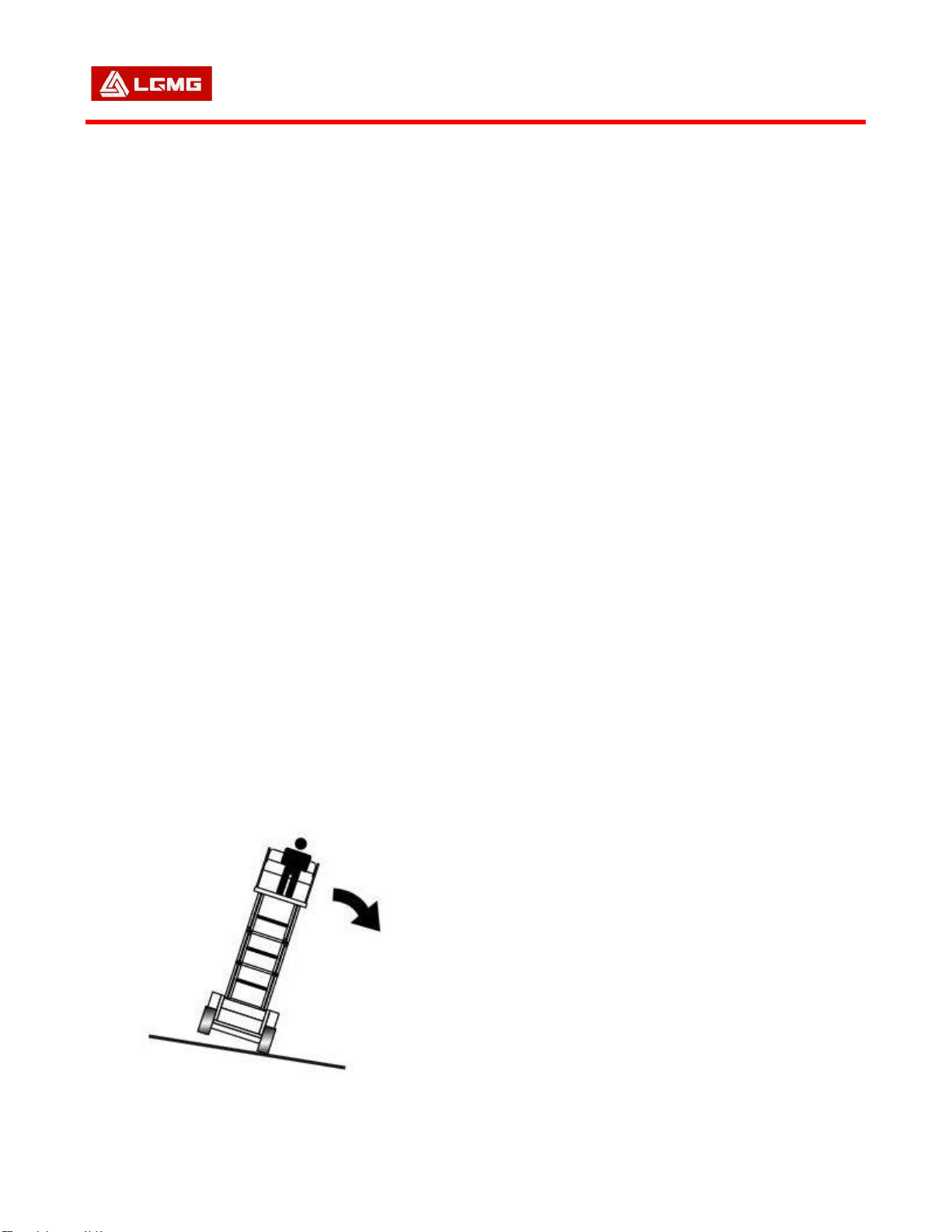

!Tip Over Hazard
The personnel, equipment, and material
on the platform shall not exceed the
maximum bearing capacity of the
platform and the extending platform.
Refer to Chapter 10 –Specifications for
model capacities.
1) The platform can only be elevated on flat,
solid ground.
2) The maximum elevated drive speed for
models AS1932E/AS2646E/AS3246E is
0.5mph (0.8 kph).
The maximum elevated drive speed for
model SS1230E is 0.31mph (0.50 kph).
3) Do not use the tilt alarm as a level indicator.
The tilt alarm only sounds when the machine
is severely tilted.
4) If the tilt alarm sounds: lower the platform and
move the platform to flat, solid ground. If the
tilt alarm sounds when elevating the platform,
lower the platform immediately.
5) If the machine is used outdoors, do not
elevate the platform when wind speed is
above 28mph (12.5 m/s). If wind speed
exceeds the limit after elevating the platform,
immediately lower the platform and stop all
machine operation.
6) The ambient temperature range for use of
this machine is -4℉to104℉(-20℃to 40℃)
7) The relative humidity for use of this machine
shall be no greater than 90% (at 68℉
[20℃]).
8) The allowable voltage fluctuation of the
machine is ±10%.
9) Do not increase the surface area of platform
or load. Increasing the exposure area in wind
will reduce the stability of machine.

LGMG North America Inc. Operation and Safety Manual
4
10) When the platform is caught, stuck or blocked
by a nearby item and is unable to normally
move, do not try to release the platform using
the platform controller. All personnel must be
removed from the platform before releasing
the platform using the ground controller.
11) Be cautious and lower drive speed when the
machine is fully lowered and driving on an
uneven road, a gravel road, an unstable or
smooth surface, near a hole, or on a slope.
12) Do not drive the machine on any uneven or
unstable roads or in any other dangerous
conditions, when the platform is elevated.
13) Do not use the platform to push any item or
object.
14) Do not use the machine as a crane.
15) Do not place, anchor, or suspend any load
from any part of the machine.
16) Do not push the machine or other items using
the platform.
17) Do not operate the machine when the
chassis tray is pulled out.
18) Do not lean the platform against any nearby
structure or wall.
20) Do not modify or limit the use of the limit
switch.
21) Do not bind or tie the platform to a nearby
structure or wall.
22) Do not place the load outside the platform
guard rail.
23) Do not modify or change the aerial work
platform without the written consent of the
manufacturer. Installing an additional device used
for carrying tools or other materials on the
platform, pedal, or guard rail will increase
platform weight, platform surface area, and load.
24) Do not modify or damage any safety or
stability related parts of the machine.
25) Do not replace any key stability-related parts
with those with different weights or specifications.
26) It is forbidden to use a battery weighing less
than the original battery. The battery installed on
the chassis is used and counterweight and is vital
for the stability of machine. Every battery has a
different weight (as detailed in the following
table).
Table 2 Battery Weights
Model
Battery weight
AS1932
62lbs (28Kg)
AS2646
66lbs (30Kg)
AS3246
The minimum weight of battery tray (including the
battery) on the chassis varies with the model type
as detailed in the following table.
Table 3 Battery Tray Weights
Model
Weight of battery
tray and batteries
AS1932
322lbs(146Kg)
AS3246
346lbs(157Kg)
AS2646

LGMG North America Inc. Operation and Safety Manual
5
27) Do not place the steps, ladders, or
scaffolding in the platform or lean them against
any part of the machine.
28) Tools and materials, evenly distributed and
able to be safely moved by the operator in the
platform, can be carried in the platform only.
29) Do not use the machine on a movable
surface or vehicle.
30) Keep all tires in good condition and
appropriately tighten the lug nuts.
△
!Crushing Hazards
⚫Do not place arms, hands, or fingers
in any position where there is a
hazard of potential crushing by the
machine’s scissors.
⚫When the machine is being driven
from the ground using the controller,
use good judgment and carefully
plan the travel path. Keep a safe
distance between the operator,
machine and any fixed objects, walls,
or buildings.
△
!Hazards When Operating on a
Slope
⚫Do not drive the machine on a slope
that exceeds the slope and side
slope rating of the machine. The
rated value of slope is applicable to
a stowed machine. Refer to Chapter
10 –Specifications.
△

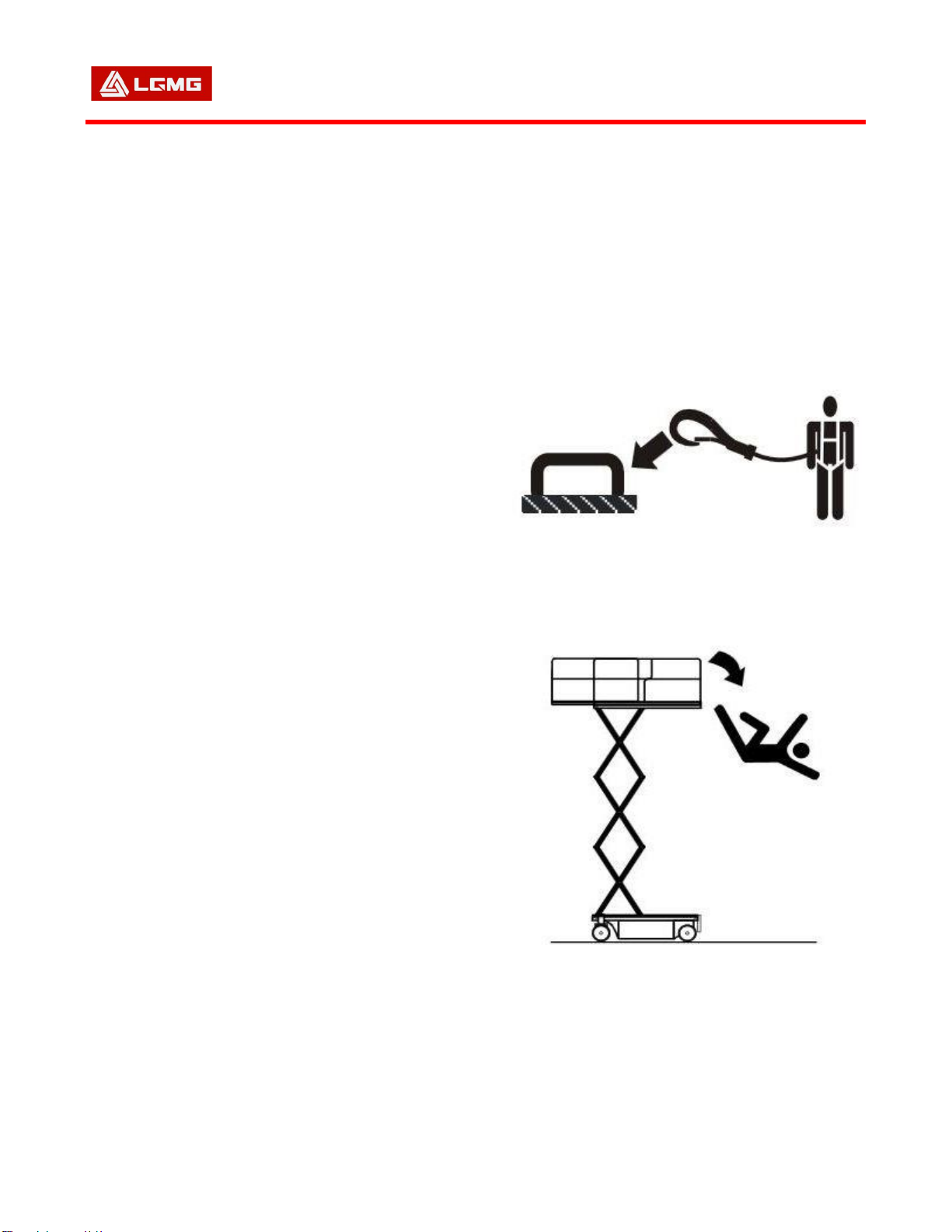

!Falling Hazards
⚫All workers in the platform must use
approved safety harnesses and
attach the lanyard to the provided
anchor points in the platform. Each
anchor point is limited to one
lanyard.
⚫Do not climb on or sit on the guard
rail of the platform. Firmly stand on
the platform floor at all times.
⚫Do not climb down the platform
scissors when the machine is
elevated.
⚫Keep the platform floor free from
debris.

LGMG North America Inc. Operation and Safety Manual
6
⚫Shut down the platform door before
operation.
⚫Do not operate the machine if the
guard rail is not correctly installed.
⚫Do not enter or exit the platform
unless the machine is in the stowed
position.
△
!Crash Hazards
⚫Pay attention to any items or
obstacles within the machine’s sight
line and in any blind spots when
starting or running the machine.
⚫Pay attention to the position of the
extending platform when moving the
machine.
⚫Check the workstation to avoid any
overhead barriers or other possible
hazards in the work site.
⚫Pay attention to any crushing
hazards when holding the guard rail
of the platform.
⚫The operator must follow the
manufacturer’s service rules for
personal protection equipment, the
service rules for the workstation,
and the laws and regulations made
by the local government.
⚫Observe and follow the traveling
arrow and the turning direction
arrows on the platform controller
and the platform’s label and
nameplate.
⚫Do not operate the machine on the
line of any crane or movable
overhead machine, unless the crane
controller is locked and/or the
potential bump prevention measure
is taken.
⚫Dangerous driving or careless
operation when running the machine
are strictly prohibited.
⚫The platform can be lowered only
when there are no personnel or
barriers below the platform.
⚫Limit travel speed according to
ground conditions, traffic, road
grade, personnel position, or any
other possible bump factors.
△
!Component Damage Hazards
⚫Do not charge the batteries with
anything more than a 24V battery
charger.

LGMG North America Inc. Operation and Safety Manual
7
⚫Do not use the machine as a ground
for welding. This could cause
damage to the electrical components
on the machine.
△
!Explosion and Fire Hazards
⚫Do not operate or charge the
machine in a location with a
potential for inflammable or
explosive gas or particles.
△
!Machine Damage Hazards
⚫Do not use a damaged or
malfunctioning machine.
⚫Make a complete operational and
function check before each shift.
Attach a tag on a damaged or
malfunctioning machine immediately
and stop all operation.
⚫Be sure to perform all maintenance
and operation according to the
instructions in this manual.
⚫Be sure to keep all labels and decals
at the appropriate locations. Replace
any that are not legible.
⚫Be sure to keep this manual in the
manual box of the platform.
△
!Personal Injury Hazards
⚫Do not operate the machine if it is
leaking hydraulic oil. Leaking
hydraulic oil under pressure can
pierce or burn skin.
⚫Severe injury may result if any
component below the cover is
touched by mistake. Only trained
technicians can perform
maintenance to the components
under the cover. The operator shall
only perform maintenance before the
pre-operation inspection. Be sure to
keep all compartments closed and
locked during operation of the
machine.
1.4 Battery Safety
△
!Combustion hazards
⚫The battery contains acid. Wear
protective clothing and safety
goggles when performing
maintenance on the battery.
⚫Take measures to prevent acid from
overflowing out of the battery or
being touched. Neutralize the
overflowed acid material from the
battery with soda and water.
△
!Explosion danger
⚫Keep the battery away from any
sparks or open flames. The battery
can release an explosive gas.

LGMG North America Inc. Operation and Safety Manual
8
⚫Do not touch the battery terminal or
the cables with any tool that may
cause a spark.
⚫When the vehicle stops for a long
time, it is necessary to turn off the
main power switch.
△
!Component damage hazard
Do not charge the battery with more
than a 24V battery charger.
△
!Electrocution/Burn hazards
⚫The battery charger can be
connected to the grounded AC
three-wire power socket.
⚫On a daily basis, check to see if the
wire cable, electric cable and wiring
are damaged. Replace the damaged
items before the operation.
⚫Take measures to prevent electric
shock from touching the battery
terminals. When working on the
electrical circuits, remove all jewelry
and metallic objects. The battery
charger can be connected to the
grounded AC three-wire power
socket.
1.5 Lock After Each Use
1) Choose a safe parking position which is solid
and horizontal ground where there are no
barriers or heavy traffic.
2) Lower the platform.
3) Rotate the key switch to the “OFF” position
and pull out the key, to avoid unauthorized
use.
4) Chock the wheels.
5) Charge the battery.
6) Disconnect and remove the platform control
box. Store in a safe location.

LGMG North America Inc. Operation and Safety Manual
9
Chapter 2 Machine Nomenclature
△
!Notice: This drawing shows a model AS1932, but the nomenclature is common for
all other models.
1. Pedal
2. Guardrail
3. Platform Door
4. Scissor Stack Arm
5. Safety Prop
6. Ladder
7. Tire and Wheel
8. Charging Panel
9. Pothole Protection Device
10. Lift Cylinder
11. Main Work Platform
12. Extending Platform
13. Manual Box
14. Control Box

LGMG North America Inc. Operation and Safety Manual
10
This page left blank intentionally

LGMG North America Inc. Operation and Safety Manual
11
Chapter 3 Controls
3.1 Ground Controls
1. Key Switch
2. Platform Lift Switch
3. Auto reset fuse (7A)
4. Overload indicator lamp
5. Emergency stop switch
3.1.1 Key Switch
The three-position key switch controls the power
supply for the machine. When the switch is set to
the left, the platform operation mode will be
enabled; when the switch is set to the right
position, the chassis operation mode will be
enabled; when the switch is set to the center
position, the power to the machine will be off.
△
!Notice
The key can be inserted or removed only
when the switch is in the center position.
Some machines are equipped with
optional switches that allow the keys to
be inserted or removed at all three
positions.
3.1.2 Emergency Stop Switch
The power supply to the machine is disconnected
when the emergency stop switch is pressed.
△
!Notice
An emergency stop switch is installed
on both the chassis and the platform
controller. The two switches operate
together in series. Normal operation can
be performed when both switches are
pulled out. The power supply will be cut
off when either emergency stop switch
is pressed.
3.1.3 Platform Lift Switch
The platform Lift Switch is only used to control the
lifting or lowering of platform.
1
2
3
4
5

LGMG North America Inc. Operation and Safety Manual
12
3.2 Platform Controls
1. Horn Button
2. Lift Switch
3. Display
4. Emergency Stop Switch
5. Control Lever
6. Drive Speed Button
7. Drive Function Button
8. Steer Switch
9. Enabling Switch
3.2.1 Horn Button
The horn will sound when this button is pressed,
and will stop when the button is released.
3.2.2 Lift Switch
Pressing this switch activates the lift function for
the platform.
3.2.3 Display
The Display shows Diagnostic Fault Codes and
when charging the batteries, displays charging
status.
Table 4-Data on the Display
Operating step
Displayed data
Power on but no moving
Battery capacity
Move forward or backward
Battery capacity
Lift up the platform
Battery capacity
Lower the platform
Battery capacity
A fault occurs
Error code
Chassis control mode
C H
3.2.4 Emergency Stop Switch
The power supply to the machine is disconnected
when the emergency stop switch is pressed.
△
!Notice
An emergency stop switch is installed
on both the chassis and the platform
controller. The switches operate
together in series. Operation can be
performed when both switches are
pulled out. The power supply will be cut
off when either emergency stop switch
is pressed.
1
2
3
4
5
6
7
8
9
