FOREWORD
The purpose of this Operations and Safety manual is to provide users with the instructions and operating pro-
cedures essential to properly and safely operate the Custom Equipment Hy-Brid Lift for its intended purpose,
and to position personnel and their necessary tools and materials.
DANGER
THE OPERATION AND SAFETY MANUAL MUST BE READ
AND UNDERSTOOD PRIOR TO OPERATING THE MACHINE.
• The user/operator should not accept operating responsibility until the manual has been read and
understood as well as having operated the lift under supervision of an experienced and qualified
operator.
• Because the manufacturer has no direct control over machine application and operation, proper
safety practices are the responsibility of the user and all operating personnel.
WARNING
USE OF FALL ARREST SYSTEMS ATTACHED TO ANCHORAGE POINTS ON EQUIPMENT
MAY CAUSE MACHINE TO TIP, RESULTING IN SERIOUS INJURY OR DEATH.
Fall protection notice: The guardrail system around the perimeter of the platform is the fall pro-tection
system for push-around elevating work platforms per the ANSI/SIA A92.3 Standard. It is prohibited to use an
Aerial Work Platform manufactured by Custom Equipment, Inc. With any portion—or all—of the guardrails
removed. Lanyard anchorage points on this type of equipment are not required to conform to the applica-
ble standard. However, if anchorage points for lan-yard attachments are required by site authorities or other
regulations, the anchorage points on all equipment manufactured by Custom Equipment, Inc. Are recom-
mended to be used for work positioning restraints of personnel only. Lanyard lengths are to be determined
by operator/owner to restrict the operator to the confines within the guardrail system.
Lanyard
Attachment
WARNING
ANY MODIFICATION ON THIS MACHINE WITHOUT THE EXPRESS
WRITTEN CONSENT OF THE MANUFACTURER IS PROHIBITED.
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
4
TABLE OF CONTENTS
SECTION 1 | SAFETY ............................................................................................................................................. 6
1.1 | SAFETY SYMBOLS ...................................................................................................................................................... 6
1.2 | GENERAL RULES AND PRECAUTIONS................................................................................................................ 6
1.3 | SAFETY FEATURES..................................................................................................................................................... 7
1.4 | SAFETY CONTROLS.................................................................................................................................................. 7
1.5 | MAINTENANCE LOCK.............................................................................................................................................. 8
1.6 | SAFETY GUIDELINES................................................................................................................................................. 9
SECTION 2 | PRODUCT DESCRIPTION............................................................................................................. 10
2.1 | GENERAL ..................................................................................................................................................................... 10
2.2 | STANDARDS CONFORMITY................................................................................................................................... 10
2.3 | MACHINE SPECIFICATIONS................................................................................................................................... 10
SECTION 3 | DECALS............................................................................................................................................ 12
3.1 | DECAL LOCATION .................................................................................................................................................... 12
SECTION 4 |TRANSPORT HANDLING & STORAGE ........................................................................................ 14
4.1 | PRELIMINARY UNPACKING AND DEALER INSPECTION ................................................................................ 14
4.2 | STORAGE..................................................................................................................................................................... 14
4.3 | TRANSPORTATION................................................................................................................................................... 14
4.4 | LIFTING AND TIE-DOWN POINTS........................................................................................................................ 14
4.5 | FORK LIFT POCKETS................................................................................................................................................ 15
SECTION 5 | OPERATION .................................................................................................................................... 16
5.1 | PRE-START INSPECTION......................................................................................................................................... 16
5.2 | CONTROLS................................................................................................................................................................. 16
5.3 | STARTUP/SHUT DOWN ......................................................................................................................................... 17
SECTION 6 | DAILY MAINTENANCE................................................................................................................... 18
6.1 | CHARGING THE BATTERY ...................................................................................................................................... 18
SECTION 7 | PRE-START INSPECTION CHECKLIST........................................................................................ 20
7.1 | PRE-START INSPECTION CHECKLIST .................................................................................................................. 20
Courtesy of Crane.Market

Hy-Brid Lifts SUPO-642
REV A
Operations & Safety Manual
HB-P527 5
INDEX OF FIGURES
FIGURE 1: E-Down Location ...............................................................................................................................................7
FIGURE 2: E-Down Symbol .................................................................................................................................................7
FIGURE 3: Maintenance lock use.......................................................................................................................................8
FIGURE 4: Maintenance lock storage...............................................................................................................................8
FIGURE 5: Rear Brakes..........................................................................................................................................................14
FIGURE 6: Tie-Down Points ................................................................................................................................................ 14

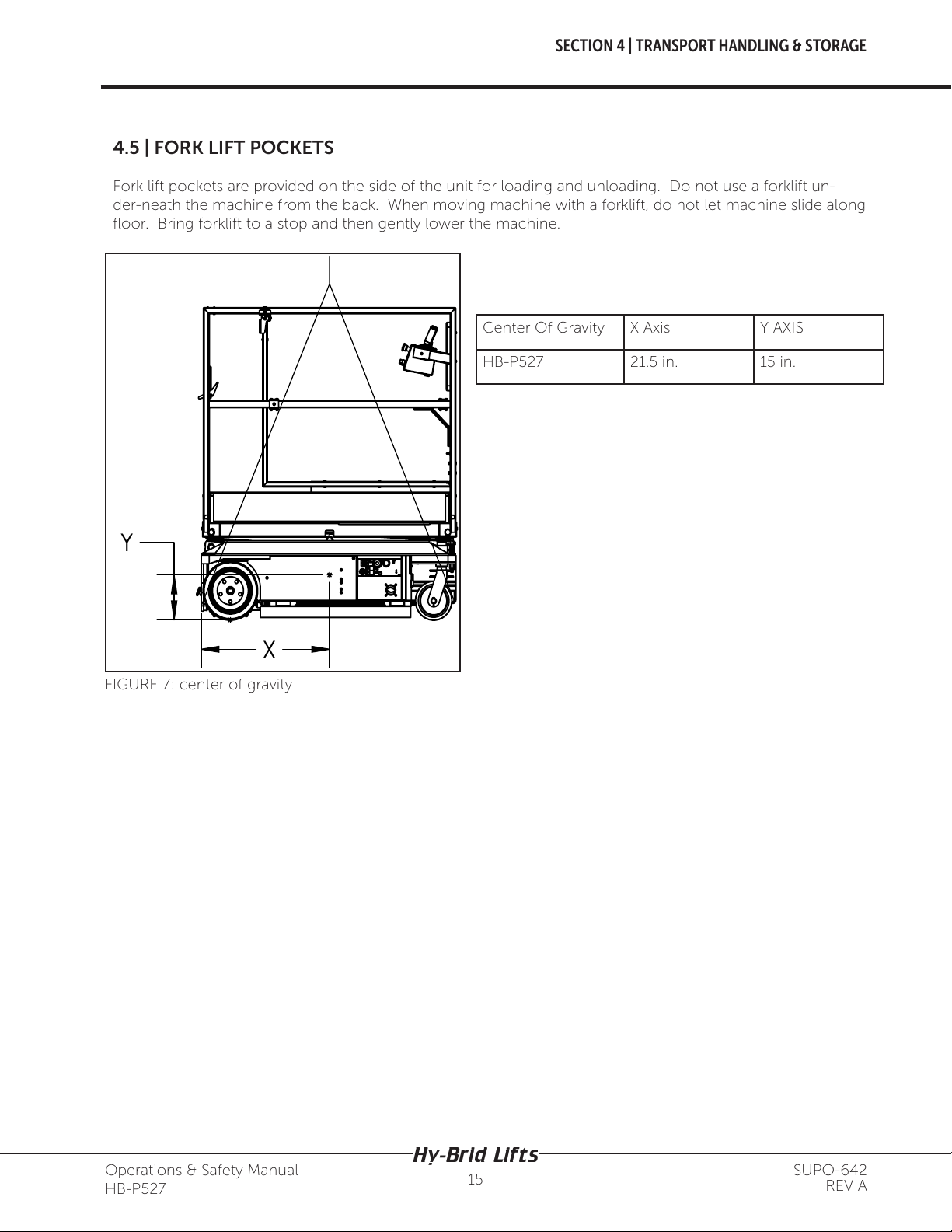

FIGURE 7: center of gravity..................................................................................................................................................15
FIGURE 8: Base Controls......................................................................................................................................................16
FIGURE 9: Platform Controls ..............................................................................................................................................16
FIGURE 10: Master Power Switch ...................................................................................................................................... 17

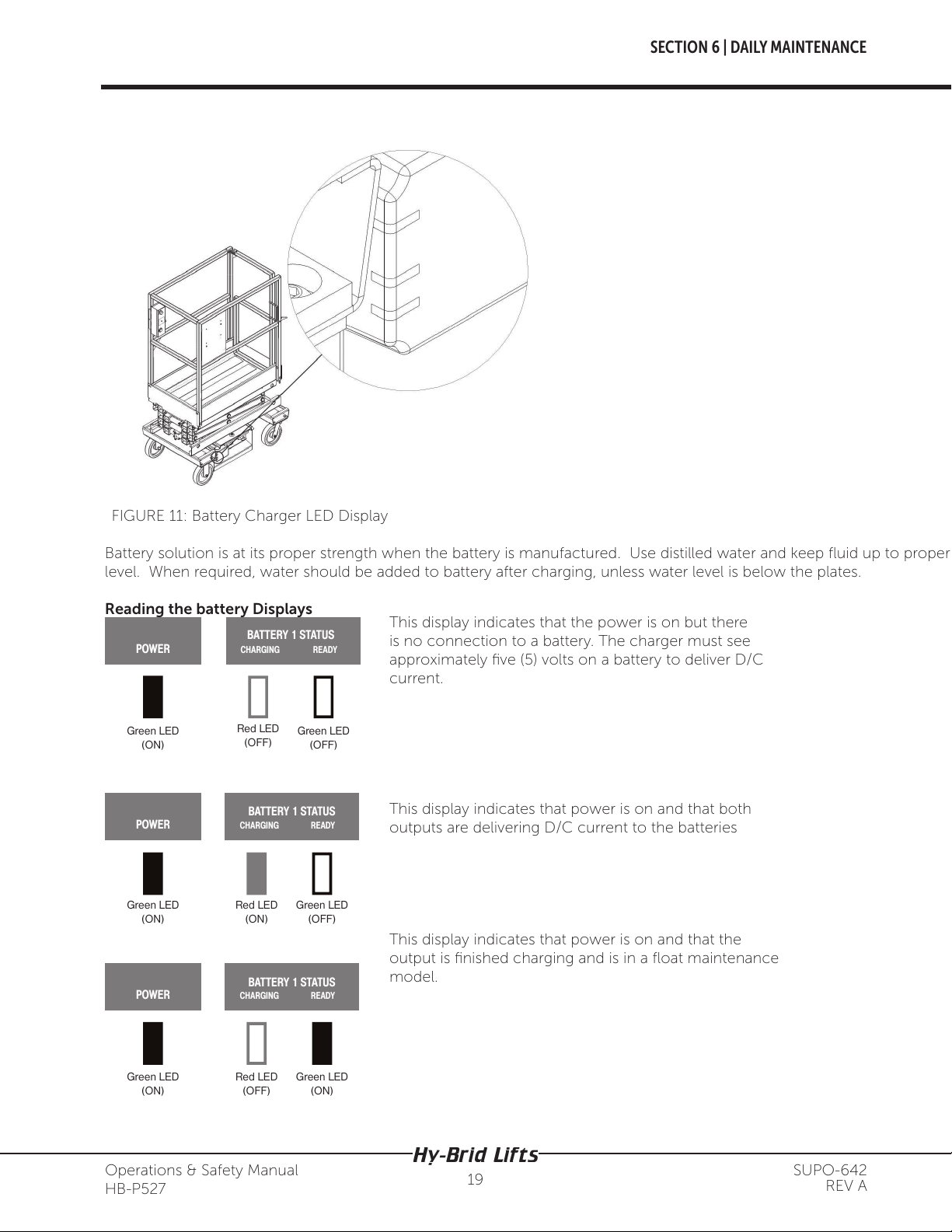

FIGURE 11: Battery Charger LED Display .........................................................................................................................19
Revisions:
Rev A: Initial Release....................................................................................................................................September 2015
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
6

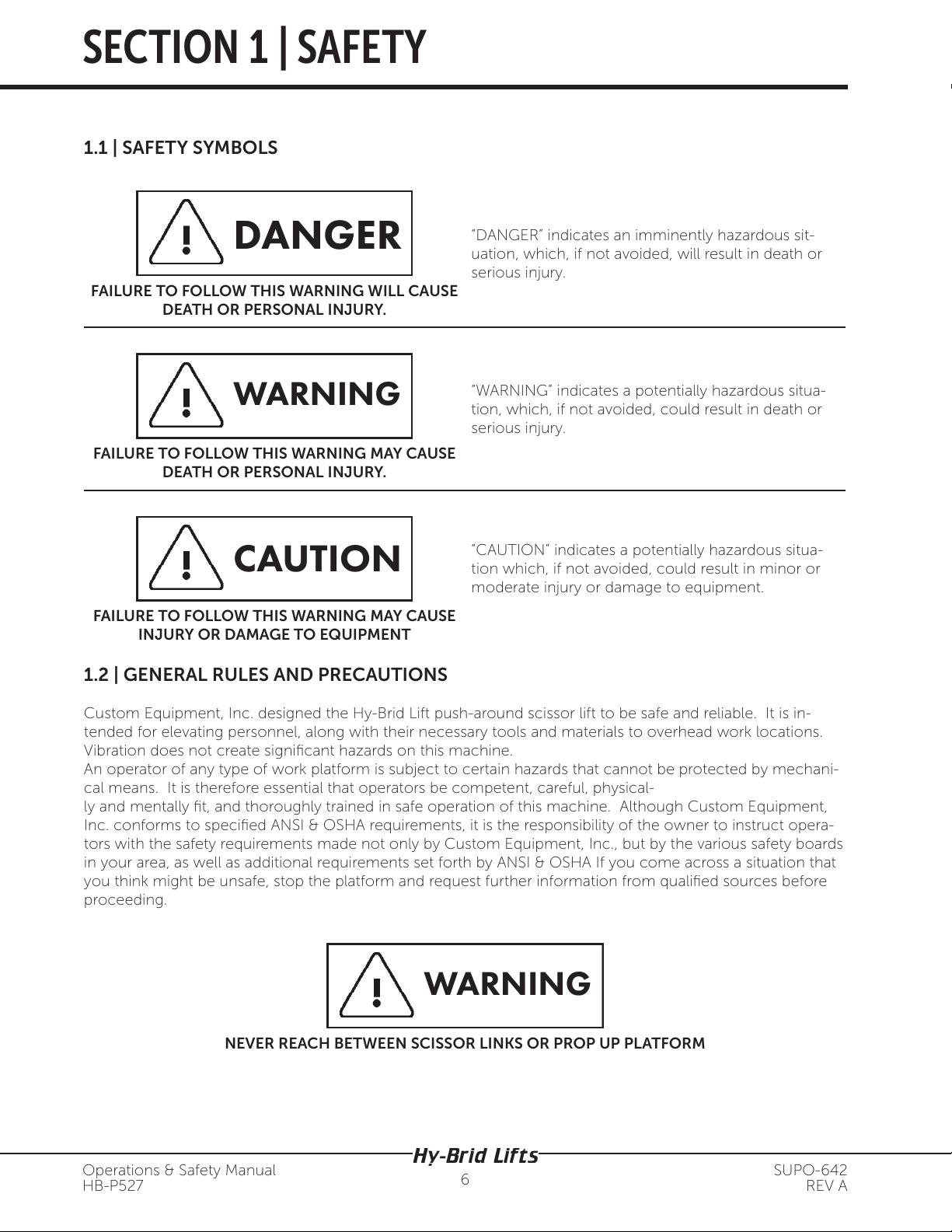

SECTION 1 | SAFETY
1.1 | SAFETY SYMBOLS
DANGER
FAILURE TO FOLLOW THIS WARNING WILL CAUSE
DEATH OR PERSONAL INJURY.
“DANGER” indicates an imminently hazardous sit-
uation, which, if not avoided, will result in death or
serious injury.
WARNING
FAILURE TO FOLLOW THIS WARNING MAY CAUSE
DEATH OR PERSONAL INJURY.
“WARNING” indicates a potentially hazardous situa-
tion, which, if not avoided, could result in death or
serious injury.
CAUTION
FAILURE TO FOLLOW THIS WARNING MAY CAUSE
INJURY OR DAMAGE TO EQUIPMENT
“CAUTION” indicates a potentially hazardous situa-
tion which, if not avoided, could result in minor or
moderate injury or damage to equipment.
1.2 | GENERAL RULES AND PRECAUTIONS
Custom Equipment, Inc. designed the Hy-Brid Lift push-around scissor lift to be safe and reliable. It is in-
tended for elevating personnel, along with their necessary tools and materials to overhead work locations.
Vibration does not create significant hazards on this machine.
An operator of any type of work platform is subject to certain hazards that cannot be protected by mechani-
cal means. It is therefore essential that operators be competent, careful, physical-
ly and mentally fit, and thoroughly trained in safe operation of this machine. Although Custom Equipment,
Inc. conforms to specified ANSI & OSHA requirements, it is the responsibility of the owner to instruct opera-
tors with the safety requirements made not only by Custom Equipment, Inc., but by the various safety boards
in your area, as well as additional requirements set forth by ANSI & OSHA If you come across a situation that
you think might be unsafe, stop the platform and request further information from qualified sources before
proceeding.
WARNING
NEVER REACH BETWEEN SCISSOR LINKS OR PROP UP PLATFORM
Courtesy of Crane.Market

Hy-Brid Lifts SUPO-642
REV A
Operations & Safety Manual
HB-P527 7
SECTION 1 | SAFETY
CAUTION
WHEELS EXTENDING BEYOND THE SIDES OF THE BASE MAY OCCUR IN TIGHT TURNING SITUATIONS.
1.3 | SAFETY FEATURES
• Puncture-proof wheels.
• Guardrails—43.83 in height with 6 in kick plates
• Non-slip deck.
• Entrance gate.
• Automatic brake when elevated
• Free descent protection. A pressure compensated flow control valve is installed in the hydrau-lic
circuit to prevent the platform from descending in case of a ruptured hydraulic hose. The platform is
hydraulically locked with a check valve and has controlled descent when valve activates.
• Decals. Danger, Caution, and Warning decals are displayed at various locations on this unit
• Key Switch Security. A key switch is required to prevent unauthorized use.
1.4 | SAFETY CONTROLS
Descent — Manual Override
For manually lowering the scissors, a manual valve is provided. To lower the scissors, pull the cable located
near the front of the machine.

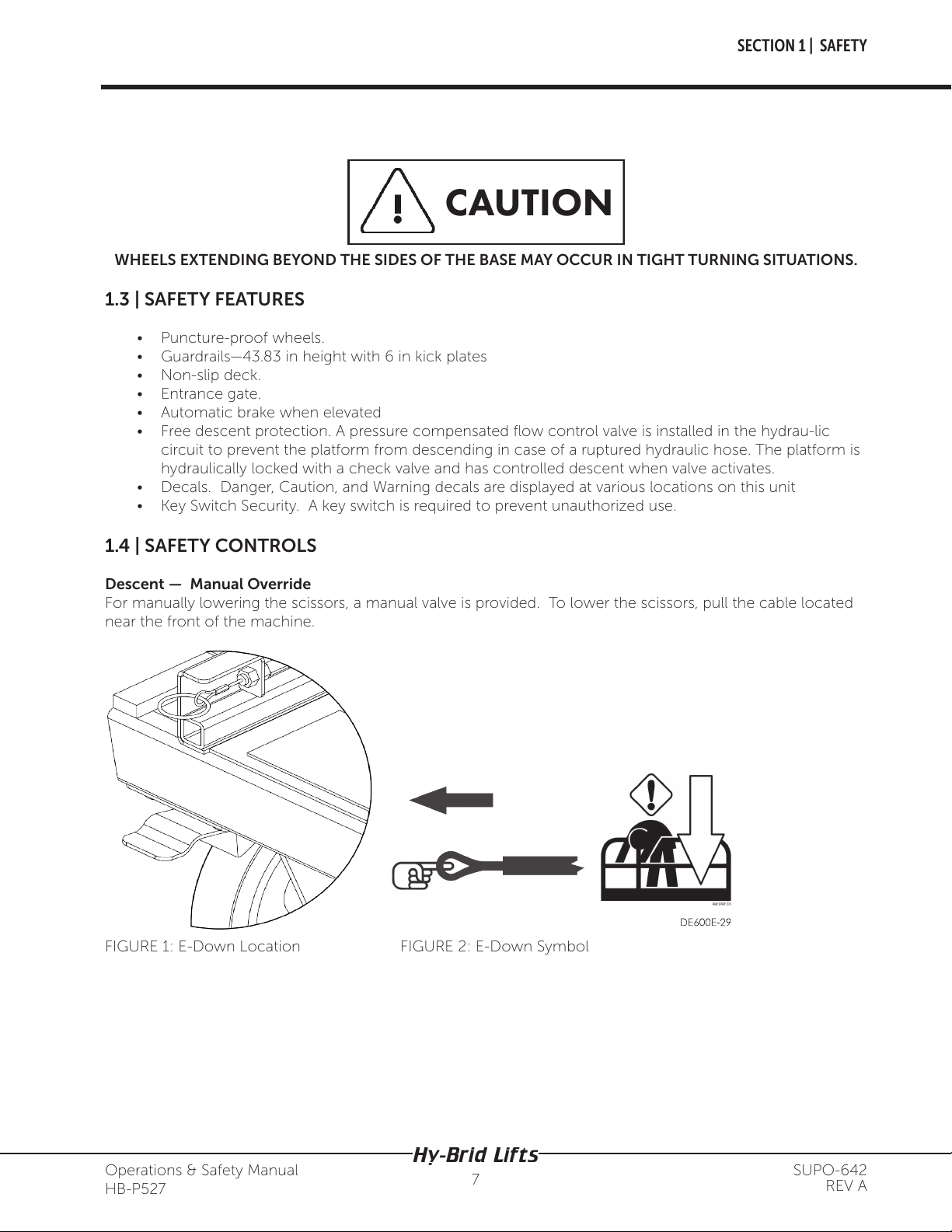

FIGURE 1: E-Down Location FIGURE 2: E-Down Symbol
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
8
SECTION 1 | SAFETY
WARNING
IF PLATFORM SHOULD FAIL TO LOWER, DO NOT ATTEMPT
TO CLIMB DOWN THE BEAM ASSEMBLY. SERIOUS INJURY
MAY RESULT. HAVE AN EXPERIENCED OPERATOR USE THE
EMERGENCY LOWERING PROCEDURE TO SAFELY LOWER
THE PLATFORM.
Emergency Stop
This lift is equipped with two emergency stop switches, one at the platform control and one at the base con-
trol, that when activated, will render the unit inoperable until reset. To reset, pull the button out.
WARNING
PUSHING THE EMERGENCY STOP BUTTON WILL STOP
MOVEMENT IMMEDIATELY. THIS MAY CAUSE UNEXPECTED
PLATFORM MOVEMENT AS THE MACHINE COMES TO A SUD
DEN STOP. BRACE YOURSELF AND SECURE OBJECTS ON
THE PLATFORM DURING OPERATION OF THE MACHINE.
1.5 | MAINTENANCE LOCK
The maintenance lock must be placed into position whenever the machine is being serviced in a partially
raised position. Serious injury and/or death could result if maintenance lock is not used properly.
FIGURE 3: Maintenance lock use FIGURE 4: Maintenance lock storage
Courtesy of Crane.Market

Hy-Brid Lifts SUPO-642
REV A
Operations & Safety Manual
HB-P527 9
SECTION 1 | SAFETY

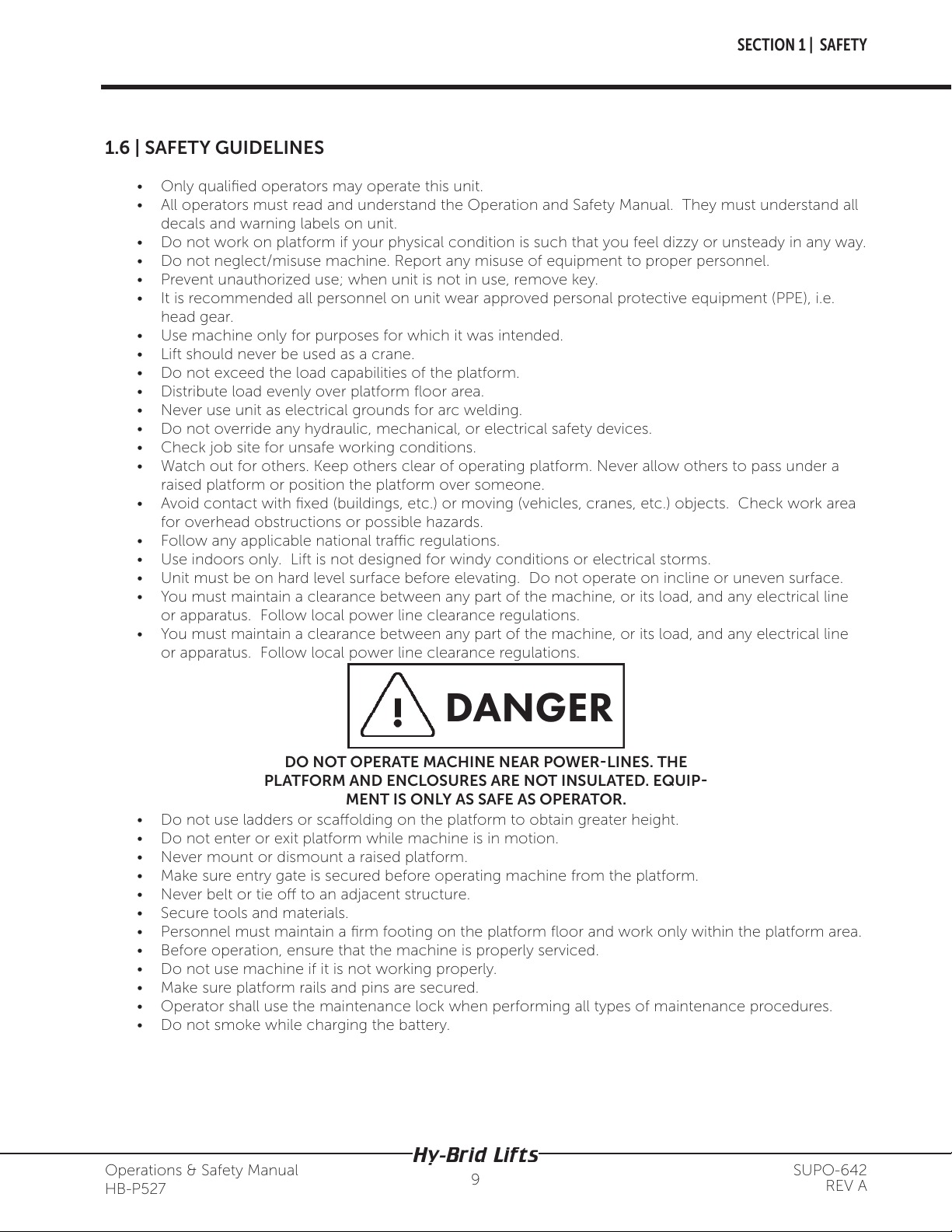

1.6 | SAFETY GUIDELINES
• Only qualified operators may operate this unit.
• All operators must read and understand the Operation and Safety Manual. They must understand all
decals and warning labels on unit.
• Do not work on platform if your physical condition is such that you feel dizzy or unsteady in any way.
• Do not neglect/misuse machine. Report any misuse of equipment to proper personnel.
• Prevent unauthorized use; when unit is not in use, remove key.
• It is recommended all personnel on unit wear approved personal protective equipment (PPE), i.e.
head gear.
• Use machine only for purposes for which it was intended.
• Lift should never be used as a crane.
• Do not exceed the load capabilities of the platform.
• Distribute load evenly over platform floor area.
• Never use unit as electrical grounds for arc welding.
• Do not override any hydraulic, mechanical, or electrical safety devices.
• Check job site for unsafe working conditions.
• Watch out for others. Keep others clear of operating platform. Never allow others to pass under a
raised platform or position the platform over someone.
• Avoid contact with fixed (buildings, etc.) or moving (vehicles, cranes, etc.) objects. Check work area
for overhead obstructions or possible hazards.
• Follow any applicable national trac regulations.
• Use indoors only. Lift is not designed for windy conditions or electrical storms.
• Unit must be on hard level surface before elevating. Do not operate on incline or uneven surface.
• You must maintain a clearance between any part of the machine, or its load, and any electrical line
or apparatus. Follow local power line clearance regulations.
• You must maintain a clearance between any part of the machine, or its load, and any electrical line
or apparatus. Follow local power line clearance regulations.
•
DANGER
DO NOT OPERATE MACHINE NEAR POWERLINES. THE
PLATFORM AND ENCLOSURES ARE NOT INSULATED. EQUIP
MENT IS ONLY AS SAFE AS OPERATOR.
Do not use ladders or scaolding on the platform to obtain greater height.
• Do not enter or exit platform while machine is in motion.
• Never mount or dismount a raised platform.
• Make sure entry gate is secured before operating machine from the platform.
• Never belt or tie o to an adjacent structure.
• Secure tools and materials.
• Personnel must maintain a firm footing on the platform floor and work only within the platform area.
• Before operation, ensure that the machine is properly serviced.
• Do not use machine if it is not working properly.
• Make sure platform rails and pins are secured.
• Operator shall use the maintenance lock when performing all types of maintenance procedures.
• Do not smoke while charging the battery.
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
10

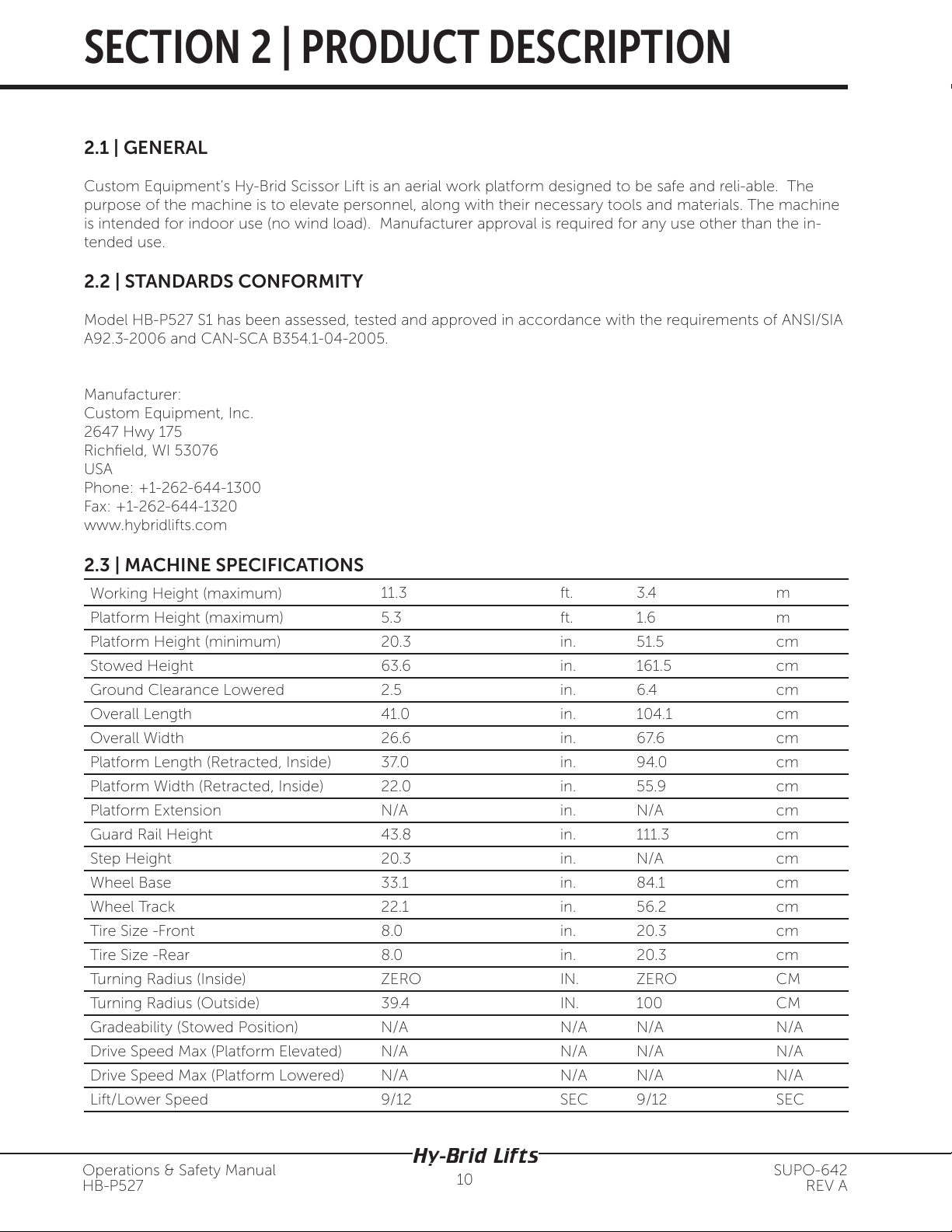

SECTION 2 | PRODUCT DESCRIPTION
2.1 | GENERAL
Custom Equipment’s Hy-Brid Scissor Lift is an aerial work platform designed to be safe and reli-able. The
purpose of the machine is to elevate personnel, along with their necessary tools and materials. The machine
is intended for indoor use (no wind load). Manufacturer approval is required for any use other than the in-
tended use.
2.2 | STANDARDS CONFORMITY
Model HB-P527 S1 has been assessed, tested and approved in accordance with the requirements of ANSI/SIA
A92.3-2006 and CAN-SCA B354.1-04-2005.
Manufacturer:
Custom Equipment, Inc.
2647 Hwy 175
Richfield, WI 53076
USA
Phone: [phone]
Fax: [phone]
www.hybridlifts.com
2.3 | MACHINE SPECIFICATIONS
Working Height (maximum) 11.3 ft. 3.4 m
Platform Height (maximum) 5.3 ft. 1.6 m
Platform Height (minimum) 20.3 in. 51.5 cm
Stowed Height 63.6 in. 161.5 cm
Ground Clearance Lowered 2.5 in. 6.4 cm
Overall Length 41.0 in. 104.1 cm
Overall Width 26.6 in. 67.6 cm
Platform Length (Retracted, Inside) 37.0 in. 94.0 cm
Platform Width (Retracted, Inside) 22.0 in. 55.9 cm
Platform Extension N/A in. N/A cm
Guard Rail Height 43.8 in. 111.3 cm
Step Height 20.3 in. N/A cm
Wheel Base 33.1 in. 84.1 cm
Wheel Track 22.1 in. 56.2 cm
Tire Size -Front 8.0 in. 20.3 cm
Tire Size -Rear 8.0 in. 20.3 cm
Turning Radius (Inside) ZERO IN. ZERO CM
Turning Radius (Outside) 39.4 IN. 100 CM
Gradeability (Stowed Position) N/A N/A N/A N/A
Drive Speed Max (Platform Elevated) N/A N/A N/A N/A
Drive Speed Max (Platform Lowered) N/A N/A N/A N/A
Lift/Lower Speed 9/12 SEC 9/12 SEC
Courtesy of Crane.Market

Hy-Brid Lifts SUPO-642
REV A
Operations & Safety Manual
HB-P527 11
Power System-Voltage 12V DC
Batteries-Deep Cycle Marine (1) 12V GROUP 24 AGM
Hydraulic Pressure (max) 650.0 psi 4481.6 kPa
Hydraulic Fluid Capacity 0.3 gal 1.2 L
Platform Capacity 500.0 lb. 226.8 kg
Rated Occupancy 1.0 Persons 1.0 Persons
Extension Capacity N/A N/A N/A N/A
Horizontal/Manual Force 45.0 LB 200 N
Wind INDOOR USE ONLY/NO WINDY CONDITIONS
Rated Slope LEVEL SURFACE
Tilt Sensor Activated N/A
Temperature -4°F to -104°F -20°C to 40°C
Vibration 8.2 ft / s2 max 2.5 m / s2 max
Sound 86 dB Normal Use/100 dB Alarms
Machine Weight (Unloaded) (Approx.) 575.0 lb. 260.8 kg
Minimum Wheel Load-Contact Pres-
sure 115.0 psi 792.9 kPa
Maximum Wheel Load-Contact Pres-
sure 215.0 psi 1482.4 kPa
Minimum Machine Loading-Floor Pres-
sure 75.8 psf 3.6 kPa
Maximum Machine Loading-Floor
Pressure 141.9 psf 6.8 kPa
SECTION 2 | PRODUCT DESCRIPTION
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
12
SECTION 3 | DECALS
3.1 | DECAL LOCATION
9
6
4
314
12
13
11 2
8
15
18
5
7
3
4
10
14
17
16
A
1
ITEM
NO.
PART NUMBER DESCRIPTION
QTY. UM
1 N/A SERIAL NUMBER EA
2 N/A SERIAL NUMBER REFERENCE EA
3 DE727 DECAL,KEEP 2 EA
4 DE728 DECAL,CLEAR 2 EA
5 DE600E-14 DECAL,MAINT LOCK 1 EA
6 DE751 DECAL,E-DOWN CABLE 1 EA
7 DE601 DECAL,LOGO HY-BRID 1 EA
8 DE746 DECAL,LANYARD ATTACHMENT 1 EA
9 DE666 DECAL, LWR 1 EA
10 DE675 DECAL,NO FORK 1 EA
11 DE706 DECAL,UPR HB 1 EA
12 DE726 DECAL,CAPACITY,500#,1P,I,WO/SO 1 EA
13 DE730 DECAL,OL ALARM 1 EA
14 DE603-14 MODEL# DECAL-HB-P527 2 EA
15 DE760 DECAL,E-STOP HANDLE 1 EA
16 DE673 DECAL,HYDR FLUID 1 EA
17 DE674 DECAL,HYDR FLUID 1 EA
18 DE669 DECAL, CONTROL UPR 1 EA
Courtesy of Crane.Market

Hy-Brid Lifts SUPO-642
REV A
Operations & Safety Manual
HB-P527 13

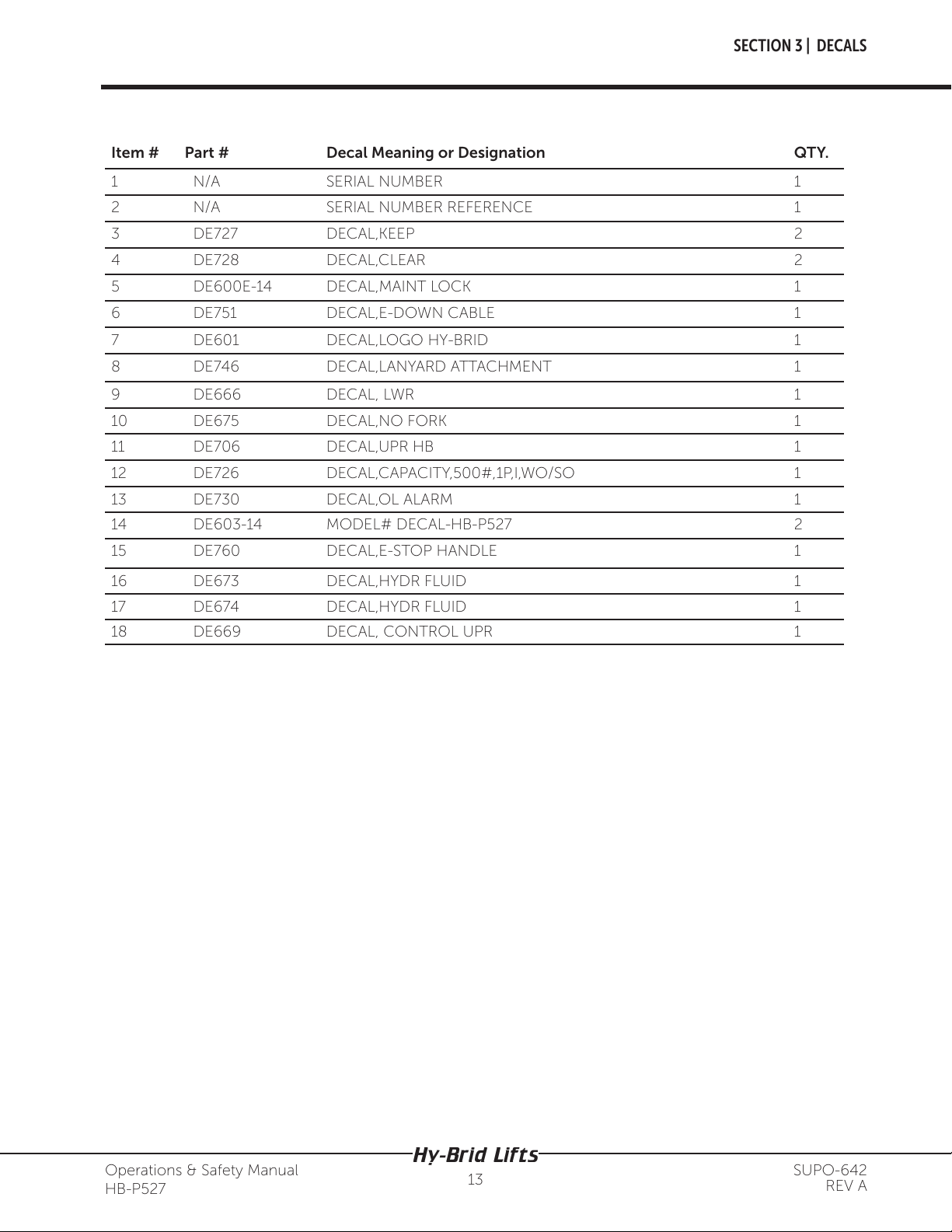

SECTION 3 | DECALS
Item # Part # Decal Meaning or Designation QTY.
1 N/A SERIAL NUMBER 1
2 N/A SERIAL NUMBER REFERENCE 1
3 DE727 DECAL,KEEP 2
4 DE728 DECAL,CLEAR 2
5 DE600E-14 DECAL,MAINT LOCK 1
6 DE751 DECAL,E-DOWN CABLE 1
7 DE601 DECAL,LOGO HY-BRID 1
8 DE746 DECAL,LANYARD ATTACHMENT 1
9 DE666 DECAL, LWR 1
10 DE675 DECAL,NO FORK 1
11 DE706 DECAL,UPR HB 1
12 DE726 DECAL,CAPACITY,500#,1P,I,WO/SO 1
13 DE730 DECAL,OL ALARM 1
14 DE603-14 MODEL# DECAL-HB-P527 2
15 DE760 DECAL,E-STOP HANDLE 1
16 DE673 DECAL,HYDR FLUID 1
17 DE674 DECAL,HYDR FLUID 1
18 DE669 DECAL, CONTROL UPR 1
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
14

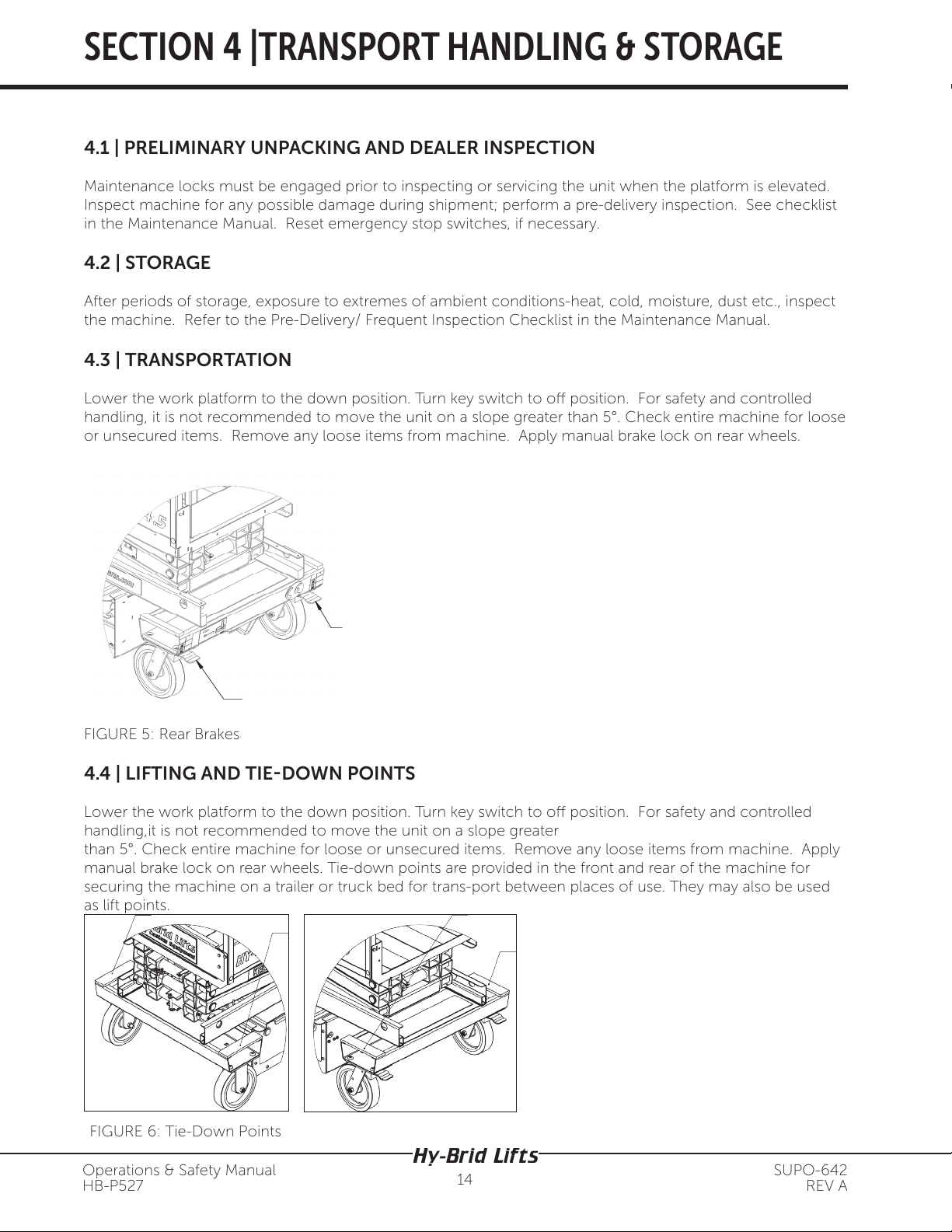

SECTION 4 |TRANSPORT HANDLING & STORAGE
4.1 | PRELIMINARY UNPACKING AND DEALER INSPECTION
Maintenance locks must be engaged prior to inspecting or servicing the unit when the platform is elevated.
Inspect machine for any possible damage during shipment; perform a pre-delivery inspection. See checklist
in the Maintenance Manual. Reset emergency stop switches, if necessary.
4.2 | STORAGE
After periods of storage, exposure to extremes of ambient conditions-heat, cold, moisture, dust etc., inspect
the machine. Refer to the Pre-Delivery/ Frequent Inspection Checklist in the Maintenance Manual.
4.3 | TRANSPORTATION
Lower the work platform to the down position. Turn key switch to o position. For safety and controlled
handling, it is not recommended to move the unit on a slope greater than 5°. Check entire machine for loose
or unsecured items. Remove any loose items from machine. Apply manual brake lock on rear wheels.
B
FIGURE 5: Rear Brakes
4.4 | LIFTING AND TIEDOWN POINTS
Lower the work platform to the down position. Turn key switch to o position. For safety and controlled
handling,it is not recommended to move the unit on a slope greater
than 5°. Check entire machine for loose or unsecured items. Remove any loose items from machine. Apply
manual brake lock on rear wheels. Tie-down points are provided in the front and rear of the machine for
securing the machine on a trailer or truck bed for trans-port between places of use. They may also be used
as lift points.
FIGURE 6: Tie-Down Points
Courtesy of Crane.Market

Hy-Brid Lifts SUPO-642
REV A
Operations & Safety Manual
HB-P527 15
SECTION 4 | TRANSPORT HANDLING & STORAGE
4.5 | FORK LIFT POCKETS
Fork lift pockets are provided on the side of the unit for loading and unloading. Do not use a forklift un-
der-neath the machine from the back. When moving machine with a forklift, do not let machine slide along
floor. Bring forklift to a stop and then gently lower the machine.
X
Y
FIGURE 7: center of gravity
Center Of Gravity X Axis Y AXIS
HB-P527 21.5 in. 15 in.
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
16

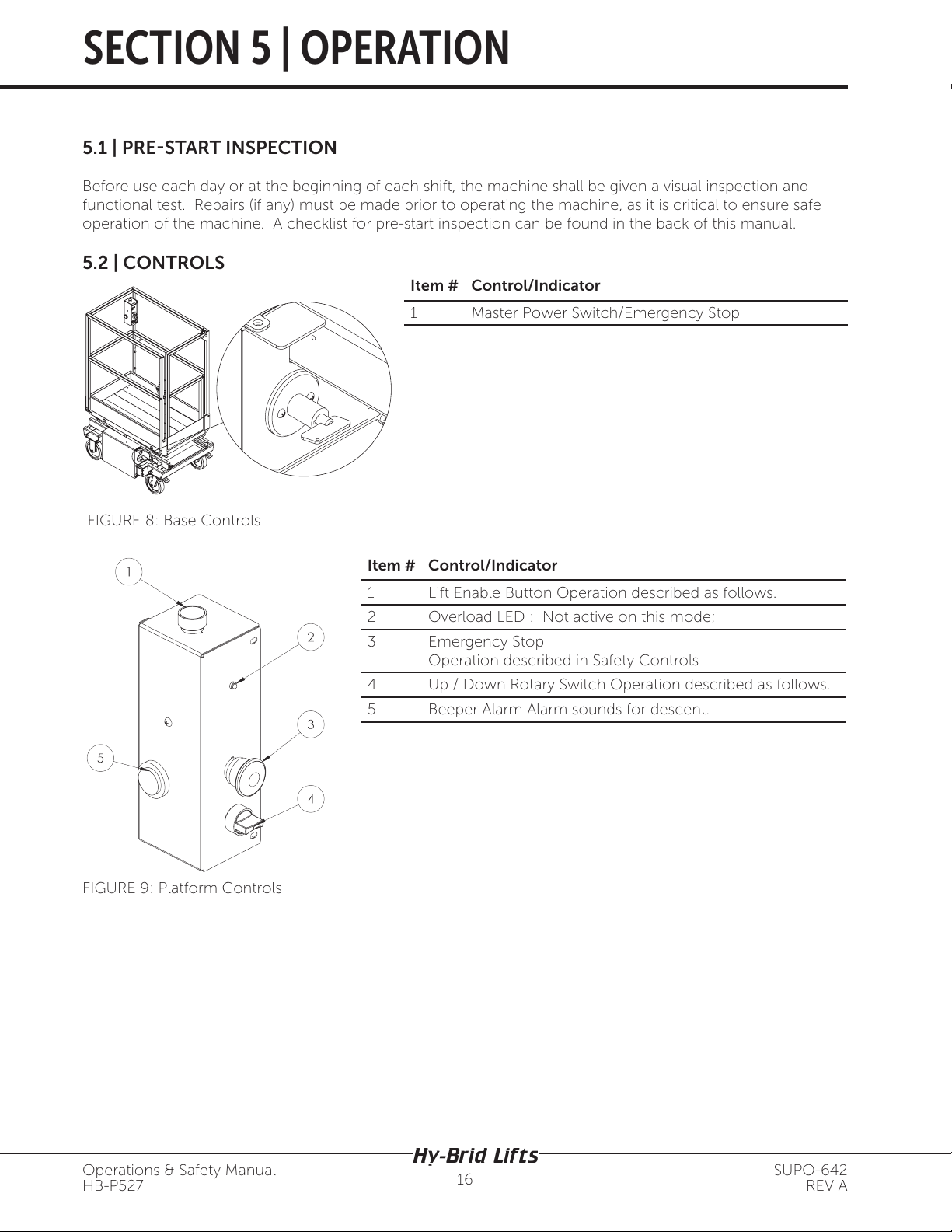

SECTION 5 | OPERATION
5.1 | PRESTART INSPECTION
Before use each day or at the beginning of each shift, the machine shall be given a visual inspection and
functional test. Repairs (if any) must be made prior to operating the machine, as it is critical to ensure safe
operation of the machine. A checklist for pre-start inspection can be found in the back of this manual.
5.2 | CONTROLS
Item # Control/Indicator
1 Master Power Switch/Emergency Stop
FIGURE 8: Base Controls
Item # Control/Indicator
1 Lift Enable Button Operation described as follows.
2 Overload LED : Not active on this mode;
3 Emergency Stop
Operation described in Safety Controls
4 Up / Down Rotary Switch Operation described as follows.
5 Beeper Alarm Alarm sounds for descent.
FIGURE 9: Platform Controls
Courtesy of Crane.Market

Hy-Brid Lifts SUPO-642
REV A
Operations & Safety Manual
HB-P527 17
SECTION 5 | OPERATION
5.3 | STARTUP/SHUT DOWN
Check that the work area is safe.
It is not recommended to maneuver the unit on a slope greater than 5°. Check that master power switch is in
“ON” position. Ensure that the key in the lower con-rol panel is in the “ON” position for the chassis or plat-
form control. Machine must be on a hard, level, surface before operation. Check that bubble level is cen-
tered. Engage the manual brakes on the rear casters before elevating the platform.Enter the work platform in
the stowed position using the constant three point contact method. Follow all general rules and precautions
stated in this manual. When finished with the machine, place the platform in the stowed position. Carefully
exit the platform using the constant three point contact method.
FIGURE 10: Master Power Switch
When finished with the machine, place the platform in the stowed position.
Carefully exit the platform using the constant three point contact method. NEVER JUMP OFF THE PLAT-
FORM
Park the machine on a level surface.
Turn master power switch to o position. To prevent unauthorized use, remove the key from the master
power switch. The key may be placed in the manual pouch and the cabinet padlocked to secure the ma-
chine in the isolated position.
DANGER
THE OPERATOR MUST BE AWARE OF THE ENVIRONMENT.
DO NOT RAISE THE PLATFORM IF THE MACHINE IS NOT ON
A FIRM, LEVEL SURFACE.
ELEVATING AND LOWERING
Using Upper Platform Controls
Make sure the platform controls are selected with the selector switch at the base controls. To raise or lower
the platform, press the Elevate/Lower Enable Button. While holding down the Enable Button, rotate and hold
the Elevate/Lower switch until the platform is in the desired position.
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
18
SECTION 6 | DAILY MAINTENANCE
DANGER
FAILURE TO PERFORM INSPECTIONS AND PREVENTATIVE MAINTENANCE AT RECOMMENDED INTER
VALS MAY RESULT IN THE UNIT BEING OPERATED WITH A DEFECT THAT MAY RESULT IN INJURY OR
DEATH OF THE OPERATOR. REGULAR INSPECTION AND CONSCIENTIOUS MAINTENANCE IS IMPORT
ANT TO EFFICIENT ECONOMICAL OPERATION OF THIS MACHINE. IT WILL HELP TO ASSURE THAT
EQUIPMENT WILL PERFORM SATISFACTORILY WITH A MINIMUM OR SERVICE AND REPAIR. MAKE
CHECKS AT THE STATED INTERVALS OR MORE FREQUENTLY IF REQUIRED BY LOCAL OPERATING
CONDITIONS. A PRESTART INSPECTION CHECKLIST IS INCLUDED IN THIS MANUAL.
Additional maintenance for use by trained personnel is included in a separate Maintenance Manual. Refer to
the Maintenance Manual for Pre-Delivery/Frequent and Monthly Checklists and replace-ment part informa-
tion.
6.1 | CHARGING THE BATTERY
This unit is equipped with a deep cycle 12-volt battery. The care and maintenance of your battery has much
to do with how well this unit functions. Battery wiring should be checked monthly.
NOTE: The surrounding temperature greatly aects the power reserve within a battery. Example: A battery
that is 100% charged at 80° F (27°C) drops to 65% at 32°F (0°C). At 0°F (-18°C), this battery will drop to 40%
eciency.
WARNING
LEADACID BATTERIES GENERATE EXPLOSIVE GASES. KEEP
SPARKS AND FLAME AWAY FROM BATTERIES. DO NOT
SMOKE WHILE CHARGING.
Do not operate unit while charging. Shortened battery life will result.
Park the machine on a level surface.
Plug charger into AC outlet until charged.
For best battery life, leave charger plugged in until machine will be used again. The charger will maintain the
battery charge.
The charger will not begin the charging cycle on severely discharged batteries.
WARNING
DO NOT OPERATE UNITE WHILE CHARGING
CAUTION
NEVER ADD ACID TO THE BATTERY
Courtesy of Crane.Market

Hy-Brid Lifts SUPO-642
REV A
Operations & Safety Manual
HB-P527 19
FIGURE 11: Battery Charger LED Display
Battery solution is at its proper strength when the battery is manufactured. Use distilled water and keep fluid up to proper
level. When required, water should be added to battery after charging, unless water level is below the plates.
Reading the battery Displays
POWER
BATTERY 1 STATUS
BATTERY 1 STATUS
POWER
POWER
BATTERY 1 STATUS
CHARGING
CHARGING READY
CHARGING READY
READY
Green LED
(ON)
Green LED
(ON)
Green LED
(ON)
Green LED
(ON)
Red LED
(OFF)
Green LED
(OFF)
Red LED
(ON)
Green LED
(OFF)
Red LED
(OFF)
This display indicates that the power is on but there
is no connection to a battery. The charger must see
approximately five (5) volts on a battery to deliver D/C
current.
This display indicates that power is on and that both
outputs are delivering D/C current to the batteries
This display indicates that power is on and that the
output is finished charging and is in a float maintenance
model.
SECTION 6 | DAILY MAINTENANCE
Courtesy of Crane.Market

Hy-Brid Lifts
Operations & Safety Manual
HB-P527
SUPO-642
REV A
20
SECTION 7 | PRESTART INSPECTION CHECKLIST
7.1 | PRESTART INSPECTION CHECKLIST
This checklist must be used at the beginning of each shift
or after every six to eight hours of use. Failure to do so
could aect the safety of the operator.
MODEL NUMBER: SERIAL NUMBER:
Keep inspection records up-to-date.
Record and report all discrepancies to your supervisor.
A dirty machine cannot be properly inspected.
Y — Yes/Acceptable N — No/Unacceptable R — Repaired
Description Y N R
Visual Inspections
Check that there are no damaged, dented, or bent structural members. □ □ □
There are no loose or missing parts. □ □ □
Check that warning and instructional labels are legible and secure. Ensure that load capacity is
clearly marked. □ □ □
Check the platform rails and safety gate for damage. □ □ □
Platform and base controls are not missing, damaged, or disconnected. □ □ □
Electrical cables and wires are not torn, frayed, or disconnected. □ □ □
Hydraulic hoses are not torn or loose, and there are no leaks. Check that hoses and cables
have no worn areas or chafing. □ □ □
Check the tires for damage. □ □ □
Check that all snap rings are secure in grooves on pivot pins. □ □ □
Functional Tests
Gate closes automatically and latches (alignment can be adjusted with screw-on toe board or
railing). □ □ □
Platform Controls — Check all switches and push buttons for proper operation:
Emergency Stop (stops all movement)
Up/Down Controls (Elevates, Lowers, Enable button must be pressed)
□
□
□
□
□
□
Base Controls — Check all switches and push buttons for proper operation:
Emergency Stop (stops all movement)
Key Switch (Selects Platform Control, Ground Control, or O)
Alarm (Not damaged, sounds for descent)
Up/Down Rocker Switch (Elevates, Lowers)
□
□
□
□
□
□
□
□
□
□
□
□
Wheels: Front and rear wheels rotate freely. □ □ □
Brakes engage and hold when platform is elevated. □ □ □
DATE INSPECTED
BY
WARNING
Courtesy of Crane.Market
