EAE EE-65A.40T Guide

Installation, Operation
and Parts Manual
Model No. EE-65A.40T
Short platform scissor lift
Low profile
Manual Levelling
Lifting capacity: 4000KG
Please read this entire manual carefully and completely before installation or operation of the lift.
2017.07.28 - 540104109

Installation, Operation and Parts Manual
EE-65A.40T
2
IMPORTANT NOTES
Before start up, connecting and operating EAE products, it is absolutely essential that the operating instructions/owner’s manual and, in
particular the safety instructions are studied carefully. By doing so you can eliminate any uncertainties in handling EAE products and thus
associated safety risks up front; something which is in the interest of you own safety and will ultimately help avoid damage to the device,
When an EAE product is handed over to another person, not only the operating instructions but also the safety instructions and
information on its designated use must be handed over to the person.
By using the product you agree the following conditions:
Copy right
The enclosed instructions are the property of EAE or its supplier, and are protected against duplication and reproduction by copyright
laws, international agreements, and other domestic legislation. The reproduction or disclosure of instructions or an extract thereof is
prohibited and offenders are liable to prosecution; EAE reserves the right or initiates criminal proceedings and asserts claims for damages
in the event of infringements.
Warranty
The use of non-approved hardware will result in a modification of our products and thus to the exclusion of any liability or warranty, even
if such hardware has been removed again in the interim.
It is not permissible to make any changes to our products and these are not only to be used together with genuine accessories and
genuine replacement parts. Otherwise any warranty claims will be invalid.
Liability
The liability of EAE is limit to the amount that the customer has actually paid for this product. This exclusion of liability does not apply to
damages caused through willful misconduct or gross negligence on the part of EAE.

Installation, Operation and Parts Manual
EE-65A.40T
3
IMPORTANT NOTES .............................................................................................................................................................2
SAFETY NOTES .....................................................................................................................................................................4
1.1 Operation of lifting platforms ................................................................................................................................................4
1.2 Checking of the lifting platforms............................................................................................................................................4
1.3 Important safety notices ........................................................................................................................................................5
1.4 Warning labels .......................................................................................................................................................................6
1.5 Potential safety risks ..............................................................................................................................................................7
1.6 Noise level ..............................................................................................................................................................................7
PACKING, STORAGE AND TRANSPORTATION.......................................................................................................................8
2.1 The lift was dismantled into the following 2 parts for transportation ...................................................................................8
2.2 Storage...................................................................................................................................................................................8
2.3 Lifting and handling ...............................................................................................................................................................8
PRODUCT DESCRIPTIONS .....................................................................................................................................................9
3.1 General descriptions ..............................................................................................................................................................9
3.2 Construction of the lift ...........................................................................................................................................................9
3.3 Dimensions.............................................................................................................................................................................9
3.4 Safety devices descriptions ..................................................................................................................................................10
3.5 Technical data......................................................................................................................................................................11
INSTALLATION INSTRUCTIONS...........................................................................................................................................11
4.1 Preparations before installation ..........................................................................................................................................11
4.2 Installation attentions..........................................................................................................................................................14
4.3 General Installation Steps ....................................................................................................................................................14
4.4 Items to be checked after installation..................................................................................................................................18
OPERATION INSTRUCTIONS ...............................................................................................................................................19
5.1 Precautions ..........................................................................................................................................................................19
5.2 Operation instructions .........................................................................................................................................................19
5.3 Flow chart for operation ......................................................................................................................................................20
5.4 Operation instructions .........................................................................................................................................................20
TROUBLE SHOOTING..........................................................................................................................................................21
MAINTENANCE ..................................................................................................................................................................22
Annex1,Electrical schemes and parts list ...................................................................................................................................24
Annex2, Hydraulic schemes and parts list..................................................................................................................................28
Annex3, Pneumatic schemes and parts list................................................................................................................................31
Annex4, Mechanically exploded drawings and parts list ...........................................................................................................32

Installation, Operation and Parts Manual
EE-65A.40T
4
SAFETY NOTES
1.1 Operation of lifting platforms
This lift is specially designed for lifting motor vehicles. Users are not allowed to use it for any other purposes. The applicable national
regulations, laws and directives must be observed.
Only users aged 18 or above who have been instructed on how to operate the lifting platform and have proven their ability to do so to the
owner are to be entrusted with unsupervised operation of lifting platforms. The task of operating the lifting platforms must be granted in
writing.
Before loading a vehicle onto the lifting platform, users should study the original operation instructions and familiarize themselves with
the operating procedures in several trial runs.
Lift vehicle within the rated load. Don’t attempt to raise vehicles with excessive weight.
1.2 Checking of the lifting platforms
Checks are to be based on the following directives and regulations:
Basic principles for testing lifting platforms
The basic health and safety requirements stipulated in the directive 2006/42/EC
Harmonized European standards
The applicable accident prevention regulations
The checks are to be organized by the user of the lifting platform. The user is responsible for appointing an expert or qualified person to
perform checking. It must be ensure that the person chosen satisfies the requirements.
The user bears special responsibility if employees of the company are appointed as experts or qualified persons.
1.2.1 Scope of checking
Regular checking essentially involves performing a visual inspection and a functional test. This includes checking the condition of the
components and equipment, checking that the safety systems are complete and functioning properly and that the inspection log book is
completely filled in. The scope of exceptional checking depends on the nature and extent of any structural modification or repair work.
1.2.2 Regular checking
After initial commissioning, lifting platforms are to be checked by a qualified person at intervals of not longer than one year.
A qualified person is somebody with the training and experience required to possess sufficient knowledge of lifting platforms and who is
sufficiently familiar with the pertinent national regulations, accident prevention regulations and generally acknowledged rules of
engineering to be able to assess the safe operating condition of lifting platforms.
1.2.3 Exceptional checking
Lifting platforms with a lift height of more than 2 meters and lifting platforms intended for use with people standing under the load
bearing elements of the load are to be checked by an expert prior or reuse following structural modifications and major repairs to load
bearing components.

Installation, Operation and Parts Manual
EE-65A.40T
5
An expert is somebody with the training and experience required to possess specialist knowledge of lifting platforms and who is
sufficiently familiar with the pertinent national work safety regulations, accident prevention regulations and generally acknowledged
rules of engineering to be able to check and give an expert option on lifting platforms.
1.3 Important safety notices
1.3.1 Recommend for indoor use only, DO not expose the lift to rain, snow or excessive moisture.
1.3.2 Only use this lift on a surface that is stable and capable of sustaining the load. Do not install the lift on any asphalt surface.
1.3.3 Read and understand all safety warnings before operating the lift.
1.3.4 Do not leave the controls while the lift is still in motion.
1.3.5 Keep hands and feet away from any moving parts. Keep feet clear of the lift when lowering.
1.3.6 Only these properly trained personnel can operate the lift.
1.3.7 Do not wear unfit clothes such as large clothes with flounces, tires, etc., which could be caught by moving parts of the lift.
1.3.8 To prevent evitable incidents, surrounding areas of the lift must be tidy and with nothing unconcerned.
1.3.9 The lift is simply designed to lift the entire body of vehicles, with its maximum weight within the lifting capacity.
1.3.10 Always insure the safety locks are engaged before any attempt to work near or under the vehicle. Never remove safety related
components from the lift. Do not use if safety related components are damaged or missing.
1.3.11 Do not rock the vehicle while on the lift or remove any heavy component from vehicle that may cause excessive weight shift.
1.3.12 Check at any time the parts of the lift to ensure the agility of moving parts and the performance of synchronization. Ensure regular
maintenance and if anything abnormal occurs, stop using the lift immediately and contact our dealers for help.
1.3.13 Lower the lift to its lowest position and do remember to cut off the power source when service finishes.
1.3.14 Do not modify any parts of the lift without manufacturer’s advice.
1.3.15 If the lift is going to be left unused for a long time, users are required to:
a. Disconnect the power;
b. Empty the oil tank;
c. Lubricate the moving parts with hydraulic oil.
WARNING：The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
Attention: For environment protection, please dispose the disused oil properly.

Installation, Operation and Parts Manual
EE-65A.40T
6
1.4 Warning labels
All safety warning labels are clearly depicted on the lift to ensure that the operator is aware of and avoid the dangers
of using the lift in an incorrect manner. The labels must be kept clean and they have to be replaced if detached or
damaged. Please read carefully the meaning of each label and memories them for future operation.

Installation, Operation and Parts Manual
EE-65A.40T
7
1.5 Potential safety risks
1.5.1 Mains voltage
Insulation damage and other faults may result in accessible components being live
Safety measures:
Only ever use the power cord provided or a tested power cord.
Replace wires with damaged insulation.
Do not open the operating unit.
1.5.2 Risk of injury, danger of crushing
In the event of excessive vehicle weight, incorrect mounting of the vehicle or on removing heavy object,
there is a risk of the vehicle falling off the lifting platform or tipping up.
Safety measures:
The lifting platform is only ever to be employed for the intended purpose.
Carefully study and heed all the information given in Section 1.4.
Observe the warning notices for operation.
1.6 Noise level
Noise emitted during operating the lift should be less than 70dB. For your health consideration, it is suggested to place a noise detector in
your working area.

Installation, Operation and Parts Manual
EE-65A.40T
8
PACKING, STORAGE AND TRANSPORTATION
Packing, lifting, handling, transporting operations must be performed only by experienced personnel with
appropriate knowledge of the lift and after reading this manual.
2.1 The lift was dismantled into the following 2 parts for transportation
Name
Packed by
Dimension(mm)
Weight(kg)
Quantity
Control cabinet
Wooden case
580*520*1010
100
1
Lift platforms
Carton with wooden base
2288*700*440
1000
1
2.2 Storage
The packs must be kept in a covered and protected area in a temperature range 0f -10℃to +40℃. They must not be exposed to direct
sunlight, rain or water.
Stacking the packs
We advise against stacking because the packs are not designed for this type of storage. The narrow base, heavy weight and large size of
the packs make stacking difficult and potentially dangerous.
If stacking is unavoidable, use all appropriate precautions:
-never stack to more than 2 meters in height.
-never make stacks of single packs. Always stack pairs of packs in a cross pattern so that the base is bigger and the resulting stack is more
stable. Once the stack is complete, restrain it using straps, ropes or other suitable methods.
A maximum of two packs can be stacked on lorries, in containers, and in railway wagons, on condition that the packs are strapped together
and restrained to stop them falling.
2.3 Lifting and handling
The packs can be lifted and transported only by using lift trucks.
Opening the packs
When the lift is delivered make sure that it has not been damaged during transportation and that all the parts specified on the packing list
are present.
Packs must be opened adopting all the precautions required to avoid injury to persons (keep at a safe distance when cutting the straps) or
damage to parts of the machine (be careful that no parts are dropped while you are opening the packing)
Take special care with the hydraulic power unit, the control panel and the platform cylinder.

Installation, Operation and Parts Manual
EE-65A.40T
9
PRODUCT DESCRIPTIONS
3.1 General descriptions
This full rise scissor lift is of pretty lower profile when at its lowest position. As it is specially designed for surface mounting, users could
have it installed with great convenience. Its platform extension deign not only can be used as a ramp, but also can serve as an extended
part of the platform for much longer vehicles. Besides, designs like, 24V working voltage of control box and limit switch, alarming buzzer,
pneumatic safety lock, anti-surge valves, etc. have fully considered your personal security.
3.2 Construction of the lift
1. Base frame assembly 2.Cylinder assembly 3.Support scissor bracket 4.Lifting platform 5.Control unit

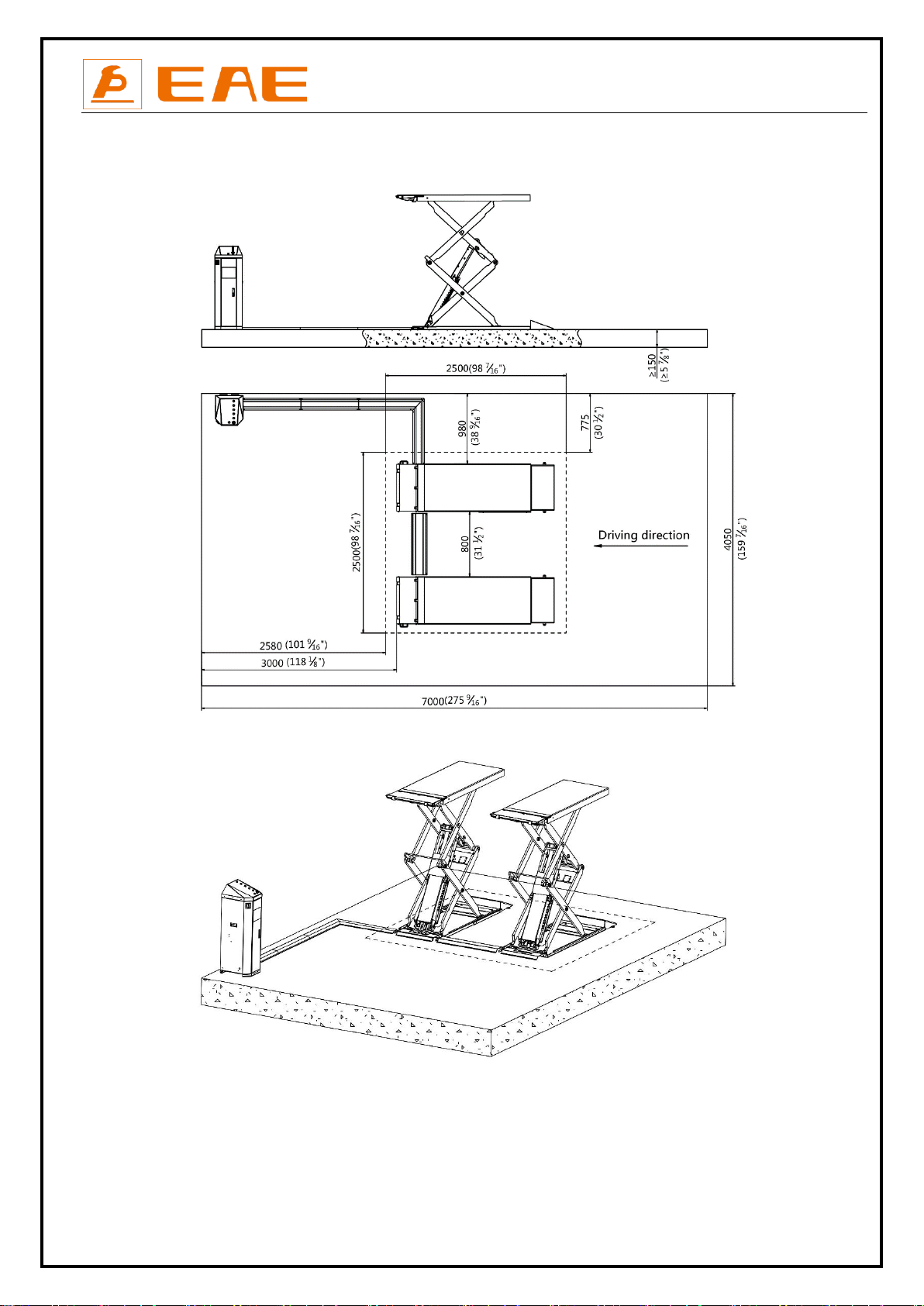

3.3 Dimensions

Installation, Operation and Parts Manual
EE-65A.40T
10
3.4 Safety devices descriptions
POS.
Safety device
Function
1
24V operation voltage
Safety voltage for operators.
2
Max height limit switch
Ensure the lifting platform stop rising when reach a height of 1930mm above the ground.
3
Safety lowering height
limit switch
The lifting platforms automatically stop lowering at safety height above the ground. It
needs to push DOWN II button to continue the lowering movement and meanwhile
alarming buzzer will be heard warning service persons being away from the moving parts.
4
Mechanical lock
Protect the lifting platform from falling down in case oil cylinders loss forces caused
hydraulic failure.

Installation, Operation and Parts Manual
EE-65A.40T
11
3.5 Technical data
Rated load capacity
4000KG
Full rise time with load
≤60s
Full lowering time with load
≤30s
Hydraulic pressure
22-24MPa
Pneumatic pressure
6-8 bar
Oil Volume
18L
INSTALLATION INSTRUCTIONS
4.1 Preparations before installation
4.1.1 Space requirements.
Refer to 3.3 for the dimensions of the lift. There must also be a clearance of at least 1 meter between the lifting platform and fixed
elements (e.g. wall) in all lifting positions. There must be sufficient space at the ends of the lifting platform for driving vehicles on and off.
To stop vehicles colliding with the ceiling, it is advisable to fit an overhead light barrier in low ceiling buildings.
4.1.2 Foundations and connections
The user must have the following work performed before erecting the lift.
Construction of the foundation following consultation with the manufacturer’s customer service or an authorized service agent.
Routing of the wiring to the installation location. The user must provide fuse protection for the connection. Requirements for
power supply cable of the installation site: at least 2.5mm2 wire core for 3Ph power and 4.0mm2 wire core for 1Ph power.
Attention: electrical system connection must be done by licensed technicians.
Routing of the compressed air connection to the installation location.
Refer also to the corresponding information in the operation instructions.
4.1.3 Foundations preparations
Indoor installation only.
There must also be a clearance of at least 1 meter between the lifting platform and fixed elements (e.g. wall) in all lifting positions. There
must be sufficient space for driving vehicles on and off.
C20/25 concrete base with strength more than 3000psi, Minimum thickness of 150mm.
Surface: Horizontal and even (Gradients max. 0.5 %)
Newly built concrete ground must be older than 20days.
In mm.

Installation, Operation and Parts Manual
EE-65A.40T
12
Surface mounting

Installation, Operation and Parts Manual
EE-65A.40T
13
Recessed mounting
4.1.4 Tools and equipment needed for installation
Tool name
Specification
Qty
Electrical drill
With D16 and D18 drill bit.
1
Open spanner
D17-19mm
2
Adjustable spanner
bigger than D30mm
1
Cross socket screw driver
PH2
1
Quick spanner handle adapter/ Ratchet
1
Socket spanner
D24mm
1
Levelling device
1
Hammer
10 pounds
1
Truck lift
Capacity, 2000KG
1
Lifting string
Capacity, 1000KG
2
Lifting string
Capacity, 2000KG
1

Installation, Operation and Parts Manual
EE-65A.40T
14
4.1.5 Checking parts
Unfold the package and check if any parts missed as per the following list. Do not hesitate to contact us in case any parts missed, but if
you do not contact us and insist installing upon the lack of some parts, we as well as our dealers will not bear any responsibility for this
and will charge for any parts subsequently demanded by the buyer.
Control cabinet package
No.
Name
Specification
Qty
1
Control unit
1
2
Rubber pad
38*120*160mm
4
3
Expansion bolt
M16*120
8
4
Pneumatic hose
D=8
2m
5
Manual
A4
1
7
Key
1
8
Oil tanks label
1
Platform package
No.
Name
Specification
Qty
1
65A.40T main platform
1
2
65A.40T secondary platform
1
3
Oil hose covers
5
4.2 Installation attentions
4.2.1 Joints of oil hose and wiring must be firmly connected in order to avoid leakage of oil hose and loose of electrical wires.
4.2.2 All bolts should be firmly screwed up.
4.2.3 Do not place any vehicle on the lift in the case of trial running.
4.3 General Installation Steps
Step 1: Dismantle the package of the lifting platforms.
Remove the carton and packing films wrapped on the platform.
Attention 1: Take off oil hose protectors when cut off the packing strips.
Attention 2: Avoid scratching the painting surface and hoses.
Step 2: Place the lifting platform at expected installation site.
Raise the upper platform by using a forklift and 2 lifting strings until the mechanical lock is engaged. And then hoist the platform to the
expected installation site. Dismantle the bolts that fix the lower platform and its wooden package and hoist it to the installation site in the
same way as the upper platform.
Attention 1: Before hoisting, make sure the hoses and wires are well protected against damage.
Attention 2: It is necessary to hold the platform during the hoisting process. Irrelevant person is not allowed in installation area.
Step 3: Open the package of the control cabinet and take out accessories.

Installation, Operation and Parts Manual
EE-65A.40T
15
Step 4: Connect oil hoses as per Annex 2. Screw torque for oil hose connector is 60N*M.
Firstly, connect the oil hoses between the two platforms. There are 3 oil hoses together. And then, connect the 2 oil hoses from the main
platform with the tie-ins remained on the hydraulic block in the control cabinet.
Oil hoses go into the cabinet trough the holes remained at the bottom of the cabinet.
Attention: Connect as per the marks on the hoses and do not contaminate the hydraulic components during the connection.
Step 5: Connect the electrical system.
Refer to Annex 1 when fix the electrical system.
Connect the wire connectors for raising and lowering limit switches.
Connect the power supply cable to external electricity supply.
(For three phase power supply, if the lift doesn't raise and the motor may turn in the wrong direction, in such event, interchange wires U, V
in the control cabinet).
Step 6: Connect the pneumatic release system. Screw torque for air hose connector is 20N*M.
Connect air hoses as per the following fig.
External compressed shall be prepared by the end user before installation. Pneumatic pressure: 6 -8bar.

Installation, Operation and Parts Manual
EE-65A.40T
16
Step 7: Fill with hydraulic oil.
ONLY CLEAN AND FRESH OIL ONLY .Lift must be fully lowered before changing or adding hydraulic oil.
Pour 18 liters anti-abrasion hydraulic oil into the oil tank. The level of oil shall reach the tippets volume mark of the tank.
Run the lift for several cycles and add more oil until the lifting platform can reach its maximum height.
Note：As running speed of the lift is mainly decided by the viscosity of the hydraulic oil, we suggest using NO.46 hydraulic oil when
average temperature of the location is above 18 degree Celsius and using NO.32 hydraulic oil when temperature is below 18 degree
Celsius. Change the oil 6 months after initial use and change once per year thereafter.
Step 8: Levelling.
Check the connection of the hydraulic and electrical system before levelling operation
Review operation instructions and get familiar with lift controls by running the lift through a few cycles before levelling operation.
Attention: Level the platforms before connecting max height limit switch because if not, platforms may not rise to the highest position.
The operator needs to know clear which levelling valve controls which platform. This could be judged by the way that the oil hose was
connected or by trial raising or lowering.
Open one of the levelling valves and push the UP button to supplement oil to the oil hose connected. Turn off the valve to stop adding oil.
In normal working condition, both levelling valves shall be turned off. In the case both valves are open, two platforms of the lift can still rise
but will not move upwards synchronously.
A. Both valves open B. Both valves closed：Normal working
C. D.
One valve open, the other closed: levelling condition
A.1. Turn on both levelling valves and push the UP button to have both platforms raised to the highest positions. Repeat this step for two
or three times. (Take care that this step could be time consuming, because there’s air in the cylinders and no load on the platforms.)
A.2. Turn off both levelling valves as per drawing B. Push the UP button to see if both platforms rise synchronously. (Normally, till now the
platforms may not rise synchronously.)
A.3. If not work synchronously, one platform may rise faster than the other. Users should first judge which leveling valve controls which
platform and then turn on the valve that controls the slower-rising platform to supplement oil into its oil hose. Push the UP button to
make both platforms rise to the same height. (The other valve here must be closed.)
A.4. Turn off both levelling valves. Push DOWN I button to have both platforms lowered to the lowest position.
A.5. In case they do not lower synchronously, turn on the valve that controls the slower-lowering platform and push DWON I button to have

Installation, Operation and Parts Manual
EE-65A.40T
17
them lowered to the lowest position and then turn off the levelling valve. If the lift is equipped with a height limit switch, push DOWN II
button when platforms stop lowering at a safety height from the ground.
A.6. After both levelling valves having been turned off, push the UP button to check if both platforms rise synchronously.
A.7. Repeat doing step A5 and step A 6 until synchronization achieved.
Step 9: Fix base frames with expansion bolts.
1. Drill anchor holes for expansion bolts on the installation foundation with an electrical drill. Make sure to drill vertically.
2. Remove thoroughly the debris and dust in holes and ascertain that the posts stay right upon the circle previously marked by chalk.
3. Hammer in and secure expansion bolts.

Installation, Operation and Parts Manual
EE-65A.40T
18
Step 10: Fix oil hose protection covers.
4.4 Items to be checked after installation.
S/N
Check items
YES
NO
1
Screw torque of expansion bolts : 60-80N•m;
2
Rising speed ≥20mm/s;
3
Noise with rated load ≤75db;
4
Grounding resistance: not bigger than 4Ω;
5
Height difference of the two platform ≤5mm;
6
Mechanical locks are robust and synchronized when running with rated load ;
7
If the control button works as “hold to run”?
8
If limit switches work well?
9
If grounding wire is connected?
10
If the lift rises and lowers smoothly?
11
If there is no abnormal noise during running with rated load?
12
If there is no oil leakage when running with rated load?
13
If there is no air leakage when running with rated load?
14
If expansion bolts, nuts or circlips are well secured?
15
If max lifting height is 1930mm?
16
If safety advices, name plate and logos are clear?

Installation, Operation and Parts Manual
EE-65A.40T
19
OPERATION INSTRUCTIONS
5.1 Precautions
5.1.1 Check all connections of oil hose. Only when there is no leakage, the lift can start work.
5.1.2 The lift, if its safety device malfunctions, shall not be used.
5.1.3 It shall not lift or lower an automobile if its center of gravity is not positioned midway of the runways.
5.1.4 Operators and other personnel concerned should stand in a safety area during lifting and lowering process.
5.1.5 When runways being raised to the desired height, switch off the power and lock the button with a padlock to prevent any wrong
operation done by unconcerned people.
5.1.6 Make sure the safety lock of the lift is engaged before start working under the vehicle and no people under the vehicle during lifting
and lowering process.
5.2 Control panel descriptions
Pos.
Name
Function
FA
Alarm buzzer
Safety warning
SB1
UP button
Control the rising movement
SB2
DOWN I button
Control the lowering movement
SB3
DOWN II button
Control the lowering movement (for lowering safety )
SB4
Safety lock button
Engage the mechanical safety lock
SB
Emergency stop
Cut operation power in emergency case
HL
Power indicator
Show if electricity is connected
QS
Power switch
Control main power

Installation, Operation and Parts Manual
EE-65A.40T
20
Turn on the power switch
Push UP button
Motor drives the gear pump work
The lift is raised
Cylinder piston drives the platform move up
Push the DOWN I button
The lift is lowered
Push the DOWN II button
Stop lowering at safety height
5.3 Flow chart for operation
5.4 Operation instructions
To avoid personal injury and/or property damage, permit only trained personnel to operate the lift. After reviewing these
instructions, get familiar with lift controls by running the lift through a few cycles before loading vehicle on lift. Always lift the
vehicle using both platforms. Never raise just one end, one corner or one side of vehicle.
Raise the lift
Make sure vehicle is neither front nor rear heavy and center of balance should be centered over the lift.
1. Make sure that you have read and understood the operation manual before operation.
2. Drive and park the vehicle midway between two platforms.
3. Place the four rubber pads under the pick-up points of the vehicle and ensure car’s gravity have fallen on the rubber pads.
4. Push the UP button on the control box until rubber pads have touched the pick-up points of vehicle.
5. Keep on pushing the UP button to lift the vehicle a bit off from the ground and check again that the vehicle is in a safe position
6. Push the safety lock button and “emergency stop” .Check again the stability of the vehicle before performing maintenance or repair work.
Lower the lift
When lowering the lift pay careful attention that all personnel and objects are kept clear.
1. Switch on.
2. Push the DOWN I button to lower the lift. It will stop lowering at safety height.
3. Push DOWN II button to continue lowering the platforms. Alarming buzz will be heard.
4. Remove rubber pads and drive the vehicle away
Raising
Lowering
Turn on the power switch
