Licetec V-Comb User manual

Instruction Manual

Table of Contents
........................................................................................................................................... pg 3
................................................................................................................ pg 4
............................................................................................................................................... pg 5
........................................................................................................................................ pg 6
............................................................................................................................................... pg 7
....................................................................................................... pg 8
........................................................................................................................... pg 10
..................................................................................................................... pg 12
................................................................................................................................. pg 13
......................................................................................................... pg 13
................................................................................................................................ pg 14
................................................................................................. pg 15
1
2
3
4
5
6
7
8
9
Before using the V-Comb
Introduction
Important Safety Information
Overview
Technical Data
Starting Up
V-Comb Capture Filter Installation
Operating the V-Comb
Maintaining the V-Comb
Treatment Period
Important Treatment Summary
Product Guarantee
Contact Details and Additional Notes
2

Introduction
Thank you for purchasing the Licetec V-Comb.
In your box, you should have the following:
1x V-Comb unit (including adaptor)
4x Disposable capture lters
1x Quick guide
1x Instruction manual
1x Cleaning brush
FEATURES
• Chemical-free head lice treatment
• Rounded stainless steel teeth with adjustable combing angles
• LED illuminated lter unit
• Disposable head lice capture lter
• Compact and ergonomic design
• AC powered device
Warning! Small parts can be inhaled, swallowed or dangerous.
Cable, due to its length, may result in strangulation or asphyxiation!
3
Please read instructions before
operating your V-Comb and
retain for future reference.

4
Important Safety Information
PLEASE READ THROUGH THESE INSTRUCTIONS BEFORE OPERATING YOUR V-COMB AND RETAIN
FOR FUTURE REFERENCE.
CAUTION
• Check that the power source electric rating is the same as the V-Comb rating and that power source is in a fully usable condition.
• To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.
• The V-Comb can be operated by most adults under the condition that the operator has understood the operating instructions.
• The V-Comb is intended for use on head hair only and can be operated both indoors and outdoors in dry conditions only.
• Suitable for use on most adults and children over the age of three years old.
• Note that this product is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they are under supervision.
• Children (even under supervision), should not play with the device.
• Avoid contact with eyes, ears or mouth.
• Do not use if sores or broken skin are present.
• Do not immerse the main body of the V-Comb in water or any other liquid.
• Keep all electrical connections clean and dry.
• It is highly recommended to clean this product immediately after each use.
• Avoid dropping or knocking the product in any way.
• No liability can be accepted for any damage caused by non compliance with these instructions or any other improper use or mishandling.
• V-Comb device and accessories must be disposed in accordance with local WEEE regulations.
• No modication of this equipment is allowed!
• Do not position the V-Comb where it will be difcult to unplug from electrical socket.
• Do not use or store V-Comb in a location where it is exposed to direct sunlight, extreme heat or cold, water, lint, pet hair, dust, etc.
• Do not modify this equipment without authorisation of the manufacturer!
• Warning! If the equipment is modied, appropriate inspection and testing must be conducted to ensure continued safe use
of equipment.

5
Please read instructions before operating
your V-Comb and retain for future
reference.
WARNING!
Only V-Comb capture lters are to be used.
Overview
V-Comb Parts List
1. Rounded stainless steel teeth
2. Combing angle adjustment knob
3. Combing head
4. LED illuminated lter unit
5. Disposable capture lter
6. Main body
7. On/Off switch
8. Adaptor
1
2
4
5
6
7
38

6
Technical Data
Product description
Product Model
Power Adaptor Model
Input Rating
Output Rating
Power source
Electric Shock Protection
Ingress Protection
EMC protection
Operating temperature/
humidity
Storage temperature/
humidity
Weight
Service Life of V-Comb/
Accessories
Note
Vacuum powered head lice removal device
TTVC01
PSED240100S W
240V, AC 50~60Hz
24V DC 1A
240V, AC 50~60Hz
Type BF
IP22 (Protected against foreign objects equal to or greater than 12.5mm and against
falling drops of water when enclosure tilted up to 15°).
Refer to Compliance section of manual - pages 14 - 21
5°C to 40°C
RH 15% to 93% (no condensation)
-25°C to 70°C
RH 5% ≤ 93% (no condensation)
approx. 320grams
approx. 5 years (1000hrs)
approx. 10 years
Disposal of this product should be carried out in accordance with the local and
national WEEE regulations for the disposal of electronic products.

7
Starting Up
2. Before connecting V-Comb adaptor to power source,
check that the power source electric rating is the same
as the V-Comb rating and that power source is in a fully
usable condition.
To avoid risk of electric shock, this equipment must only
be connected to a supply mains with protective earth
and all electrical connections should be kept clean and
dry.
1. Check the box contents.
Warning! The V-Comb power adaptor is permanently
connected to the V-Comb and cannot be disconnected.
Please read instructions before operating
your V-Comb and retain for future
reference.

8
V-Comb Capture Filter Installation
2. Securely attach capture lter to V-Comb combing head,
ensuring it clips into place (until you hear a click).
1. Tear open a capture lter wrapper provided in the box.
The wrapper will contain a capture lter and a lid, keep
the lid aside for use after treatment.
Capture lters are designed for single use only.
(Replacement capture lters are available).

9
V-Comb Capture Filter Installation
3. Carefully attach the combing head, making sure not to
damage or crush the capture lter.
4. Align the guiding arrows (highlighted below) and twist to
lock the combing head to the main body.
Now the combing head is securely locked in correct position.

10
Operating the V-Comb

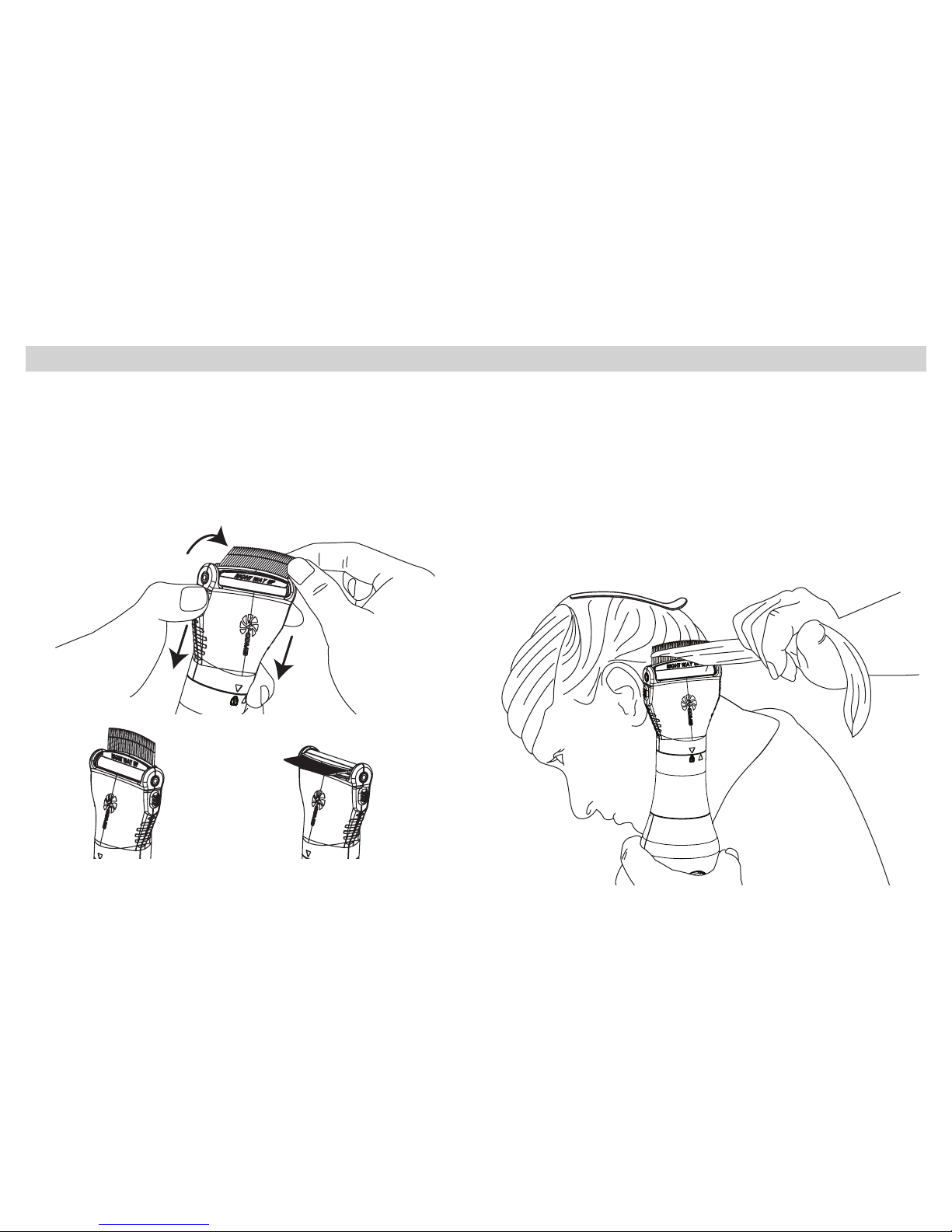

1. To change the combing angle, hold and push down the
knobs on both sides of the combing unit and adjust the
angle of the teeth. Release both knobs to secure in place.
Two set positions are available:
straight position or raking position.
2. Hair should be clean, conditioned and dry. Brush
thoroughly to remove any knots.
Separate the hair into sections, no wider than the teeth,
using hair clips. Switch on the V-Comb to begin treatment.
Always start from the nape of the neck and work your way
up, one section at a time, combing the top of the head
last. Ensure you are holding the comb the right way up.
Straight position Raking position

11
Operating the V-Comb

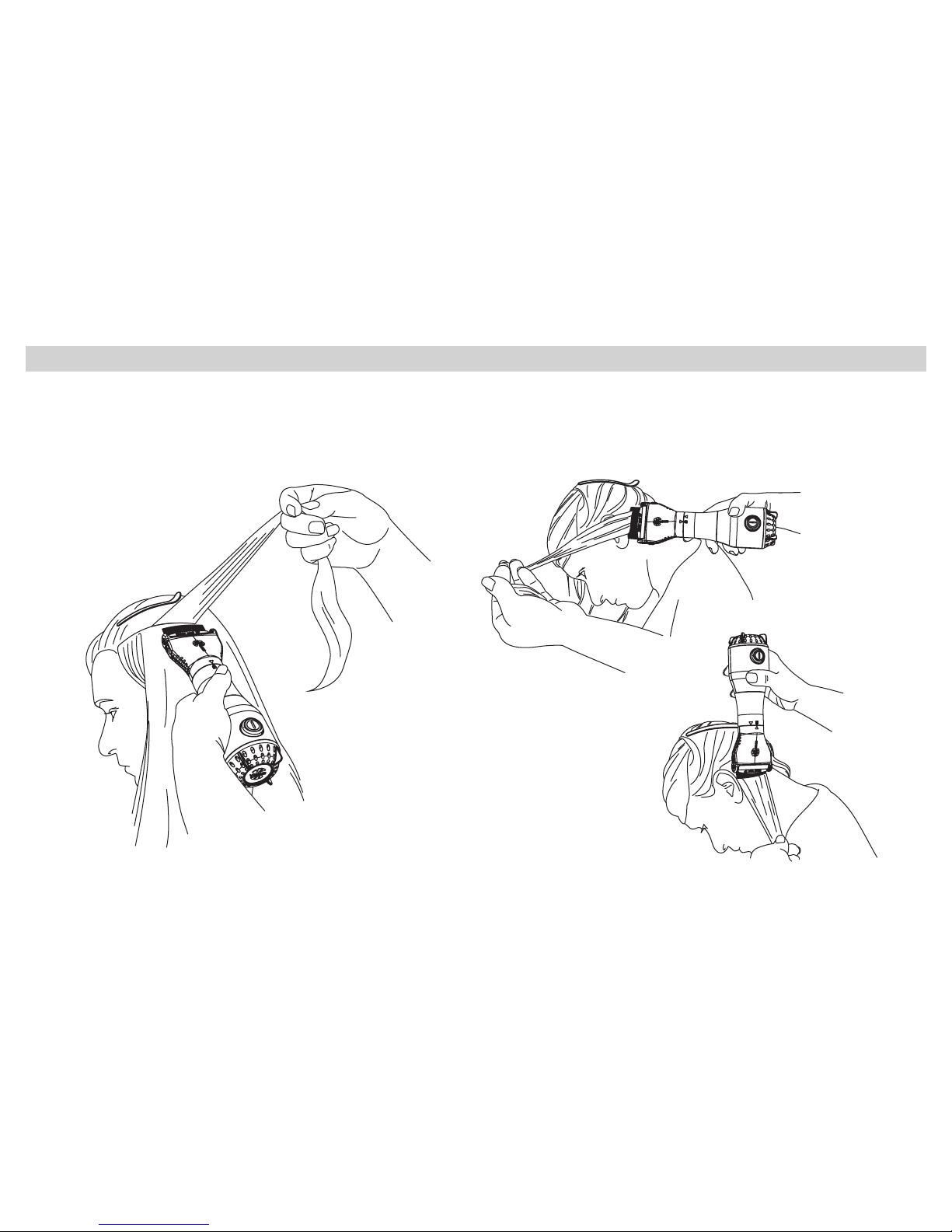

3. Focus on one small section, no wider than the teeth,
at a time. Comb through each section of hair from root
to tip ensuring you start as close as possible to the
scalp.
4. Comb through each section of hair in different
directions (top, bottom, left and right). Repeat this
through each section several times.

12
2. With the brush provided, clean any head lice and eggs
that might be caught between the teeth of the comb. Fill
a bowl or sink, about 10 cm deep, with hot (not boiling) tap
water and only submerge the combing head.
DO NOT SUBMERGE THE MAIN BODY OF THE
V-COMB, IT WILL CAUSE DAMAGE TO THE DEVICE.
Remove from water and dry thoroughly. Do not shake the
combing head as it may damage the valve.
Do not insert anything into the
back of the combing head or
hold it under running water. This
will damage the valve.
Maintaining the V-Comb
1. After treatment, switch off and unplug the V-Comb
from the power source. Remove the combing head
from the main body by disassembling the unit. Detach
the capture lter carefully, replace the V-Comb capture
lter lid to the capture lter and dispose of properly.
DO NOT USE BOILING WATER TO CLEAN THE
V-COMB AS IT WILL DAMAGE THE UNIT. Ideal water
temperature is be between 70 - 80°C.

Treatment Period
Important Treatment Summary
Continue to comb the hair daily for at least two weeks during an infestation to ensure all lice and eggs have been eliminated.
If there is an ongoing outbreak, daily treatment is essential to ensure reinfestation does not occur. To assist in preventing the
problem of reinfestation thereafter, continuing to use the V-Comb twice a week is recommended.
1. Ensure hair is clean and free of knots or tangles.
2. Section and separate the hair. Focus on one section at a time before moving on.
3. Keep sections of hair smaller for better results (no wider than the teeth of the comb).
4. Begin combing from the nape of the neck and work your way to the top of the head.
5. With each section of hair, comb through at all angles several times.
6. Comb thoroughly and regularly during an infestation - persistency is the key to successful head lice removal!
13

Product Guarantee
The manufacturer makes every effort to ensure that its products are manufactured without any defect. However, in the rare
event of defects due to faulty workmanship or materials, we guarantee to repair or replace the product, or any part thereof,
free of charge. The guarantee is granted to the original purchaser only and is valid for one year from the date of purchase
indicated by the sales agent. This guarantee does not apply if the product is altered or repaired or otherwise tampered with by
unauthorised persons and/or is used other than in accordance with manufacturer’s instructions and/or is subject to other than
reasonable use of a product of its nature. This guarantee in no way affects your rights under the statutory law.
If you think your product might be faulty, contact ToLife Technologies on 1800 353 014 (for WA, call 9350 5688) to arrange for
the product to be repaired or replaced. Faulty products can be mailed back to our postage free address: ToLife Technologies,
Reply Paid 36, PO Box 36, Welshpool, Western Australia 6986.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount
to a major failure.
14

www.licetec.com.au

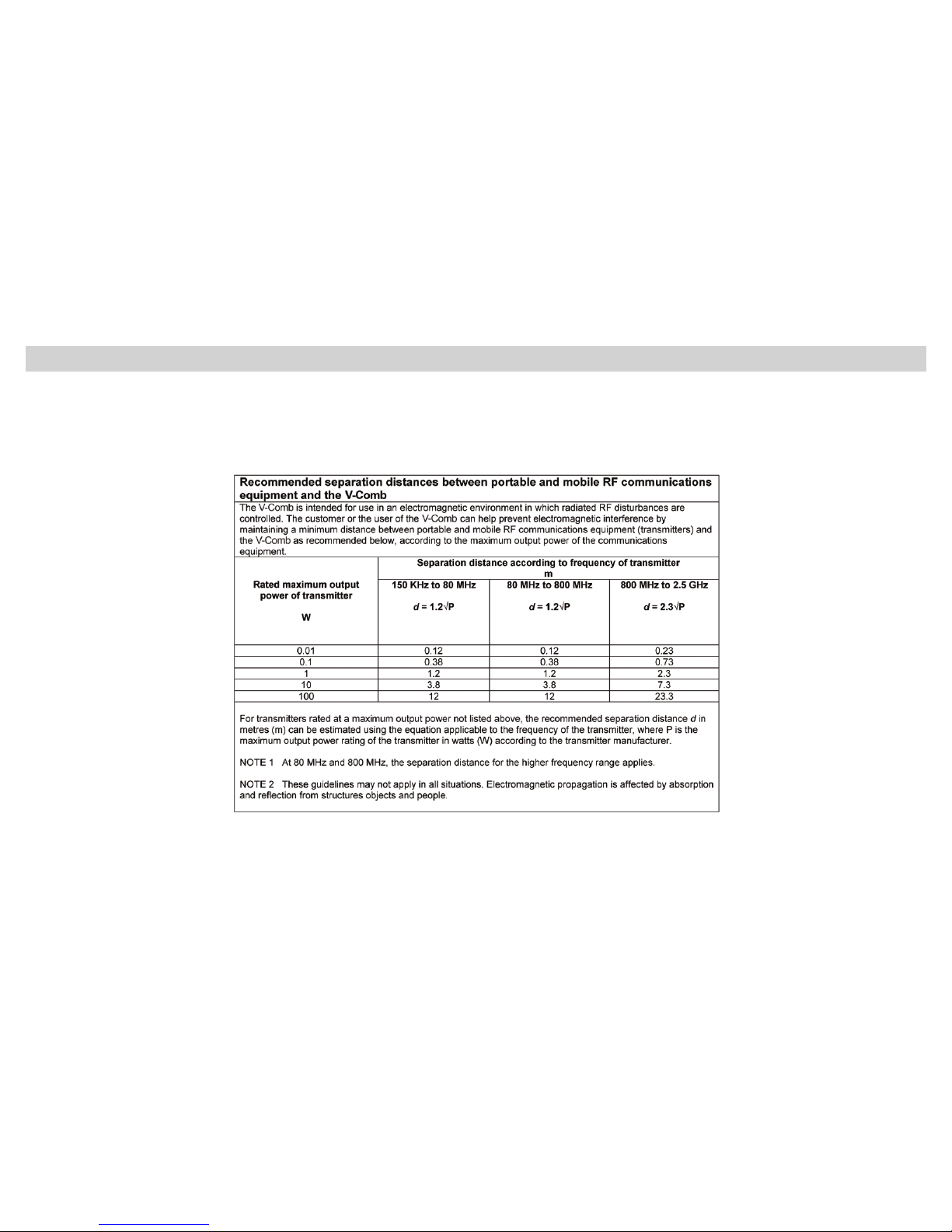

It is important that the V-Comb is congured and installed/put into service, in accordance with the instructions/guidance provided herein
and is used only in the conguration as supplied. Wireless communications equipment such as wireless home network devices,
mobile phones, cordless telephones and their base stations, walkietalkies may affect this equipment and should be kept at least
a distance away from the V-Comb.
Additional Notes
Manufacturer:
ToLife Technologies
53 Banksia Road,
Welshpool 6106
Western Australia
