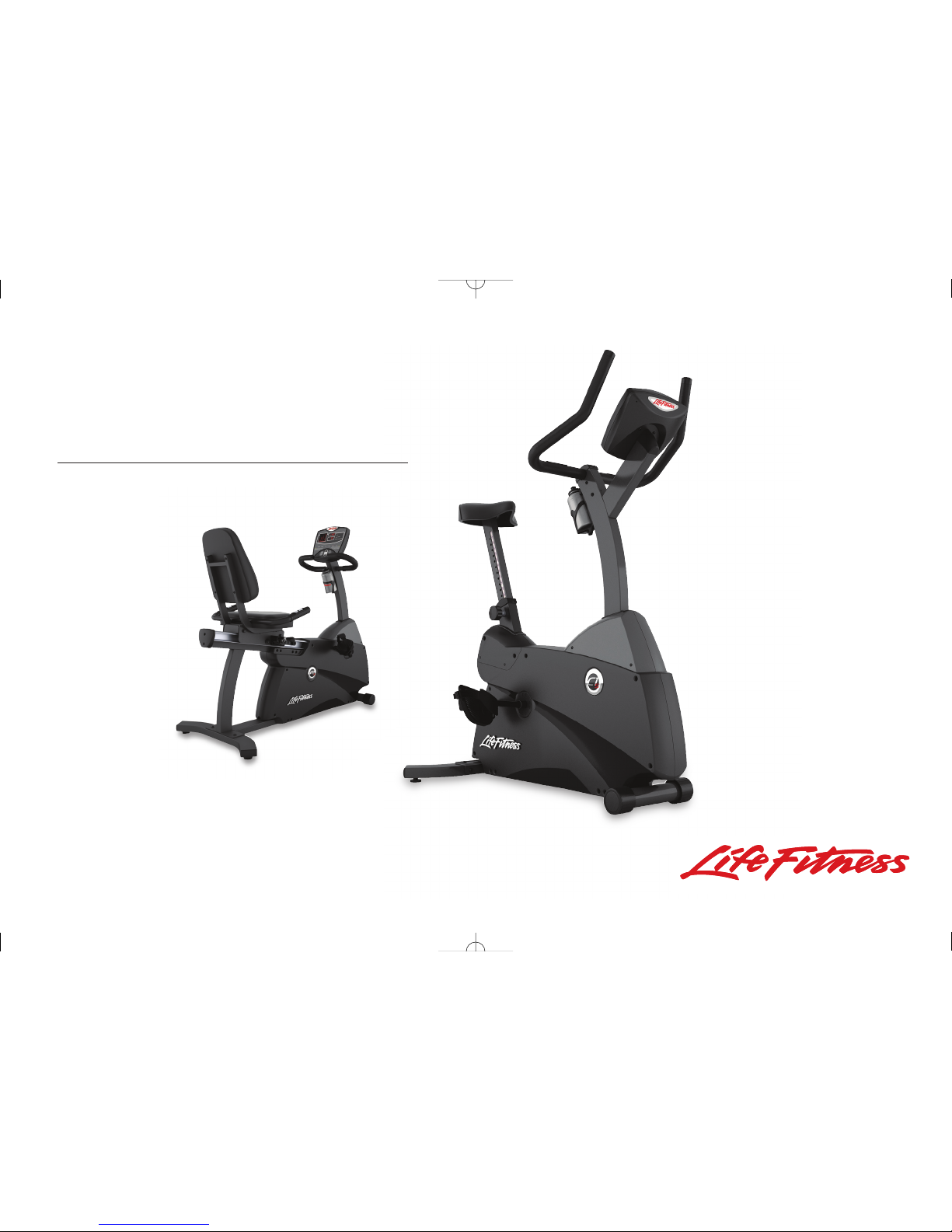

C15/ R15LIFECYCLE®EXERCISE BIKES
USER MANUAL
©2005 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitness and Lifecycle are a registered trademarks of Brunswick Corporation. CO-001-05 (04.05)

CORPORATE HEADQUARTERS
5100 North River Road
Schiller Park, Illinois 60176 • U.S.A.
www.lifefitness.com
INTERNATIONAL OFFICES
7932601 RevB
06/05
LIFE FITNESS ASIA PACIFIC LTD
Room 2610, Miramar Tower
132 Nathan Road
Tsimshatsui, Kowloon
HONG KONG
LIFE FITNESS ATLANTIC BV
LIFE FITNESS BENELUX
Bijdorpplein 25 - 31
2992 LB Barendrecht
THE NETHERLANDS
LIFE FITNESS DO BRAZIL
Av. Dr. Dib Sauaia Neto 1478
Alphaville, Barueri, SP
06465-140
BRAZIL
LIFE FITNESS VERTRIEBS GMBH
Dückegasse 7-9/3/36
1220 Vienna
AUSTRIA
LIFE FITNESS IBERIA
Pol. Ind. Molí dels Frares. c/C, nº 12
08620 Sant Vicenç dels Horts (Barcelona)
SPAIN
LIFE FITNESS EUROPE GMBH
Siemensstrasse 3
85716 Unterschleissheim
GERMANY
LIFE FITNESS ITALIA S.R.L.
Via Vittorio Veneto, 57/A
39042 Bressanone (Bolzano)
ITALY
LIFE FITNESS LATIN
AMERICA and CARIBBEAN
5100 North River Road
Schiller Park, Illinois 60176
U.S.A.
LIFE FITNESS UK LTD
Queen Adelaide
Ely, Cambs CB7 4UB
UNITED KINGDOM
LIFE FITNESS JAPAN
Nippon Brunswick Bldg., #8F
5-27-7 Sendagaya
Shibuya-Ku, Tokyo
JAPAN 151-0051

Before using this product, it is essential to read this
ENTIRE user manual and ALL installation instructions.
This will help in setting up the equipment quickly
and in instructing others on how to use it correctly and safely.
FCC Warning - Possible Radio / Television Interference
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used
in accordance with the user manual, may cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Class HB (Home): Domestic use. Not suitable for therapeutic purposes.
CAUTION: Any changes or modifications to this equipment could void the product warranty.
Any service, other than cleaning or user maintenance, must be performed by an authorized service representative.
There are no user-serviceable parts.
2

TABLE OF CONTENTS
1. Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.1 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.2 Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Where to Place the Exercise Bike // How to Stabilize the Exercise Bike // How to Adjust the Seat to Ensure
Correct Biomechanical Positioning // How to Adjust the Pedal Straps // Starting Up the Bike
2 The Display Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.1 The Display Console Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.2 Display Console Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.3 The Water Bottle Holder and Reading Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2.4 Heart Rate Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3 The Workouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3.1 Workout Overviews . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3.2 Setting Up and Using the Workouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Selecting and Using Quick Start Manual Mode // Selecting a Workout // Entering a Duration //
Selecting and Adjusting the Intensity Level // Starting a Workout // Pausing a Workout //
Resetting a Workout // Reviewing a Completed Workout // Using the Heart Rate Zone to Maximize Workout Benefits
3.3 Workout Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
3

3.4 Using the Workouts (Chart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
4 Service and Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
4.1 Preventative Maintenance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
4.2 Preventative Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
4.3 Troubleshooting the Hand Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
4.4 Troubleshooting the Exercise Bike . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
4.5 How to Obtain Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
5 Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
6.1 Upright and Recumbent Exercise Bike Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
© 2005 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitness is a registered trademark of Brunswick
Corporation. Any use of these trademark, without the express written consent of Life Fitness is forbidden.
4

This Operation Manual describes the functions of the following products:
Life Fitness upright exercise bike:
C15
Life Fitness recumbent exercise bike:
R15
See Section 6, titled Specifications page in this manual
for product-specific features.
Statement of Purpose: The exercise bike is a machine that simulates the movements of riding a bicycle at various
speeds and levels of resistance.
Health-related injuries may result from incorrect or excessive use of exercise equipment. The manufacturer
STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise pro-
gram, particularly if the user has a family history of high blood pressure or heart disease; or is over the age of
45; or smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. The manufacturer
also recommends consulting a fitness professional on the correct use of this product.
If, at any time while exercising, the user experiences faintness, dizziness, pain, or shortness of breath, he or
she must stop immediately.
5

1GETTING STARTED
1.1 IMPORTANT SAFETY INSTRUCTIONS
SAFETY WARNING: The safety of the product can be maintained only if it is examined regularly for dam-
age and wear. See Preventative Maintenance section for details.
• Before using this product, it is essential to read this ENTIRE operation manual and ALL instructions. The exercise bike is intend-
ed for use solely in the manner described in this manual.
• Always follow the console instructions for proper operation.
• Close supervision is necessary when used by or near children, invalids or disabled persons.
• If an exercise bike does not function properly after it has been dropped, damaged, or even partially immersed in water, contact
Customer Support Services for assistance.
• Never insert objects into any opening in the exercise bike. If an object should drop inside, carefully retrieve it. If the item is
beyond reach, contact Customer Support Services.
• Never place liquids of any type directly on the unit, except in an accessory tray. Containers with lids are recommended.
• Do not use the exercise bike outdoors, near swimming pools or in areas of high humidity.
• Keep all loose clothing, shoelaces, and towels away from the exercise bike pedals.
• Keep the area around the exercise bike clear of any obstructions, including walls and furniture.
• Always be careful and exercise caution when mounting or dismounting the exercise bike. Use the handlebar whenever additional
stability is required.
• Wear shoes with rubber or high-traction soles. Do not use shoes with heels, leather soles, cleats or spikes. Do not use the bike in
bare feet.
• Do not tip the exercise bike on its side during operation.
• Keep hands and feet away from all moving parts.
6

• To ensure proper functioning of this product, do not install attachments or accessories that are not provided or recommended by
Life Fitness.
• Use this product in a well-ventilated area.
• Use this product on a solid, level surface.
• Make sure that all components are fastened securely. These include the seat post, saddle, handlebars, and pedals.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
7

1.2 SETUP
Read the entire User Manual before setting up the exercise bike.
WHERE TO PLACE THE EXERCISE BIKE
Following all safety instructions in Section 1.1, move the bike to the location in which it will be used. See Section 6, titled
Specifications, for the dimensions of the footprint. Allow a distance of four feet, or 120 centimeters, between the bike and
other objects or surfaces on either side.
HOW TO STABILIZE THE EXERCISE BIKE
After placing the bike in position, check the unit's stability by attempting to rock it in all directions. Any slight rocking indi-
cates that the unit must be leveled. Determine which foot is not resting completely on the floor. Loosen the jam nut with
an open-end 17mm wrench, and rotate the stabilizing foot to lower it. Verify that the bike is stable, and repeat the adjust-
ment as necessary until the unit no longer rocks. Lock the adjustment by tightening the jam nut against the stabilizer bar.
8

HOW TO ADJUST THE SEAT TO ENSURE CORRECT BIOMECHANICAL POSITIONING
Proper seat positioning minimizes unnecessary leg muscle fatigue. To determine whether or not the seat requires adjust-
ment, sit on it and place the balls of the feet on the pedals. The knee should bend slightly when the pedal is at the furthest
point in its rotation, relative to the body. The user should be able to pedal without locking the knees or shifting in the seat.
Adjusting the seat on the C15upright bike: The bike post features a vertical locking pin seat adjustment system,
which makes it easy and safe to change the height of the seat quickly. To raise the seat, first get off the bike. Hold the
seat, turn the spring-loaded knob on the right of the seat post once counter-clockwise to loosen it, and pull out the knob
to unlock the post from its present position. Pull the seat upward to the desired height, and release the knob to let it lock
into place. Turn the knob once clockwise to tighten it. Test and re-adjust the seat height as necessary.
To lower the seat, first get off the bike. Hold the seat, turn the spring-loaded knob on the right of the seat post once
counterclockwise to loosen it, and pull out the knob to unlock the post from its present position. Let the seat slide down
to the desired height, and release the knob to let it lock into place. Turn the knob once clockwise to tighten it. Test and
re-adjust the seat height as necessary.
CAUTION : When using the height adjustment mechanism to change the height of a partially raised seat, hold the seat to
prevent it from falling on the hand.
CAUTION: Do not attempt to lock the seat at a position higher than the minimum insertion depth marked on the seat post. 9

Adjusting the seat on the R15 recumbent bike: Lift the spring-loaded adjustment handle located on the right side of
the seat. Slide the seat forward or backward as necessary to the proper position and release the pin to complete
engagement. Gently rock the seat forward and backward to ensure that it is locked into place. Check the seat distance
again and readjust it if necessary.
NOTE: The seat carriage can be adjusted if it is too tight and does not slide freely or if
it is too loose and rocks excessively.
To adjust the fit of the carriage when there is excessive rocking use a wrench to loosen
the jam nut (A) on either side of the seat carriage. With another wrench, tighten the
adjustment roller on the inside of the carriage until it is snug, but do not over-tighten.
Then, while holding the roller in place, tighten the lock nut. Repeat the procedure for the
other side of the carriage.
To adjust the fit of the carriage when it does not slide freely, use a wrench to loosen the
jam nut (A) on either side of the seat carriage. WIth another wrench, loosen the adjust-
ment roller on the inside of the carriage until it can move freely, but do not excessively
loosen. Then, while holding the roller in place, tighten the lock nut. Repeat the proce-
dure for the other side of the seat carriage.
CAUTION: Do not attempt to adjust the seat while pedaling the bike. Doing so, or failing to insert the seat pin
completely may result in an uncomfortable workout or cause injury.
10
A

HOW TO ADJUST THE PEDAL STRAPS
The bike pedal safety straps keep the user's shoes on the pedals during a workout. The
straps should fit comfortably, but they also should be tight enough to prevent shoes from
slipping at any point in the pedaling rotation. Before working out, the user should test
and adjust the tightness of the straps.
The straps can be adjusted to fit a variety of shoe sizes. Each strap is held in place by a
spring-loaded clip that is connected to the outer edge of each pedal. To tighten a strap,
simply pull the loose end of the strap down. It automatically locks into place with each
pull. To loosen a strap, press down on the top of the clip and pull the strap up. Release
the clip to lock the strap into place. Test the adjustment, and change if necessary.
STARTING UP THE BIKE
See Section 6, titled Specifications, for power requirements. Insert the AC adapter into an electrical outlet that has been
properly installed and grounded in accordance with all local codes and ordinances.
To power up the exercise bike, simply start pedaling or press any key on the console. Once the unit’s power is on, the con-
sole display lights up, making it possible to select a workout or to begin a MANUAL workout using QUICK START MANU-
AL MODE. See Section 3.2, titled Setting Up and Using the Workouts, for more information.
11

2THE DISPLAY CONSOLE
2.1 DISPLAY CONSOLE OVERVIEW
The computerized display console on the exercise bike allows the user to tailor a workout to personal fitness abilities
and goals and to monitor progress. With this easy-to-use console the user can track fitness improvement from one work-
out to the next.
2.2 DISPLAY CONSOLE DESCRIPTIONS
The functions for the keys and display windows on the
exercise bike console are listed and described in this
section. See Section 3, titled The Workouts, for detailed
information on using the console to set up workouts.
12

ASTART/STOP/HOLD TO RESET: Use this key to initiate a number of different functions on the bike.
• Beginning a 30-minute QUICK-START MANUAL workout immediately, without setup steps
• Beginning a workout after completing the setup steps for a specific workout
• Pausing a workout-in-progress
• Restarting a paused workout
• Deleting a current workout and making it possible to set up a new workout
BENTER: Press this key to accept information displayed by the console when setting up a workout.
CARROW KEYS: Use these keys when setting up a workout to change displayed values for workout type, duration,
weight, and resistance level. When a workout is in progress, use these keys to change the intensity level.
DSCROLL: During a workout-in-progress, press this key to browse through workout statistics displayed in the bottom
data window. Each time the SCROLL key is pressed, a different value is displayed, and it’s corresponding light
emitting diode (LED) lights up simultaneously.
Press this key to view summary data for a completed workout, including total calories burned and total distance
traveled
EDATA WINDOWS: Two data windows are set in the center of the console display.
The top window shows the elapsed time of a workout-in-progress. During a workout setup, this window also shows
the default duration of 30 minutes, which the user can change using the ARROW keys.
The bottom window displays the following statistics which are represented with corresponding LED lights to the right
side of the window.
13

2.3 THE WATER BOTTLE HOLDER AND READING RACK
A WATER BOTTLE HOLDER (A) is mounted on the monocolumn of the bike.
A READING RACK (B) for supporting a book or magazine is located at the base of the upper panel of the console.
Upright Model Recumbent Model
15
A
B
A
B

2.4 HEART RATE MONITORING
THE HAND PULSE SENSOR SYSTEM
The hand pulse sensors (A) are the built-in heart rate monitoring system on the exercise bike. During a workout, grasp
the sensors that are set into the handlebars. For an accurate reading, use a comfortable grip. The console displays the
heart rate after 10 to 15 seconds.
Upright Model C15Recumbent Model R15
NOTE: Excessively squeezing the hand pulse sensors will not improve the heart rate reading.
16
A
A

3THE WORKOUTS
3.1 WORKOUT OVERVIEWS
This section lists the exercise bike’s pre-programmed workouts. For more detailed information, see Section 3.2, titled
Setting Up and Using the Workouts.
QUICK START MANUAL MODE is the fastest way to begin exercising, and it bypasses the steps involved in selecting a
specific workout program. After the START key is pressed, a constant-level workout begins. The resistance level does
not change automatically.
INTERVAL combines “hills” and “valleys” of different resistance levels. Raising and lowering the heart rate in this
manner is proven to efficiently promote fat burn and cardiovascular endurance.
RANDOM provides a completely random workout profile of “hills” and “valleys” every time the user selects this workout.
Endless variety reduces boredom.
MANUAL is a workout in which the resistance level does not change automatically.
PEAK maintains a constant resistance level throughout the workout. Intended to burn fat.
SLOPE gradually increases resistance so user is less aware of the physical demand. Helps user slowly build-up to
higher resistance levels and improve cardiovascular endurance.
CHALLENGE maintains a high resistance level throughout the workout. Challenges the user to a high intensity workout
that promotes cardiovascular endurance.
17

3.2 SETTING UP AND USING THE WORKOUTS
To activate the console, press any key, or simply start pedaling. When the console display lights up, either select
QUICK START MANUAL MODE, or select a specific workout. Setting up a specific workout involves four steps,
which are described in this section:
1. Selecting a workout
2. Entering a workout duration
3. Selecting a level
4. Starting the workout (pressing START or ENTER)
SELECTING AND USING QUICK START MANUAL MODE
Press the START key to begin a 30-minute MANUAL workout immediately. Once the workout is in progress, it is
possible to change the resistance level using the ARROW keys.
SELECTING A WORKOUT
Press the ARROW KEYS until the LED display for the desired workout lights up. Then, press ENTER to confirm the
workout selection.
ENTERING A WORKOUT DURATION
After a workout is selected, the top DATA WINDOW flashes a default workout duration of 30 minutes. Press ENTER to
accept the default. Or, to change the duration, use the ARROW keys. Then, when the desired duration appears in the
DATA WINDOW, press ENTER to accept the duration. It is not possible to change the duration of a workout-in-progress.
SELECTING A LEVEL FOR A MANUAL WORKOUT
After a duration is entered, the bottom DATA WINDOW flashes a default difficulty level of “1”, which is the easiest
of the 16 resistance levels. Press ENTER to accept the default. Or, to change the level, use the ARROW keys.
Then, when the desired level appears in the DATA WINDOW, press ENTER to accept the duration. While the workout
is in progress, it is possible to change the resistance level (1-16).
NOTE: QuickStart and Manual Workouts have 1 - 16 resistance levels.
18

SELECTING A LEVEL FOR RANDOM, INTERVAL, SLOPE, PEAK, AND CHALLENGE WORKOUTS
After a duration is entered, the bottom DATA WINDOW flashes a default level of “1,” which is the easiest of the 9 difficulty
levels. Press ENTER to accept the default. Or, to change the level, use the ARROW keys. Then, when the desired level
appears in the DATA WINDOW, press ENTER to accept the duration. While the workout is in progress, it is possible to
change the difficulty level.
NOTE: Random, Interval, Slope, Peak, and Challenge workouts have 1 - 9 levels..
DIFFICULTY LEVEL TABLE (APPLIES TO RANDOM, INTERVAL, SLOPE, PEAK, CHALLENGE)
Program Difficulty Level Resistance Level Range
1 1 to 8
2 2 to 9
3 3 to 10
4 4 to 11
5 5 to 12
6 6 to 13
7 7 to 14
8 8 to 15
9 9 to 16
EXPLANATION OF RESISTANCE LEVEL
The difficulty level table shows the resistance level range at each difficulty level. Since some workouts have predeter-
mined profiles, a resistance level range had to be created. This allows the user to set a difficulty level of 1 - 9, which will
adjust the entire workouts intensity level.
19

STARTING A WORKOUT
After accepting a difficulty level, press START to begin the workout.
USING WORKOUTS IN PROGRESS
The exercise bike MANUAL program features 16 resistance levels, with “1” being the easiest and “16” being the most
difficult. The exercise bike RANDOM, SLOPE, INTERVAL, PEAK, and CHALLENGE programs feature 9 difficulty levels,
with “1” being the easiest and “9” being the most difficult. While a workout is in progress, it is possible to change the
level of the overall workout. To do so, simply press the UP or DOWN arrow keys repeatedly until the DATA DISPLAY
window shows the desired level. That change remains in effect for the entire workout or until the level is changed again.
NOTE: The exercise bike features speed-dependent braking resistance. For a set resistance level on the monitor,
the resistance increases with the user’s speed. The computer makes no adjustments to maintain the resistance level
based on the user’s speed.
PAUSING A WORKOUT
To pause a workout-in-progress, press the STOP key, or simply stop pedaling for 25 seconds. A workout can remain
in pause mode for a maximum duration of five minutes. If a paused workout is not resumed before the five-minute
pause duration ends, the console shuts down, and the paused workout information is lost. To resume a paused workout,
press the START key or simply begin pedaling again.
RESETTING A WORKOUT
To reset a workout, press the STOP key, and hold it for three seconds. This deletes the current workout and makes it
possible to set up a new workout.
REVIEWING A COMPLETED WORKOUT
When a workout reaches the end of its duration, the console emits four consecutive beeps. At this point, it is possible to
review summary data for the completed workout, including total calories burned and distance traveled, by pressing the
SCROLL key and reading the results in the DATA WINDOWS. Afterward, press the STOP key to return to the workout-
select mode.
20
