Life Fitness LIFECYCLE M051-0K66-A149 User manual

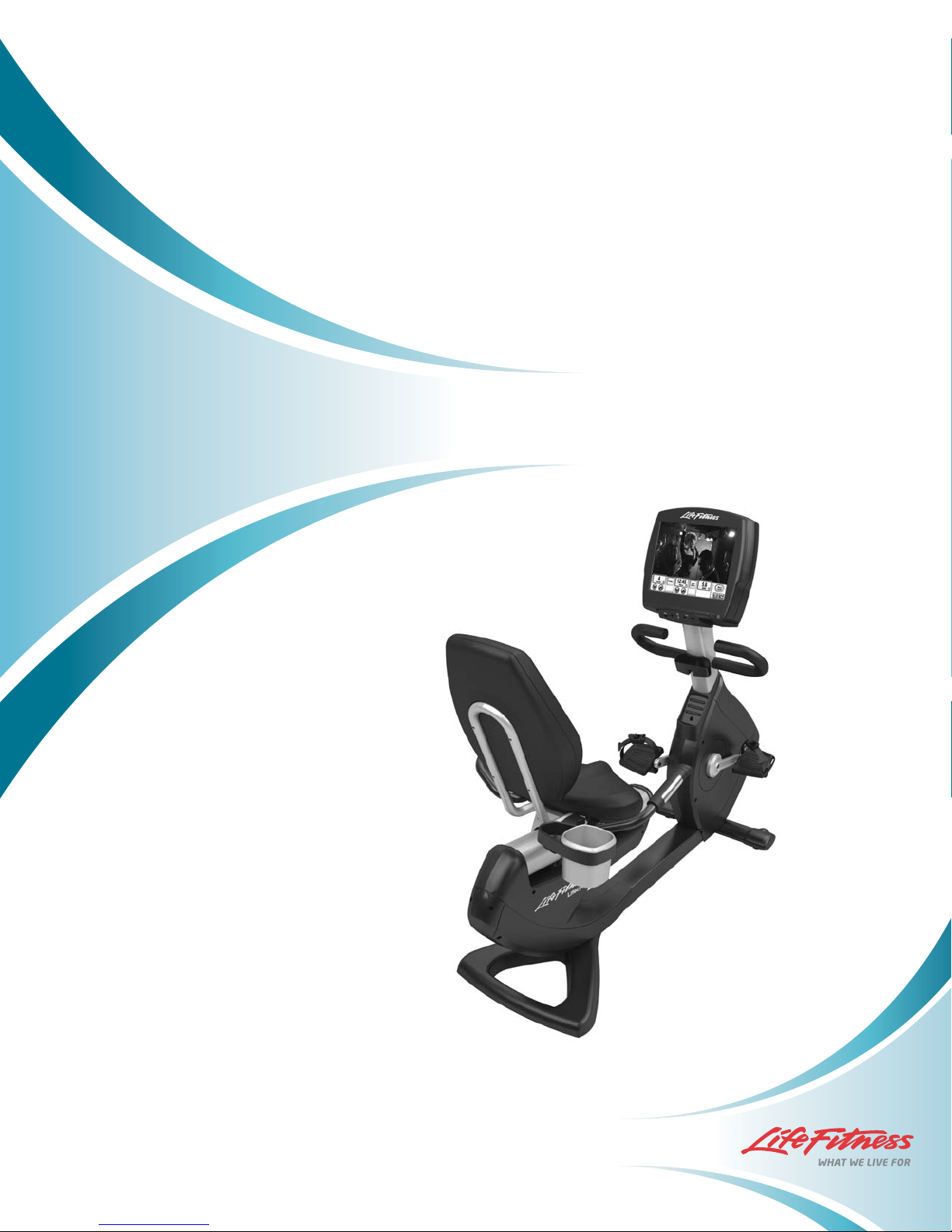

PLATINUM CLUB SERIES RECUMBENT
LIFECYCLE®EXERCISE BIKE BASE
OPERATION MANUAL
04/28/09 / M051-00K66-A149

1
M051-0K66-A149
2/09
CORPORATE HEADQUARTERS
5100 River Road
Schiller Park, Illinois 60176 • U.S.A.
847.288.3300 • FAX: [phone]
800.735.3867 (Toll-free within U.S.A., Canada)
Global Website: www.lifefitness.com
INTERNATIONAL OFFICES
AMERICAS
North America
Life Fitness Inc.
5100 N River Road
Schiller Park, IL 60176 U.S.A
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 7:00 am-6:00 pm (CST)
Brazil
Life Fitness Brasil
Av. Cidade Jardim, 900-Itaim
Sao Paulo, SP
01454-000
BRAZIL
SAC [phone]
Tel: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 8:30 am-17:30 pm (BRT)
Latin America & Caribbean*
Life Fitness Inc.
5100 N River Road
Schiller Park, IL 60176 U.S.A
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email:[email protected]
Operating Hours: 7:00am-6:00pm (CST)
EUROPE, MIDDLE EAST, & AFRICA
(EMEA)
Netherlands & Luxemburg
Life Fitness Atlantic BV
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-17.00h (CET)
United Kingdom & Ireland
Life Fitness UK LTD
QueenAdelaide
Ely, Cambs, CB7 4UB
Telephone: General Office (+44) 1353.666017
Customer Support (+44) 1353.665507
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours:
General Office: 9.00am - 5.00pm (GMT)
Customer Support: 8.30am - 5.00pm (GMT)
Germany & Switzerland
Life Fitness Europe GMBH
Siemensstrasse 3
85716 Unterschleissheim
GERMANY
Telephone: [phone] (Germany)
([phone] (Switzerland)
Fax: [phone] (Germany)
([phone] (Switzerland)
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-17.00h (MEZ)
Austria
Life Fitness Austria
Vertriebs G.m.b.H.
Dückegasse 7-9/3/36
1220 Vienna
AUSTRIA
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Marketing/Sales Email: [email protected]
Operating Hours: 9.00h-17.00h (MEZ)
Spain
Life Fitness IBERIA
C/Frederic Mompou 5,1º1ª
08960 Sant Just Desvern Barcelona
SPAIN
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours:
9.00h-18.00h (Monday-Thursday)
8.30h-15.00h (Friday)
Italy
Life Fitness ITALIA S.R.L.
Via Crivellin 7/N
37010Affi Verona
ITALY
Telephone: [phone]
Fax: [phone]
ServiceEmail: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 8.30h -18.00h (CET)
Belgium
Life Fitness Benelux NV
Parc Industrial de Petit-Rechain
4800 Verviers
BELGIUM
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h -17.00h (CET)
All Other EMEA countries &
distributor business C-EMEA*
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-17.00h(CET)
ASIA PACIFIC (AP)
Japan
Life Fitness Japan
Nippon Brunswick Bldg., #8F
5-27-7 Sendagaya
Shibuya-Ku, Tokyo
Japan 151-0051
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-17.00h (JAPAN)
China and Hong Kong
Life Fitness Asia Pacific LTD
Room 2610, Miramar Tower
132 Nathan Road
Tsimshatsui, Kowloon
HONG KONG
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-18.00h
All Other Asia Pacific countries &
distributor business Asia Pacific*
Room 2610, Miramar Tower
132 Nathan Road
Tsimshatsui, Kowloon
HONG KONG
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-18.00h

Before using this product, it is essential that this
ENTIRE operation manual and ALL installation instructions be read.
This will help in setting up the equipment quickly
and in instructing others on how to use it correctly and safely.
Avant toute utilisation de ce produit, il est indispensable de lire ce manuel d'utilisation
dans son INTÉGRALITÉ, ainsi que TOUTES les instructions d'installations.
Ce manuel explique comment installer l'équipement et comment
l'utiliser correctement et sans danger.
Class HB (Home): Domestic use.
CAUTION: Any changes or modifications to this equipment could void the product warranty.
MISE EN GARDE: Tout changement et toute modification de ce matériel peut annuler la garantie du pro-
duit.
Any service, other than cleaning or user maintenance, must be performed by an authorized service representative.
There are no user serviceable parts.
2

3
TABLE OF CONTENTS
Section Description Page
1. Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.1. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.2. Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Electrical Power Requirements//Where to Place the Recumbent Lifecycle®Exercise Bike // How to Stabilize
the Recumbent Lifecycle®Exercise Bike//Check for Battery Power // Check for External Power// How to
Adjust the Sea t// How to Adjust the Pedal Straps
2. Service and Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.1 Preventive Maintenance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.2 Preventive Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.3 Troubleshooting the Polar®Heart Rate Chest Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Heart Rate Reading is Erratic, Absent Entirely, or Abnormally Elevated
2.4 Troubleshooting the LifepulseTM System Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.5 Recycling the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.6 How to Obtain Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3.1 Platinum Club Series Recumbent Lifecycle®Exercise Bike Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
© 2009 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitness, a division of Brunswick Corporation. All rights reserved. Life
Fitness, Heart Rate Zone Training, and Lifepulse are registered trademarks of Brunswick Corporation. Fit Stride, Heart Rate Zone Training+, Heart
Rate Hill, Heart Rate Interval, and Extreme Heart Rate are trademarks of Brunswick Corporation. Polar is a registered trademark of Polar Electro, Inc.
Cardio Theater is a registered trademark of the Cardio Theater Holdings. FitLinxx is a registered trademark of the Integrated Fitness Corp. Any use of
these trademarks, without the express written consent of Life Fitness or the corresponding companies is forbidden.

This Operation Manual describes the functions of the following product:
Life Fitness Recumbent Lifecycle®Exercise Bike:
Platinum Club Series
See "Specifications" page in this manual for product specific features.
Statement of Purpose: The Life Fitness Recumbent Lifecycle®Exercise Bike is a speed-independent machine that simu-
lates the movements of riding a bicycle at various speeds and levels of resistance.
CAUTION: Health-related injuries may result from incorrect or excessive use of exercise equipment. Life
Fitness STRONGLY recommends seeing a physician for a complete medical exam before undertaking an
exercise program, particularly if the user has a family history of high blood pressure or heart disease, or
is over the age of 45, or smokes, has high cholesterol, is obese, or has not exercised regularly in the
past year.
If, at any time while exercising, the user experiences faintness, dizziness, pain, or shortness of breath, he or she must
stop immediately.
MISE EN GARDE: Des problèmes de santé peuvent être causés par une utilisation incorrecte ou exces-
sive de l'équipement. Life Fitness conseille VIVEMENT de consulter un médecin pour subir un examen
médical complet avant de commencer tout programme d'exercice, et tout particulièrement si l'utilisateur
a des antécédents familiaux d'hypertension ou de troubles cardiaques, ou s'il a plus de 45 ans, s'il
fume, s'il a du cholestérol, s'il est obèse ou n'a pas fait d'exercice régulièrement depuis un an.
Si, pendant l'utilisation de l'appareil, l'utilisateur ressent un malaise, des vertiges, des douleurs ou des difficultés à
respirer, il doit cesser immédiatement.
4

1GETTING STARTED
1.1 IMPORTANT SAFETY INSTRUCTIONS
SAFETY WARNING: The safety of the product can be maintained only if it is examined regularly for
damage and wear. See Preventive Maintenance section for details.
• If this Life Fitness product does not function properly after it has been dropped, damaged, or even partially
immersed in water, contact Life Fitness Customer Support Services for assistance.
• Always follow the console instructions for proper operation.
• Close supervision is necessary when used by children, invalids or disabled persons.
• Do not use this product outdoors, near swimming pools or in areas of high humidity.
• Never operate a Life Fitness product with the air openings blocked. Keep air openings free of lint, hair or any
obstructing material.
• Never insert objects into any opening in this product. If an object should drop inside, carefully retrieve it. If the item
cannot be reached, contact Life Fitness Customer Support Services.
• Never place liquids of any type directly on the unit, except in the accessory tray water bottle holder. Containers with
lids are recommended.
• Wear shoes with rubber or high-traction soles. Do not use shoes with heels, leather soles, cleats or spikes. Make
sure no stones are embedded in the soles.
• Keep all loose clothing, shoelaces and towels away from moving parts.
• Do not use this product in bare feet.
• Do not tip the unit on its side during operation.
• Keep the area around the Recumbent Lifecycle Exercise Bike clear of any obstructions, including walls and furniture.
Ensure that there is at least three feet of clearance behind the Recumbent Lifecycle Exercise Bike.
• Use caution when mounting or dismounting the Recumbent Lifecycle Exercise Bike. Use the stationary handlebar
whenever additional stability is required.
• Never use the Recumbent Lifecycle Exercise Bike while facing backward.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
5

6
1POINT DE DÉPART
1.1 CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSIGNE DE SÉCURITÉ : pour un emploi sûr, le produit doit être inspecté régulièrement afin de s'as-
surer qu'il n'est pas usé ni endommagé. Consultez la section de Maintenance préventive pour obtenir
de plus amples informations.
• Si l'appareil Life Fitness ne fonctionne pas correctement après avoir subi une chute, des dommages ou une immer-
sion même partielle dans l'eau, contactez le service d'assistance clientèle de Life Fitness.
• Pour un fonctionnement correct, suivez toujours les instructions de la console.
• Une surveillance étroite est nécessaire en cas d'utilisation par des enfants, des personnes invalides ou handi-
capées.
• N'utilisez pas ce produit à l'extérieur, près d'une piscine ou dans endroits très humides.
• Ne faites jamais fonctionner de produit Life Fitness dont les bouches d'aération seraient bloquées. Maintenez-les
exemptes de peluches, de cheveux ou de toute obstruction.
• N'insérez jamais d'objet dans les ouvertures de cet appareil. Si un objet tombe dedans, coupez l'alimentation élec-
trique, débranchez le cordon de la prise et récupérez-le avec précaution. Si vous ne pouvez pas l'atteindre, consul-
tez le service après-vente de Life Fitness.
• Ne placez jamais de liquides d'aucune sorte directement sur l'appareil, sauf si vous disposez d'un support ou d'un
plateau pour accessoires. Il est recommandé d'utiliser des conteneurs munis d'un couvercle.
• Portez des chaussures avec semelles en caoutchouc ou antidérapantes. N'utilisez pas de chaussures à talons, de
semelles en cuir ou à crampons. Assurez-vous qu'aucun caillou ne s'est incrusté dans les semelles.
• Maintenez les vêtements lâches, les lacets et les serviettes à l'écart des pièces en mouvement.
• N'utilisez pas cet appareil sans chaussures.
• Ne faites pas basculer l'appareil sur le côté tandis qu'il fonctionne.
• Maintenez la zone autour du produit Life Fitness exempte d'obstructions, y compris de murs et de meubles. Veillez à
laisser au moins 91.4 cm d'espace derrière du Life Fitness Recumbent Lifecycle Exercise Bike.
• Procédez avec précaution lors du montage ou du démontage de la machine. Utilisez la barre fixe pour renforcer
votre stabilité.
• N'utilisez jamais cet appareil en vous tournant vers l'arrière.
CONSERVEZ CES INSTRUCTIONS POUR USAGE ULTÉRIEUR.

1.2 SETUP
Read the Operation Manual before setting up the Recumbent Lifecycle Exercise Bike.
ELECTRICAL POWER REQUIREMENTS
The Recumbent Lifecycle Exercise Bike with the EngageTM Console (15” LCD) requires an AC power supply according to
the electrical configurations listed in the chart below. External power is optional with the InspireTM Console (7” LCD) and
the AchieveTM Console (LED).
NOTE: Do not modify the plug provided with this product. If the plug does not fit into an available electrical outlet, have a prop-
er outlet installed by a qualified electrician.
WHERE TO PLACE THE RECUMBENT LIFECYCLE®EXERCISE BIKE
Following all safety instructions in Section 1.1, move the bike to the location in which it will be used. See Section 3, titled
Specifications, for the dimensions of the product footprint (assembled dimensions). Allow a distance of 8 to 12 inches, or 21
to 30 centimeters, between the bike and other objects or surfaces on either side. Allow a distance of 3 feet, or 1 meter, from
the front or rear of the bike to any other object or surface.
HOW TO STABILIZE THE RECUMBENT LIFECYCLE®EXERCISE BIKE
After placing the bike in position, check the unit’s stability by attempting to rock it from side to side. Any slight rocking
indicates that the unit must be leveled. Determine which foot is not resting completely on the floor. Loosen the jam nut
(A) with an open-end M17 wrench, and rotate the stabilizing foot (B) to lower it. Verify that the bike is stable, and repeat
the adjustment as necessary until the unit no longer rocks. Lock the adjustment by tightening the jam nut against the
stabilizer bar.
CHECK FOR BATTERY POWER
The Achieve (LED) and Inspire (7” LCD) consoles are powered by a rechargeable 6-volt battery. Check the battery by
pressing and holding the power on/off key. The console should beep and light up. The Message Center on the
Achieve console will display a prompt to set up a workout. The Inspire console will show a message on the LCD indicat-
ing it is initializing (for up to 2 minutes). If a prompt doesn’t appear or initializing doesn’t begin, mount the Recumbent
Lifecycle Exercise Bike and begin pedaling. The console should light up and programming a workout should be possible.
Pedal for 20 minutes at 40 rpm or faster during a workout to charge the battery. The pedal action during workouts keeps the
battery charged. If the Lifecycle Exercise Bike is externally powered by the 36V DC power supply, battery maintenance is auto-
matic and pedaling is not required.
A
B
7
Supply Voltage
(VAC)
100
110
120
200
220
230
240
Frequency
(Hz)
50 / 60
50 / 60
50 / 60
50 / 60
50 / 60
50 / 60
50 / 60
Rated Current
(Amps)
1.6
1.6
1.6
.8
.8
.8
.8

1.2 SETUP
CHECK FOR EXTERNAL POWER
The Engage (15” LCD) console is powered by an external AC-DC 36-volt power supply. Make sure to plug the external
power connector to the front of the Recumbent Lifecycle Bike before plugging the AC power in. Plug the AC Input
cord into an AC outlet. The console should immediately beep and light up. The Engage console will show a message
indicating it is initializing (for up to 2 minutes).
NOTE: If any of the consoles do not light up, contact Life Fitness Customer Service (refer to page one of the manual).
The following connection receptacles are located at the front of the Recumbent Lifecycle Exercise Bike: Attachable TV
power (C), coaxial cable (D), external power for the Engage console or optional external power (E), and fitness network-
ing (F).
CAUTION: Connectors should easily fit into the receptacles. Forcing a connection may lead to damage to the
barrel connector and/or receptacle and may void product warranty.
HOW TO ADJUST THE SEAT
A properly adjusted seat is extremely important in any bike-oriented exercise activity and the Recumbent Lifecycle
Exercise Bike is no exception. If the seat is too close, excessive strain will be placed on the knees and quadriceps mus-
cles; if the seat is too far, the resulting reaching action will irritate the feet, ankles, hips and knees.
Sit on the seat and place the balls of the feet on the pedals. An optimum position will allow movement through the bot-
tom of the stroke without locking the knees or shifting in the seat. The knees should have a slight bend at the point of
fullest leg extension.
If the seat needs to be adjusted, lift the spring-loaded adjusting handle (G) located underneath the nose of the seat. Hold both
the handle and nose of the seat with one hand and use the other hand to grab the rear of the seat. Slide the handle and seat
forward or backward as necessary to the proper position. Release the pin to complete engagement. Gently slide the seat for-
ward and backward a small distance to ensure it is locked into place. Check the seat distance again and re-adjust it if neces-
sary.
CAUTION: Do not attempt to adjust the seat while pedaling the bike. Doing so may result in an uncomfortable
workout or cause injury.
MISE EN GARDE : N'essayez pas de régler la place en cyclisme la bicyclette. L'action peut ainsi s'ensuivre
dans une séance de mise en forme inconfortable ou provoquer la blessure.
G
8
D
F
C
E

1.2 SETUP
HOW TO ADJUST THE PEDAL STRAPS
The bike pedal straps keep the user’s shoes on the pedals during a workout. The straps should fit comfortably, but they
also should be tight enough to prevent shoes from slipping at any point in the pedaling rotation. Before working out, a
user should test and adjust the tightness of the straps.
The safety straps on the foot pedals of the Recumbent Lifecycle Exercise Bike can be adjusted to fit a variety of shoe
sizes. Use one hand to push the strap latch (H) upward to loosen the ribbed strap (I). Use the other hand to pull the
ribbed strap out from underneath the strap latch. Rest the foot on the pedal (J). Wrap the ribbed strap over the foot to
determine the desired length. Push the strap latch upward and thread the ribbed strap through the strap latch to select
the appropriate slot. Let go of the strap latch to secure position.
9
H
I
J

10
2SERVICE AND TECHNICAL DATA
2.1 PREVENTIVE MAINTENANCE TIPS
The Recumbent Lifecycle Exercise Bike is backed by the engineering excellence of Life Fitness and is one of the most
rugged and trouble-free pieces of exercise equipment on the market today. Life Fitness products have proven to be
durable in health clubs, colleges, and military facilities the world over. This same technology, engineering expertise, and
reliability have gone into the Recumbent Lifecycle Exercise Bike.
NOTE: The safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear.
Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that are sub-
ject to wear as outlined in the Preventive Maintenance Schedule.
REMARQUE : pour conserver un matériel sûr, il convient de l'inspecter régulièrement afin de déceler tout signe d'usure
ou d'endommagement. N'utilisez pas l'appareil tant que les pièces défectueuses n'ont pas été réparées ou remplacées.
Portez une attention toute particulière aux pièces qui s'usent, comme indiqué ci-dessous.
The following preventive maintenance tips will keep your Recumbent Lifecycle Exercise Bike operating at peak perfor-
mance:
• Locate the Recumbent Lifecycle Exercise Bike in a cool, dry place.
• Keep the pedal straps fastened securely when using the bike.
• Clean the top surface of the pedals regularly.
• Use a 100% cotton cloth, lightly moistened with water and mild liquid detergent, to clean the Recumbent Lifecycle
Exercise Bike. Other fabrics, including paper towels, may scratch the surface. Do not use ammonia, chlorine, or
acid-based cleaners.
• Clean the frame thoroughly on a regular basis.
NOTE: When cleaning the exterior of the unit, a non-abrasive cleaner and soft cotton cloth are strongly
recommended. At no time should cleaner be applied directly to any part of the equipment; apply the
non-abrasive cleaner on a soft cloth and then wipe the unit.

11
2.2 PREVENTIVE MAINTENANCE SCHEDULE
Follow the schedule below to ensure proper operation of the product.
ITEM WEEKLY MONTHLY BI-ANNUALLY ANNUALLY
Frame/Seat Post Clean Inspect
Pedals/Straps Clean Inspect
Accessory Tray Clean Inspect
Plastic Covers Clean Inspect
2.3 TROUBLESHOOTING THE POLAR®HEART RATE CHEST STRAP
HEART RATE READING ISERRATIC, ABSENT ENTIRELY, OR ABNORMALLY ELEVATED
Malfunction
Heart rate reading is erratic or
absent entirely
Abnormally elevated heart rate
readings
Probable Cause
Belt transmitter electrodes are not
wet enough to pick up accurate
heart rate readings.
Belt transmitter electrodes are not
laying flat against the skin.
Belt transmitter needs cleaning.
Belt transmitter is not within 3 feet
(one meter) of the heart rate
receiver.
Chest strap battery is depleted.
Electromagnetic interference from
television sets and/or antennas.
Electromagnetic interference from
cell phones.
Electromagnetic interference from
computers.
Electromagnetic interference from
cars.
Electromagnetic interference from
high voltage power lines.
Electromagnetic interference from
motor driven exercise equipment.
Electromagnetic interference from
another heart rate transmitter with-
in three feet (one meter).
Corrective Action
Wet the belt transmitter elec-
trodes.
Ensure the belt transmitter elec-
trodes are laying flat against the
skin.
Wash the belt transmitter with
mild soap and water.
Make sure the chest strap trans-
mitter is within three feet (one
meter) of the heart rate receiver.
Contact Life Fitness Customer
Support Services for instructions
on how to have the chest strap
replaced.
Move the exercise equipment a
few inches away from the proba-
ble cause, or move the probable
cause a few inches away from
the exercise equipment, until the
heart rate readings are accurate.

2.4 TROUBLESHOOTING THE LIFEPULSE SYSTEM SENSORS
If the heart rate reading is erratic or missing, do the following:
• Dry the hands if necessary to prevent slipping.
• Apply hands to the sensors that are set into the side handlebars or armrests.
• Grasp the sensors firmly.
• Apply constant pressure around the sensors.
2.5 RECYCLING THE BATTERY
When this Life Fitness product is about to be discarded at the end of its useful life, the rechargeable battery must be
removed and recycled. To access the battery, use a medium tip Phillips screw driver to remove the two screws that hold the
end cap shroud to the back of the bike. To remove the battery, remove the two wires connected to the battery and the two
screws that hold the battery in place. Dispose of the battery properly.
2.6 HOW TO OBTAIN PRODUCT SERVICE
1. Verify the symptom and review the operating instructions. The problem may be unfamiliarity with the product and its
features and workouts.
2. Locate the serial number plate, which is located on the front stabilizer. Document the serial number, which consists
of three letters followed by six numerals.
3. Contact Life Fitness Customer Support Services via the Web at www.lifefitness.com, or call the nearest Life Fitness
Customer Support Services group (refer to page 1 of this manual).
12

3SPECIFICATIONS
3.1 PLATINUM CLUB SERIES RECUMBENT LIFECYCLE®EXERCISE BIKE BASE
Designed use: Heavy Consumer Derivative of Commercial Mode
Maximum user weight: 400 pounds / 181.44 kilograms
Power requirements: See Electrical Requirements on page 7 for use with the Engage Console. External power
is optional with the Inspire and Achieve Consoles.
Pedal size: 6.56 inches x 5.5 inches / 166.6 millimeters x 140.9 millimeters
Pedal speed range: 40 RPM - 120 RPM
Drive type: Alternator/Belt
Accessory Tray: Standard
Integrated Reading Rack: Standard
Color: Gray
PHYSICAL DIMENSIONS:
Length: 63 inches / 160 centimeters
Width: 26.75 inches / 68 centimeters
Height: 51.75 inches / 131 centimeters
Weight: 187 pounds / 85 kilograms
SHIPPING DIMENSIONS:
Length: 69 inches / 175 centimeters
Width: 24.75 inches / 65 centimeters
Height: 45 inches / 114 centimeters
Weight: 235 pounds / 107 kilograms
13
