Life Fitness LIFECYCLE R1 User manual

R1 / R3 RECUMBENT LIFECYCLE® EXERCISE BIKES
Owner’s Manual
8975001 REV B-2

1
AMERICAS
North America
Life Fitness Inc.
5100 N River Road
Schiller Park, IL 60176 U.S.A
Telephone: [phone]
Fax: [phone]
Service Telephone: [phone]
Service Email: [email protected]
Sales/Marketing Email:
[email protected]
Operating Hours: 7:00 am-6:00 pm (CST)
Brazil
Life Fitness Brasil
Av. Cidade Jardim, 900
Jd. Paulistano
São Paulo, SP 01454-000
BRAZIL
SAC: 0800 773 8282
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Service Operating Hours:
9:00 - 17:00 (BRT) (Monday-Friday)
Store Operating Hours:
9:00 -20:00 (BRT) (Monday-Friday)
10:00 - 16:00 (BRT) (Saturday)
Latin America & Caribbean*
Life Fitness Inc.
5100 N River Road
Schiller Park, IL 60176 U.S.A
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email:[email protected]
Operating Hours: 7:00am-6:00pm (CST)
EUROPE, MIDDLE EAST, & AFRICA (EMEA)
Netherlands & Luxemburg
Life Fitness Atlantic BV
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email:
[email protected]
Operating Hours: 9.00h-17.00h (CET)
United Kingdom & Ireland
Life Fitness UK LTD
Queen Adelaide
Ely, Cambs, CB7 4UB
Telephone: General Office (+44) 1353.666017
Customer Support (+44) 1353.665507
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours:
General Office: 9.00am - 5.00pm (GMT)
Customer Support: 8.30am - 5.00pm (GMT)
Germany & Switzerland
Life Fitness Europe GMBH
Siemensstraße 3
85716 Unterschleißheim
GERMANY
Telephone: [phone] (Germany)
([phone] (Switzerland)
Fax: [phone] (Germany)
([phone] (Switzerland)
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 08.30 -16.30h (CET)
Austria
Life Fitness Austria
Vertriebs G.m.b.H.
Dückegasse 7-9/3/36
1220 Vienna
AUSTRIA
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Marketing/Sales Email: [email protected]
Operating Hours: 08:30-16.30.h (MEZ)
Spain
Life Fitness IBERIA
C/Frederic Mompou 5,1º1ª
08960 Sant Just Desvern Barcelona
SPAIN
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours:
9.00h-18.00h (Monday-Thursday)
8.30h-15.00h (Friday)
Belgium
Life Fitness Benelux NV
Parc Industrial de Petit-Rechain
4800 Verviers
BELGIUM
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email:
[email protected]
Operating Hours: 9.00h -17.00h (CET)
Italy
Life Fitness Europe GmbH
Siemensstraße 3
85716 Unterschleißheim
GERMANY
Telephone: [phone]
Service: 800438836 (In Italy)
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 08:30 - 16:30h (CET)
All Other EMEA countries &
Distributor Business C-EMEA*
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email:
[email protected]
Operating Hours: 9.00h-17.00h (CET)
ASIA PACIFIC (AP)
Japan
Life Fitness Japan
Nippon Brunswick Bldg., #8F
5-27-7 Sendagaya
Shibuya-Ku, Tokyo
Japan 151-0051
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-17.00h (JAPAN)
China and Hong Kong
Life Fitness Asia Pacific LTD
Room 2610, Miramar Tower
132 Nathan Road
Tsimshatsui, Kowloon
HONG KONG
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-18.00h
All Other Asia Pacific countries &
distributor business Asia Pacific*
Room 2610, Miramar Tower
132 Nathan Road
Tsimshatsui, Kowloon
HONG KONG
Telephone: [phone]
Fax: [phone]
Service Email: [email protected]
Sales/Marketing Email: [email protected]
Operating Hours: 9.00h-18.00h
CORPORATE HEADQUARTERS
5100 River Road
Schiller Park, Illinois 60176 • U.S.A.
847.288.3300 • FAX: [phone]
Service phone number: 800.351.3737 (toll-free within U.S.A., Canada)
Global Website: www.lifefitness.com
INTERNATIONAL OFFICES

FCC Warning - Possible Radio / Television Interference
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used
in accordance with the user manual, may cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Class HB (Home): Domestic use. Class B is not suitable for therapeutic purposes.
CAUTION: Any changes or modifications to this equipment could void the product warranty.
Any service, other than cleaning or user maintenance, must be performed by an authorized service representative.
There are no user-serviceable parts.
2

TABLE OF CONTENTS
1. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2. R1 / R3 Recumbent Lifecycle®Exercise Bike Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3. Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

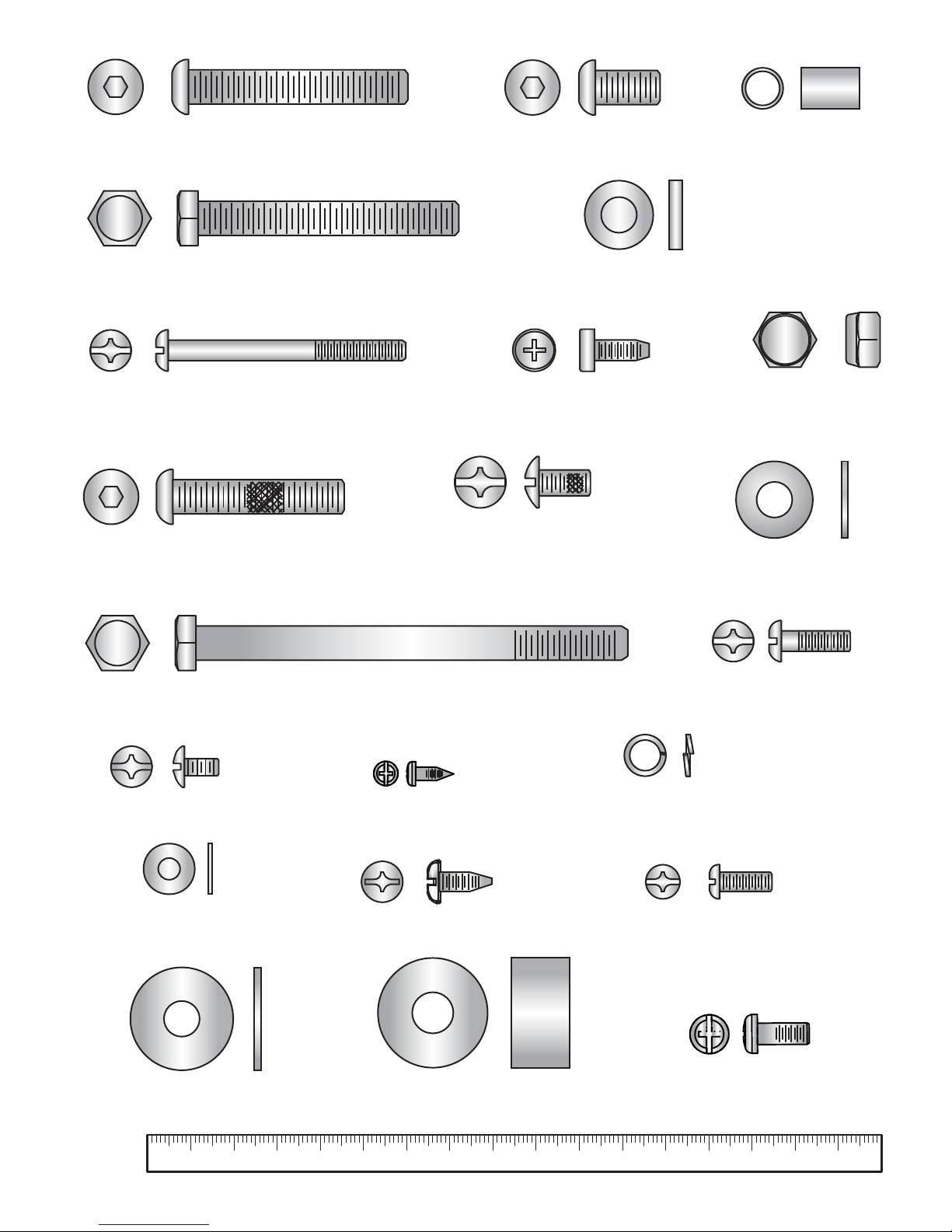

3.1 Tools & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.2 Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.3 Assemble the Rear Stabilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.4 Secure Handlebar Assembly to Seat Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

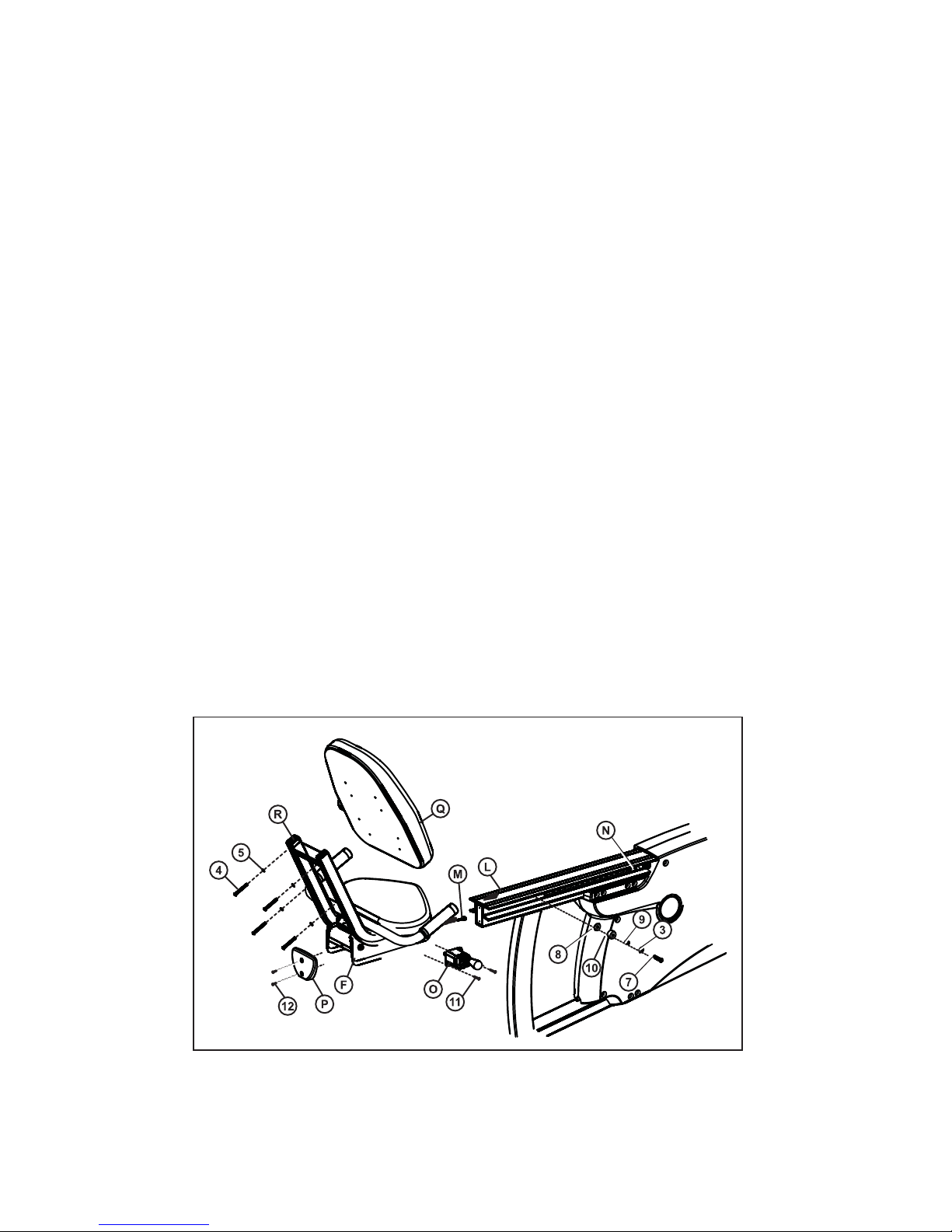

3.5 Seat Adjustment and Seat Back Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.6 Monocolumn, Wiring, and Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.7 Attach Display Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.8 Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.9 R1 Water Bottle Holder and Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4. Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5. Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
5.1 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
5.2 Contact Heart Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6. Service and Product Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
6.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
6.2 Preventive Maintenance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6.3 Preventive Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
6.4. How to Obtain Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
7 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
8. Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
© 2011 Life Fitness, a division of Brunswick Corporation. All rights reserved.
3

4
This Operation Manual describes the functions of the following product:
Life Fitness Recumbent Lifecycle®Exercise Bike Models:
R1 / R3
Thank you for purchasing a Life Fitness bike. Before using this product please read this user manual in its entirety to
ensure that you have the knowledge to safely and properly operate all of the features on your bike. We hope you
achieve the product experience on your bike that you expect, but if you do have any service issues please go to the
How to Obtain Product Service section which will provide information on obtaining domestic and international product
service. See Specifications in this manual for product specific features.
Statement of Purpose: The Life Fitness Lifecycle exercise bike is a machine that simulates the movements of riding a
bicycle at various speeds and levels of resistance.
CAUTION: Health-related injuries may result from incorrect or excessive use of exercise equipment. The
manufacturer STRONGLY recommends seeing a physician for a complete medical exam before undertaking an
exercise program, particularly if the user has a family history of high blood pressure or heart disease; or is over
the age of 45; or smokes, has high cholesterol, is obese, or has not exercised regularly in the past year. The
manufacturer also recommends consulting a fitness professional on the correct use of this product.
If, at any time while exercising, the user experiences faintness, dizziness, pain, or shortness of breath, he or
she must stop immediately.

5
1IMPORTANT SAFETY INSTRUCTIONS
WARNING: Read all instructions before using the Life Fitness Lifecycle exercise bike. Save these Instructions.
WARNING: Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death.If
you feel faint stop exercising immediately.
DANGER: To reduce the risk of electrical shock, always unplug this Life Fitness product before cleaning or attempting
any maintenance activity.
SAFETY WARNING: The safety of the product can be maintained only if it is examined regularly for
damage and wear. See Preventive Maintenance section for details.
The heart rate hand pulse sensors provide an approximate heart rate value. The sensors are not medical
devices and should not be used in any type of medical application.
• Before using this product, it is essential to read this ENTIRE operation manual and ALL instructions. The
exercise bike is intended for use solely in the manner described in this manual.
• Always follow the console instructions for proper operation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Never insert objects into any openings in this product. If an object should drop inside, turn off the power, unplug
the power cord from the outlet and carefully retrieve it. If the item cannot be reached, contact Life Fitness
Customer Support Services.
• Never place liquids of any type directly on the unit, except in an accessory tray. Containers with lids are
recommended.
• Do not use the exercise bike outdoors, near swimming pools or in areas of high humidity.
• Keep all loose clothing, shoelaces, and towels away from the bike pedals.
• Keep the area around the Lifecycle clear of any obstructions, including walls and furniture.
• Use caution when mounting or dismounting the Lifecycle.
• Never operate a Life Fitness product if it has been dropped, damaged, or even partially immersed in water.
Contact Life Fitness Customer Support Services.
• Keep the power cord away from heated surfaces. Do not pull the equipment by the power cord or use the power
cord as a handle.
• Do not run the power cord on the floor under or along side of the Lifecycle.
• Wear shoes with rubber or high-traction soles. Do not use shoes with heels, leather soles, cleats or spikes. Do
not use the Lifecycle in bare feet.
• Do not tip the Lifecycle on its side during operation.
• Keep hands and feet away from all moving parts.
• To ensure proper functioning of this product, do not install attachments or accessories that are not provided or
recommended by Life Fitness.

• Use this product in a well-ventilated area.
• Use this product on a solid, level surface.
• Make sure that all components are fastened securely.
• An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before
putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to
persons.
• Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Contact Life Fitness Customer Support Services.
• Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Allow LCD consoles to “normalize” with respect to temperature for one hour before plugging the unit in and/or
using.
SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE.
6

2R1 / R3 RECUMBENT LIFECYCLE®EXERCISE BIKE OVERVIEW
7
Pedal
Console
Contact Heart
Rate Sensors
Water Bottle Holder /
Accessory Tray
Seat Adjustment
Leveler
Console
Water Bottle Holder
Pedal
Contact Heart
Rate Sensors
Leveler
R3 with
Track Console
R1 with
Track Console

3ASSEMBLY
3.1 TOOLS & HARDWARE
Identify the following components after unpacking your Lifecycle. The tools needed for assembling the product are included.
8
Tools Needed for Assembly:
• Metric Wrench Set
• Metric Allen Wrench Set
• Phillips Screwdriver
Item Quantity Description
R1 R3
1 2 2 50mm Button Head Screw
2 10 10 15mm Button Head Screw
3 5 5 Flat Washer - 18mm O.D.
4 8 4 55mm Phillips Screw
5 8 4 Lock Washer - 12.2mm O.D.
6 0 4 8mm Phillips Screw
7 1 1 40mm Button Head Screw with Locking Compound
8 1 1 Flat Washer - 24mm O.D.
9 1 1 Rubber Bumper Insert
10 1 1 1” Rubber Bumper
11 2 2 12mm Phillips Screw with Locking Compound
12 2 2 12mm Large Head Phillips Screw
13 2 2 100mm Hex Head Bolt
14 5 5 Thick Flat Washer - 16mm O.D.
15 2 2 60mm Hex Head Bolt
16 6 4 12mm Small Head Phillips Screw
17 4 4 Flat Washer - 12mm O.D.
18 4 4 12mm Self-Tapping Screw
19 0 4 12mm Phillips Screw
20 0 4 16mm Phillips Screw
21 0 4 Nylock Nut
22 0 4 8mm Self-Tapping Screw

10 706020 8030 9040 100 12050 110 130 140 150 160
50mm Button Head Screw
Thick Flat Washer -16mm O.D.
60mm Hex Head Bolt
Flat Washer -12mm O.D.
100mm Hex Head Bolt
8mm Phillips Screw
15mm Button Head Screw
Flat Washer -
18mm O.D.
12mm Large Head Phillips Screw Nylock Nut
1” Rubber Bumper
Flat Washer -24 mm O.D.
Lock Washer - 12.2mm O.D.
40mm Button Head Screw
with Locking Compound
55mm Phillips Screw
12mm Self-Tapping Screw
Rubber Bumper
Sleeve
12mm Phillips Screw with
Locking Compound
8mm Self-Tapping Screw
16mm Phillips Screw
12mm Small Head Phillips Screw
12mm Phillips Screw
9

3.2 PACKAGING
Parts: None
Remove all packaging and place main components to the side of the box. Break box down in each of the four corners.
3.3 ASSEMBLE THE REAR STABILIZER
Parts: Hardware Bag #1 (2, 50mm Button Head Screws)
(2, 15mm Button Head Screws)
Tools: 5mm Hex Head Wrench
Locate and install the two LEVELER FEET (A) to the bottom of the REAR STABI-
LIZER (B).With the bends facing rearward, attach the REAR STABILIZER (B) to the
BASE UNIT (C) using two 50mm BUTTON HEAD SCREWS (1) from the top of the
REAR STABILIZER BRACKET (D) and two 15mm BUTTON HEAD SCREWS (2)
from the front side of the REAR STABILIZER BRACKET. Tighten the SCREWS
securely.
3.4 SECURE HANDLEBAR ASSEMBLY TO SEAT ASSEMBLY
Parts: Hardware Bag #2 (4, 15mm Hex Head Bolts)
(4, 55mm Phillips Screws) R1 Only
(4, Lock Washers)
(4, 16mm Phillips Screws) R3 Only
(4, 8mm Phillips Screws) R3 Only
(4, 18mm O.D. Flat Washers)
Tools: 5mm Hex Head Wrench, Phillips Screwdriver
Locate the HANDLEBAR ASSEMBLY (E) and the SEAT ASSEMBLY (F). With the handlebars facing upward and for-
ward, align the mounting holes of the HANDLEBAR ASSEMBLY with those in the SEAT ASSEMBLY. Secure the HAN-
DLEBAR ASSEMBLY to the SEAT ASSEMBLY using four 15mm BUTTON HEAD SCREWS (2) and FLAT WASHERS
(3). Tighten the SCREWS securely. Connect the CONNECTOR (G) leading from the HANDLEBAR ASSEMBLY (E) with
the CONNECTOR (G) leading from the SEAT ASSEMBLY (F). Be sure the connectors fully lock.
R1 Only: Locate the SEAT BOTTOM (H). Align the SEAT BOTTOM mounting holes with those in the LOWER SEAT
SUPPORTS (J). Secure the SEAT BOTTOM using four 55mm PHILLIPS SCREWS (4) and LOCK WASHERS (5).
Tighten the SCREWS securely.
R3 Only: Locate the SEAT BOTTOM (H). Align the SEAT BOTTOM mounting holes with those in the LOWER SEAT
SUPPORTS (J). Secure the SEAT BOTTOM using four 16mm PHILLIPS SCREWS (20) and LOCK WASHERS (5).
Tighten the SCREWS securely. Locate the ACCESSORY TRAY (K). Secure the ACCESSORY TRAY to the HANDLE-
BAR ASSEMBLY using four 8mm PHILLIPS SCREWS (6) as shown. Tighten the SCREWS securely.
10
R1 R3

3.5 SEAT ADJUSTMENT AND SEAT BACK PAD
Parts: Hardware Bag #3 (1, 40mm Button Head Screw with Locking Compound)
(1, 24mm Flat Washer)
(1, Rubber Bumper Sleeve)
(1, Rubber Bumper 1”)
(1, 18mm Flat Washer)
(2, 12mm Phillips Screws with Locking Compound)
(2, 12mm Phillips Screws)
(4, 55mm Phillips Screws) R1 Only
(4, 8mm Nylock Nuts) R3 Only
(4, 8mm Self-Tapping Phillips Screws) R3 Only
(4, 12mm Phillips Screws) R3 Only
Tools: 5mm Hex Head Wrench, Phillips Screwdriver, 13mm Socket Wrench
Align the guide rollers located on the underside of the SEAT ASSEMBLY (F) with the SEAT EXTRUSION (L). Carefully
guide the SEAT ASSEMBLY onto the SEAT EXTRUSION. Slide the SEAT ASSEMBLY fully forward. Connect the WIRE
(M) leading from the user left side of the SEAT ASSEMBLY to the JACK located at the left front of the SEAT EXTRU-
SION. Insert the WIRE (M) into the WIRE HARNESS (N) located next to the JACK.
Note: The WIRE (M), JACK and WIRE HARNESS (N) are located on the user left side of the unit. Items shown on the
right for clarity.
In the hole located on the user right side of the SEAT EXTRUSION (L), behind the SEAT ASSEMBLY (F), install one
40mm BUTTON HEAD SCREW WITH LOCKING COMPOUND (7), one 24mm FLAT WASHER (8), one RUBBER
BUMPER SLEEVE (9), one 1" RUBBER BUMPER (10) and one 18mm FLAT WASHER (3) as shown.
Mount the SEAT ADJUSTMENT LEVER (O) to the user right side of the SEAT ASSEMBLY (F) using two 12 mm
PHILLIPS SCREWS W/LOCKING COMPOUND (11). Tighten the SCREWS securely.
Note: Be sure to mount the SEAT ADJUSTMENT LEVER (O) with the adjustment knob facing upward as shown.
Locate the SEAT EXTRUSION ENDCAP (P). Secure the SEAT EXTRUSION ENDCAP to the SEAT EXTRUSION (L)
using two 12mm PHILLIPS SCREWS (12).
R1 Only: Secure the SEAT BACK PAD (Q) to the UPPER SEAT SUPPORT TUBES (R) using four 55mm PHILLIPS
SCREWS (4) and LOCK WASHERS (5). Tighten the SCREWS securely.
11
R1

R3 Only: Secure the SEAT BACK PAD (Q) to the SEAT BACK SUPPORT (R) using four 8mm NYLOCK NUTS (21)
making sure the LOWER ADJUSTMENT STRAP is located behind the SUPPORT TUBES. Be careful not to allow the
LOWER ADJUSTMENT STRAP to be caught between the SEAT BACK SUPPORT and the SEAT MOUNTING BRACK-
ET. Tighten the NUTS securely. Tighten the LOWER ADJUSTMENT STRAP (OO) as shown. Assemble the two SEAT
BACK COVER HALVES (PP) together using four 8mm SELF-TAPPING PHILLIPS SCREWS (22). Do not overtighten the
SCREWS. Secure the SEAT BACK COVER ASSEMBLY to the SEAT BACK PAD using four 12mm PHILLIPS SCREWS
(19). Tighten the SCREWS securely.
12
R3

3.6 MONOCOLUMN, WIRING AND COVER
Parts: Hardware Bag #4 (2, 100mm Hex Head Bolts)
(5, Thick Flat Washers - 16mm O.D.)
(2, 60mm Hex Head Bolts)
(4, 12mm Phillips Screws)
(4, Flat Washers - 12mm O.D.)
(4, 15mm Button Head Screws)
Tools: 13mm Socket Wrench, 5mm Hex Head Wrench, Phillips Screwdriver
Locate the MONOCOLUMN (S). Slide the MONOCOLUMN COVER (T) onto the MONOCOLUMN as shown. Slide the
MONOCOLUMN COVER up to the FRONT HANDLEBAR POSTS (U).
Note: A zip-tie has been included to keep the MONOCOLUMN COVER (T) from falling during assembly.
Detach the WIRE TIE (V) attached to the front of the MONOCOLUMN (S). Carefully pull the CONSOLE WIRE (W)
through the SIDE ACCESS HOLE (X) of the MONOCOLUMN. Feed the CONSOLE WIRE through the GROMMET (Y)
as shown and insert the GROMMET into the SIDE ACCESS HOLE. Slide the MONOCOLUMN (S) into the MONOCOL-
UMN BRACKET (Z). Slide the MONOCOLUMN down until it is fully seated. Secure the MONOCOLUMN to the MONO-
COLUMN BRACKET using two 100mm HEX HEAD BOLTS (13) and three THICK FLAT WASHERS (14) from the front
side of the MONOCOLUMN and two 60mm HEX HEAD BOLTS (15) and THICK FLAT WASHERS (14) from the user left
side of the MONOCOLUMN BRACKET. Tighten the BOLTS securely.
Note: The two 100mm HEX HEAD BOLTS (13) and three
THICK FLAT WASHERS (14) are shown entering from the back
side of the MONOCOLUMN for clarity. Please secure from the
FRONT side.
CAUTION: Be careful not to pinch the WIRE(s) (AA) leading
from the MONOCOLUMN BRACKET (Z) when inserting the
MONOCOLUMN (S) into the MONOCOLUMN BRACKET.
Connect the WIRE(s) (AA) leading from the MONOCOLUMN
BRACKET (Z) to the corresponding WIRE (W) from the SIDE
ACCESS HOLE (X) of the MONOCOLUMN. Slide the MONO-
COLUMN COVER (T) downward to meet the MAIN SHROUDS.
Secure the MONOCOLUMN COVER to the MAIN SHROUDS
using four 12mm PHILLIPS SCREWS (16) and four 12mm O.D.
WASHERS (17). Tighten the SCREWS securely. Do not over-
tighten the SCREWS.
Attach the RIGHT (BB) and LEFT (CC) FRONT HANDLEBARS
(labeled right and left) to the MONOCOLUMN as shown using
two each 15mm BUTTON HEAD SCREWS (2). Tighten the
SCREWS securely
13

3.7 ATTACH DISPLAY CONSOLE
Parts: Hardware Bag #5 (4, 12mm Phillips Screws)
Tools: Phillips Screwdriver
Remove the DISPLAY CONSOLE (DD) from its shipping carton. Position the DISPLAY CONSOLE above the DISPLAY
CONSOLE BRACKET (EE). Connect the CONSOLE WIRE 15-pin connector (FF), HEART RATE WIRE 4-pin connector
(GG), SUPPLEMENTAL POWER WIRE 2-pin connector (OO), and GROUND WIRE single spade (HH) (Green) to the
corresponding CONNECTORS located on the back of the DISPLAY CONSOLE. Secure the DISPLAY CONSOLE to the
DISPLAY CONSOLE BRACKET using four 12mm PHILLIPS SCREWS (18). Tighten the SCREWS securely. Do not
overtighten the SCREWS.
14
GG
FF
HH
OO
FF
GG
HH OO
Track Console Connections Go Console Connections
GG
FF
HH OO
EE
18
DD

3.8 PEDALS
Tools: 15mm Open End Wrench
Locate the RIGHT PEDAL (JJ) (marked with an "R") and PEDAL STRAP (KK)
(marked with an "R"). With the side of the PEDAL STRAP marked with an “R” fac-
ing upward, slide the slotted end of the PEDAL STRAP through the left slot in the
PEDAL. Fasten one of the slots onto the tab located under the left slot of the
PEDAL. Bend the PEDAL STRAP upward and slide the remaining end of the
PEDAL STRAP through the right slot in the PEDAL and into the strap adjustment
clip. The PEDAL STRAP should securely engage the strap adjustment clip.
Install the RIGHT PEDAL (JJ) to the USER RIGHT CRANK ARM (LL).
Repeat for the LEFT PEDAL (marked with an "L") and PEDAL STRAP (marked
with an "L").
Note: The LEFT PEDAL has reverse threads.
Note: Pedals need to be securely tightened or clicking may occur.
3.9 R1 WATER BOTTLE HOLDER & BRACKET
Parts: Hardware Bag #4 (2, 12mm Phillips Screws)
Tools: Phillips Screwdriver
Locate the WATER BOTTLE BRACKET (MM). Secure the WATER BOTTLE BRACKET to the underside of the MONO-
COLUMN (S) using two 12mm PHILLIPS SCREWS (12). Tighten the SCREWS securely. Insert the WATER BOTTLE
(NN) into the WATER BOTTLE BRACKET.
15

16
4INITIAL SETUP
Read the entire User Manual before setting up the Lifecycle exercise bike.
WHERE TO PLACE THE EXERCISE BIKE
Following all safety instructions in Section 1 move the bike to the location in which it will be used. See Section 7,
Specifications, for the dimensions of the footprint. Allow a distance of 4 feet (120 centimeters) between the bike and
other objects or surfaces on either side.
HOW TO STABILIZE THE EXERCISE BIKE
After placing the bike in position, check the unit's stability by attempting to rock it
in all directions. Any slight rocking indicates that the unit must be leveled.
Determine which foot is not resting completely on the floor. Loosen the jam nut
with an open-end 17mm wrench, and rotate the stabilizing foot to lower it. Verify
that the bike is stable, and repeat the adjustment as necessary until the unit no
longer rocks. Lock the adjustment by tightening the jam nut against the stabilizer
bar.

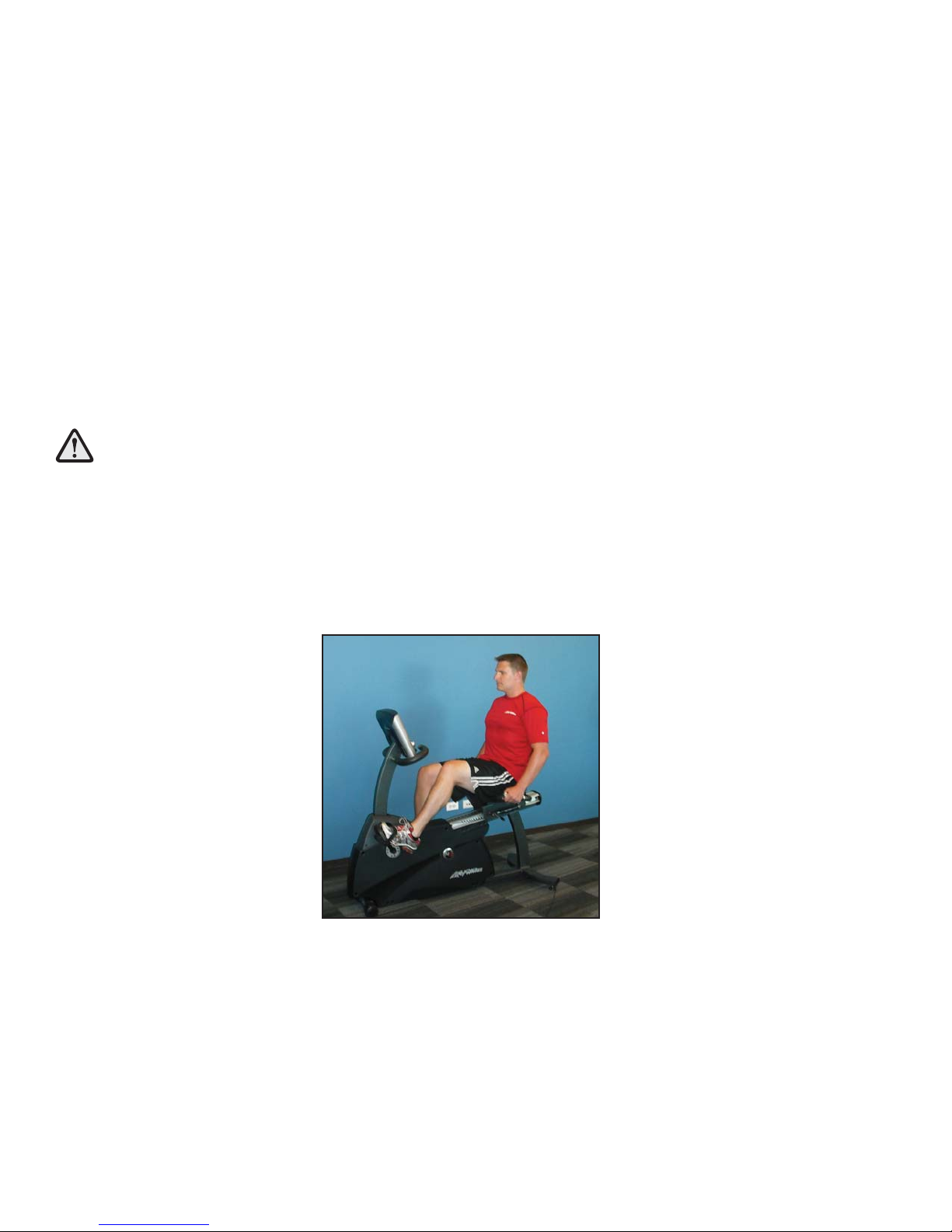

HOW TO ADJUST THE SEAT TO ENSURE CORRECT BIOMECHANICAL POSITIONING
Proper seat positioning minimizes unnecessary leg muscle fatigue. To determine whether or not the seat requires adjust-
ment, sit on it and place the balls of the feet on the pedals. The knee should bend slightly when the pedal is at the furthest
point in its rotation, relative to the body. The user should be able to pedal without locking the knees or shifting in the seat.
Adjusting the seat: Lift the spring-loaded adjusting handle (A) located on the right side of the seat. Slide the seat for-
ward or backward as necessary to the proper position and release the pin to complete engagement. Gently rock the seat
forward and backward to ensure that it is locked into place. Check the seat distance again and readjust it if necessary.
Note: If the seat carriage rocks excessively, use a wrench to loosen the jam nut (A) on either side of the seat carriage.
With another wrench, tighten the adjustment roller on the inside of the carriage until it is snug, but do not overtighten it.
Then, while holding the roller in place, tighten the lock nut. Repeat the procedure for the other side of the seat carriage.
CAUTION: Do not attempt to adjust the seat while pedaling the bike. Doing so, or failing to insert the seat pin complete-
ly, may result in an uncomfortable workout or cause injury.

17
HOW TO ADJUST THE PEDAL STRAPS
The bike pedal safety straps keep the user's shoes on the pedals during a
workout. The straps should fit comfortably, but they also should be tight
enough to prevent shoes from slipping at any point in the pedaling rotation.
Before working out, the user should test and adjust the tightness of the
straps.
The straps can be adjusted to fit a variety of shoe sizes. Each strap is held
in place by a spring-loaded clip that is connected to the outer edge of each
pedal. To tighten a strap, simply pull the loose end of the strap down. It auto-
matically locks into place with each pull. To loosen a strap, press down on
the top of the clip and pull the strap up. Release the clip to lock the strap
into place. Test the adjustment, and change if necessary.
HOW TO ADJUST THE SEAT BACK (R3 ONLY)
The R3 has an adjustable seat back so you can choose the most comfortable back angle for your workout. To adjust the
seat back, pull the lever (A) towards the rear of the bike. While pulling the lever, lean backwards or forwards. Once you
reach a comfortable position, release the lever and the seat back will lock in place.
STARTING UP THE BIKE
See Section 7, Specifications, for power requirements. Insert the AC adapter into an electrical outlet that has been prop-
erly installed and grounded in accordance with all local codes and ordinances.
Insert the power adapter jack into the barrel plug on the bottom of the exercise bike. Then insert the power supply into
the wall outlet. Make sure the cord is routed so that it doesn't bind and will not be walked on.
Check that the console lights up. If not, recheck the plug and wall connections and make sure the wall outlet has power.
Once the unit’s power is on, the console display lights up, making it possible to select a workout. When using a self-pow-
ered unit, start pedaling to light up the console.
Note: For customers outside the United States, please use your country specific transformer to power the unit.
Note: The R3 can be self-powered if using a Go Console. The PAUSE time is limited to 30 seconds. Workout data will
be cleared after 30 seconds of inactivity. Extend the PAUSE time by plugging the power supply in to the Go Console.
A

18
5MAIN FEATURES
5.1 ACCESSORIES
Two accessory trays (A) are mounted to the right of the seat on the R3 to provide storage for items such as water bot-
tles, personal stereos, and cell phones. A Water Bottle Holder (B) is located on the monocolumn of the R1. Additionally,
an integrated Reading Rack (C) for supporting a book or magazine is located at the base of the console.
5.2 CONTACT HEART RATE
The hand pulse sensors (D) are a built-in heart rate monitoring system on the stationary handlebar. During a workout grasp
the hand pulse sensors to monitor your heart rate. We recommend using the heart rate chest strap provided with your con-
sole during workouts and using the hand pulse sensors to only occasionally monitor your heart rate when not using the
chest strap. In addition, to utilize heart rate controlled workouts the chest strap must be used. For the most accurate read-
ing, use a comfortable grip. The console will show a heart rate reading after 15 to 20 seconds.
Hand pulse sensors can work differently with different body types. With some individuals it can be very difficult to extract a
heart rate reading. Follow the below tips to improve the heart rate reading.
·Remove your hands from the heart rate sensors and wait for the heart rate display to clear. Grasp sensors again.
·Make sure hands are fully contacting the sensors.
·Dry hands periodically during use.
·Limit movement.
·Clean hand pulse sensors.
Note: The heart rate hand pulse sensors provide an approximate heart rate value. The sensors are not medical devices
and should not be used in any type of medical application.
C
D
B
A
D
C
R3 with Track Console
R1 with Track Console
