INSTRUCTION MANUAL
Digital Fan-Forced
Ceiling Mount Heater
model no.
IFH1
2
A-75

model no.
IFH1
2
A-75
2
IMPORTANT: Please read this manual carefully before running this garage heater and save it for
reference.
NOTE: This manual contains important safety and operating instructions. Read all instructions and
follow them with use of this product
.
DESCRIPTION
Electric utility heaters are designed to meet a variety of heating requirements by switching a few wires
located in the base of the unit. Features horizontal and vertical airflow, built-in thermostat and overheating
safety thermal cut-out.
TECHNICAL SPECIFICATIONS
Model Number
IFH1
2
A-75
Voltage
240 V
Rated Power 6,250W / 7,500 W
AMPS 31.3
WARNING:

model no.
IFH1
2
A-75
3
This appliance must be grounded!
The appliance must be connected to a current protection circuit or device with 50 amp before being connected to power supply!
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:
1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes and curtains at least 3' (0.9 m) from the front of the heater and keep them
away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or
invalids, and whenever the heater is left operating and unattended.
4. Always turn off the power when not in use.
5. Do not operate any heater after it malfunctions, has been dropped, or damaged in
any manner. Disconnect power at service panel and have heater inspected by a
reputable electrician before reusing.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never locate heater where it may fall into a bathtub or other water
container.
8. To disconnect heater, turn controls to off, and turn off power to heater circuit at main
electrical panel.
9. Do not insert or allow any foreign objects to enter any ventilation or exhaust
openings as this may cause an electric shock, fire, or damage to the heater.
10. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not
use on soft surfaces, like a bed, where openings may be blocked.
11. This heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are used or stored.
12. All wiring must be carried out by a certified electrician and comply with national and
local electrical codes in the United States and Canada.
13. Use this heater only as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or personal injury.
14. This heater may include a visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm illuminates, immediately turn the heater off and inspect
for any objects on or adjacent to the heater that may have blocked the airflow or
otherwise caused high temperatures. DO NOT OPERATE THE HEATER WITH THE
ALARM ILLUMINATING.

model no.
IFH1
2
A-75
4
SAVE THESE INSTRUCTIONS
GENERAL SAFETY INFORMATION
1. Use only copper wires rated for at least 75ºC.
2. Heater airflow must be directed parallel to or away from adjacent wall.
3. Observe wall, floor and ceiling clearance requirements.
4. All wiring must be done according to applicable national and local electrical codes
in the United States and Canada. The heater must be grounded as a precaution
against possible electric shock. Heater circuit must be protected with proper fuses.
5. The mounting and anchoring hardware must be capable of reliably supporting the
weight of the heater and its mounting bracket.
6. All electrical power must be disconnected and the main service box must be
locked before inspecting cleaning or servicing the heater. This precaution must be
followed to prevent serious electric shock.
7. This heater is not suitable for use in hazardous locations as defined by the
National Fire Protection Association (NFPA) in the United States. This heater has
hot and arcing sparking parts inside. Do not use it in areas where gasoline paint or
flammable liquids are used or stored.
8. This heater is not suitable for use in corrosive atmospheres such as marine
greenhouses or chemical storage areas.
9. This heater must be mounted at least 8' (2.44 m) above the floor.
WARNING:
This heater requires hardwire installation (no plug). The installation of this product must
be carried out by a certified electrician in accordance with all applicable local and national electrical codes.
Read and understand all installation and operation instructions prior to operating this unit. Observe all safety instructions.
Improper installation or failure to follow the procedures outlined in this instruction manual can result in serious electric shock.
NOTE: Compatible with a 240 V line voltage single pole wall thermostat. This thermostat must be installed by a certified electrician.

model no.
IFH1
2
A-75
5
LOCATING HEATER
Install heater out of traffic areas, maintaining clearances stated . The direction of airflow should not be
restricted is by columns or machinery and the airflow should avoid exposed walls rather than blowing
directly on them. When more than one heater is used in an area, the heaters should be arranged so that the
air discharge of each heater supports the airflow of the others to provide best circulation of warm air as
indicated.

model no.
IFH1
2
A-75
6
INSTALLATION INSTRUCTIONS
HARDWARE NEEDED
You will need the following hardware, which can be purchased from your local hardware store or electrical
supply house:
• Adequate gauge and length of wire for your application.
• Proper size fuse or breaker to handle amperage.
• Proper wire connectors for your application.
• Fasteners appropriate for application that are strong enough to hold the unit.
MOUNTING THE HEATER ON THE CEILING
1. Locate a wood stud in the wood ceiling joist. If you cannot locate a wood stud, you have to install a
wood piece on the ceiling as this heater must be securely fastened.
2. Remove the mounting bracket from the heating unit by loosening bracket screws with a wrench and
slipping the handle off over the screw heads.
3. Place a washer on screws before inserting through the holes in the mounting bracket and screw them
securely into a ceiling joist.
NOTE: If you want to swivel the heater either to the right or left, adding a washer to both sides of the bracket is recommended. A longer lag bolt may be
required to properly secure the unit.

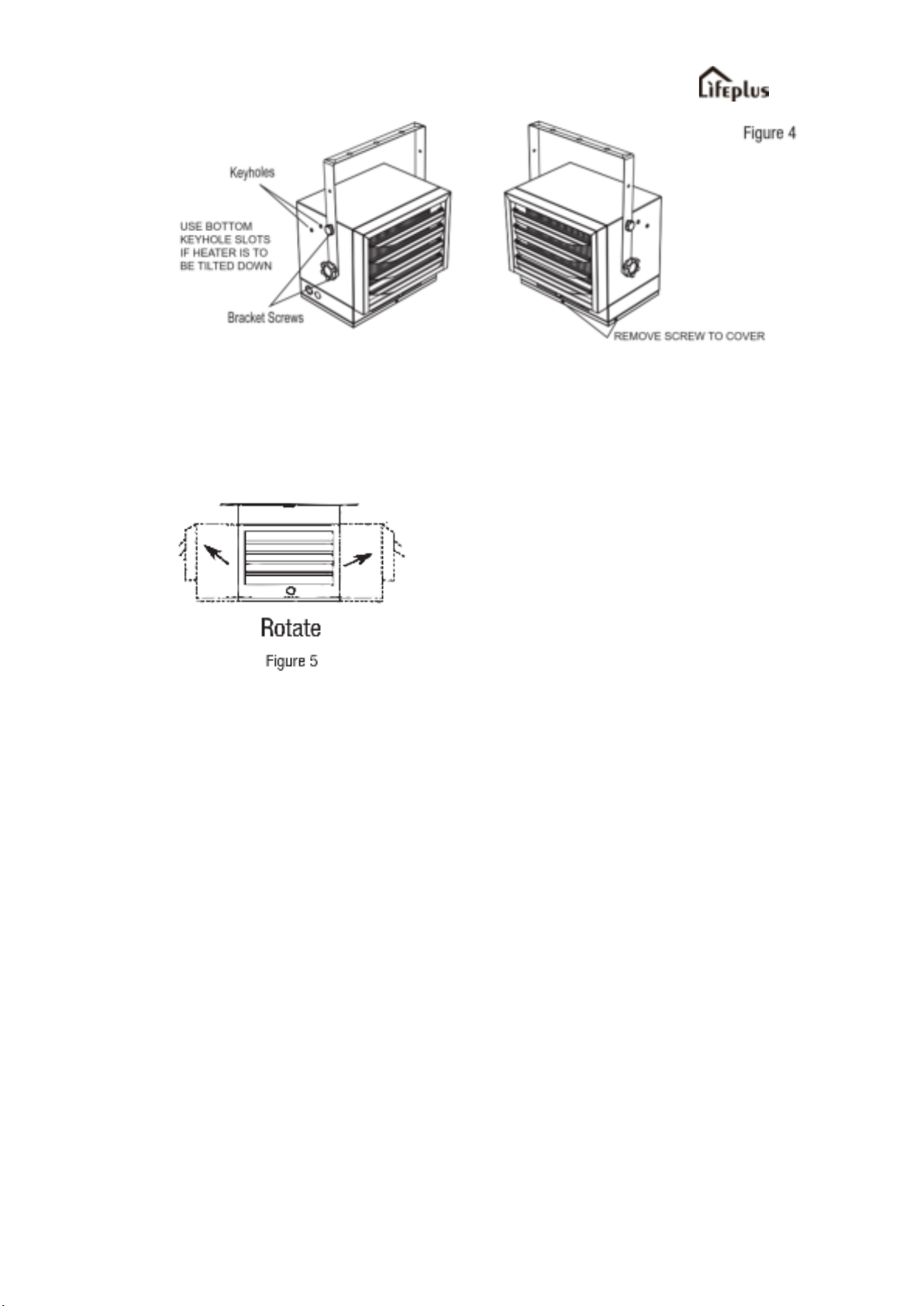

HANGING THE HEATER
1. Lift the heater up and into the mounting bracket.
2. Align the bracket screws with the keyhole slots in the mounting bracket.
3. If the heater is to be tilted it must be positioned in the keyhole slots.
4. Tighten the bracket screws with a wrench so the unit is securely suspended at horizontal or vertical level.

model no.
IFH1
2
A-75
7
ADJUSTING AIRFLOW DIRECTION
1. To turn the unit when it has been installed with a single lag bolt, simply turn the entire heater as
needed. The unit cannot be turned horizontally if it has been installed with 2 lag bolts.
2. To tilt the unit vertically, loosen the bracket screws.
3. Adjust louvers to the desired position.
NOTE: To prevent possible overheating, please maintain adequate clearance as .
WARNING:
To prevent possible electric shock, disconnect power to the heater at the main service box before attempting to adjust the heat output of this unit.

model no.
IFH1
2
A-75
8
CONNECTING THE POWER
Wiring diagram

model no.
IFH1
2
A-75
9
3. Connect the wire to the power block located in the base of the heater. (Figure 9)
4. Turn on the power at the main electrical panel.
OPERATING INSTRUCTIONS
NOTE:
All wiring must be carried out by a certified electrician and must be in accordance to applicable national and local electrical codes.
For certain applications, conduit may be required. Check local electrical codes. If you run the wiring in conduit and wish to be able to turn
the heater be sure to purchase enough flexible conduits to allow the heater to be turned.

model no.
IFH1
2
A-75
1.Power indicator Yellow
2.CAUTIONindicator Red
3 Temperature control
4 Switch 1
5 Switch 2
INSTRUCTIONS IN NORMAL MODE
Power indicator Yellow The power indicator lights up when the product is powered on
CAUTIONindicator Red When the internal temperature of the product is too
high and the temperature limiter is disconnected, the
fault lamp lights up
Temperature control
Switch 1 This switch is equal to the main switch, when the secondary switch off,
the product
stop all functions (heating and Fan) , want the product to work must first
open this switch
Switch 2 When this switch is turned on when the product has a 6250W heating
effect, the product will have a 7500W heating effect

model no.
IFH1
2
A-75
11
CLEANING AND MAINTENANCE
1. Before cleaning, make sure the power has been turned off at the main breaker
panel and that the heating element of the heater is cool.
2. To maintain the external appearance of the heater, it need only be wiped
occasionally with a dry duster. During the summer months, or at other times when the appliance is not in
use and is completely cold, wipe exterior surfaces with a damp cloth. Never allow water or other liquids
to drip inside the heater.
3. Do not use abrasive cleaning powders or furniture polish. Do not use chemical or abrasive products, metallic
scourers or similar items, which may deteriorate the
surface, to clean the appliance.
4. All other servicing should be performed by qualified service personnel. Do not try
to repair the heater yourself.
LIMITED MANUFACTURER WARRANTY
1 Year Limited Warranty: Lifeplus warrants this heater against defects in materials and
workmanship on functional parts, for a period of one year from the original date of
purchase. Your sales receipt showing the date of purchase of the product is your proof
of purchase. Keep it in a safe place for future reference.
Manufacturer Warranty
All Lifeplus products are manufactured with the highest quality materials and are warranted
to be free from defects in material and workmanship at the time of purchase. This limited
warranty applies to products manufactured or distributed by the Lifeplus brand name, are
delivered in the continental United States, and extends to the original purchaser, or gift
recipient. This warranty becomes valid at the time of purchase and terminates either by the
specified time frame listed above and/or owner transfer (unless otherwise authorized by
Lifeplus, as the manufacturer). Any extended warranties (warranties that cover above and
beyond this manufacturer warranty) that are sold through a retailer or third party, are not
directly correlated with this Lifeplus limited warranty, and may be redirected to said retailer
or third party for coverage.
The CAUTIONindicator is on. In this case, immediately turn the heater
OFF and inspect for any objects on or adjacent to the heater that may
cause high temperatures. DO NOT OPERATE THE HEATER WITH THE
CAUTION INDICATOIR GLOWING RED.

model no.
IFH1
2
A-75
12
Some States do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
Some States do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary
from State to State.
The purchaser must present Lifeplus with proof of purchase documents (including the date
of purchase) if requested. Any evidence of alteration, erasing, or forgery of proof of purchase
documents will be just cause to VOID this limited warranty. Products, in which the serial
number has been defaced or removed, are not eligible for warranty coverage.
