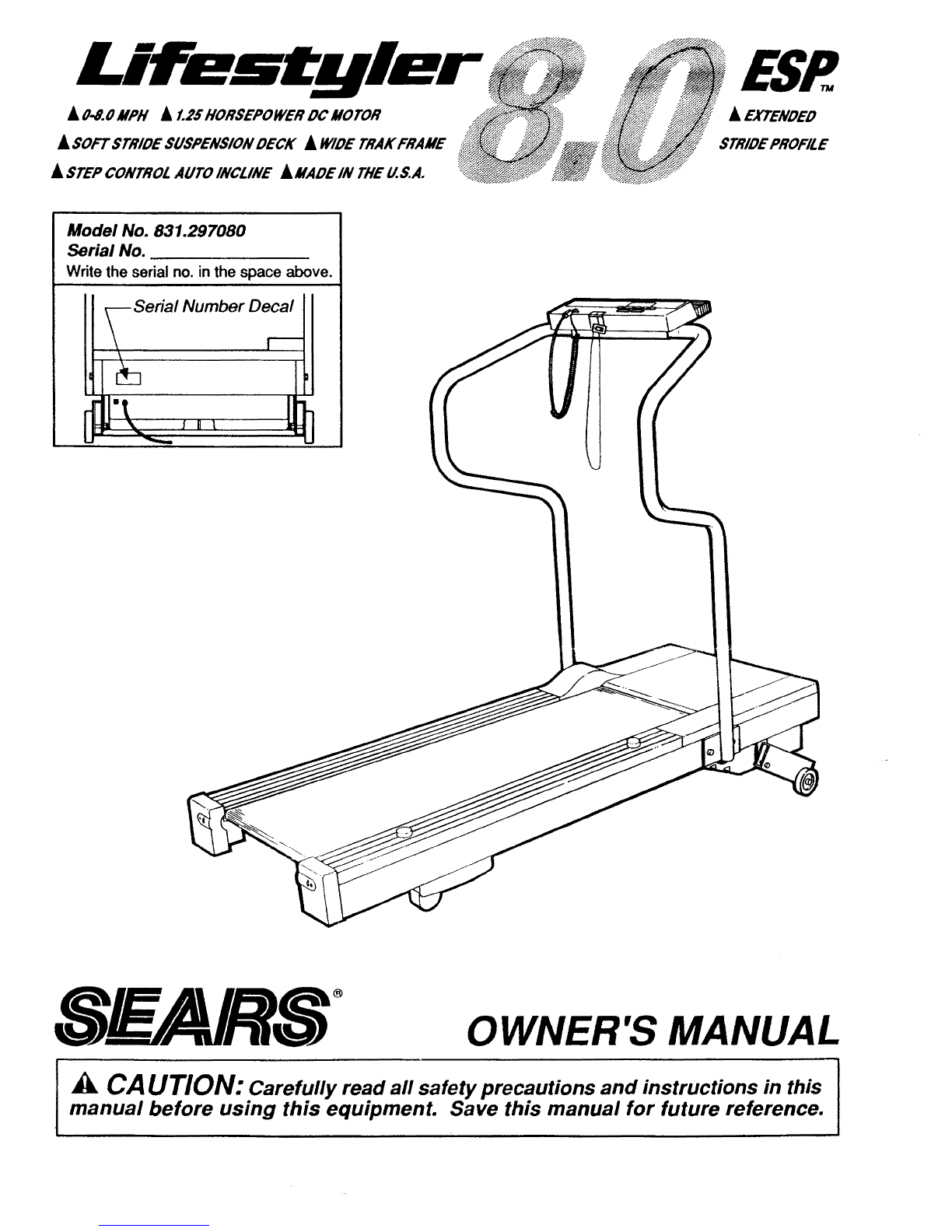

LIFESTYLER 8.0 ESP 831.297080 User manual

•04.0 MPH •1.25HORSEPOWEROCMOTOR
•SOFTSTRIDESUSPENSIONOECK •WIOETRAKFRAME
ASTEPCONTROl.AUTOINClINE •MAOEIN THEUS.A.
•EXTENDED
STRIDE PROFll.E
Model No. 831.297080
Serial No.
Write the serial no. in the space above.
®0 WNER'S MANUAL
_i_CA UTION: Carefully read all safety precautions and instructions in this
manual before using this equipment. Save this manual for future reference.

2
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, when proper assembly and maintenance procedures
detailed in the Owner's Manual are followed, SEARS will, free of charge, repair or replace and
install a replacement part for any defective part, when this treadmill is used in a normal man-
ner.
This warranty does not apply when this treadmill is used for commercial or rental purposes.
SERVICE IS AVAILABLE SIMPLY BY CONTACTING YOUR NEAREST SEARS SERVICE
CENTER/DEPARTMENT IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA,
3333 BEVERLY ROAD, HOFFMAN ESTATES, IL 60179

•0-8.0 MPH •1.26HORSEPOWERDC MOTOR
•SOFTSTRIDESUSPENSIONDECK • WIDETRAKFRAME
•STEPCONTROLAUTOINCLINE •MADEIN THEU.S.A.
£SR
•EXTENDED
STRIDEPROFILE
TABLE OF CONTENTS
Important Safety Precautions ...................... 4
Before You Begin ............................... 5
Assembly ..................................... 6
Operation and Adjustment ........................ 7
Trouble-Shooting and Storage ..................... 11
Conditioning Guidelines .......................... 13
Part List ...................................... 14
Exploded Drawing .............................. 15
Ordering Replacement Parts ...................... Back Cover
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using. SEARS assumes no responsibility for personal
injury or property damage sustained by or through the use of this product. 3

IMPORTANT SAFETY PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock or injury to persons, read
the following Important safety precautions and information before operating the treadmill.
.Position the treadmill on a level surface, with at least 8 feet of clearance behind the tread-
mill. Do not place the treadmill near water, outdoors or on a surface that blocks any air
opening. Do not operate where aerosol products are used or where oxygen is being admin-
istered.
2. Plug the power cord directly into a grounded circuit carrying 12 or more amps. No other
appliance should be on the same circuit. (See OPERATION AND ADJUSTMENT in this man-
ual for proper grounding instructions.) Keep the power cord away from heated surfaces. If
an extension cord is required, use only a 14-gauge general-purpose cord of approximately
five feet in length with a three-wire conductor.
3. Never move the walking belt while the power is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the treadmill is not working properly. (See
BEFORE YOU BEGIN in this manual if the treadmill is not working properly.)
1Wear appropriate exercise clothing when using the treadmill; do not wear loose clothing
that could become caught in the treadmill. Always wear running shoes; never use the
treadmill with bare feet, wearing only stockings or In sandals. Athletic support clothes are
recommended for both men and women.
5. The pulse earcUp is not a medical device. Various factors, including the user's movement
while exercising, may affect the accuracy of heart rate readings. The earclip is intended
only as an exercise aid in determining heart rate trends in general.
6. Never start the treadmill while you are standing on the walking belt. Always hold the
handrail when exercising on the treadmill.
7. Never allow more than one person on the treadmill at a time. The treadmill should not be
used by persons weighing more than 250 pounds.
8. Keep small children away from the treadmill at all times. Never leave the treadmill
unattended while it is running. Always turn the power off when the treadmill is not in use.
9. Never drop or insert any object into any opening.
10. To reduce the possibility overheating, do not operate the treadmill continuously for longer
than 1 hour.
11. The treadmill is capable of high speeds. Adjust the speed slowly to avoid sudden jumps in
speed.
12. Use the treadmill only as described in this manual.
13. Always unplug the power cord before performing the maintenance and adjustment
procedures described in this manual. Never remove the motor hood unless instructed to
do so by an authorized service representative. Servicing other than the procedures in this
manual should be performed by an authorized service representative only.
4SAVE THESE INSTRUCTIONS

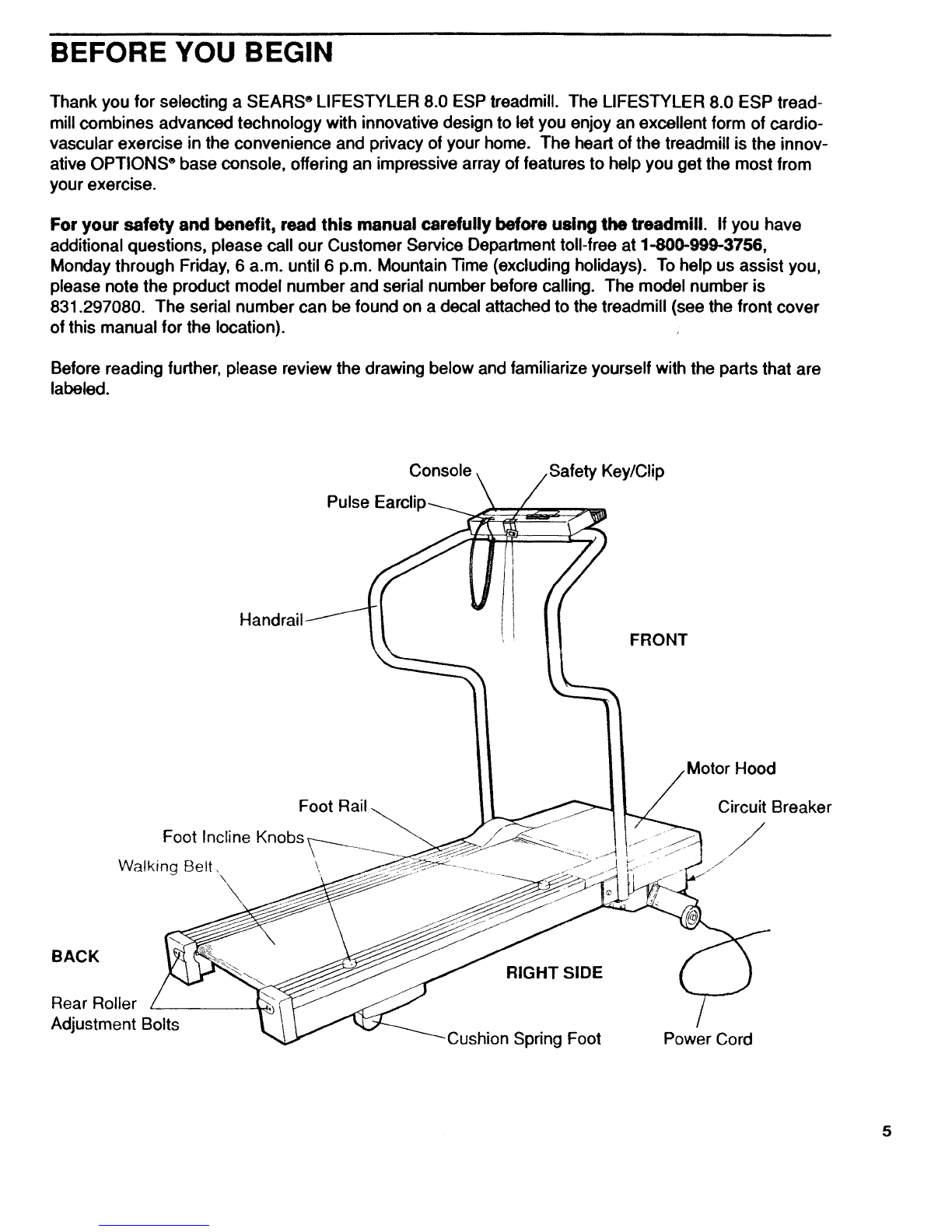

BEFORE YOU BEGIN
Thank you for selecting a SEARS ®LIFESTYLER 8.0 ESP treadmill. The LIFESTYLER 8.0 ESP tread-
mill combines advanced technology with innovative design to let you enjoy an excellent form of cardio-
vascular exercise in the convenience and privacy of your home. The heart of the treadmill is the innov-
ative OPTIONS* base console, offering an impressive array of features to help you get the most from
your exercise.
For your safety and benefit, read this manual carefully before using the treadmill. If you have
additional questions, please call our Customer Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you,
please note the product model number and serial number before calling. The model number is
831.297080. The serial number can be found on a decal attached to the treadmill (see the front cover
of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the parts that are
labeled.
Console Key/Clip
Pulse Earcli
Handrail FRONT
Foot Rail
Foot Incline Knobs,
Walking Belt, X\
Motor Hood
Circuit Breaker
/
/
BACK
Rear Roller
Adjustment Bolts
RIGHT SIDE
Cushion Spring Foot Power Cord
5

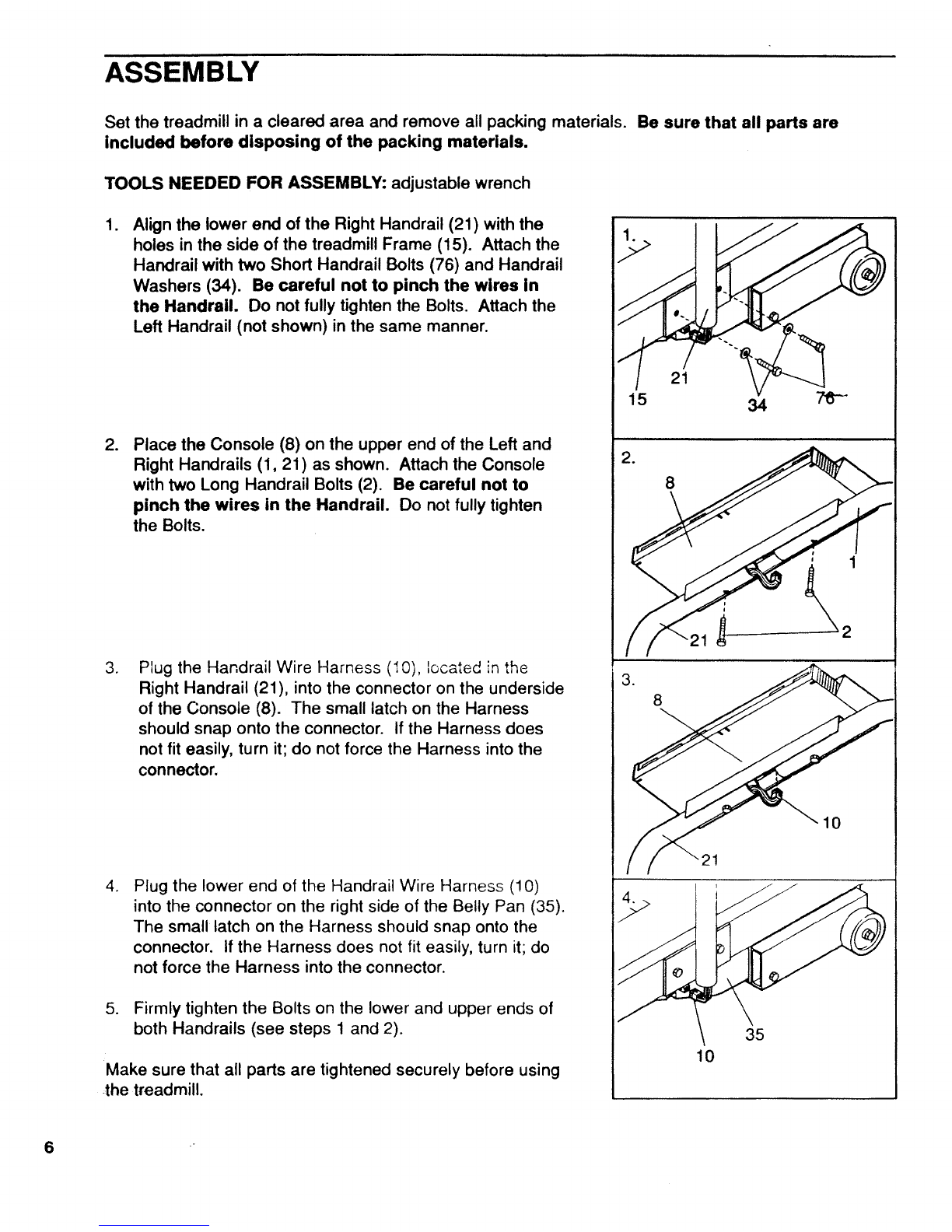

ASSEMBLY
Set the treadmill in acleared area and remove all packing materials.
included before disposing of the packing materials.
TOOLS NEEDED FOR ASSEMBLY: adjustable wrench
Align the lower end of the Right Handrail (21) with the
holes in the side of the treadmill Frame (15). Attach the
Handrail with two Short Handrail Bolts (76) and Handrail
Washers (34). Be careful not to pinch the wires in
the Handrail. Do not fully tighten the Bolts. Attach the
Left Handrail (not shown) in the same manner.
=Place the Console (8) on the upper end of the Left and
Right Handrails (1, 21) as shown. Attach the Console
with two Long Handrail Bolts (2). Be careful not to
pinch the wires in the Handrail. Do not fully tighten
the Bolts.
,Plug the Handrail Wire Harness (I 0), located in the
Right Handrail (21), into the connector on the underside
of the Console (8). The small latch on the Harness
should snap onto the connector, if the Harness does
not fit easily, turn it; do not force the Harness into the
connector.
.Plug the lower end of the Handrail Wire Harness (! 0)
into the connector on the right side of the Belly Pan (35).
The small latch on the Harness should snap onto the
connector. If the Harness does not fit easily, turn it; do
not force the Harness into the connector.
5. Firmly tighten the Bolts on the lower and upper ends of
both Handrails (see steps 1 and 2).
Make sure that all parts are tightened securely before using
_the treadmill.
Be sure that all parts are
21
15 34
8
10
35
10

OPERATION AND ADJUSTMENT
PLUGGING THE POWER CORD IN
This product must be grounded. If it should malfunction or break down, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into an
appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
DANGER: Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the plug provided with the product--if it will not fit the out-
let, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug
illustrated in Drawing 1. A temporary adapter that looks like the adapter illustrated in Drawing 2 may
be used to connect this plug to a 2-pole receptacle as shown in Drawing 2 if a propedy grounded outlet
is not available. The temporary adapter should be used only until a propedy grounded outlet (Drawing
1) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from
the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle
outlet box covers are not grounded. Contact a qualified electrician to determine if the outlet
box cover is grounded before using an adapter.
Grounded Outlet Box
Grounding Plug
Grounding Pin
Grounded Outlet
2
Metal Screw
Outlet Box
Grounding Pin
Grounding Plug
MAINTENANCE-FREE WALKING PLATFORM
This treadmill features a walking platform coated with a specially-designed hydrocarbon slip agent. Do
not apply silicone spray or any other substances to the walking platform or the walking belt.
Such substances will deteriorate the surface of the walking platform and cause excessive wear. Walk
on the treadmill for 10 minutes to break in the walking platform. During this break-in period, it is normal
for the walking belt to slow.
CHANGING THE INCLINE
To vary the intensity of your exercise, the incline of the tread-
mill can be changed using the foot incline knobs on the right
foot rail. To increase the incline, stand towards the back of
the treadmill. Using your right foot, press down on the back
foot incline knob until the desired incline is reached. To
decrease the incline, stand towards the front of the tread-
mill and press down on the front foot incline knob.
Increase
Incline
Decrease
Incline 7

CONSOLE OPERATION
The heart of the treadmill is the innovative OPTIONS base console. The OPTIONS base console fea-
tures a safety key-operated power switch, a large, easy-to-read LED display, convenient push-button
speed controls and a multiple-mode exercise monitor. And the OPTIONS base console is modular---up
to three different modules (not included) can be added to give you even more options!
By adding the state-of-the-art VIDEO TRACK TM module, the base console can be connected to your
TV and VCR for exciting motivational workouts. A videocassette will take you on a tour of some of the
most breathtaking scenery in America, while the module controls the treadmill automatically to simulate
the terrain you are viewing.
WARNING: Keep videocassettes at least two feet away from treadmill motor hoods.
Treadmill motors contain magnets which can damage vldeocassettes.
The powerful TRACK FIVE TM module offers five preset workout programs, each designed to give you a
different type of workout. Simply select one of the programs, set the length of time that you plan to
exercise and choose a workout intensity level. The TRACK FIVE module will control the treadmill auto-
matically as it guides you through an invigorating cardiovascular workout.
The versatile PERSONAL TRAINER PLUS TM module lets you create an endless variety of custom
workout programs. Up to four programs can be stored in memory at the same time, and recalled for
future workouts. The module is also compatible with PERSONAL TRAINER programs. Just connect
the module to your telephone, and give PERSONAL TRAINER a call. Your PERSONAL TRAINER will
provide you with a workout program designed to help you achieve the specific results you want, and
load the program into the module using the special telephone hook-up provided.
For more information, see ORDERING REPLACEMENT PARTS on the back cover of this manual.
I_IOPTIONS {I
E231
Mode Indicators \
m w_h_r s_t
"/. o t
IV--1[---1V-I
I II I
Pulse Earclip Jack
MANUAL SELECT BUTTON--This button switches the base console to the manual mode. Note: This
button is needed only when modules are used with the base console.
START/PAUSE BUTTONmThis button stops the walking belt. Note: This button both starts and stops
the walking belt when modules are used with the base console.
SET BUI-FONS--These buttons are used to set time and distance goals, and to enter your weight into
the base console.
MODE BUTTON--This button is used to select monitor modes.
8 SPEED BUTTONS---These buttons are used to control the speed of the walking belt.

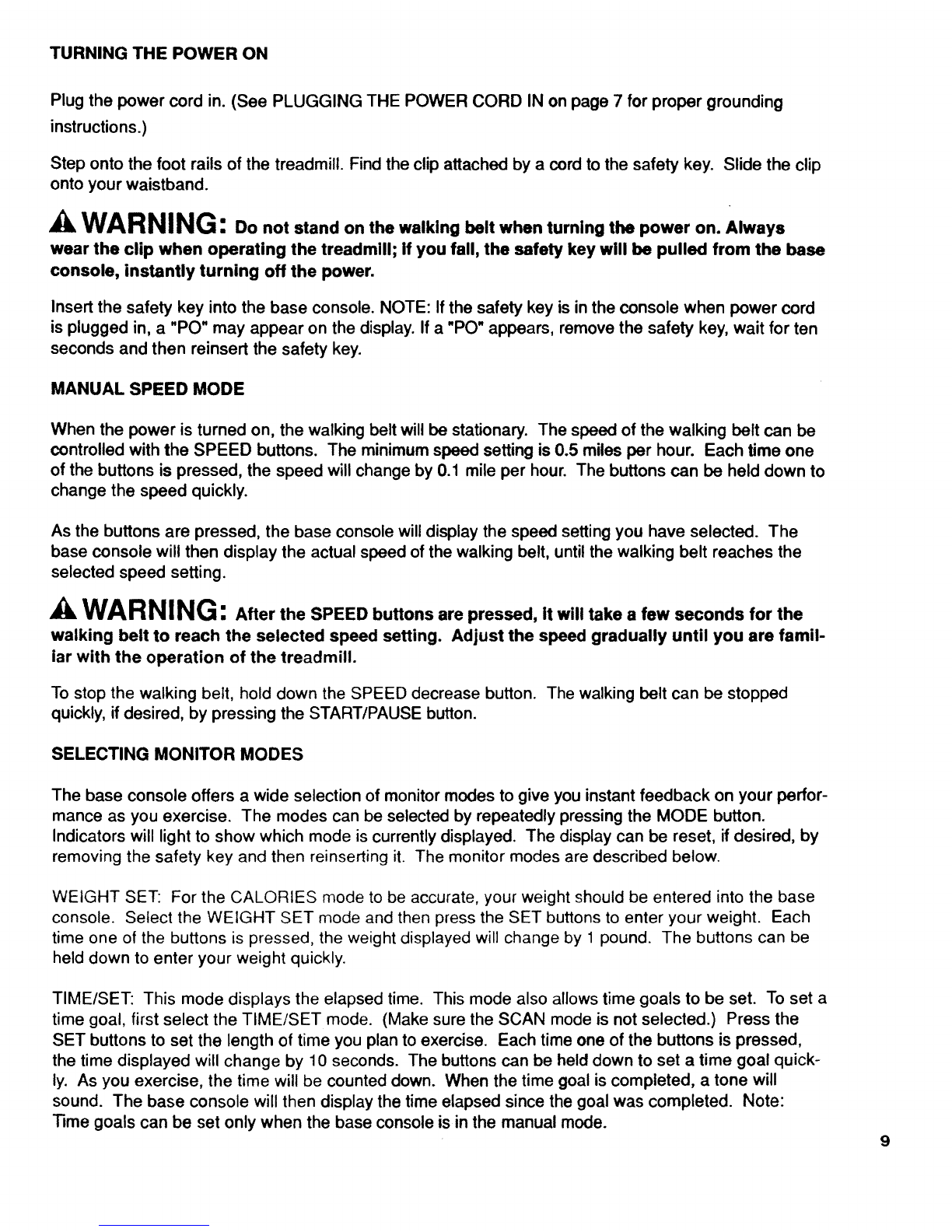

TURNINGTHE POWERON
Plugthepowercordin.(See PLUGGING THE POWER CORD IN on page 7 for proper grounding
instructions.)
Step onto the foot rails of the treadmill. Find the clip attached by acord to the safety key. Slide the clip
onto your waistband.
WARNING: Do not stand on the walking belt when turning the power on. Always
wear the clip when operating the treadmill; if you fall, the safety key will be pulled from the base
console, instantly turning off the power.
Insert the safety key into the base console. NOTE: If the safety key is in the console when power cord
is plugged in, a "PO" may appear on the display. If a "PO" appears, remove the safety key, wait for ten
seconds and then reinsert the safety key.
MANUAL SPEED MODE
When the power is turned on, the walking belt will be stationary. The speed of the walking belt can be
controlled with the SPEED buttons. The minimum speed setting is 0.5 miles per hour. Each time one
of the buttons is pressed, the speed will change by 0.1 mile per hour. The buttons can be held down to
change the speed quickly.
As the buttons are pressed, the base console will display the speed setting you have selected. The
base console will then display the actual speed of the walking belt, until the walking belt reaches the
selected speed setting.
WARNING: After the SPEED buttons are pressed, it will take a few seconds for the
walking belt to reach the selected speed setting. Adjust the speed gradually until you are famil-
lar with the operation of the treadmill.
To stop the walking belt, hold down the SPEED decrease button. The walking belt can be stopped
quickly, if desired, by pressing the START/PAUSE button.
SELECTING MONITOR MODES
The base console offers a wide selection of monitor modes to give you instant feedback on your perfor-
mance as you exercise. The modes can be selected by repeatedly pressing the MODE button.
Indicators will light to show which mode is currently displayed. The display can be reset, if desired, by
removing the safety key and then reinserting it. The monitor modes are described below.
WEIGHT SET: For the CALORIES mode to be accurate, your weight should be entered into the base
console. Select the WEIGHT SET mode and then press the SET buttons to enter your weight. Each
time one of the buttons is pressed, the weight displayed will change by 1 pound. The buttons can be
held down to enter your weight quickly.
TIME/SET: This mode displays the elapsed time. This mode also allows time goals to be set. To set a
time goal, first select the TIME/SET mode. (Make sure the SCAN mode is not selected.) Press the
SET buttons to set the length of time you plan to exercise. Each time one of the buttons is pressed,
the time displayed will change by 10 seconds. The buttons can be held down to set a time goal quick-
ly. As you exercise, the time will be counted down. When the time goal is completed, a tone will
sound. The base console will then display the time elapsed since the goal was completed. Note:
Time goals can be set only when the base console is in the manual mode. 9

DISTANCE/SET: This mode displays the distance you have traveled. This mode also allows distance
goals to be set. To set a distance goal, first select the DISTANCE/SET mode. (Make sure the SCAN
mode is notselected.) Press the SET buttonsto set the distance youplan to travel. Each time one of
the buttons is pressed, the distance displayed will change by 0.2 miles. The buttons can be held down
to set a distance goal quickly. _As you exercise, the distance will be counted down. When the distance
goal is completed, a tone will sound. The console will then display the distance you have traveled
since the goal was completed. Note: Distance goals can be set only when the base console is in the
manual mode.
SPEED: This mode displays the speed of the walking belt. Note: Each time one of the SPEED but-
tons is pressed, this mode will be displayed automatically for approximately 5 seconds.
CALORIES: This mode displays the total number of Calories you have burned. For accuracy, first
select the WEIGHT SET mode and enter your weight into the base console.
PULSE: This mode displays your heart rate. Plug the pulse earclip into the jack on the base console,
and attach the earclip to your left ear lobe. Slide the clothes clip onto your collar to prevent excessive
movement of the earclip wire. After a few seconds, your heart rate will be displayed. Note: If your
heart rate is not displayed, rub your ear lobe lightly and reposition the earclip.
SCAN: This mode automatically displays all modes except WEIGHT SET, for approximately 3 seconds
each, in a repeating cycle. Note: The PULSE mode will be displayed only if the pulse earclip is worn.
TURNING OFF THE POWER
Stand on the foot rails of the treadmill. Remove the safety key from the base console.
kWARNING: Alwaysremove the safety key from the base console when you finish
exercising.
TROUBLE-SHOOTING AND STORAGE
10
Most treadmill problems can be solved by following the simple steps below. If further assistance
is needed, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a. Make sure the power cord is plugged into a properly grounded outlet. (See OPERATION AND
ADJUSTMENT in this manual.) If an extension cord is necessary, use oniy a 14-gauge generai_
purpose cord of approximately five feet in length.
b. After the power cord has been plugged in, make sure the safety key is fully inserted into the base
console. Various indicators on the base console should light. (See OPERATION AND ADJUST-
MENT in this manual.)
C° Check the circuit breaker located on the front of the
frame near the power cord. The circuit breaker is
designed to protect the electrical system. If the circuit
breaker has tripped, the switch will protrude as shown.
To reset the circuit breaker, allow the treadmill to cool
for five minutes, and push the switch back in. Tripped Reset

2. SYMPTOM:THEPOWERTURNSOFFDURINGUSE
a.
b°
C.
Check the circuit breaker located on the treadmill frame near the power cord. If the circuit break-
er has tripped, the switch will protrude. (See the drawing above.) To reset the circuit breaker,
wait for five minutes and then press the switch back in.
Make sure the power cord is plugged in.
Remove the safety key from the base console. Reinsert the safety key fully into the base
console. Various indicators on the base console should light.
3. SYMPTOM: THE CONSOLE DOES NOT FUNCTION PROPERLY
a. If a console malfunction occurs, an error code may appear on the console: four E's or a PO on
the display. If an error code appears, remove the safety key, wait for ten seconds and then rein-
sert the safety key. If the error code appears again, call our Customer Service Department. Do
not operate the treadmill until the problem is corrected.
4. SYMPTOM: THE PULSE EARCLIP DOES NOT FUNCTION PROPERLY
a. Make sure the pulse earclip is plugged fully into the jack on the console. Rub your left ear lobe
and reposition the earclip. Attach the clothes clip to your collar.
b. Try standing still while measuring your pulse.
c. The pulse earclip may need to be cleaned. Press the earclip open, and wipe the two clear
circles inside the earclip, using a cotton swab saturated with denatured alcohol.
,A WARNING: The pulse earclip is not a medical device, various factors, including the
user's movement while exercising, may affect the accuracy of heart rate readings. The
earclip is intended only as an exercise aid in determining heart rate trends in general.
5. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Walk on the treadmill for 10 minutes to break in the walking platform. During this break-in period,
it is normal for the walking belt to slow.
b. If an extension cord is needed, use only a 14-gauge general-purpose cord of approximately five
feet in length.
C. If the walking belt is overtightened, treadmill performance
may be reduced and the walking belt permanently
damaged. Remove the safety key and UNPLUG THE
POWER CORD. With the allen wrench included, turn
both rear roller adjustment bolts counterclockwise, 1/4 of
a turn. Plug in the power cord and reinsert the safety
key. Run the treadmill for a couple of minutes. Repeat
until the tension of the walking belt is correct. When the
tension is correct, you should be able to lift each side of
the walking belt 3-4 inches off the walking platform. The
center of the walking belt should just touch the surface of
the walking platform. Be careful to keep the walking belt
centered on the walking platform.
Rear Roller
Adjustment Bolts
11

6. SYMPTOM: THE WALKING BELT IS OFF-CENTER OR SLIPS WHEN WALKED ON
a.
b.
c.
If the walking belt hasshifted to the-left, first remove the
safety key from the console and UNPLUG THE POWER
CORD. With the allen wrench included, turn the left rear
roller adjustment bolt clockwise, and the right bolt coun-
terclockwise, 1/4 of a turn each. Plug in the power cord
and reinsert the safety key. Run the treadmill for a cou-
ple of minutes. Repeat as necessary until the walking
belt is centered.
If the walking belt has shifted to the right, first remove the
safety key from the console and UNPLUG THE POWER
CORD. With the allen wrench included, turn the left rear
roller adjustment bolt counterclockwise, and the right bolt
clockwise, 114 of a turn each. Plug in the power cord
and reinsert the safety key. Run the treadmill for acou-
ple of minutes. Repeat as necessary until the walking
belt is centered.
If the walking belt slips when walked on, first remove the
safety key from the console and UNPLUG THE POWER
CORD. With the allen wrench included, turn both rear
roller adjustment bolts clockwise, 114 of a turn. Plug in
the power cord and reinsert the safety key. Run the
treadmill for a couple of minutes. Repeat as necessary
until the tension of the walking belt is correct. When the
a.
I9
I
9
,i W
_IE'-"
I1€--
tension is correct, you should be able to lift each side of the walking belt 3-4 inches off the walk-
ing platform. The center of the walking belt should remain just at the surface of the walking plat-
form. Be careful to keep the walking belt centered on the walking platform.
7. SYMPTOM: THE CUSHION SPRING/FOOT HITS THE FRAME
a. If the cushion spring/foot hits the bottom of the frame when
you run, the cushion spring/foot should be adjusted.
UNPLUG THE POWER CORD. With the help of second
person, raise the back end of the treadmill and stand it on
the front end. Remove the two nuts (36) from the right
cushion spring/foot (60). Insert the two cushion spring
bolts (59) through the two holes closest to the foot.
Reattach the cushion spring/foot with the ,_'o nuts, Adjust
the te|t cushion spring/foot (not shown) in the same man-
ner. This adjustment wil! give the treadmill a more firm
cushion as you run.
STORAGE
12
Unplug the power cord when the treadmill is not in use. Remove
the bolts and washers from the lower end of the handrails. Keep
the bolts and washers in a secure location. Carefully lay the
handrails and console on the treadmill. Be careful not to pinch
the wires in the handrail. The allen wrench can be stored con-
veniently by removing the backing from the wrench clip and
pressing it onto one of the endcaps.

CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for individuals over the age of 35 or Individuals with pre-existing
health problems.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important to exercise with the proper intensity. The proper
intensity can be found by using your heart rate as a guide. For effective aerobic exercise, your heart
rate should be maintained at a level between 70% and 85% of your maximum heart rate as you
exercise. This is known as your training zone. You can find your training zone in the table below.
Training zones are listed for both unconditioned and conditioned persons according to age.
AGE
20
25
30
35
40
45
50
UNCONDITIONED
TRAINING ZONE
(BEATS/MIN)
138-167
136-166
135-164
134-162
132-161
131-159
129-156
CONDITIONED
TRAINING ZONE
(BEATS/MIN)
133-162
132-160
130-158
129-156
127-155
125-153
124-150
AGE
55
60
65
70
75
8O
85
UNCONDITIONED
TRAINING ZONE
(BEATS/MIN)
127-155
126-153
125-151
123-150
122-147
120-146
118-144
CONDITIONED
TRAINING ZONE
(BEATS,qMIN)
122-149
121-147
119-145
118-144
117-142
115-140
114-139
During the first few months of your exercise program, keep your heart rate near the low end of your
training zone as you exercise. After a few months of regular exercise, your heart rate can be increased
gradually until it is near the middle of your training zone as you exercise. You can measure your heart
rate using the pulse mode of the console. Exercise for at least four minutes, and then measure your
heart rate immediately. If your heart rate is too high, decrease the intensity of your exercise. If your
heart rate is too low, increase the intensity of your exercise.
kWARNING: The pulse earclip is not a medical device. Various factors, including your
movement during exercise, may affect the accuracy of heart rate readings. The earclip is
intended only as an exercise aid in determining heart rate trends in general.
WORKOUT GUIDELINES
Each workout should consist of three basic parts: a warm-up, 20 to 30 minutes of training zone exercise,
and a cool-down. Warming up prepares the body for exercise by increasing circulation, delivering more
oxygen to the muscles and raising the body temperature. Begin each workout with 5 to 10 minutes of
stretching and light exercise to warm up. Then, increase the intensity of your exercise to raise your heart
rate to your training zone for 20 to 30 minutes. Breathe regularly and deeply as you exercise--never
hold your breath. Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase
the flexibility of your muscles as welt as help to decrease soreness and other post-exercise problems.
To maintain or improve your condition, complete three workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. The key to success is CONSISTENCY. 13

PART LISTmModel NO. 831.297080 Rev.11/92
Key Reorder Key Reorder
No. No. Qty. Description No. No. Qty. Description
1 109244 1 Left Handrail 45 110928 1 Short Incline Cable
2 013464 2 Long Handrail Bolt 46 108426 2 Incline Knob Bracket
3 106337 1 Safety Key/Clip 47 108427 2 Incline Lever
4 054013 1 Clothes Clip 48 110589 1 Motor Mount Plate
5 101508 1 Pulse Earclip 49 105477 8 Motor Mount Nut
6 108080 35 Small Screw 50 101263 1 Motor Pivot Bolt
7 109274 1 Console Plate 51 108094 1 Power Supply Board
8 111441 1 Console 52 015071 4 Plastic Stand-Off
9 109251 2 Short Wire Harness 53 109438 1 Mounting Plate
10 109252 1 Handrail Wire Harness 54 108473 4 Motor Isolator
11 012108 6 Locknut 55 108474 1 Ground Strap
12 013564 2 Leg Bolt 56 110286 1 Motor
13 111436 1 Incline Shock 57 013207 1 Carriage Bolt
14 059019 1 Rubber Bumper 58 108276 1 Pulley/Flywheel/Fan
15 NSP 1 Frame 59 110926 4 Cushion Spring Bolt
16 110848 1 Shock Bracket 60 111432 2 Cushion Spring Foot
17 013303 2 Lower Shock Bolt 61 110568 2 Cushion Cover
18 110846 1 Shock Release 62 110929 1 Long Incline Cable
19 031238 1 Choke 63 102585 2 Cable Tie
20 109786 1 Controller 64 108470 1 Right Endcap
21 109246 1 Right Handrail 65 105444 2 Rear Roller Adj. Bolt
22 109095 4 Hood Tab 66 045010 1 Allen Wrench
23 014157 2 Ground Washer 67 016028 1 Wrench Clip
24 019084 1 Grommet 68 109788 1 Rear Roller
25 031229 1 Power Cord 69 105000 2 Rear Roller Spacer
26 109382 1 Circuit Breaker 70 108469 1 Left Endcap
27 109269 2 Frame Endcap 71 100691 6 Platform Screw
28 104623 10 Belly Pan Pin 72 109278 8 Foot Rail Washer
29 106615 1 Front Roller Adj. Washer 73 108428 1 Left Foot Rail
30 014127 3 Roller Adjustment Washer 74 108404 6 Hood Screw/Foot Rail Screw
31 052014 2 Front Wheel 75 111443 1 Motor Hood w/Decal
32 105329 2 Wheel Bolt 76 104063 4 Short Handrail Bolt
33 110752 1 Incline Leg 77 108778 1 Retainer
34 014087 4 Handrail Washer 78 102959 1 Switch Bolt
35 108472 1 Belly Pan 79 012152 1 Switch Nut
36 012082 7 Nut 80 109103 1 Speed Switch Bracket
37 104514 1 Tension Spring 81 102955 1 Optic Switch
38 014041 2 Tension Washer 82 106939 1 Belt
39 111437 1 Front Roller Pulley 83 111444 1 Optic Disk
40 111434 1 Walking Platform 84 013580 1 Shock Bolt
41 111433 1 Walking Belt 85 013300 4 Endcap Screw
42 110755 1 Right Foot Rail 86 101049 4 Hood Tab Screw
43 111008 2 Foot Incline Knob # 110758 1 Owner's Manual
44 109265 2 Belt Guide
14 Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the
back cover 6f this manual for information about ordering replacement parts.

EXPLODED DRAWING--Model No. 831.297080 Rev.11/92
74
73
70 67
66
76
"" 68 69
30
65 64
85 47
46
8
V 4
5\
6
2
42
81
10
84
L
16,17
36
18
6
48 49
\/_
56
54
55
31:
• J
33 12 32
6
5O
27
©1992 Sears, Roebuck and Co. 15

ORDERING REPLACEMENT PARTS
Each TREADMILL has its own MODEL NUMBER. Always mention the MODEL NUMBER when
requesting service or repair parts for your TREADMILL.
All parts listed may be ordered through SEARS, ROEBUCK AND CO. SERVICE CENTERS and most
SEARS RETAIL STORES.
If parts you need are not stocked locally, your order will be transmitted to a SEARS PARTS DISTRIBU-
TION CENTER for handling.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
1. The MODEL NUMBER of the product (831.297080).
2. The NAME of the product (SEARS _ LIFESTYLER 8.0 ESP treadmill).
3. The REORDER NUMBER of the part(s), from page 14 of this manual.
4. The DESCRIPTION of the part(s), from page 14 of this manual.
Your SEARS merchandise has added value when you consider that SEARS has service units nation-
wide staffed with SEARS trained technicians specifically trained on SEARS products, having the parts,
tools and equipment to ensure that we meet our pledge to you: "We service what we sell."
SOLD BY SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
Part No. 110758 11/92 Printed in USA
