LighTech STEYA216 User manual
29 Maggio 2018 Pg 1/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Part number: STEYA216 (crash pads kit for Yamaha R6 2017- )
Introduction
Thank you for purchasing a LighTech product.
Please read carefully the instructions contained in this manual and make sure to work safely before start
mounting the equipment.
For the assembly of the components LighTech recommends to refer to skilled personnel. LighTech
is not liable for operations carried out without proper training or knowledge, which could lead to
risky situations for You and other people.
It is recommended to work in an environment with good illumination conditions and proper spaces.
To ensure the safety of the working area keep away children and animals.
Make sure to use proper tools and equipment, in god shape.
LighTech is not liable for damaged products and/or property damages and personal injuries due to
an improper assembly.
General information
Make sure that the motorcycle is in a stable and safe position.
Make sure that it has no hot mechanical components (especially engine, exhaust pipe, brakes).
Otherwise, wait until they cool down before proceeding.
Use suitable clothing and do not wear rings, necklaces, large garments and hair down which could
be dangerous.
The product is designed and tested to be used with the motorcycle in original conditions, not with
reference to not original components from third parties.
This information material can be downloaded from the Website www.lightech.it - email:
Assembly
Before proceeding, please examine the drawing supplied in the packaging.
The information material includes an exploded view drawing with the codes required for spare part
order.
If not specifically mentioned, use standard tightening torques (UNI/ISO) appropriate to the screw
size.
Any motorcycle is subject to vibrations, therefore is necessary to use anti-vibration threadlocker
(weak) to avoid the loosening of the screws and their possible loss.
Before using the vehicle, check carefully the job done and the correct functionality of the installed
components.
29 Maggio 2018 Pg 2/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Usage and maintenance
For street use LighTech recommends a comprehensive periodic check of the protections.
For a racing use LighTech recommends a comprehensive check before each use.
The protections have been designed and tested in its entirity. Changes to components and/or the
use of third-party components on the protections could become causes of damages of which
LighTech is not liable.
Before using the product, verify the absence of crackings, deformations, scratches, wear and
corrosion. If any irregularities are detected before using the motorcycle, restore the original state
of the protections by replacing the necessary parts.
ATTENTION: An exceptional event as a fall could cause irreversible damages to the protections.
Before reusing the motorcycle, check the proper functionality and integrity of the protections. In
case of damages, restore the original state of the protections by replacing the necessary parts in
order to avoid potentially dangerous situations.
The use of the vehicle in extreme environmental conditions (coastal areas, extreme temperatures,
chemicals, road salt) could damage the components of the protections and requires a more
frequent maintenance commensurate to the actual wear.
Cleaning the protections with aggressive products or with high pressure cleaning hoses could cause
aesthetic damages to protections.
The purchase of a used protection whose life is not known requires a careful check of the
components.
As a safety guarantee, LighTech recommends to purchase from official and professional sales
channels.
ATTENTION:
The pictures used in this document could differ in some components and/or
colours compared to the product that you have purchased, therefore they should
be considered just as an indication and an example and not a contractual element.
29 Maggio 2018 Pg 3/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Left side fitment
Remove fairings loosen carefully the screws indicated with yellow arrows below
Remove the upper part of the fairing close to the windscreen, re leasing the buttons and
the indicated screw (see yellow arrow below)
29 Maggio 2018 Pg 4/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Remove the internal panel of the fairing close to radiator, releasing the internal buttons.
Hold on the fairing and remove it pushing a little bit forward and towards you (before
proceeding look at the 3 pictures below)
The following pictures will explain you better how to remove the side fairing panel
29 Maggio 2018 Pg 5/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919

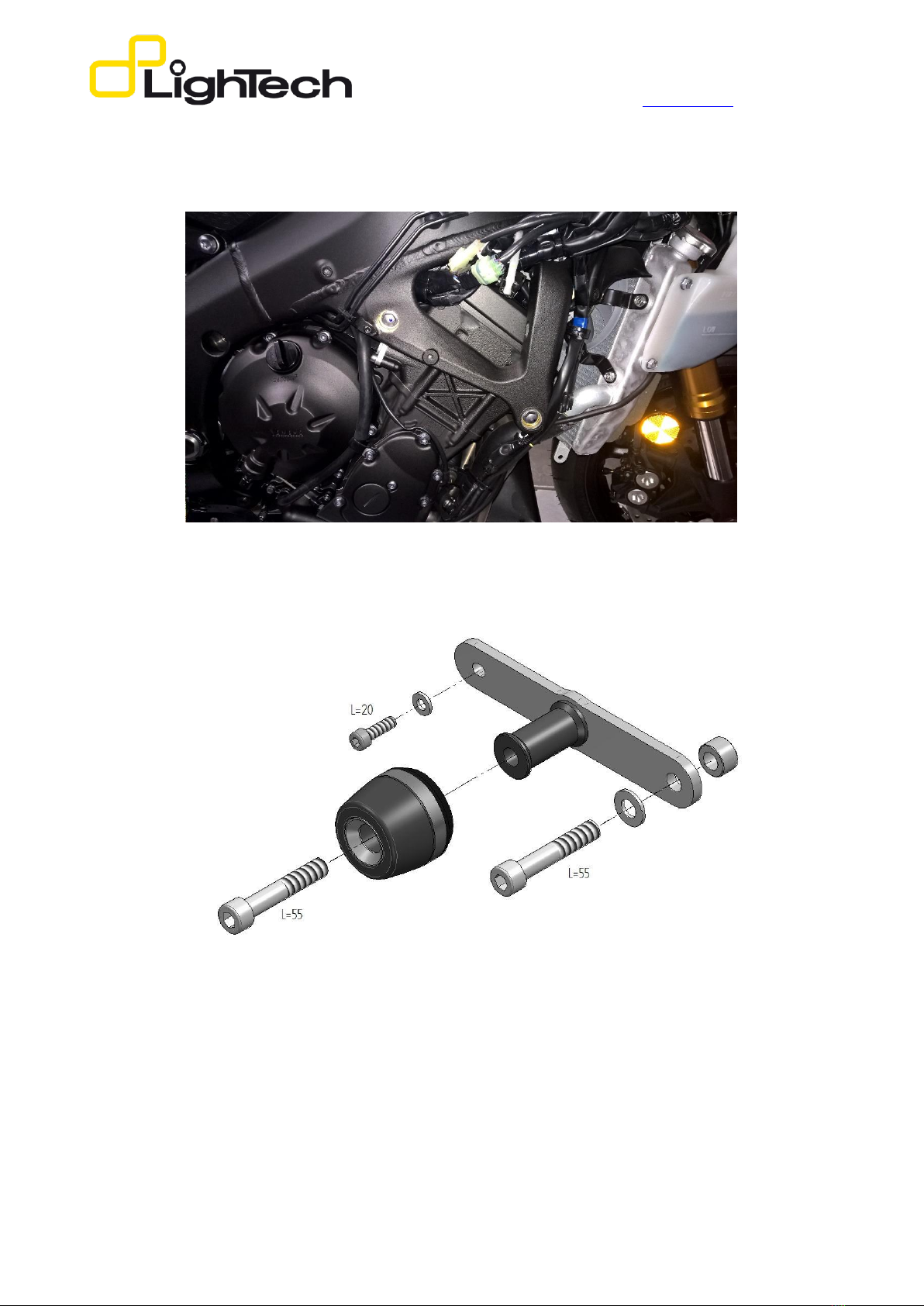

Left side without the fairing
Check the PDF included into the box of this kit and prepare the parts required as below
29 Maggio 2018 Pg 6/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Remove only the front screw which works as support for the engine and fit only the front
part of the protection kit without tightening definitely the screw
29 Maggio 2018 Pg 7/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Fit the rear part of the protection kit using the supplied screw without tightening definitely
the screw
Push up the joint point and tight definitely the first screw fitted
Remove the rear part of the protection
29 Maggio 2018 Pg 8/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Fit the fairing panel pushing carefully and pay attention to do not scratch the protection
support fitted (see picture below). We suggest you to make this operation with the help of
another people or using tape as protection. Fit the internal fairing panel and the upper
fairing panel
Fit the rear part of the protection tightening definitely the screw indicated below
Push
carefully
Attention: do not
scratch this
29 Maggio 2018 Pg 9/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Now you can fit the crash pad (tightening torque 30 N/m)
Insert the protection tape, remove the plastic wrap and paste it to the fairing (see pictures
below)
29 Maggio 2018 Pg 10/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Right side fitment
Remove the screws indicated below with the yellow arrows
Remove the upper right panel and the internal panel close to the radiator (as did before
with the left side)
Remove the fairing following the picture below
The following picture will help you to understand how to remove the fairing
29 Maggio 2018 Pg 11/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
See below the right side without fairing
Fit the support for the right side crash pad tightening the screws definitely as pictures
below
29 Maggio 2018 Pg 12/12
Lightech Srl
Via Serenissima 11 - 31025 S. Lucia di Piave (TV)
Tel. +39 0438 453010/Fax +39 0438 655919
Fit the fairing complete
Fit the crash pad (tightening torque 30 N/m)
