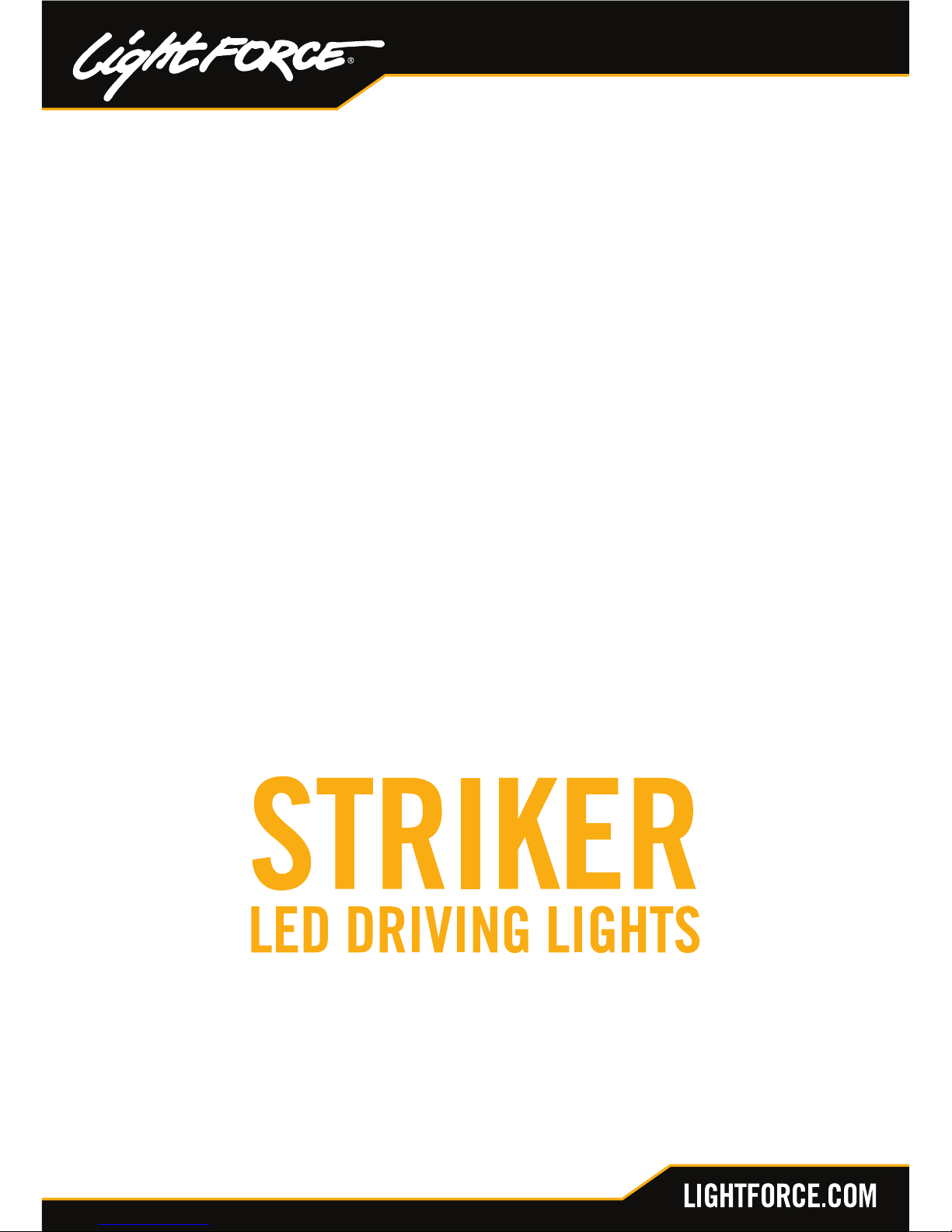

STRIKER LED
USER INSTRUCTIONS
USER INSTRUCTIONS

1
STRIKER LED INSTALLATION INSTRUCTIONS
DIY TWIN PACK WITH
INSTALLATION KIT CONTENTS
• 2 x Striker LED driving lights
• 2 x Spot lters
• 2 x Reversible mount and hardware
• 1 x User instructions
• 1 x DIY harness installation kit
• 1 x Driving light harness
• 1 x HB3 patch harness
• 1 x H4 patch harness
• 1 x Switch loom
• 1 x Screw for relay installation
• 4 x T-taps for wires (2 sizes)
• 4 x Spare crimps for custom wiring
• 6 x Spade terminals (2 sizes)
• 10 x Cable ties.
TOOLS AND CONSUMABLES
REQUIRED
• Spanner to access battery terminals
• Ratchet with 3 inch extension
• 17mm deep and shallow socket
• Pointy nose pliers
• Wire cutters
• Drill
• 12mm drill bit
• Phillips head driver bit
• Torch (recommended)
• Torque Wrench (recommended).
TOOLS AND CONSUMABLES
REQUIRED FOR NON-STANDARD
INSTALLATIONS
• 12mm socket
• Crimping tool.
FASTENER TORQUE
SPECIFICATIONS
M10 x 35mm bottom and side mount
bolt - 35Nm (26lb-ft).
IMPORTANT NOTES
1. Mounting points vary in design and load
capacity, ensure the weight of the light (1kg
per light with mount) is within manufacturer’s
recommended weight specications before
tment.
2. Failure to correctly mount a light may cause
damage to the light and your vehicle.
Visit lightforce.com/installations to view
instructional videos.

2
STRIKER LED INSTALLATION INSTRUCTIONS
TECHNICAL SPECIFICATIONS
• Power: 60 Watts
• Distance to 1 lux (pair): 754m
• Distance to 1 lux (single): 533m
• Input voltage range: 10 – 30V
• Current draw: 4.4 Amps @ 13.2V
• Colour temperature: 5000K
• LED estimated lifespan: 50,000 hours
• Operating temperature: -40° to 63°C
• Weight: 1kg (including mounting).
FEATURES
• Made in Australia
• 15 x high quality LumiLED LEDs providing
consistent high performance
• LED spot reectors with the ability to use
modular lters to produce a wide driving
light beam pattern or ood diffusion lter
for work light environment
• IP68 and IP69K resistant to water and
dust ingress
• 75mm slim footprint for multiple
mounting options
• Reverse polarity voltage protection and
high current waterproof connectors
• PCB designed with reduced electro
magnetic interference
• CE certied
• Thermal overload protection protects the
light from overheating
• Hard wearing UV stable powdercoat nish
• High pressure diecast aluminium housing
and bezel providing strength and weight
reduction
• Impact resistant polycarbonate lter for
added protection
• Genuine Gore®waterproof membrane
with mechanical seal
• 3 year warranty.
GENERAL CARE AND
SAFETY TIPS
To wash your lights, use plenty of warm
soapy water and a soft cloth only (this
prevents surfaces from marking). Never use
any solvent based cleaners or industrial
detergents when cleaning these lights as
permanent damage may occur.
PERSONAL SAFETY WARNING
WARNING: High intensity light source.
Do not look directly into the light during
operation, eye injury may result.

3
STRIKER LED INSTALLATION INSTRUCTIONS
1
3 4
5
6
7 8
9
10
Green Red
Black Red
Yellow

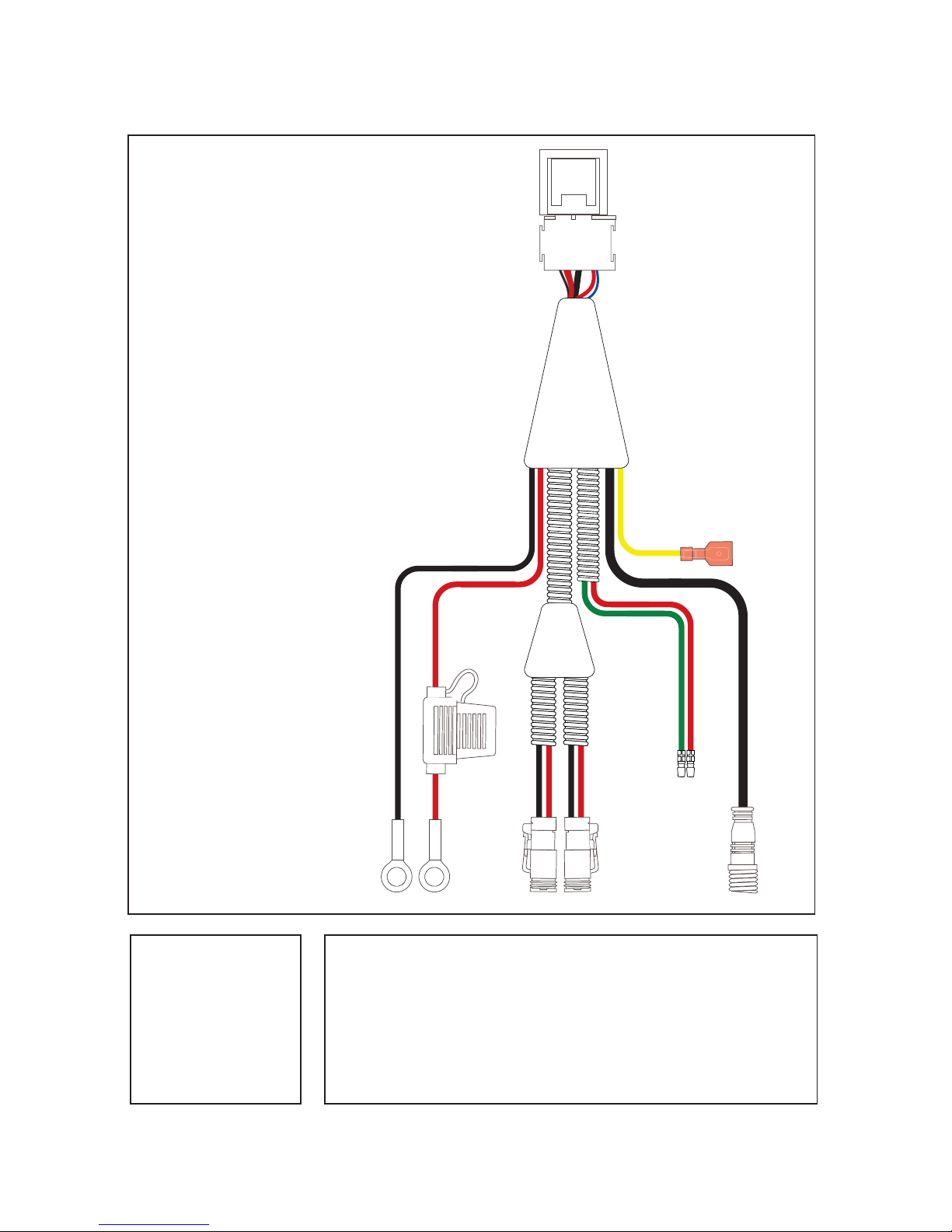

Fig 1. Driving Light Harness
1. 40 amp Relay
2. Insulated sleeved wires
3. Battery connector (negative)
4. Battery connector (positive)
5. 15 amp fuse
6. Driving light connectors
7. High beam pickup wire
with bullet terminal (negative)
8. High beam pickup wire
with bullet terminal (positive)
9. Dashboard switch loom connector
10. Dash illumination cable (optional).
Fig 3. Connectors for non-standard installationsFig 2. Screw
for xing relay
T-taps for wires
Insulated male
spade terminals
Un-insulated male
spade terminal
2

4
STEP 1. MOUNT THE LIGHTS
1. Install the driving lights onto a suitable
mounting surface
2. Remove the nyloc nut and M10 washer from
M10 x 35mm bolt attached to the bottom of
mounting bracket
3. Locate the bracket in a suitable position
using the M10 x 35mm bolt. It is
recommended that the base area of the
mounting bracket is totally supported
4. Align the light to preferred driving position
5. Fit the washer and M10 nyloc nut, then
tighten using a 17mm socket and ratchet to
specied torque (35Nm). Do not use
rattle guns
6. Tighten 2 x M10 x 35 side bolts to
recommended torque (35Nm).
WIRING HARNESS INSTALLATION
STEP 2. INSTALL THE RELAY AND
CONNECT THE LIGHTS
1. Remove the main ground wire from the
negative battery terminal. WARNING: This
may result in loss of radio security code and
clock settings. Please consult your owner’s
manual before disconnecting
2. Mount the 40 amp relay (see gure 1) in a
suitable place within the engine bay, using
the screw supplied (gure 2) and your drill
with a Phillips head driver bit. Ensure that
the red (positive) and black (negative) ring
terminals reach the appropriate battery
terminals. DO NOT CONNECT TERMINALS
TO THE BATTERY AT THIS STAGE
3. Route the insulated sleeved wires that run
from the relay to the driving light connectors
to each of your installed Striker LED
Driving Lights and connect the driving light
connectors to the back of each light. Ensure
that cables do not touch the radiator or
come in contact with any sharp edges
4. Secure all excess wire to the vehicle with
cable ties supplied.
STEP 3. CONNECT PATCH HARNESS
TO HEADLIGHT CONNECTOR
1. Select the HB3 or H4 patch harness (refer to
your vehicle’s owner’s manual and gures 4
and 5 below) to determine which is correct)
and connect it to a headlight connector on
your vehicle. If your headlights are a type
other than HB3 or H4, see item 3 below.
2. Connect the high beam pickup wires on the
driving light harness to the patch harness,
red to red, green to green.
3. NOTE: if you are installing into a vehicle with
headlights that are NOT HB3 or H4, you will
need to remove the bullet terminals on the
red and green high beam pickup wires on
the driving light harness (see gure 1) and
crimp each wire into a blue insulated male
spade terminals using a crimping tool. Then
clamp the provided t-taps to the high beam
wires on one of the vehicle’s headlights. Use
the red or blue t-taps depending on the wire
diameter. Finally, connect the blue insulated
male spade terminals into the t-taps on the
harness.
STRIKER LED INSTALLATION INSTRUCTIONS
Green
Red Blue
Fig 5. H4 patch harness
Green
Red
Fig 4. HB3 patch harness
Headlight
connector
Headlight
connector

5
STEP 4. INSTALL THE DASH SWITCH
1. Find a suitable place on the dash to mount
the dash switch.
2. Disconnect the spade terminals at the back
of the dash switch (refer to gure 7 below)
3. Unscrew the plastic nut from the rear of
the dash switch
4. Carefully drill a hole for the dash switch
using a 12mm drill bit.
5. Push the dash switch through the hole, re-t
the plastic nut and reconnect the spade
terminals to the dash switch according the
switch wiring diagram in Figure 6.
STEP 5. CONNECT THE DASHBOARD
SWITCH LOOM
1. Route the dashboard switch loom
connector (on the driving light harness)
carefully through the vehicle’s rewall using
pointy nose pliers to pull the cable through.
A torch will help you to see what you are
doing. Be careful to avoid crushing the
connector. Ensure the wires are kept away
from any heat sources
2. Connect the dashboard switch loom
connector on the driving light harness (see
item 1, gure 1) to the dashboard switch
loom pictured in Figure 7 below. Note that
this standard switch illuminates only when
turned on.
If you are using a different switch with dash
illumination (not included), connect the dash
illumination cable (on the switch loom) to your
switch, as directed by the user instructions for
the switch.
STEP 6. CONNECT TO THE BATTERY
1. Connect the ring on the red wired battery
connector to the positive battery terminal
using a spanner
2. Connect the ring on the black wired battery
connector to the negative battery terminal
using a spanner.
STEP 7. SECURE CABLES
1. Use the supplied cable ties to secure all
loose cables and remove excess using wire
cutters.
STEP 8. TEST
1. Turn on the ignition and test correct light
operation by switching on your high beam.
Ensure the lights only activate when
switched to high beam.
STRIKER LED INSTALLATION INSTRUCTIONS
Fig 7. Dashboard switch loom
Dash illumination cable
Dashboard switch loom connector
Dash switch
Black (Negative)
Blue (Relay)
Red (High beam)
Fig 6. Dash switch wiring
(front view)
Plastic nut
Spade terminals

6
SECURITY KIT (ATNSG2)
Simple-to-install security bolts and nuts help
protect your investment against theft. This kit
contains 4 x M10 x 35mm anti-theft bolts plus
2 x M10 security nuts for the mounting bolts,
both with corresponding coded keys requiring a
17mm, 11/16” spanner.
All bolts are machined from 304 stainless steel.
The key will only t the anti-theft bolts/nuts in
one position. Coded key is machined from steel
with zinc protective coating.
INSTRUCTIONS FOR SECURING
LIGHT TO MOUNTING BRACKET
USING THE SECURITY KIT
1. Remove the standard M10 bolts and washers
from each side of the existing mounting
bracket and t the anti-theft bolts using the
security nut socket, reusing the existing
washers
2. Remove the standard M10 nyloc nut and
replace with anti-theft nyloc nuts as per the
diagram below.
STRIKER LED ACCESSORIES
Fig 8. Security Kit Mounting
DRIVING LIGHT FILTERS
Durable polycarbonate covers should remain
tted to driving lights at all times. Capable of
absorbing road grime and bombardment for
many years, these replaceable covers should
be renewed from time to time to protect your
investment and maintain maximum output.
Your Striker LED lights come standard with clear
spot lters (STRIKERFCS).
Clear combo (STRIKERFCC) and clear ood
(STRIKERFCF) lters are also available and can
be used to achieve a wider driving light beam
pattern or diffused ood of light.
STAINLESS STEEL BRACKET
This stainless steel bracket (STRIKERLEDBKT)
is supplied with an M10 x 35mm coach head
bolt with a nut and washer. These can be used
to mount a Striker LED vertically or horizontally
to any solid surface and allows the user more
exibility in directing the light.
TUBE MOUNTING BRACKETS
Lightforce supplies a variety of tube mounting
brackets to allow you to easily mount your
Striker LEDs to common nudge and roll bars.
SINGLE STRIKER LED
Lightforce supplies single Striker LED
Driving Lights (DLSTRIKERLEDX1) which are
packaged with a spot lter, a reversible mount
and hardware, user instructions and a 2 pin
waterproof connector.
The 2 pin waterproof connector allows the single
Striker LED to be wired into a Lightforce Driving
Light Harness.
Please consult the user instructions provided
with the single Striker LED for more information
on installation.
Nut Socket

7
For warranty information and to register your product for
warranty purposes, visit lightforce.com/warranty
LIGHTFORCE AUSTRALIA PTY LTD
11 Manton Street, Hindmarsh SA 5007 Australia
www.lightforce.com • Email: [email protected]
Australia Telephone: [phone] | Fax: [phone]
International Telephone: [phone] | Fax: [phone]
All logos and images are subject to relevant trademark and copyright protection Lightforce Pty Ltd. Copyright © 2018. Data and
specications contained maybe subject to change without notice. Lightforce Australia Pty Ltd shall not be liable for damage, malfunction,
failure resulting from accident, misuse, misapplication, unauthorised repair, neglect, modication, unauthorised or non standard replacement
parts, accessories, bulbs, batteries or voltage or operation of the product beyond its technical and or environmental specication.
180405-1-Striker-LED-User-Instructions
