Calculite® Matrix® Lensed Downlight 9X9PL
Page 1 of 2 9” X 9” Square Aperture (2) 26W Quad / 32/42W Triple Tube Prismatic Lens
4
2 31 6
9"
10 1/4"
1 1/4" Max.
Ceiling Thickness
5
7
5 1/2"
9"
10 1/4"
9 9/16"
8 1/8"
14 1/8"
12 3/8"
9 9/16"
Top View
Features
1. Reflector Trim: Pre-finished aluminum with low iridescence clear finish.
Overlap flange accommodates different ceiling types. Precision mitered
flange corners. Prismatic spread lens, 5/32” thick tempered glass.
2. Upper Reflector: High efficiency, 97%, Specular Clear.
3. Housing: 20 ga. galvanized formed steel. Centerline notches and holes
for consistent alignment of multiple fixtures. Accomodates ceilings up to
1 1/4" thick.
4. Ballast Assembly: Door-mounted for easy service, allows replacement from
inside of fixture.
5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim
to housing for quick tool-less installation. Positive tension holds flange tight
against ceiling.
6. J-Box: 14 ga. galvanized steel. Accessible from inside and outside of the
fixture. Outside J-box door is hinged for easy access.
7. Mounting Brackets: 16 ga. steel. Adjustable from inside fixture. Utilize 3/4”
or 1 1/2” lathing channel, 1/2” EMT, or optional mounting bars.
Options & Accessories
Chicago Plenum with Fuse (slow blow): add LCF suffix to frame-in kit, con-
sult factory for specifications.
Emergency: add EM suffix to frame-in kit, consult factory for specifications.
Mounting Bars / T-Bar Anchor Clips: See specification sheet “MBA”.
Electrical
UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90° C
supply conductors.
Note: For complete ballast data and lamp / ballast compatibility refer to
“Ballast” specification sheet.
General
UL listed for wet locations, I.B.E.W. Union Made.
Ceiling Cutout: 9 5/8" L X 9 5/8" W
Trim Kits Frame-In Kits
Reflector
Trims Finish / Flange Frame-In Kits Type Ballast Input Voltage
Quad Tube
Wattage
Triple Tube
Wattage Length Width Height
9X9PLCLW Specular Clear / White 9X9242HU Non-IC Electronic 120/277V (2) 26W (2) 32/42W 12 1/2" 14" 5 3/4"
9X9PLCLP Specular Clear / Polished 9X9242HUEM Non-IC Electronic - Emergency 120/277V (2) 26W (2) 32/42W 12 1/2" 15 3/4" 5 3/4"
9X9PLCCLW Comfort Clear / White 9X9242HJUM7 Non-IC Mark 7® Dimming 120/277V (2) 32/42W 12 1/2" 13 3/4" 5 3/4"
9X9PLCCLP Comfort Clear / Polished 9X9242HJ1MX Non-IC Mark 10® Dimming 120V (2) 32/42W 12 1/2" 13 1/2" 5 3/4"
9X9PLCCDW Comfort Clear Diff. / White 9X9242HJ2MX Non-IC Mark 10® Dimming 277V (2) 32/42W 12 1/2" 13 1/2" 5 3/4"
9X9PLCCDP Comfort Clear Diff. / Polished
9X9PLCCGP Clear Corrugated / Self Flange
9X9PLWHW White / White

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • C1009
Calculite® Matrix® Lensed Downlight 9X9PL
Page 2 of 2 9” X 9” Square Aperture (2) 26W Quad / 32/42W Triple Tube Prismatic Lens
% Effective Ceiling Cavity Reflectance
1 .52 .50 .49 .51 .50 .48 .49 .48 .47 .47 .46 .46 .45 .45 .44 .43
2 .48 .46 .44 .47 .45 .43 .45 .44 .42 .44 .43 .41 .43 .42 .41 .40
3 .44 .41 .39 .43 .41 .39 .42 .40 .38 .41 .39 .38 .40 .38 .37 .36
4 .40 .38 .35 .40 .37 .35 .39 .36 .35 .38 .36 .34 .37 .35 .34 .33
5 .37 .34 .32 .37 .34 .32 .36 .33 .31 .35 .33 .31 .34 .32 .31 .30
6 .34 .31 .29 .34 .31 .29 .33 .30 .28 .32 .30 .28 .32 .30 .28 .27
7 .31 .28 .26 .31 .28 .26 .30 .27 .26 .30 .27 .25 .29 .27 .25 .24
8 .29 .26 .23 .28 .25 .23 .28 .25 .23 .27 .25 .23 .27 .25 .23 .22
9 .27 .23 .21 .26 .23 .21 .26 .23 .21 .25 .23 .21 .25 .22 .21 .20
10 .24 .21 .19 .24 .21 .19 .24 .21 .19 .23 .21 .19 .23 .21 .19 .18
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
26W Quad Tube, Specular Clear Reflector Trim
Two Sylvania lamps, 1800 lumens each
ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 764 21.23 45.10
0-40 1156 32.14 68.27
0-60 1636 45.47 96.59
0-90 1694 47.07 100.00
0 1021 1021 1021 1021 1021
5 1014 1024 1028 1019 1014 97
10 1024 1032 1022 998 988
15 1020 1022 1002 953 927 278
20 985 993 956 879 834
25 900 913 876 778 728 389
30 768 794 772 680 630
35 622 657 657 595 559 393
40 487 517 527 521 496
45 363 381 387 418 401 306
50 254 266 273 313 293
55 160 169 192 220 210 174
60 88 92 118 132 126
65 33 37 50 56 52 54
70 12 11 14 15 15
75 0 0 1 0 0 4
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
Test Report 1657FR Mar. 4, 2002
Angle Along 22.5 45 67.5 Across Lumens

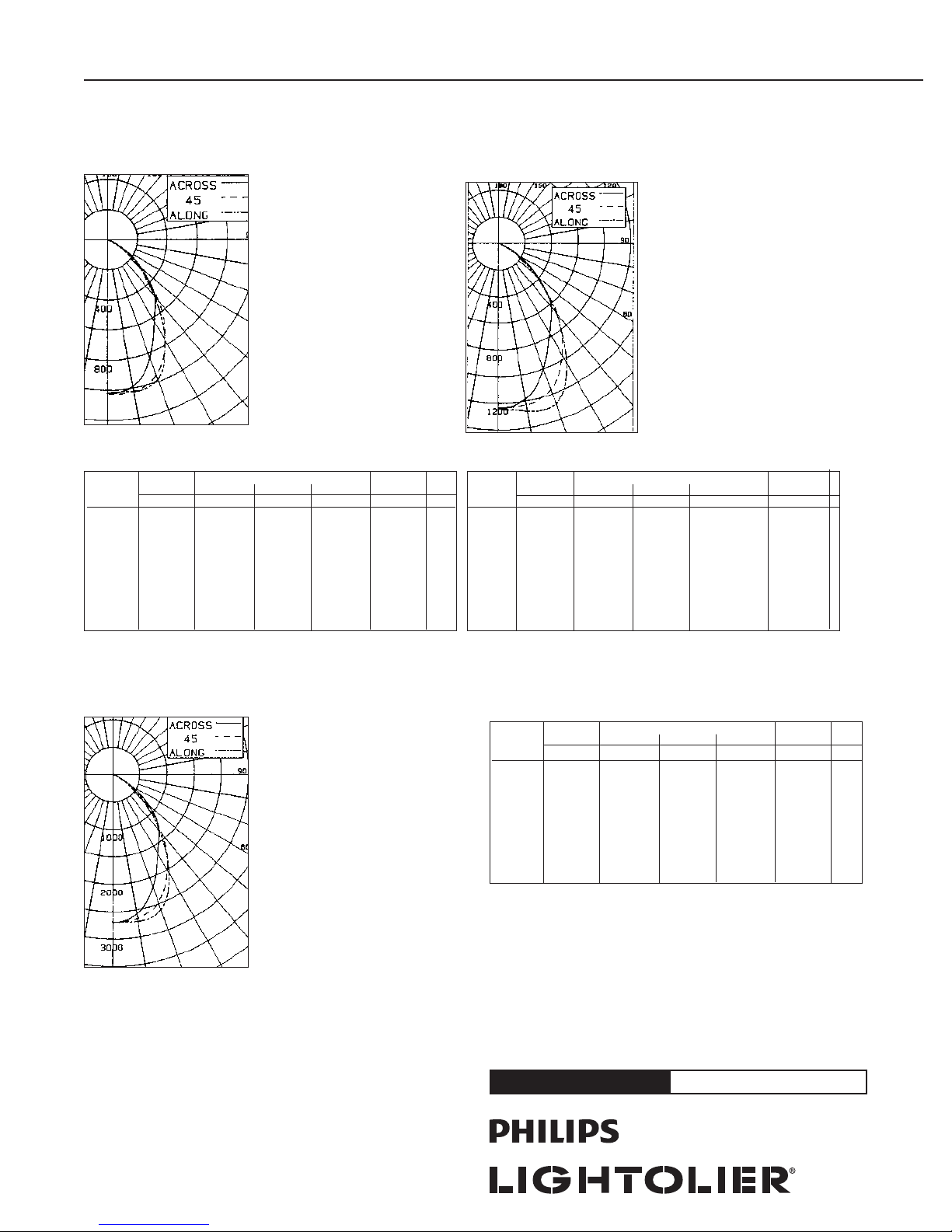

CANDLEPOWER SUMMARY
EFFICIENCY = 47.1% Spacing Criterion: Along = 1.1 Across = 1.0
1 .50 .48 .47 .49 .48 .46 .47 46 .45 .45 .44 .44 .44 .43 .42 .42
2 .46 .44 .42 .45 .43 .41 .43 .42 .41 .42 .41 .40 .41 .40 .39 .38
3 .42 .39 .37 .41 .39 .37 .40 .38 .36 .39 .37 .36 .38 .37 .35 .35
4 .39 .36 .34 .38 .36 .33 .37 .35 .33 .36 .34 .33 .35 .34 .32 .31
5 .35 .32 .30 .35 .32 .30 .34 .32 .30 .33 .31 .29 .33 .31 .29 .28
6 .33 .29 .27 .32 .29 .27 .31 .29 .27 .31 .28 .27 .30 .28 .26 .26
7 .30 .27 .24 .29 .26 .24 .29 .26 .24 .28 .26 .24 .28 .25 .24 .23
8 .27 .24 .22 .27 .24 .22 .26 .24 .22 .26 .23 .22 .25 .23 .22 .21
9 .25 .22 .20 .25 .22 .20 .24 .22 .20 .24 .21 .20 .23 .21 .19 .19
10 .23 .20 .18 .23 .20 .18 .22 .20 .18 .22 .19 .18 .22 .19 .18 .17
32W Triple Tube, Specular Clear Reflector Trim
Two Sylvania lamps, 2400 lumens each
ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 946 19.72 43.58
0-40 1456 30.33 67.04
0-60 2095 4366 96.49
0-90 2171 45.25 100.00
Test Report 1654FR Mar. 5, 2002
Angle Along 22.5 45 67.5 Across Lumens
CANDLEPOWER SUMMARY
EFFICIENCY = 45.2% Spacing Criterion: Along = 1.2 Across = 1.0
% Effective Ceiling Cavity Reflectance
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
42W Triple Tube, Specular Clear Reflector Trim
Two Sylvania lamps, 3200 lumens each
ZONAL LUMENS AND PERCENTAGES
Zone Lumens % Lamp % Luminaire
0-30 1954 30.54 44.11
0-40 2979 46.55 67.24
0-60 4274 66.79 96.47
0-90 4430 69.23 100.00
Test Report 1649FR Mar. 8, 2002
% Effective Ceiling Cavity Reflectance
1 .76 .74 .72 .75 .73 .71 .71 .70 .69 .69 .68 .67 .67 .66 .65 .64
2 .70 .67 .64 .69 .66 .63 .66 .64 .62 .64 .62 .61 .62 .61 .59 .58
3 .64 .60 .57 .63 .60 .57 .61 .58 .56 .60 .57 .55 .58 .56 .54 .53
4 .59 .55 .52 .58 .54 .51 .57 .53 .51 .55 .52 .50 .54 .51 .49 .48
5 .54 .50 .46 .54 .49 .46 .52 .48 .46 .51 .48 .45 .50 .47 .45 .44
6 .50 .45 .42 .49 .45 .42 .48 .44 .41 .47 .44 .41 .46 .43 .41 .40
7 .46 .41 .38 .45 .41 .37 .44 .40 .37 .43 .39 .37 .42 .39 .37 .35
8 .42 .37 .34 .41 .37 .34 .41 .36 .34 .40 .36 .33 .39 .36 .33 .32
9 .39 .34 .30 .38 .34 .30 .37 .33 .30 .37 .33 .30 .36 .33 .30 .29
10 .36 .31 .28 .35 .31 .28 .35 .30 .27 .34 .30 .27 .33 .30 .27 .26
ROOM CAVITY RATIO
cu
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
80 70 50 30 10 0
EFFICIENCY = 69.2% Spacing Criterion: Along = 1.2 Across = 1.0
20% Floor Cavity Reflectance
0 1235 1235 1235 1235 1235
5 1251 1246 1231 1235 1225 118
10 1277 1266 1228 1202 1184
15 1293 1273 1209 1149 1108 340
20 1276 1256 1166 1053 1000
25 1191 1182 1082 950 882 488
30 1035 1048 969 843 779
35 851 883 839 754 697 509
40 672 700 691 669 624
45 503 520 519 546 515 407
50 351 361 366 413 380
55 220 227 258 292 272 233
60 121 123 155 176 167
65 45 48 64 76 67 72
70 14 15 17 18 20
75 0 0 2 0 0 5
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
0 2630 2630 2630 2630 2630
5 2639 2636 2621 2606 2605 250
10 2651 2636 2596 2543 2512
15 2639 2622 2531 2411 2351 708
20 2553 2538 2409 2219 2118
25 2345 2349 2220 1994 1869 997
30 2024 2054 1970 1758 1631
35 1663 1719 1690 1560 1456 1025
40 1316 1363 1386 1380 1308
45 983 1016 1043 1123 1095 820
50 669 706 750 860 837
55 423 440 523 622 589 475
60 239 237 310 376 337
65 92 99 129 161 141 147
70 29 28 36 43 38
75 0 0 4 1 0 10
80 0 0 0 0 0
85 0 0 0 0 0 0
90 0 0 0 0 0
Angle Along 22.5 45 67.5 Across Lumens
CANDLEPOWER SUMMARY
20% Floor Cavity Reflectance 20% Floor Cavity Reflectance
Based on specular clear (CL) finish. To estimate other finishes, multiply candelas
and CU values by 0.95 for CCL, by 0.90 for CCD.
