Lightolier D01 User manual

Lightolier is a Philips group brand
Architectural Decorative Vetro Downlight D01
Page 1 of 2 Evolution, Low Voltage
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0408
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Features
1. Decorative Element: Solid high temp, UV resistant composite with open
aperture. Interior diameter is frosted. Polished exterior.
2. Aluminum Insert: Satin Aluminum ring is mechanically inserted in
composite to create drama and intrigue in the element.
3. Die Cast Ring: Exterior edge of construction ring is visible, satin aluminum
finish matches diameter of decorative element for a flangeless appearance.
4. Integral Reflector: 16 ga. aluminum, 50° visual cutoff to lamp and lamp
image. Decorative Element is mechanically attached to reflector via die cast
ring. Reflector is specular clear for best performance and aesthetics.
5. Cover Glass: 3" Evolution contains high temperature soft focus lens. 4"
Evolution contains high temperature perimeter frost.
6. Trim Kit: For 3" and 4" Evolution, trim kit, reflector and decorative element
ship complete.
7. Frame-In Kit: Specified separately. See Frame-In Kit Specification Sheet for
details.
Mechanical
Decorative element is mechanically secured to the die cast construction ring and
the integral reflector from the factory.
Labels
cULus (Damp Location)
C
B
A
Decorative Element/Trim Kit
Catalog No.
Frame-In Kit Lamping Dimensions
A B C
3" Evolution D3MR01 C3LV; C3AICLV; C3ALV; C3LVE1; C3LVE2; C3ALVE1; C3AICLVE1 50W MR16 2 5/8” 4 1/4” 1 1/2”
4" Evolution D4MR01 C4LV; C4ALV; C4AICLV 50W MR16 3 1/2” 5 5/8” 1 3/4”
3
1
2
Complete Fixture consists of Decorative Element/Trim-Kit + Frame-In Kit. Each sold seperately.
2 Piece Ordering System, Example: D3MR01 + C3LV

Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group •A0408

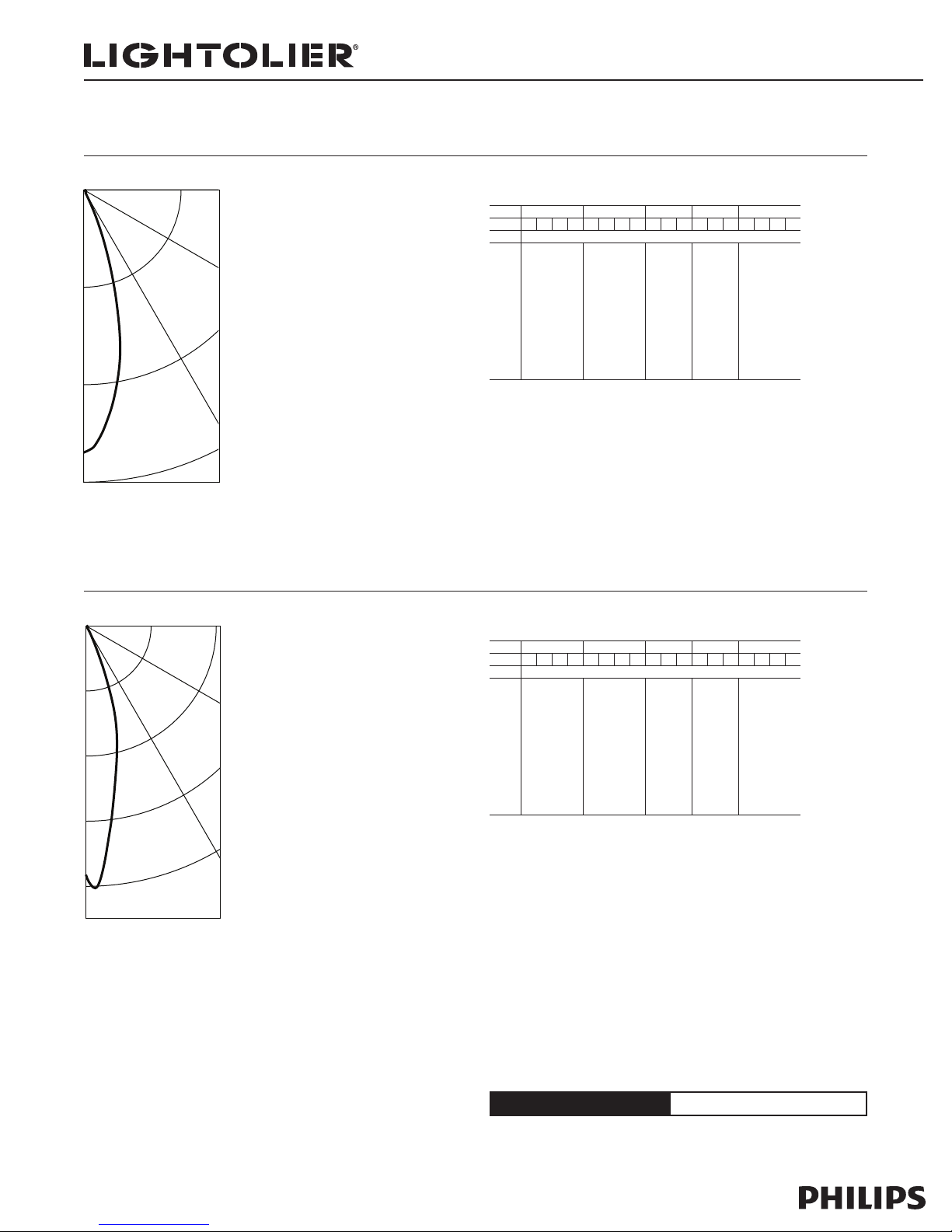

Architectural Decorative Vetro Downlight D01
Page 2 of 2 Evolution, Low Voltage
D3MR01-NFL
1500
0°
30°
60°
90°
500
1000
Candlepower Summary
Angle Mean CP Lumens
01348
51225 114
10 997
15 694 195
20 364
25 129 75
30 27
35 19 13
40 17
45 16 13
50 15
55 14 13
60 13
65 12 12
70 10
75 10 10
80 9
85 910
90 9
Calculite 3” Dia. Vetro Downlight,Cat.# C3MRDCLW/D3MR01
50W G.E. MR16 NFL (25 deg.) Lamp.
Lumen Rating = 800 LMS. Lightech XFMR LET-75
Zonal Lumens and Percentages
Zone Lumens % Lamp %Luminaire
0-30 384 48.02 84.55
0-40 397 49.63 87.38
0-60 422 52.78 92.92
0-90 454 56.80 100.00
40-90 57 7.17 12.62
60-90 32 4.02 7.08
90-180 0.00 .00
0-180 454 56.80 100.00
** Efciency = 56.8% **
Certied test report no. 3562FR
Computed by LSI program **TEST-LITE**
SC = 0.5
Prepared For:
Lightolier
Fall River, MA
Tested According to IES Procedures. Test Distance Exceeds Five
Times the Greatest Luminous Opening of Luminaire.
Coefficients of Utilization
Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0.68 .68 .68 .68 .66 .66 .66 .66 .63 .63 .63 .60 .60 .60 .58 .58 .58 .57
1.65 .63 .62 .61 .63 .62 .61 .60 .60 .59 .58 .58 .57 .56 .56 .55 .55 .54
2.62 .60 .58 .56 .61 .59 .57 .56 .57 .56 .54 .56 .54 .53 .54 .53 .52 .51
3.60 .57 .55 .53 .59 .56 .54 .53 .55 .53 .52 .54 .52 .51 .53 .52 .50 .50
4.58 .55 .53 .51 .58 .55 .52 .50 .53 .51 .50 .52 .51 .49 .51 .50 .49 .48
5.57 .53 .50 .49 .56 .53 .50 .48 .52 .50 .48 .51 .49 .48 .50 .49 .47 .47
6.55 .51 .49 .47 .54 .51 .49 .47 .50 .48 .47 .50 .48 .46 .49 .47 .46 .46
7.53 .50 .47 .46 .53 .49 .47 .45 .49 .47 .45 .48 .46 .45 .48 .46 .45 .44
8.52 .48 .46 .44 .52 .48 .46 .44 .47 .45 .44 .47 .45 .44 .47 .45 .44 .43
9.51 .47 .45 .43 .50 .47 .45 .43 .46 .44 .43 .46 .44 .43 .46 .44 .43 .42
10 .50 .46 .44 .42 .49 .46 .44 .42 .45 .43 .42 .45 .43 .42 .45 .43 .42 .41
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 52.0
30°
1000
2000
0°
60°
90°
500
1500
D4MR01-NFL
Candlepower Summary
Angle Mean CP Lumens
01914
51761 160
10 1265
15 918 258
20 533
25 170 108
30 56
35 19 17
40 17
45 16 12
50 15
55 13 12
60 13
65 12 12
70 11
75 10 11
80 10
85 10 11
90 9
Calculite 4” dia. Vetro Recessed Downlight D4MR01
50W g.E. Mr16 NFL (25 deg.) Lamp. Lumen Rating = 800 Lms.
Lightech XFMR LET-75
Zonal Lumens and Percentages
Zone Lumens % Lamp %Luminaire
0-30 525 65.64 87.50
0-40 542 67.81 90.38
0-60 566 70.87 94.46
0-90 600 75.02 100.00
40-90 57 7. 22 9.62
60-90 33 4.16 5.54
90-180 0.00 .00
0-180 600 75.02 100.00
** Efciency = 75.0% **
Certified test report no. 3598FR
Computed by LSI program **TEST-LITE**
SC = 0.5
Prepared For:
Lightolier
Fall River, MA
Tested According to IES Procedures. Test Distance Exceeds Five
Times the Greatest Luminous Opening of Luminaire.
Coefficients of Utilization
Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0.89 .89 .89 .89 .87 .87 .87 .87 .83 .83 .83 .80 .80 .80 .77 .77 .77 .75
1.86 .84 .82 .81 .84 .83 .81 .80 .79 .78 .77 .77 .76 .75 .74 .73 .73 .72
2.83 .80 .78 .75 .81 .79 .76 .75 .76 .74 .73 .74 .73 .71 .72 .71 .70 .69
3.80 .76 .74 .71 .79 .75 .73 .71 .74 .72 .70 .72 .70 .69 .71 .69 .68 .67
4.78 .74 .71 .69 .77 .73 .70 .68 .72 .69 .67 .70 .68 .67 .69 .67 .66 .65
5.76 .71 .68 .66 .75 .71 .68 .66 .69 .67 .65 .68 .66 .64 .67 .65 .64 .63
6.74 .69 .66 .64 .73 .69 .66 .64 .68 .65 .63 .67 .65 .63 .66 .64 .62 .62
7.72 .67 .64 .62 .71 .67 .64 .62 .66 .63 .62 .65 .63 .61 .64 .62 .61 .60
8.70 .65 .62 .60 .69 .65 .62 .60 .64 .62 .60 .64 .61 .60 .63 .61 .59 .59
9.68 .64 .61 .59 .68 .63 .61 .59 .63 .60 .58 .62 .60 .58 .62 .60 .58 .57
10 .67 .62 .59 .57 .66 .62 .59 .57 .61 .59 .57 .61 .59 .57 .61 .58 .57 .56
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 52.0
