Lytecaster®Recessed Downlighting 1078
Page 1 of 2 5" Aperture Lexan®Dish Diffuser Reflector Trim
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
1078 Opal
LED
Fluorescent
Frame-In Kit Installation Type Lamping Height Frame-In Kit Ceiling Type Lamping Height
1001LED
1001LEDEM
1000LEDREM
L56LED
Non-IC
Non-IC EM
Non-IC Remodeler
Non-IC Retrofit
LED
LED
LED
LED
6 3/4"
6 3/4"
6 3/4"
6 3/4"
1001F13U Series UniFrame
™
Non-IC (1) Quad/Triple 13W (GX24q-1) 5 7/8"
Incandescent
1001F18U Series UniFrame
™
Non-IC (1) Quad /Triple 18W (GX24q-2) 5 7/8"
Frame-In Kit Ceiling Type Lamping Height
1001F26U Series UniFrame
™
Non-IC (1) Triple 26W (GX24q-3) 5 7/8"
1000P1
1002P1
1003R
Non-IC
Non-IC
Non-IC Remodeler
60W A19 6 3/4"
6 3/4"
6 3/4"
1004F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"
1000IC
1000AICM
IC
AirSeal® IC
40W A19 7 5/16"
7 5/16"
1004F18 Series IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"
1004F26* Series IC (1) Quad/Triple 26W (GX24q-2) 7 1/2"
1001F 13ICU/N Performance IC (1) Quad/Triple 13W (GX24q-1) 7 1/4"
1001F18ICU/N Performance IC (1) Quad/Triple 18W (GX24q-2) 7 1/4"
1001F26ICU/N Performance IC (1) Triple 26W (GX24q-3) 7 1/4"
1001FDICMX1/N Performance IC
Advance Mark 10
Dimming 120v
(1) Triple 26W (GX24q-3) 7 1/4"
1001FDICMX2/N Performance IC
Advance Mark 10
Dimming 277v
(1) Triple 26W (GX24q-3) 7 1/4"
1910XFH1 Conversion Kit (1) Quad/Triple 13W (GX23q-2) 6 3/4 "
1078/1003R
0™
Non-IC Remodeler
6 3/4”
1078/1002P1 Series
Standard Incandescent

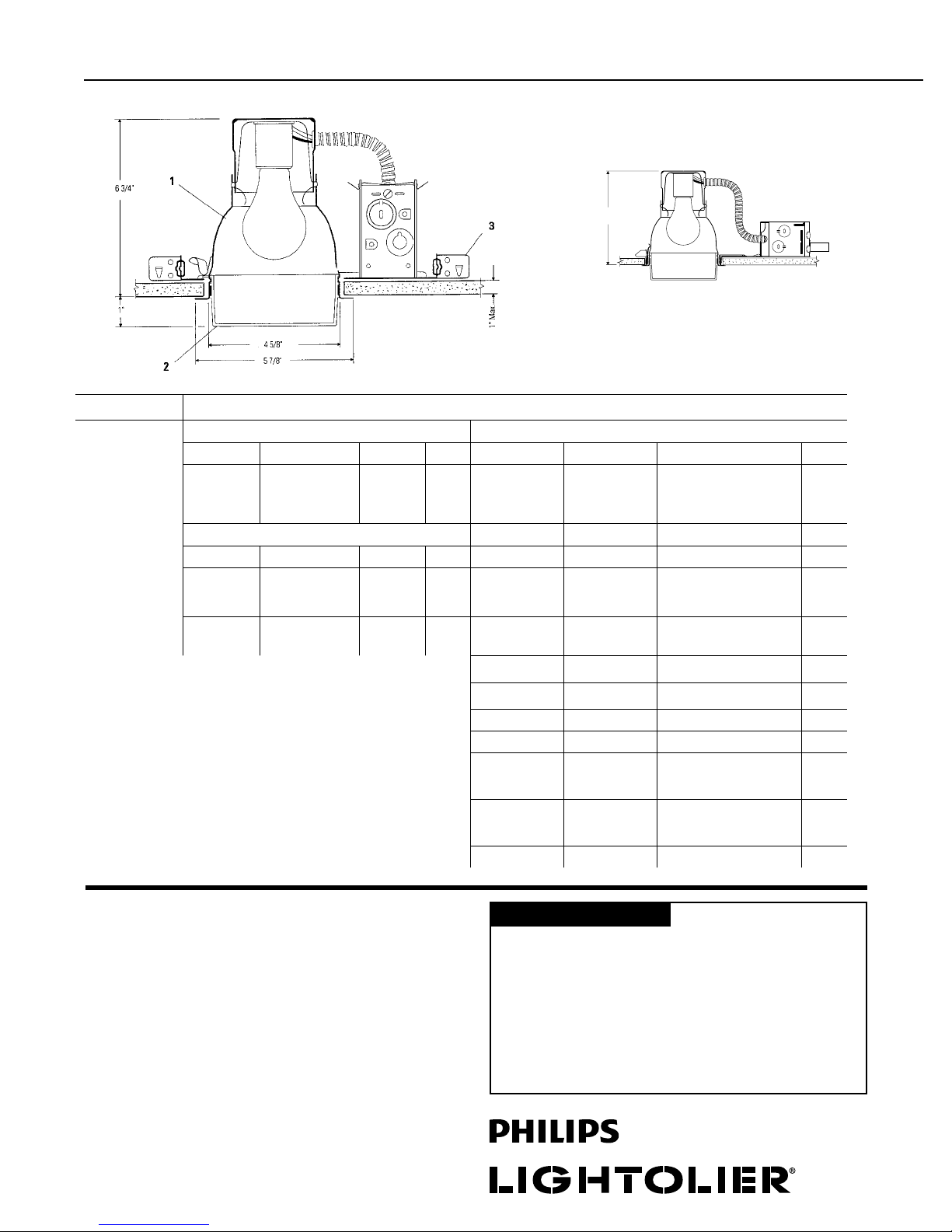

Features
1. Reflector: Hydroformed aluminum, .040” thick (18 ga.); non-yellowing,
scratch resistant Perma White finish, 88% reflectance; white trim flange.
2. Diffuser: Translucent white, polycarbonate Lexan®. Installs and removes
with twist-lock action, no tool required.
3. Frame-In Kit: (1002P1 standard frame shown). Other frames listed above and
shown on the right. See Frame-In Kit specification sheets for more details.
Labels
UL (Suitable for Wet Locations—Covered Ceiling), I.B.E.W.
* Lightolier recommends the use of triple tube lamps.
