Lightolier Silhouette T5 Instruction Manual

Lighting Systems
Silhouette®
Combines T5 lamp technology with
one of the smallest luminaire profiles
in the industry.

Silhouette, an innovative linear lighting
system that incorporates the latest T5
lamp technology in a compact luminaire.
SA SB SC
The system includes both individ-
ual and joiner luminaires. When
the joiners are connected together
to create a continuous run the
suspension points are on 48" and
96" centers.
All fixtures shown in this matrix
are individual luminaires.
SD SE SF
SG SH
SJ SK
Indirect (Page 4)
SA
SB
SC
Indirect/Direct (Page 8)
SD
SE
SF
Direct (Page 12)
SG
SH
Wall Mount (Page 14)
SJ
SK
Lighting Systems
Silhouette – The System
Silhouette installed in continuous rows uses visually appealing and mechanically simple joiners forming hairline joints without visible fasteners.
(Luminaire pictured above shows an 8' joiner module joined with a 4' joiner module and power feed end set.)
Combining minimal scale with elegant shapes, the Silhouette
System offers an unparalleled number of design and light
configuration options. Easily adaptable, the linear lighting
system provides high quality illumination in a choice of flexible
configurations, with a diminutive profile that adds a new level
of style to interiors.
Silhouette features modular systems that join together to create
a variety of configurations and patterns. This allows the designer
maximum flexibility in achieving an end result uniquely suited to a
space. The Silhouette System comes with three basic light distribu-
tion options – indirect, indirect/direct and direct.
The Silhouette System allows the designer a wide range of layout
options...whether it be straight runs, rectangles, nested patterns
or ladder configurations. The combination of minimal housing
dimensions and optical performance provides a level of design flex-
ibility not attainable with many larger luminaires.
The slim dimensions of Silhouette are achieved by a compact extru-
sion which houses the T5 lamp. Precisely engineered reflectors
assure high efficiency and lighting design integrity. Factory pre-
wired modular sections with quick connectors allow fast and easy
adjustable mounting. Continuous rows and patterns have support
spacing of 48" and 96" allowing ease of installation. A single
screw, draw-tight joiner connection creates a hairline joint for a vir-
tually seamless appearance.
Individual End Detail
Individual luminaires, in 4 and 8 foot lengths, have
a flush end cap where the extruded housing and
shielding are aligned at both ends.
Run End Detail
Joiner luminaires create continuous runs and patterns.
They have a continuous housing with shielding that is
spaced about an inch apart to create a unique look.
Profiles Architectural Round Square Recessed
Cove
Accent
Custom
Lightolier Lighting Systems
Lightolier Lighting Systems are modular linear lighting systems that offer a wide selection
of geometric shapes, architectural profiles, scales and finishes.
2 3

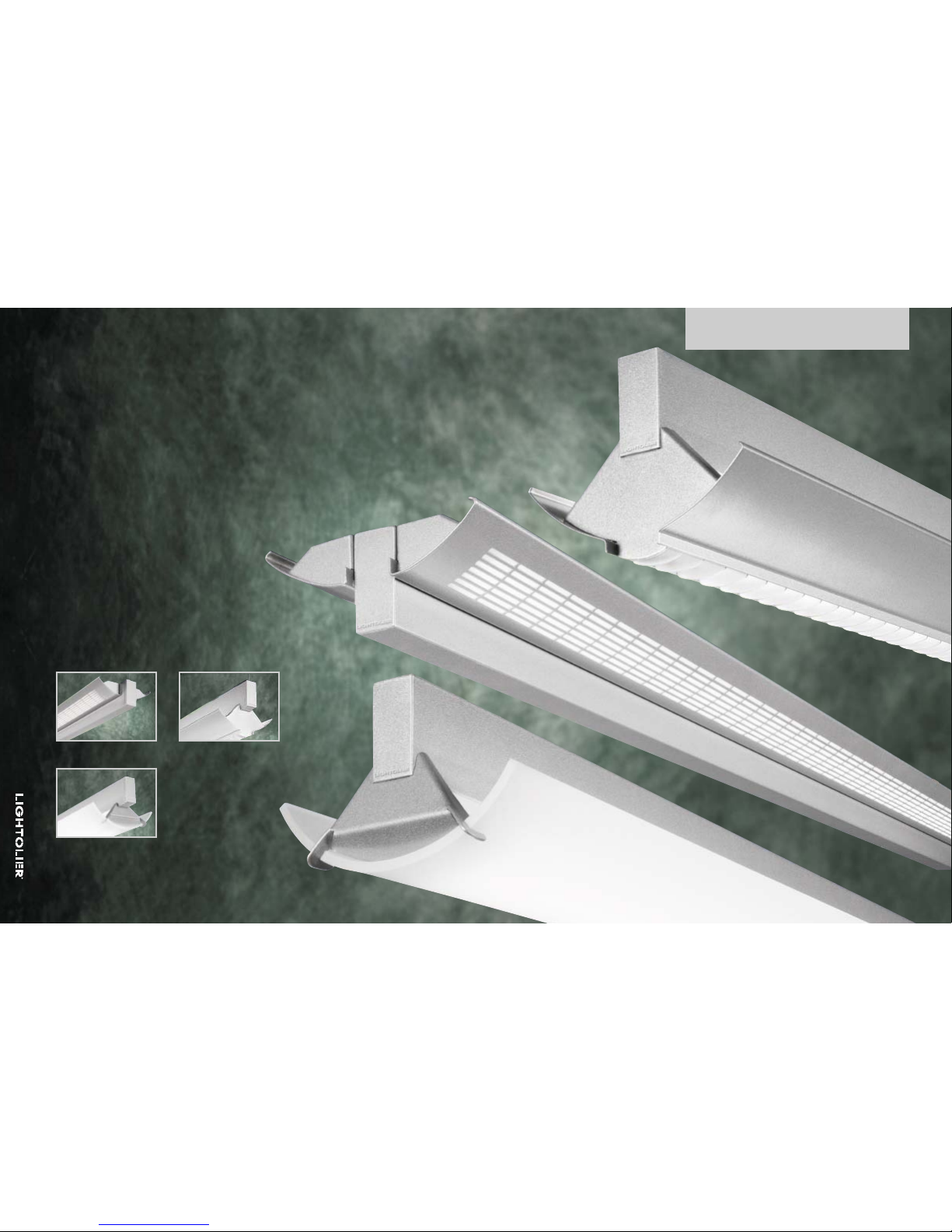

Perforated steel
and opal diffusers give
Luminaires SA and SB
luminous indirect
lighting. Luminaire SC
is a completely indirect
luminaire providing quality,
glare-free lighting.
SC
Lighting Systems
SA Joiner
Run End Detail
SB Joiner
SC Joiner
SA
SB
4 5
Silhouette Indirect Series creates a soft,
evenly lit environment that’s
ideal for areas where
VDT tasks are
performed.
Silhouette – Indirect

1. Housing: Extruded
aluminum. Die-cast end
plate mechanically
attached with no
exposed fasteners.
2. Lamping: One T5 (28 or
54 watt as specified)
fluorescent lamp.
Provided by others.
3. Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
perforated CRS.
5. Diffuser: Translucent
acrylic diffuser.
Finish: Powder-coated
baked white or aluminum
enamel. Custom colors
available, consult factory.
Labels: UL, ULc and IBEW.
Electrical: Specify 120 volt
or 277 volt. Color-coded
quick connectors allow
ease of connection for
joiner modules. For special
circuiting, consult factory.
Ballast is class “P”,
thermally protected,
electronic, class “A” sound
rating, less than 10% THD,
end of lamp life cutoff.
Options & Accessories:
L, T, X, Inline joiner blocks
and emergency battery
pack available.
Luminaire Lengths:
Individual–49" and 97".
Joiner–48" and 96".
Indirect – SA, SB, SC
SA 1-Lamp T5 Luminous Indirect
SB 2-Lamp T5 Luminous Indirect
1. Housing: Extruded
aluminum. Die-cast
end plate mechanically
attached with no
exposed fasteners.
2. Lamping: Two T5 (28
or 54 watt as specified)
fluorescent lamps.
Provided by others.
3. Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
perforated CRS.
5. Diffuser: Translucent
acrylic diffuser.
Finish: Powder-coated
baked white or aluminum
enamel. Custom colors
available, consult factory.
Labels: UL, ULc and IBEW.
Electrical: Specify 120 volt
or 277 volt. Color-coded
quick connectors allow
ease of connection for
joiner modules. For special
circuiting, consult factory.
Ballast is class “P”,
thermally protected,
electronic, class “A” sound
rating, less than 10% THD,
end of lamp life cutoff.
Options & Accessories:
L, T, X, Inline joiner blocks
and emergency battery
pack available.
Luminaire Lengths:
Individual–46 3/4" and
94 3/4". Joiner–48" and 96".
SC 2-Lamp T5 Indirect
1. Housing: Extruded
aluminum. Die-cast
end plate mechanically
attached with no
exposed fasteners.
2. Lamping: Two T5 (28
or 54 watt as specified)
fluorescent lamps.
Provided by others.
3. Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
CRS.
Finish: Powder-coated
baked white or aluminum
enamel. Custom colors
available, consult factory.
Labels: UL, ULc and IBEW.
Electrical: Specify 120 volt
or 277 volt. Color-coded
quick connectors allow
ease of connection for
joiner modules. For special
circuiting, consult factory.
Ballast is class “P”,
thermally protected,
electronic, class “A” sound
rating, less than 10% THD,
end of lamp life cutoff.
Options & Accessories:
L, T, X, Inline joiner blocks
and emergency battery
pack available.
Luminaire Lengths:
Individual–48 1/2" and 97".
Joiner–48" and 96".
Lighting Systems
Coefficients of
Utilization
% Wall Reflectance
70 50 30
080 80 80
172 69 65
266 60 55
360 52 47
454 46 40
550 41 34
645 36 30
742 32 26
838 29 23
936 26 20
10 33 24 18
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
81.7% efficiency
1 lamp F28T5
Report no. LRL299-1J
10% Direct
90% Indirect
Coefficients of
Utilization
% Wall Reflectance
70 50 30
078 78 78
171 68 65
265 59 55
359 52 47
454 46 40
549 40 34
645 36 30
741 32 26
838 29 23
935 26 20
10 33 24 18
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
82.3% efficiency
2 lamp F28T5
Report No. LRL299-1D
0% Direct
100% Indirect
Coefficients of
Utilization
% Wall Reflectance
70 50 30
079 79 79
172 68 65
265 60 55
360 52 47
454 46 40
550 41 34
645 36 30
742 32 26
838 29 23
936 26 20
10 33 24 18
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
82% efficiency
2 lamp F28T5
Report no. LRL299-1B
7% Direct
93% Indirect
2,000
700
500
400
200
FOOTCANDLE 20 30 50 70 100
1 2 3 4 5 7 10 20 30 40 50 70 100 200
ROOM AREA IN SQUARE FEET
NUMBER OF FIXTURES REQUIRED
300
1,000
100
1
3
4
2
5
3 5/8"
2 3/4"
1
3
4
2
5
5 3/4"
4 1/16"
1
3
42
5 5/8"
3 1/2"
1. Find room area on
vertical axis.
2. Move across chart to
footcandle curve.
3. Move down to hori-
zontal axis and read
number of luminaires
required.
2,000
700
500
400
200
FOOTCANDLE 20 30 50 70 100
1 2 3 4 5 7 10 20 30 40 50 70 100 200
ROOM AREA IN SQUARE FEET
NUMBER OF FIXTURES REQUIRED
300
1,000
100
1. Find room area on
vertical axis.
2. Move across chart to
footcandle curve.
3. Move down to hori-
zontal axis and read
number of luminaires
required.
2,000
700
500
400
200
FOOTCANDLE 20 30 50 70 100
1 2 3 4 5 7 10 20 30 40 50 70 100 200
ROOM AREA IN SQUARE FEET
NUMBER OF FIXTURES REQUIRED
300
1,000
100
1. Find room area on
vertical axis.
2. Move across chart to
footcandle curve.
3. Move down to hori-
zontal axis and read
number of luminaires
required.
Suspension
18", rows 10',
brightness
ratio 5.5:1
Suspension
18", rows 10',
brightness
ratio 4.3:1
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
750
600
450
300
150
0
90˚
0˚
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
1250
1000
750
500
250
0
90˚
0˚
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
750
500
1000
250
1250
0
90˚
0˚

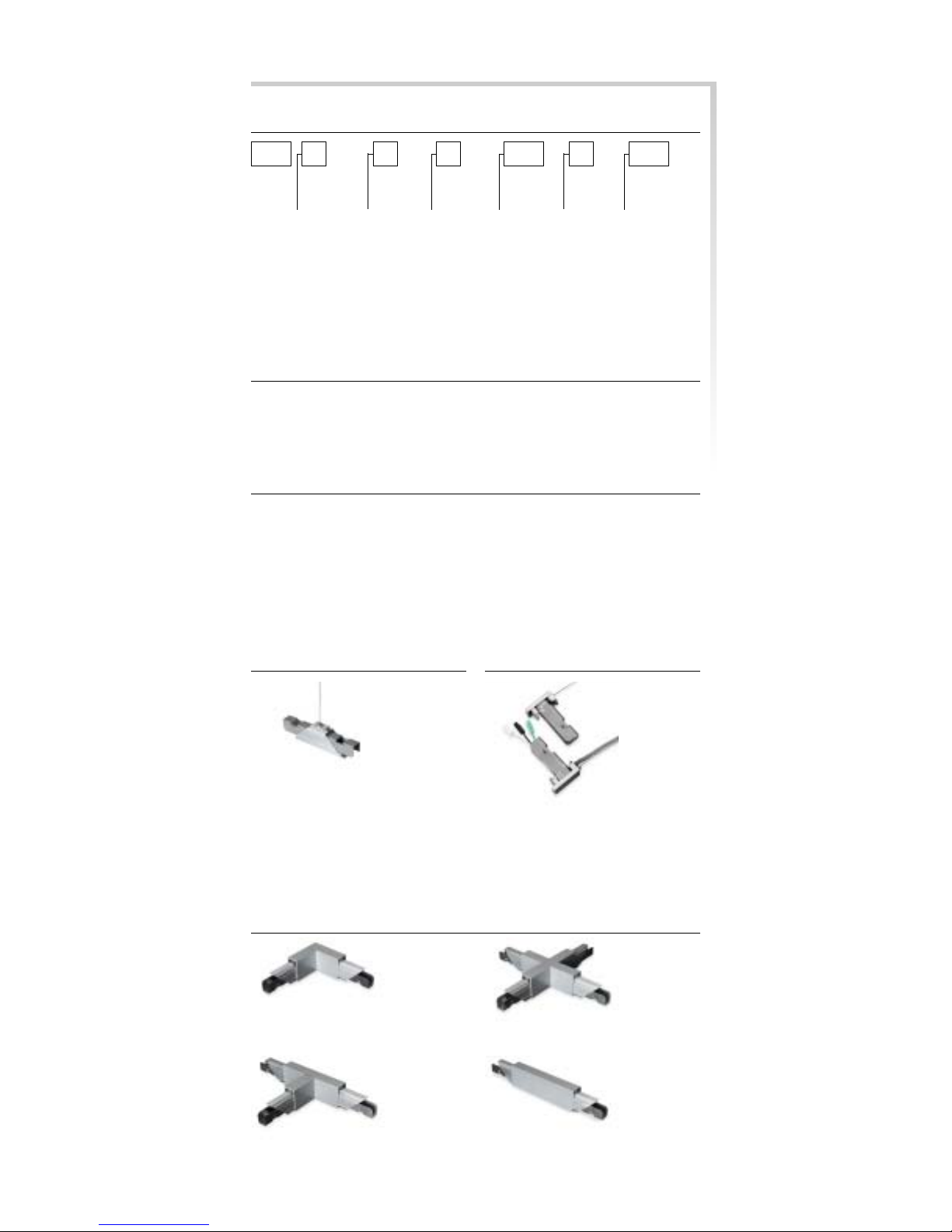

How to Specify
Finish
Series SA White Aluminum
28 watt SA-28-WH SA-28-AL
54 watt SA-54-WH SA-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
How to Specify
Finish
Series SB White Aluminum
28 watt SB-28-WH SB-28-AL
54 watt SB-54-WH SB-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
How to Specify
Finish
Series SC White Aluminum
28 watt SC-28-WH SC-28-AL
54 watt SC-54-WH SC-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
6 7
Suspension
18", rows 10',
brightness
ratio 6.3:1

Silhouette – Indirect/Direct
Silhouette Indirect/Direct Series pro-
vides a combination of indirect and
direct lighting with high efficiency
and visual comfort. The series is
suited to spaces where both indirect
and direct lighting components are
desired. The pierced steel and opal
diffuser give Luminaire SD a visual
accent of 20% direct lighting while
providing all the benefits of indirect
lighting. For applications that require
a higher degree of direct lighting,
Luminaire SE offers 29% direct light.
Opal acrylic combined with the small
extruded housing provides approxi-
mately 53% direct lighting in
Luminaire SF. Whichever indirect/
direct version you specify, you’ll be
impressed not only by the lighting,
but also by the beautiful way in
which the lighting
is delivered.
SD
SF
SE JoinerSD Joiner
SF Joiner
Lighting Systems
Run End Detail
SE
8

1. Housing: Extruded
aluminum. Die-cast
end plate mechanically
attached with no
exposed fasteners.
2. Lamping: Two T5 (28 or
54 watt as specified)
fluorescent lamps.
Provided by others.
3. Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
pierced CRS.
5. Diffuser: Translucent
acrylic diffuser.
Finish: Powder-coated
baked white or aluminum
enamel. Custom colors
available, consult factory.
Labels: UL, ULc and IBEW.
Electrical: Specify 120 volt
or 277 volt. Color-coded
quick connectors allow
ease of connection for
joiner modules. For special
circuiting, consult factory.
Ballast is class “P”,
thermally protected,
electronic, class “A” sound
rating, less than 10% THD,
end of lamp life cutoff.
Options & Accessories:
L, T, X, Inline joiner blocks
and emergency battery
pack available.
Luminaire Lengths:
Individual–46 3/4" and
94 3/4". Joiner–48" and 96".
SD 2-Lamp T5 Pierced Indirect/Direct
SE 2-Lamp T5 Louvered Indirect/Direct
SF 2-Lamp T5 Acrylic Indirect/Direct
Indirect/Direct – SD, SE, SF
1. Housing: Extruded
aluminum. Die-cast
end plate mechanically
attached with no
exposed fasteners.
2. Lamping: Two T5 (28
or 54 watt as specified)
fluorescent lamps.
Provided by others.
3. Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
CRS.
5. Louver: Straight blade
louver finished to match
housing.
Finish: Powder-coated
baked white or aluminum
enamel. Custom colors
available, consult factory.
Labels: UL, ULc and IBEW.
Electrical: Specify 120 volt
or 277 volt. Color-coded
quick connectors allow
ease of connection for
joiner modules. For special
circuiting, consult factory.
Ballast is class “P”,
thermally protected,
electronic, class “A” sound
rating, less than 10% THD,
end of lamp life cutoff.
Options & Accessories:
L, T, X, Inline joiner blocks
and emergency battery
pack available.
Luminaire Lengths:
Individual–46 3/4" and
94 3/4". Joiner–48" and 96".
1. Housing: Extruded
aluminum. Die-cast
end plate mechanically
attached with no
exposed fasteners.
2. Lamping: Two T5 (28
or 54 watt as specified)
fluorescent lamps.
Provided by others.
3. Shielding: Sandblasted
1/4" thick acrylic.
Finish: Powder-coated
baked white or aluminum
enamel. Custom colors
available, consult factory.
Labels: UL, ULc and IBEW.
Electrical: Specify 120 volt
or 277 volt. Color-coded
quick connectors allow
ease of connection for
joiner modules. For special
circuiting, consult factory.
Ballast is class “P”,
thermally protected,
electronic, class “A” sound
rating, less than 10% THD,
thermally protected, end
of lamp life cutoff.
Options & Accessories:
L, T, X, Inline joiner blocks
and emergency battery
pack available.
Luminaire Lengths:
Individual–46 3/4" and
94 3/4". Joiner–48" and 96".
Lighting Systems
Coefficients of
Utilization
% Wall Reflectance
70 50 30
082 82 82
175 71 68
268 62 57
362 54 49
457 48 42
552 43 36
647 38 32
744 34 28
840 31 25
937 28 22
10 35 25 19
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
82.2% efficiency
2 lamp F28T5
Report No. LRL299-IF
20% Direct
80% Indirect
Coefficients of
Utilization
% Wall Reflectance
70 50 30
096 96 96
187 82 78
279 72 66
372 63 56
466 55 48
560 49 42
655 44 37
751 40 32
847 36 28
944 32 25
10 40 29 22
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
89.5% efficiency
2 lamp F28T5
Report No. LRL299-IH
53% Direct
47% Indirect
Coefficients of
Utilization
% Wall Reflectance
70 50 30
081 81 81
174 71 68
268 63 58
363 56 50
457 50 44
553 45 39
649 40 34
745 36 30
842 33 27
939 30 24
10 36 27 22
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
79.3% efficiency
2 lamp F28T5
Report no. LRL299-IE
29% Direct
71% Indirect
1
3
42
5
6 1/16"
2 1/4"
1
3
42
5
6 11/16"
4 1/4"
1
32
7"
4 7/16"
2,000
700
500
400
200
FOOTCANDLE 20 30 50 70 100
1 2 3 4 5 7 10 20 30 40 50 70 100 200
ROOM AREA IN SQUARE FEET
NUMBER OF FIXTURES REQUIRED
300
1,000
100
1. Find room area on
vertical axis.
2. Move across chart to
footcandle curve.
3. Move down to hori-
zontal axis and read
number of luminaires
required.
Suspension
18", rows 10',
brightness
ratio 6.8:1
2,000
700
500
400
200
FOOTCANDLE 20 30 50 70 100
1 2 3 4 5 7 10 20 30 40 50 70 100 200
ROOM AREA IN SQUARE FEET
NUMBER OF FIXTURES REQUIRED
300
1,000
100
1. Find room area on
vertical axis.
2. Move across chart to
footcandle curve.
3. Move down to hori-
zontal axis and read
number of luminaires
required.
2,000
700
500
400
200
FOOTCANDLE 20 30 50 70 100
1 2 3 4 5 7 10 20 30 40 50 70 100 200
ROOM AREA IN SQUARE FEET
NUMBER OF FIXTURES REQUIRED
300
1,000
100
1. Find room area on
vertical axis.
2. Move across chart to
footcandle curve.
3. Move down to hori-
zontal axis and read
number of luminaires
required.
Suspension
18", rows 10',
brightness
ratio 3.3:1
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
500
250
750
500
1000
250
1250
1250
1000
750
0
90˚
0˚
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
90˚
0˚
750
600
450
300
150
0
150
300
450
600
750
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
750
600
450
300
150
0
150
300
450
600
750
90˚
0˚
How to Specify
Finish
Series SD White Aluminum
28 watt SD-28-WH SD-28-AL
54 watt SD-54-WH SD-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
How to Specify
Finish
Series SE White Aluminum
28 watt SE-28-WH SE-28-AL
54 watt SE-54-WH SE-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
How to Specify
Finish
Series SF White Aluminum
28 watt SF-28-WH SF-28-AL
54 watt SF-54-WH SF-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
10 11

1. Housing: Extruded
aluminum. Die-cast
end plate mechani-
cally attached with no
exposed fasteners.
2. Lamping: One T5 (28
or 54 watt as speci-
fied) fluorescent lamp.
Provided by others.
3. Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
perforated CRS.
5. Diffuser: Translucent
acrylic diffuser.
6. Louver: Straight blade
louver finished to
match housing.
Luminaire Lengths:
Individual–46 3/4" and
94 3/4". Joiner–48" and 96".
Lighting Systems
1
3
42
5
6
4 1/4"
2 3/4"
Coefficients of
Utilization
% Wall Reflectance
70 50 30
063 63 63
158 55 53
254 50 46
350 45 41
446 40 36
543 36 32
640 33 29
737 30 26
834 28 23
932 25 21
10 29 22 18
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
How to Specify
Finish
Series SG White Aluminum
28 watt SG-28-WH SG-28-AL
54 watt SG-54-WH SG-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
Room Cavity Ratio
55% efficiency
1 lamp F28T5
Report No. LRL299-1M
83% Direct
17% Indirect
2,000
700
500
400
200
FOOTCANDLE 20 30 50 70 100
1 2 3 4 5 7 10 20 30 40 50 70 100 200
ROOM AREA IN SQUARE FEET
NUMBER OF FIXTURES REQUIRED
300
1,000
100
1. Find room area on
vertical axis.
2. Move across chart to
footcandle curve.
3. Move down to hori-
zontal axis and read
number of luminaires
required.
SH 2-Lamp T5 Luminous Direct
1
3
4
2
5
6
5 3/4"
5 7/16"
SG 1-Lamp T5 Luminous Direct
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
500
750
250
1000
1250
0
250
90º
0º
Coefficients of
Utilization
% Wall Reflectance
70 50 30
063 63 63
158 56 54
254 50 47
350 45 42
446 41 37
543 37 33
640 34 30
737 31 27
835 28 24
932 26 22
10 29 23 19
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
54.3% efficiency
2 lamp F28T5
Report No. LRL299-1C
85% Direct
15% Indirect
2,000
700
500
400
200
FOOTCANDLE 20 30 50 70 100
1 2 3 4 5 7 10 20 30 40 50 70 100 200
ROOM AREA IN SQUARE FEET
NUMBER OF FIXTURES REQUIRED
300
1,000
100
1. Find room area on
vertical axis.
2. Move across chart to
footcandle curve.
3. Move down to hori-
zontal axis and read
number of luminaires
required.
1. Housing: Extruded
aluminum. Die-cast
end plate mechani-
cally attached with no
exposed fasteners.
2. Lamping: Two T5 (28
or 54 watt as speci-
fied) fluorescent
lamps. Provided by
others.
3. Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
perforated CRS.
5. Diffuser: Translucent
acrylic diffuser.
6. Louver: Straight blade
louver finished to
match housing.
Luminaire Lengths:
Individual–46 3/4" and
94 3/4". Joiner–48" and 96".
SG
SH Joiner
SG Joiner
Softly glowing, well-shielded direct
lighting provides generous
illumination for task
environments.
Direct – SG, SH
SH
Run End Detail
For complete specifications see
individual specification sheets.
For complete specifications see
individual specification sheets.
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
250
375
125
500
625
0
90˚
0˚
How to Specify
Finish
Series SH White Aluminum
28 watt SH-28-WH SH-28-AL
54 watt SH-54-WH SH-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
13
Available in one and
two lamp versions.
Silhouette Direct
functions well in
work spaces,
retail stores
or libraries.

Lighting Systems
1.Housing: Extruded
aluminum. Die-cast end
plate mechanically
attached with no
exposed fasteners.
2.Lamping: One T5 (28
or 54 watt as specified)
fluorescent lamp.
Provided by others.
3.Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
perforated CRS.
5. Diffuser: Translucent
acrylic diffuser.
Luminaire Lengths:
Individual–46 1/2" and
94 3/4". Joiner–48" and 96".
For complete specifica-
tions see individual
specification sheets.
1
34
25
2 3/4"
4"
4 1/2"
4 1/2"
Coefficients of
Utilization
% Wall Reflectance
70 50 30
081 81 81
171 67 63
264 57 52
358 50 44
453 44 37
548 39 32
644 34 28
741 31 24
838 28 21
935 25 19
10 32 23 17
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
DISTANCE FROM WALL
DISTANCE ABOVE FIXTURE
0' 1' 2' 3' 4' 5'
87fc 65fc 37fc 22fc 15fc
2'6"
1'6 "
6"
0'
78fc
67fc
196fc
80% ceiling, 50% walls, 11' ceiling
Measurements in “footcandles”
SK 1-Lamp T5 Luminous Indirect
4"
3 3/4"
3 3/8"
SJ 1-Lamp T5 Luminous Indirect
Coefficients of
Utilization
% Wall Reflectance
70 50 30
081 81 81
174 70 67
267 61 57
361 54 48
456 47 41
551 42 35
647 37 31
743 33 27
840 30 24
937 27 21
10 34 25 19
80% Effective Ceiling
Cavity Reflectance
20% Floor Cavity
Reflectance
Room Cavity Ratio
0' 1' 2' 3' 4' 5'
97fc 78fc 54fc 35fc 23fc
101fc
89fc
120fc
DISTANCE FROM WALL
DISTANCE ABOVE FIXTURE
0' 1' 2' 3' 4' 5'
2'6"
1'6"
6"
0'
80% ceiling, 50% walls, 11' ceiling
Measurements in “footcandles”
1. Housing: Extruded
aluminum. Die-cast end
plate mechanically
attached with no
exposed fasteners.
2. Lamping: One T5 (28 or
54 watt as specified)
fluorescent lamp.
Provided by others.
3. Reflector: Die-formed
specular aluminum
reflector.
4. Shielding: Die-formed
perforated CRS.
5. Diffuser: Translucent
acrylic diffuser.
Luminaire Lengths:
Individual–46 3/4" and
94 3/4". Joiner–48" and 96".
For complete specifica-
tions see individual
specification sheets
81.5% efficiency
1 lamp F28T5
Report No. LRL299-1K
17% Direct
83% Indirect
83.6% efficiency
1 lamp F28T5
Report No. LRL299-1L
9% Direct
91% Indirect
SK Joiner
SJ Joiner
SK
SJ
Wall – SJ, SK
The Silhouette Wall Series is an
elegant solution for wall
mounted indirect lighting.
90˚
0˚
145 ˚ 155 ˚ 165 ˚ 175 ˚ 175 ˚ 165 ˚ 155 ˚ 145 ˚ 135 ˚
35
˚ 25 ˚ 15 ˚ 5 ˚ 0 ˚ 5 ˚ 15 ˚ 25 ˚ 35 ˚ 45 ˚
125 ˚
115 ˚
105 ˚
95 ˚
90 ˚
85 ˚
75 ˚
65 ˚
55 ˚
95
90
85
75
65
55
45
135
125
115
105
150
600
450
300
150
180˚
750
600
450
300
150
0
150
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
135˚ 145˚ 155˚ 165˚ 175˚ 180˚
45˚ 35˚ 25˚ 15˚ 5˚ 0˚
45˚ 0˚
How to Specify
Finish
Series SJ White Aluminum
28 watt SJ-28-WH SJ-28-AL
54 watt SJ-54-WH SJ-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
How to Specify
Finish
Series SK White Aluminum
28 watt SK-28-WH SK-28-AL
54 watt SK-54-WH SK-54-AL
Please refer to the flap at the back of the
brochure for complete ordering instructions.
Run End Detail
High quality extruded
housing with perforated
steel shielding and acrylic
diffuser are available in
two distinct profiles.
15

Ordering Information
(under flap)
Lighting Systems

Individual Luminaires
1. Order number of INDIVIDUAL
LUMINAIRES (luminaire comes
complete with mounting hardware,
end caps and power feeds).
Continuous Rows
1. Determine run length.
2. Order the appropriate number
of JOINER MODULES for the
complete run.
3. Order one POWER FEED
END SET per run.
4. Order one CABLE ASSEMBLY
per JOINER MODULE.
5. Maximum run length 88' based on
2-light, 54 watt, 120 volt luminaires.
Mountings
Cable suspension – 4 1/2" diameter flat
canopy finished white enamel, 1/16" diameter
stainless steel aircraft cable adjustable up
to 36", Grip-Lock™with cable adjustment.
Power Feed End Sets
Cable
Assembly
aircraft cable
adjustable
up to 36":
SC36
How to order
Style Lamps Length Type Wattage Voltage Finish
Power Feed
End Set
SE36WH
(white)
SE36AL
(aluminum)
WH = White
enamel
AL = Aluminum
enamel
1= 120 volt
2= 277 volt
1= 1 T5 lamp
per 4'
section,
available
in SA, SC,
SJ & SK
2= 2 T5 lamps
per 4'
section,
available
in SB, SD,
SE, SF
& SH
SA
SB
SC
SD
SE
SF
SG
SH
SJ
SK
4= 4 foot
8= 8 foot
S= Individual
J= Joiner
28 = 28 watt
54 = 54 watt
L Block
SL36WH
(white)
SL36AL
(aluminum)
X Block
SX36WH
(white)
SX36AL
(aluminum)
T Block
ST36WH
(white)
ST36AL
(aluminum)
Inline Block
SI36WH
(white)
SI36AL
(aluminum)
Joiner Blocks

File: Architectural Profiles, Silhouette
Lightolier®
A Genlyte Thomas Company
631 Airport Road
Fall River, MA 02720
Phone [phone]
Fax [phone]
www.lightolier.com
Lightolier C.F.I.
A Division of Canlyte
525 Educational Road
Cornwall, Ontario
Canada K6H 6C7
Phone [phone]
© 1999 Lightolier, a Division
of Genlyte Thomas Group LLC.
All rights reserved. Certain
products illustrated in this
catalog may be protected
by applicable patents and
patents pending. Lightolier
will aggressively defend all
of its intellectual property.
We reserve the right to
change details of design,
materials and finishes.
A.I.A. Division 16
Brochure 29110
Printed in the U.S.A.
