Lightolier LP Series User manual

LP Series
Low Level Recessed LED Luminaire
Page 1 of 2
Job Information Type:
Job Name:
Cat. No.:
Notes:
Features
Illumination: The LP Series
LED utilizes three high
performance white LEDs
combined with a solid-state
integral driver circuit. A user-
selectable, three level intensity
control or an optional line
voltage dimmable driver (120
VAC models only) are available.
The LP Series with white LEDs
operates at 3,500 K nominal
with a minimum CRI of 80.
The amber LEDs operate at a
nominal wave length of 600 nm.
Housing: Assembled from
premium die cast aluminum
and painted in a durable
powder coat finish. Numerous
standard finishes available with
optional finishes available for
custom projects. Assembled
as a one-piece device that
includes the LED light engine,
integral power supply, three
level intensity control or line
voltage dimmable driver (120
VAC models only). All LED
and electrical components
are protected by both a
polycarbonate lens, and high
impact power supply case
that will be located within the
junction box.
Electrical Specifications:
Current at dip switch setting
12 VDC: low 0.140 A,
medium 0.330 A, high 0.430 A
12 VAC: low 0.220 A,
medium 0.465 A, high 0.585 A
120 VAC: low 0.035 A,
medium 0.065 A, high 0.085 A
120 VAC line voltage dimmable:
60 Hz, 0.072 A
Operation: “Normally
On” remote power supplies
(LPS Series) are available
from 100 VA to 500 VA in
12 VAC. Power supplies (120
VAC input) conform to UL
1598 and are rated as Class
2 Distribution systems. All
power supplies are furnished
in a UL type 3R enclosure and
are provided with thermal
type secondary output circuit
protection. “Normally Off/
Emergency” remote power can
be provided by any Lightolier
12V emergency lighting
product with additional remote
capacity (example: C3250 or
C3275 Series). “Normally On/
Emergency” remote power can
be provided by Lightolier LPE
emergency power system. The
LPE system will support up to
20 LP Series 12 V luminaires
operating in both continuous
duty and emergency operation
for 90 minutes.
Warranty
Five-year full electronics
warranty.
Electronics: Designed with all
solid-state components with a
rating of 10 years of continuous
“normally on” use. Electrical
connection is made via two
flying leads. Standard product
incorporates dip switches
on rear of product allowing
three levels of intensity. An
optional line voltage dimmable
driver is available on 120 VAC
models (see factory options).
The line voltage dimmable
driver requires a reverse-phase
ELV dimming system. See LP
Series Compatible Dimmer
specification sheet.
Operating Temperature
Range: Standard wet location
-31°F (-35°C) to 104°F (40°C)
Code Compliance
UL 1598 and 924 listed. UL
listed for wet locations. NFPA
101, NEC, BOCA, OSHA and
IBC illumination standards.
Meets ADA specifications for
wall mounted lighting fixtures.

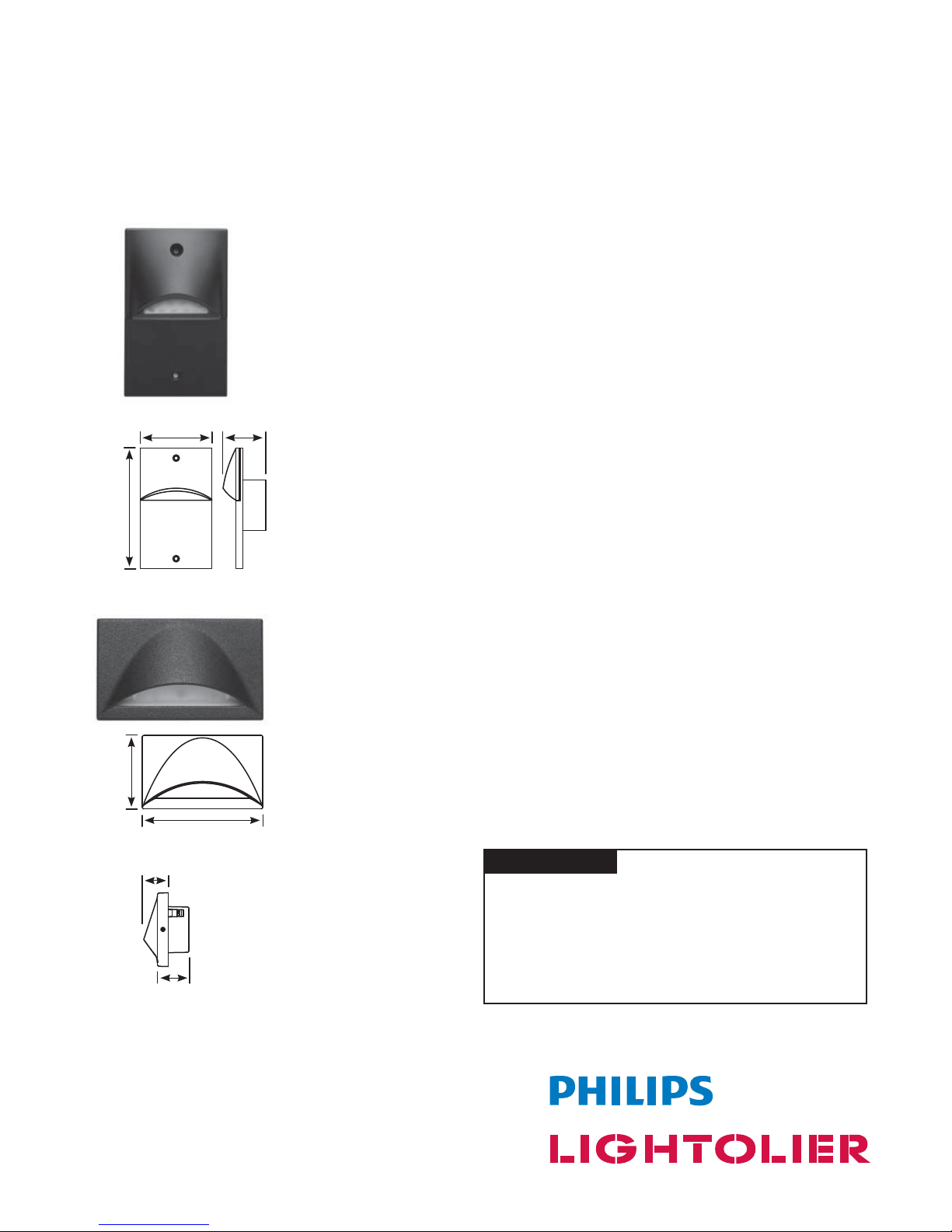

2.75"
(6.99 cm)
1.5"
(3.8 cm)
4.5"
(11.4 cm)
4.5"
(11.4 cm)
2.75"
(6.99 cm)
.78"
(1.98 cm)
.91"
(2.31 cm)
LP1SBK
LPH1SBK

LP Series
Low Level Recessed LED Luminaire
Page 2 of 2
Philips Lightolier
e: [email protected]
t: [phone]
w: www.lightolier.com
LP Series June 21, 2012
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2012.All rights reserved.
Job Information Type:
Ordering Information
Series
LP = Low Level
Emergency Lighting
Product
LPH = Horizontal
Low Level Emergency
Lighting Product
1= 12V AC, DC
2= 120 VAC
Input Voltage Lens
S= Satin
S
Finish
WH = White
BK = Black
IV = Ivory
A= Aluminum
G= Gunmetal
BR = Ornamental Bronze
AC = Aged Copper
VG = Velvet Green
GA = Granite
N= Nickel
DIM = Line Voltage
Dimmable1
AMB = Amber LEDs
BLU = Blue LEDs
Factory Options
Optics
Wall Mounted 18" AFF
High Setting
Note
1) Line voltage dimmable
driver available only with
120 VAC (LP2, LPH2)
models.
18 in.
8 ft.
4 ft.
1 FC avg.
1 FC min.
18 in.
18 ft.
5 ft.
1 FC avg.
1 FC min.
Average initial footcandles = 3.11
Maximum initial footcandles = 10.1
Minimum initial footcandles = 0.4
Maximum to minimum ratio = 25.25
10’ Fixture Spacing
Average initial footcandles = 2.39
Maximum initial footcandles = 10.5
Minimum initial footcandles = 0.3
Maximum to minimum ratio = 35.00
* The optics layout shown is intended to be used as reference
only. Standard reflectances used were 80/50/20. Lightolier is not
responsible for site specific conditions that may alter the results.
Lumen Output
The following data represents absolute lumen output in accordance with test method IESNA LM-79-08.
Vertical, Lumens
Low Med High
12 VAC/VDC 57.1 123.5 156.0
120 VAC 65.5 123.8 156.0
120 VAC DIM 162.6
Horizontal, Lumens
Low Med High
12 VAC/VDC 54.2 113.1 148.8
120 VAC 62.9 119.3 148.7
120 VAC DIM 128.7
