Lightronics FXLE1260W User manual

Page 1 of 4

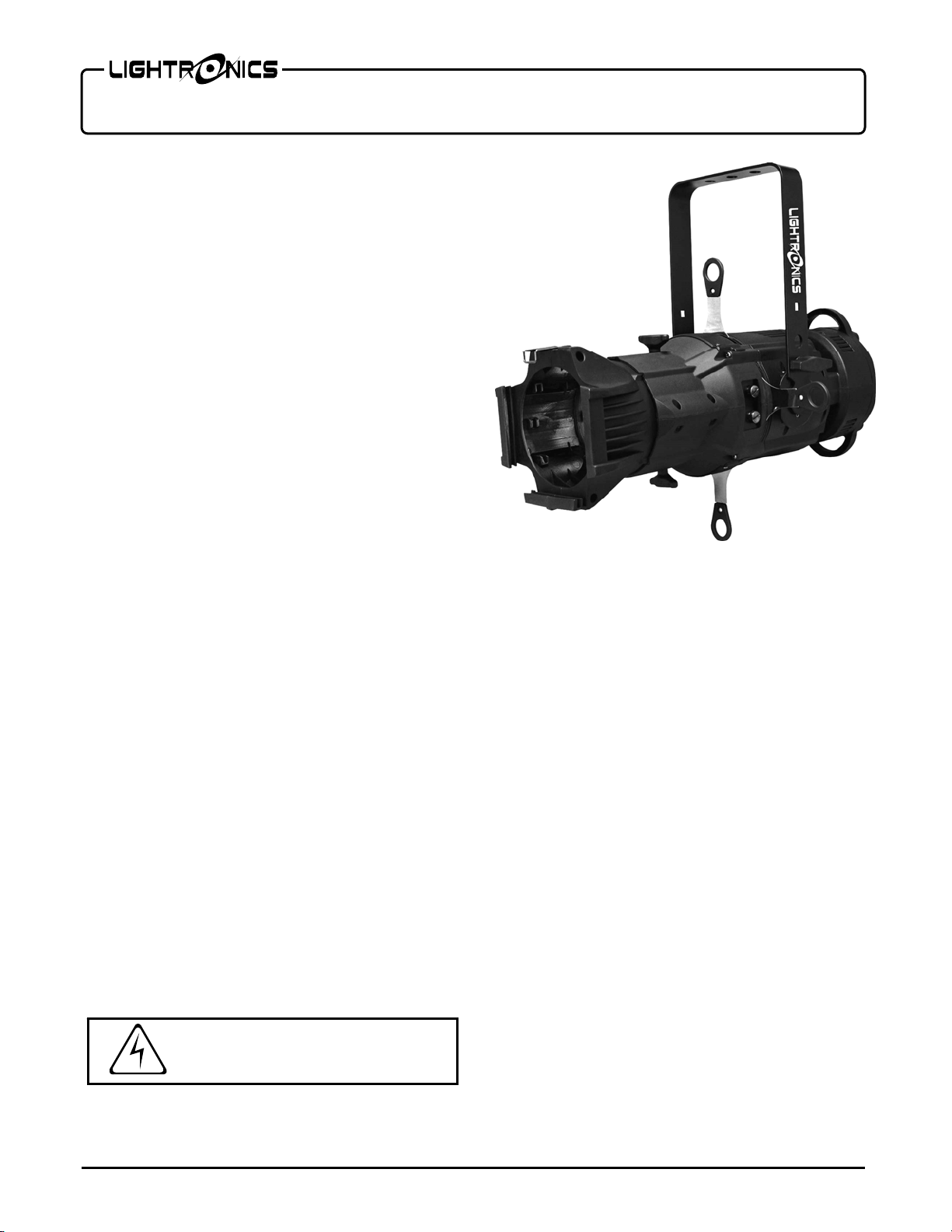

FXLE1260W LED FIXTURE
Version0.1 OWNERSMANUAL 07/24/2013
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588
FEATURES AND SPECIFICATIONS
LEDs: 120 Watt Array.
Color Temp.: 5500 deg. K
Beam Angle: 19º or 26º or 36º (50º Optional)
Control System: DMX512 + Stand Alone
DMX Channels: 2
DMX Connectors: 3 pin XLR
Power Input: 120VAC, 60Hz
Max. Power Consumption: 150 Watts
Body Material: High Impact Plastic
Body Color: Black or White
Reflector: Glass
Gel Frame and Size "B" Gobo Holder Included
Size: 23.9"L x 10.7"W x 11.1"H
Weight: 12 lbs
DESCRIPTION
The FXLE1260W is a LED ellipsoidal fixture suitable
for stage, disco, night club, and other artistic
applications. It has automatic stand alone control
modes and can operate via a DMX-512 external signal.
A mounting yoke enables the fixture to be operated in
various positions and orientation.
INSTALLATION
LOCATION
The FXLE1260W is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from
moisture and heat. Maintain a minimum spacing of
20" between the unit and other objects. The maximum
ambient operating temperature is 45
º
C (113
º
F). Keep
the vent holes clear. Holes are provided on the yokes
to install a lighting bar pipe clamp. Use a safety cable
when hanging the fixture.
POWER CONNECTIONS
The FXLE1260W has a line cord for connection to a
120 VAC, 15 Amp, 60Hz, grounded service. Do not try
to power the unit from a dimmer pack.
The safety ground pin on the power cord must be used.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices. In other words the control signal
cable should proceed from the controller to the first
receiving device and then to others in a continuous
"daisy chain" fashion.
The FXLE1260W has a DMX IN and a DMX OUT
connector to be used to connect the chain. The control
cable should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device.
DMX CONNECTOR PIN ASSIGNMENTS
There are two different connectors which can be used
for DMX control. They are both XLR type connectors.
Some units use 3 pin connectors. Others use 5 pin
connectors. The FXLE1260W receives a DMX signal
on the 3 pin MALE connector on the rear of the unit.
The 3 pin FEMALE connector is used to connect to the
next DMX device on the control chain.
If your console uses a 5 pin XLR connector you can
make up an adapter cable to accommodate this. The
table below shows the pin assignments for both 3 pin
and 5 pin XLR connectors.
DANGER
RISK OF ELECTRIC SHOCK
Page 2 of 4
FXLE1260W LED FIXTURE
Version0.1 OWNERSMANUAL 07/24/2013
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588
DMX TERMINATION
A DMX chain should be terminated at the last
receiving device on the chain. This is done by
installing a commonly available 1/4 Watt, 120 Ohm
resistor across the DATA - and DATA + wires at the
last device. If you have only a few fixtures very close
together and a very short run to the controller then you
may be able to operate without the terminator.
OPERATION
A power ON/OFF switch is located at the rear of the
unit. A control panel on the back of the unit is used to
set the operating options. It consists of an LED display
and four buttons
(ESC, ENTER, DOWN, and UP).
Use
UP
and
DOWN
to scroll the available choices.
Push
ENTER
when you reach the option you want to
check or set. The current setting for the option will be
shown. Use
UP
and
DOWN
to change the setting.
Push
ENTER
to invoke the new setting. Use
ESC
to
exit from the sub menus.
DMX OPERATION
Use the
A - - -
menu to set the unit DMX starting
address. The range is
r001 - r511.
NOTE
The current version of the FXLE1260W will not
respond to DMX addresses above 255 even though
the addressing menu allows selections up to 511.
The fixture uses two DMX channels allocated as
follows:
CHANNEL 1: Fixture Intensity (000 - 255)
CHANNEL 2: Strobe Control (000 - 255)
000 is Strobe OFF
DEMO MODE (dEnO)
The
DEMO
mode has 4 choices as follows:
SC00
External DMX control
SC01
Slow fade ON/OFF (stand alone operation)
SC02
Strobe effects (stand alone operation)
SC03
ON/OFF sequence (stand alone operation)
SC00 must be used when operating with an
external DMX controller.
If the unit was switched to another
DEMO
mode then it
must be returned to
SC00
and then a RESET (rESt)
must be done.
NAST MODE
This function is not currently supported.
RESET (rESt)
The reset function enables DMX operation after stand
alone operation.
Push
ENTER
when
rESt
is shown. The display will
show
OFF
. Push UP to execute the reset. The display
will revert to show the DMX starting address.
MAINTENANCE AND REPAIR
TROUBLESHOOTING
Check that you have power applied to the unit.
Check the DMX control cable.
Check the address settings of the unit and controller.
CLEANING
DISCONNECT THE POWER CORD BEFORE
HANDLING THE UNIT.

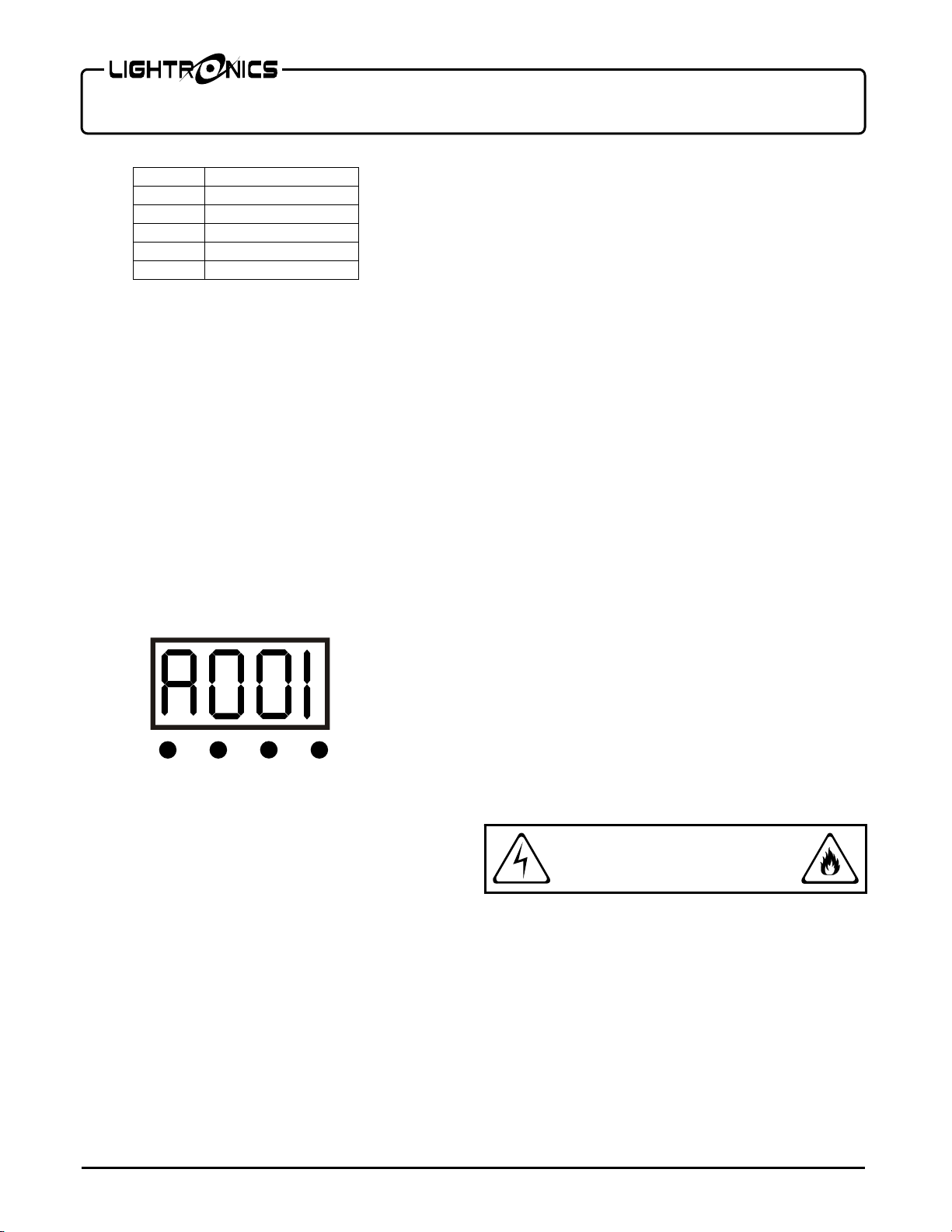

PIN # SIGNAL NAME
1 DMX COMMON
2 DMX DATA -
3 DMX DATA +
4 NOT USED
5 NOT USED
ESC UP
DOWN
ENTER
CONTROL PANEL
DANGER DO NOT OPEN UNIT
RISK OF ELECTRIC SHOCK
RISK OF FIRE
Page 3 of 4
FXLE1260W LED FIXTURE
Version0.1 OWNERSMANUAL 07/24/2013
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588
Do not use chemicals or solvents when cleaning the
fixture. A mild detergent can be used sparingly if
needed. Ensure that the unit is dry before re-u
se.
REPAIR
The only FXLE1260W user serviceable part is a 5 mm
x 20 mm externally accessible fuse on the rear panel.
DISCONNECT THE POWER CORD BEFORE
CHECKING OR REPLACING THE FUSE.
Replace fuse ONLY with 3.15 Amp, 250VAC, fast
acting fuse.
Internal service on the unit by other than Lightronics
authorized agents will void the warranty.
If service is required, contact the dealer from whom
you purchased the item, or contact the Lightronics,
Service Department, 509 Central Drive, Virginia
Beach, VA 23454. Tel: 757 486 3588.
PHOTOMETRIC CHARACTERISTICS
ILLUMINATION (LUX)
BEAM DIAMETER (METERS)
Distance From Fixture
Beam Angle 10 feet 20 feet 30 feet
19 deg -- 2500 1214
26 deg -- 1723 628
36 deg -- 1200 516
50 deg 2160 635 --
Distance From Fixture
Beam Angle 10 feet 20 feet 30 feet
19 deg -- 7 ft 11 ft
26 deg -- 10 ft 16 ft
36 deg -- 14 ft 20 ft
50 deg 10 ft 16 ft --
This product is warranted for a period of TWO YEARS from the date of purchase against
defects in materials and workmanship.
This warranty is subject to the following restrictions and conditions:
A) If service is required, you may be asked to provide proof of purchase from an
authorized Lightronics dealer.
B) This warranty is valid only for the original purchaser of the unit.
C) This warranty does not apply to damage resulting from abuse, misuse, accidents,
shipping, and repairs or modifications by anyone other than an authorized
Lightronics service representative.
D) This warranty is void if the serial number is removed, altered or defaced.
E) This warranty does not cover loss or damage, direct or indirect arising from the use or
inability to use this product.
F) Lightronics reserves the right to make any changes, modifications, or updates as
deemed appropriate by Lightronics to products returned for service. Such changes
may be made without prior notification to the user and without incurring any
responsibility or liability for modifications or changes to equipment previously
supplied. Lightronics is not responsible for supplying new equipment in accordance
with any earlier specifications.
G)This warranty is the only warranty either expressed, implied, or statutory, upon which
the equipment is purchased. No representatives, dealers or any of their agents are
authorized to make any warranties, guarantees, or representations other than
expressly stated herein.
H) This warranty does not cover the cost of shipping products to or from Lightronics for
service.
I) Lightronics Inc. reserves the right to make changes as deemed necessary to this
warranty without prior notification.
Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 20100211
