Liko Uno 102 Series Manual

Uno 102 is a mobile lift with electric raising and lowering
of the lift arm. Uno is intended mainly for use in Post
Acute Care facilities like nursing homes and other
care homes in the most common lifting situations, for
instance, transfers between bed and wheelchair, to and
from toilet and for lifting to and from the oor.
Uno has three alternative height settings, in order
always to provide the optimum lifting height. The middle
position is the standard setting; the lowest is suitable
for, for instance, lifting children and lifting to/from the
oor. Select the highest position for lifting extra high,
for instance, to beds and gurneys with xed heights.
Individual tting of the sling and other lifting
accessories is of utmost importance for function and
safety when using the lift.
IMPORTANT!
Read the instruction guides for both the patient lift and lifting accessories before use. Lifting and transferring a
person always involves a certain level of risk. It is important to completely understand the contents of the instruction
guides and the equipment should be used only by trained personnel. Please contact Liko/Hill-Rom in the event of
any uncertainties or questions.
is a warning triangle used for situations which require extra care and attention.
In this document, the person being lifted is referred to as the patient, and the person helping them is referred to as
the caregiver.
Uno™102
Instruction Guide
English
7EN150104-04
2013-08-22
Applies to the following models:
Uno 102 EE Prod. No. 2010004
Product Description

2www.liko.comUno 102 • 7EN150104-04
Table of Contents
Before using, make sure that:
• the lift is assembled in accordance with the assembly instructions
• the lifting accessory is properly attached to the lift
• the batteries have been charged for at least 6 hours
• you have read the instruction guides for the lift and lifting accessories
• personnel using the lift are informed of the correct operation and use of the lift
Before lifting, always make sure that:
• the lifting accessories are not damaged
• the lifting accessory is correctly attached to the lift
• the lifting accessory hangs vertically and can move freely
• the correct lifting accessory type, size, material and design are selected to suit the patient’s needs
• the lifting accessory is correctly and safely applied to the patient in order to prevent injuries
• the latches are intact; missing or damaged latches must always be replaced
• the sling’s strap loops are correctly connected to the sling bar hooks when the sling straps are extended,
but before the patient is lifted from the underlying surface.
Never leave a patient unattended during a lifting situation!
Uno 102 EE has been tested by an accredited testing institute and fulls the requirements specied in the Medical
Device Directive 93/42/EEC, for Class I products.
Uno 102 EE complies with the requirements in EN ISO 10535:2006, IEC 60601-1, EN 60601-1-2, ANSI/AAMI
ES60601-1 and CAN/CSA C22.2 no 60601-1.
The lift must not be modied under any circumstances. If you have any questions, please contact
Liko/Hill-Rom.
Particular care must be observed when using strong sources of potential disturbance, such as diathermy,
etc, so that diathermy cables are not positioned on or near the lift. If you have questions, please consult the
responsible assistive-device technician or the supplier.
The lift is not suitable for use in the presence of ammable mixtures, for example, in areas where ammable goods
are stored.
Safety Instructions................................................................... 2
Denitions.................................................................................3
Technical Data..........................................................................3
Dimensions...............................................................................4
Assembly..................................................................................5
Operation..................................................................................6
Charging the Batteries .............................................................8
Maximum Load ........................................................................9
Recommended Lifting Accessories ..........................................9
Simple Troubleshooting..........................................................11
Inspection and Maintenance ..................................................12
Safety Instructions
NOTE!
This instruction guide contains important information for the user of the product.
All who use the product should review and completely understand and adhere to the contents of the instruction
guide.Remember to keep the instruction guide in a place where it is always available to those using the product.
Warning!
Certain environments and conditions can limit the correct us of the mobile lifts, including: thresholds, unlevel oor
surfaces, various obstacles, and extra-thick carpets. These environments and conditions can cause the wheels of the
mobile lift not to roll as intended, possible imbalance in the mobile lift, and increased exertion by the caregiver. If you
are uncertain that your care environment fulls the requirements for correct use of the mobile lift, please contact your
Liko/Hill-Rom representative for further advice and assistance.

3www.liko.comUno 102 • 7EN150104-04

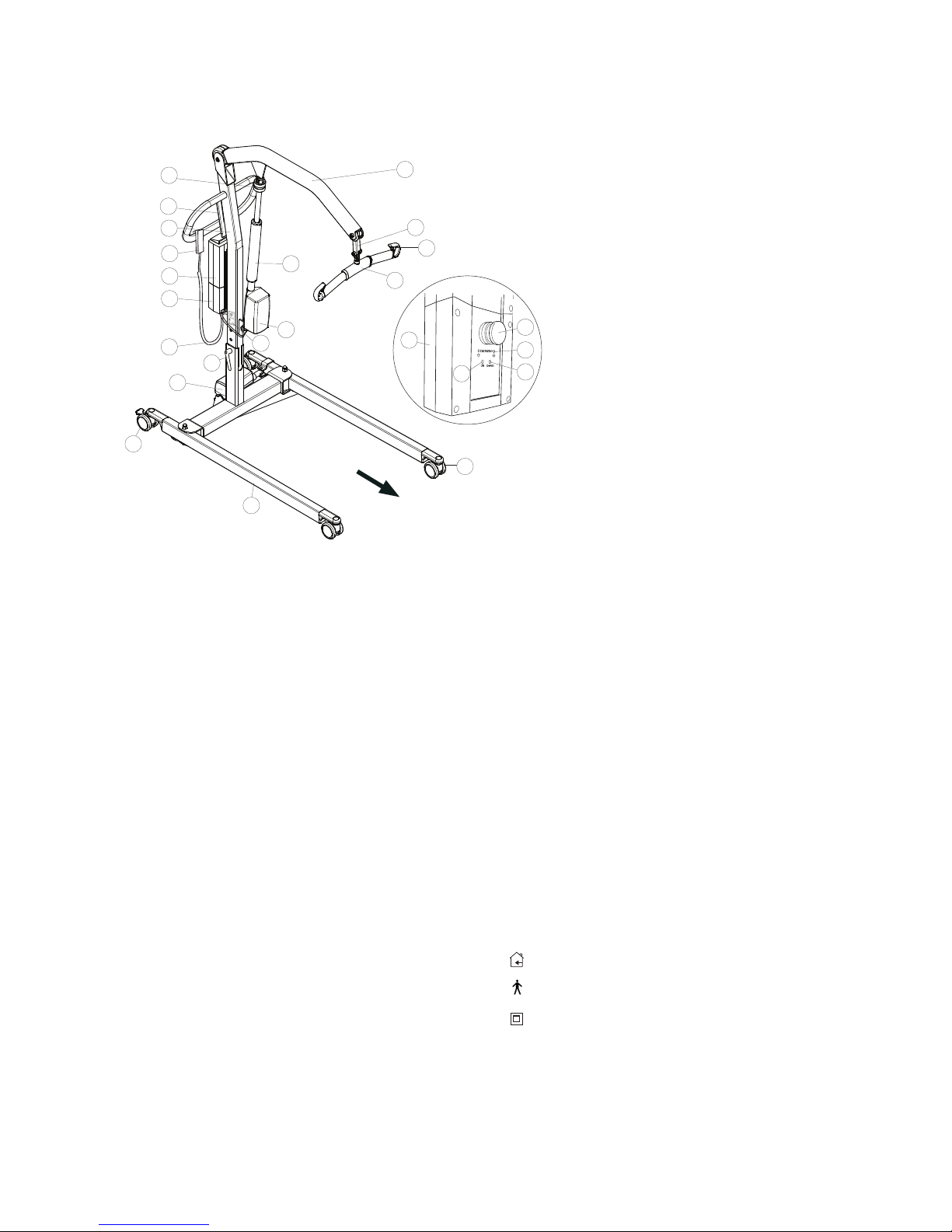

Denitions
1. Lift arm
2. Flexlink
3. Latches
4. Sling bar
5. Outer tube
6. Motor for lift arm
7. Product label
8. Front wheels
9. Base
10. Rear wheels with brakes
1 1. Motor for base-width adjustment
12. Locking handle
13. Cable for hand control
14. Control box
15. Battery box
16. Hand control
17. Lift mast
18. Holder for Quick Reference Guide and colour
codes for sling sizes
19. Emergency lowering (mechanical)
20. Emergency stop
21. Emergency lowering, electrical
22. Charge indicator (Charge = charges)
23. Charge indicator (On = charger connected)
Technical Data
The device is intended for use indoors.
Type B, in accordance with the electrical shock
protection class.
Class II equipment.
Forward direction
Maximum
load: Uno 102: 175 kg (385 lbs)
Material: Powder-painted steel
Weight: Total:
Uno 102 42,7 kg (94.1 lbs)
Heaviest removable part:
Uno 102 22,3 kg (49.2 lbs)
Wheels: Front: 75 mm (2.9 in) twin wheel
Rear: 75 mm (2.9 in) individual wheels
tted with brakes
Turning
Diameter: Uno 102 1380 mm (54 in)
Emergency
lowering
device: Mechanical and electrical
Lift Interval: Uno 102 1270 mm (50 in)
Lifting speed: 30 mm/sec (1.18 in/sec) without load
Sound level: 39 dB(A)
Protection
class: IP X4
Operating
Forces of
Controls: Buttons on hand control: 2.4 N
Electrical
data: 24 V
Intermittent
power:
Int. Op 10/90, active operation max 2 min.
Only 10% of a given length of time may be
active, but no more than 2 min.
Batteries: 2 x 12 V 2.9 Ah valve-regulated lead-
acid gel-type batteries. New batteries are
provided by the supplier.
Battery
charger:
Built-in, 100-240 V,AC, 50-60 Hz,
max 400 mA.
Lift motor: 24 V 6 A, permanent magnetic motor with
mechanical safety mechanism, safety nut
and outer tube.
Motor for
base-width
adjustment: 24 V 3.5 A, permanent magnetic motor
21
22
23
14
20
9
4
3
5
8
1
17
7
19
2
10
13
14
16
15
18
6
12
11

4www.liko.comUno 102 • 7EN150104-04

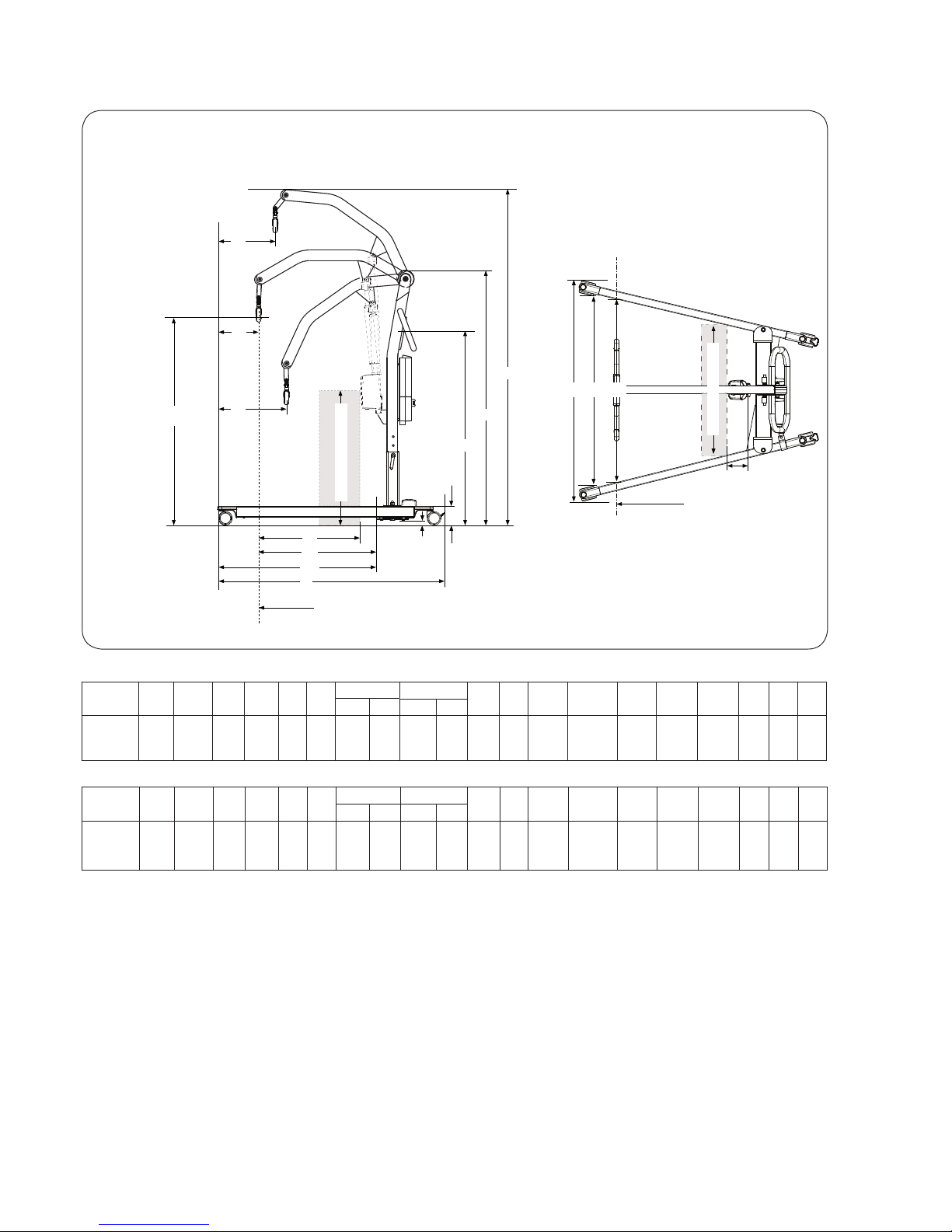

Dimensions
* Different measurements depending on the assembly alternatives. See “Assembly”, page 5. The change or complementary addition of other
lifting accessories result in a change of the lifting height.
** Reference measurement according to Standard EN ISO 10535:2006.
Top view
Lateral view
Max. reach position of lift arm
Max. reach position of lift arm
Measurement Table Measurements in mm
Model A*
Max.
A*
Min. B B1B2 B3 CDD1 D2 E* F** F1** L* Max.
L*
Min. MNO
max. min. max. min.
Uno 102
79.3
77.4
75.8
56.5
54.5
53.0
49.4 36.2 28.7 23.2 42.9 27.2 38.6 22.8 37.4 1.8
43.5
41.6
40.0
3.9 1.0
70.5
68.5
66.9
20.5
18.5
16.9
14.6 7.3 19.5
Measurements in inch.
B
B1
F
F1
Amax
B2
Amin
E
M
N
O
B3
L
C
D2
D D1
** 700 mm (27.5 in)
** 600 mm (23.6 in)
Model A*
Max.
A*
Min. B B1B2 B3 CDD1 D2 E* F** F1** L* Max.
L*
Min. MNO
max. min. max. min.
Uno 102
2015
1965
1925
1435
1385
1345
1255 920 730 590 1090 690 980 580 950 45
1105
1055
1015
100 25
1790
1740
1700
520
470
430
370 185 495

5www.liko.comUno 102 • 7EN150104-04

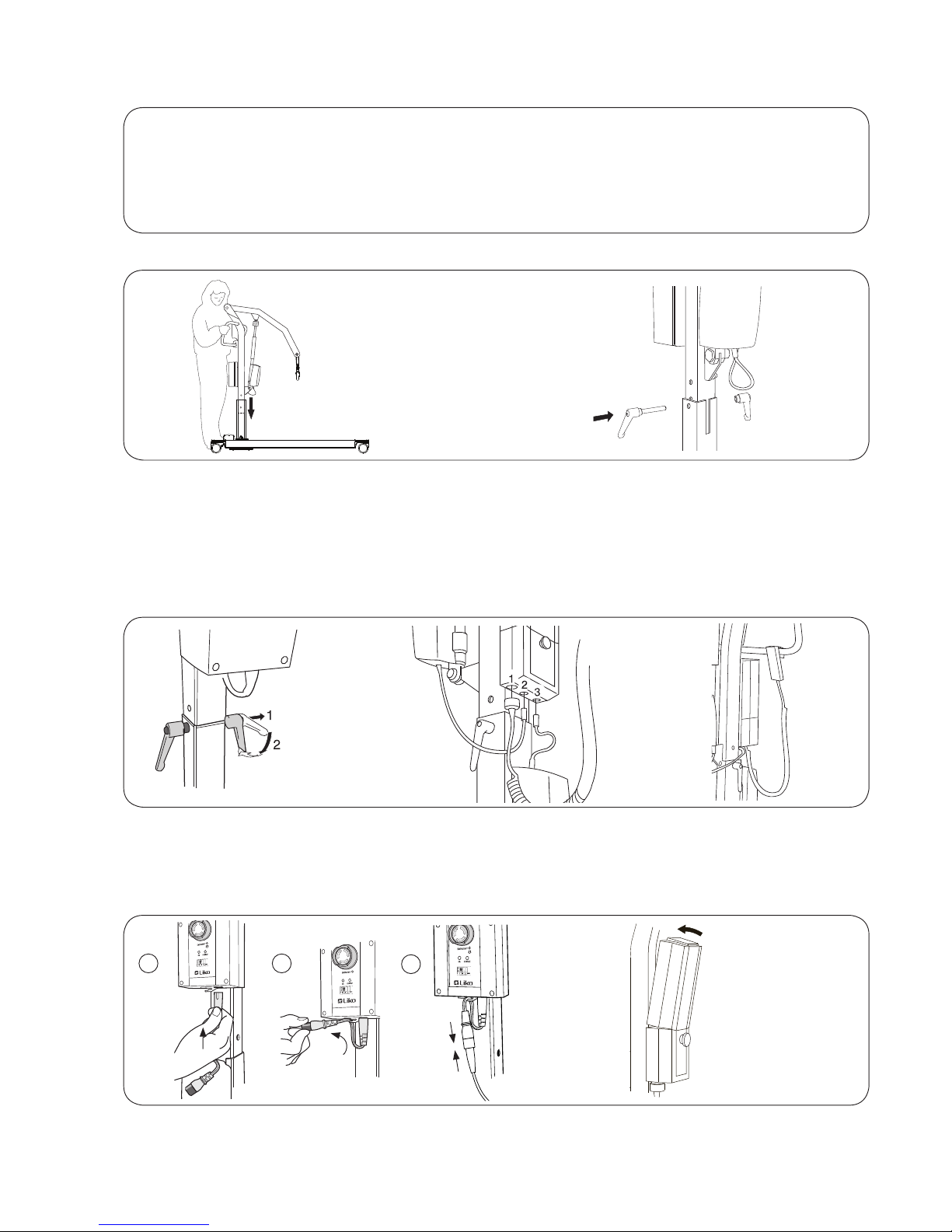

Assembly
4. Connect the cables as follows:
- Cable hand control to socket 1.
- Cable for the lift arm motor to socket 2.
- Cable for motor for base-width
adjustment to socket 3.
1. Remove the locking handles from the base
and place the lift mast in the foot of the base.
• Lift mast with lift arm, control box, motor for lift arm,
exlink, locking handles and sling bar
• Base (including motor for width adjustment)
• Hand control with cable
Before assembly, make sure you have the following parts:
• Battery box and holder for the charging cable
• Bag containing Instruction Guide, Quick Reference
Guide, charger cable and charger extension cable.
3. Secure the lift mast in the desired
position with the locking handles
provided. Adjust the position of the
locking handles so that they point
downwards.
2. The lifting height can be set to three different levels.
Select one of the three holes according to the
illustration above. The middle hole is recommended
in most cases. The lower hole of the lift mast is
recommended for extra high lifting height. The upper
hole is recommended for lower lifting heights.
Please see the measurement table on p. 4.
ABC
6. A) Plug the charger connector cable into the socket
under the control box.
B) Attach the connector cable to the strain relief system.
C) Plug the charger cable into the connector cable.
7. Place the battery box in its bracket above the
control box. Make sure that the battery box is
secured (you will hear a clicking sound).
5. Hang the hand control
on the handle.

6www.liko.comUno 102 • 7EN150104-04
ON CHARGE
EMERGENCY
BATTERY
10. Release the emergency stop by turning the button in
the direction indicated by the arrows on the button.
Charge the battery, see page 8.
• the battery of the lift is charged
• the indicator lamps on the front of the control
box are illuminated during charging
• the motion of the lift arm corresponds to the
buttons on the hand control
After assembly, make sure that:
• the emergency lowering works
(mechanical and electrical)
• the base-width adjustment works
• the wheel brakes are working.
8. Install the holder for the charging cable:
Hook it onto the front edge of the battery box
and push down on the back until you hear a click.
9. Place the Quick Reference Guide in the holder
on the lift mast.
ON CHARGE
EMERGENCY
Operating
When raising or lowering the lift arm:
Push or . The direction of the arrows applies
when the hand control is held as shown in the
picture. The lifting motion stops as soon as the push
button is released.
For adjustment of the base width, push: or
Operation
ON CHARGE
EMERGENCY
BATTERY
ON CHARGE
EMERGENCY
BATTERY
Emergency Stop
To activate:
Press the red button on the control box.
To reset:
Turn the button in the direction of the arrows until
the button springs out.
XS
S
MS
M L
XL XX
L

7www.liko.comUno 102 • 7EN150104-04

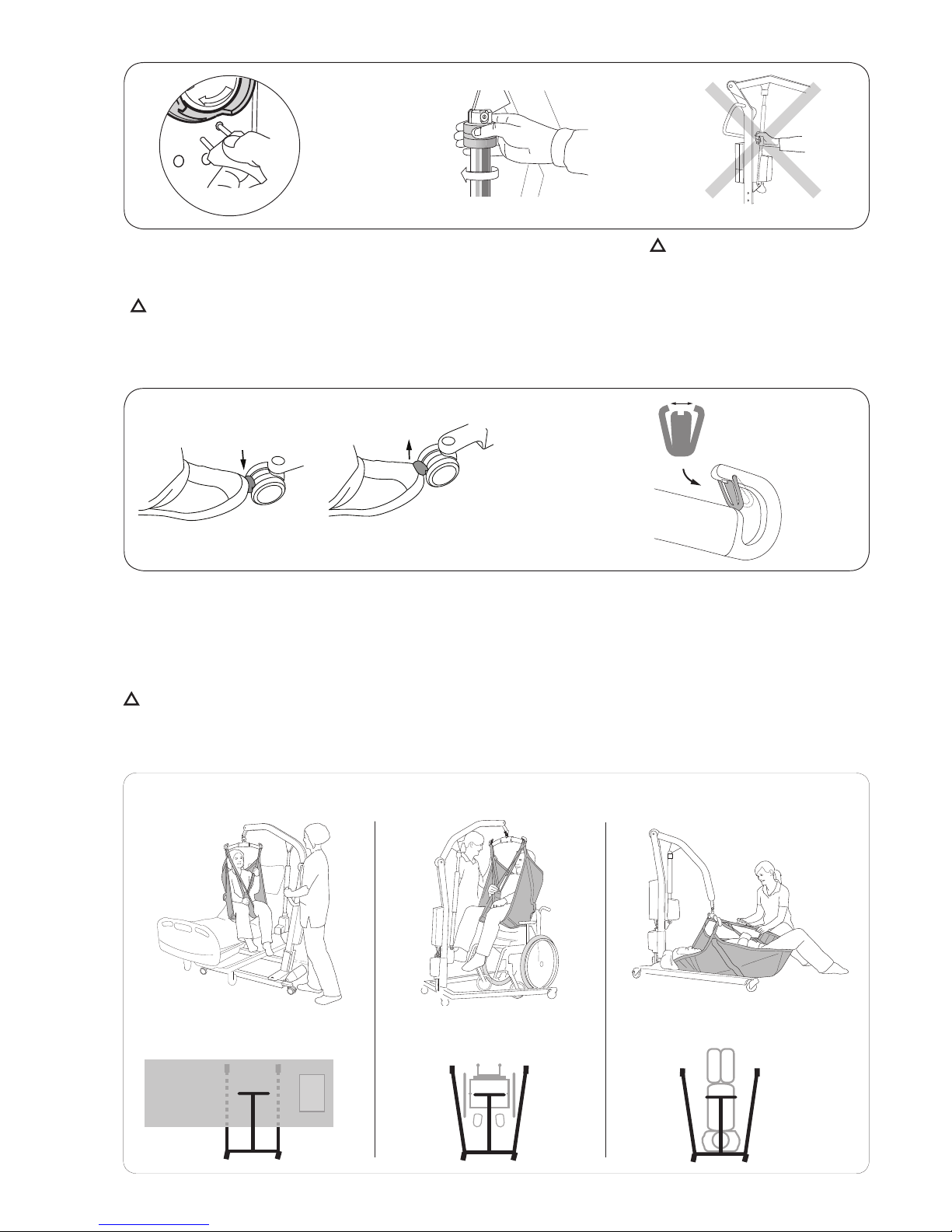

Wheels with brakes
During the lifting of a patient, the wheels should be unlocked
in order for the lift to be able to center around the patient’s
center of gravity. The rear wheels can be locked against rotation
and turning. To lock the wheel, press down the lock pedal. To release
the brake, lift up the lock pedal with your foot.
Locked wheels during lifting can increase the risk of tipping.
Mechanical Emergency
Lowering
Mechanical emergency
lowering is achieved by
rotating the red emergency
lowering cylinder in the
direction of the arrow.
Electrical Emergency Lowering
Push a narrow object into the hole on
the control box (marked “Emergency”).
The object used to press must not
be too sharp, since this may cause
damage to the control box!
Never move the lift by
pulling on the actuator!
ON CHARG
EMERGENCY
BATTERY
Installation of Latches
After installation, check that
the latch locks and moves
freely in the sling bar hook.
Position of the Lift when Lifting
From/To: Bed Chair/Toilet Seat Floor
NOTE: Place a pillow under the patient’s head for
increased performance and comfort. Always have
the wheels locked when lifting from the oor.

8www.liko.comUno 102 • 7EN150104-04
Charging the Batteries
In order to ensure maximum battery life, it is important
to charge the batteries regularly. We recommend
charging the batteries after use or every night.
Maximum charge is achieved after approximately
6 hours. When the batteries are fully charged, the
charger will disconnect automatically.
NOTE! When charging, a yellow indicator lamp
on the control box will be illuminated. The yellow
lamp turns off when the batteries are fully
Alternative Charging Procedures
charged. If the lamp has not turned off after 8 hours
of charging, the batteries probably need replacing.
Stop charging and replace the batteries.
Never charge batteries in a wet area.
If the lift is not used every day, we recommend pushing
the emergency stop after use, in order to turn off the
power and conserve battery life. Make sure the battery is
completely charged before pushing the emergency stop.
With built-in charger:
Connect the charger cable
to an electrical outlet (100-240 V AC).
Check that both lamps on the control
box are lit. A yellow lamp indicates
power supply to the charger.
If the charger cable is beginning to
stretch, it should be replaced in order
to minimize the risk of the cable getting
stuck and breaking.
With a wall-mounted charger or a table charger housing:
Detach the holder for the charger cable. Remove the battery box
from the control box by releasing the latch on top of the battery box.
Alt. A. Place the battery box on the wall-mounted charger. Plug the
charger into a wall socket (100-240 V AC). Make sure that both lights
on the charger are lit. The yellow light indicates charging and the
green light indicates power supply to the charger.
Alt. B. Place the battery box on the charger in the table charger
housing. Plug the charger into a wall socket (100-240 V AC).
Make sure that both indicator lamps on the charger are lit.
The yellow light indicates charging and the green light indicates
power supply to the charger.
NOTE: The lift cannot be used when the charger cable is plugged into a wall socket.
Battery Capacity
In the event of low battery voltage, a signal from the
control box will sound and the indicator (A) on the hand
control will light. When this happens, the battery must be
charged as soon as possible. However, there is sufcient
power for a few more lifts.
A
Alt. A Alt. B
ON CHARGE
EMERGENCY
ON CHARGE
EMERGENCY
Uno 102 complies with the requirements in the 2002/96/EC directive for waste electronic and
electrical equipment. Used batteries should be deposited at the nearest recycling station in
accordance with local regulations or given to personnel authorized by Liko/Hill-Rom.

9www.liko.comUno 102 • 7EN150104-04
Universal SlingBar 350* Prod. No. 3156074
Max. 300 kg (660 lbs)
Universal SlingBar 450* Prod. No. 3156075
Max. 300 kg (660 lbs)
Universal SlingBar 600* Prod. No. 3156076
Max. 300 kg (660 lbs)
Universal TwinBar 670* Prod. No. 3156077
Max. 300 kg (660 lbs)
Universal SideBars 450 Prod. No. 3156079
including bag
Max. 300 kg (660 lbs)
Sling Cross-bar 450* Prod. No. 3156021
Max. 300 kg (660 lbs)
(Adapter 12 mm, prod. no. 2016504 required)
Sling Cross-bar 670* Prod. No. 3156018
Max. 300 kg (660 lbs)
(Adapter 12 mm, prod. no. 2016504 required)
*also available equipped with Quick-Release Hook.
Different maximum loads may apply to different products on the assembled lift unit lift: lift, sling bar, sling and any
other accessories used. For the assembled lift unit, the maximum load is always the lowest maximum load rating
for any of the components. For example, a Uno 102 which is approved for 175 kg (385 lbs) can be equipped with a
sling bar which is approved for 300 kg (660 lbs). In this case, the maximum load of 175 kg (385 lbs) applies to the
assembled lift unit.
Check the markings on the lift and lifting accessory or contact your Liko/Hill-Rom representative if you have any questions.
Maximum Load
Recommended Lifting Accessories
Using lifting accessories other than those approved can entail a risk.
When changing a sling bar or other lifting accessories, the highest possible lifting height of the lift is affected.
Before changing lifting accessories you should always ensure that the lift, after change, can full the desired lifting
height in order to manage the lifting situations for which the lift is to be used.
To select suitable slings and other lifting accessories, please see the “Lifting Accessories” brochure. For additional
guidance in selecting a sling, study the instruction guide for the respective sling models. Here you will also nd
guidance for combining Liko’s sling bars with Liko’s slings.
Contact your Liko/Hill-Rom representative or visit www.liko.com for advice and information on Liko’s product range.

10 www.liko.comUno 102 • 7EN150104-04
Bag for SlingBars Prod. No. 2001025
Slingbar Cover Paddy 30 Prod. No. 3607001
(ts Universal SlingBar 350, 450 and
600 and SlingBar Slim 350).
Leg protector Prod. No. 20190029
Adapter 12 mm
Prod. No. 2016504
Scale for Uno
For weighing patients in combination with Uno, we recommend
LikoScale 350 (adapter 12 mm required). LikoScale 350 is approved
in accordance with European Directive NAWI 90/384 (Non-Automatic
Weighing Instruments).
Contact Liko/Hill-Rom for further information. LikoScale 350
Prod. No. 3156228
Battery Charger
For wall installation
or for use with table
charger housing
Prod. No. 2004106
Extra Battery
Prod. No. 2006106
Table Charger
Housing
excl. charger
and battery
Prod. No. 2107103
Quick-Release Hook
The Liko Quick-Release Hooks are a system for quick change of lifting
accessories on Liko’s mobile and stationary lifts. Uno must be equipped
with the Q-link 13 to enable use with a Quick-Release Hook.
The Quick-release Hook Universal ts the Universal SlingBar 350, 450 and
600 (prod. no. 3156074 - 3156076). Quick-Release Hook TDM ts the
Sling Cross-bar 450 and 670 (prod. no. 3156021 and 3156018) and
Universal TwinBar 670 (prod. no. 3156077).
Please see “Guide to Liko’s Quick-Release Hook System”, which can be
downloaded from our website www.liko.com, or contact Liko/Hill-Rom for
more information about the possibilities of the Quick-Release Hook system. Quick-Release
Hook TDM
Prod. No. 3156502
Q-link 13
Prod. No. 3156509
Quick-Release Hook
Universal
Prod. No. 3156508
X
Y
Z
