Lil' Jumbl Bottle Warmer and Sterilizer User manual

Bottle Warmer and Sterilizer
Thank you for purchasing the Lil’ Jumbl Bottle Warmer and Sterilizer. This User Guide is
intended to provide you with guidelines to ensure that operation of this product is safe
and does not pose risk to the user. Any use that does not conform to the guidelines
described in this User Guide may void the limited warranty.
Please read all directions before using the product and retain this guide for reference.
This product is intended for household use only.
This product is covered by a limited one-year warranty. Coverage is subject to limits
and exclusions. See warranty for details.
User Guide

Introduction
The Lil' Jumbl baby bottle warmer and sterilizer functions as a sterilizer/dryer, food
steamer, and food and bottle warmer. It uses natural steam sterilization to kill up to
99.9% of bacteria, and can be set to automatically go into a drying mode after
sterilizing. Its adaptive design lets you configure the unit to hold baby bottles, food
containers, pacifiers, pump components, cups, and nipples.
• Natural steam sterilization eliminates 99.9 percent of bacteria
• Automatic drying mode after sterilizing
• Selectable 20/40/60 minute drying time
• HEPA filter purifies the air when drying
• Steam-cooks baby food
• Warms bottles and foods
• Keep warm feature
• Delay timer, for all functions, up to 12 hrs. in 30 min. intervals
• Automatic shutoff when the unit is empty
• Adjustable configuration
Safety Precautions
Please read the following information carefully before using this product to ensure your safety:
• Make sure this product is complete and in good condition after being removed from
the package.
• Keep the inner plastic package out of reach of children.
• Use a soft cloth duster to wipe if needed.
• Ensure the following before connecting to electricity:
1. The electrical outlet voltage must match the technical data on the product.
2. The power socket must be grounded. The manufacturer is not responsible for any issues
related to improper grounding.
• Utilizeonly professionalelectricianstochangethepower voltage inyour homeifthe
power socket is incompatible with plug more adapters, plugs or power board on this unit.
Use a simple or multifunctional adapter or power board that conforms to electricity safety
standards. Do NOT exceed the rated voltage.
• If the plug is damaged, consult the manufacturer or a professional to repair to avoid risk
of injury.
• Anyone with physical or other impairments (including the child and the elderly) should
not use this product without the supervision of someone responsible for their safety.
Children must be supervised and should not play with this electrical appliance.
• Keep this product and plug dry and away from water or moisture to avoid risk of shock.
• Do not use metal (i.e. blades or sharp objects) to touch or scrape this product or plug.
• Do not handle with moist or wet hands.
• Place this product on a stable surface and keep away from children.
• Do not use this product near water sources (including pools) or on tables or platforms
where it may become damp.
• Do not over-fill with water. Boiling water may splash causing a product short or
other hazards.
• Unplug when not in use and keep clean. Do not pull out the plug using the electric wire.
• Do not expose this product to water, mist, steam, direct sunlight, or heat.
• Do not immerse any part of this product in water.
• Keep pets away from this appliance in order to avoid an electric shock or injury.
2

Product Overview
Cover
Insulates and keeps air and steam
from escaping
Nipples/Small Part
Sterilization Compartment
Sterilizes nipples and various
small items
Grid
Separator and platform
Baby Bottle
Sterilization Compartment
Can be used for baby bottle heating/
sterilization, milk warming or heating/
steaming food
Base
Contains an air dryer for drying
bottles after sterilization
HEPA Filter Groove
Holds HEPA filter to purify air for drying
3

Combinations/Functions

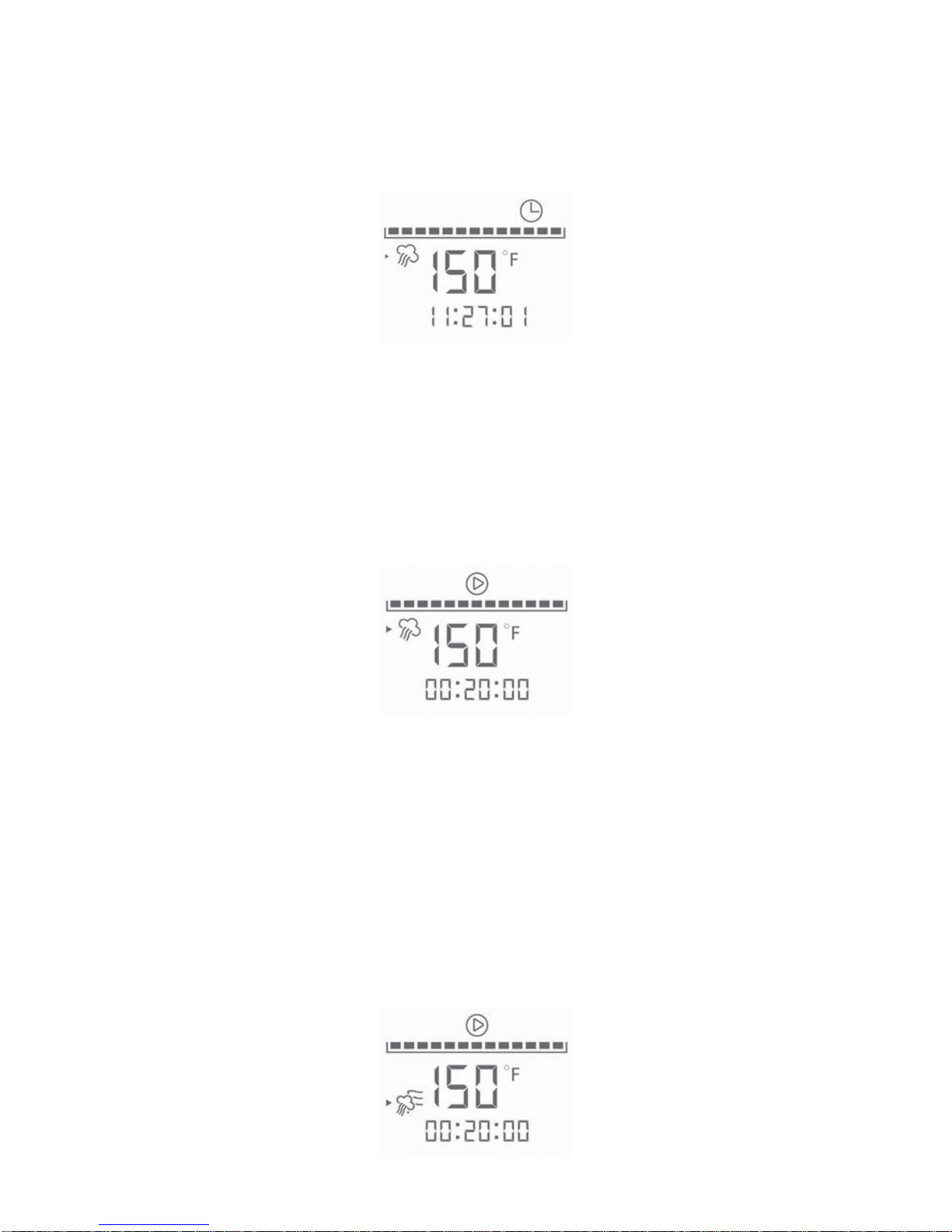

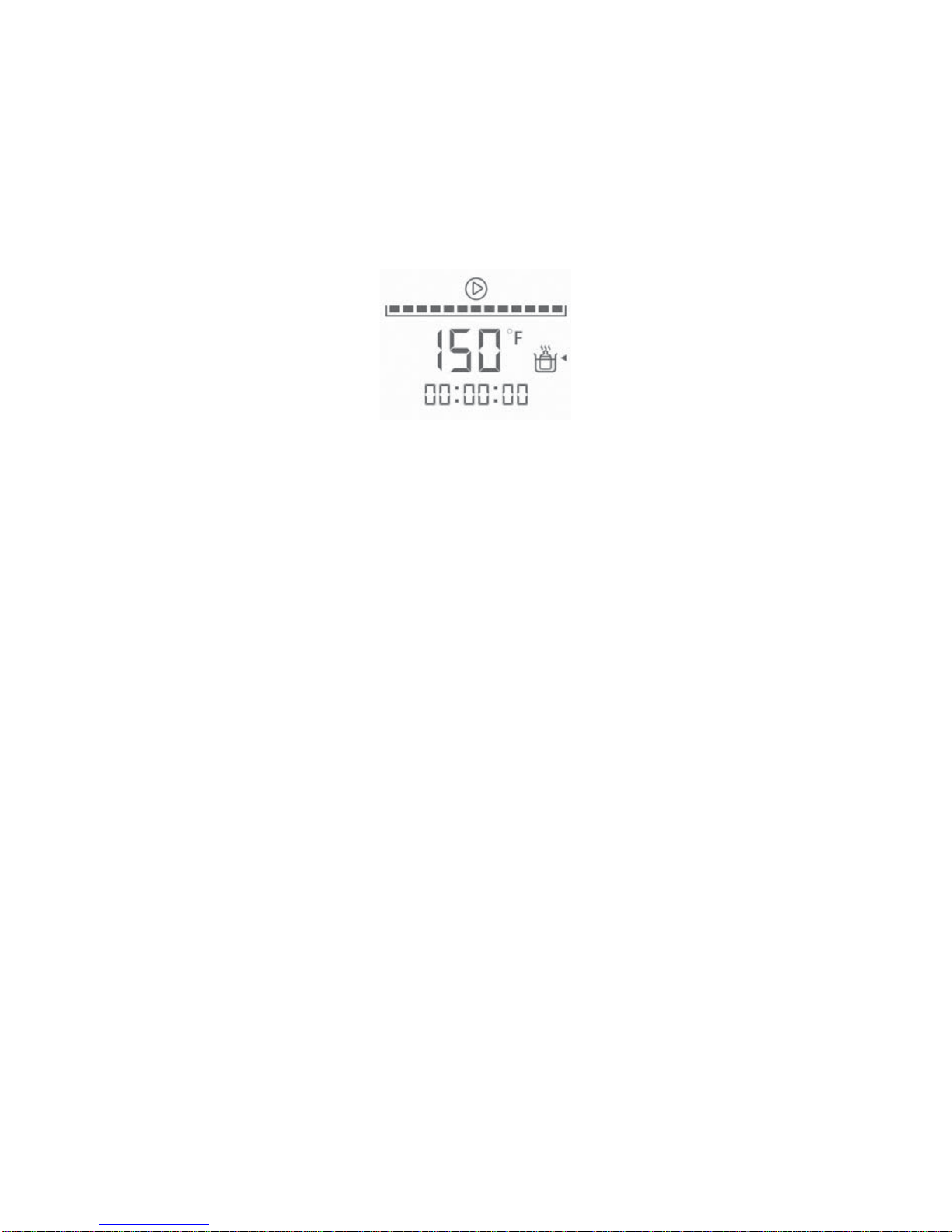

Control Panel Overview Screen Display Overview
Sterilization
Dryingand
sterilization
Steaming
Sterilization
Dryingand
sterilization
Steaming
Food heating
Steaming
Bottle warming
Power Button
Turns the unit
ON/OFF
Menu Button
Choose from
six (6) functions;
one press to
change from
Fahrenheit to
Celsius
Constant Temperature Indicator
Displays when constant "keep warm"
temperature is reached when
warmingmilkor heating food
General Function
Indicator
Displays whenever
the unit is in use
Temperature Level
Indicator
Increases left to right as
temperature rises. Does
not display when
sterilizeris notin use.
Temperature Display
Shows current
temperature
Time Display
Shows the set time
Function Indicators
Each display shows
depending on current
function
Delay Button
Sets delay
start time
+/- Button
Increases/
decreases
temperature;
sets time
Cancel Button
Restores to
previoussetting;
returns to
standby mode
4

Functions and General Operation
Delay-Start Timer Function
Timer can be set for any of the six functions. Press Delay button. Time will show on
LCD screen. Use [+/-] button to set the start time. Time will begin to count down once
the Menu button is pressed (tone will sound).
Sterilization Function
1. Fill the inner tank to the maximum level and place baby bottle upside down in the
baby bottle sterilization compartment; place the bottle nipples and other small items
into the nipple/small parts compartment and cover with lid.
2. Plug in to wall outlet and press the Power button to turn unit ON (Standby Mode).
3. Press the Menu button to enter the sterilization function and use the [+/-] button to set
the drying time. Note: When the drying time is reached, a tone will sound.
Sterilization/Drying Function
1. Fill the inner tank to the maximum level and place baby bottle upside down in the
baby bottle sterilization compartment while placing the nipples and other small
parts into the nipple/small parts compartment and cover with lid.
2. Plug in to wall outlet and press the Power button to turn unit ON (Standby Mode).
3. Press the Menu button to enter the sterilization/drying function and use the [+/-] button
to set the drying time. Note: When the drying time is reached, a tone will sound. The
unit will first sterilize, then dry at intervals of 20, 40 or 60 minutes according to your
selection. Default drying time is 20 minutes.
5

Drying Function
1. Fill the inner tank to the maximum level and place baby bottle upside down in the
baby bottle sterilization compartment while placing the nipples and other small
parts into the nipple/small parts compartment and cover with lid.
2. Plug in to wall outlet and press the Power button to turn unit ON (Standby Mode).
3. Press the Menu button to enter the drying function and use the [+/-] button to set the
drying time. Note: When the drying time is reached, a tone will sound. The unit dries
at intervals of 20, 40 or 60 minutes according to your selection. Default drying time is
20 minutes.
Steaming Function
1. Fill the inner tank to the maximum level and place food for steaming in the baby
bottle sterilization compartment while placing the nipples and other small parts (if
necessary) into the nipple/small parts compartment and cover with lid.
2. Plug in to wall outlet and press the Power button to turn unit ON (Standby Mode).
3. Press the Menu button to enter the steaming function and use the [+/-] button to set
the steaming time.
Note: When the steaming time is reached, a tone will sound.
Food Heating Function
1. Place food in the compartment at the bottom of the inner tank. Fill the inner tank to
the maximum level and stack the nipple/small parts compartment.
2. Plug in to wall outlet and press the Power button to turn unit ON (Standby Mode).
3. Press the Menu button to enter the food heating function and use the [+/-] button to
set the heating time.
Note: When the heating time is reached, a tone will sound.
6

Cleaning and Maintenance
• Do not immerse this product in water.
• Use a damp cloth duster to clean the surface of the panel control and heating base.
Corrosive detergents or hard metal wire materials are not recommended. This will
damage the surface, affect the lifetime of the unit, and may cause a safety hazard.
• Do not use sharp or metal utensils to touch the center of heating base. This may
cause electric shock.
• Clean the product when not in use. Store in package and place in a dry,
ventilated location.
Tips
• Use white vinegar for cleaning and sterilizing the kettle after use.
• Use citric acid. Fill with water and boil. Place 25g citric acid and let the unit sit for 15
minutes. Empty the water. Wash out and rinse 5 - 6 times. Repeat if necessary.
Specifications
• Dimensions: 12.2" x 8.2" x 16.5" (31 x 21 x 42cm)
• Weight: 4.45 lbs. (2.02kg)
• Power rating: 500W heating/180W drying
• Power input: 110V, 60Hz
This product is covered by a limited one-year warranty.
Please see warranty information on our website at
www.liljumbl.com.
Customer Service:
[e-mail]
866-849-3049
Bottle Warming Function
1. Place filled baby bottle at the bottom of the inner tank (centered). Fill the inner tank
to the maximum level and stack the baby bottle sterilizer compartment.
2. Plug in to wall outlet and press the Power button to turn unit ON (Standby Mode).
3. Press the Menu button to enter find the milk warming function and use the [+/-]
button to set the desired temperature.
Note: When the temperature is reached, a tone will sound.
Note: Choose shorter heating time for glass or ceramic bottles. Choose higher
temperature for plastic or silicone bottles.
Distributed by
C&A Marketing, Inc.
2 Bergen Turnpike
Ridgefield Park, NJ 07660
MADE IN CHINA
LIL’ JUMBL is a trademark
of C&A IP Holdings, LLC
liljumbl.com
[email protected]
©2015 All Rights Reserved
7
