LILYGO T-Echo User manual

!
Version 1.0
Copyright © 2022
T-Echo
User Guide

About This Guide
This document is intended to help users set up the basic software development
environment for developing applications using hardware based on the T-Echo.
Through a simple example, this document illustrates how to use Arduino, including the
menu based configuration wizard, compiling the Arduino and firmware download to the
NRF52840 module.
Release Notes
Date Version Release notes
2022.08V1.0First release.

Table of Contents
1. Introduction!1".............................................................................................................................
1.1. T-Echo .................................................................................................................................1"
1.2. Arduino 1".....................................................................................................................................
1.3. Preparation!1".................................................................................................................................
2. Get Started!2".............................................................................................................................
2.1. Download the Arduino Software !...............................................................................................2!
2.1.1. Install Prerequisites! .......................................................................................................2!
2.1.2. Toolchain Setup!............................................................................................................2!
2.2. Install the Arduino Software! ......................................................................................................3!
2.3. Set up Path!
................................................................................................................................3!
!................................................................................................................................4!
!5"..................................................................................................................................
! ...........................................................................................................................6"
3. Configure
4. Connect
5. Test Demo
6. Upload Sketch !7".......................................................................................................................
6.1. Build and Flash!7"..........................................................................................................................

!
1. Introduction
1. Introduction

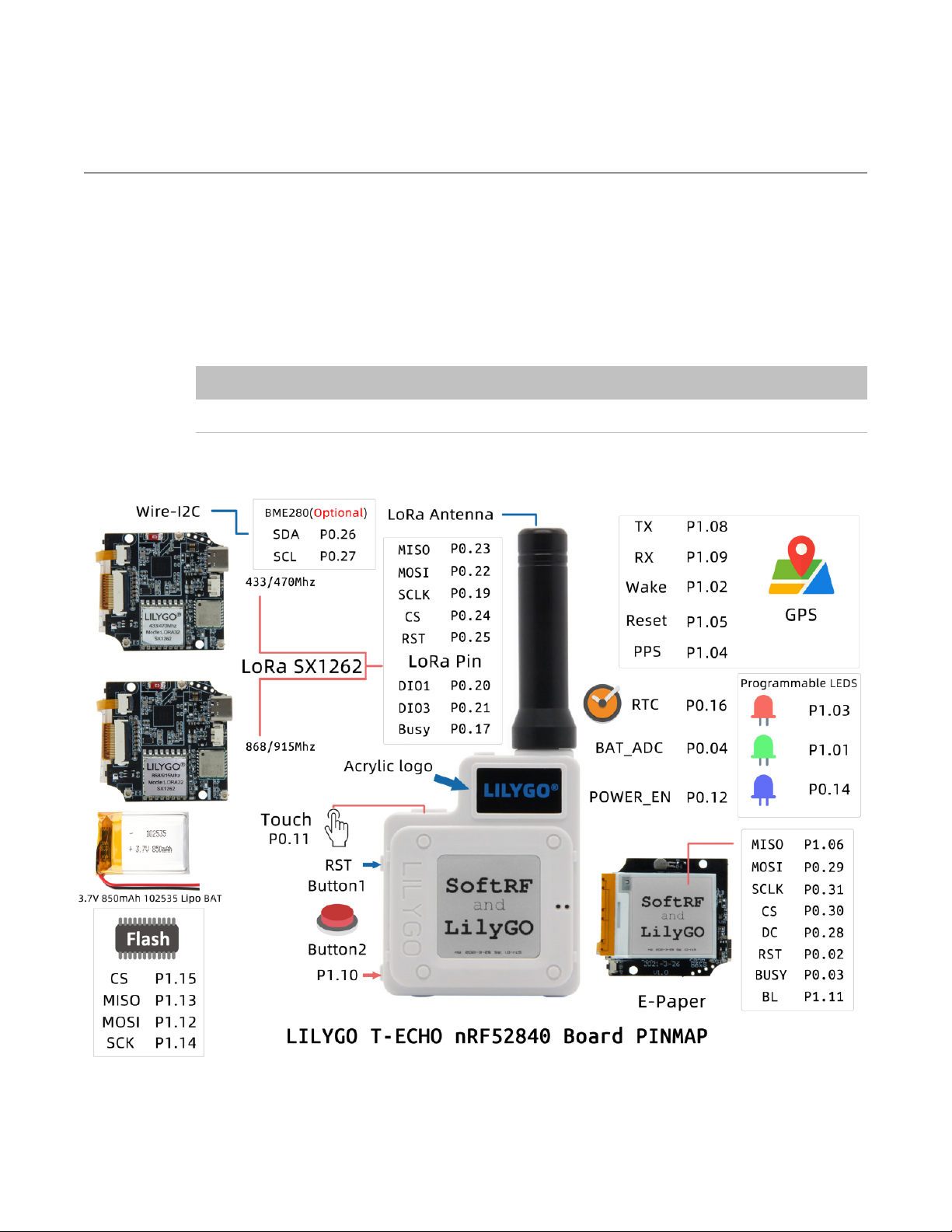

1.1. T-Echo
T-Echo is a development board. It can work independently. It consists of NRF52840
SOC, LoRa chip SX1262 and GNSS module.
The nRF52840 is fully multiprotocol capable with full protocol concurrency. It has
protocol support for Bluetooth LE.
The nRF52840 is built around the 32-bit ARM® Cortex™-M4 CPU with floating point unit
running at 64 MHz. The ARM TrustZone® CryptoCell cryptographic unit is included on-
chip and brings an extensive range of cryptographic options that execute highly
efficiently independent of the CPU. It has numerous digital peripherals and interfaces
such as high speed SPI and QSPI for interfacing to external flash and displays, PDM and
I2S for digital microphones and audio, and a full speed USB device for data transfer and
power supply for battery recharging.
Xinyuan provides the basic hardware and software resources that empowers application
developers to build their ideas around the NRF52 series hardware. The software
development framework provided by Xinyuan is intended for rapidly developing Internet-
of-Things (IoT) applications, with LoRa, Bluetooth, GPS and flexible power management
and other advanced system features.

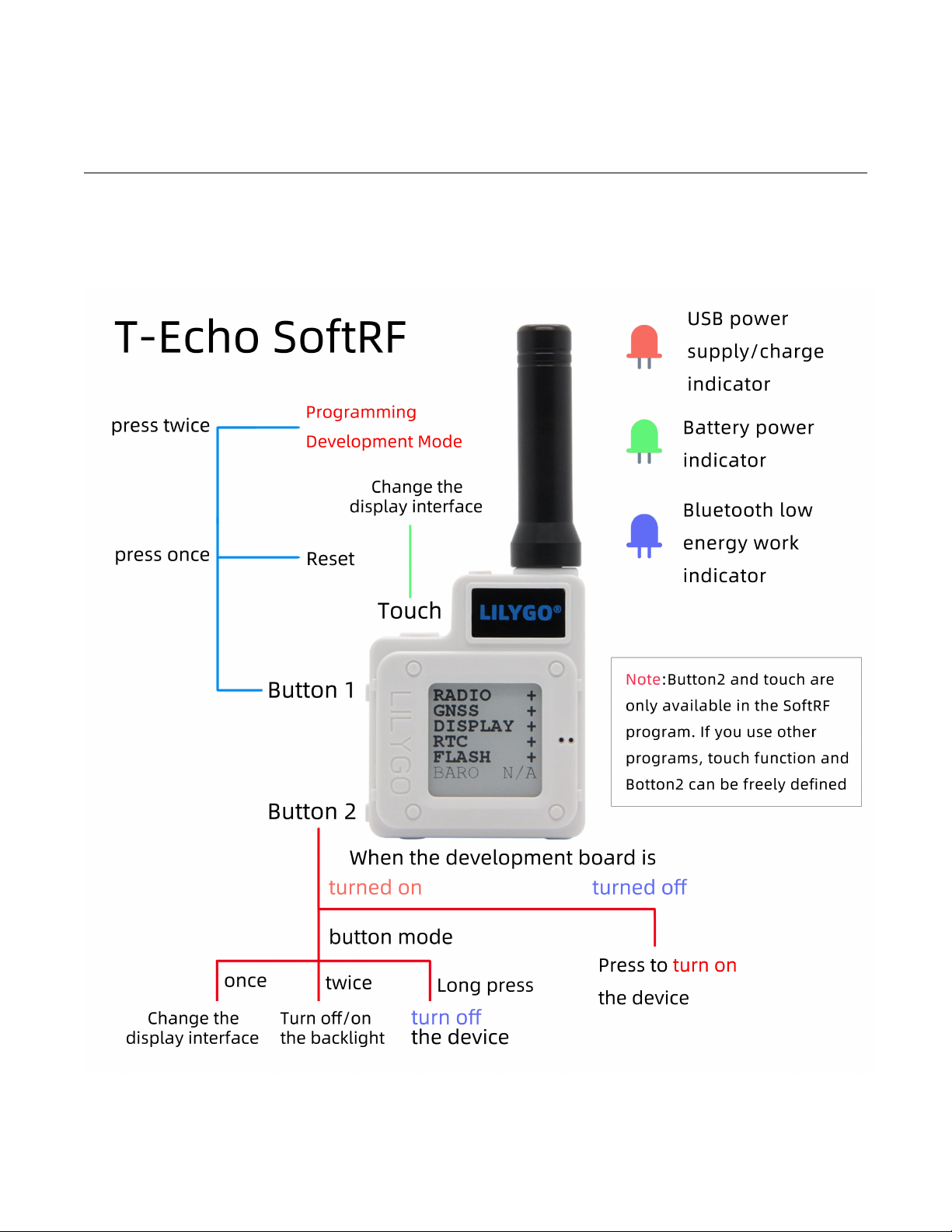

T-Echo can also be hand-held, wall-mounted or placed on a table to run
1.2. Arduino
A set of cross-platform applications written in Java. The Arduino Software IDE is
derived from the Processing programming language and the integrated development
environment of the Wiring program. Users can develop applications in Windows/Linux/
MacOS based on Arduino. It is recommended to use Windows 10. Windows OS has
been used as an example in this document for illustration purposes.
1.3. Preparation
To develop applications for NRF52840 you need:
•PC loaded with either Windows, Linux or Mac operating system
•Toolchain to build the Application for NRF52840
•Arduino that essentially contains API for NRF52840 and scripts to operate the
Toolchain
•The NRF52840 board itself and a USB cable to connect it to the PC
Lilygo 1/7 2022.08

!
2. Get Started
2. Get Started
2.1. Download the Arduino Software
The quickest how to install the Arduino Software (IDE) on Windows machines
2.1.1. Quick Start Guide
The website provides a quick start tutorial
•Windows:
https://www.arduino.cc/en/Guide/Windows
•Linux:
https://www.arduino.cc/en/Guide/Linux
•Mac OS X:
https://www.arduino.cc/en/Guide/MacOSX
2.1.2. Installation steps for Windows platform Arduino
Xinyuan 2022.08
Enter the download interface, select Windows installer to install directly
2/7

!
2. Get Started
2.2. Install the Arduino Software
Xinyuan 2022.08
Wait for installation
3/7

!
3. Start a Project
3. Configure
Open Arduino, open preferences
-> add https://adafruit.github.io/arduino-board-index/package_adafruit_index.json
to the board installation manager address list
Xinyuan 2022.08
3.1 Install nRF52 Environment
Open the board installation manager, wait for the index update to complete,
select 'Adafruit nRF52 by Adafruit' and click install
4/7

!
4. Connect
4. Connect
You are almost there. To be able to proceed further, connect board to PC, check under
what serial port the board is visible and verify if serial communication works.
Xinyuan 2022.08
5/7

!
4. Configure
5. Test Demo
Copy all the folders in the lib directory to "C:\User\<YourName>\Documents\Arduino\libraries"
!
Xinyuan 2022.08
6/7
Open https://github.com/Xinyuan-LilyGO/T-Echo
Download the zip file

!
5. Build and Flash
6. Upload Sketch
6.1. Select Board

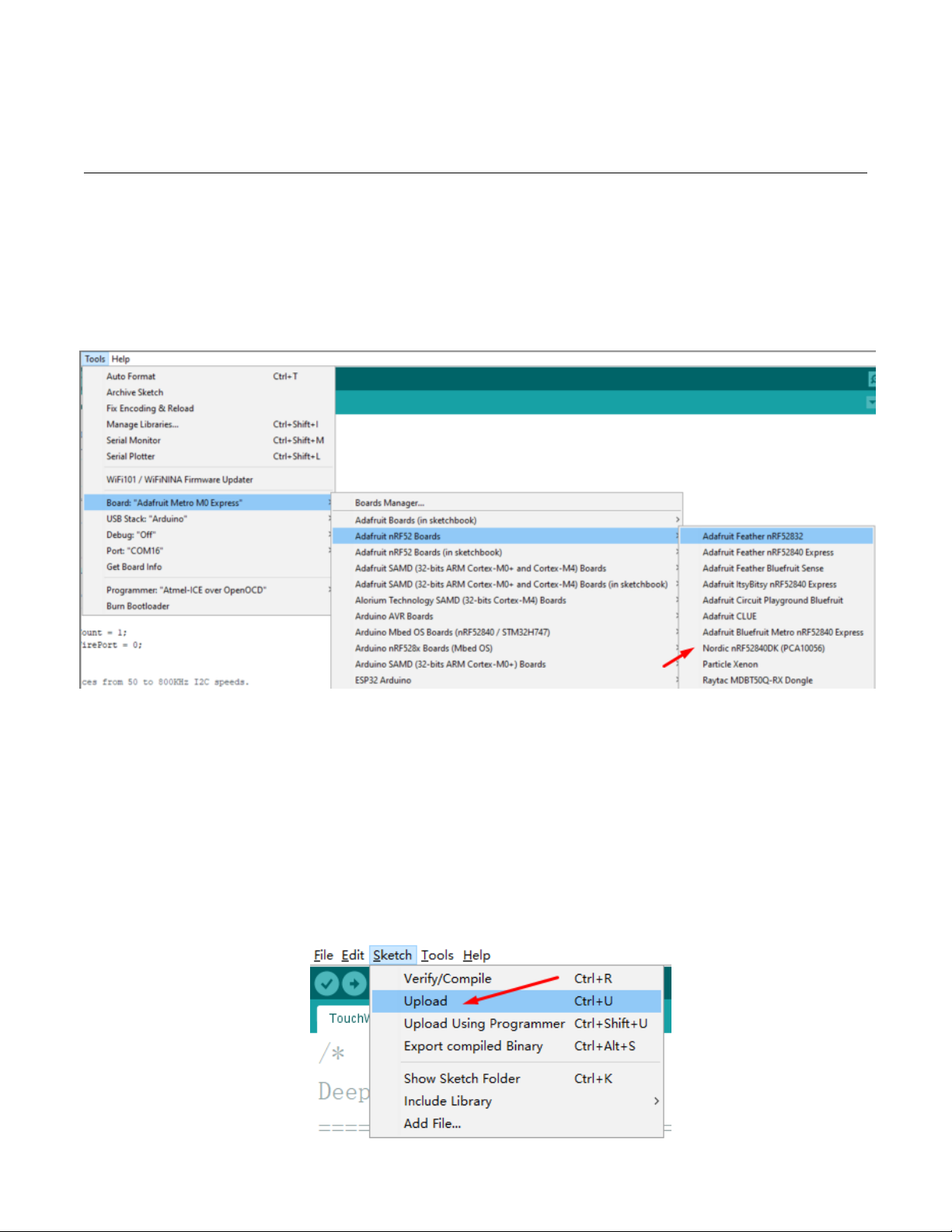

Tools << Board << Nordic nRF52840(PCA10056)
Xinyuan 2022.08
6.2. Upload
Sketch << Upload
7/7
