Lincat LPW Owner's manual

IS 286 ECN 4838 Page 1 of 8
Installation, Operating and Servicing
Instructions
Seal Pie Cabinets
LPW, LPW/LR
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________

IS 286 ECN 4838 Page 2 of 8
CONTENTS
Important Information 2
Warnings and Precautions 3
Technical Data 3
Checklist of Enclosures 3
Installation and Commissioning 3-5
Operating Instructions 5-6
Cleaning 6-7
Servicing, Maintenance and Component Replacement 7
Fault Finding 7
Spare Parts List 7
Service Information and Guarantee 8
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times .
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE

IS 286 ECN 4838 Page 3 of 8
WARNINGS AND PRECAUTIONS
This appliance must be Installed, Commissioned and Serviced by a qualified
person in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (
kg
)
LPW/ 520 710 330 25.8
LPW/LR 26.2
CHECK LIST OF ENCLOSURES
Warranty card
Instructions manual
Glass doors
Crumb tray
Shelves (x3 LPW, x4 LPW/LR)
Water bath (LPW/LR)
Bath lid (LPW/LR)
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.

IS 286 ECN 4838 Page 4 of 8
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)

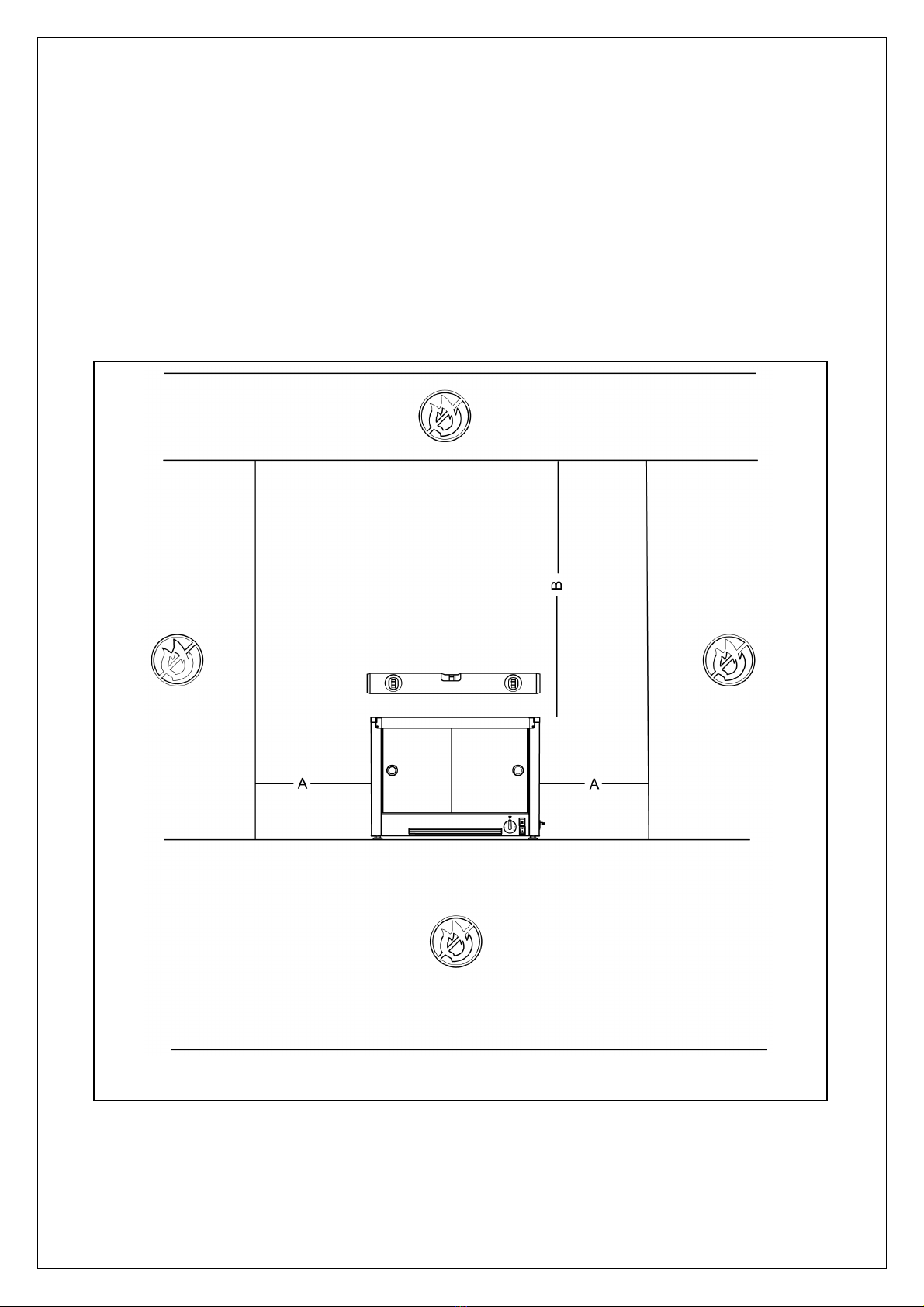

Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum
distances A 100mm B 500mm – see Fig 1.
Fig 1

IS 286 ECN 4838 Page 5 of 8
Power Ratings
Model
kW
Amps
LPW 0.75 3.2
LPW/LR 0.8 3.3
Slide the doors into the middle position; lift up and out of the bottom runner and
remove. Fit shelves, then re-fit doors.
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.
This appliance relies on the circulation of warm air around the shelves. Ensure this
is not obstructed by overloading or by the use of aluminium foil on the base/shelves.

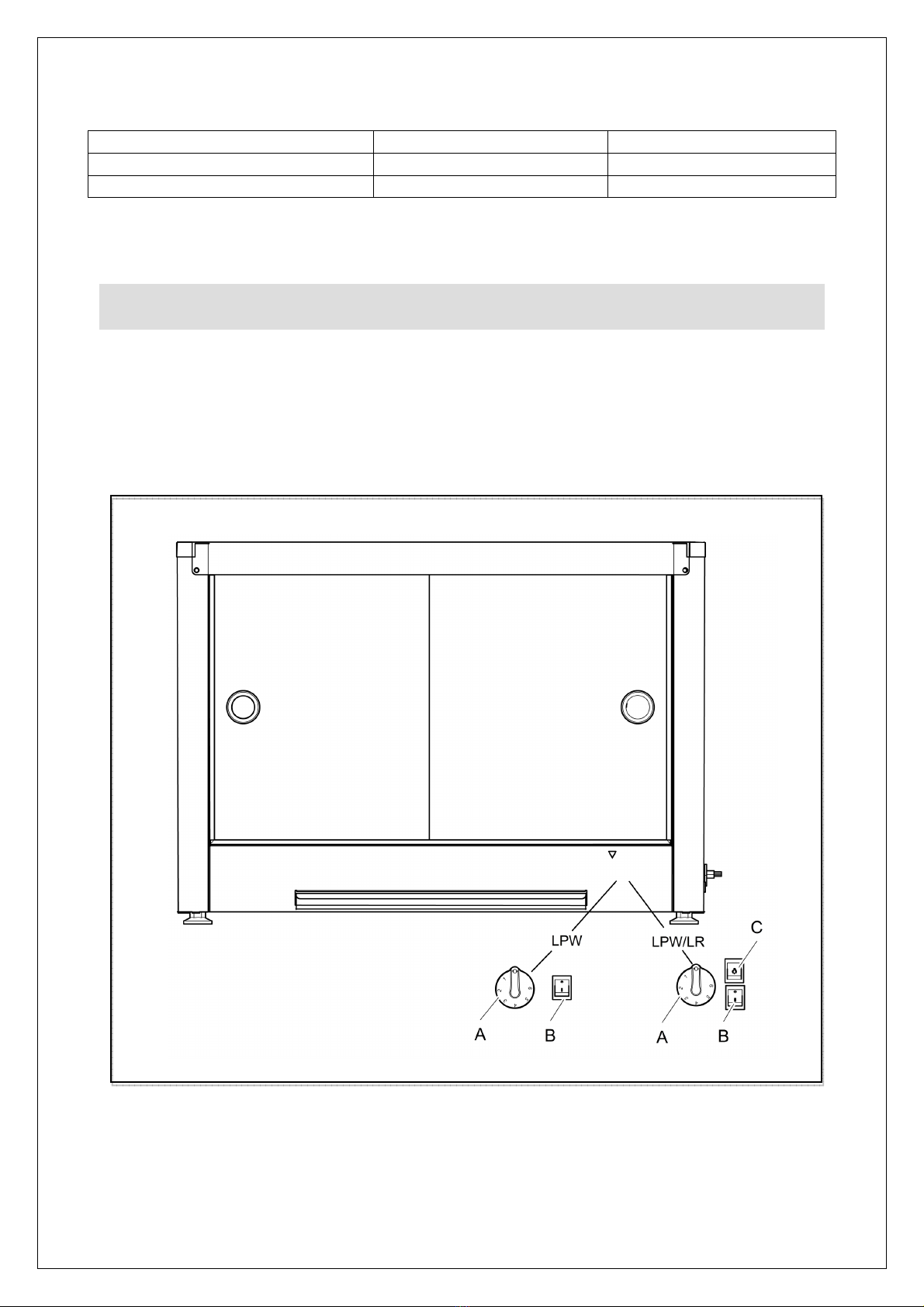

Fig 2
Connect the appliance to the electricity supply and switch on at the On/Off switch
Fig 2 (B).

IS 286 ECN 4838 Page 6 of 8
Turn the control knob (A) to the desired setting and allow the appliance to heat up
for 15 minutes before loading with pre-heated food.
LPW/LR model only
Operate the light using the switch Fig 2 (C).

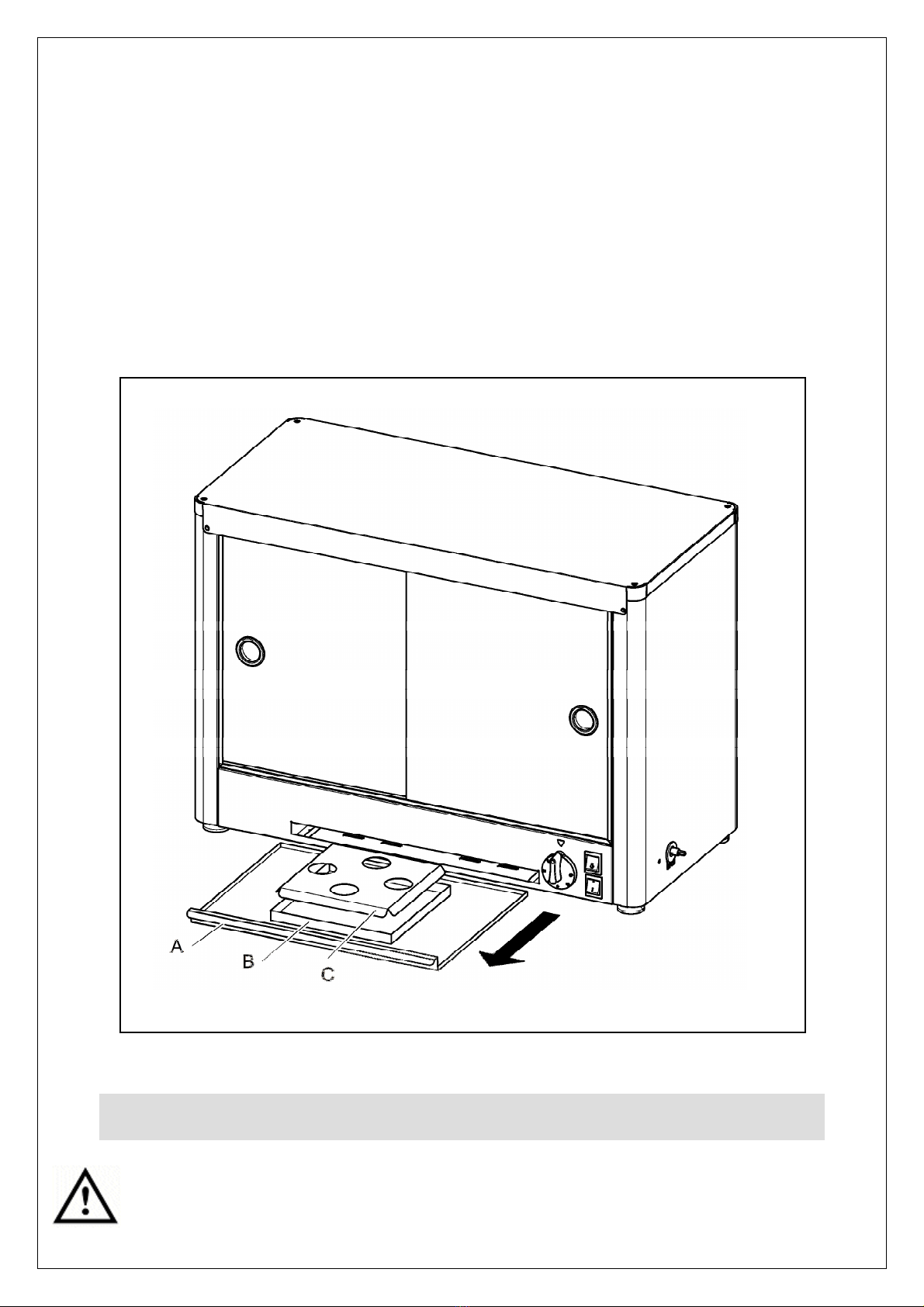

The integral water bath provides humidity to keep certain products such as pastry,
moist. Slide out the crumb tray Fig 3 (A), remove the lid (C). For best results, fill the
bath (B) with warm water. Check the level occasionally, taking care when removing
as it may become hot. Avoid condensation on the glass by ensuring you do not
overload the cabinet.
Fig 3
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.

IS 286 ECN 4838 Page 7 of 8
Shelves and shelf supports may be removed after removal of the glass doors
(see installation). To remove the shelf supports, lift and rotate inwards from the
bottom.
Clean all panels with warm water and mild detergent, do not use abrasive materials
and do not wet electrical components. Dry with a soft cloth.
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
To replace a light bulb, remove the light cover by careful levering. Unscrew the
bulb. Reverse the sequence to fit a new bulb.
All other servicing, maintenance and component replacement on this appliance
should be carried out by one of our recommended service engineers.
Please refer to the Service Help Desk number on the final page of this manual.
Part Number
Description
Used on
CM02 Corner moulding
LPW, LPW/LR
DS11 Top door channel
DS12 Bottom door channel
EL218 Element
FE10 Foot
FP02 Glass finger pull
GL201 Front glass
GL202 Door glass
KN203 Control knob
LA10 Light LPW/LR
PL201 Mains cable
LPW, LPW/LR
SH94 Shelf
SW69 On/Off switch
SW70 Light switch LPW/LR
TH106 Thermostat LPW, LPW/LR
FAULT FINDING
SPARE PARTS LIST

IS 286 ECN 4838 Page 8 of 8
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:


UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
•Brief details of the problem
•
Product code
All available on serial plate
•
Type number
•
Serial number
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
•Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
•Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
•Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
SERVICE INFORMATION
