Lincat L3 Owner's manual

IS 346 ECN 3607 Page 1 of 8
Installation, Operating and Servicing
Instructions
Electric Fume Filtration Units
L3, L4
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________

IS 346 ECN 3607 Page 2 of 8
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
3-5
Operating Instructions
5-6
Cleaning
6
Servicing, Maintenance and Component Replacement
6
Fault Finding
6
Spare Parts List
7
Service Information and Guarantee
8
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE

IS 346 ECN 3607 Page 3 of 8
WARNINGS AND PRECAUTIONS
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
L3
560
920
620
30.0
L4
560
1310
620
40.0
CHECK LIST OF ENCLOSURES
Warranty card
Instructions manual
Aluminium filters (L3 x 2, L4 x 3)
Carbon filters (L3 x 2, L4 x 3)
Fixing kit
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.

IS 346 ECN 3607 Page 4 of 8
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)
Unlatch the front flap and slide out the filters.
Ensure ample room ventilation with no cross draughts (7-10 air changes per hour).
Install the filtration appliance on a suitable wall, so that there is an air space above
it and the lower edge of the canopy is 800mm above the cooking surface. The front
edge should overlap the cooking area by 100mm.
Using the relevant dimensions from Fig 1, drill holes with a No.4 masonry drill and
insert rawlplugs. Hang the appliance onto screws in the keyhole cut-outs and
secure into place by screwing through the top row of holes. Replace the filters.
Fig 1

IS 346 ECN 3607 Page 5 of 8
Power Ratings
Model
kW
Amps
L3
0.35
1.5
L4
0.45
2.0
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.
Connect the appliance to the electricity supply. Turn on the power switch Fig 2 (A).
To use the lights, operate switch (B).

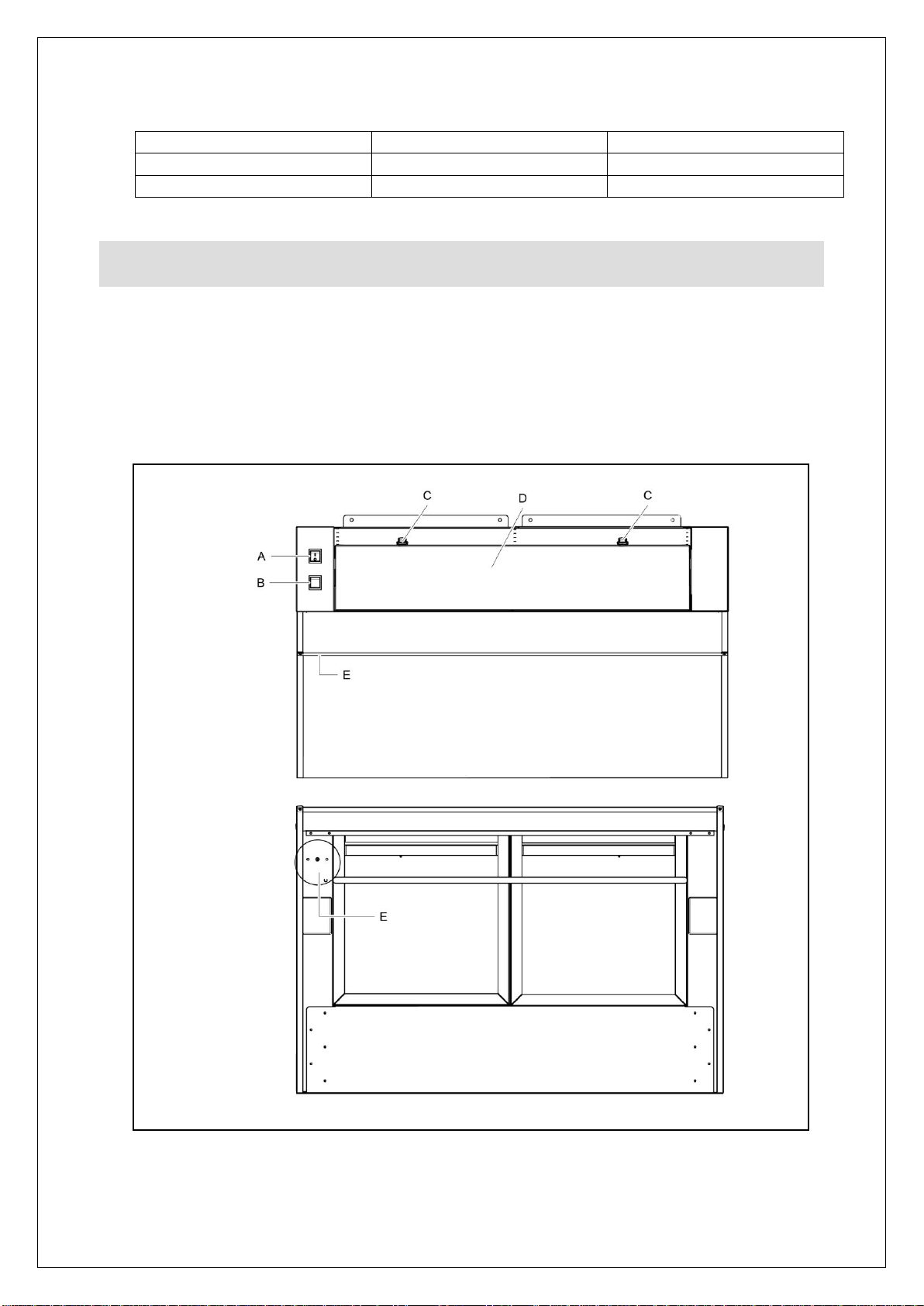

Fig 2
Front view
Underside view

IS 346 ECN 3607 Page 6 of 8
This appliance is fitted with a safety thermostat to cut off the power in the event of a
fault. To re-set the safety thermostat, press the button as located in Fig 2, E.
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive materials.
Dry with a soft cloth.
Avoid damaging the thermostat capillary during cleaning.
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
Lamp bulb
Disconnect the appliance. Carefully prise glass cover off with a flat bladed
screwdriver.
Replace bulb and re-fit glass cover.
Filters
Disconnect the appliance. Release the latches - Fig 2 (C) and open the door (D).
Slide filters out and replace. Close and secure door.
All other servicing, maintenance and component replacement on this appliance
should be carried out by one of our recommended service engineers.
Please refer to the Service Help Desk number on the final page of this manual.
FAULT FINDING

IS 346 ECN 3607 Page 7 of 8
Part Number
Description
Used on
FA25
Fan
L3, L4
FI11
Aluminium filter
FI13
Charcoal filter
FI15
Foam filter pad
LA14
Light
PL201
Plug and lead
SU15
Latch
SW69
On/Off switch
SW70
Light switch
TH73
Thermostat
SPARE PARTS LIST

IS 346 ECN 3607 Page 8 of 8
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Product code
All available on serial plate
Type number
Serial number
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
