Lindab RECTANGULAR Series User manual

English
Installation type with re resistance class
PATENTED FIRE DAMPER
RECTANGULAR SERIES WKS25 - 500 Pa
Cert. N° 1812-CPR-1046
Technical Manual
WKS25

This is a 54page manual.

TABLE OF CONTENTS
WKS25
3/54
Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�4
Description � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�4
General characteristics � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�4
European Standards applied � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�4
Certications and approvals � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�4
Components � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�4
Available dimensions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�5
Fixing aps � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�6
Fire dampers pairing � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�6
Performances � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�9
Fire resistance classication according to EN 13501-3-2009 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�9
Mechanism type � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�10
Technical data � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�13
Dimension � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�13
Weights � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�14
Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�15
Intended use � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�15
Not allowed uses � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�15
Blade rotation axis positioning � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�15
Positioning brackets before xing � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�15
Installation of exible connectors in order to balance out the ventilation ducts expansion � � � � � � � � � � � � � � � p�15
Transfer Application (application not connected to air ducts on one or both sides) � � � � � � � � � � � � � � � � � � p�16
Minimum distances � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�18
Construction supports characteristics � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�20
EI 120 S Installation within vertical rigid wall � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�22
EI 120 S Installation in vertical rigid wall - Special cases � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�23
EI 120 S Installation within vertical light wall (plasterboard) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�24
EI 120 S Installation within vertical light wall (plasterboard) - Special cases � � � � � � � � � � � � � � � � � � � � � � p�26
EI 90 S Installation within vertical light wall (gypsum blocks wall) � � � � � � � � � � � � � � � � � � � � � � � � � � p�27
EI 120 S Installation within vertical light wall (gypsum blocks wall) � � � � � � � � � � � � � � � � � � � � � � � � � � p�28
EI 120 S Installation within vertical light wall (gypsum blocks wall)- Special cases � � � � � � � � � � � � � � � � � � � p�29
Installation within vertical light wall (Shaft wall) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�30
Electrical connections � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�31
Electrical wiring � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�31
Electrical specications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�33
Maintenance and inspections � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�34
Periodic inspection and cleaning � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�34
Repair � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�34
Disposal � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�34
Selection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�35
Air ow rates in relation to the diameter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�35
Air ow rates as a function of the pressure drop � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�36
Air ow rates as a function of generated sound levels � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�39
Pressure drop and sound level graph for base 400 mm � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�42
Correction for base dierent than 400 mm � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�43
Correction used to estimate the octave band spectrum (Values to be added to the noise levels in dB(A)) � � � � � � � � p�43
Accessories and spare parts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�44
How to order � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�48
Motorized re dampers � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�48
Fire damper with manual control � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�48
Electric motor driven actuators � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�49
Specication Text � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�50
Series WKS25 compact rectangular re damper � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�50
Revision Index � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � p�51
WKS25
3/54

OVERVIEW
WKS25
4/54
OVERVIEW
Description
Fire dampers WKS25 are devices for use in heating, venti-
lation and air-conditioning (HVAC) systems at re bounda-
ries to maintain compartmentation and protect means of
escape in case of re. They satisfy integrity, insulation and
smoke leakage criteria for the declared time of re resist-
ance.
Tested and classed in accordance with EN 1366-2 and EN
13501-3 regulations with 500 Pa depression.
Studied and optimized for small size ducts and reduced
installation space focusing on aeraulic and acoustical per-
formance.
Equipped with various dierent mechanisms completely
outside the wall, easily interchangeble even after installa-
tion.
General characteristics
• Casing made from galvanized carbon steel (or stainless
steel available only for motorized version).
• Thermal labyrinth obtained from the casing.
• Intumescent sealing gasket.
• Opening/closing mechanism with IP42 protection box
(IP54 for motorized version).
• 25 mm thick closing blade made with refractory material.
• Cold smoke air seal gasket
• Internal intumescent gasket for hot smoke seal.
• Internal frame made with refractory material.
• Intumescent graphite gasket on outside of casing
European Standards applied
CE certication EN 15650
Test EN 1366-2
Classication EN 13501-3
Thermal fuse reliability ISO 10294-4
Air tightness EN 1751
Resistance to corrosive environments EN 60068-2-52
Certications and approvals
CE Certicate of Constancy of Performance n° 1812-CPR-1046 Efectis
German approval n° Z-56.4212-987 DIBt
NF certication n° 09/06.02 AFNOR
Swiss approval n° 25207 VKF-AEAI
Swedish approval n° SC0197-16 SP
Components
1. Casing made from galvanized carbon steel or stainless steel
2. Thermal labyrinth
3. Silicate frame
4. Damper blade made from refractoring material
5. Blade pivot
6. Cold smoke air seal gasket
7. Intumescent graphite gasket on inside of casing for the hot seal
of the blade once closed
8. Temperature controlled closing device (thermal fuse)
9. Blade actioning device
10. Manual closing device (Test button)
11. Manual reset lever
12. Protection box
13. Intumescent graphite gasket on outside of casing
14. OPTIONAL Inspection opening side 'A' for base ≥ 150 mm
15. OPTIONAL Inspection opening side 'C' for base ≥ 150 mm
WKS25
4/54

OVERVIEW
WKS25
5/54
Available dimensions
Single re dampers
Fire dampers are avaible in all base-height combination indicated below
Base mm 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800
Height mm 200 250 300 350 400 450 500 550 600
Fire dampers pairing for big ducts dimensions
1. Side by side paired re dampers
2. Vertically paired re dampers
Side by side paired re dampers
Required base mm 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650
B tot mm 845 895 945 995 1045 1095 1145 1195 1245 1295 1345 1395 1445 1495 1545 1595 1645
B1 mm 400 400 450 450 500 500 550 550 600 600 650 650 700 700 750 750 800
B2 mm 400 450 450 500 500 550 550 600 600 650 650 700 700 750 750 800 800
Vertically paired re dampers
Required height mm 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250
H tot mm 645 695 745 795 845 895 945 995 1045 1095 1145 1195 1245
H1 mm 300 300 350 350 400 400 450 450 500 500 550 550 600
H2 mm 300 350 350 400 400 450 450 500 500 550 550 600 600
From the requested dimensions, it is possible to identify the closest eective achievable sizes.
1. It is allowed to pair two re dampers. Maximum paired size: 1645x600, 1245x800, 800x1245.
2. It is forbidden to pair three or more re dampers.
3. It is forbidden to vertically pair two re dampers with vertical axis.
WKS25
5/54

OVERVIEW
WKS25
6/54
Fixing aps
1. Bend for walls 100 mm thick or higher
2. Bend for walls 70 mm thick or higher
Fire dampers pairing
The patented WKS25 rectangular re dampers can be
paired side-by-side or vertically (not more than two) using
the custom connection kit (see section Accessories and
spare parts p.44).
The pair of dampers, may be installed in vertical wall in the
same way as a single damper.
WKS25
6/54

OVERVIEW
WKS25
7/54
1. WKS25 Fire damper
2. Steel prole designed as a function of the pairing lenght
3. Steel plate
4. Fixing screws
• It is forbidden to pair three or more re dampers.
WKS25
7/54

OVERVIEW
WKS25
8/54
1. WKS25 Fire damper
2. Steel prole designed as a function of the pairing lenght
3. Steel plate
4. Fixing screws
• It is forbidden to pair three or more re dampers.
• It is forbidden to vertically pair two re dampers with ver-
tical axis.
WKS25
8/54

OVERVIEW
WKS25
9/54
Performances
Performance Reference standard Class
Thermal fuse testing ISO 10294-4 Compliant
Open and Close cycle reliability EN 15650 Compliant
Resistance to corrosion in humid and saline environments EN 60068-2-52 Degree of severity 2
Casing tightness EN 1751 Class C
Blade seal EN 1751 Class 2 minimum
Fire resistance classication according to EN 13501-3-2009
EI 120 S
(500 Pa) EI 90 S (500 Pa) EI 60 S (500 Pa) EI 30 S (500 Pa)
Rigid wall
EI 120 S Installation within vertical rigid wall p.22
Wall minimum thickness 100 mm
Wall minimum density 550 kg/m³
Plasterboard and rock wool 100 kg/m³ sealing
ve (i↔o)
DB x H min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
Flexible wall
EI 120 S Installation within vertical light wall (plasterboard) p.24
Wall minimum thickness 100 mm
Wall rock wool density up to 100 kg/m³ (optional)
Plasterboard sealing
ve (i↔o)
DB x H min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
EI 90 S Installation within vertical light wall (gypsum blocks wall) p.27
Wall minimum thickness 70 mm
Wall minimum density 995 kg/m³
Plasterboard sealing
ve (i↔o)
D - B x H min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
EI 120 S Installation within vertical light wall (gypsum blocks wall) p.28
Wall minimum thickness 100 mm
Wall minimum density 995 kg/m³
Plasterboard sealing
ve (i↔o)
DB x H min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
B x H
min 100 x 200
max 800 x 600
B X H are re damper minimum and maximum nominal dimensions (base x height) in mm
ve Vertical installation
ho Horizontal installation
(i↔o) Origin of re irrelevant
Pa Pascal of depression
E Integrity
I Thermal insulation
S Smoke seal
W Wet method sealing
D Dry method sealing
Cert. N° 1812-CPR-1046
Installations within vertical light wall (Shaft wall)
EI 90 S
(300 Pa) EI 60 S (300 Pa) EI 30 S (300 Pa)
Flexible
wall
EI 90 S Installation within vertical light wall (Shaft wall) p.30
Wall minimum thickness 90 mm
Plasterboard sealing
ve (i↔o) DB X H
min 100 X 200
max 800 X 600
B X H
min 100 X 200
max 800 X 600
B X H
min 100 X 200
max 800 X 600
WKS25
9/54

OVERVIEW
WKS25
10/54
Mechanism type
Manual and compact manual
Manual
Compact manual
1. Manual opening lever
2. Manual closing button
3. Lever position when the blade is open
4. Lever position when the blade is closed
Blade closing mode
Automatic closing with thermal fuse.
The control mechanism has a thermosensitive element
that automatically closes the blade when the temperature
in the duct exceeds 70°C (or 95°C for the re damper with
95°C thermal fuse).
It is possible to close the damper by pressing the indicated
button.
Blade opening mode
The damper must be opened when the ventilation system
if switched o.
It is possible to open the damper blade by rotating the le-
ver anticlockwise.
In case of closed damper as a result of the action of the
thermosensitive element, it is possible to manually reopen
the damper by rotating the lever counterclockwise once
the element has been replaced.
Position indication microswitches
On request, the re damper can be supplied with position
microswitches (S2 optional) that signal the blade position
(open or closed). Refer to the section Electrical connec-
tions p.31 for more details.
Closing by remote control
Not available
Temperature calibration of thermosensitive element for
automatic damper closing
70 °C±7 °C (Standard)
95 °C±9 °C (On request).
CAUTION:The compact mechanism is not interchangeable
with other types of manual mechanism�
WKS25
10/54

OVERVIEW
WKS25
11/54
Manual with magnet
1. Manual opening lever
2. Manual closing button
3. Lever position when the blade is open
4. Lever position when the blade is closed
Blade closing mode
Automatic closing with thermal fuse.
The control mechanism has a thermosensitive element
that automatically closes the blade when the temperature
in the duct exceeds 70°C (or 95°C for the re damper with
95°C thermal fuse).
It is possible to close the damper by pressing the indicated
button.
It is possible to remotely close the re damper.
The manual command mechanism with magnet is
equipped with an electromagnet which, in case power is
interrupted (interuption magnet version) or when power
is supplied (input magnet version), comands the closing of
the damper.
Blade opening mode
The damper must be opened when the ventilation system
if switched o.
In case of closed damper by pressing the closing button or
remotely by electromagnet, it is possible to manually open
the re damper blade by rotating the lever antyclockwise.
In case of closed damper as a result of the action of the
thermosensitive element, it is possible to manually reopen
the damper by rotating the lever counterclockwise once
the element has been replaced.
Position indication microswitches
It is advisable to install the re damper with position mi-
croswitches (S2 optional) which signal the position of the
blade (open or closed). Refer to the section Electrical con-
nections p.31 for more details.
Closing by remote control
With power supply input or interruption magnet.
Temperature calibration of thermosensitive element for
automatic damper closing
70 °C±7 °C (Standard)
95 °C±9 °C (On request).

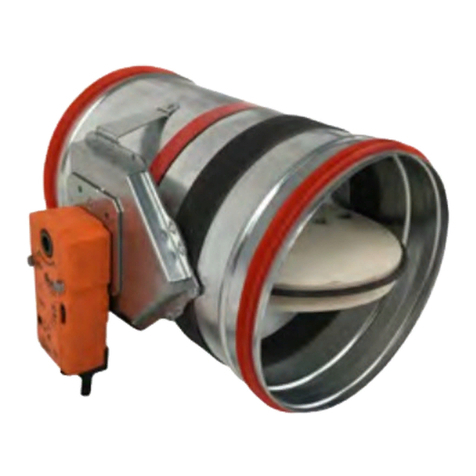

Belimo motorized version
1. Manual closing switch
2. Manual opening lever
3. Position indicator
4. Blade locking lever
Blade closing mode
Automatic closing with thermal fuse.
The control mechanism has a thermosensitive element
that automatically closes the blade when the temperature
in the duct or in the room exceeds 72°C (or 95°C for the
95°C version).
To close the damper when the motor is connected, press
the switch on the temperature sensor or cut o the power
supply.
Blade opening mode
The damper must be opened when the ventilation system
if switched o.
To open the damper with the electric motor driven actua-
tor, provide power supply to the motor. Refer to the section
Electrical connections p.31 for further information.
To manually open the damper, use the handle supplied
and carefully rotate clockwise to the 90° indicator. To hold
the damper in open position operate on the lever indicat-
ed in gure.
During the manual opening of the damper, power must
not be supplied to the motor.
Position indication microswitches
The motorized versions are supplied with two microswitch-
es to show the blade's position (open or closed). Refer to
the section Electrical connections  p. 31 for further in-
formation.
Closing by remote control
If power to the motor is cut o, the blade will close.
Temperature calibration of thermosensitive element for
automatic damper closing
72 °C±7 °C (Standard)
95 °C±9 °C (On request).
WKS25
11/54

OVERVIEW
WKS25
12/54
Siemens motorized version
1. Manual closing switch
2. Manual opening lever
3. Screwdriver
4. Position indicator
Blade closing mode
Automatic closing with thermal fuse.
The control mechanism has a thermosensitive element
that automatically closes the blade when the temperature
in the duct or in the room exceeds 72°C (or 95°C for the
95°C version).
To close the damper when the motor is connected, press
the switch on the temperature sensor or cut o the power
supply.
Blade opening mode
The damper must be opened when the ventilation system
if switched o.
To open the damper with the electric motor driven actua-
tor, provide power supply to the motor. Refer to the section
Electrical connections p.31 for further information.
To manually open the damper, use the handle supplied
and carefully rotate counterclockwise to the 90 °C indica-
tor. To hold the damper in open position, rotate the screw
anticlockwise as shown in the picture.
During the manual opening of the damper, power must
not be supplied to the motor.
Position indication microswitches
The motorized versions are supplied with two microswitch-
es to show the blade's position (open or closed). Refer to
the section Electrical connections  p. 31 for further in-
formation.
Closing by remote control
If power to the motor is cut o, the blade will close.
Temperature calibration of thermosensitive element for
automatic damper closing
72 °C±7 °C (Standard)
95 °C±9 °C (On request).
WKS25
12/54

TECHNICAL DATA
WKS25
13/54
TECHNICAL DATA
The sizes shown are in mm.
Dimension
H nominal height mm 200 250 300 350 400 450 500 550 600
S1 blade exposition mm 0 0 0 0 0 0 7,5 32,5 57,5
S2 blade exposition mm 21,5 46,5 71,5 96,5 121,5 146,5 171,5 196,5 221,5
Manual
Manual with magnet
Siemens motorized version
Belimo motorized version
WKS25
13/54

TECHNICAL DATA
WKS25
14/54
Weights
Height
Base 200 250 300 350 400 450 500 550 600
100 4,0 5,0 5,0 6,0 6,0 7,0 7,0 8,0 8,0
150 5,0 6,0 6,0 7,0 7,0 8,0 8,0 9,0 9,0
200 6,0 6,0 7,0 7,0 8,0 9,0 9,0 10,0 10,0
250 6,0 7,0 8,0 8,0 9,0 10,0 10,0 11,0 12,0
300 7,0 8,0 8,0 9,0 10,0 10,0 11,0 12,0 13,0
350 7,0 8,0 9,0 10,0 11,0 11,0 12,0 13,0 14,0
400 8,0 9,0 10,0 11,0 11,0 12,0 13,0 14,0 15,0
450 9,0 10,0 10,0 11,0 12,0 13,0 14,0 15,0 16,0
500 9,0 10,0 11,0 12,0 13,0 14,0 15,0 16,0 17,0
550 10,0 11,0 12,0 13,0 14,0 15,0 16,0 17,0 18,0
600 10,0 12,0 13,0 14,0 15,0 16,0 17,0 18,0 20,0
650 11,0 12,0 13,0 15,0 16,0 17,0 18,0 19,0 21,0
700 12,0 13,0 14,0 15,0 17,0 18,0 19,0 21,0 22,0
750 12,0 14,0 15,0 16,0 18,0 19,0 20,0 22,0 23,0
800 13,0 14,0 16,0 17,0 18,0 20,0 21,0 23,0 24,0
Weights in kg
Manual version. Motorized version: +1 kg
WKS25
14/54

INSTALLATION
WKS25
15/54
INSTALLATION
The sizes shown are in mm.
Intended use
The MP3 re dampers are “Devices for use in heating, ven-
tilation and air conditioning (HVAC) systems at re bound-
aries to mantain compartmentation and protect means of
escape in case of re”according to the 3.1 paragraph of EN
15650:2010 standard.
It is compulsory to install the re damper according to the
instructions indicated in the technical data sheet and man-
ual to maintain the declared performances and, in particu-
lar, the re classes.
Use permitted in any civil and industrial building.
Use permitted in saline atmosphere, for example:
• maritime and port enviroments;
• sh markets;
• slaughterhouses;
• cheese makers.
Not allowed uses
• Use with installations dierent to those described in the
technical data sheet and manual;
• use as smoke control damper;
• use as shut o damper;
• use in external environments without adequate protec-
tion from atmospheric conditions;
• use in explosive environments;
• use on board of ships;
• use in cooker extraction hoods;
• use in pneumatic conveying systems of dust or corn;
• use in ventilation systems within locations subject to
chemical contamination;
• use in non inspectable enviroments.
• Installation in suspended ceilings.
Blade rotation axis positioning
The re damper can be installed both with the blade axis
positioned vertically or horizontally.
Positioning brackets before xing
1. Positioning brackets
Installation of exible connectors in order
to balance out the ventilation ducts
expansion
CAUTION: Refer anyway to law and national standardiza-
tion�
Flexible connectors compensate any duct thermal expan-
sion and wall bending in case of re.
Flexible connectors are used to limit re damper stresses
due to external forces in case of re and to preserve re
resistance class.
In general it is always appropriate the use of exible con-
nectors for the followings installations:
– light walls;
– Plasterboard and rock wool or Fire Batt (Weichschott)
sealing;
– Applique xing system.
Flexible connector must be normal ammability and in
case of re the grounding bonding should disconnet to
guarantee the complete separation between re damper
and connected air duct.
When exible connectors made of conductive material
(e.g. aluminum) are used, no additional grounding bond-
ing is required.
Despite exible connector installation, the re damper
must be installed in the construction support so that its
weight does not aect damper’s installation position both
during normal operation and in case of re.
It is recommended not to compress exible connectors in
the installation phase.
Flexible connector must be at least 100mm long and in
order that possible duct thermal expansions are balanced.
Take care that the exible connector does not interfer with
opening / closing movement of the blade.
Refer to the section Technical data p.13 for blade expo-
sition values.
WKS25
15/54

INSTALLATION
WKS25
16/54
Transfer Application (application not connected to air ducts on one or both sides)
Following tests performed as per EN 1366-2, section 6.3.6 Standard, it is possible to install the re damper free from air duct
from one or both sides.
• Attention: re resistance classication for transfer appli-
cation is conform to section Fire resistance classication
according to EN 13501-3-2009  p. 9limited to EI 120S
if the ducted classication is higher.
• End cap with mesh shall be mounted on the side not
connected to air duct.
• End cap with mesh is made from galvanized steel sheet
and includes nuts and screws for xing on re damper.
• End cap with mesh is supplied loose from the re damp-
er.
• Refer to the section How to order (transfer Applica-
tion) p.17 for codes to use.
Components (Transfer Application)
1. Extension duct with net, 12 x 12 mm mesh opening
2. Fire damper
3. M8 nut
4. M8 screw
WKS25
16/54

INSTALLATION
WKS25
17/54
Technical data (Transfer Application)
1. Mechanism side
2. Mechanism opposite side
3. End cap with mesh
L1 End cap length mechanism side
L2 End cap length mechanism opposite side
H Nominal height of re damper
Length of end cap with mesh depending on re damper height H.
H L1 L2
200 50 50
250 50 100
300 50 100
350 50 150
400 50 150
450 50 200
500 50 200
550 50 250
600 100 250
H Nominal height of re damper
L1 End cap length mechanism side
L2 End cap length mechanism opposite side
How to order (transfer Application)
Type FMWK004V End cap with mesh with ange 22,5 mm
Base XYZ Nominal base dimension (mm)
Height XYZ Nominal height dimension (mm)
Length XYZ Length dimension (mm)
Examples Code
End cap with mesh length 50 mm for re damper 400x300 not connected to air ducts on mechanism side FMWK004V400-300-050
End cap with mesh length 200 mm for re damper 550x450 not connected to air ducts on mechanism opposite side FMWK004V550-450-200
End caps with mesh length 50 mm (mechanism side) and length 200 mm (mechanism opposite side) with mesh for re damper
600x500 not connected to air ducts on both sides FMWK004V600-500-050 FMWK004V600-500-200
WKS25
17/54

INSTALLATION
WKS25
18/54
Minimum distances
It is recommended to keep enough space for using the
control mechanism or for maintenance.
In accordance with Articles 7 and 13 of EN 1366-2 respect
the minimum distances indicated below.
Minimum distances
1. Side vertical wall
2. Floor
a. Distance between re dampers installed within vertical wall
b. Distance between re damper and vertical lateral wall / oor
Fire dampers installed within vertical
wall Fire dampers installed within oor
Installation a [mm] b [mm] c [mm] d [mm] Paired installation
Rigid
wall
EI 120 S Installation within vertical rigid
wall p.22
Plasterboard sealing 44 22 - - Yes. One air duct
Flexible wall
EI 120 S Installation within vertical light
wall (plasterboard) p.24
Plasterboard sealing 44 22 - - Yes. One air duct
EI 120 S Installation within vertical light
wall (gypsum blocks wall) p.28
Plasterboard sealing 44 22 - - Yes. One air duct
EI 90 S Installation within vertical light wall
(gypsum blocks wall) p.27
Plasterboard sealing 200 75 - - No
The minimum distance between two or more paired instal-
lations is 200 mm.
It is forbidden to pair three or more re dampers.
WKS25
18/54

INSTALLATION
WKS25
19/54
1. One air duct
Installations within vertical light wall (Shaft wall)
Fire dampers installed within vertical
wall Fire dampers installed within oor
Installation a [mm] b [mm] c [mm] d [mm] Paired installation
Flexible
wall
EI 90 S Installation within vertical light wall
(Shaft wall) p.30
Plasterboard sealing 200 75 - - No
WKS25
19/54

INSTALLATION
WKS25
20/54
Construction supports characteristics
The European standard for re dampers foresees a precise
correlation between the wall/oor characteristics and the
re resistance class obtained, as well as the correlation be-
tween wall/oor used for the test and wall/oor used for
the actual installation.
The test results obtained on a type of wall/oor are valid
also for walls/oor of the same type but with greater thick-
ness and/or density than those used in the test.
For plasterboard walls, the test results are also valid for walls
with a greater number of plasterboard layers on each side.
As a result, the indicated thickness and density characteris-
tics are to be considered as minimum values.
The wall/oor in which the re dampers are installed must
be re class certied according to the standards foreseen
for the structure.
Rigid walls
Can be made with aerated concrete blocks, poured con-
crete, concrete panels, perforated cell elements in concrete
or brick in accordance with the following characteristics:
• minimum thickness 100 mm;
• minimum density 550 kg/m³.
The use of a reinforcing beam above the opening is recom-
mended for walls made from concrete blocks, bricks or in
concrete cell elements.
1. Reinforcing beam
Light plasterboard vertical walls
During testing, light plasterboard walls have been used
with the following characteristics:
• U-shaped horizontal metal frame (50 mm) and C-shaped
vertical frame (49 mm) made from 0,6 mm thick sheet
metal;
• Vertical proles placed with a maximum spacing of 625
mm between each other;
• Filling made of rock wool with density up to 100 kg/m³
(optional);
• Each side is made from two plasterboard layers 12,5 mm
thick, unalinged to avoid alignment between the joints
of the layer above and below.
The following indications are given for the installation walls:
• metal proles minimum width: 49 mm;
• metal proles minimum thickness: 0,6 mm;
• vertical proles placed with a maximum spacing of 625
mm between each other;
• vertical prole xing with selfthreading screws or by
clinching to the bottom horizontal prole and insertion
in the top horizontal prole;
• proles xed using self-threading screws or by clinching
on every intersection.
• installation of a frame around the damper with base and
height where shown in the installation instructions;
• Filling made of rock wool with density up to 100 kg/m³
(optional);
• each side is made from two plasterboard layers 12,5 mm
minumum thick, unalinged to avoid alignment between
the joints of the layer above and below.
• the front plasterboards layers are xed using long
enough screws to pass through the lower plasterboard
and attach to the steel prole underneath.
1. Plasterboard thickness
12,5 mm
2. Rock wool density up to
100 kg/m³ (optional)
3. Horizontal U-shaped
prole
4. Vertical C-shaped
prole
5. Self-drilling screw Ø 3,5
X 25 mm
6. Self-drilling screw Ø 3,5
X 35 mm
Light plasterboard vertical walls (Shaft wall)
The following indications are given for the installation walls:
• U-shaped horizontal metal frame (minimum width 50
mm) and C-shaped vertical frame (minimum width 49
mm) made from sheet metal (minimum thickness 0,6
mm);
WKS25
20/54
