User Manual English
Safety Instructions
! WARNING !
Please read the following safety information carefully and always keep this document with
the product.
Failure to follow these precautions can result in serious injuries or death from electric
shock, fire or damage to the product.
Touching the internal components or a damaged cable may cause electric shock, which
may result in death.
This device is a switching type power supply and can work with supply voltages in the range 100 - 240
VAC For worldwide usability four different AC adapters are enclosed: Euro type, UK type, US/Japan type
and Australia/New Zealand type. Use the appropriate AC adapter as shown in the picture and ensure it
is firmly secured in place and does not detach by pulling before installing into a power socket.
To reduce risk of fire, electric shocks or damage:
Do not open the product nor its power supply. There are no user serviceable parts inside.
Only qualified servicing personnel may carry out any repairs or maintenance.
Never use damaged cables.
Do not expose the product to water or places of moisture.
Do not use this product outdoors it is intended for indoor use only.
Do not place the product near direct heat sources. Always place it in a well-ventilated place.
Do not place heavy items on the product or the cables.
Please ensure any adapters are firmly secured and locked in place before inserting into a wall socket

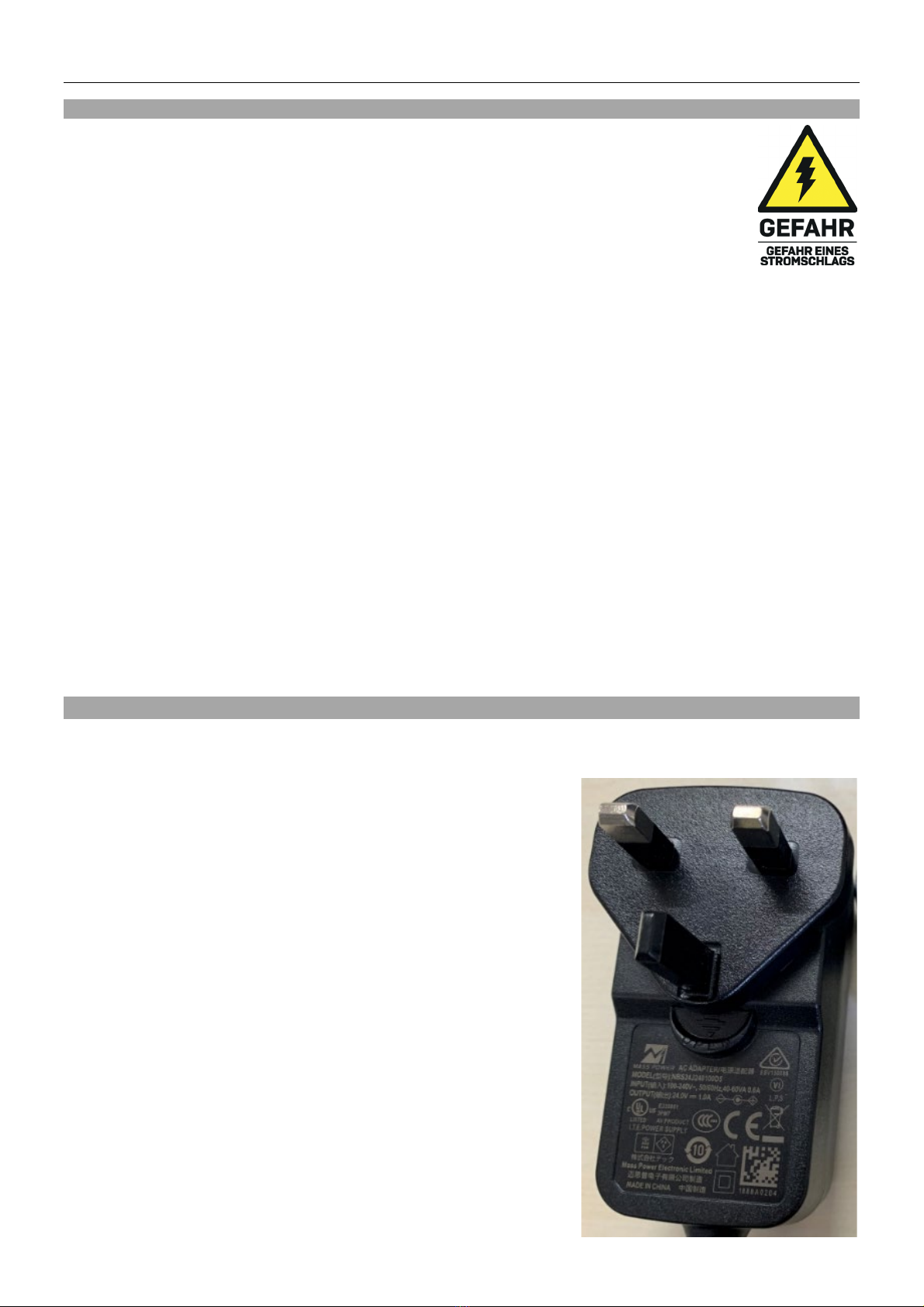

Instructions for Use of Power Supply
To connect the adapter
Slide the desired plug adapter into the power supply and rotate
clockwise until it locks into place.
To remove the adapter
Press the push button latch.
While pressed, rotate the adapter anticlockwise.

User Manual English
Introduction
Thank you for purchasing the 150m Cat.6 HDMI 4K60/Type C, USB 2.0, IR & RS-232 HDBaseT KVM
Extender. This product has been designed to provide trouble free, reliable operation. It benefits from both
a LINDY 2 year warranty and free lifetime technical support. To ensure correct use, please read this
manual carefully and retain it for future reference.
The Lindy Cat.6 HDMI/Type C 4K60, USB 2.0, IR & RS-232 HDBaseT KVM Extender is a complete high-
performance solution for extending HDMI signals over long distances via Cat.6 network cable.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other
technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
This solution consist in 3 items: two wall-plate transmitters (one for UK and one for EU wall box) with one
Type C and one HDMI with USB ports also for KVM applications, and one receiver unit.
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional
support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness,
greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution
for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in
larger conference rooms or lectures halls.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: The quoted lengths and resolutions are possible with a direct connection between
Transmitter and Receiver using good quality Cat.6 cable. Using a different cable type, or introducing wall
plates, couplers or patch panels may result in a reduction of possible distances.
Package Contents
38387:
HDBaseT HDMI/Type C 1-gang UK Wall Plate Extender, Transmitter
2 x 3-Pin Terminal Block
2 x 2-Pin Terminal Block
24VDC 1A Multi-country Power Supply (UK, EU, US & AUS), 2-Pin Terminal Block DC connector
Lindy Manual
38388:
HDBaseT HDMI/Type C 2-gang EU Wall Plate Extender, Transmitter
2 x 3-Pin Terminal Block
2 x 2-Pin Terminal Block
24VDC 1A Multi-country Power Supply (UK, EU, US & AUS), 2-Pin Terminal Block DC connector
Lindy Manual
38389:
HDBaseT HDMI & USB Extender, Receiver
IR Emitter Cable, 1.5m
IR Receiver Cable, 1.5m
2 x Mounting Ears & 4 x Screws
2 x 3-Pin Terminal Block
24VDC 1A Multi-country Power Supply (UK, EU, US & AUS), Screw Type DC Jack: 5.5/2.1mm
Lindy Manual

User Manual English
Features
Supports resolutions up to 3840x2160@60Hz 4:4:4 8bit, with additional support for HDR up to 4:2:2
10/12bit (STD Mode)
Long Reach Mode (LRM) supports 4K30 resolutions up to 150m
Audio Pass-through of all HDMI audio formats including Dolby Atmos & DTS:X
Analog Audio embedding 48KHz with dip-switch on transmitter units to set up HDMI or analog audio
PoC (Power over Cable) support with dip-switch, when it’s turned on in both sides only one power
supply connection is required
USB 2.0 support to connect mouse, keyboard and other USB devices
EDID management with dip-switch on transmitter units
Bi-directional IR Control (20-60KHz) of equipment via the extender
RS-232 Pass-through
2-pin phoenix DC connector on transmitter units, screw type DC Jack connection on the receiver
Specification
HDMI 2.0b 18Gbps, USB Type C 5.4Gbps compliant
HDCP 2.2/1.4 Pass-through
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or
F/UTP cable:
STD Mode - 90m:
3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
3840x2160@30Hz 4:4:4 8bit
1920x1080@60Hz 4:4:4 8bit
3D@1920x1080
LRM Mode - 150m:
3840x2160@30Hz 4:4:4 8bit
1920x1080@60Hz 4:4:4 8bit
3D@1920x1080
ESD Protection: ± 8kV (air-gap discharge)
Human Body Model: ± 4kV (contact discharge)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Relative Humidity: 20 - 90% RH (Non-condensing)
Metal Housing
Colour: white wall plates, black receiver
Power Requirements: AC100-240V 50/60Hz
Power Consumption: 12.48W
38387-8 Transmitter Ports
Input:
HDMI (Female)
USB Type C (Female)
USB Type B (Female)
3.5mm Audio (Female)
IR (3-pin phoenix)
Output:
HDBaseT RJ-45 (Female)
IR (3-pin phoenix)
38389 Receiver Ports
Input:
HDBaseT RJ-45 (Female)
3.5mm IR (Female)
Output:
HDMI (Female)
Analog Audio (3-pin phoenix)
3.5mm IR (Female)
2x USB Type A

User Manual English
Installation and Operation

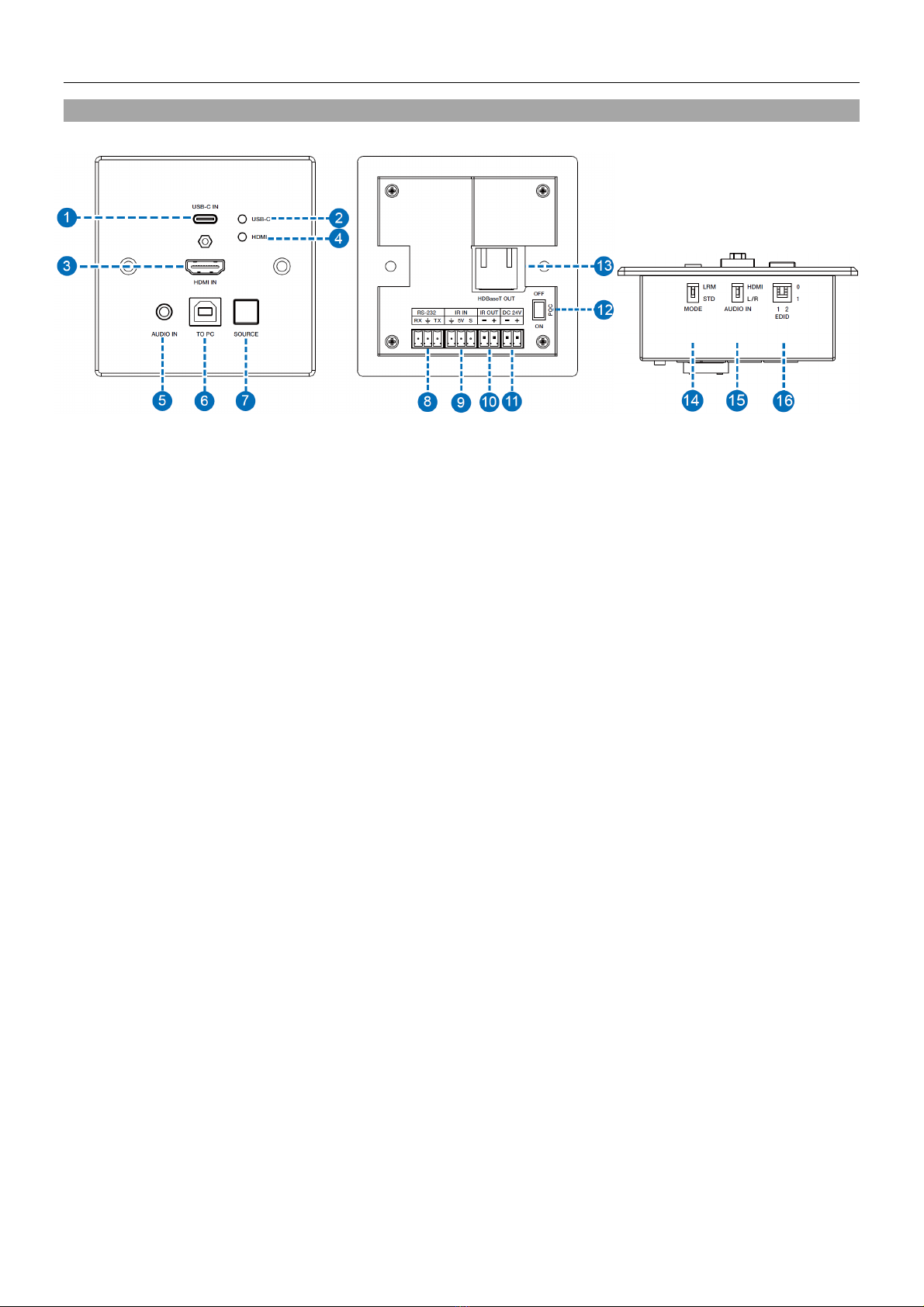

38387-8 Transmitter Front and Rear
1. USB-C IN: Connect to a USB Type C source device, video up to 4K60 and USB 2.0 signals are
supported.
2. USB-C LED: This will illuminate green when the USB-C IN port is selected as input source.
3. HDMI IN: Connect to a HDMI source device.
4. HDMI LED: This will illuminate green when the HDMI IN port is selected as input source.
5. AUDIO IN: Connect to a 3.5mm Audio source for audio embedding.
6. TO PC: USB Type B Female port combined with HDMI IN port, connect to a USB port on a PC.
7. SOURCE: Button to switch between USB-C and HDMI inputs.
8. RS-232: Connect to a PC, Serial Controller or Serial device via a phoenix block 3-way connection for
the pass-through transmission of RS-232 commands.
9. IR IN: Connect the supplied IR Receiver cable for IR signal reception. Ensure the remote being used
is within the direct line-of-sight of the IR Extender.
10. IR OUT: Connect the supplied IR Transmitter Cable for IR signal transmission. Place the IR Transmitter
in direct line-of-sight of the equipment to be controlled.
11. DC 24V: Connect the 24VDC 1A PSU to an AC wall outlet and securely connector to the phoenix block
2-way connection. When PoC function is enabled, this is only required at one side of the installation.
12. POC ON/OFF: DIP switch to turn ON/OFF the PoC function.
13. HDBASET OUT: Connect a compatible HDBaseT receiver using a single Cat.6 or above cable for all
data signals. Please do not connect to a network port.
14. MODE STD/LRM: DIP switch to select STD or LRM mode.
- STD: Standard HDBaseT mode, supports 4K60 up to 90m distance.
- LRM: Long Reach HDBaseT mode, supports 4K30 up to 150m distance.
15. AUDIO IN LR/HDMI: DIP switch to select the Audio signal source:
- L/R: Will output the analog audio embedded from the AUDIO IN port.
- HDMI: Will output the de-embedded audio from the HDMI IN port.
16. EDID: DIP switches to set up the following presets:
- 00: Copy EDID from the display connected to the Receiver (default)
- 01: 4K30 4:4:4
- 10: 1080p60 4:4:4
- 11: 1200p60 4:4:4

User Manual English

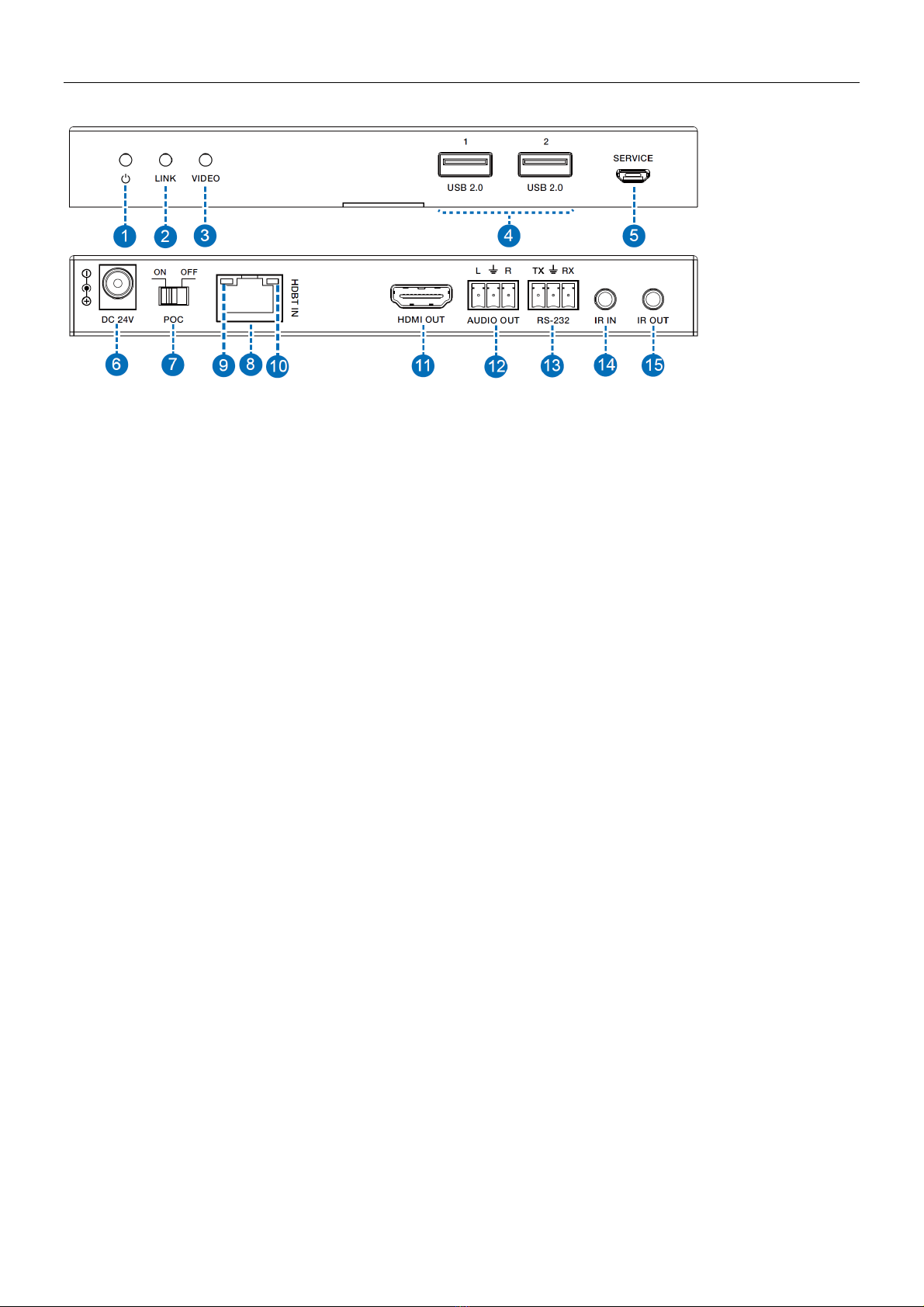

38389 Receiver Front and Rear
1. Power LED: Indicates Power
2. LINK LED: This will illuminate green when Transmitter and Receiver are connected, will flash when
connection is poor or not stable, will stay off where there is no connection.
3. VIDEO LED: This will flash when there is an active signal output, will stay off if there is no signal.
4. USB 2.0: USB 2.0 Type A ports, connect USB devices such as mouse, keyboard or flash drive.
5. SERVICE: USB Micro-B port for firmware updates.
6. DC 24V: Connect the 24VDC 1A PSU to an AC wall outlet and securely connector to the transmitter
or receiver. When PoC function is enabled, this is only required at one side of the installation.
7. POC ON/OFF: DIP switch to turn ON/OFF the PoC function.
8. HDBT IN: Connect a compatible HDBaseT Transmitter using a single Cat.6 or above cable for all data
signals. Please do not connect to a network port.
9. Link Indicator LED:
- Illuminated Green: Link is Okay
- Flashing: Link is poor or not stable
- Not Illuminated: No Link
10. Data Signal Indicator LED:
- Illuminated Yellow: Signal is Okay
- Not Illuminated: No signal
11. HDMI OUT: Connect to a HDMI display.
12. AUDIO OUT: Phoenix block 3-way connection, analog audio output port.
13. RS-232: Connect to a PC, Serial Controller or Serial device via a phoenix block 3-way connection for
the pass-through transmission of RS-232 commands.
14. IR IN: Connect the supplied IR Receiver cable for IR signal reception. Ensure the remote being used
is within the direct line-of-sight of the IR Extender.
15. IR OUT: Connect the supplied IR Transmitter Cable for IR signal transmission. Place the IR Transmitter
in direct line-of-sight of the equipment to be controlled.
Important! Before starting the installation, please ensure that all devices are powered off.
1. Connect an HDMI source device to the Transmitter unit using an HDMI or Type C cable.
2. Connect one end of the Cat.6 cable to the HDBaseT Out port on the Transmitter and the other end to
the HDBaseT In port of the Receiver. U/UTP or F/UTP installation cables are recommended. For cable
lengths please see the Specifications of this manual.
3. Use another HDMI cable to connect an HDMI display device to the HDMI output port on the Receiver
unit.
4. Please ensure that all the dip-switches are in the correct position, see above for details.
5. Plug the DC power supply into either the Transmitter or Receiver and switch on.
6. Power on the source device and display to complete the installation.

User Manual English
In addition to the installation steps outlined above this HDMI KVM Extender can also provide the following
additional/optional functionality:
USB
The Transmitter feature a USB Type B port for the connection to a USB source such as a PC or laptop
when the HDMI input port is selected. The receiver feature two USB 2.0 Type A ports to connect a
keyboard, mouse or other devices to control the source connected to the transmitter.
Connecting a PC to the Transmitter via USB Type B port, make possible to use the following serial
commands (baud rate 115200, 8bits):
s reboot! = reboot the unit
r fw version! = show fw version
s auto switch on! = set auto switch on
s auto switch off! = set auto switch off
r auto switch! = show auto switch status
RS-232 Serial
The Transmitter and Receiver both feature a phoenix block serial connection for the extension of control
signals.
Audio
The Transmitter feature an Analog 3.5mm input port for audio embedding, with a dip-switch is possible to
select if the Receiver will output the de-embedded audio from the HDMI IN or AUDIO IN port on the
Transmitter.
Infrared Control
The Transmitter and Receiver units both feature an IR In and Out port, with two pairs of IR extension
cables provided. The extension cables allow an IR remote control to be used from the Transmitter to the
Receiver or vice versa.
Troubleshooting
There is no display on the screen.
It has been found that there are significant differences in the cable lengths/types and even input ports
which can be used on different brands of display using HDMI 18G 4K@60Hz resolutions. If problems are
experienced, please apply the following steps:
Try a different input port on the display.
Reduce the cable length on the Input and Output to 1m.
Try a different type of 1m HDMI or Type C cable.
Check that the DC plug and jack used by the external power supply is firmly connected and that
the power LED is illuminated on both the Transmitter and Receiver.
Check that the Cat.6/7 cable is plugged in correctly and that the Connection LED on the left side
of both the HDBaseT In and Out ports are illuminated.
Check that the indicator LEDs on HDBaseT In port are illuminated, if not please power cycle the
source and display.
For several HDMI devices it may be helpful to unplug and re-connect their HDMI connection to re-
initiate the HDMI handshake and recognition.
Power off all the devices, then power on in this order: first, the extender, then the display and finally
the source.
Reduce the length of Cat.6/7 or HDMI cable used or use an higher quality cable.
Check that the dip-switches are in the correct position.
Lindy regularly checks and tests our product range to ensure maximum compatibility and performance.
For the most up to date version of this manual, please refer to your local Lindy website, search for the
relevant part number and find the manual under Downloads.

Benutzerhandbuch Deutsch
Sicherheitshinweise
! GEFAHR !
Bitte lesen Sie die folgenden Sicherheitshinweise sorgfältig durch und bewahren Sie
dieses Dokument immer zusammen mit dem Produkt auf.
Die Nichtbeachtung dieser Vorsichtsmaßnahmen kann zu schweren Verletzungen oder
zum Tod durch Stromschlag, Feuer oder Schäden am Produkt führen.
Das Berühren der internen Komponenten oder eines beschädigten Kabels kann einen
elektrischen Schlag verursachen, der zum Tod führen kann.
Dieses Schaltnetzteil arbeitet mit Anschlussspannungen im Bereich von 100…240 VAC. Für weltweiten
Einsatz sind vier verschiedene AC-Adapter für Europa, Großbritannien, USA/Japan und
Australien/Neuseeland enthalten. Verwenden Sie den geeigneten Adapter wie es die Abbildung zeigt.
Stellen Sie bitte sicher, dass der Adapter fest eingerastet ist und sich nicht abziehen lässt, bevor Sie ihn
in die Steckdose stecken.
Um die Gefahr von Bränden, Stromschlägen oder Schäden zu verringern:
Öffnen Sie weder das Produkt noch sein Netzteil. Es befinden sich keine vom Benutzer zu
wartenden Teile im Inneren.
Ausschließlich qualifiziertes Personal darf Reparaturen oder Wartungen durchführen.
Verwenden Sie niemals beschädigte Kabel.
Setzen Sie das Produkt nicht Wasser oder Feuchtigkeit aus.
Dieses Produkt ist nur für den Gebrauch in geschlossenen Räumen bestimmt.
Stellen Sie das Produkt nicht in der Nähe von direkten Wärmequellen auf. Stellen Sie es immer an
einem gut belüfteten Ort auf.
Stellen Sie keine schweren Gegenstände auf das Produkt oder die Kabel.
Bitte stellen Sie vor der Verwendung sicher, dass alle Adapter sicher und fest eingerastet sind
Anwendungshinweise für das Netzteil
Um den Adapter anzuschließen, schieben Sie den gewünschten Adapter auf das Netzteil und drehen ihn
im Uhrzeigersinn bis er fest eingerastet ist.
Um den Adapter zu lösen, drücken Sie auf die Verrieglung und
drehen gleichzeitig den Adapter gegen den Uhrzeigersinn.

Benutzerhandbuch Deutsch
Einführung
Wir freuen uns, dass Ihre Wahl auf ein LINDY-Produkt gefallen ist und danken Ihnen für Ihr Vertrauen. Sie
können sich jederzeit auf unsere Produkte und einen guten Service verlassen. Dieser Lindy Cat.6
HDMI/Type C 4K60, USB 2.0, IR & RS-232 HDBaseT KVM Extender unterliegt einer 2-Jahres-LINDY-
Herstellergarantie und lebenslangem kostenlosen, technischen Support. Bitte lesen Sie diese Anleitung
sorgfältig und bewahren Sie sie auf.
Der Lindy Cat.6 HDMI/Type C 4K60, USB 2.0, IR & RS-232 HDBaseT KVM Extender ist eine
leistungsstarke Komplettlösung zum Verlängern von HDMI-Signalen über große Distanzen mit einem
Cat.6-Netzwerkkabel.
HDBaseT ist ein weltweit anerkannter Standard für die qualitativ hochwertige Verteilung von AV-Inhalten
und anderen Technologien, einschließlich Stromversorgung und Steuerung, über größere Entfernungen
über kostengünstige Cat.6- oder höhere Kabel.
Diese Lösung besteht aus drei Teilen: zwei Wallplate Transmittern/Sendern (eine UK-Wandplatte und
eine EU-Wandplatte) mit einem Typ C und einem HDMI Port (mit USB) für KVM-Anwendungen und
einer Empfangseinheit. Durch die Unterstützung von Auflösungen bis zu 4K Ultra HD können Videos in
atemberaubender Klarheit wiedergegeben werden. Die zusätzliche Unterstützung von HDR (High
Dynamic Range) ermöglicht die Darstellung von Inhalten mit verbesserter Helligkeit, höheren Schwarz-
und Weißkontrasten und einer viel größeren Farbskala. Dies bietet eine zuverlässige Lösung für die
Erstellung von auffälligen Digital Signage-Lösungen im Einzelhandel, beeindruckenden Displays bei
Veranstaltungen oder ansprechenden Setups in größeren Konferenzräumen oder Vorlesungssälen.
HDBaseT™ und das HDBaseT Alliance-Logo sind Marken der HDBaseT Alliance.
Bitte beachten Sie: Die angegebenen Längen und Auflösungen sind bei einer direkten Verbindung
zwischen Sender und Empfänger mit einem hochwertigen Cat.6-Kabel oder höher möglich. Die
Verwendung eines anderen Kabeltyps, die Einführung von Kopplern oder Patchpanels kann zu einer
Reduzierung der möglichen Entfernungen führen.
Lieferumfang
38387:
HDBaseT HDMI/Typ C 1-Modul UK Wall Plate Extender, Transmitter
2 x 3-Pin Terminal Block
2 x 2-Pin Terminal Block
24VDC 1A Multi-Country Netzteil (UK, EU, US & AUS), 2-Pin Terminal Block DC-Anschluss
Lindy Handbuch
38388:
HDBaseT HDMI/Type C 2-Modul EU Wall Plate Extender, Transmitter
2 x 3-Pin Terminal Block
2 x 2-Pin Terminal Block
24VDC 1A Multi-Country Netzteil (UK, EU, US & AUS), 2-Pin Terminal Block DC-Anschluss
Lindy Handbuch
38389:
HDBaseT HDMI & USB Extender, Receiver
IR-Emitterkabel, 1.5m
IR-Receiverkabel, 1.5m
2 x Montageösen & 4 x Schrauben
2 x 3-Pin Terminal Block
24VDC 1A Multi-Country Netzteil (UK, EU, US & AUS), verschraubbarer DC-Anschluss: 5.5/2.1mm
Lindy Handbuch

Benutzerhandbuch Deutsch
Eigenschaften
Unterstützt Auflösungen bis 3840x2160@60Hz 4:4:4 8bit, mit zusätzlicher Unterstützung für HDR bis
zu 4:2:2 10/12bit (STD-Modus)
Long-Reach-Modus (LRM) unterstützt 4K30-Auflösungen bis 150m
Audio Pass-through aller HDMI-Audioformate inklusive Dolby Atmos & DTS:X
Analoges Audio-Embedding 48KHz mit DIP-Schalter am Transmitter zur Einstellung von HDMI oder
analogem Audio
PoC (Power over Cable)-Unterstützung mit DIP-Schalter; wenn sie auf beiden Seiten eingeschaltet ist,
ist nur ein Stromversorgungsanschluss erforderlich
USB 2.0 Unterstützung zum Anschluss von Maus, Tastatur und weiteren USB-Geräten
EDID-Management mit DIP-Schalter an den Transmittern
Bi-direktionale IR-Steuerung (20-60KHz) der Geräte über den Extender
RS-232 Pass-through
2-Pin Klemmblock DC-Anschluss an den Transmittern, verschraubbare DC-Verbindung am Receiver
Spezifikationen
HDMI 2.0b 18Gbit/s, USB Typ C 5.4Gbit/s kompatibel
HDCP 2.2/1.4 Pass-through
Die folgenden Entfernungs- und Auflösungskombinationen sind möglich, wenn ein hochwertiges Cat.6
oder höheres U/UTP- oder F/UTP-Kabel verwendet wird:
Standard-Modus (STD) – 90m:
3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
3840x2160@30Hz 4:4:4 8bit
1920x1080@60Hz 4:4:4 8bit
3D@1920x1080
Modus mit großer Reichweite (LRM) – 150m:
3840x2160@30Hz 4:4:4 8bit
1920x1080@60Hz 4:4:4 8bit
3D@1920x1080
ESD-Schutz: ± 8kV (Luftspaltentladung)
Human Body Model: ± 4kV (Kontaktentladung)
Betriebstemperatur: 0°C - 40°C (32°F - 104°F)
Lagertemperatur: -20°C - 60°C (-4°F - 140°F)
Relative Feuchtigkeit: 20 - 90% RH (nicht-kondensierend)
Metallgehäuse
Farbe: weiße Wandplatten, schwarze Receiver
Strombedarf: AC100-240V 50/60Hz
Leistungsaufnahme: 12.48W
38387-8 Transmitter Ports
Eingänge:
HDMI (Buchse)
USB Typ C (Buchse)
USB Typ B (Buchse)
3.5mm Audio (Buchse)
IR (3-Pin Klemmblock)
Ausgänge:
HDBaseT RJ-45 (Buchse)
IR (3-Pin Klemmblock)
38389 Receiver Ports
Eingänge:
HDBaseT RJ-45 (Buchse)
3.5mm IR (Buchse)
Ausgänge:
HDMI (Female)
Analog Audio (3-pin phoenix)
3.5mm IR (Buchse)
2x USB Typ A

Benutzerhandbuch Deutsch
Installation & Betrieb
38387-8 Transmitter Vorder- und Rückseite
1. USB-C IN: Anschluss eines USB Typ C Quellgeräts, Video bis 4K60 und USB 2.0 Signale werden
unterstützt
2. USB-C LED: Diese leuchtet grün, wenn der USB-C IN Port als Eingangsquelle ausgewählt ist.
3. HDMI IN: Anschluss eines HDMI-Quellgeräts.
4. HDMI LED: Diese leuchtet grün, wenn der HDMI IN Port als Eingangsquelle ausgewählt ist.
5. AUDIO IN: Anschluss einer 3.5mm Audioquelle zur Audioeinbindung.
6. TO PC: USB Typ B Buchse kombiniert mit HDMI IN Port, zum Anschluss an einen USB Port am PC.
7. SOURCE: Taste zum Umschalten zwischen USB-C- und HDMI-Eingängen.
8. RS-232: Anschluss an einen PC, seriellen Controller oder ein serielles Gerät via 3-Pin Klemmblock für
die Pass-through-Übertragung von RS-232-Befehlen.
9. IR IN: Anschluss des mitgelieferten IR-Receiverkabels für den Empfang des IR-Signals. Achten Sie
darauf, dass direkte Sichtverbindung zwischen Fernbedienung und IR-Extender besteht.
10. IR OUT: Anschluss des mitgelieferten IR-Sendekkabels zur IR-Signalübertragung. Achten Sie auf
direkte Sichtverbindung zwischen IR-Transmitter und den zu steuernden Geräten.
11. DC 24V: Anschluss des 24VDC 1A Netzteils an eine Steckdose und mit dem 2-Wege-Anschluss des
Klemmblocks. Wenn die PoC-Funktion aktiviert ist, ist dies nur auf einer Seite der Installation
erforderlich.
12. POC ON/OFF: DIP-Schalter zum Ein-/Ausschalten der PoC-Funktion.
13. HDBASET OUT: Schließen Sie einen kompatiblen HDBaseT-Empfänger mit einem einzigen Cat.6-
Kabel oder höher für alle Datensignale an. Bitte nicht an einen Netzwerkanschluss anschließen.
14. MODE STD/LRM: DIP-Schalter zur Auswahl des Modus STD oder LRM.
- STD: Standard-HDBaseT-Modus, unterstützt 4K60 bis zu einer Distanz von 90m.
- LRM: Long-Reach-HDBaseT-Modus, unterstützt 4K30 bis zu einer Distanz von 150m.
15. AUDIO IN LR/HDMI: DIP-Schalter zur Auswahl der Audiosignalquelle:
- L/R: Gibt den eingebundenen (‘embedded’) analogen Ton vom AUDIO IN-Anschluss aus
- HDMI: Gibt das de-embedded Audio über den HDMI IN-Anschluss aus.
16. EDID: DIP-Schalter für folgende Voreinstellungen:
- 00: Kopiere die EDID vom Display, das mit dem Receiver verbunden ist (Standard)
- 01: 4K30 4:4:4
- 10: 1080p60 4:4:4
- 11: 1200p60 4:4:4

Benutzerhandbuch Deutsch
38389 Receiver Vorder- und Rückseite
1. Power LED: Zeigt Stromversorgung an
2. LINK LED: Leuchtet grün, wenn Transmitter und Receiver angeschlossen sind. Blinkt, wenn die
Verbindung schlecht oder instabil ist und ist aus, wenn keine Verbindung vorhanden ist.
3. VIDEO LED: Diese blinkt bei Ausgabe eines aktiven Signals; sie ist aus, wenn es kein Signal gibt.
4. USB 2.0: USB 2.0 Typ A Ports zum Anschluss von USB-Geräten wie Maus, Tastatur oder USB-Stick.
5. SERVICE: USB Micro-B Port für Firmwareupdates.
6. DC 24V: Anschluss des 24VDC 1A Netzteils an eine Steckdose und Verbindung mit dem Transmitter
oder Receiver. Wenn die PoC-Funktion aktiviert ist, ist dies nur auf einer Seite der Installation
erforderlich.
7. POC ON/OFF: DIP-Schalter zum Ein-/Ausschalten der PoC-Funktion.
8. HDBT IN: Anschluss eines kompatiblen HDBaseT-Transmitters mit einem Cat.6 (oder höher) -Kabel
für alle Datensignale. Bitte nicht an einen Netzwerkanschluss anschließen.
9. Link-Anzeige-LED:
- Leuchtet grün: Link/Verbindung ist in Ordnung.
- Blinkend: Link/Verbindung ist schlecht oder instabil.
- Leuchtet nicht: Keine Verbindung.
10. Datensignal-LED:
- Leuchtet gelb: Signal ist in Ordnung.
- Leuchtet nicht: Kein Signal.
11. HDMI OUT: Anschluss an ein HDMI Display.
12. AUDIO OUT: 3-Pin Klemmblock-Verbindung, analoger Audio-Ausgabeport.
13. RS-232: Anschluss an einen PC, seriellen Controller oder ein serielles Gerät über eine 3-Pin
Klemmblock-Verbindung zur Pass-through-Übertragung von RS-232-Befehlen.
14. IR IN: Anschluss des mitgelieferten IR-Empfängerkabels für den IR-Signalempfang. Achten Sie darauf,
dass direkte Sichtverbindung besteht zwischen Fernbedienung und dem IR-Extender.
15. IR OUT: Anschluss des mitgeliefreten IR-Sendekabels für die IR-Signalübertragung. Achten Sie auf
direkte Sichtverbindung zwischen IR-Transmitter und den zu steuernden Geräten.
Achtung!Achten Sie darauf, dass vor der Installation alle Geräte ausgeschaltet sind.
1. Schließen Sie ein HDMI-Quellgerät mit einem HDMI- oder Typ-C-Kabel an die Sendeeinheit an.
2. Schließen Sie ein Ende des Cat.6-Kabels an den HDBaseT-Ausgang des Senders und das andere
Ende an den HDBaseT-Eingang des Empfängers an. Es werden U/UTP- oder F/UTP-
Installationskabel empfohlen. Die Kabellängen entnehmen Sie bitte den Spezifikationen in diesem
Handbuch.
3. Verwenden Sie ein weiteres HDMI-Kabel, um ein HDMI-Anzeigegerät an den HDMI-
Ausgangsanschluss des Empfängers anzuschließen.
4. Vergewissern Sie sich, dass sich alle DIP-Schalter in der richtigen Position befinden (Details siehe

Benutzerhandbuch Deutsch
oben).
5. Stecken Sie das Netzteil entweder in den Sender oder den Empfänger und schalten Sie es ein.
6. Schalten Sie das Quellgerät und das Display ein, um die Installation abzuschließen.
Zusätzlich zu den oben beschriebenen Installationsschritten kann dieser HDMI-KVM-Extender auch die
folgenden zusätzlichen/optionalen Funktionen bieten:
USB
Der Sender verfügt über einen USB-Anschluss Typ B für den Anschluss an eine USB-Quelle wie einen
PC oder Laptop, wenn der HDMI-Eingang ausgewählt ist. Der Empfänger verfügt über zwei USB 2.0 Typ
A Ports für den Anschluss einer Tastatur, Maus oder anderer Geräte zur Steuerung der an den Sender
angeschlossenen Quelle.
Wenn Sie einen PC über den USB-Anschluss Typ B an den Sender anschließen, können Sie die folgenden
seriellen Befehle verwenden (Baudrate 115200, 8bits):
s reboot! = das Gerät neu starten
r fw version! = fw-version anzeigen
s auto switch on! = Einschaltautomatik aktivieren
s auto switch off! = Einschaltautomatik de-aktivieren
r auto switch! = Status der automatischen Umschaltung anzeigen
RS-232 Seriell
Transmitter und Receiver verfügen über einen seriellen Klemmblock-Anschluss für die Erweiterung von
Steuersignalen.
Audio
Der Sender verfügt über einen analogen 3,5-mm-Eingang für die Einbindung von Audiosignalen. Mit einem
DIP-Schalter kann ausgewählt werden, ob der Empfänger die de-embedded Audiosignale über den HDMI
IN- oder AUDIO IN-Anschluss des Senders ausgeben soll..
Infrared Control
Transmitter und Receiver verfügen beide über einen IR-Eingang und einen IR-Ausgang, wobei zwei Paare
von IR-Verlängerungskabeln mitgeliefert werden. Mit den Verlängerungskabeln kann eine IR-
Fernbedienung vom Sender zum Empfänger oder umgekehrt verwendet werden.
Fehlersuche
Auf dem Bildschirm ist keine Anzeige vorhanden.
Es hat sich gezeigt, dass es erhebliche Unterschiede bei den Kabellängen/-typen und sogar bei den
Eingangsanschlüssen gibt, die bei verschiedenen Display-Marken mit HDMI 18G 4K@60Hz-Auflösungen
verwendet werden können. Wenn Probleme auftreten, führen Sie bitte die folgenden Schritte aus:
Verwenden Sie einen anderen Eingangsanschluss am Display.
Reduzieren Sie die Kabellänge am Ein- und Ausgang auf 1m.
Versuchen Sie es mit einem anderen 1-m-HDMI- oder Typ-C-Kabel.
Prüfen Sie, ob der Stromstecker und die Buchse des externen Netzteils fest angeschlossen sind
und ob die Betriebs-LED sowohl am Sender als auch am Empfänger leuchtet.
Vergewissern Sie sich, dass das Cat.6/7-Kabel richtig eingesteckt ist und dass die Verbindungs-
LED auf der linken Seite der HDBaseT-Eingangs- und Ausgangsanschlüsse leuchtet.
Prüfen Sie, ob die Anzeige-LEDs am HDBaseT-Eingang leuchten. Ist dies nicht der Fall, schalten
Sie die Quelle und das Display aus und wieder ein.
Bei mehreren HDMI-Geräten kann es hilfreich sein, die HDMI-Verbindung zu trennen und wieder
anzuschließen, um den HDMI-Handshake und die Erkennung erneut zu initiieren.
Schalten Sie alle Geräte aus und dann in dieser Reihenfolge wieder ein: zuerst den Extender, dann
das Display und zuletzt die Quelle.
Reduzieren Sie die Länge des verwendeten Cat.6/7- oder HDMI-Kabels oder verwenden Sie ein

Benutzerhandbuch Deutsch
hochwertigeres Kabel.
Überprüfen Sie, ob sich die DIP-Schalter in der richtigen Position befinden.
Lindy prüft und testet die Produktpalette regelmäßig, um maximale Kompatibilität und Performance zu
gewährleisten. Die aktuellste Version dieses Handbuchs finden Sie immer auf Ihrer lokalen Lindy-Website,
unter der entsprechenden Artikelnummer suchen und das Handbuch unter Downloads finden.

Manuel Utilisateur Français
Consignes de sécurité
! ATTENTION !
Merci de lire attentivement ces instructions de sécurité et de les conserver avec le
produit.
Le non-respect de ces précautions peut causer un choc électrique entrainant des
blessures graves, voire mortelles, un incendie ou des dommages au produit.
Toucher les composants internes ou un câble endommagé peut provoquer un choc
électrique pouvant entraîner la mort.
Cet appareil est une alimentation à découpage et peut fonctionner avec des tensions d'alimentation de
100...240 VAC Pour une utilisation dans le monde entier, quatre adaptateurs secteur différents sont
inclus : Type Euro, type UK, type US/Japon et type Australie/Nouvelle-Zélande. Utilisez l'adaptateur
secteur approprié comme indiqué sur la photo et assurez-vous qu'il est solidement fixé en place et qu'il
ne se détache pas en tirant avant de l'installer dans une prise électrique.
Pour éviter les risques d'incendie, de choc électrique ou de dommages:
N'ouvrez pas l'appareil ni son alimentation électrique. Il n'y a pas de pièces réparables par
l'utilisateur à l'intérieur.
Seul un personnel d'entretien qualifié est autorisé à effectuer toute réparation ou entretien.
Ne jamais utiliser de câble endommagé.
Ne pas mouiller le produit et ne pas l'exposer à l'humidité.
N'utilisez pas ce produit à l'extérieur, il est destiné à un usage intérieur uniquement.
Ne pas placer le produit à proximité de sources de chaleur. Toujours le placer dans un endroit
suffisamment ventilé.
Ne pas déposer de charge lourde sur le produit ou sur les câbles.
Veuillez vous assurer que l'adaptateur utilisé est fermement fixé et verrouillé en place avant de
l'insérer dans une prise murale.
Instructions d’utilisation de l’alimentation
Pour connecter l'adaptateur
Glissez l'adaptateur secteur requis dans l'alimentation et pivotez-
le dans le sens horaire pour le verrouiller en place.
Pour retirer l'adaptateur
Appuyez sur le bouton de déverrouillage.
Tout en restant appuyé, pivoter l'adaptateur de façon anti-horaire.

Manuel Utilisateur Français
Introduction
Nous sommes heureux que votre choix se soit porté sur un produit LINDY et vous remercions de votre
confiance. Vous pouvez compter à tout moment sur la qualité de nos produits et de notre service. Cet
extendeur KVM HDBaseT Cat.6 HDMI 4K60/Type C, USB 2.0, IR & RS-232,150 mètres est soumis à une
durée de garantie LINDY de 2 ans et d’une assistance technique gratuite à vie. Merci de lire attentivement
ces instructions et de les conserver pour future référence.
L'extendeur KVM HDBaseT Cat.6 HDMI/Type C 4K60, USB 2.0, IR & RS-232 de Lindy est une solution
complète haute performance pour étendre les signaux HDMI sur de longues distances via un câble réseau
Cat.6. HDBaseT est une norme mondialement reconnue pour la distribution de contenu AV de haute
qualité et d'autres technologies, y compris l'alimentation et le contrôle, sur de plus longues distances via
un câble Cat.6 ou supérieur à faible coût.
Cette solution se compose de 3 éléments : deux émetteurs en plaque murale (un pour une boîte murale
au Royaume-Uni et un pour une boîte murale de l'UE) avec un port Type C et un port HDMI avec des
ports USB également pour les applications KVM, ainsi qu'une unité réceptrice.
Il prend en charge des résolutions allant jusqu'à 4K Ultra HD, la vidéo peut être visionnée avec une clarté
époustouflante, tandis que le support supplémentaire pour le HDR (High Dynamic Range) permet
d'afficher le contenu avec une luminosité améliorée, un plus grand contraste entre les noirs et les blancs
et une gamme de couleurs beaucoup plus large. Cela offre une solution fiable pour créer une signalisation
numérique accrocheuse dans le commerce de détail, des affichages immersifs lors d'événements ou des
configurations captivantes dans de plus grandes salles de conférence ou de conférences.
HDBaseT™ et le logo de l'Alliance HDBaseT sont des marques de commerce de l'Alliance HDBaseT.
Veuillez noter : Les longueurs et résolutions indiquées sont possibles avec une connexion directe entre
l'émetteur et le récepteur en utilisant un câble Cat.6 de bonne qualité. L'utilisation d'un type de câble
différent, ou l'introduction de plaques murales, de coupleurs ou de panneaux de brassage, peut entraîner
une réduction des distances possibles.
Contenu de l’emballage
38387 :
Extender plaque murale 1 groupe UK HDBaseT HDMI/Type C, émetteur
2 x bloc de connexion 3 broches
2 x bloc de connexion 2 broches
Alimentation multi-pays 24VDC 1A (UK, EU, US & AUS), bloc de connexion 2 broches DC
Manuel Lindy
38388 :
Extender plaque murale 2 groupes EU HDBaseT HDMI/Type C, émetteur
2 x bloc de connexion 3 broches
2 x bloc de connexion 2 broches
Alimentation multi-pays 24VDC 1A (UK, EU, US & AUS), bloc de connexion 2 broches DC
Manuel Lindy
38389 :
Extender HDBaseT HDMI & USB, récepteur
Câble émetteur IR, 1.5m
Câble récepteur IR, 1.5m
2 x équerre de montage & 4 x vis
2 x bloc de connexion 3 broches
Alimentation multi-pays 24VDC 1A (UK, EU, US & AUS), jack DC à visser: 5.5/2.1mm
Manuel Lindy

Manuel Utilisateur Français
Caractéristiques
Prend en charge les résolutions jusqu’à 3840x2160@60Hz 4:4:4 8bit, avec HDR jusqu’à 4:2:2 10/12bit
(STD Mode)
La fonction Long Reach Mode (LRM) prend en charge les résolutions 4K30 jusqu’à 150m
Audio Pass-through de tous les formats audio HDMI incluant Dolby Atmos & DTS:X
Injection audio analogique 48KHz avec dip-switch sur l’émetteur pour sélectionner l’audio HDMI ou
analogique
Prise en charge PoC (Power over Cable) avec dip-switch, lorsque actif une seule alimentation est
nécessaire d’un côté de l’installation
Prise en charge USB 2.0 pour connecter souris, clavier et autres périphériques USB
Gestion EDID par dip-switch sur l’émetteur
Contrôle IR bidirectionnel (20-60KHz) des équipements via l’extender
Pass-through RS-232
Connecteur Phoenix DC 2 broches sur l’émetteur, jack DC à visser sur le récepteur
Spécifications
Conforme HDMI 2.0b 18Gbit/s, USB Type C 5.4Gbit/s
Pass-through HDCP 2.2/1.4
Les combinaisons de distance et de résolution suivantes sont possibles en utilisant un câble U/UTP ou
F/UTP Cat.6 de haute qualité :
Mode STD - 90m :
3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
3840x2160@30Hz 4:4:4 8bit
1920x1080@60Hz 4:4:4 8bit
3D@1920x1080
Mode LRM - 150m :
3840x2160@30Hz 4:4:4 8bit
1920x1080@60Hz 4:4:4 8bit
3D@1920x1080
Protection ESD : ± 8kV (décharge dans l’air)
Modèle corps humain : ± 4kV (contact par décharge
Température de fonctionnement : 0°C - 40°C (32°F - 104°F)
Température de stockage : -20°C - 60°C (-4°F - 140°F)
Humidité relative : 20 - 90% RH (sans condensation)
Boitier en métal
Couleur : plaques murales blanches, récepteur noir
Alimentation : AC100-240V 50/60Hz
Consommation électrique : 12.48W
38387-8 Ports émetteur
Entrée :
HDMI (femelle)
USB Type C (femelle)
USB Type B (femelle)
Audio 3.5mm (femelle)
IR (Phoenix 3 broches)
Sortie :
HDBaseT RJ-45 (femelle)
IR (Phoenix 3 broches)
38389 Ports récepteur
Entrée :
HDBaseT RJ-45 (femelle)
3.5mm IR (femelle)
Sortie :
HDMI (femelle)
Audio analogique (Phoenix 3 broches)
3.5mm IR (femelle)
2x USB Type A

Manuel Utilisateur Français
Installation et utilisation
38387-8 Emetteur avant et arrière
1. ENTRÉE USB-C : Connexion à un périphérique source USB de type C, la vidéo jusqu'à 4K60 et les
signaux USB 2.0 sont pris en charge.
2. LED USB-C : Elle s'allume en vert lorsque le port USB-C IN est sélectionné comme source d'entrée.
3. ENTRÉE HDMI : Connexion à un appareil source HDMI.
4. LED HDMI : Elle s'allume en vert lorsque le port HDMI IN est sélectionné comme source d'entrée.
5. AUDIO IN : Connexion à une source audio de 3.5mm pour l'intégration audio.
6. VERS LE PC : Port USB de type B femelle combiné au port HDMI IN, pour se connecter à un port
USB sur un PC.
7. SOURCE : Bouton permettant de basculer entre les entrées USB-C et HDMI.
8. RS-232 : Connexion à un PC, à un contrôleur série ou à un périphérique série via une connexion à 3
voies de type Phoenix block pour la transmission en mode pass-through des commandes RS-232.
9. IR IN : Connecter le câble de réception IR fourni pour la réception du signal IR. Veillez à ce que la
télécommande utilisée se trouve dans la ligne de mire directe du prolongateur IR.
10. IR OUT : Connectez le câble émetteur IR fourni pour la transmission du signal IR. Placez l'émetteur
IR dans la ligne de mire directe de l'équipement à contrôler.
11. DC 24V : Connectez le bloc d'alimentation 24VDC 1A à une prise murale AC et connectez solidement
le bloc Phoenix à la connexion bidirectionnelle. Lorsque la fonction PoC est activée, cela n'est
nécessaire que d'un côté de l'installation.
12. POC ON/OFF : Interrupteur DIP pour activer/désactiver la fonction PoC.
13. HDBASET OUT : Connectez un récepteur HDBaseT compatible à l'aide d'un seul câble Cat.6 ou
supérieur pour tous les signaux de données. Ne pas connecter à un port réseau.
14. MODE STD/LRM : Interrupteur DIP pour sélectionner le mode STD ou LRM.
- STD : Mode HDBaseT standard, supporte 4K60 jusqu'à une distance de 90m.
- LRM : Mode HDBaseT longue portée, supporte 4K30 jusqu'à 150m de distance.
15. AUDIO IN LR/HDMI : Commutateur DIP pour sélectionner la source du signal audio :
- L/R : Sortie de l'audio analogique intégré à partir du port AUDIO IN.
- HDMI : Sortie de l'audio désencastré à partir du port HDMI IN.
16. EDID : interrupteurs DIP pour configurer les préréglages suivants :
- 00 : Copie l'EDID de l'écran connecté au récepteur (par défaut)
- 01 : 4K30 4:4:4
- 10 : 1080p60 4:4:4
- 11 : 1200p60 4:4:4

Manuel Utilisateur Français
38389 Récepteur avant et arrière
1. Power LED : Indique l'alimentation
2. LINK LED : s'allume en vert lorsque l'émetteur et le récepteur sont connectés, clignote lorsque la
connexion est mauvaise ou instable, et reste éteint lorsqu'il n'y a pas de connexion.
3. VIDEO LED : clignote lorsqu'il y a une sortie de signal active, elle reste éteinte s'il n'y a pas de signal.
4. USB 2.0: Ports USB 2.0 de type A, permettant de connecter des périphériques USB tels qu'une souris,
un clavier ou une clé USB.
5. SERVICE : Port USB Micro-B pour les mises à jour du micrologiciel.
6. DC 24V : Connectez l'alimentation 24VDC 1A à une prise murale AC et connectez solidement
l'émetteur ou le récepteur. Lorsque la fonction PoC est activée, cela n'est nécessaire que d'un côté de
l'installation.
7. POC ON/OFF : Interrupteur DIP pour activer/désactiver la fonction PoC.
8. HDBT IN : Connectez un émetteur HDBaseT compatible en utilisant un seul câble Cat.6 ou supérieur
pour tous les signaux de données. Ne pas connecter à un port réseau.
9. LED d'indication de liaison :
- Allumé en vert : la liaison est correcte
- Clignote : la liaison est mauvaise ou instable
- Eteinte : pas de liaison
10. Indicateur de signal de données LED :
- Allumé en jaune : le signal est correct
- Non allumé : pas de signal
11. HDMI OUT : Connexion à un écran HDMI.
12. AUDIO OUT : Connexion à 3 voies par bloc Phoenix, port de sortie audio analogique.
13. RS-232 : Connexion à un PC, à un contrôleur série ou à un appareil série via une connexion à trois
voies de type bloc Phoenix pour la transmission de commandes RS-232.
14. IR IN : Connectez le câble de réception IR fourni pour la réception du signal IR. Veillez à ce que la
télécommande utilisée se trouve dans la ligne de mire directe du prolongateur IR.
15. IR OUT : Connectez le câble émetteur IR fourni pour la transmission du signal IR. Placez l'émetteur
IR dans la ligne de mire directe de l'équipement à contrôler.
Important! Avant de débuter l’installation, assurez-vous que tous les appareils sont hors tension.
1. Connectez un appareil source HDMI à l'unité émettrice à l'aide d'un câble HDMI ou de type C.
2. Connectez une extrémité du câble Cat.6 au port HDBaseT Out de l'émetteur et l'autre extrémité au
port HDBaseT In du récepteur. Les câbles d'installation U/UTP ou F/UTP sont recommandés. Pour les
longueurs de câble, voir les spécifications de ce manuel.
3. Utilisez un autre câble HDMI pour connecter un dispositif d'affichage HDMI au port de sortie HDMI du
récepteur.
4. Assurez-vous que tous les dip-switches sont dans la bonne position, voir ci-dessus pour plus de
détails.
5. Branchez l'alimentation en courant continu dans l'émetteur ou le récepteur et mettez-le sous tension.

Manuel Utilisateur Français
6. Mettez l'appareil source et l'écran sous tension pour terminer l'installation.
En plus des étapes d'installation décrites ci-dessus, ce prolongateur KVM HDMI peut également fournir
les fonctionnalités supplémentaires/optionnelles suivantes :
USB
L'émetteur dispose d'un port USB de type B pour la connexion à une source USB telle qu'un PC ou un
ordinateur portable lorsque le port d'entrée HDMI est sélectionné. Le récepteur dispose de deux ports
USB 2.0 de type A pour connecter un clavier, une souris ou d'autres dispositifs pour contrôler la source
connectée à l'émetteur.
La connexion d'un PC à l'émetteur via le port USB de type B permet d'utiliser les commandes série
suivantes (vitesse de transmission 115200, 8 bits) :
s reboot! = redémarre l’unité
r fw version! = indique la version du firmware
s auto switch on! = active la fonction auto-switch
s auto switch off! = désactive la fonction auto-switch
r auto switch! = indique l’état de la fonction auto-switch
RS-232 série
L'émetteur et le récepteur sont tous deux dotés d'une connexion série de type Phoenix pour l'extension
des signaux de commande.
Audio
L'émetteur dispose d'un port d'entrée analogique de 3.5mm pour l'intégration audio. Un dip-switch permet
de sélectionner si le récepteur émettra l'audio extrait du port HDMI IN ou AUDIO IN de l'émetteur.
Contrôle infrarouge
L'émetteur et le récepteur sont tous deux équipés d'un port d'entrée et de sortie IR, et deux paires de
câbles d'extension IR sont fournies. Les câbles d'extension permettent d'utiliser une télécommande IR de
l'émetteur vers le récepteur ou vice versa.
Dépannage
Aucune image à l’écran.
Il a été constaté qu'il existe des différences significatives dans les longueurs/types de câbles et même les
ports d'entrée qui peuvent être utilisés sur différentes marques d'écrans utilisant des résolutions HDMI
18G 4K@60Hz. En cas de problème, veuillez suivre les étapes suivantes :
Essayez un autre port d'entrée sur l'écran.
Réduisez la longueur du câble d'entrée et de sortie à 1m.
Essayez un autre type de câble HDMI ou de type C de 1m.
Vérifiez que la fiche et la prise DC utilisées par l'alimentation externe sont fermement connectées et
que la LED d'alimentation est allumée à la fois sur l'émetteur et le récepteur.
Vérifiez que le câble Cat.6/7 est correctement branché et que la LED de connexion sur le côté gauche
des ports HDBaseT In et Out est allumée.
Vérifiez que les LED du port HDBaseT In sont allumées, si ce n'est pas le cas, mettez la source et
l'écran sous tension.
Pour plusieurs appareils HDMI, il peut être utile de débrancher et de rebrancher leur connexion HDMI
pour réinitialiser le handshake et la reconnaissance HDMI.
Eteignez tous les appareils, puis rallumez-les dans l'ordre suivant : d'abord l’extender, puis l'écran et
enfin la source.
Réduisez la longueur du câble Cat.6/7 ou HDMI utilisé ou utilisez un câble de meilleure qualité.
Vérifiez que les dip-switches sont dans la bonne position.
Lindy vérifie et teste régulièrement sa gamme de produits pour garantir une compatibilité et une
performance maximales. Pour obtenir la version la plus récente de ce manuel, veuillez consulter le site
Web local de Lindy, rechercher le numéro de pièce correspondant et trouver le manuel sous la rubrique
"Téléchargements".
This manual suits for next models
2
Table of contents
Languages:
Other Lindy Extender manuals
