Lindy 42981 User manual

© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (Feb 2007)
USB VoIP LCD Phone
User Manual English
LINDY No. 42981
www.lindy.com

User Manual English
Introduction
Thank you for purchasing the LINDY USB VoIP Phone with LCD. This phone has been
designed primarily for use with Skype, but can also be used with other VoIP applications.
You can control the Skype software by simply pressing the keys on the phone to select
phone listing and dialling function. With the in-built echo eliminating technology, voice
clarity is vastly improved.
Features
•LCD display caller ID contact lists and calling lists
•USB 1.1 & 2.0 specification compliant
•Compatible with VoIP (Voice over Internet Protocol) solutions, such as Skype, MSN
Messenger and Yahoo Messenger
•Built in hot key functions to operate Skype software as easy as dialing a normal
telephone.
•Skype hot key: up, down, 0 ~ 9 #, Dial, Hang Up, hold, info.
•Built in speaker and microphone
•Echo-eliminating for better sound quality
•Optional buzzer function for incoming call alerts
System Requirements
•Processor: PC 1GHZ or over
•Storage: 128MB RAM 15MB Hard Disk
•Internet service: ISDN, ADSL or LAN
•Operating System: Microsoft Windows 2000/XP/Vista with Direct X 9.0C or over
•Skype Software Version: 2.0 or over
Package Contents
•USB phone
•Installation CD (API Software and manual)
•This manual

User Manual English
Function Keys
1 Speaker Speaker
2 LCD Screen Display information of call status
3 Up/Down Button Select from contact list, missed call list, called list
Off-hook Make or answer a call
Enter Sub-menu entering
4 Dial
Confirm Option setting
5 Info Skype information hot key
6 Number Button Number dial out button
7 LED Ringing LED
On-hook Hang-up a call
Cancel Escape sub-menu
Press & hold to delete all dialed numbers
8 Hang Up
Clear
Press once to delete one dialed number
9 Hold Hold or mute hot key
10 Microphone Microphone
11 Buzzer Incoming call ringer

User Manual English

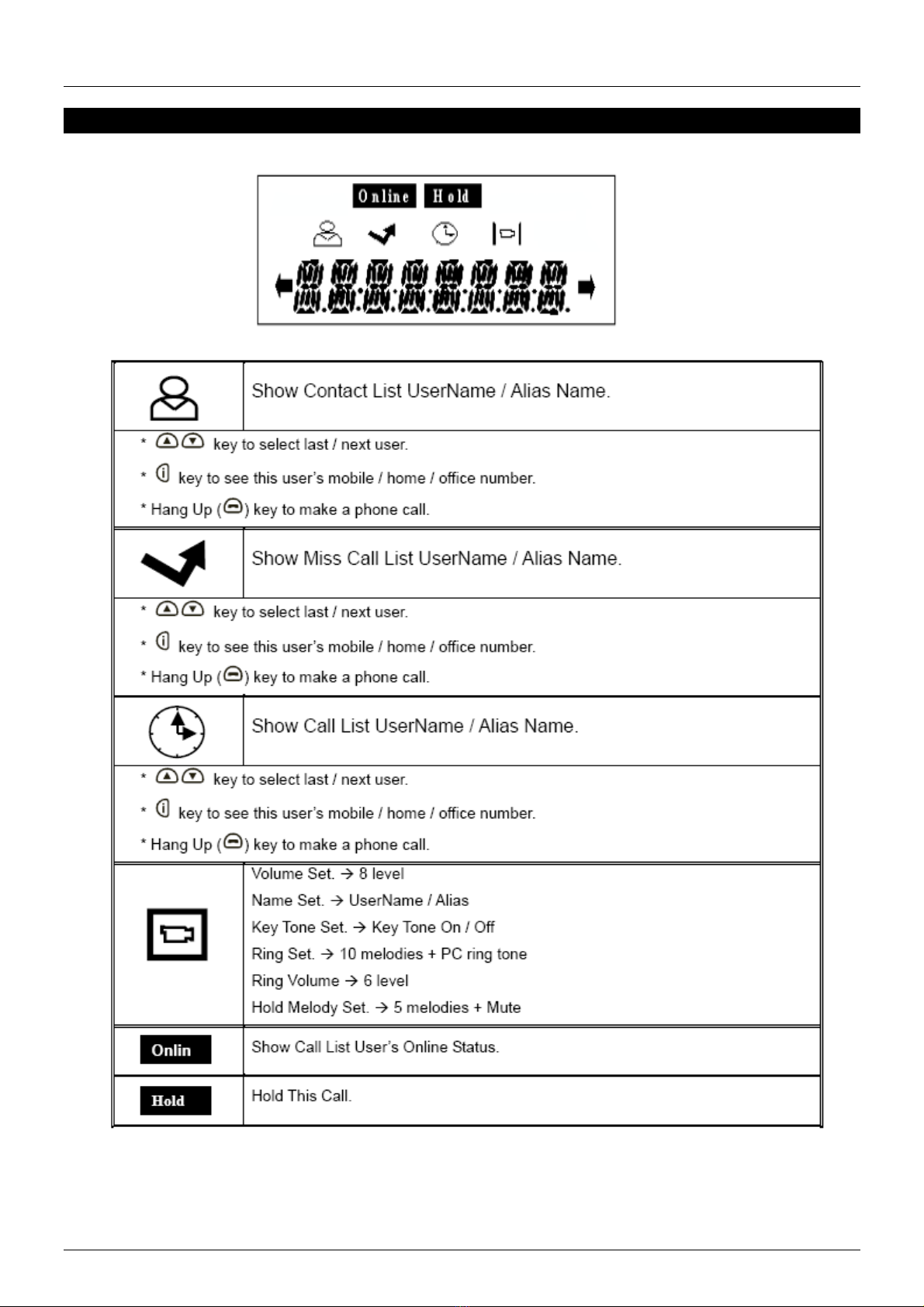

Function Keys

User Manual English
Installation
1. Hardware Installation
Please connect the USB VoIP Phone to your computer’s USB port. Your computer
will find a USB Audio Device. Once the driver is installed the LCD on the USB phone
will show the time.
2. Installing Skype Software
If Skype is not yet installed on your computer, please download the latest version of
the software from www.skype.com and install it on your computer. If you experience
any problems while installing this software then please refer to the Skype website.

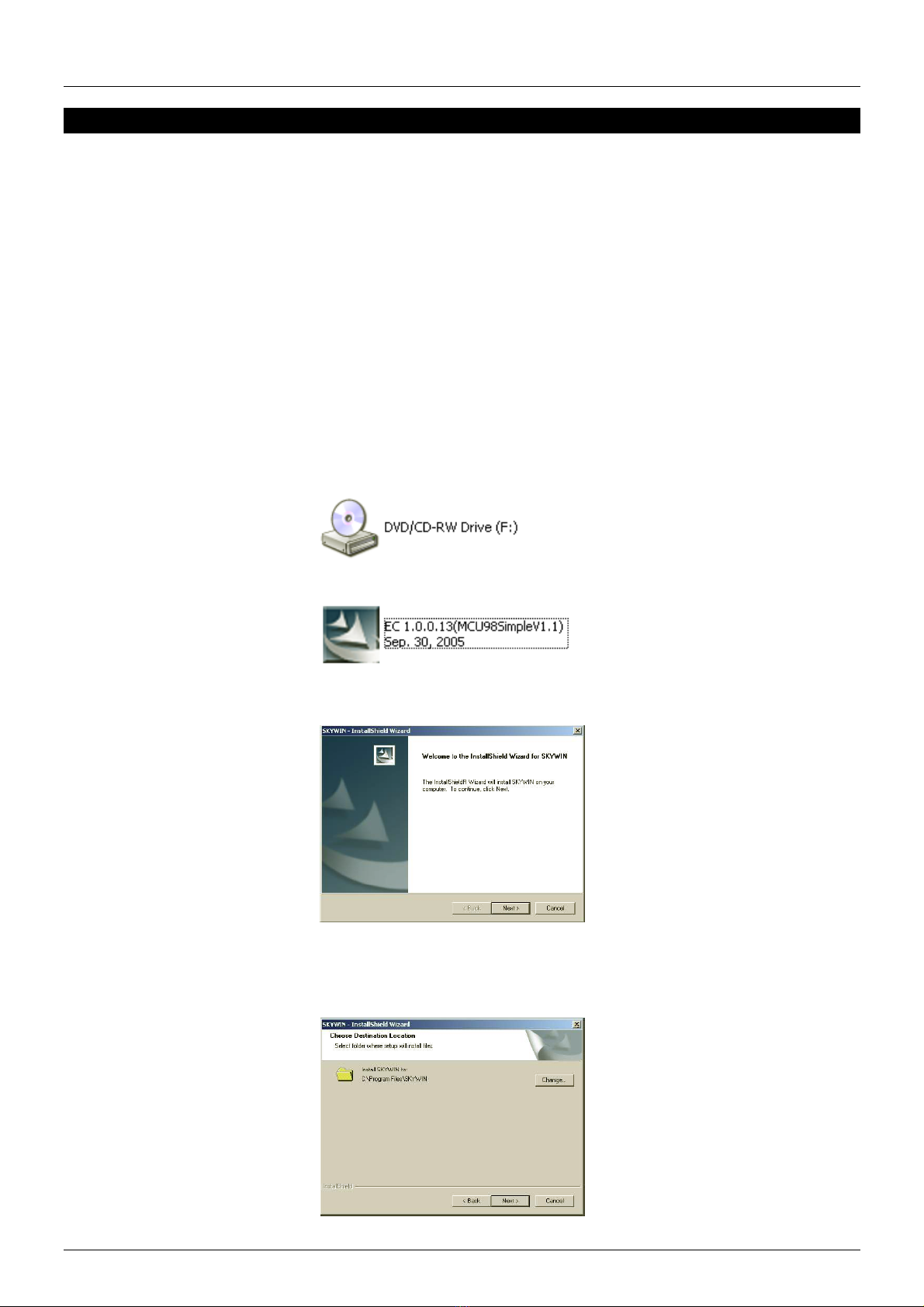

3. Installing the API Software
3.1 Insert the Utility CD into your CD-ROM drive. Double Click My Computer and then
choose the CD-ROM drive.
3.2 Run the setup icon to start the installation.
3.3 Please click Next.
3.4 Please click Next.

User Manual English
3.5 Click Finish to complete the installation.
3.6 Once installation is complete, double click the SkyWin icon to start the program.
3.7 When the screen appears “Another program wants to use Skype”. Select “Allow this
program to use Skype” and click the OK button.
Note:
If you accidentally select the “Do not allow this program to use Skype”
option, open the Skype window and take these steps: Click “Tools ►
Options ►Privacy ►Manage other programs access to Skype”, Select
“SKYWIN.EXE” and click “Change”. Select “Allow this program to use
Skype” and click the OK button.
3.8 When you have finished installing the API software, a small icon will appear in the
system tray. The icon displays the status for USB phone, as follows:

User Manual English
4. Setting Audio and Sound Device
Open the Skype window, click “Tools ►Options ►Sound Devices”. In the options
“Audio In” and “Audio Out”, please select USB Audio Device, then click Save.
5. Using the Handset
5.1 LCD Menu Functions
In clock mode, press the Dial ( ) to enter the Skype table and press up/down
( ) to select an option in the table.
When you are finished, press the Hang-up ( ) button to quit.
5.2 Calling a Skype User
Press Dial ( ) to select contact, miss list or call list of the Skype table.
You may press the ( ) key to scroll the list. Then press Dial ( ) key to dial
your target user via Skype.
If you want to cancel the dialing, you may press Hang Up ( ) key at any time.

User Manual English
5.3 Calling a Phone Number (Skype Out)
Before using this function, please make sure you have paid for the service. For
further information about Skype Out, please go to website http://www.skype.com
Dial the phone number by pressing the USB phone keypads.
Press the Dial ( ) key to call the number.
Note:
You must include the “country code” + “area code” (leaving out
the leading zero” + “number” e.g. “0044” “1642” “754000”
5.4 Answer a Call
When receiving an incoming call, Press the Dial ( ) key to answer the call.
5.5 Adjust Volume
On-line
Use the UP/Down ( ) button to control the volume while calling another user.
Off-line
Click “OK►Option►Vol Set” to adjust the volume.
5.6 Assign Speed-Dial
Open the Skype window, right-click the user name on the contact list and select set
Speed-Dial.
Set the speed dial number, example “11” and press OK.
To use speed dial on the handset, dial “11”. Then press the Dial ( ) key to make
a call to this contact.

User Manual English
6. Other IM Software Settings
6.1 MSN Messenger
Open MSN Messenger, Click “Tools” and select “Audio and Video Setup… ”. Then
follow the wizard to select the USB phone and test.
6.2 Yahoo Messenger
Open Yahoo Messenger, Click “Yahoo! Audio Setup Wizard” item. Then test the
USB phone’s speaker and microphone.
Troubleshooting
Q1 Skype is launched, but it has no response when I pick up the handset and press a
key using my USB phone
A1. Make sure your Skype is allowed to be accessed by the provided API. Please refer
to point 3 installing the API software.
Q2. While using messenger software or Skype, the voice is played from the PC sound
card instead from the USB phone.
A2. Make sure your software is configured to USB phone as audio device. Refer to point
4 Setting Audio and Sound device.
In MSN Messenger please refer to point 6.1 MSN Messenger setting.
In Skype please refer 3 Install the API software
Q3. There is no audio from my speakers when I play music?

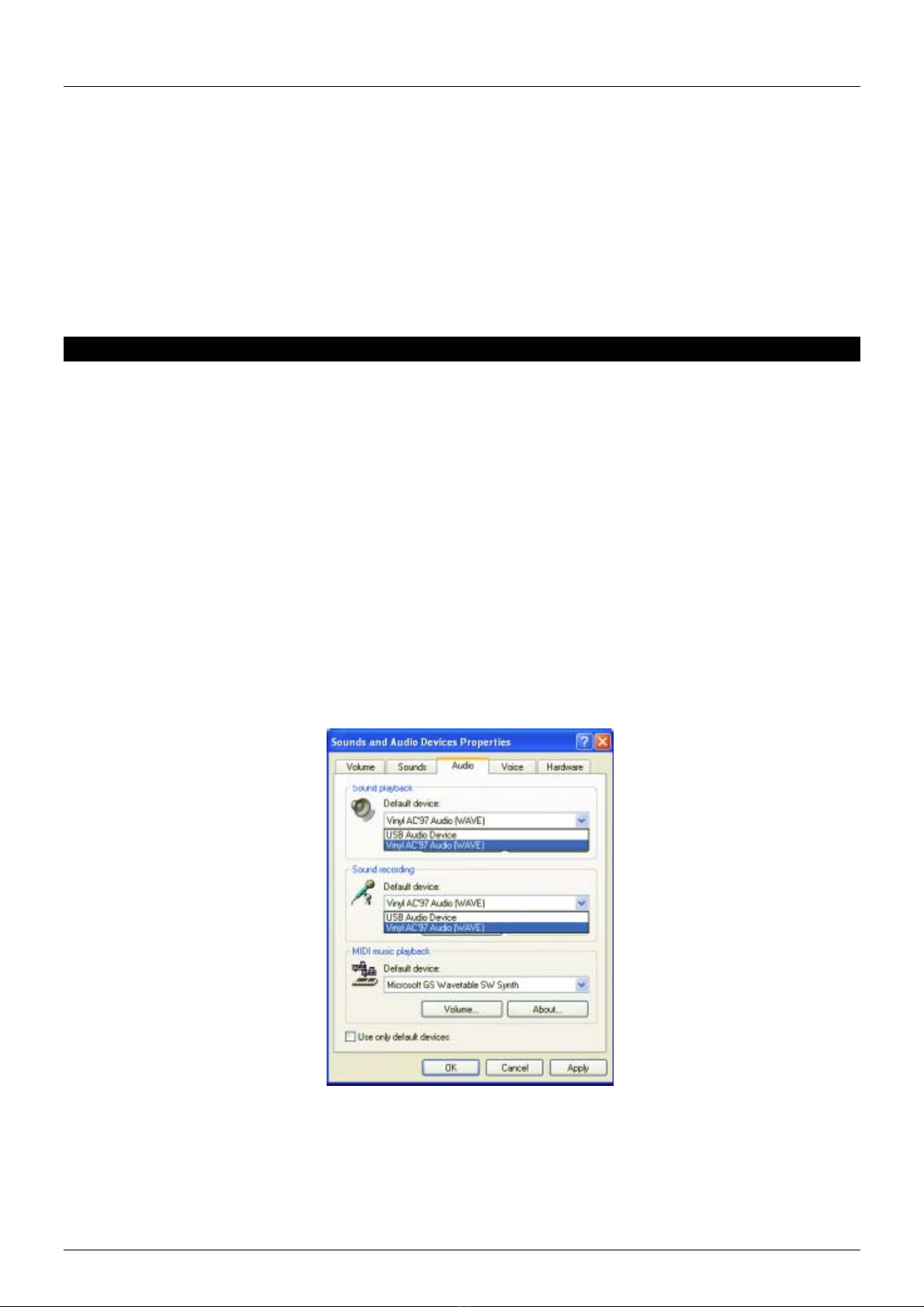

A3. Please go to your Control Panel/Sound and Audio Devices, set Sound playback and
Sound Recording’s preferred device to your sound card, as shown below:

User Manual English
Certifications
FCC Certifications
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at their own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received; including interference that may cause undesired operation.
CE Certification
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55024 and EN55022 class A for ITE, EN61000-3-2/-3 the essential protection requirement of
Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.

User Manual English
Recycling Information
WEEE (Waste of Electrical and Electronic Equipment),
Recycling of Electronic Products
United Kingdom
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of
all waste electrical and electronic equipment. It is no longer allowable to simply throw away
electrical and electronic equipment. Instead, these products must enter the recycling process.
Each individual EU member state has implemented the WEEE regulations into national law in
slightly different ways. Please follow your national law when you want to dispose of any
electrical or electronic products. More details can be obtained from your national WEEE
recycling agency.
Germany / Deutschland
Die Europäische Union hat mit der WEEE Direktive umfassende Regelungen für die
Verschrottung und das Recycling von Elektro- und Elektronikprodukten geschaffen. Diese
wurden von der Bundesregierung im Elektro- und Elektronikgerätegesetz – ElektroG in
deutsches Recht umgesetzt. Dieses Gesetz verbietet vom 24.März 2006 an das Entsorgen von
entsprechenden, auch alten, Elektro- und Elektronikgeräten über die Hausmülltonne! Diese
Geräte müssen den lokalen Sammelsystemen bzw. örtlichen Sammelstellen zugeführt werden!
Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess
übernimmt die Gesamtheit der Gerätehersteller.
France
En 2006, l'union Européenne a introduit la nouvelle réglementation (WEEE) pour le recyclage
de tout équipement électrique et électronique.
Chaque Etat membre de l’ Union Européenne a mis en application la nouvelle réglementation
WEEE de manières légèrement différentes. Veuillez suivre le décret d’application
correspondant à l’élimination des déchets électriques ou électroniques de votre pays.
Italy
Nel 2006 l’unione europea ha introdotto regolamentazioni (WEEE) per la raccolta e il riciclo di
apparecchi elettrici ed elettronici. Non è più consentito semplicemente gettare queste
apparecchiature, devono essere riciclate. Ogni stato membro dell’ EU ha tramutato le direttive
WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si
dispone di un apparecchio elettrico o elettronico.
Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato.
LINDY No. 42981
1st Edition February 2007
www.lindy.com
