Introduction
Thank you for purchasing the HDBaseT Presentation System with Control Keypad. This product has been
designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty and free
lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future
reference.
The Lindy HDBaseT Presentation System is a multi-function AV solution which is ideal for creating smart,
autonomous presentation, education or collaboration spaces combining three core components. An
HDBaseT multi-AV transmitter, An HDBaseT receiver and a separate wall mounted room control panel.
Using reliable HDBaseT technology, single cable installation and PoH means this system is perfectly
suited for education in a classroom or training room environment
Package Contents
▪HDBaseT Transmitter Wall Plate
▪HDBaseT Receiver

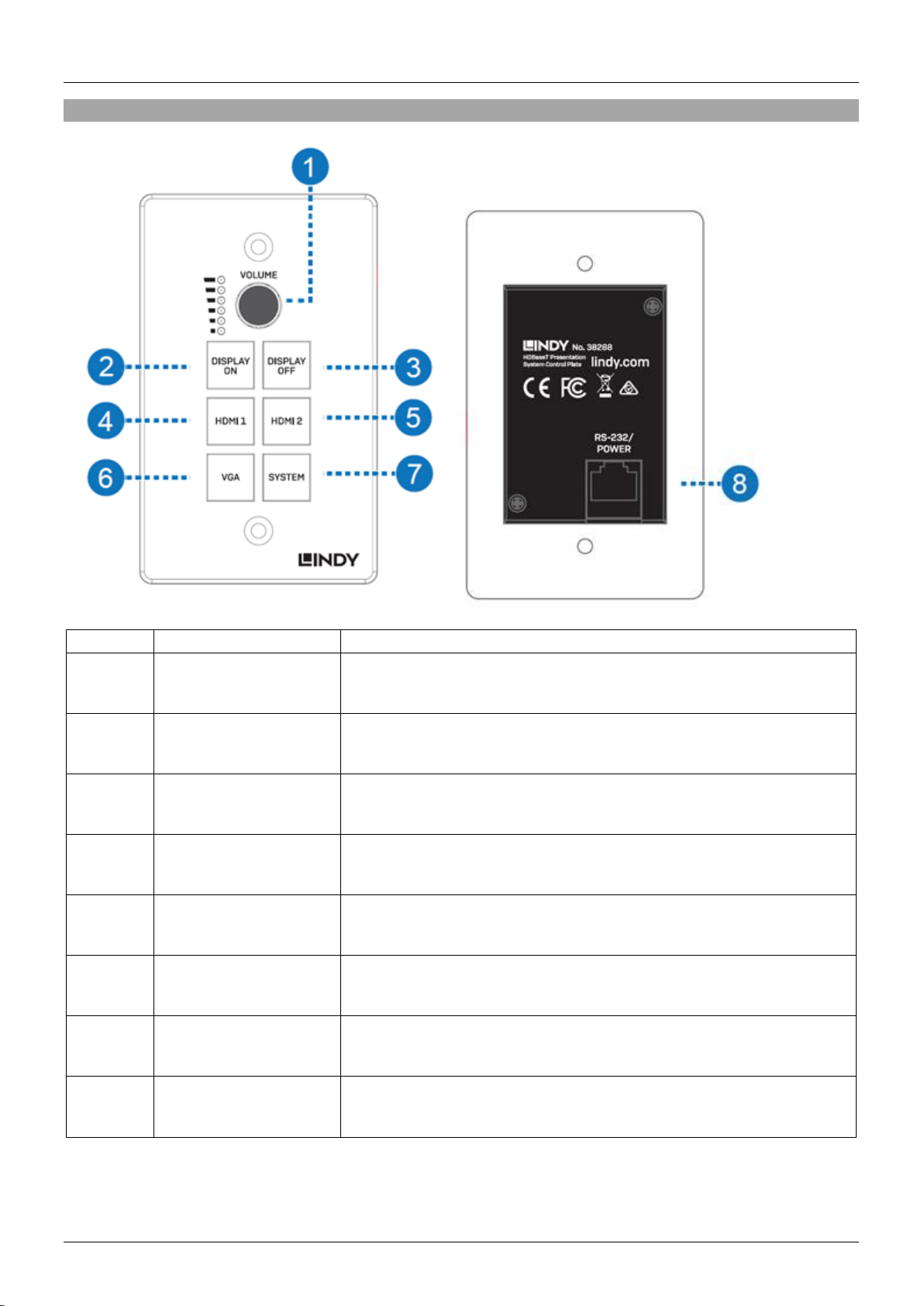

▪Control Panel
▪24V 3.75A Multi Country DC power Supply, Barrel Size: 5.5/2.1mm
▪Quick Instruction Guide
Features
▪Valens HDBaseT VS210 Chipset
▪Distance:
▪4K, 30Hz, RGB, 8bit with 40m of Cat.6 cable
▪1920x1080, 60Hz, RGB, 8Bit with 70m of Cat.6 cable.
▪HDMI 1.4b, HDCP 2.2 and HDCP 1.4 compliant.
▪Up to 7.1 channels of High Definition audio pass through (LPCM, Dolby TrueHD, and DTS-HD Master
Audio).
▪Supports multi-VESA Standard VGA formats input up to 1080p.
▪Supports MIC input via terminal block.
▪Stereo 30watts@4 ohms amplifier output (2 channel)
▪Supports interactive display (Touch screen) USB control using USB HID.

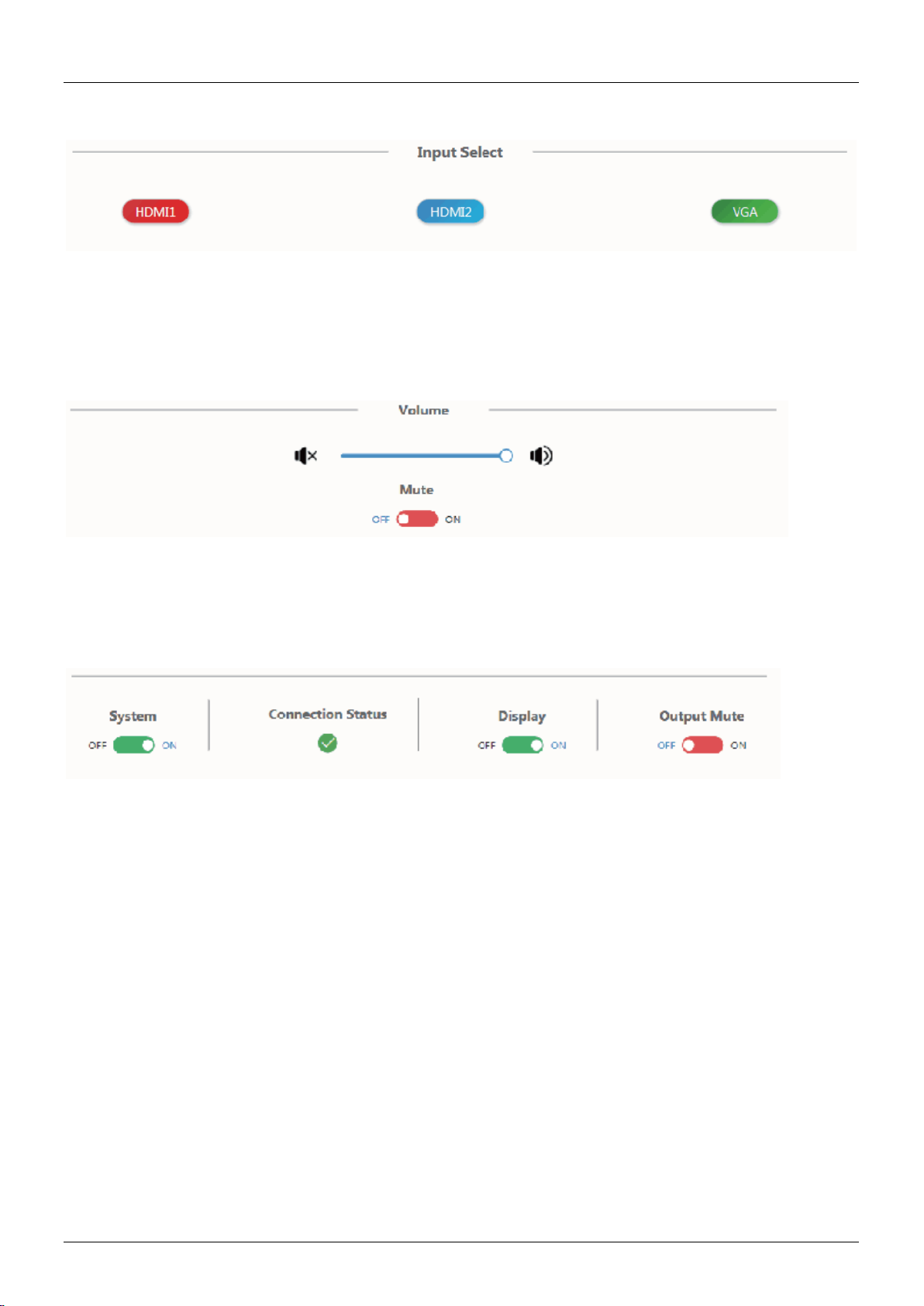

▪Control over Web GUI.
▪Separate control panel for system control.

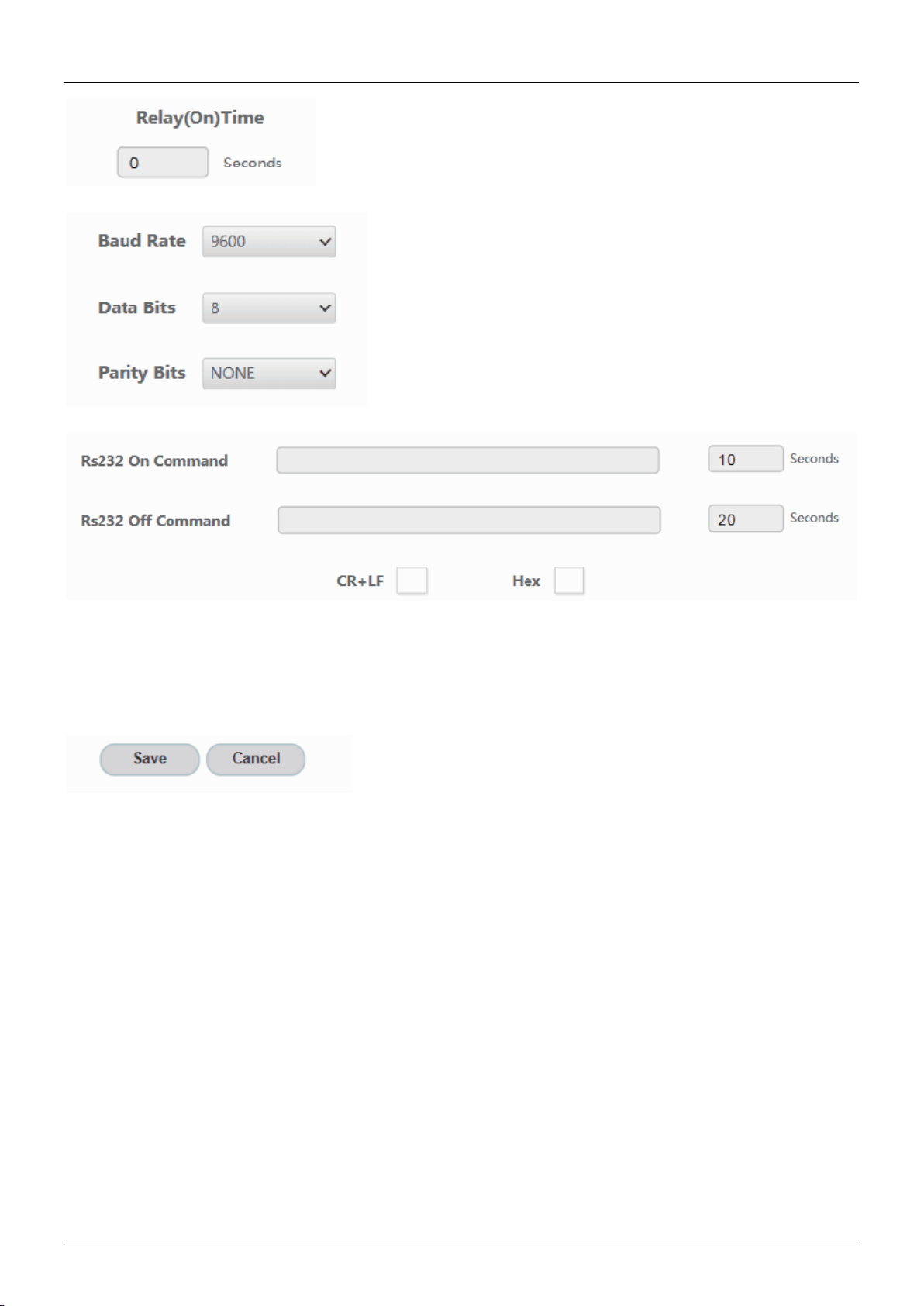

▪Supports relay control.
▪Supports RS-232 control.
▪Colour: Transmitter: White, Receiver: Black, Control Plate: White
▪ESD Protection: ± 8kV (air-gap discharge)
▪Human Body Model: ± 4kV (contact discharge)
▪Power Consumption: 75W max
▪Operating Temperature 0°C - 40°C (32°F - 104°F)
▪Storage Temperature -20°C - 60°C (-4°F - 140°F)
▪Relative humidity: 20 –90% RH (non condensing)
▪CE/FCC and RoHS/REACH, California 65 compliant
