Linksys WPC11 User manual

A Division of Cisco Systems, Inc.
®
Model No.
Model No.
Wireless Quick Installation Guide Wireless
1
Quick Installation Guide
Model No. WPC11 (UK/EU)
Notebook Adapter
Wireless-B
Package Contents
• Wireless-B Notebook Adapter
• Setup Wizard CD-ROM with Multi-language
Quick Installation Guide and User Guide
(English only)
• Quick Installation
GHz
802.11b
24
,

2
1
AInsert the Setup Wizard CD-
ROM into your CD-ROM drive.
The Setup Wizard should run
automatically, and the Wel-
come screen should appear. If
it does not, click the Start but-
ton and choose Run. In the
field that appears, enter
D:\setup.exe (where “D” is the
letter of your CD-ROM drive.
BTo install the Adapter, click the
Install button on the Welcome
screen.
CAfter reading the License
Agreement, click the Next but-
ton if you agree, or click the
Cancel button to end the
installation.
DThe Setup Wizard will ask you to
choose a wireless mode. Click
the Infrastructure Mode radio
button if you want your wireless
computers to network with
computers on your wired net-
work using a wireless access
point. Click the Ad-Hoc Mode
radio button if you want multi-
ple wireless computers to net-
work directly with each other.
A
Software Installation and Configuration
for Windows 98SE, Me, and 2000
NOTE TO WINDOWS XP USERS: Go directly to Step 2.
C
D

3
In the SSID field, enter the SSID
of your wireless network. The
SSID must be identical for all
devices in the network. The
default setting is linksys (all low-
ercase). Click the Next button.
EIf you chose Infrastructure
Mode, go to step F now.
If you chose Ad-Hoc Mode,
select the correct operating
channel for your network. The
channel you choose should
match the channel set on the
other devices in your wireless
network. Click the Next button,
and go to step F.

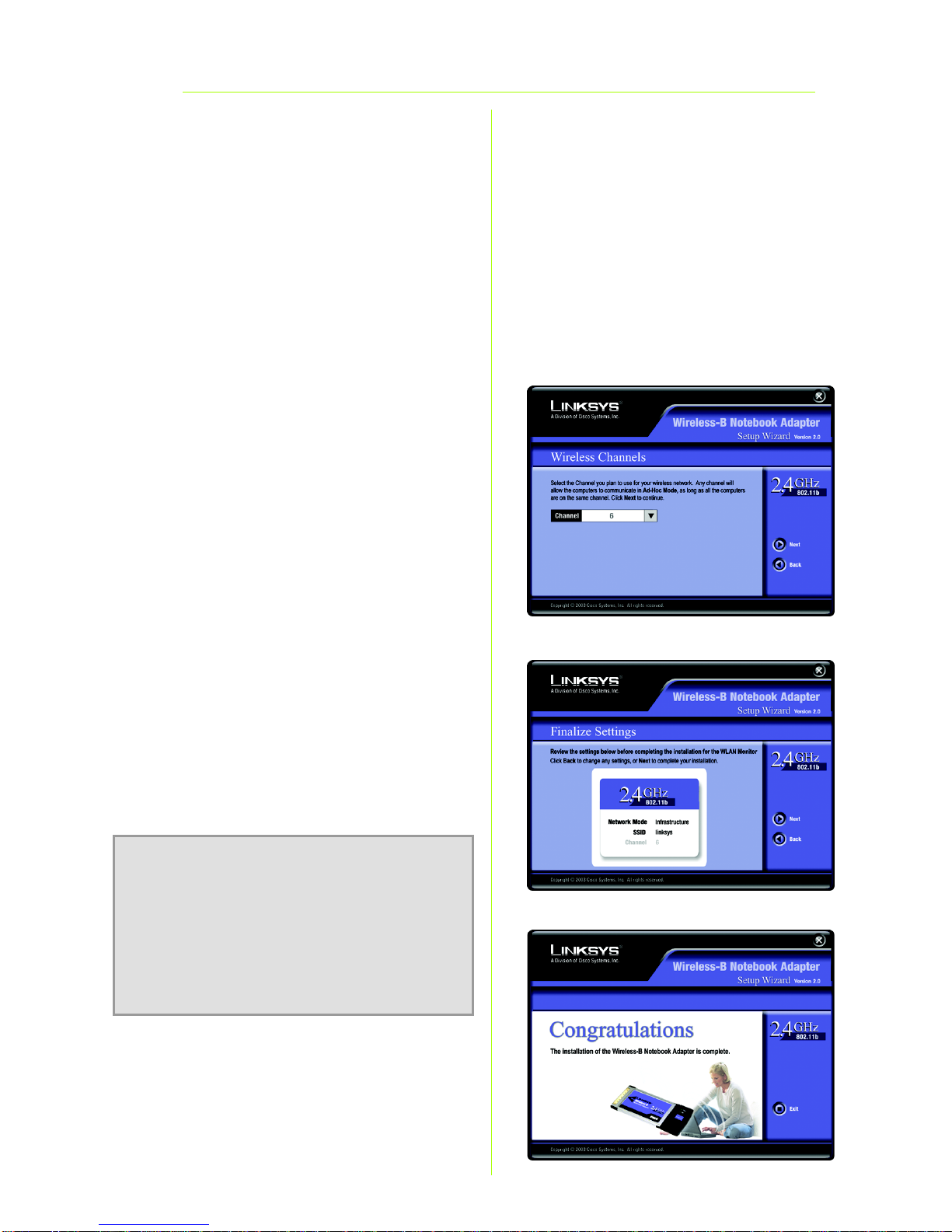

FThe Setup Wizard will ask you to
review your settings before it
starts to copy files. Click the Yes
button to save these settings,
or click the No button to
change any settings.
GAfter the files have been suc-
cessfully copied, the following
screen will appear. Click the
Exit button.
Proceed to Step 2.
E
F
G
NOTE FOR WINDOWS 2000 USERS: A
Digital Signature Not Found screen may
appear during the installation of the
driver. The Adapter has been tested and
is compatible with Windows 2000. Click
the Yes button to continue.

4
2
C

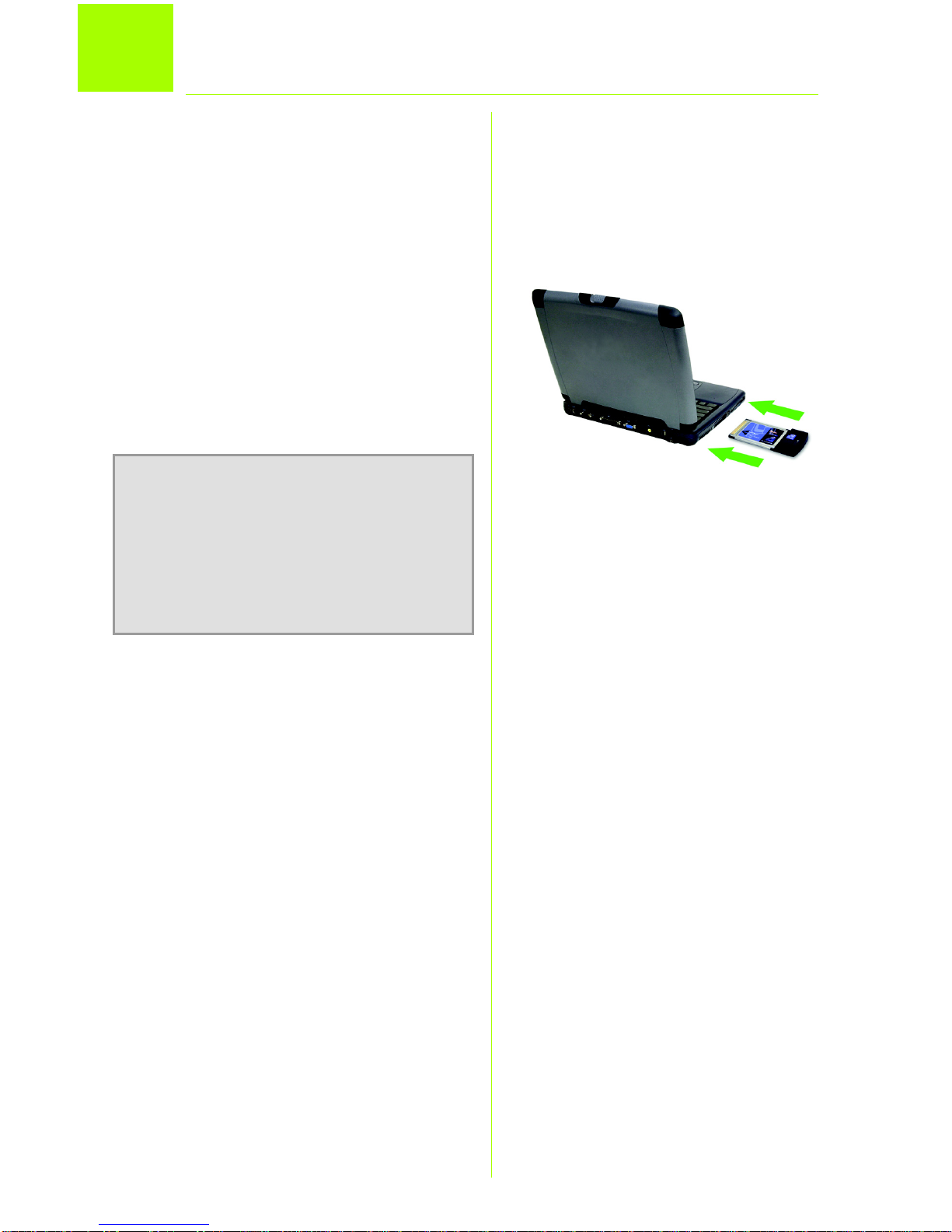

ATurn off your notebook PC.
BLocate an available PCMCIA
slot on your notebook PC.

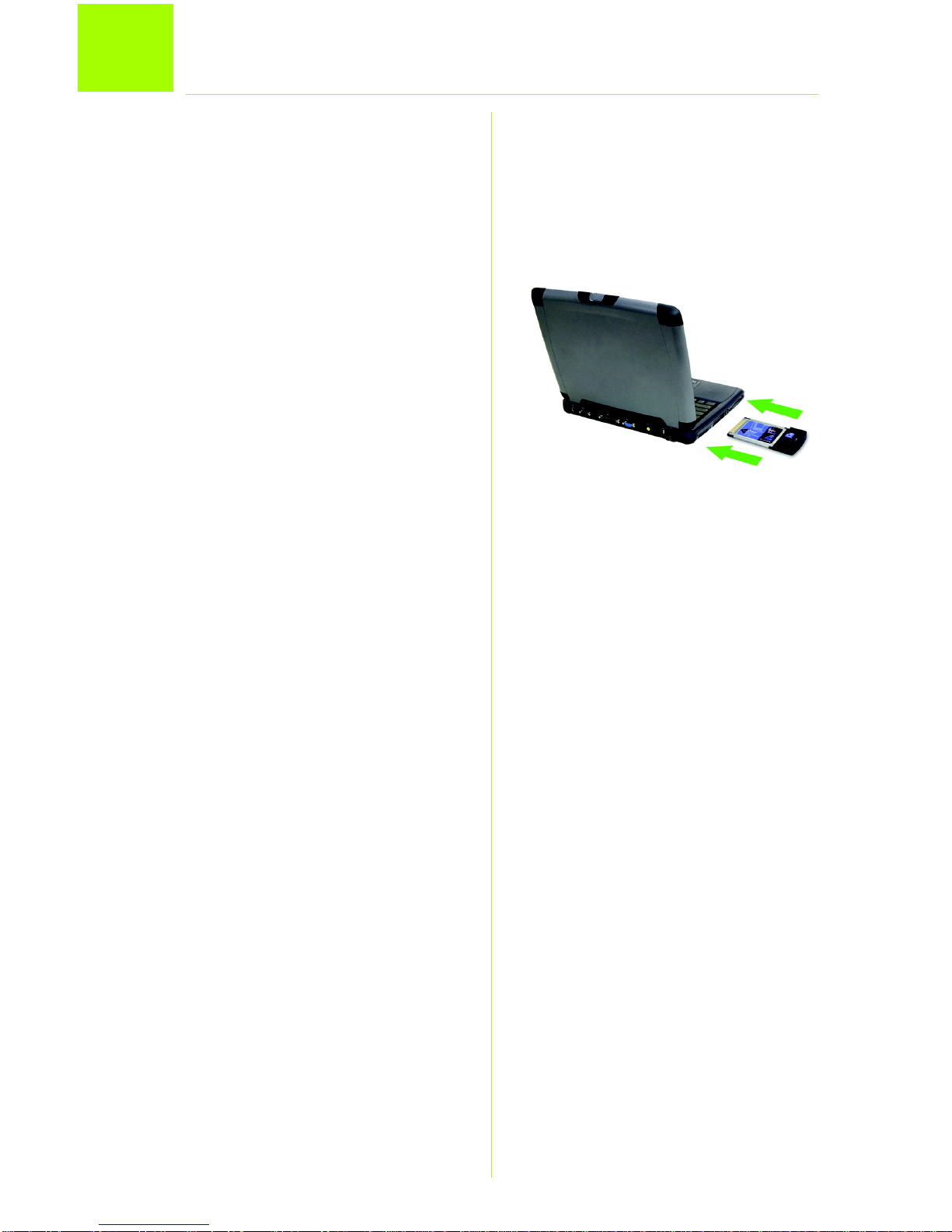

CInsert the Adapter with the label
side facing up, so the Adapter
fits snugly in the PCMCIA slot.
DTurn on your notebook PC.
EWindows will begin installing the
driver files in your operating sys-
tem. If Windows asks you for the
original Windows CD-ROM,
insert the CD-ROM, and direct
Windows to the proper location
for the CD-ROM (e.g., D:\).
Windows 98SE, Me, and 2000 users:
Congratulations! The installation of
the Wireless-B Notebook Adapter is
complete.
Windows XP users: Proceed to
Step 3.
Connecting the Notebook Adapter
NOTE FOR WINDOWS 2000 USERS: A
Digital Signature Not Found screen may
appear during the installation of the
driver. The Adapter has been tested and
is compatible with Windows 2000. Click
the Yes button to continue.

5

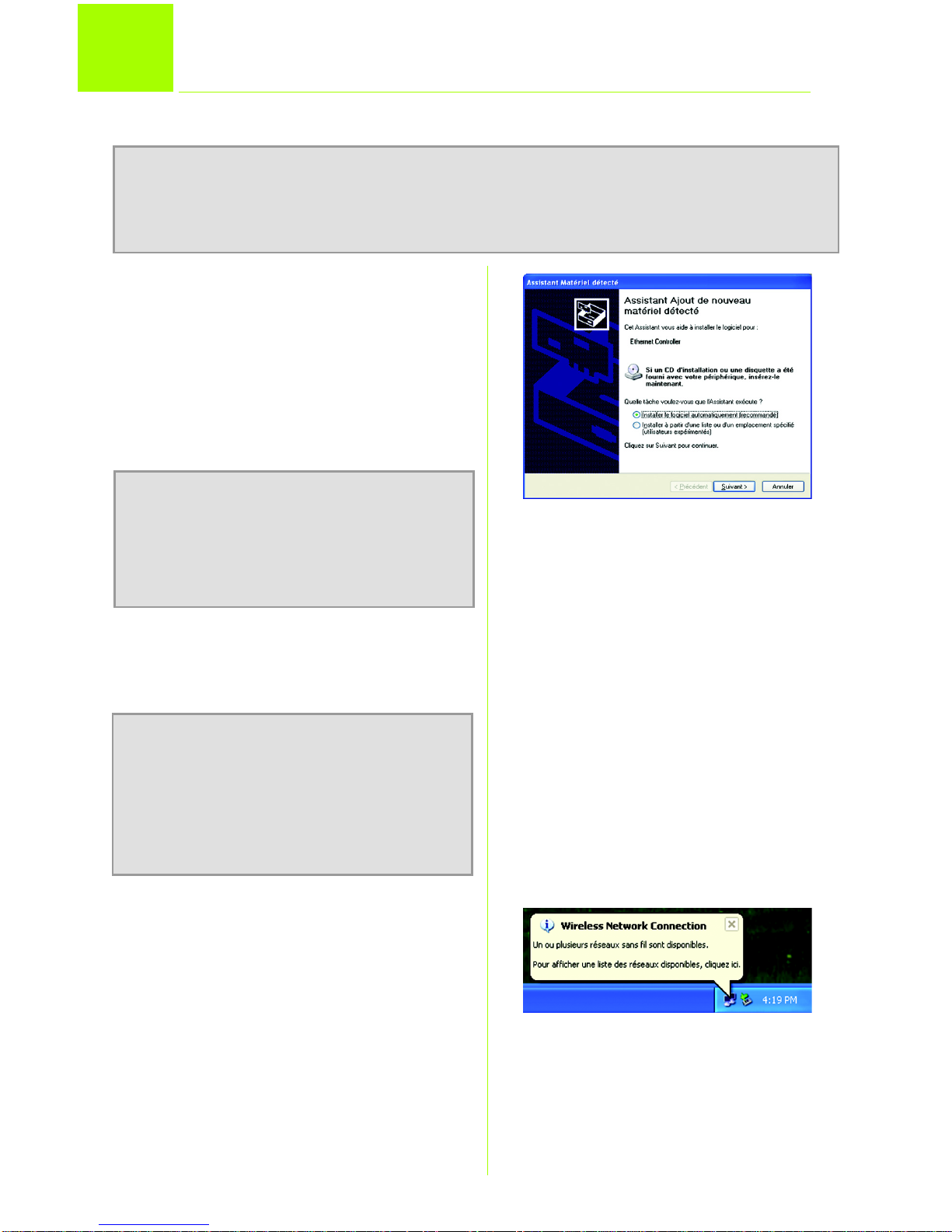

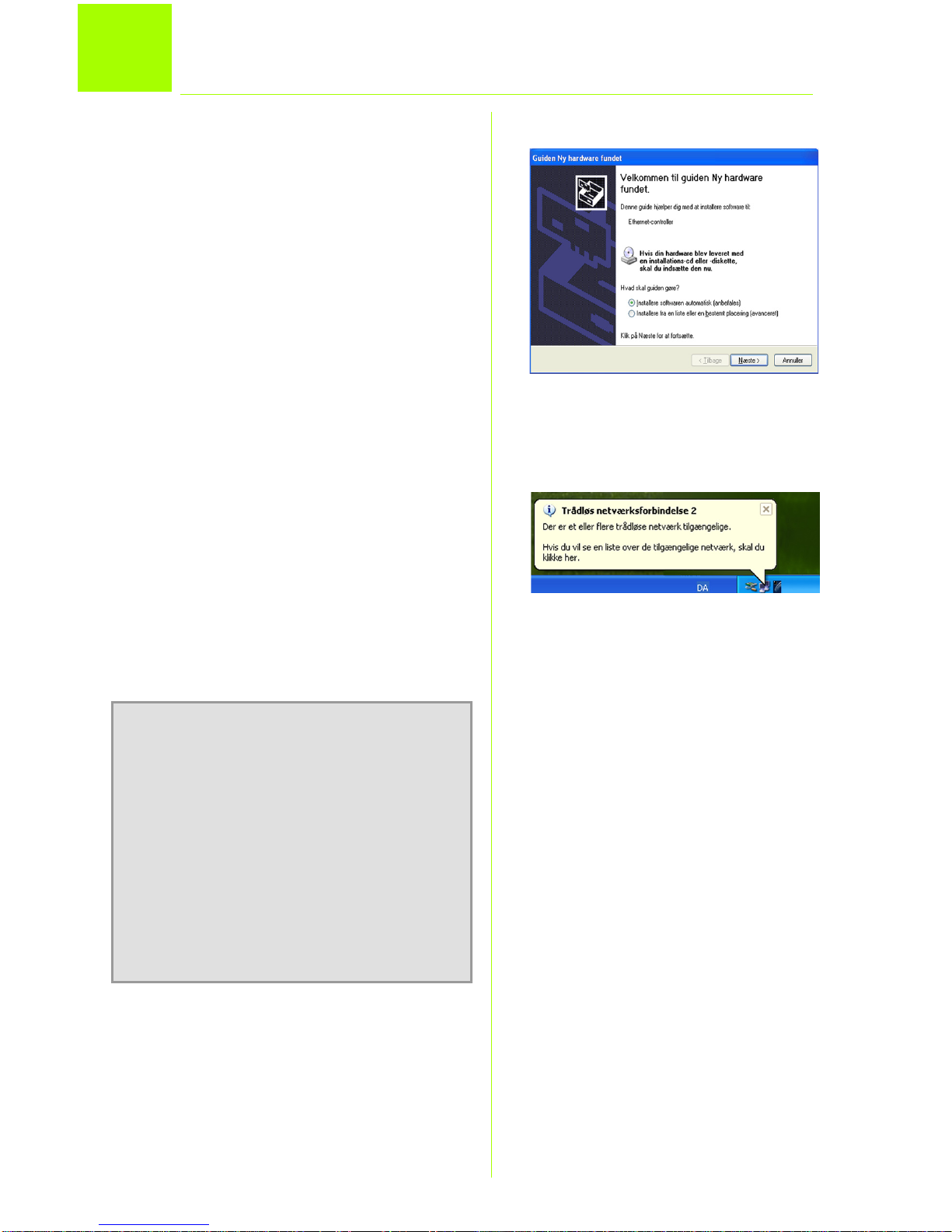

AWindows XP will automatically
detect the Adapter. Insert the
Setup Wizard CD-ROM into your
CD-ROM drive. Click the radio
button next to Install the soft-
ware automatically (Recom-
mended). Then click the Next
button.
BAfter Windows has finished
installing the driver, click the
Finish button.
CAfter installing the Adapter, the
Windows XP Wireless Zero Con-
figuration icon will appear in
your computer’s system tray.
Double-click the icon.
A
C
3Driver Installation and Configuration for
Windows XP
IMPORTANT FOR WINDOWS XP USERS: DoNOT runtheWireless-BNotebookAdapter
Setup Wizard. If the Setup Wizard runs automatically after the Setup Wizard CD-
ROM has been inserted, click the Exit tab.
NOTE: Windows XP has a built-in con-
figuration tool. Use the Windows XP
Wireless Zero Configuration (in the sys-
tem tray at the bottom of your screen)
to configure the Adapter.
NOTE: A screen that mentions Windows
XP compatibility may appear. The
Adapter has been tested and is com-
patible with Windows XP. Click the Con-
tinue Anyway button to continue.

6

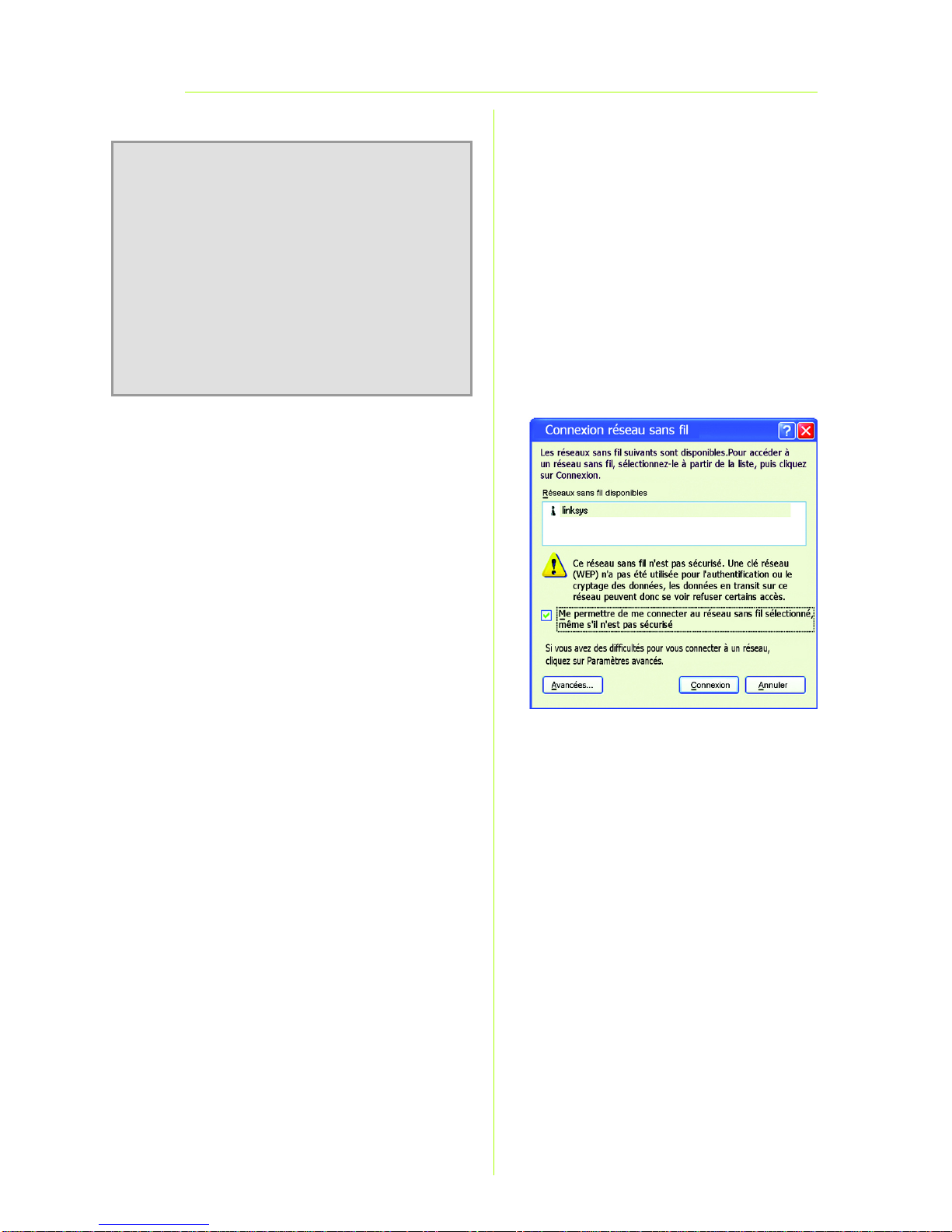

DThe screen that appears will
show any available wireless
network. Select the network you
want.
If this network has WEP encryp-
tion enabled, go to Sep E.
If this network does not have
WEP encryption enabled, then
the screen in Figure D will
appear. Make sure the box
next to Allow me to connect to
the selected wireless network,
even though it is not secure is
checked. Then click Connect,
and go to Step F.
D
NOTE: Steps D and E are the instruc-
tions and screenshots for Windows XP
with Service Pack 1 installed. If you
have not installed Service Pack 1,
select the network you want, and click
the Connect button. If the network has
WEPencryptionenabled,entertheWEP
key in the Network key field, and then
click the Connect button.

7

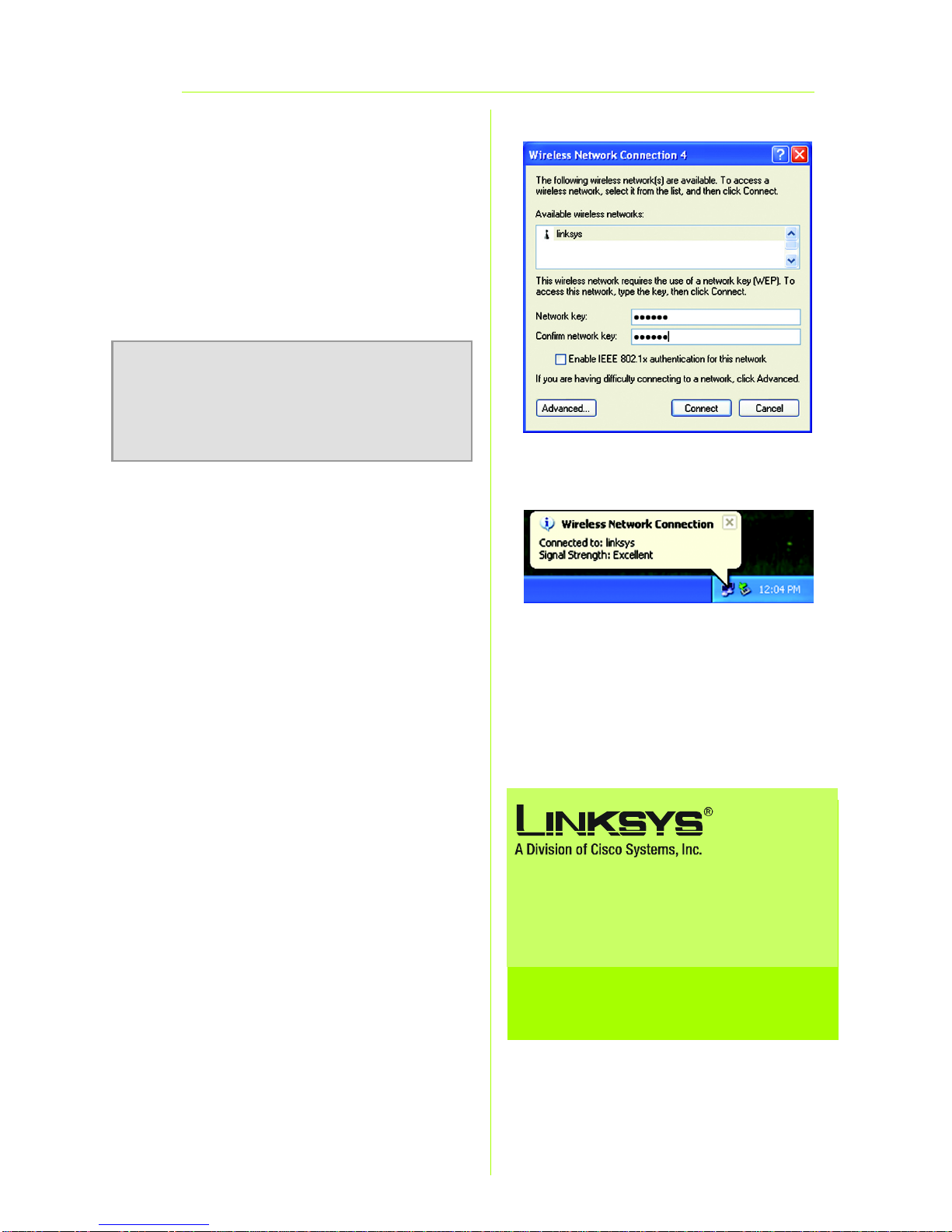

EIf WEP is enabled, the screen in
Figure E will appear. Enter the
WEP key of your wireless net-
work in the Network key field,
and re-enter it in the Confirm
network key field. Then click
Connect.
FThe screen in Figure F will
appear if your connection is
active.
For more information about WEP,
refer to your access point’s user
guide, or visit
www.linksys.com/international.
For more information about wireless
networking on a Windows XP com-
puter, enter the keyword wireless in
the Windows XP search engine.
Windows XP users: The installation
of the Wireless-B Notebook Adapter
is complete.
WPC11-UK-EU_V4-QIG-40413AJL
For additional information or troubleshooting
help, refer to the User Guide on the CD-ROM
or the Technical Support Insert. You can also
e-mail for further support.
Website
http://www.linksys.com/international
Linksys is a registered trademark or trademark of
Cisco Systems, Inc. and/or its affiliates in the U.S.
and certain other countries. Copyright © 2004
Cisco Systems, Inc. All rights reserved.
F
NOTE: Windows XP Wireless Zero Con-
figuration does not support the use of a
passphrase. Enter the exact WEP key
used by your access point. E

A Division of Cisco Systems, Inc.
®
Model No.
Model No.
Wireless Quick Installation Guide Trådløs
1
Installationsvejledning
Modelnr. WPC11 (DK)
Notebook-adapter
Trådløs-B
Pakkens indhold
• Trådløs-B Notebook-adapter
• Cd-rom med guidet konfiguration og
brugervejledning (kun på engelsk)
• Installationsvejledning
GHz
802.11b
24
,

2
1
APlacer cd-rom’en med guidet
konfiguration i cd-rom-drevet.
Den guidede konfiguration
køres automatisk, og figur A
vises. Hvis det ikke er tilfældet,
skal du klikke på knappen Start
og vælge Run (Kør). Indtast
D:\setup.exe (hvor “D” er
bogstavet for cd-rom-drevet) i
det felt, der vises.
BInstaller adapteren ved at
klikke på knappen Install i
skærmbilledet Welcome.
CKlik på knappen Next, når du
har læst License Agreement.
DDet guidede konfiguration
giver dig mulighed for at
vælge en trådløs tilstand. Klik
på alternativknappen Infra-
structure Mode, hvis dine
trådløse computere, skal
oprette netværksforbindelse til
computere i det kabelbaser-
ede netværk ved hjælp af et
trådløst access point. Klik på
alternativknappen Ad-Hoc
Mode, hvis flere trådløse com-
putere skal oprette netværks-
forbindelse direkte til hinanden.
Indtast SSID’et for det trådløse
netværk i feltet SSID. SSID’et
skal være identisk for alle
enheder i netværket. Stan-
A
Driverinstallation og konfiguration i
Windows 98SE, Me og 2000
VIGTIGE OPLYSNINGER TIL WINDOWS XP-BRUGERE: Fortsæt til trin 2.
C
D

3
dardindstillingen er linksys
(små bogstaver). Klik på knap-
pen Next.
EHvis du vælger Infrastructure
Mode, skal du gå til trin F nu.
Hvis du vælger Ad-Hoc Mode,
skal du vælge den korrekte
kanal til netværket. Den valgte
kanal skal passe til den kanal,
der er indstillet på de andre
enheder i det trådløse
netværk. Klik på knappen Next.
FI følgende skærmbillede bliver
du bedt om at gennemse ind-
stillingerne, inden filerne
kopieres. Klik på knappen Yes
for at gemme disse indstill-
inger, eller klik på knappen No
for at ændre indstillingerne.
GNår filerne er kopieret, vises føl-
gende skærmbillede. Klik på
knappen Exit.
Fortsæt til trin 2.
E
F
G
