Linuo SR-200 User manual

Model: SR-200
Operation Guide

Table of Contents
一、Introduction………………………………………………………………1
二、Treatment principle………………………………………………………1
三、Scope…………………………………………………………………………1
四、Technical Parameters………………………………………………………2
五 、Random accessories…………………………………………………………2
六、Installation and commissioning………………………………………….3
七、Operating Instructions…………………………………………………….4
八、Operating common sense…………………………………………………….7
九、Precautions…………………………………………………………………….8
十、Maintenance and service…………………………………………………….8

一、Introduction

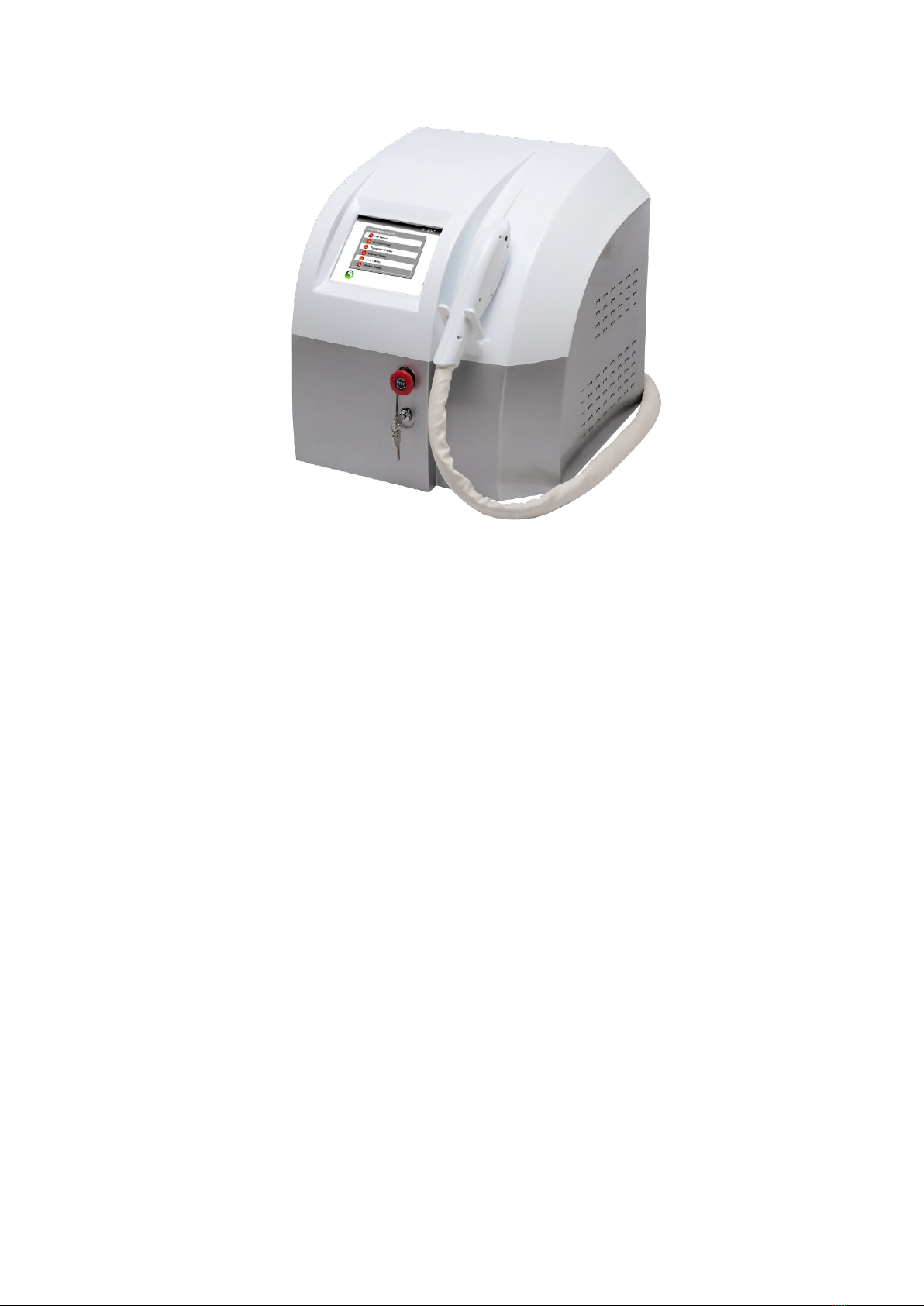

SR-200 is an enhanced version of E-light upgrade, increasing the current latest technology,
namely SHR technology, slide hair removal technology, the E-ray equipment to a higher level of the
hierarchy. Its control system uses an embedded Linux technology, core board with a more powerful
computing faster, more stable operation of Micro2440 core board, so upgrading equipment, the
operation reached a truly intelligent. 8.0 inch true color display interface enables customers to enjoy
luxurious beauty services.
二、Treatment principle
E-light-- use of two-stage RF IPL and RF technology, combined with a perfect pulse technology, the
core is able to precisely control each pulse, and the energy of each pulse is no attenuation effect on our skin,
it is also this is also formed as a perfect pulse energy, eliminating the high-energy peaks E IPL first light
pulse, the sub-pulse energy attenuated by one of the technical drawbacks, which makes the SHR above a
particular therapeutic effect over a significant improved, especially in the cream, hair removal, skin
rejuvenation aspects. More good improvement in skin texture, reduce the role of the pores, so is a real sense
of rejuvenation technology, the more important is the safety of the treatment greatly improved, avoiding the
kind often appear photorejuvenation treatment in the past, such as skin burns side effects. The real issue is
to make the whole pulse energy output smooth homogeneous, all intelligent control software, set pulsed
light skin rejuvenation, pigmented lesions, vascular treatment in one.
SHR-- in E-light, based on the increase in the sliding hair removal technology. Faster emitting
frequencies, ensuring sufficient energy while improving hair removal instrument humane. Strong cooling
system ensures crystal kept cold, relieve pain of hair removal.
三、Scope
1, hair removal: permanent hair removal, hair indecent throughout the body (hair growth), including the
lighter fine hair.
2, freckle: get rid of freckles, chloasma, sunburn, age spots, acne and India, facial blemishes.
3, rejuvenation: improve large pores, rough skin, fine wrinkles, restore skin elasticity.
4, treatment of telangiectasia: redness, facial flushing.
5, to improve dull complexion, skin white, uniform color.
6, specifically red capillaries, brown, brown and other color tattoos.
7, effectively remove all kinds of embroider eyebrow, soak lip, eyeliner and lip.
四、Technical Parameters

Spectral range
430-1200nm
E light amount of
1-50 J/cm²
E light pulse
0.1-30ms
E light pulse interval
1-99ms
E light pulse number
5
E light emitting interval
1-5s
RF energy
1-25 J/cm²
SHR energy
1-50 J/cm²
SHR pulse
0.1-7ms
SHR pulse
1-6HZ
Power
1000W
Spot size
8mm*40mm
Cooling System
Semiconductor refrigeration, closed loop forced water cooling,
air-cooled heat exchange but
Water tank
6L
Input power
230V±10%/110V±10% 50HZ-60HZ
Package size / weight
61*58*50CM 30KG
五、Random accessories
Name
Unit
Amount
Remarks
Hand tools
The
1
Fish-type hand tools
Power line
Article
1
The key to
The
2
Water funnel
A
1
Goggles
Deputy
1
Guests use
Protective glasses
Deputy
1
Operator uses
Fuse
Support
2
Spare
六、Installation and commissioning
一.Unpacking
Open the instrument outside the box, according to the packing checklist is

Inspection
consistent instrument accessories
二.Hand with
installation
1, the hand to hand with a connection on the interface card snaps into
place tight
2, the hand tool into the rack
三.Instruments
injection
1, the water holes on the rear panel hosts, unscrew the overflow hole sealing cap
2, the water filling funnel screwed into the hole, to the instrument water (pure water
or medical distilled water), until the overflow hole until water flows out
3, the water will overflow hole finished sealing cap screwed on
四.Instrument
commissioning
1, check the water circuit is not connected error, the case of non-leaky
joints, plug in the power cord, power switch startup after turning back
2, clockwise from the front of the emergency stop switch hosts
3, the key switch clockwise to unscrew
1、Hand with connection icon
七、Operating Instructions

八、1, turn on the power switch.
2, clockwise from the emergency stop switch.
3, the key switch clockwise 90 degrees, open the instrument.
4, enter the interface, interface operation.
After the system automatically detects finished, click on the standby interface, the following
interface.

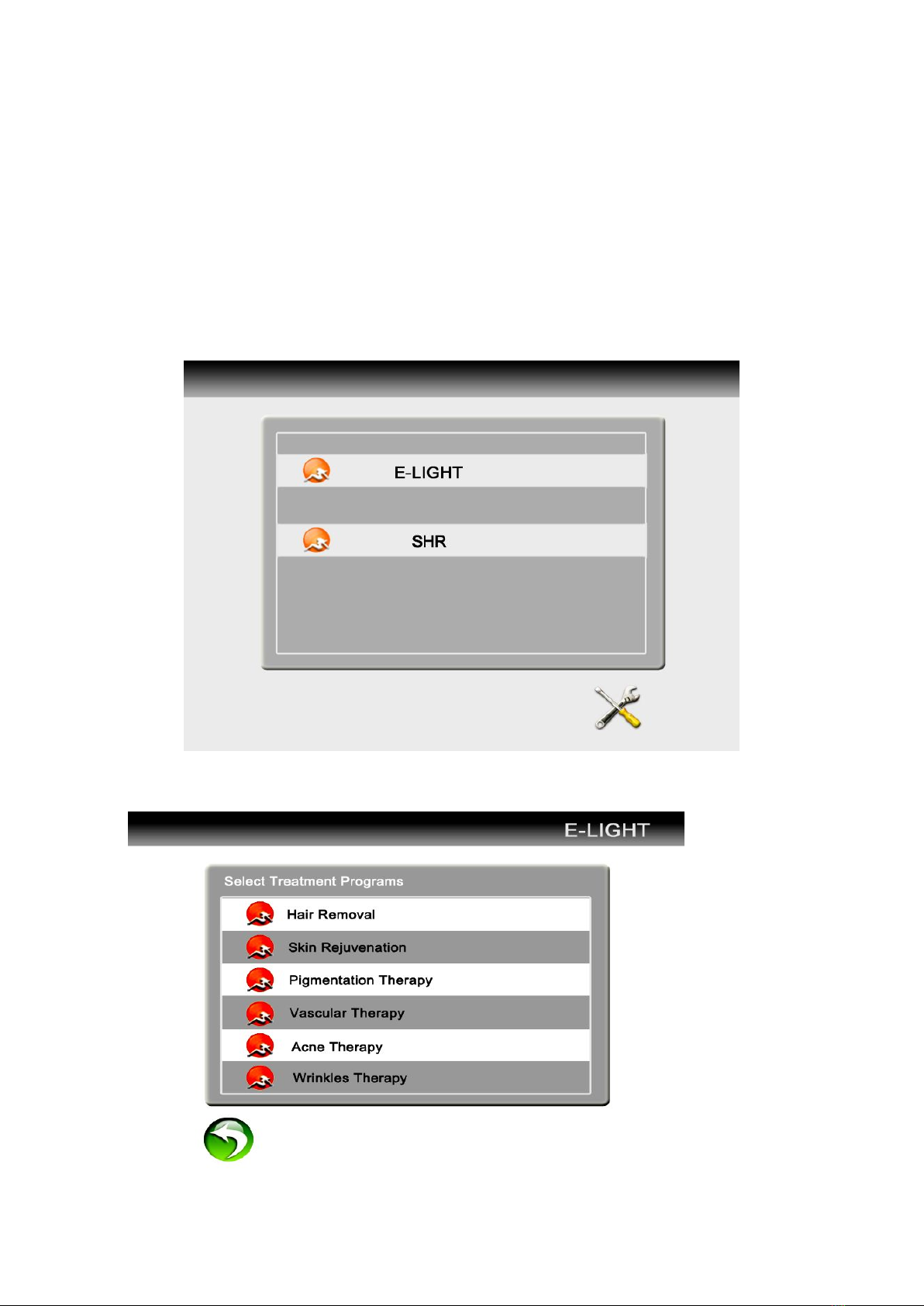

(A, enter the item selection interface)
（B、选取 E-LIGHT 治疗项目，进入治疗模式选择界面）

（C. 选取相应的治疗模式，进入操作界）
Treatment records: Displays the current treatment records, you can record
different treatment parameters in order to facilitate the treatment of different customers,
click to change the treatment records, there are three kinds of choices.
Treatment mode: Display the current selected operation item.
Pulsenumber:referstoeachtimethetriggerdischarge,thenumberofintensepul
sdsystems issued, the number of pulses increases the depth of the light effect
on the skin enhancement, you can directly click adjustments, adjustment range is 1-5.
The first pulse: refers to the first act on the working hours of intense
pulsed on the skin, and click interface with direct access to adjust settings.
Sub width: sub-pulses applied to the skin of the working hours, when the single-pulse
applications are not displayed, click direct access to adjust screen settings.
Pulse interval: the first refers to the time between pulses and sub-pulses, click
togodirectly to adjust screen settings.
RF role of time: refer to RF energy applied to the skin of the time, you can directly click
adjustments, adjustment range 0-2000ms.
Luminous interval: refers to two luminous interval can be adjusted directly tap
adjustment range is 1-5s. Total luminous: Displays the total number of hands with
luminous.
The luminous Views: Show times for this hands with luminous. Status indicator
bar: display lighting state, charge state, state level, water temperature state.

Return key: to return to the treatment mode selection interface.
IPL energy regulation: regulation of the energy output of the size of the hand with
IPL, the adjustment process in the IPL display window shows the current energy output
energy value.
RF energy regulation: adjustable hand with RF energy output size, adjust the
display window during RF energy output will show the current energy value.
Cooling adjustment: hand tools used to adjust therapy treatment temperature,
divided into 10 stalls adjustable, blue snowflake more refrigeration stronger, blue
snowflakes disappear cooling off.
Start / Stop button: Press the "Start" button to trigger the hand tool and
automatically charge the capacitor, when charging is complete to enter treatment status.
Press the "Stop" button to exit the treatment condition.
Continue / Pause button: the display as "continue", the state for the rest, you can
set parameters, this time for the light hand with the state but by the hand with a button
does not light.
(D. Select B-RF treatment programs, entered into the user interface)
Width: Strong pulse acting on the working time on the skin 0.1-7ms adjustable
Status Bar: Displays the lighting status, charging status, water status, temperature

status.
Energy regulation: regulation of the energy output of the hand with the size of the
display window shows the energy output of the energy value of the former.
Cooling adjustment: hand tools used to adjust therapy treatment temperature,
divided into 10 stalls adjustable, blue snowflake more refrigeration stronger, blue
snowflakes disappear cooling off.
八、Operating common sense
1、Taboo crowd
Heart disease, high blood pressure patients
pregnant women, patients with epilepsy
Hypertension, diabetes
light allergic customers
Long-term work crowd in bright light, the recent sunburn skin
Short-term peels customers
customers are taking antioxidant or hormone drugs
2、Preparation before the physiotherapy
①, preoperative consultation, fill in the file.
②, preparatory work: cold gel, scrapers, goggles, instruments preheat
③, steps: Cleansing - Clean the face - scrape off excess hair - coated cold gel - spot test -
treatment operation - cold - water - smear repair products
3、Physiotherapy Precautions
①, must be provided to the customer strict and effective eye protection measures (such as
gauze, protective goggles)
②, physiotherapy is recommended during the gel thickness 2-3mm, bald skin for optimal fit,
do not press too heavy or vacant.
③, the skin will have a slight tingling during therapy, fever feeling, but all bear within the
scope of the customer
④, energy parameters based on individual tolerance and response of the skin can turn left and
right to adjust 2-3, after the end of therapy with red, hot, tingling, are a normal phenomenon,
through the cold can be faded within 30 minutes. After the heat dissipated, will be part of the
pigment is broken down into small particles extracted to the skin surface.

⑤, redness customers, you need to redness at the site between energy 15-18J / cm² operating
again, five minutes later, 25 J / cm² so and then operate again, repairable horny fade redness.
After the operation slightly bloodshot than previously become clear, will slowly fade after ten
days.
⑥, have freckles and moles of the site a few minutes after the end of therapy have
pigmentation deepened phenomenon, where the pigment has been extracted epidermis, about
three to seven days off will gradually fade away with the metabolism.
⑦, skin treatments will still blazing after feeling a slight skin redness, usually about half an
hour will recede (individual skin especially sensitive skin red back in twelve hours are
normal); days after physiotherapy there will be itching feeling, is a normal skin metabolic
reactions, water will ease.
4、Precautions after physiotherapy
①, heat, can be used cold, cold spray, natural cooling method.
②, pay, within seven days of continuous use is recommended moisturizing mask,
prohibit sauna, steam surface, within ten days to clean the face with cold water.
Should be used within ③, sunscreen, SPF20 after more than a month, excluding
foundation sunscreen and avoid direct glare operating site, umbrellas, etc. when they go
out recommended sunscreen.
④, within a week to prohibit eating spicy, seafood, spicy food, celery, parsley and other
sensitive foods not to eat, eat foods high pigment content, avoid alcohol.
⑤, use is prohibited during the treatment efficacy based cosmetics, cosmetics prohibit
the use of hormones.
⑥, two cycle interval of 28-45 days of therapy, the epilation interval period is 2 months.
九、Precautions
1、Handling Safety
The instrument memory precision devices, users try not to move long distances. Water in the
instrument must be put before shipping the machine clean, all the water holes blocked strict,
and transportation process must be used to provide cushioning original packaging, or it may
lead to disorders of the optical system, the impact of energy output.
2、Electrical Safety
Instrument operation timing of memory in high-pressure, after turning off the power, high
voltage devices is still possible with a residual voltage, high pressure will be free to open the

chassis danger of electric shock!
3、Operational safety
①, must be filled before starting the water, otherwise it will burn treatment of hand tools! And
the use of pure water or medical distilled water.
②, check the instrument immediately after power circuit and waterways, and in the whole
operation should always observe the safety circuit and waterways.
③, never look directly into the hand of a head shot to the front exit glare.
④, treatment room ban may reflective material such as: watches, mirrors, jewelry, etc.
⑤, always keep a light guide system clean and make sure that the gel does not pollute cold
light guide system
十、Maintenance and service
1, the date of the instrument from the purchase date (with notes) hosts warranty 12 months,
within 12 months of the equipment failure (non-human phenomenon) free repair. Warranty
period may also be responsible for maintenance, spare parts and consumables to charge the
cost of fees in accordance with company policy (customers bear the shipping costs). If you
need to add or to purchase, please contact us.
2, the following user's personal causes malfunction, do not provide free repair warranty
service:
①, disassemble, modify the product caused by the failure;
②, use and distribution of the Company's failure caused the adapter;
③, use carelessly, beat, drop caused by a fault;
④, due to lack of reasonable care caused by failure;
⑤, did not follow the proper use instructions for use caused the failure.
3、Product Warranty
Warranty Card
Product Name
Customer Name
Product Type
Phone
Date of
purchase
Address
Maintenance
Date
Cause
Maintenance
Content
Maintenance man
